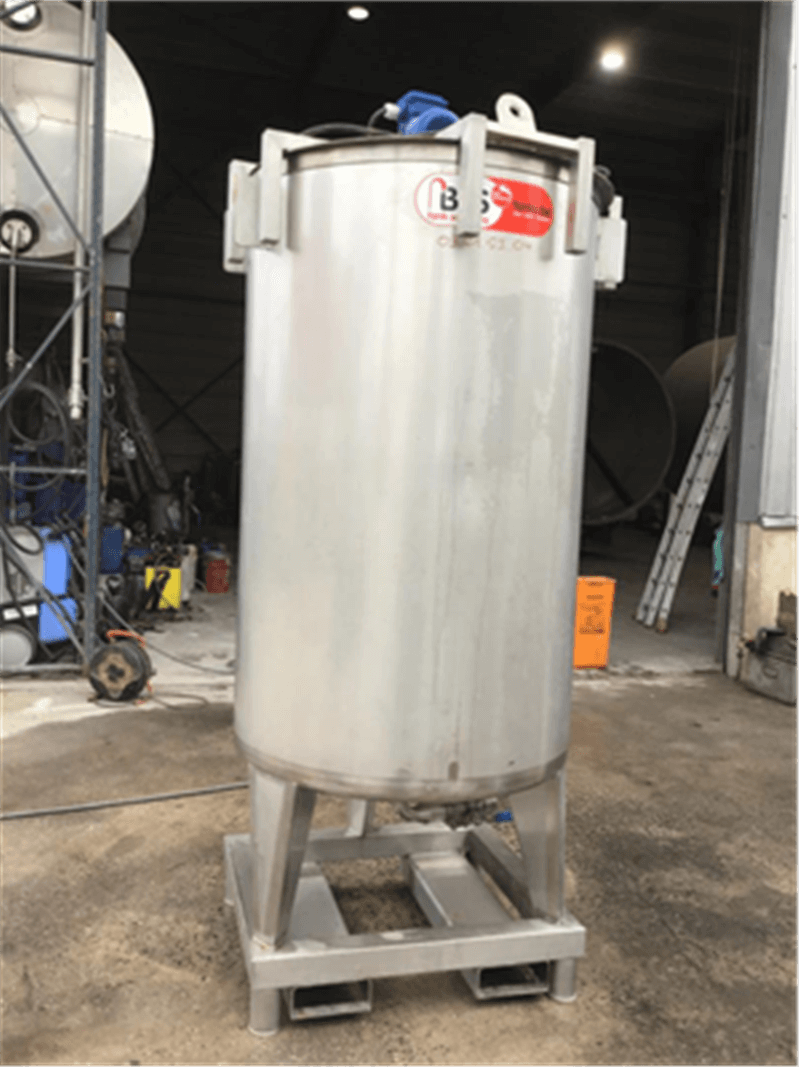

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 1100 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.SI.04 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1100 |
| Type tank | Mixing vessel |
| Fixation | chassis |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

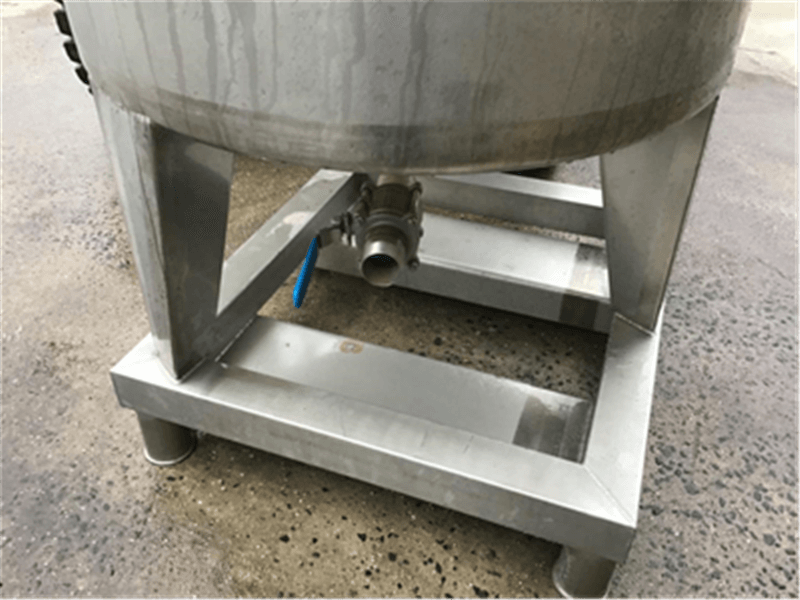

| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 3016 |
| Cylindrical length (mm) | 1500 |
| Total height (mm) | 2500 |
| Diameter tank (mm) | 960 |
| Width (mm) | 960 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Remarks | |
|---|---|

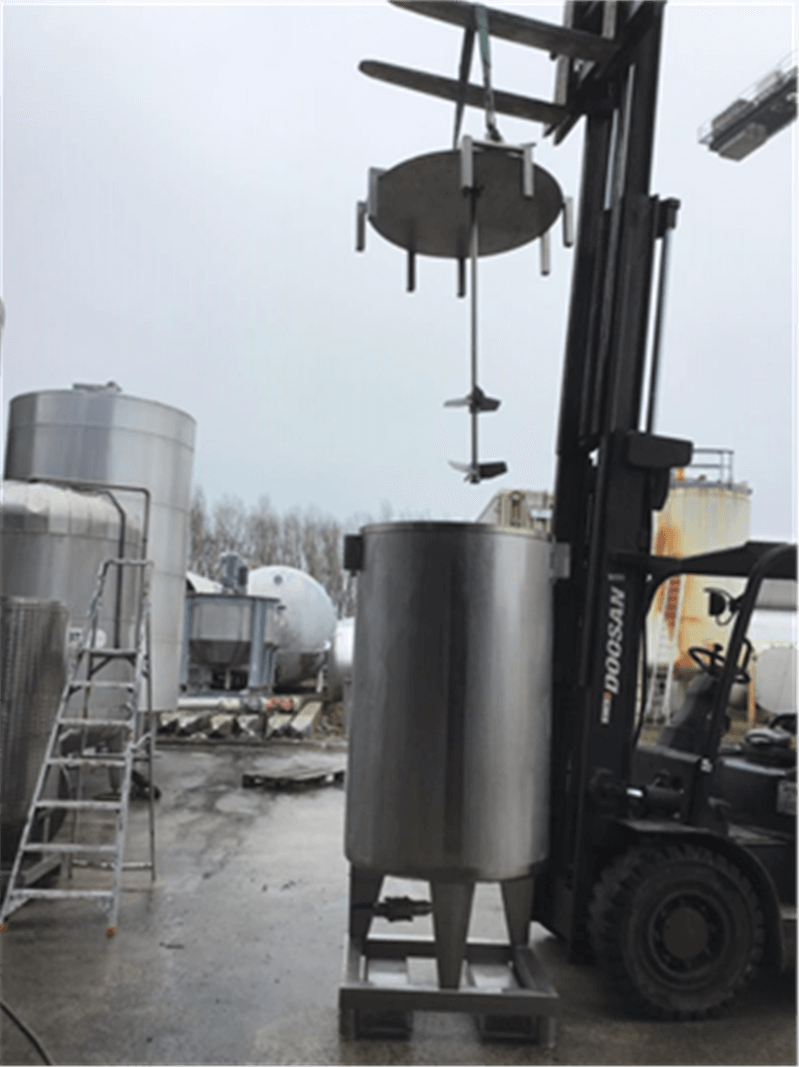

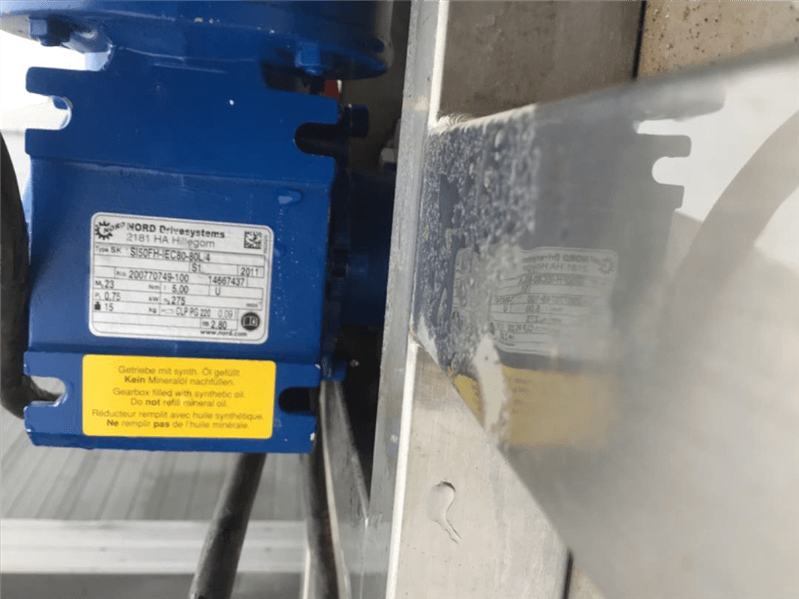

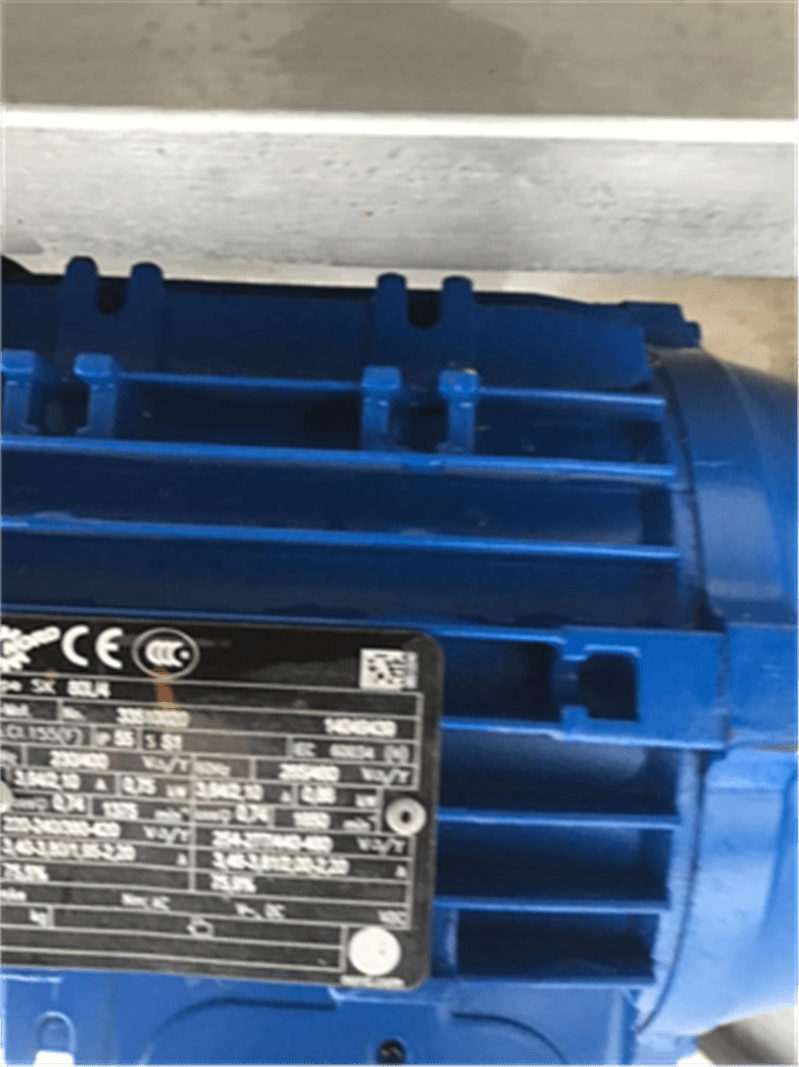

| Description (EN) | cover with agitator ( motor: manifacturor Nord - IP22- 50/60HZ- 3.64/2.1A- 1375/1650-cos phi 0.74 - 0.75/0.86kW )( reduction Nord P 0.75kW-n2 275rpm ) |
