Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.SH.05 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 10000 |
| Type tank | Storage tank |

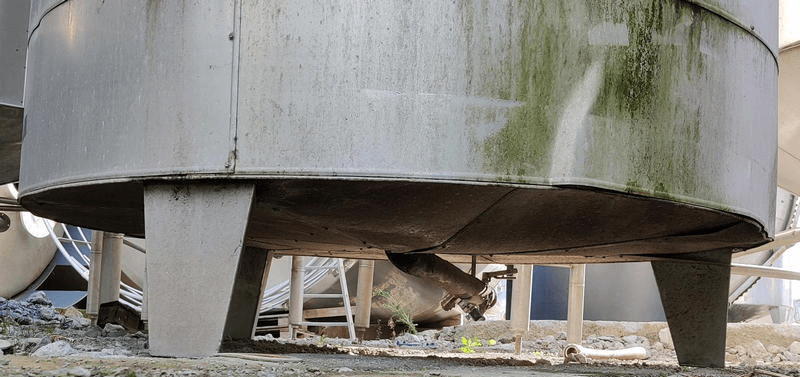

| Fixation | 3 legs |

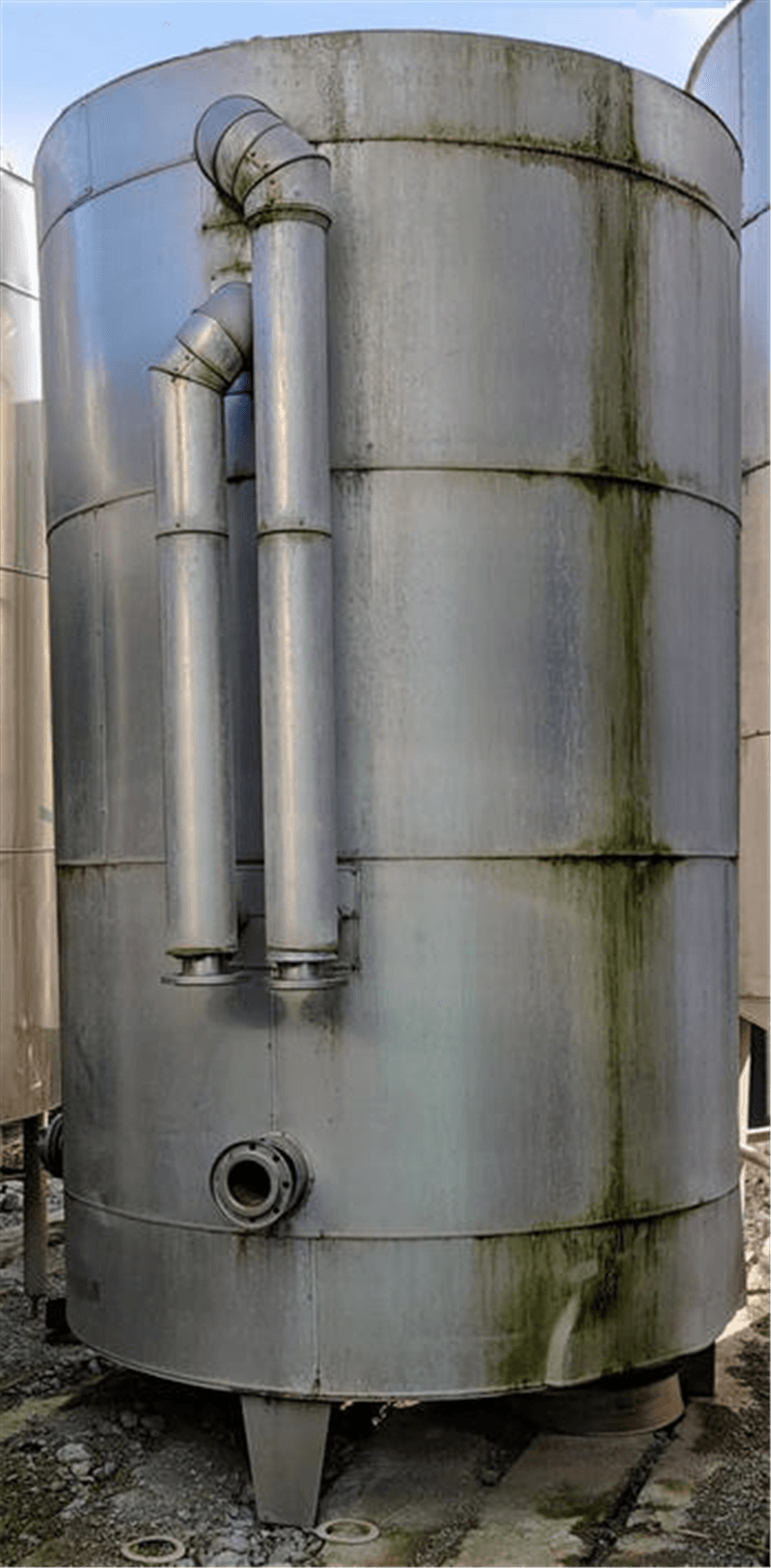

| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

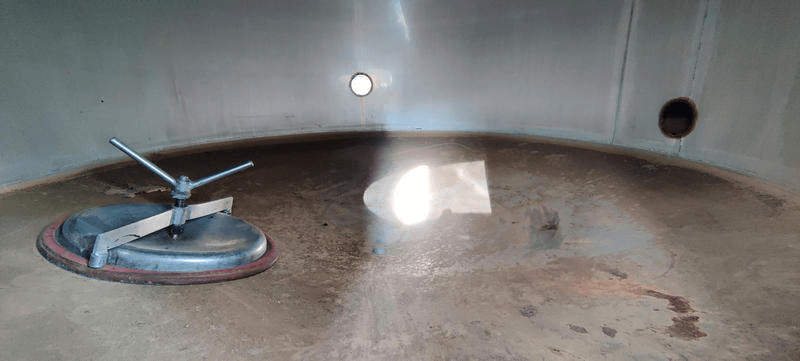

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

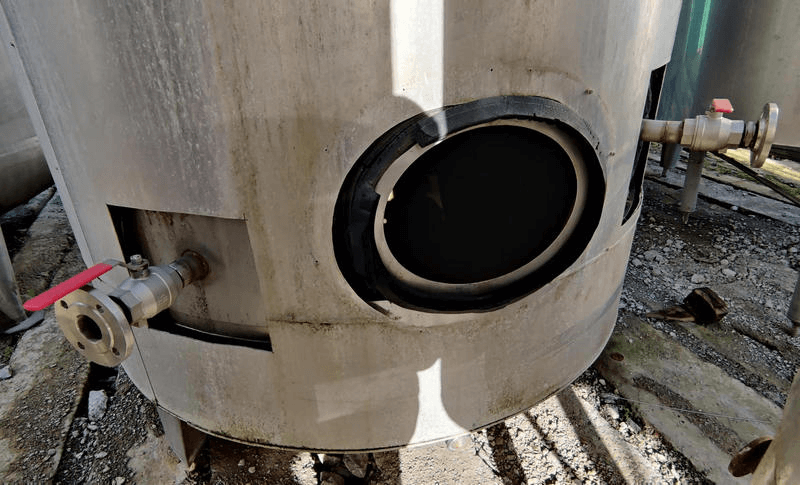

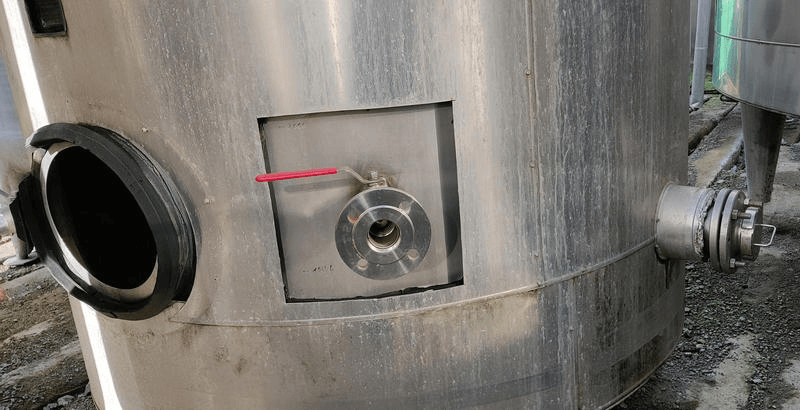

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 450x350 |

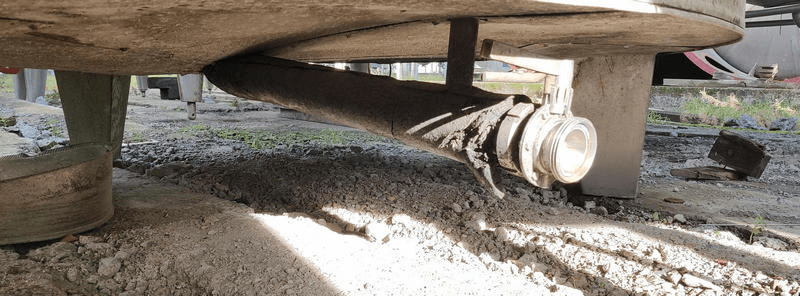

| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 53 |
| locality | B-7711 Belgium |
| Last application | Food |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|

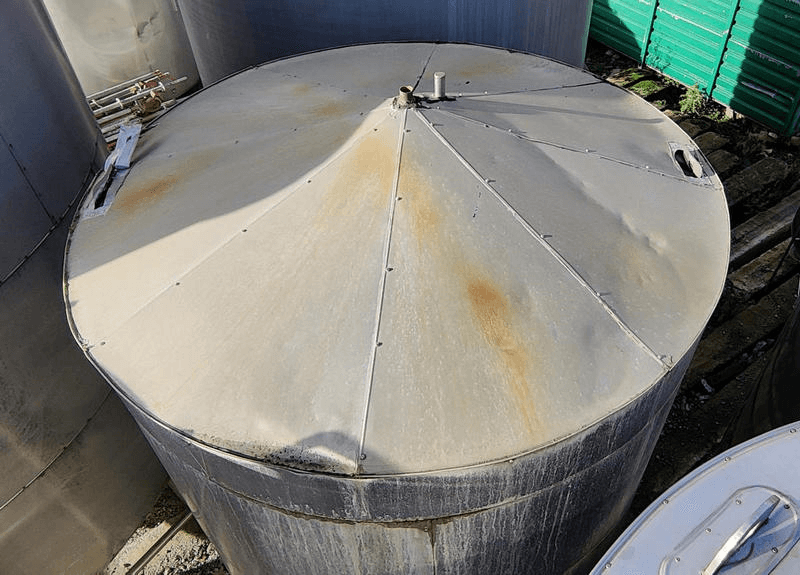

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,1 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,1 |
| Bottom thickness (mm) | 3,1 |
| Cylindrical length (mm) | 3040 |
| Height bottom (mm) | 235 |
| Total height (mm) | 4070 |
| Length (mm) | 3040 |
| Diameter tank (mm) | 1990 |
| Width (mm) | 2335 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Armaflex |
| Thickness (mm) | 40 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
