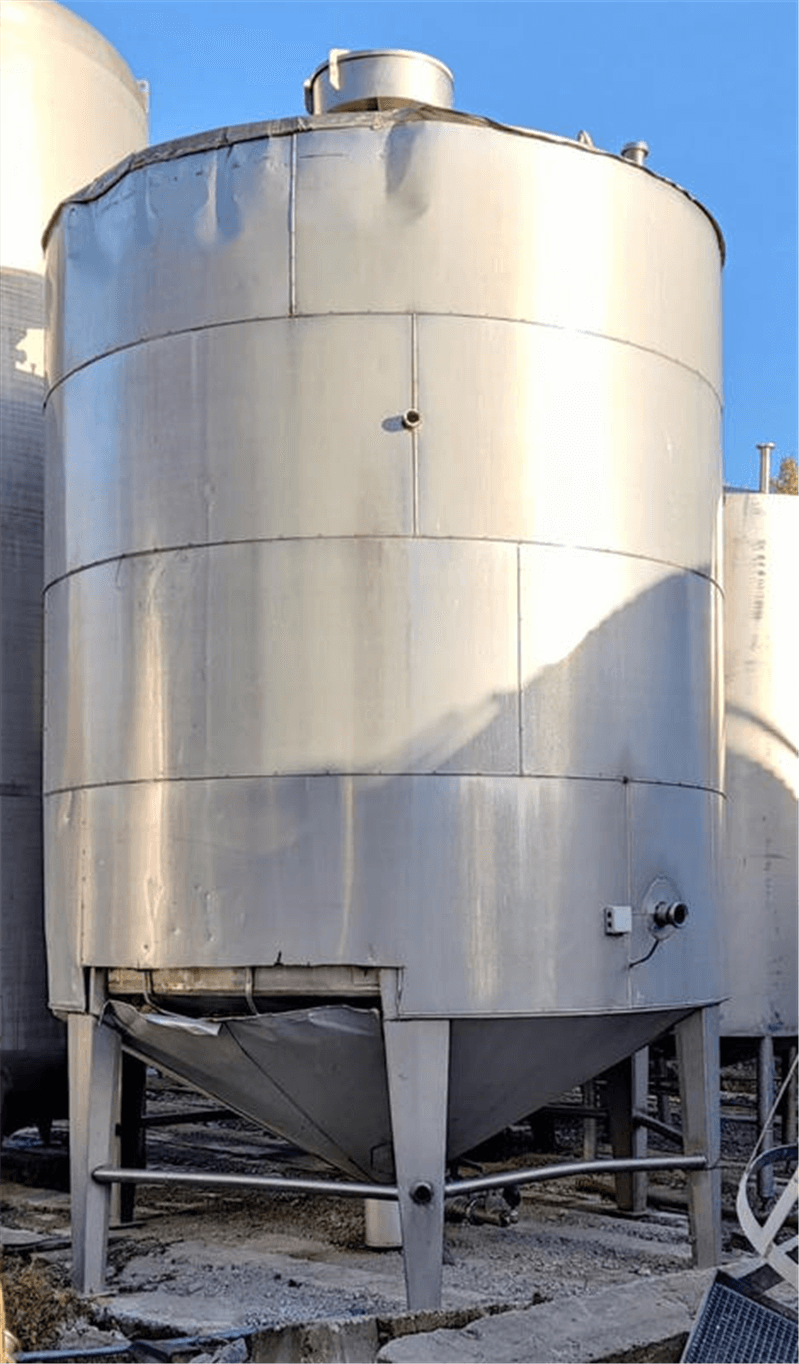

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 30500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.SH.01 |
| Material | Stainless steel 304 |

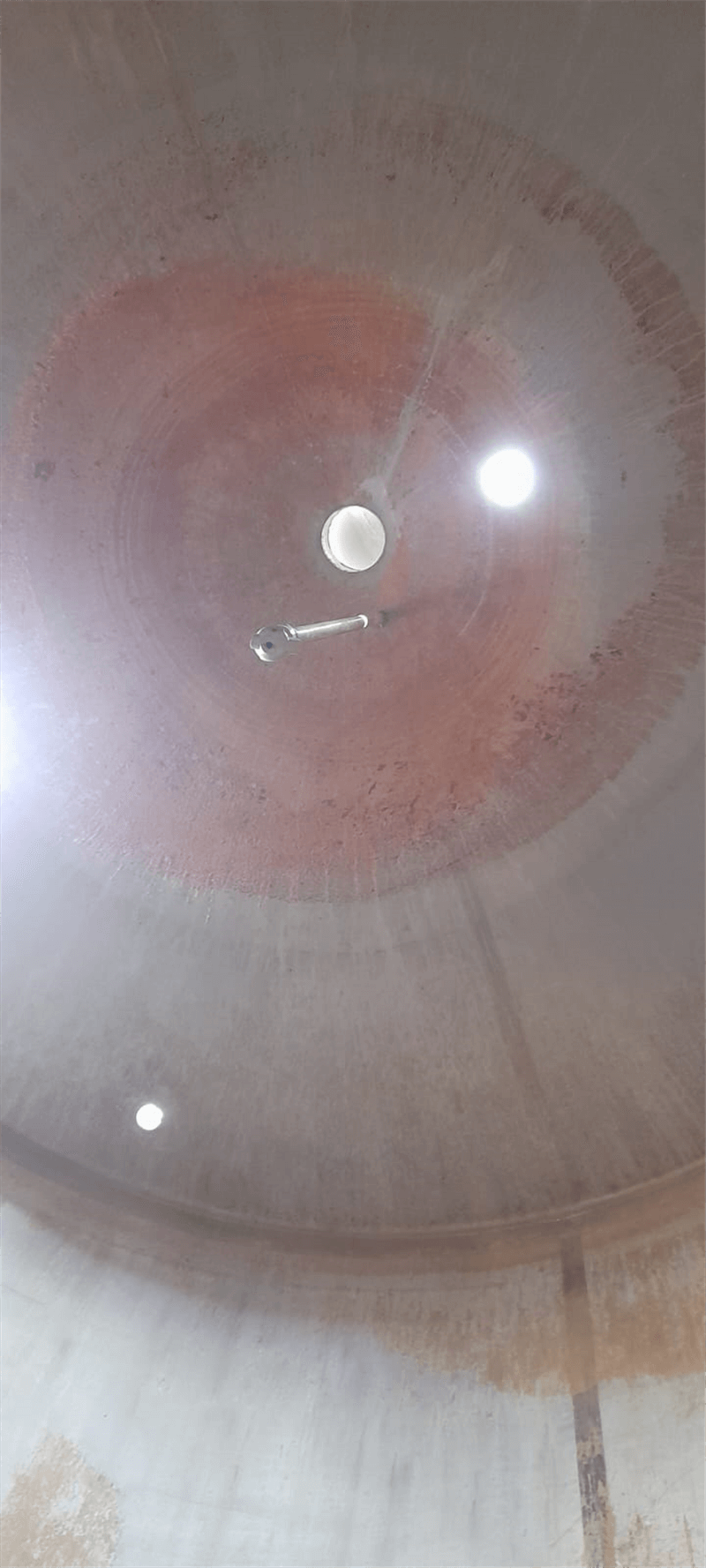

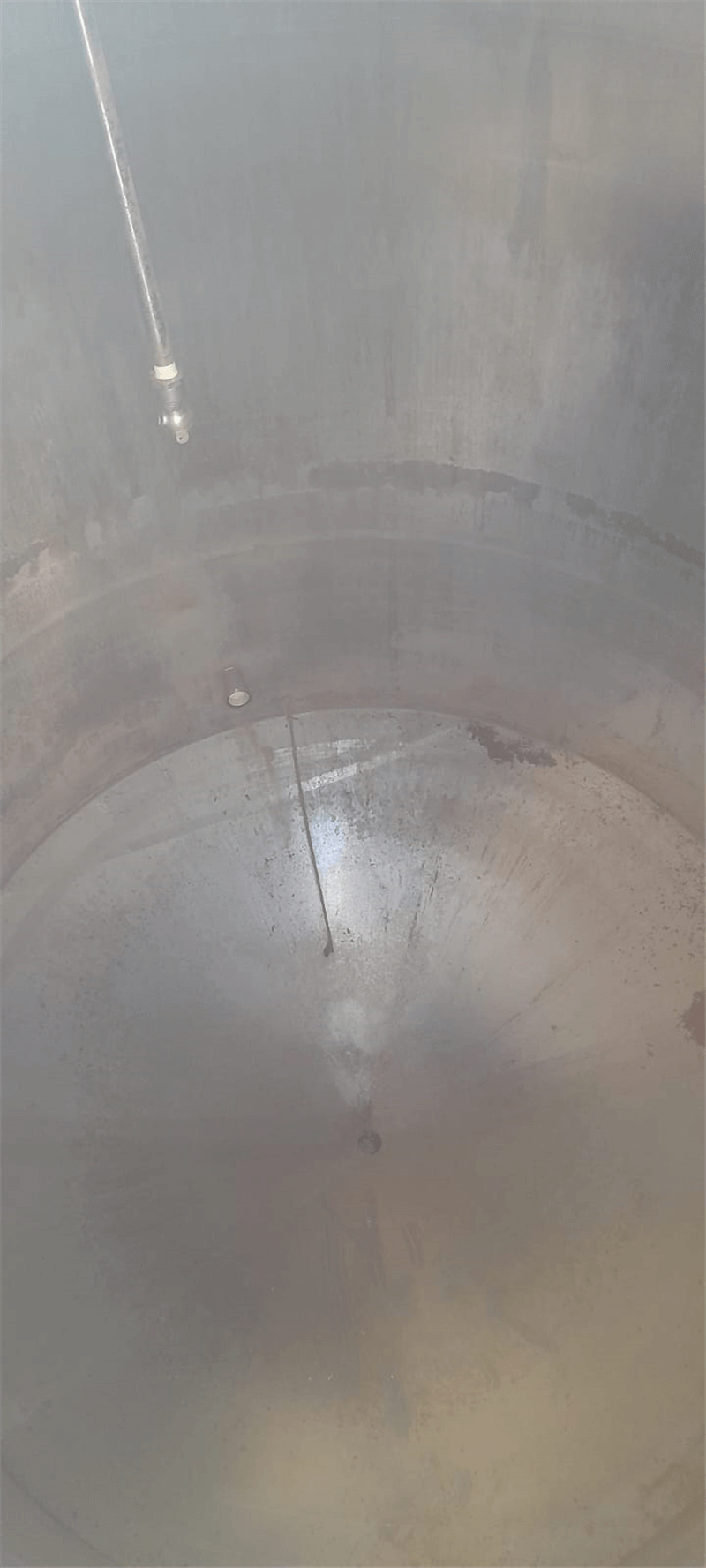

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 30500 |
| Type tank | Storage tank |
| Fixation | 6 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

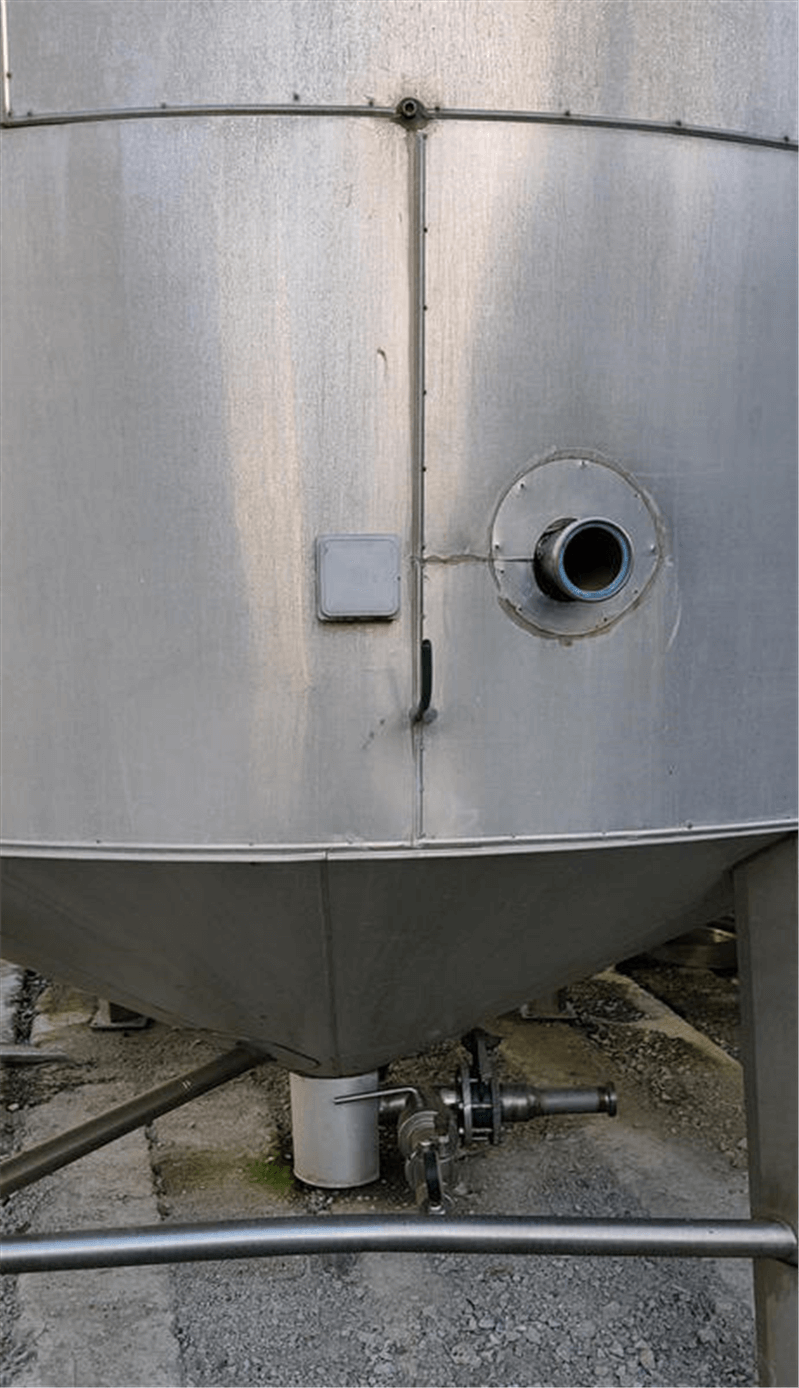

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 3 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 450 |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 101,6 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |

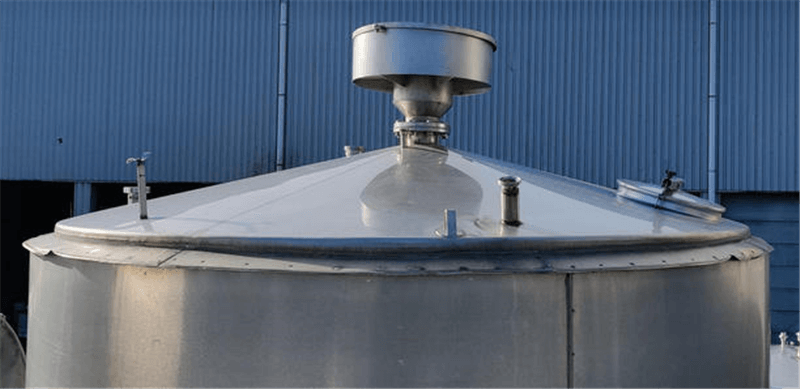

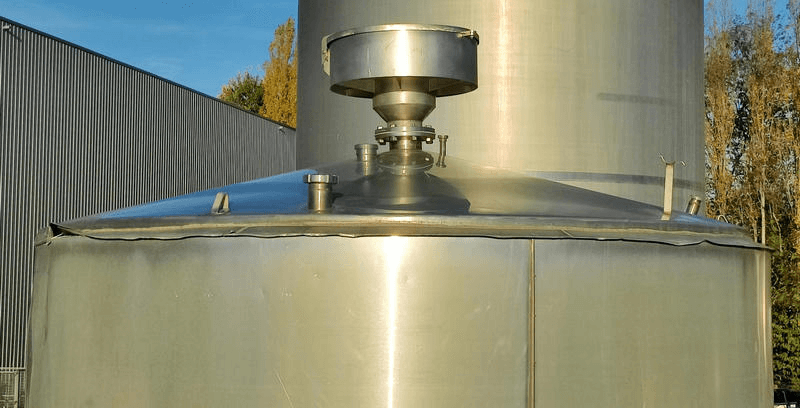

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,1 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,1 |
| Bottom thickness (mm) | 3,1 |
| Periphery (mm) | 10400 |
| Cylindrical length (mm) | 3540 |
| Height bottom (mm) | 1000 |
| Total height (mm) | 5830 |
| Length (mm) | 3540 |
| Diameter tank (mm) | 3140 |
| Width (mm) | 3400 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 80 |
| Finishing insulation | Rivited sheet cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |

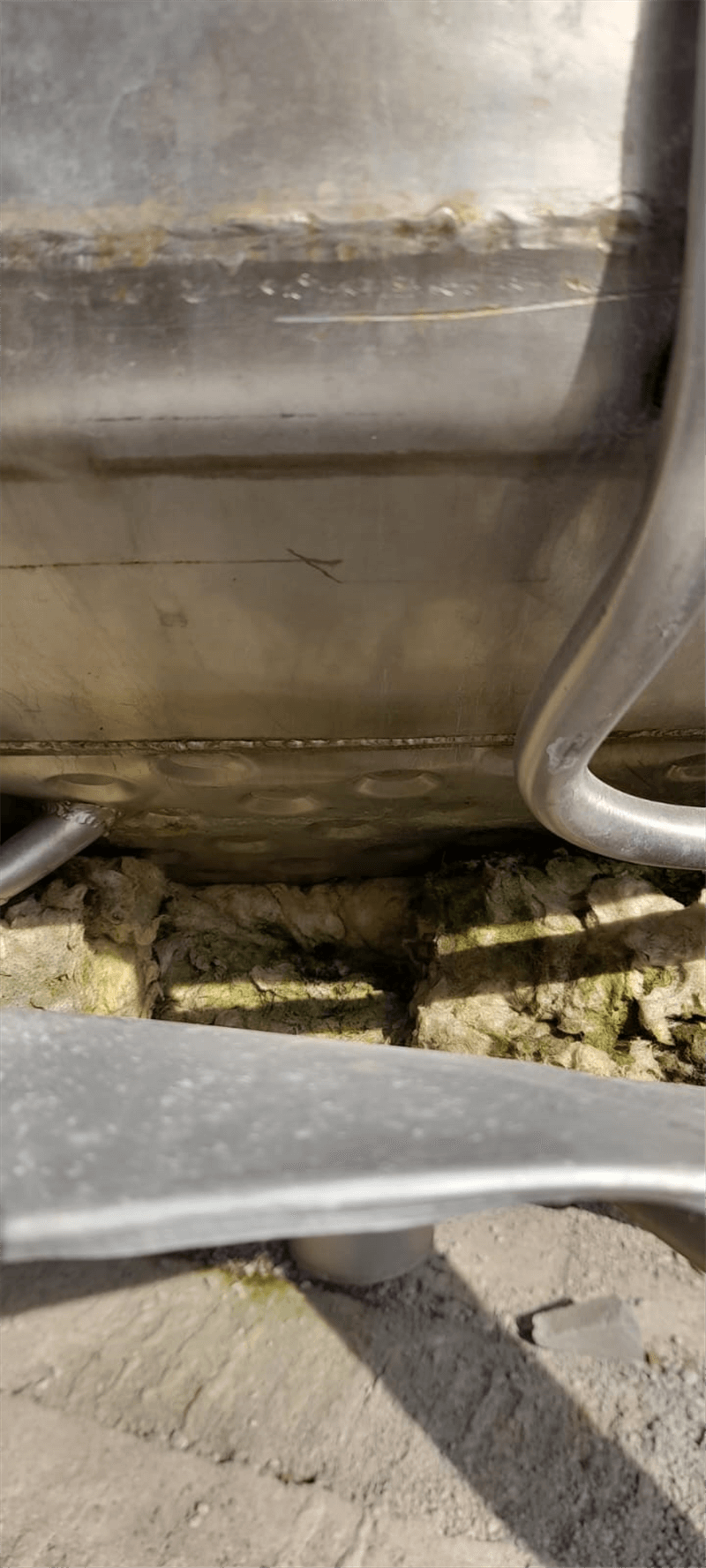

| Heating 1: Type | Dimple plate |
| Remarks | |
|---|---|

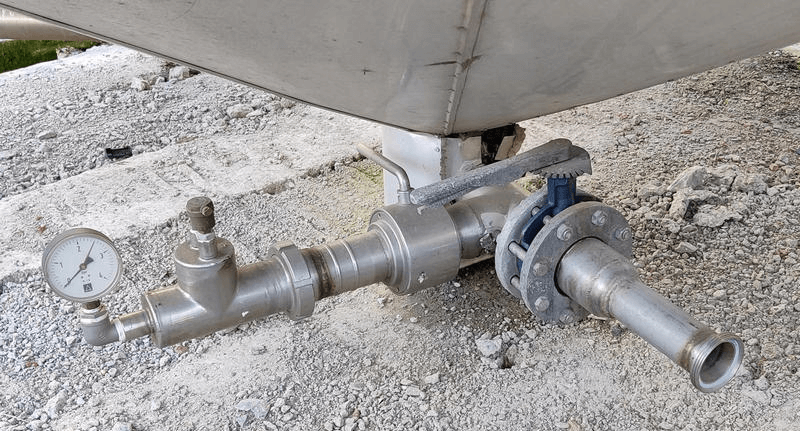

| Description (EN) | Outlet: 4" sliding flance for NW65 milk coupling Heatable with dimple plate till the height of 2250mm |
