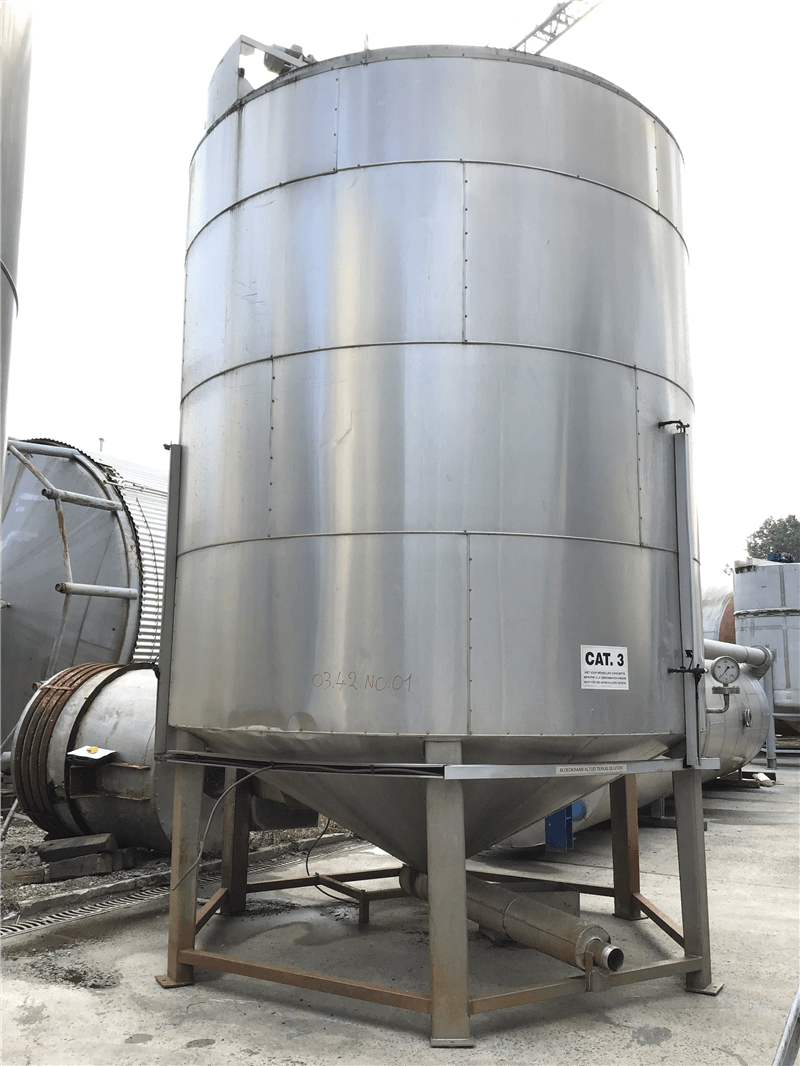

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 25000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.NO.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Untreated |
| Number | 1 |
| Capacity (Liters) | 25000 |
| Type tank | Mixing vessel |

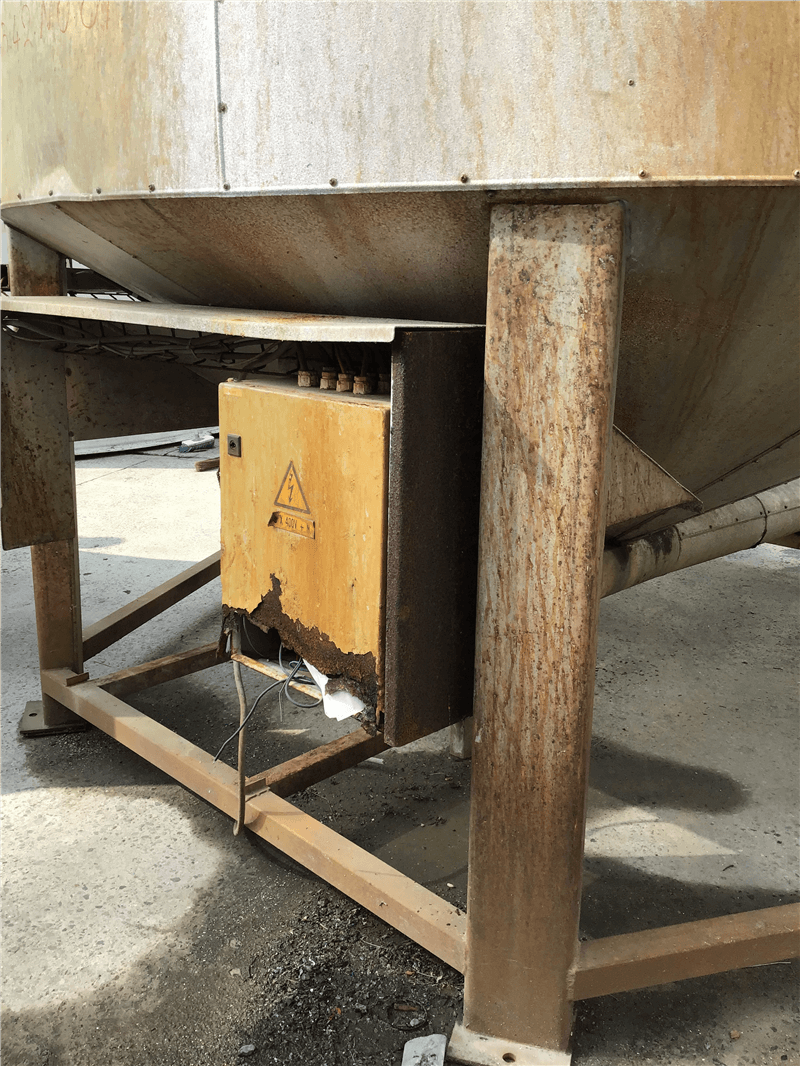

| Fixation | 6 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |

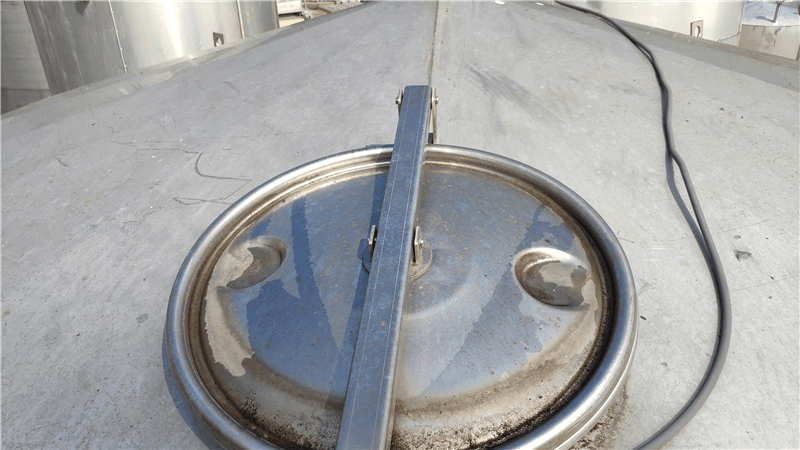

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 560 |
| Tank with total drain? | Yes |

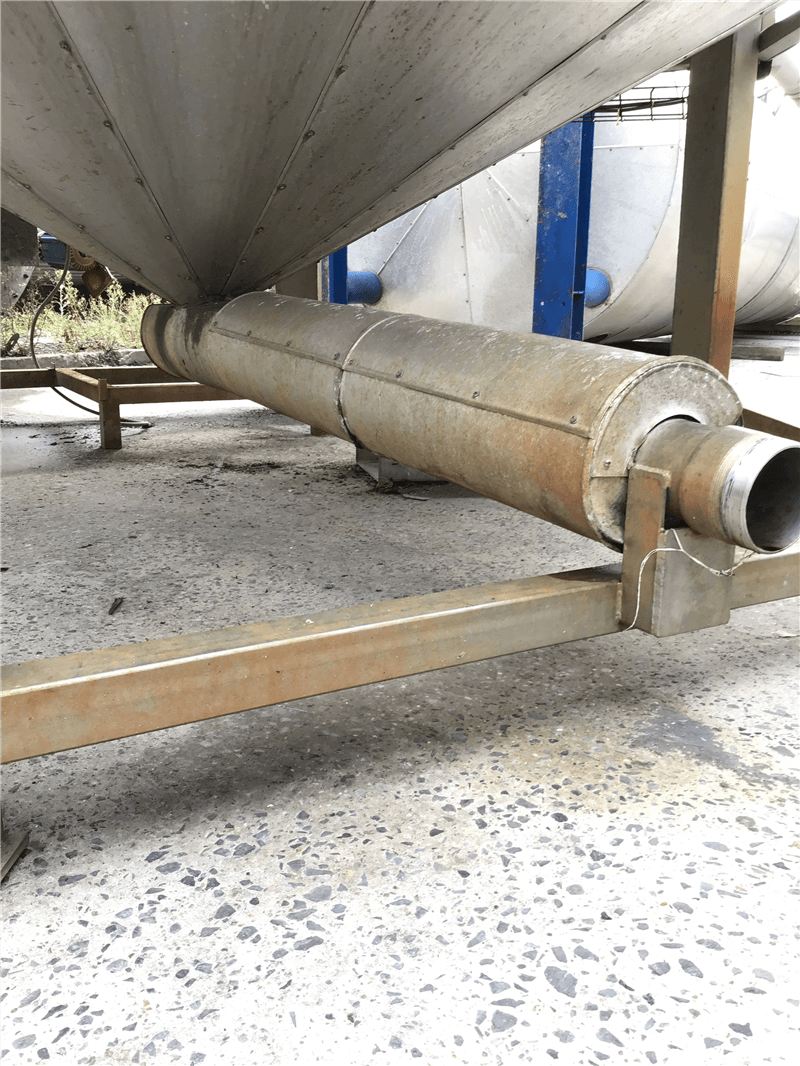

| Type of outlet (s) | buis |
| Diameter of outlet (mm) | 100 |
| locality | B-7711 Belgium |
| Weight (kg) | 2000 |
| Condition | Used |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 3,3 |
| Dimensions | |
|---|---|
| Cylindrical length (mm) | 2900 |
| Height bottom (mm) | 1000 |
| Outside diameter tank (mm) | 3300 |
| Total height (mm) | 5100 |
| Diameter tank (mm) | 3100 |
| Width (mm) | 3500 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 90 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |

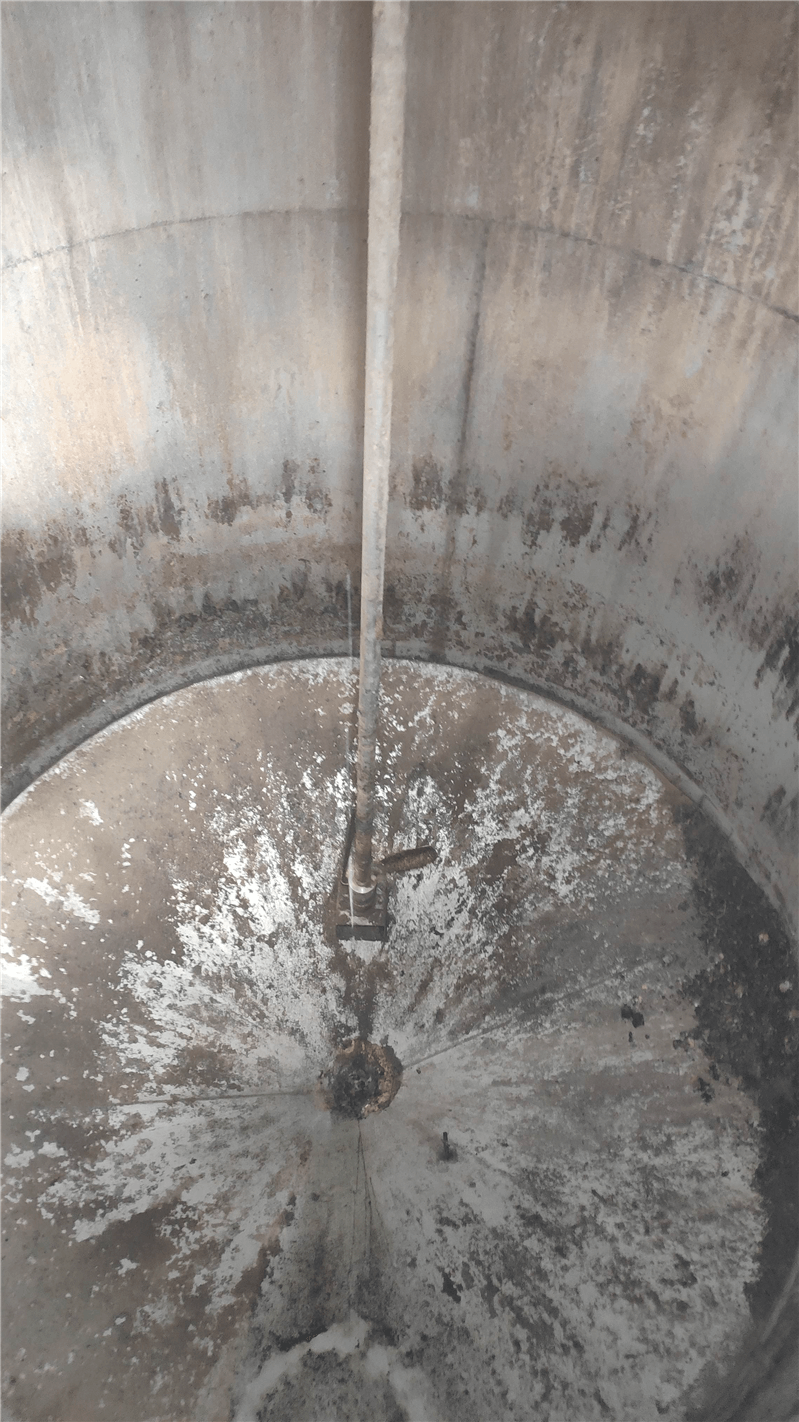

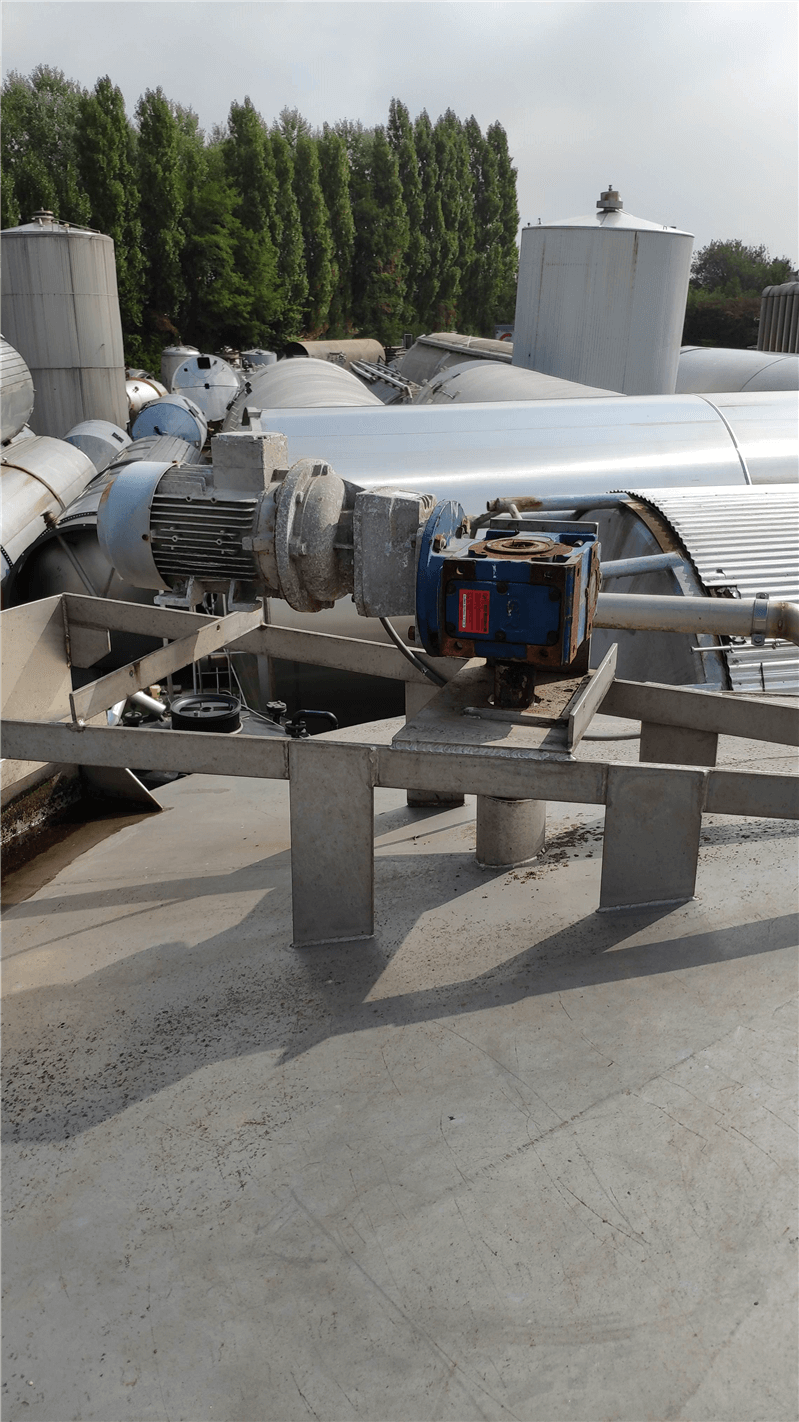

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

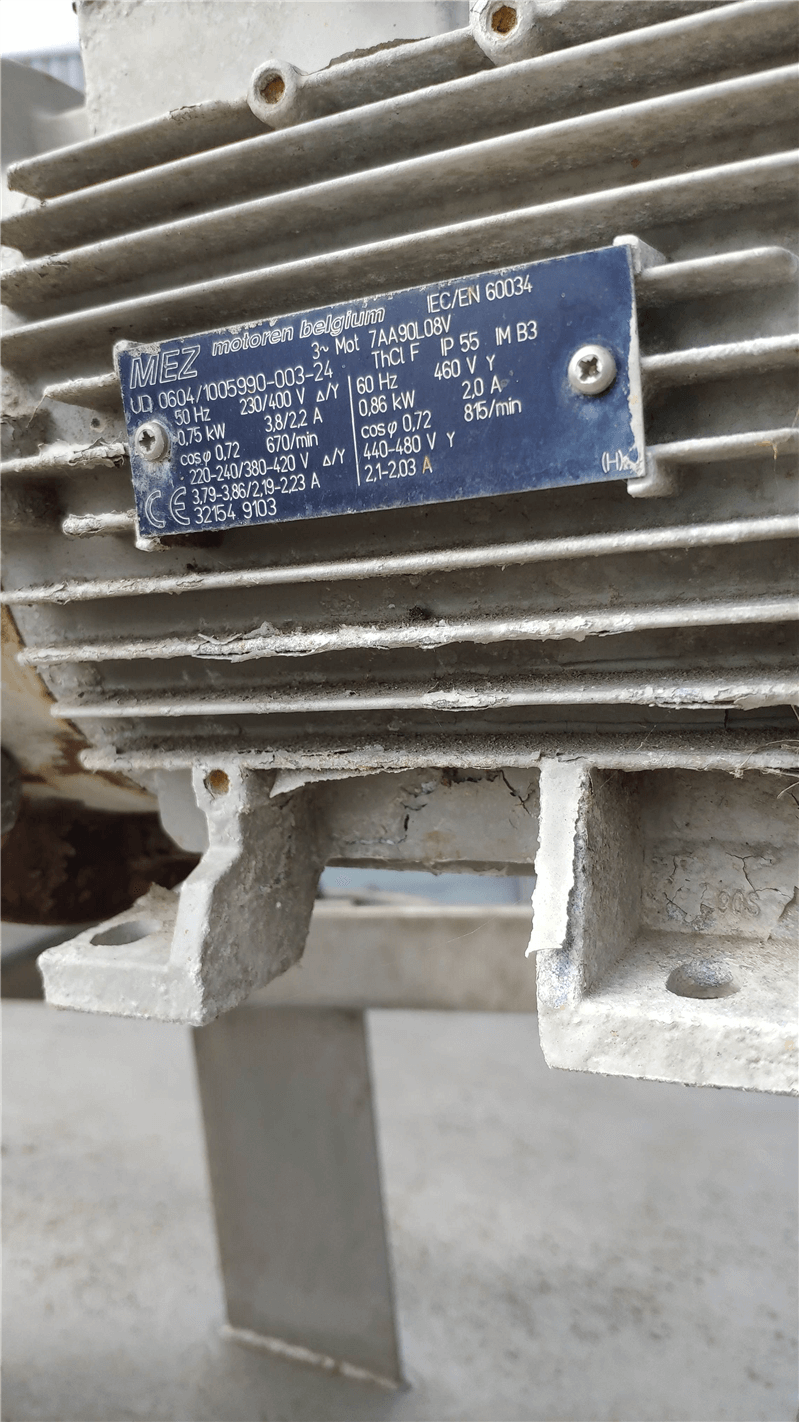

| Agitator 1: Constructor | MEZ |

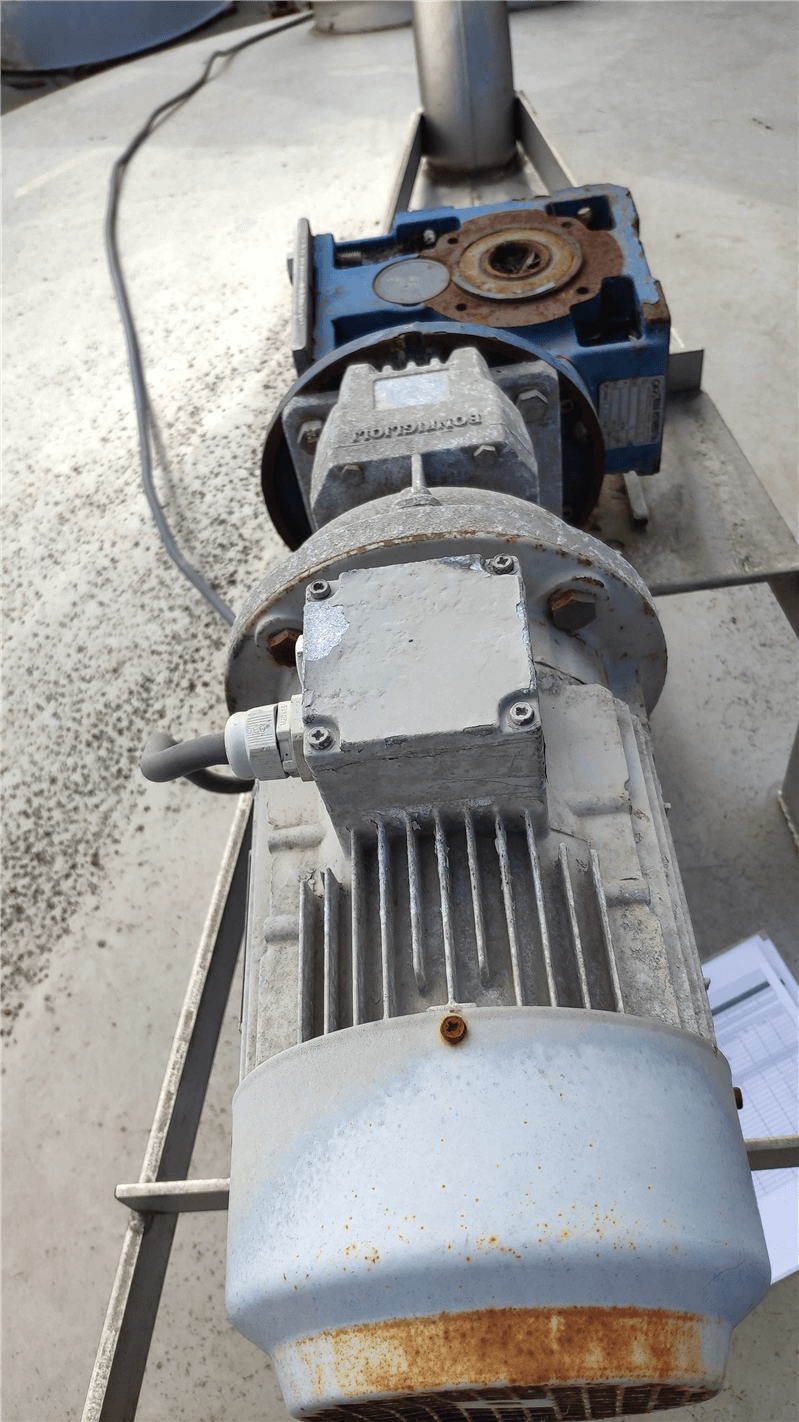

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/400 |
| Agitator 1: Power (kw) | 0,75 |

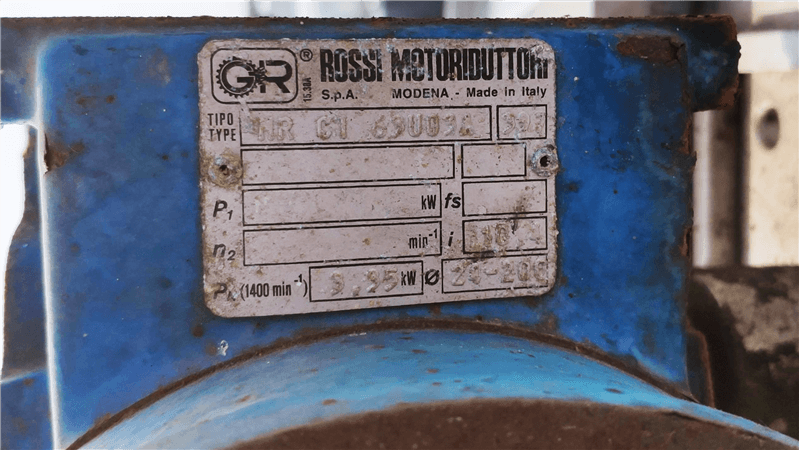

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 65 |
