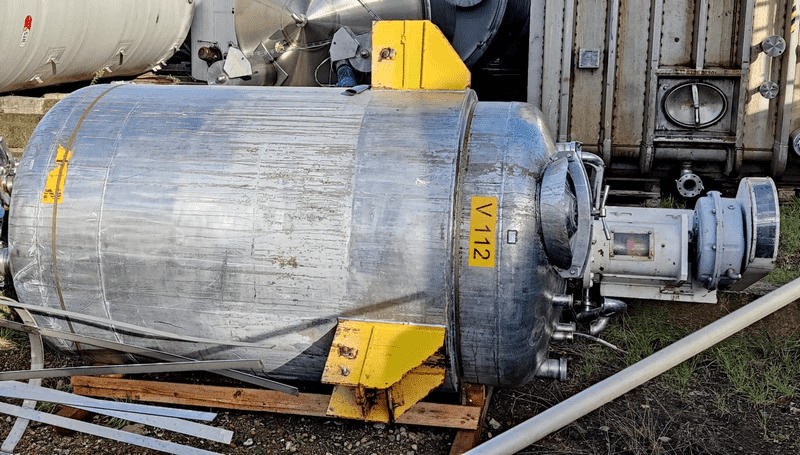

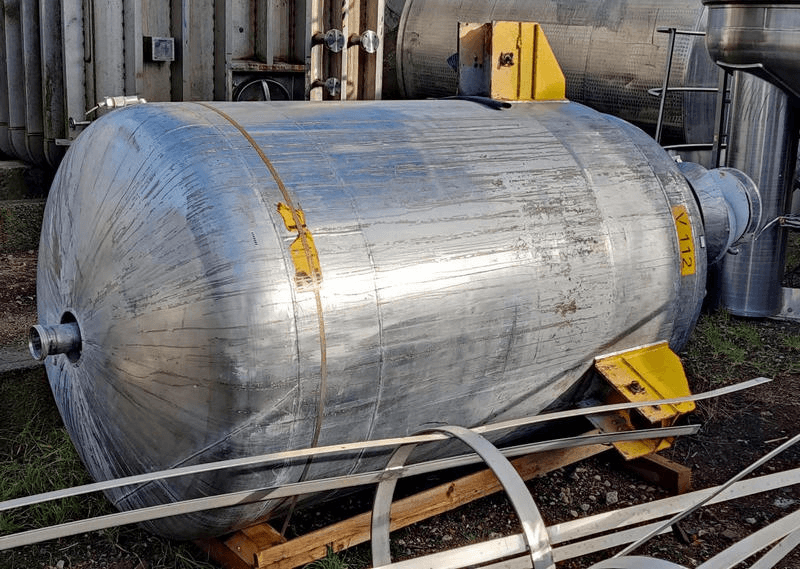

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 3200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.IT.07 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 3200 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

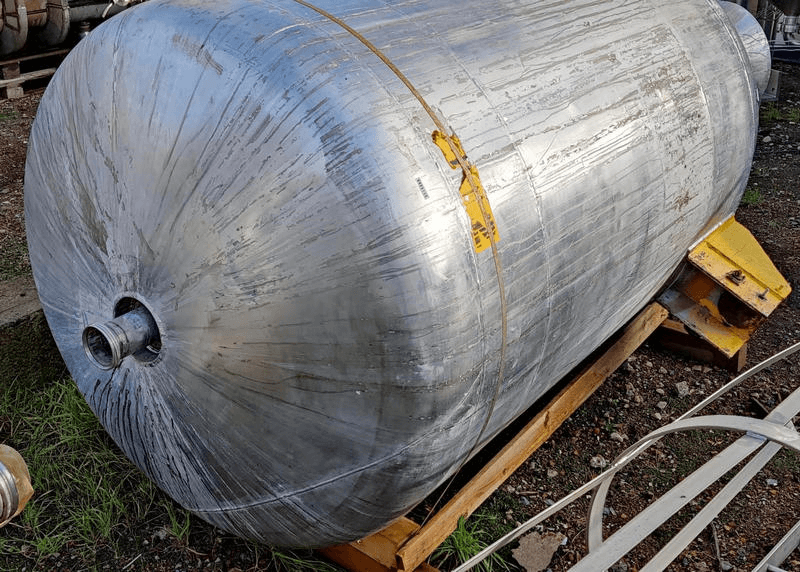

| Bottom | Dished bottom |
| Tank model | Single wall |

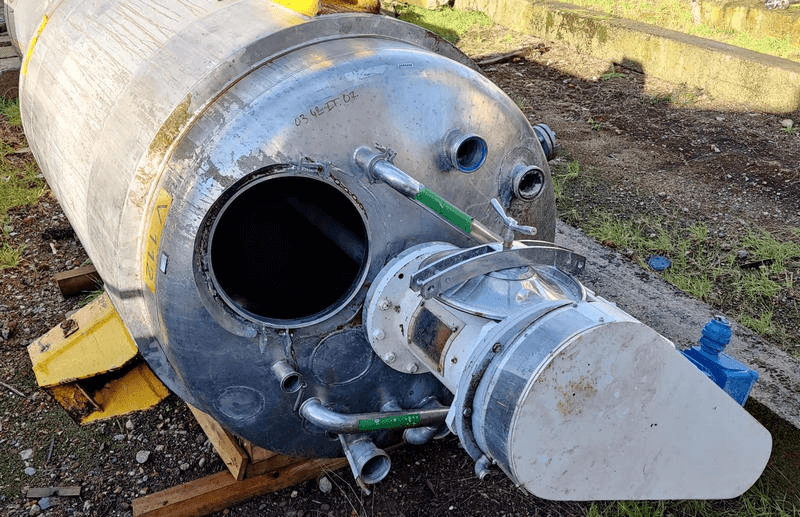

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 400 |
| Tank with total drain? | Yes |
| Type of outlet (s) | DN80 |
| locality | B-7711 Belgium |

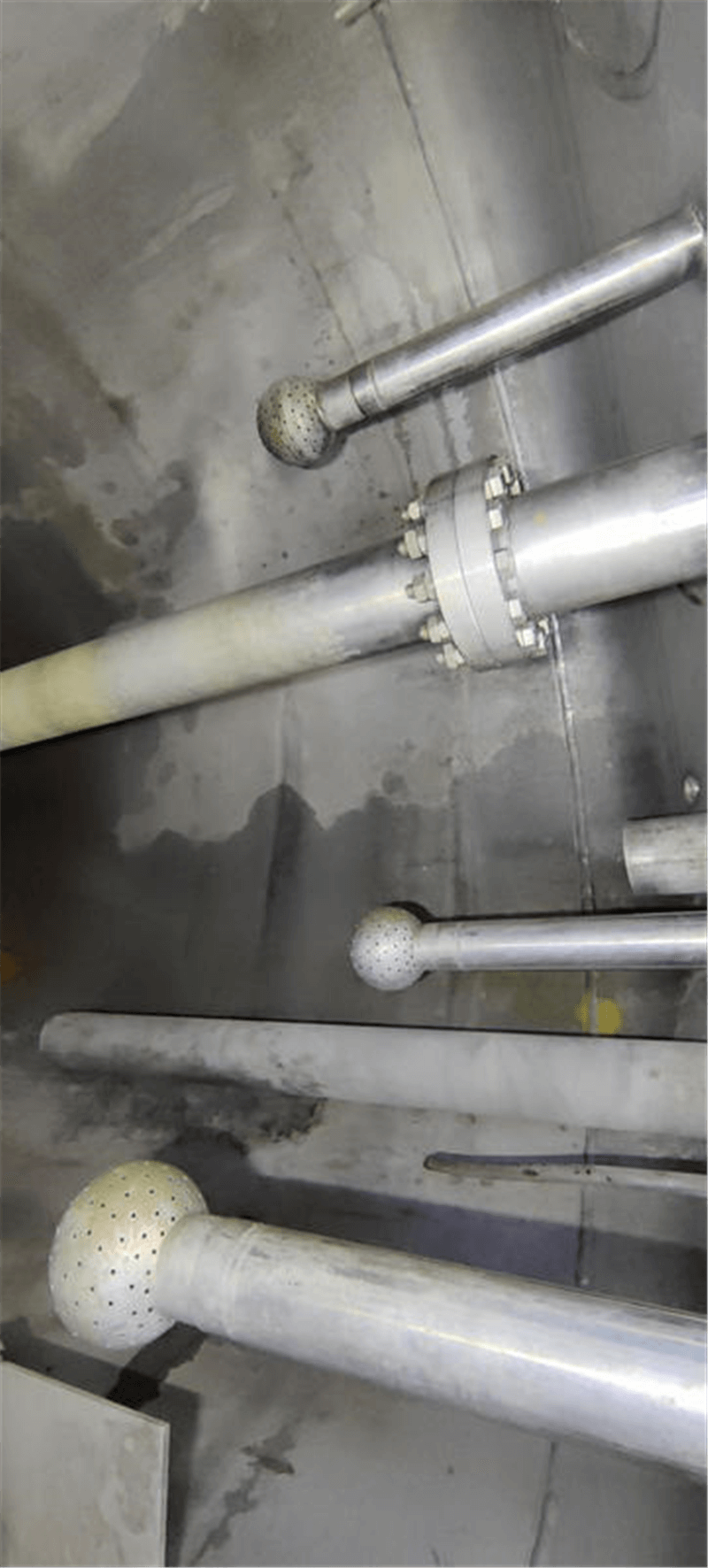

| Provision tank cleaning | CIP ball |
| Weight (kg) | 1100 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6 |
| Bottom thickness (mm) | 8 |
| Periphery (mm) | 4470 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 350 |
| Outside diameter tank (mm) | 1420 |
| Total height (mm) | 3500 |
| Length (mm) | 2650 |
| Diameter tank (mm) | 1300 |
| Width (mm) | 2000 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Thickness (mm) | 55 |
| Finishing insulation | Rivited sheet cladding |

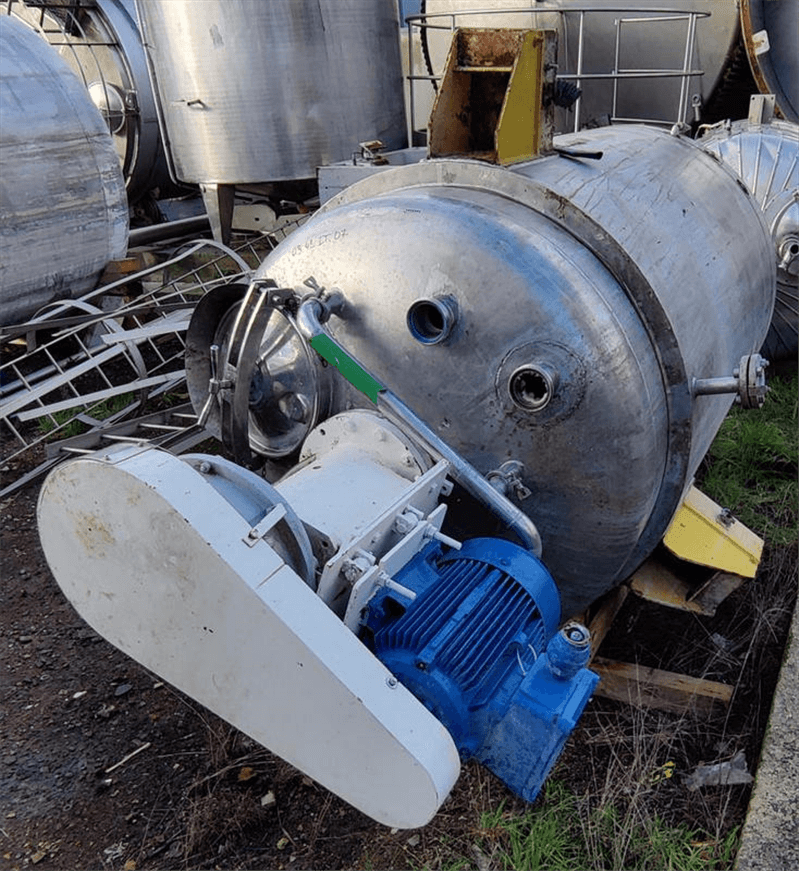

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 3 |

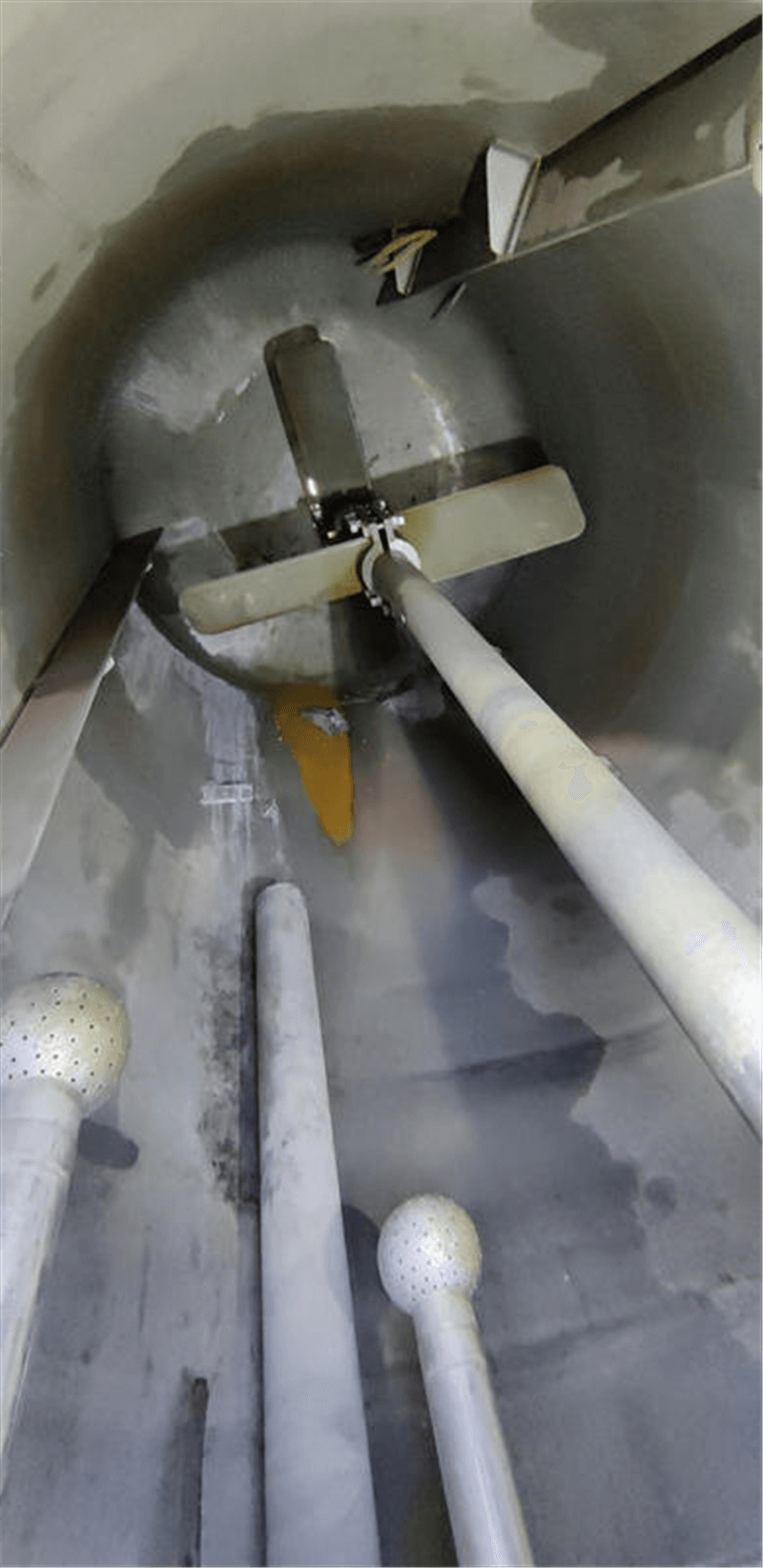

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1860 |

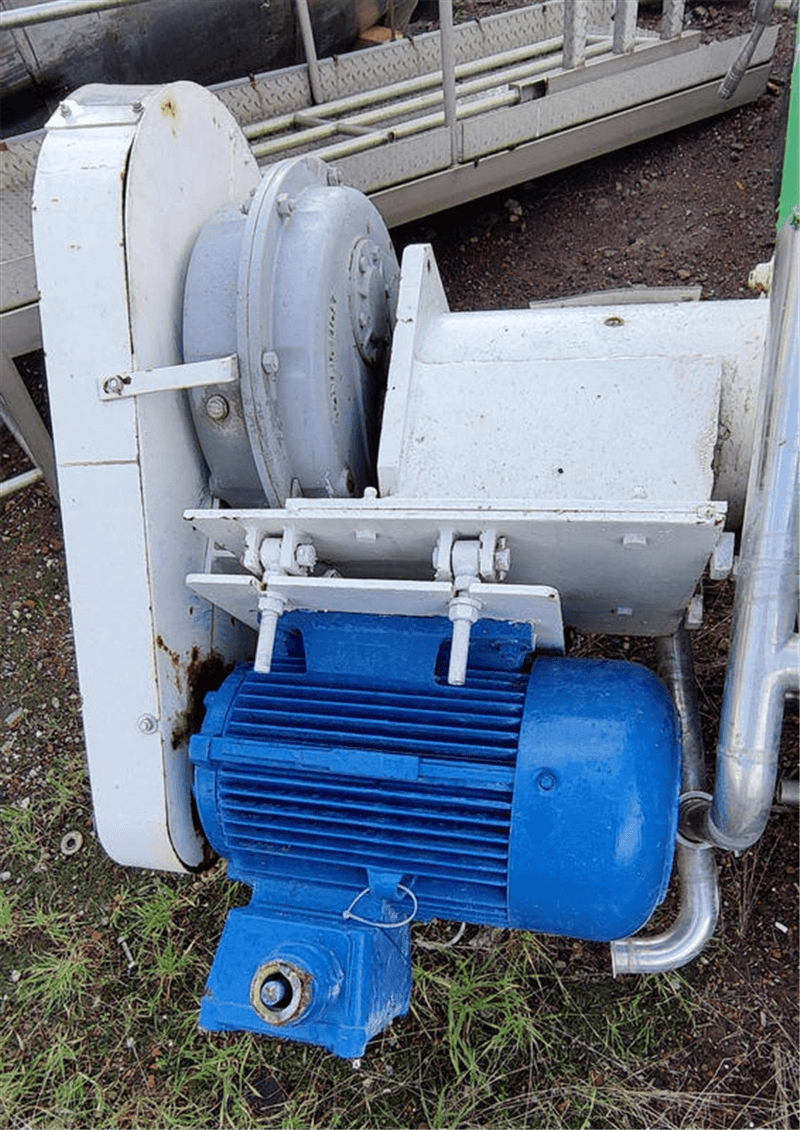

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | onbekend |

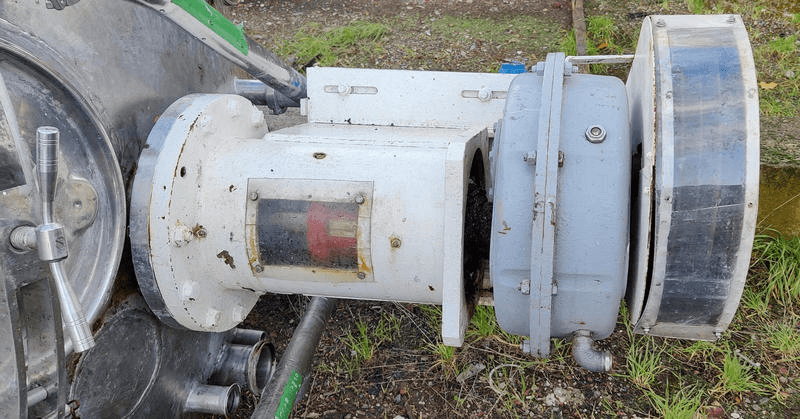

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | onbekend |
| Remarks | |
|---|---|
| Description (EN) | Bain-marie welded (closed) = insulation |
