Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 4700 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.IT.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 4700 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

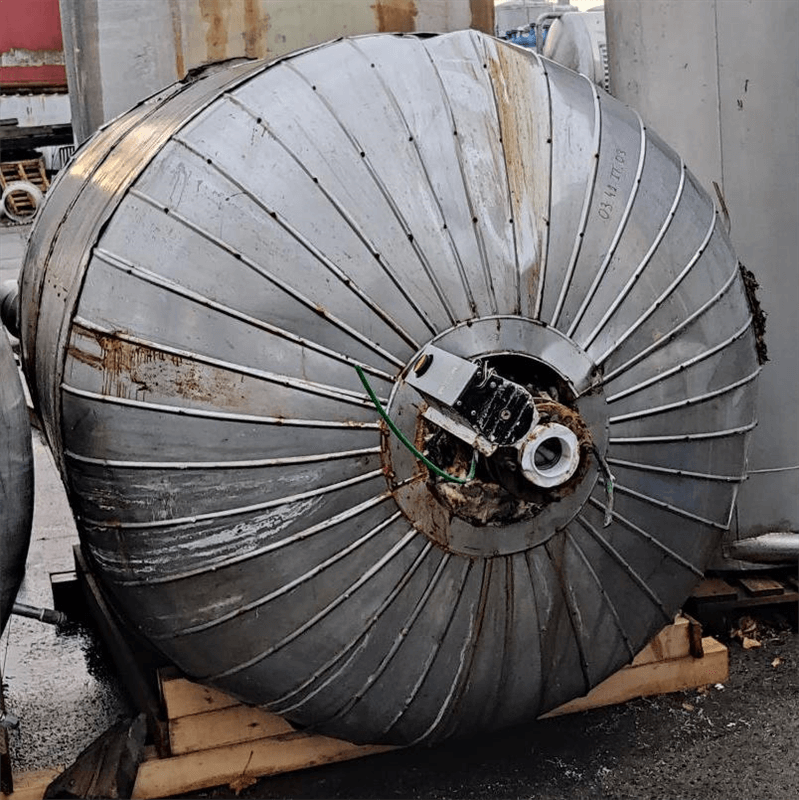

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 500 (rond) |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 88mm |
| locality | B-7711 Belgium |
| Weight (kg) | 1500 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |

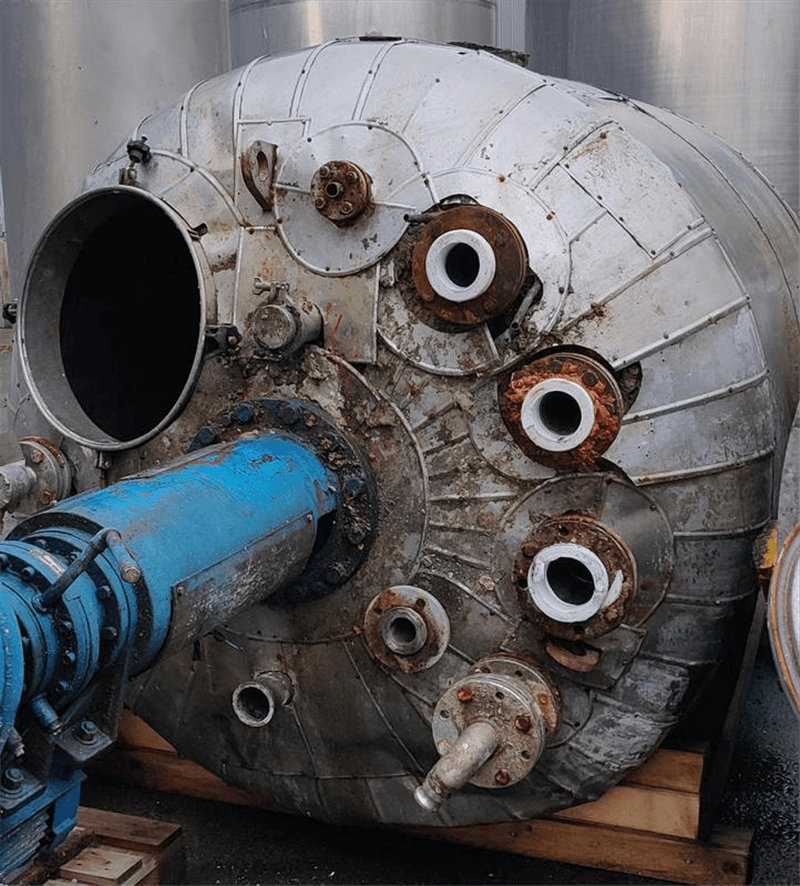

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6 |
| Periphery (mm) | 5380 |
| Cylindrical length (mm) | 1800 |
| Height bottom (mm) | 500 |
| Outside diameter tank (mm) | 1700 |
| Total height (mm) | 4400 |
| Diameter tank (mm) | 1600 |
| Width (mm) | 1900 |

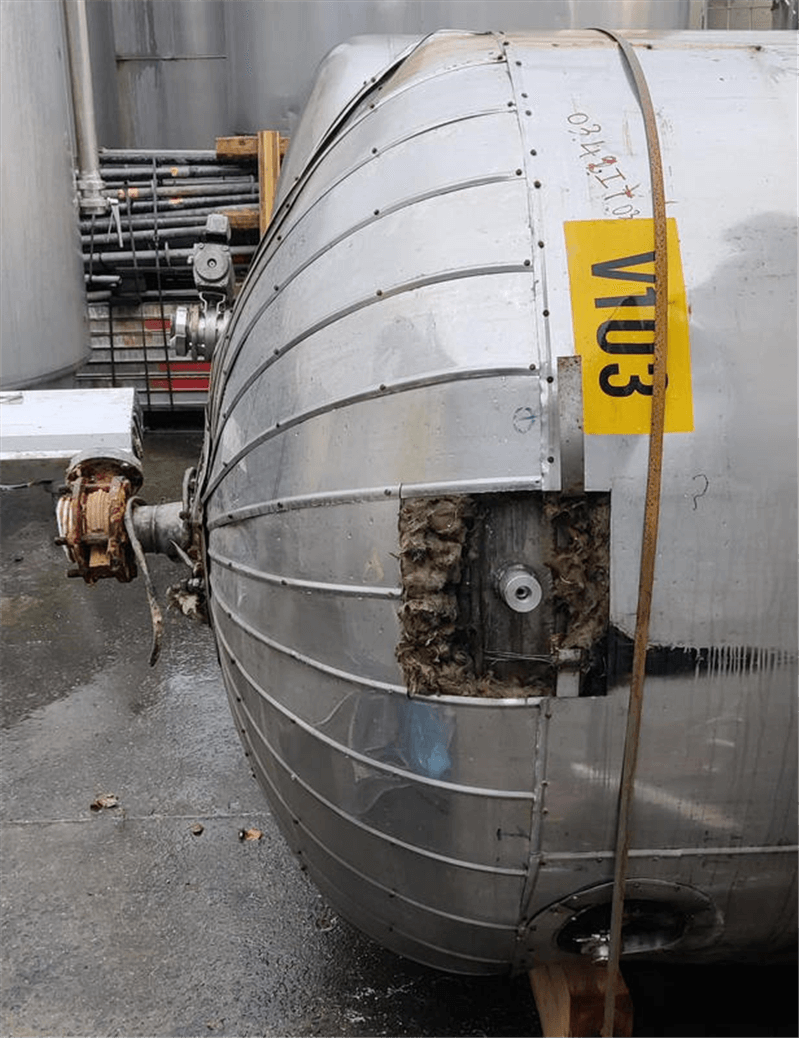

| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |

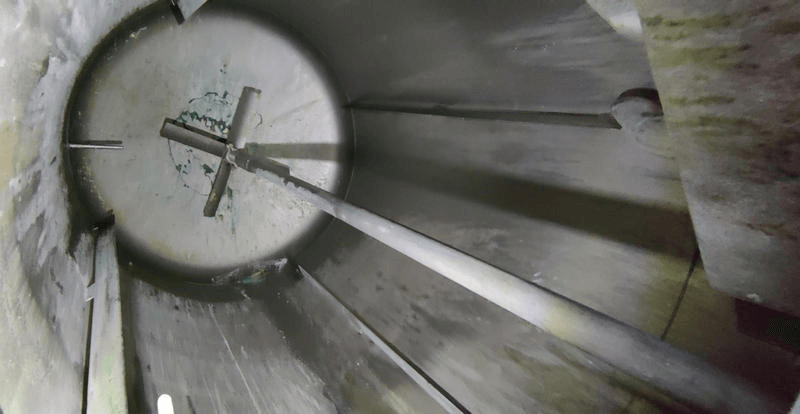

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |

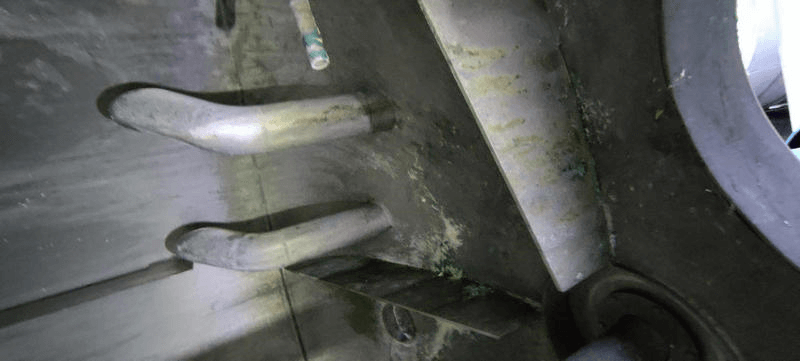

| Agitator 1: Number of baffles | 4 |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 2400 |

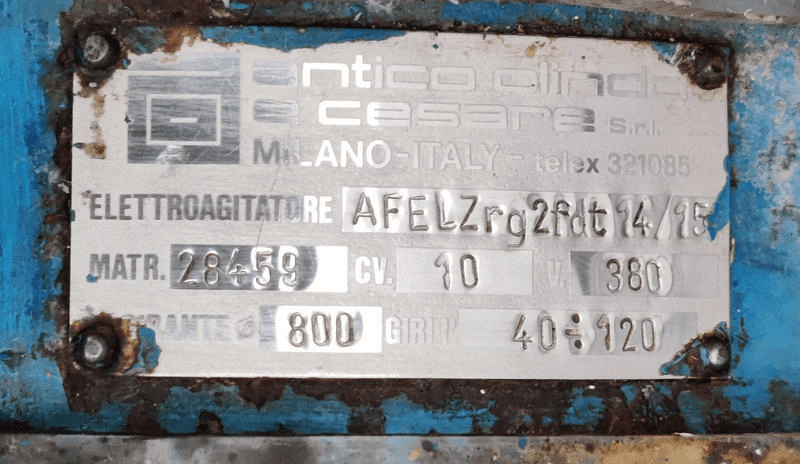

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 380 |

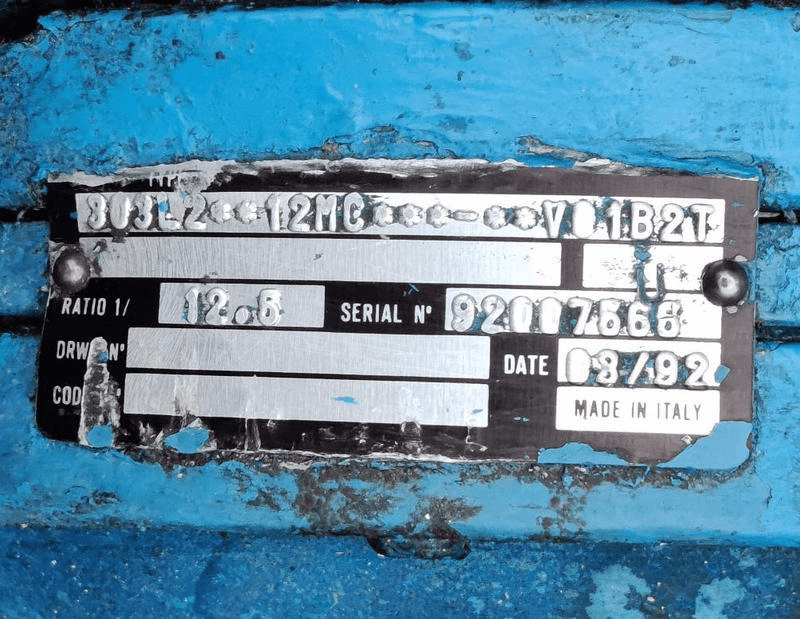

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 40-120 |
| Remarks | |
|---|---|
| Description (EN) | Power mixing unit unknown. |
