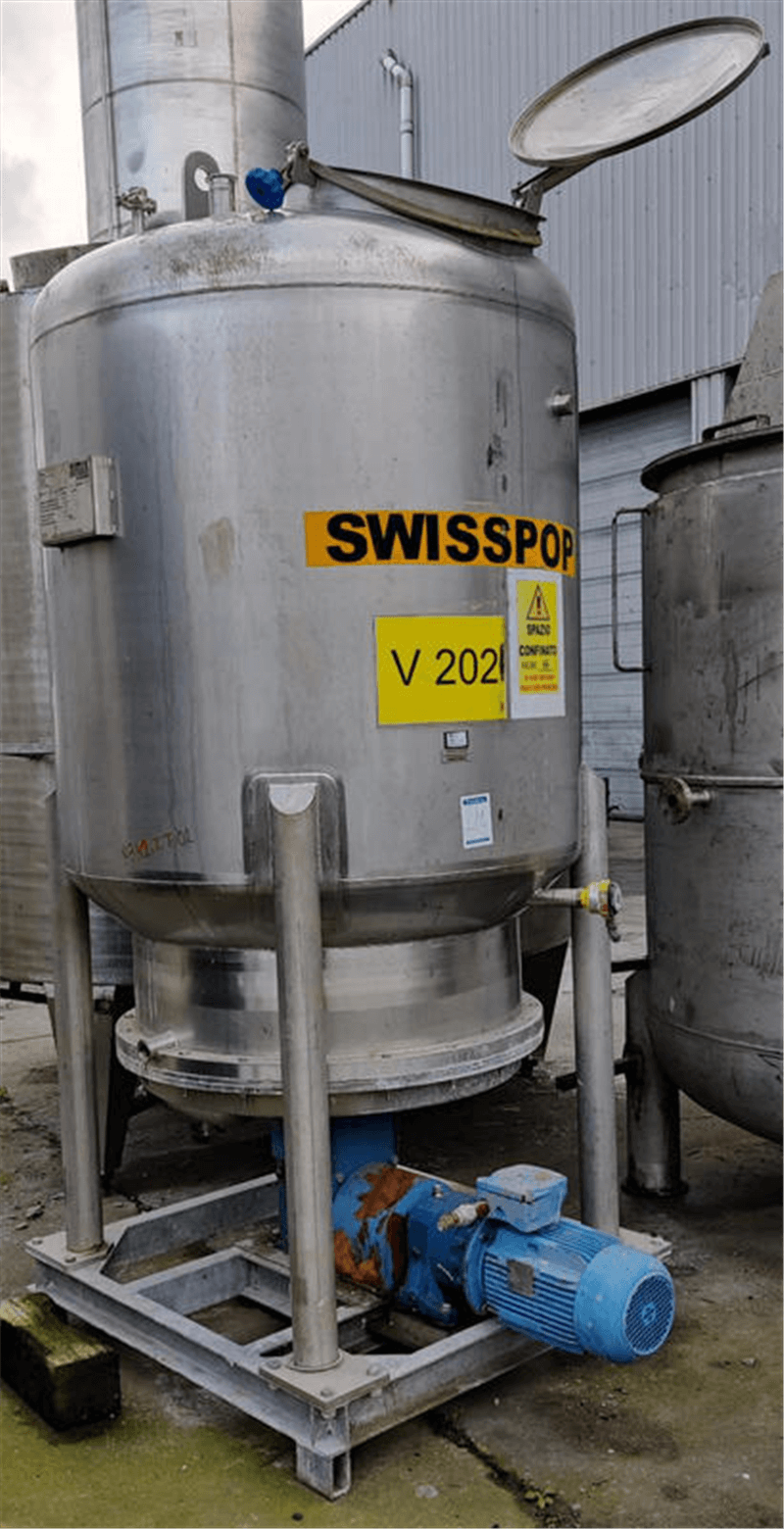

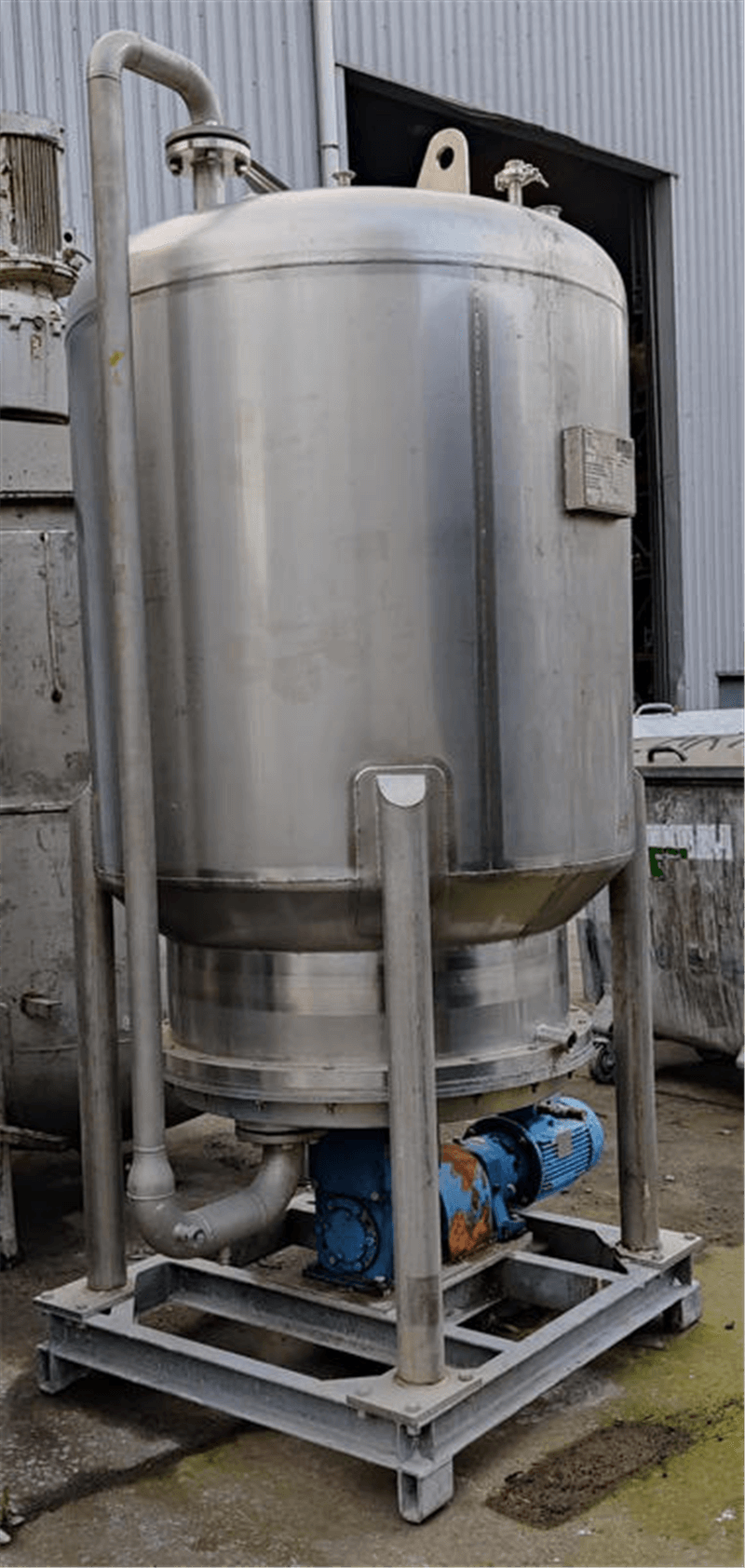

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 1500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.IT.02 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 1500 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

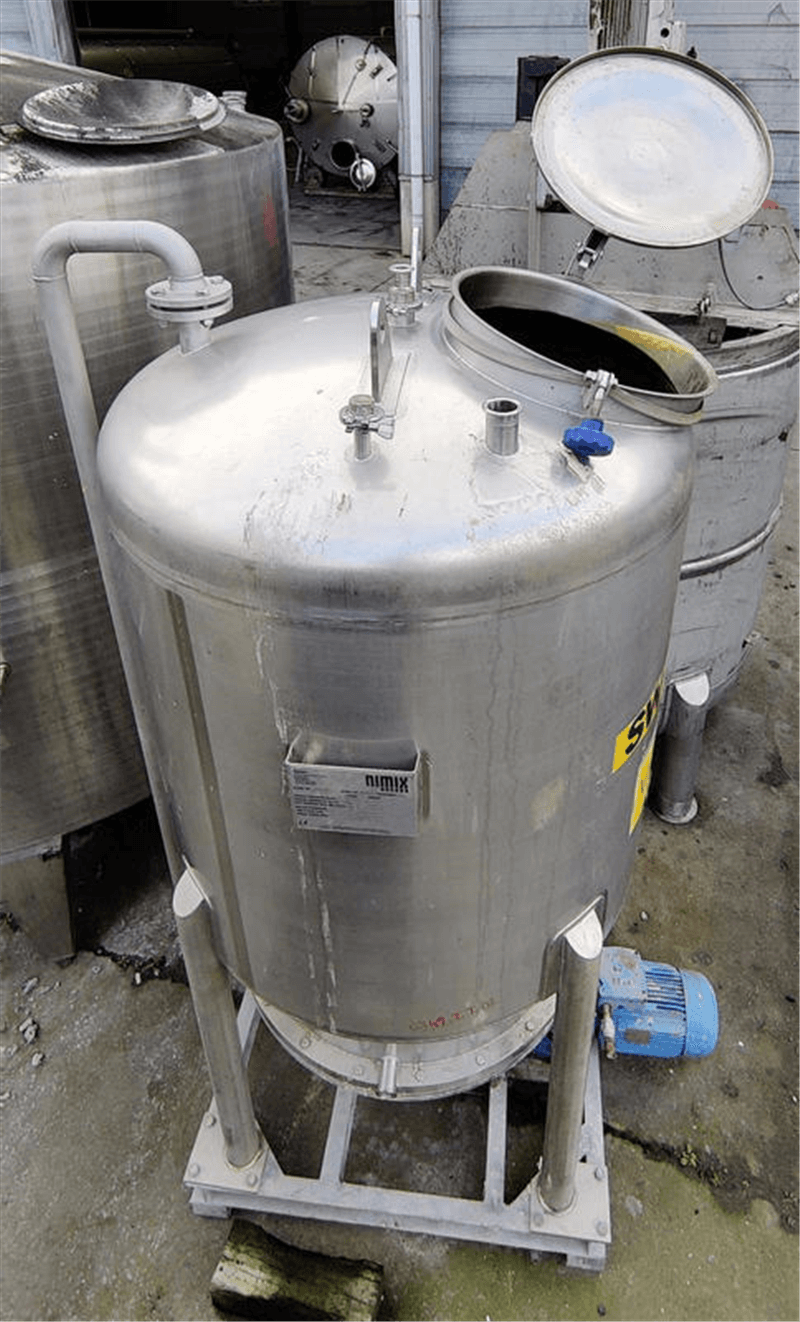

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 500 (rond) |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | dia 34mm |
| locality | B-7711 Belgium |

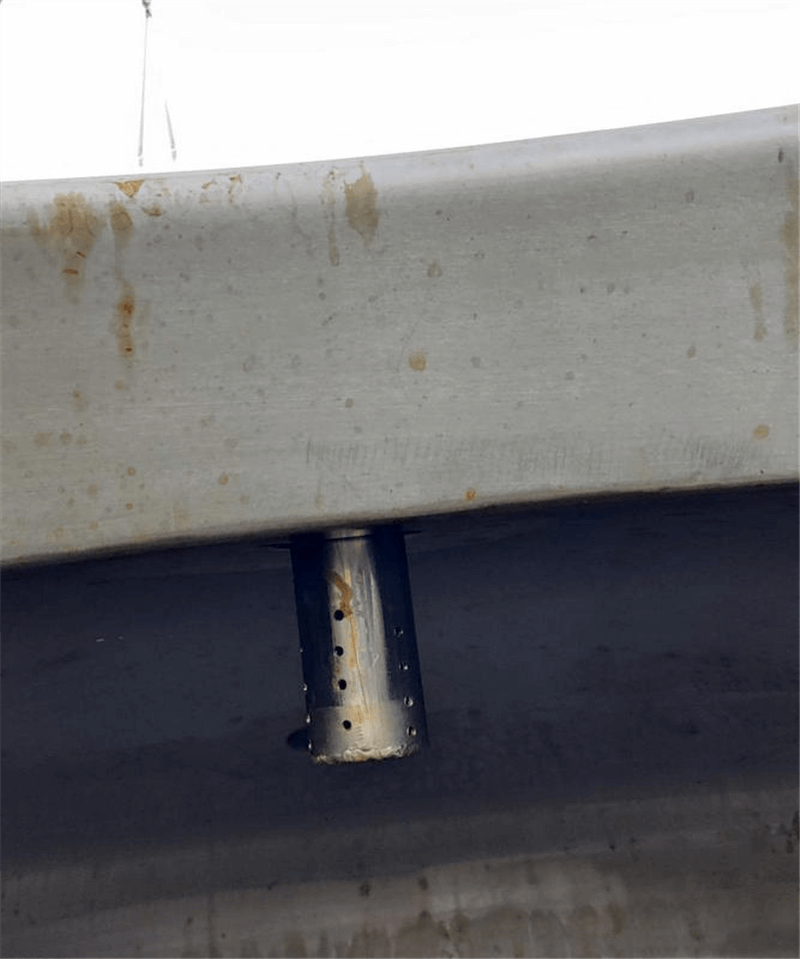

| Provision tank cleaning | Spray tube (top) |
| Weight (kg) | 800 |
| Condition | Used |

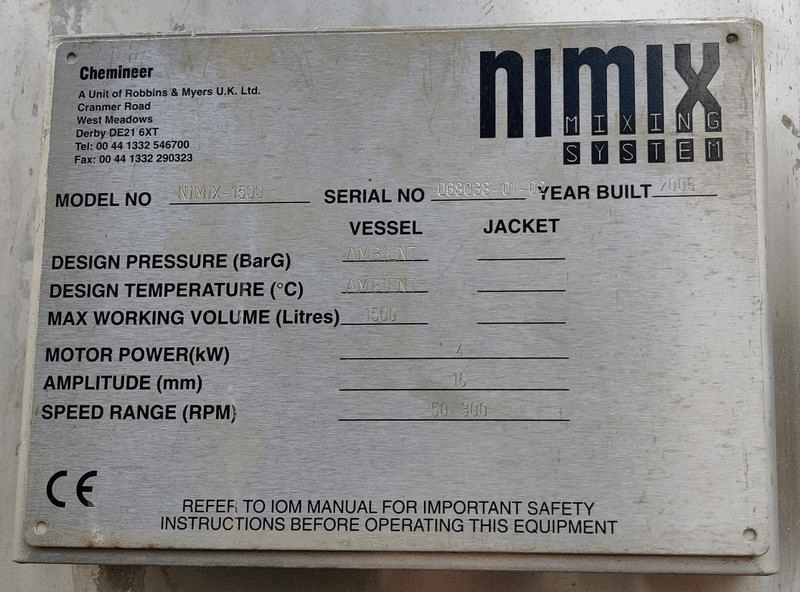

| Type plate manufacturer | Yes |
| Manufacturer | NIMIX Mixing System |
| Year Built | 2006 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 2,5 |
| Periphery (mm) | 3780 |
| Cylindrical length (mm) | 1100 |
| Height bottom (mm) | 400 |
| Total height (mm) | 2700 |
| Length (mm) | 1800 |
| Diameter tank (mm) | 1200 |
| Width (mm) | 1600 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

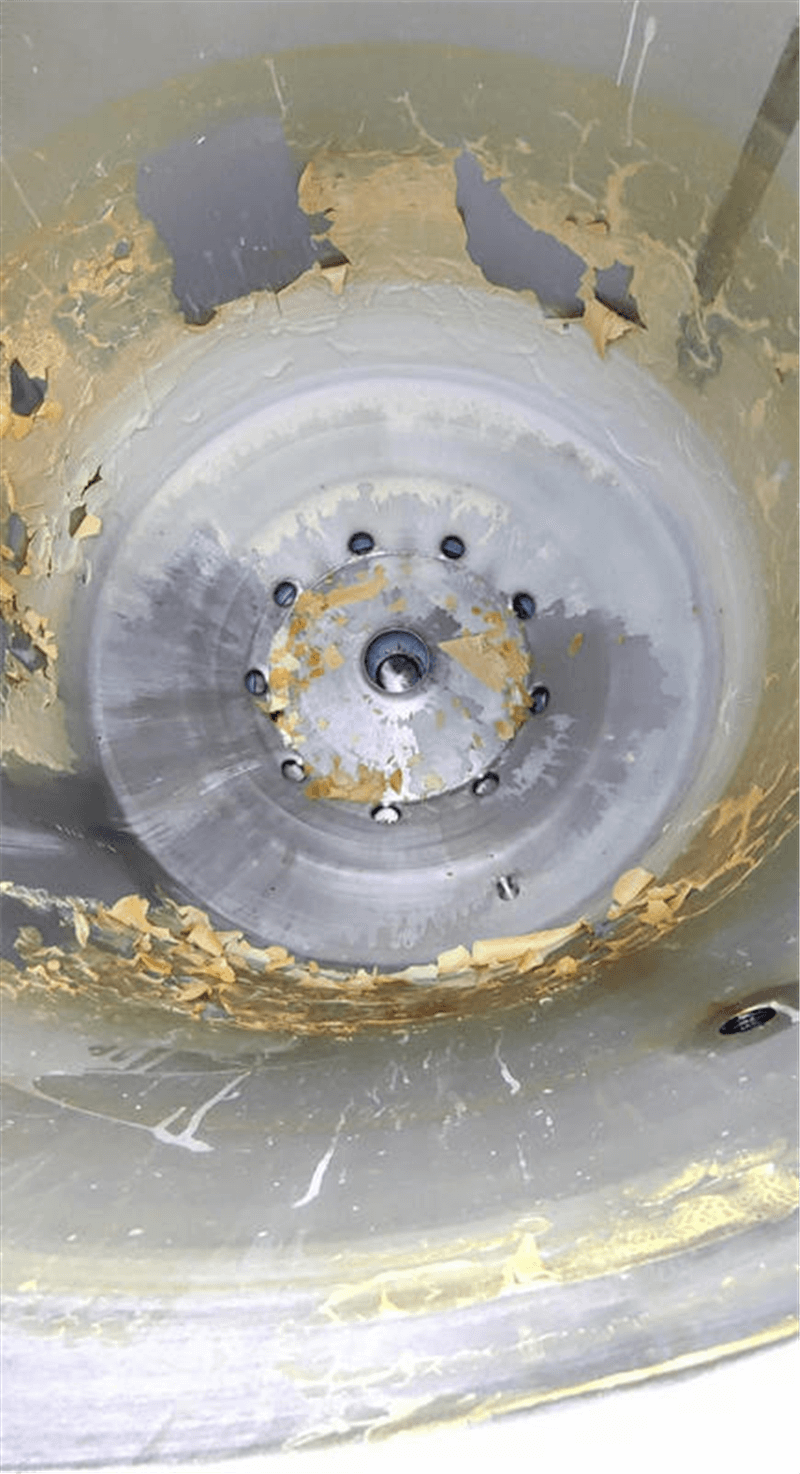

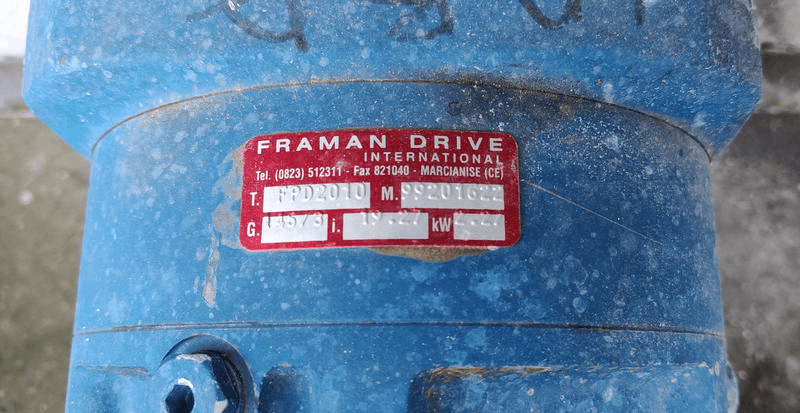

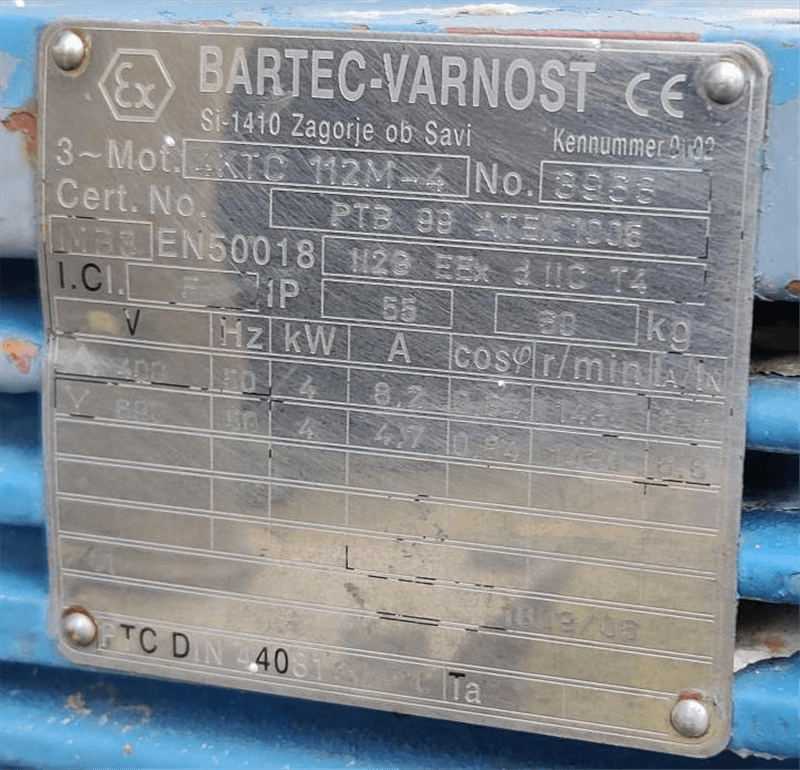

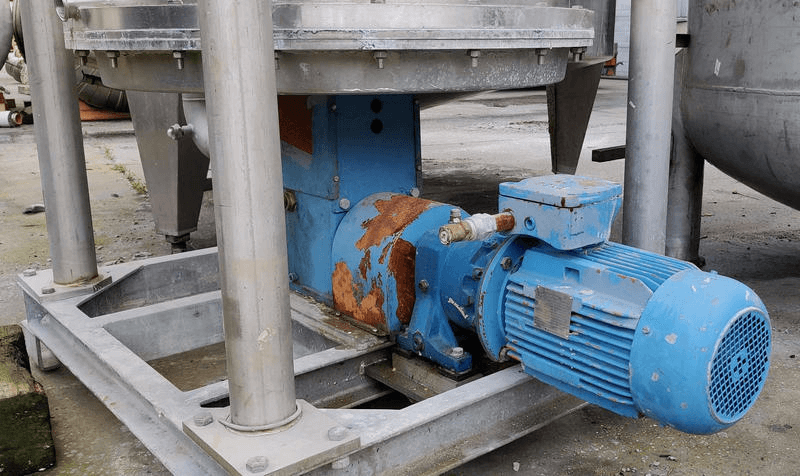

| Description (EN) | Mixing pump : in-tank mixing (400V / 4 kW / 50-300 RPM) |
