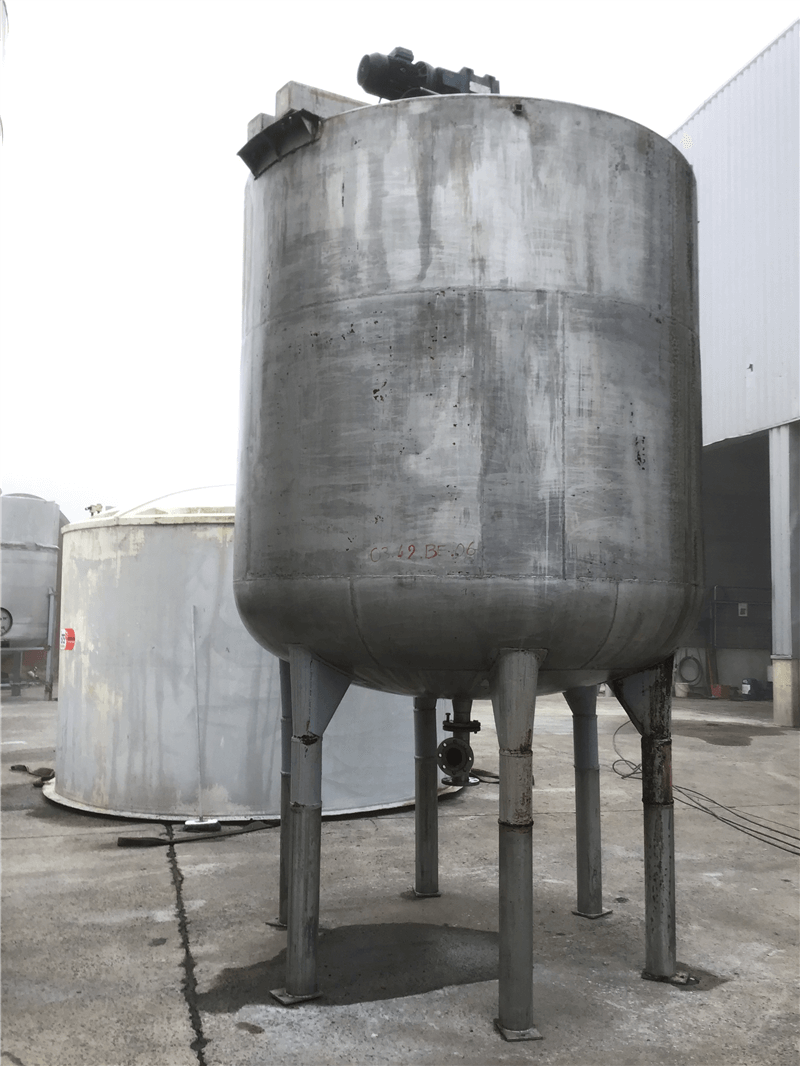

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 11000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.BE.06 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 11000 |
| Type tank | Mixing vessel |

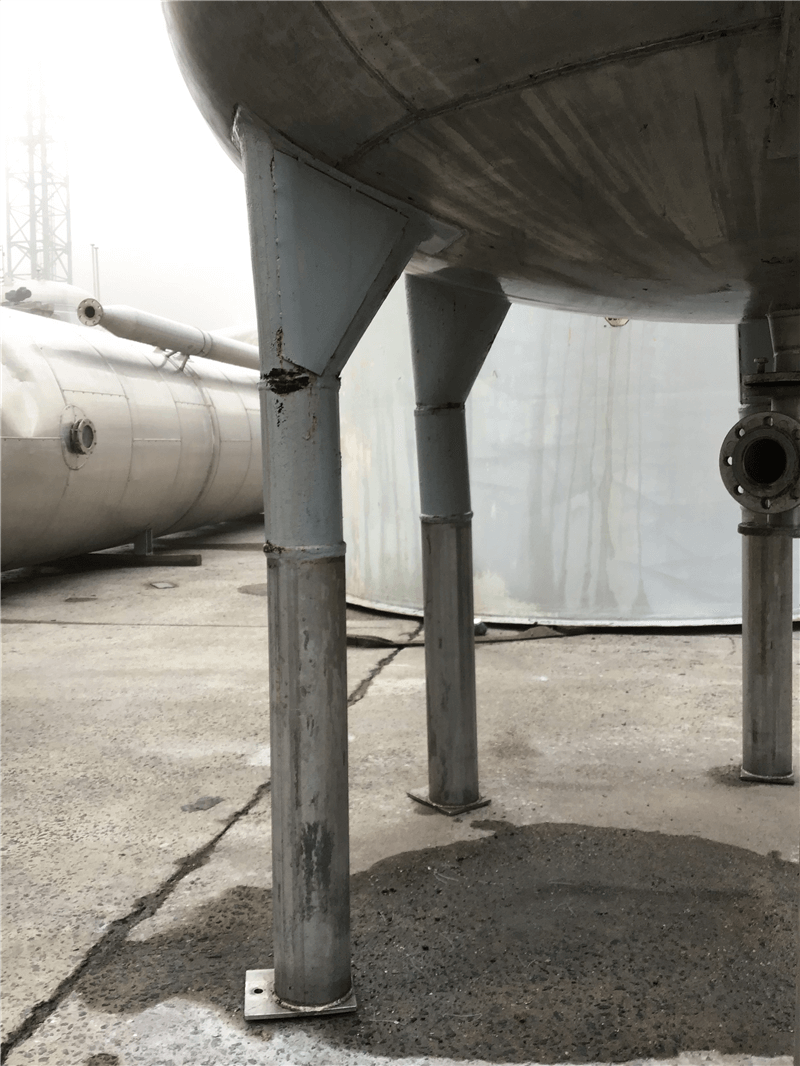

| Fixation | 6 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |

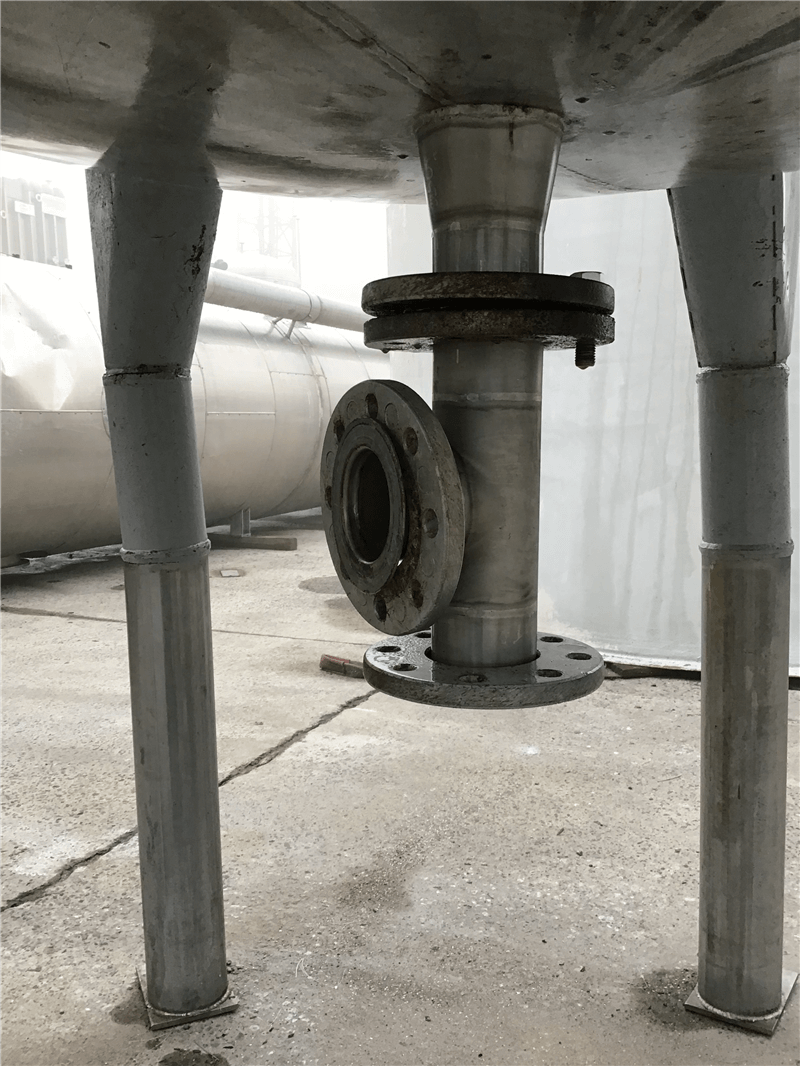

| Type of outlet (s) | flens DN80 |
| Diameter of outlet (mm) | 85 |
| locality | B-7711 Belgium |
| Weight (kg) | 1500 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|

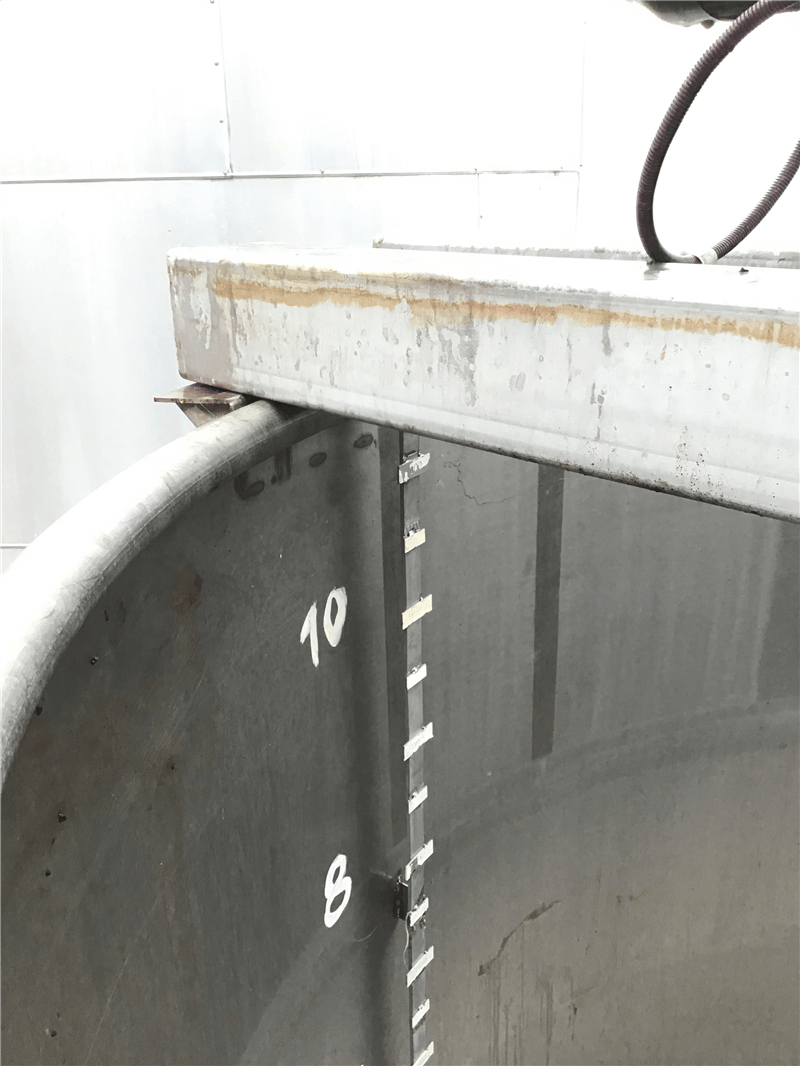

| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,5 |
| Bottom thickness (mm) | 5,1 |
| Periphery (mm) | 7680 |
| Cylindrical length (mm) | 2100 |
| Height bottom (mm) | 600 |
| Total height (mm) | 4590 |
| Diameter tank (mm) | 2400 |
| Width (mm) | 2800 |
| Insulation | |
|---|---|
| Insulation | No |

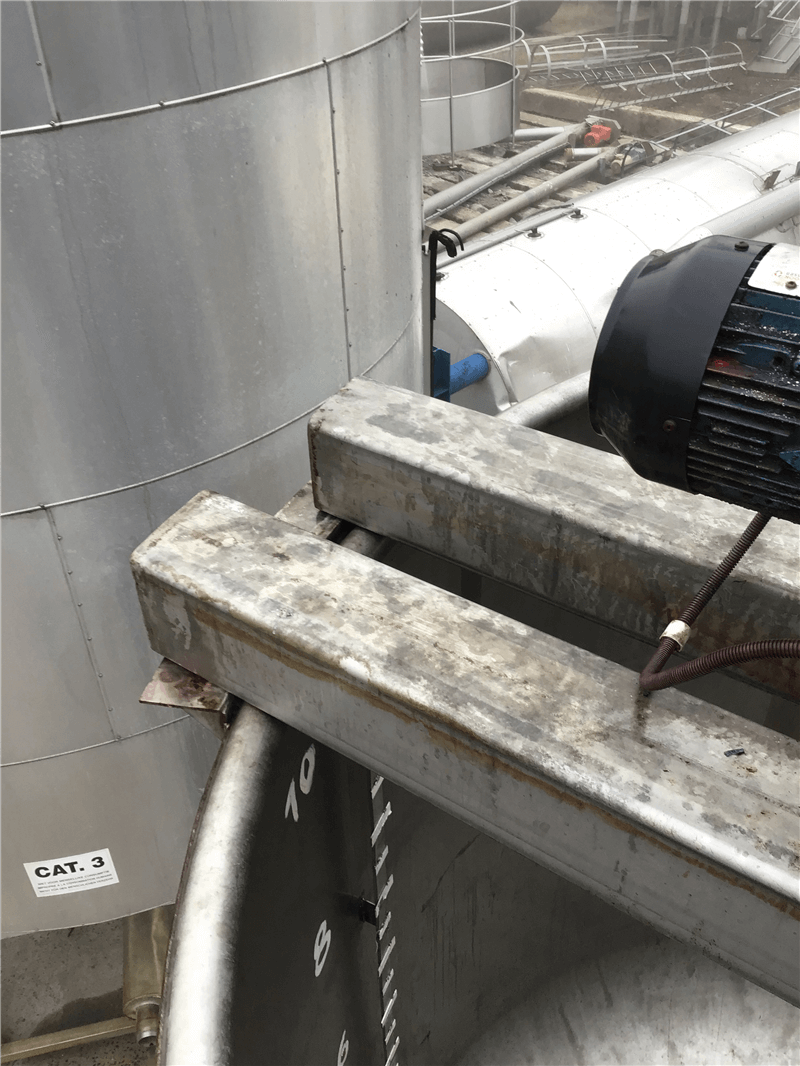

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |

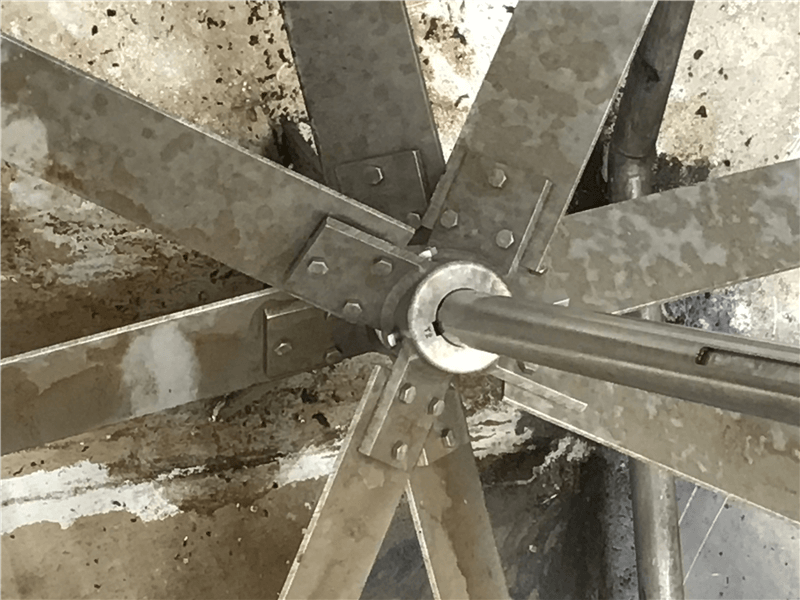

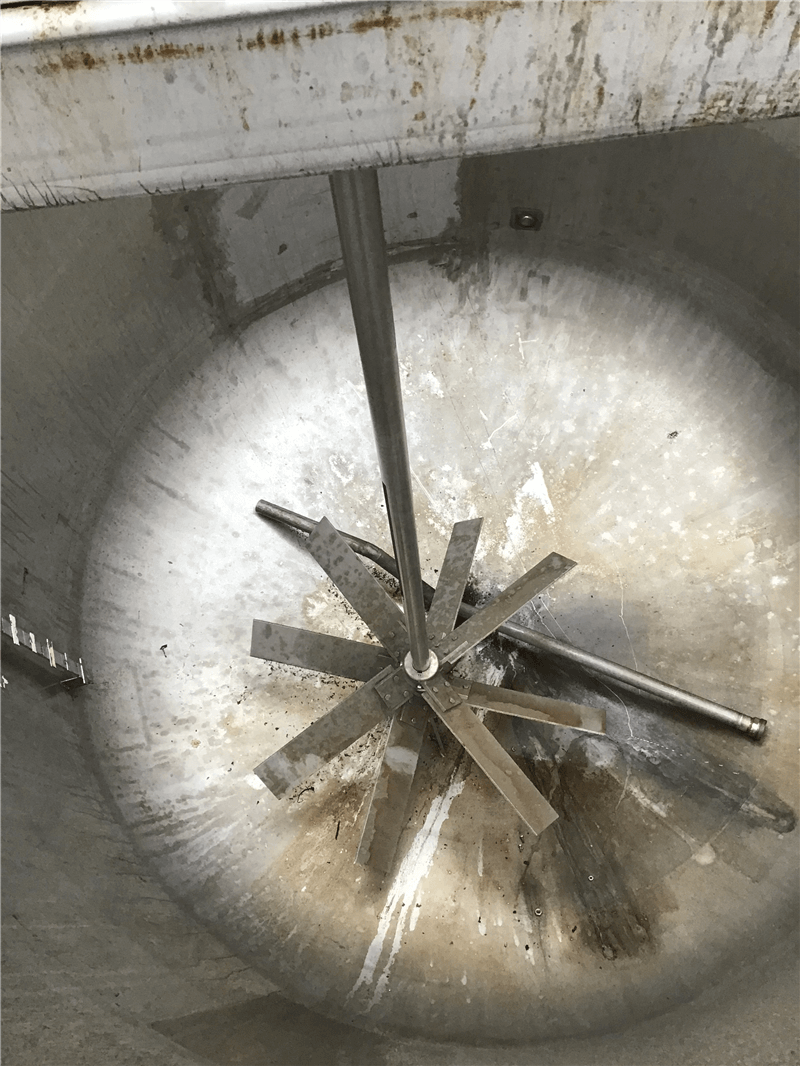

| Agitator 1: stirring element type | Propeller |

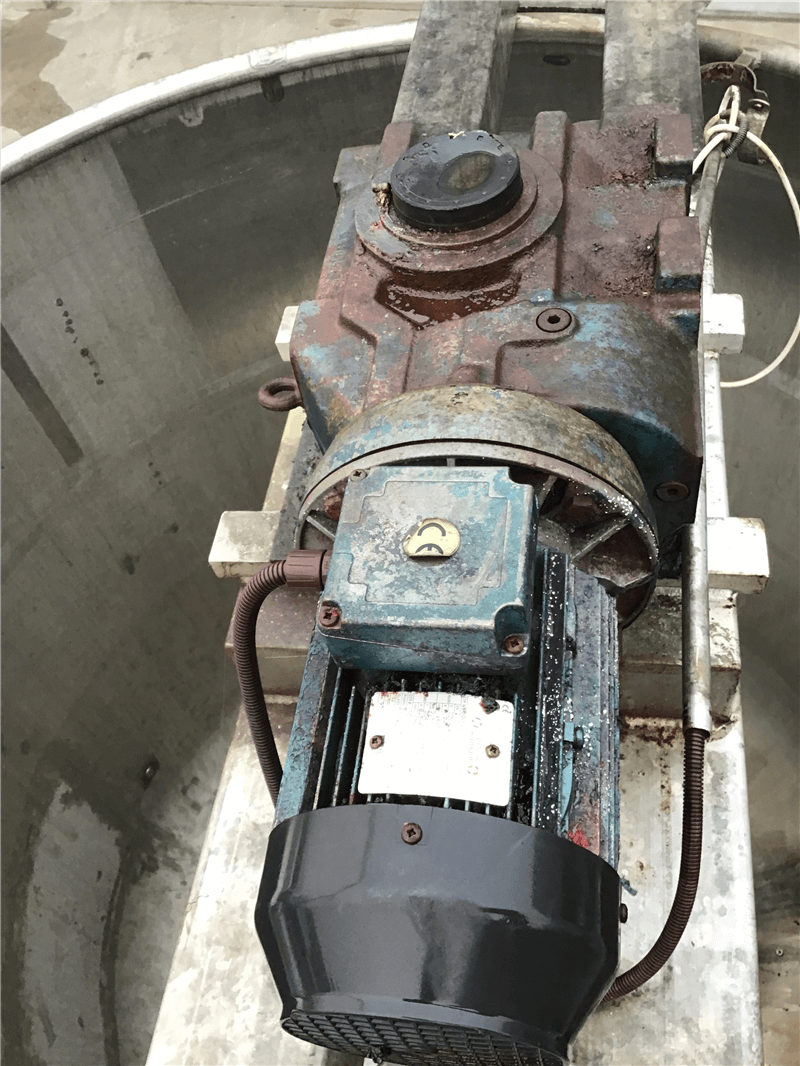

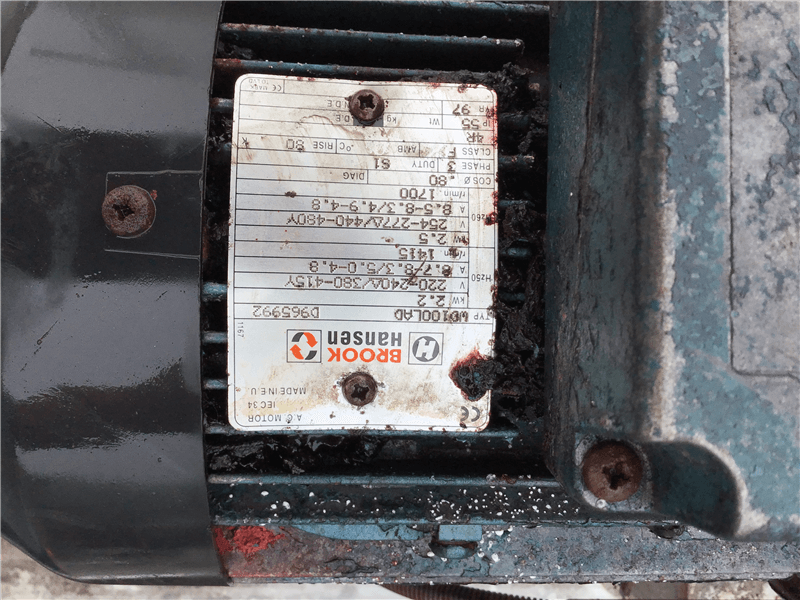

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220 - 380 |
| Agitator 1: Power (kw) | 2,2 |

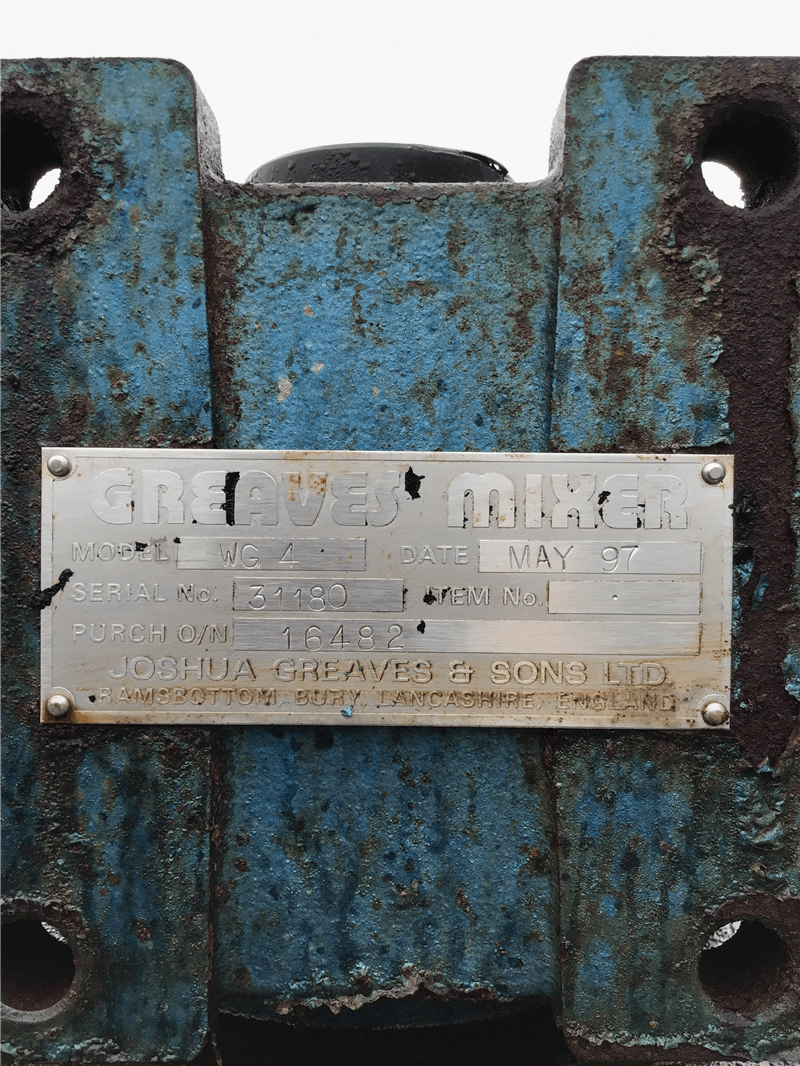

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | niet gekend |
