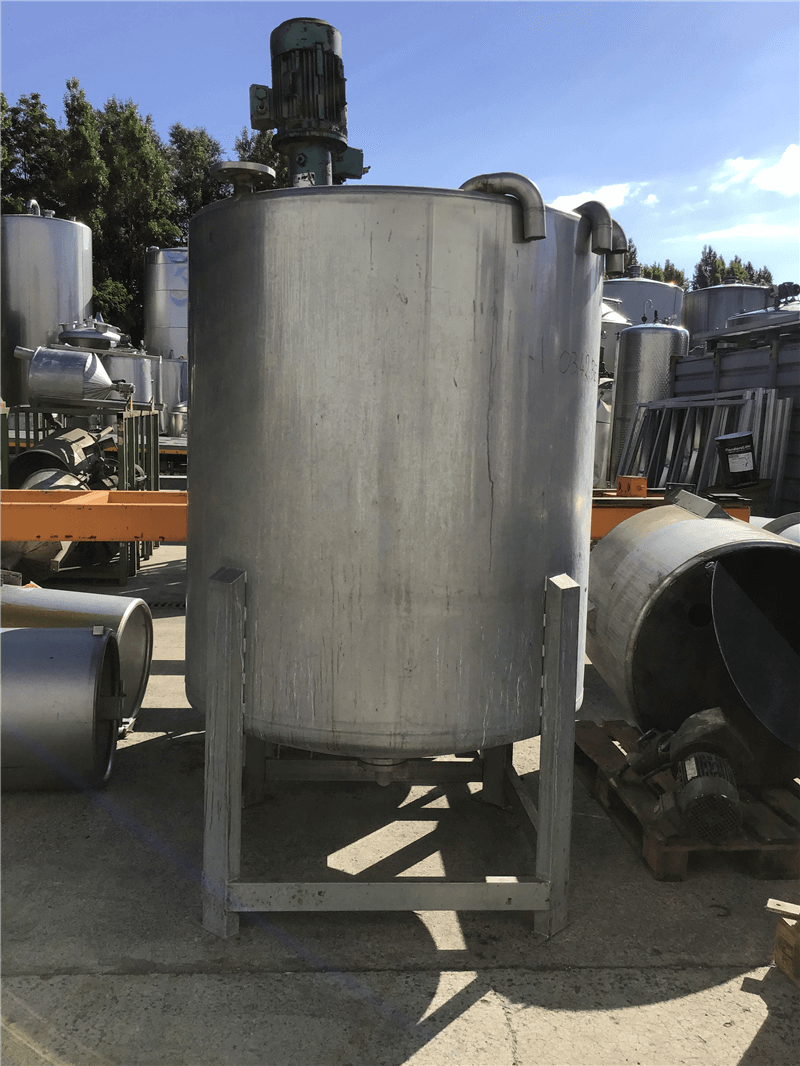

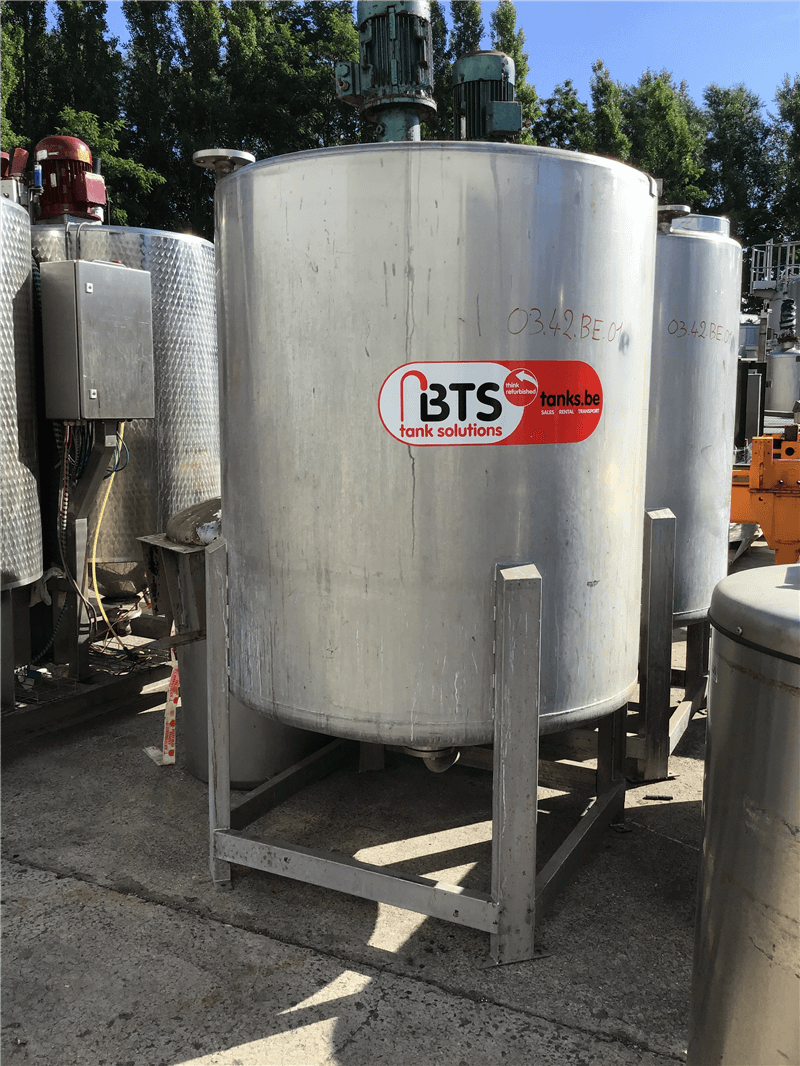

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1600 L
- In stock: 4
| General | |
|---|---|
| Item number | 03.42.BE.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 4 |
| Capacity (Liters) | 1600 |
| Type tank | Mixing vessel |

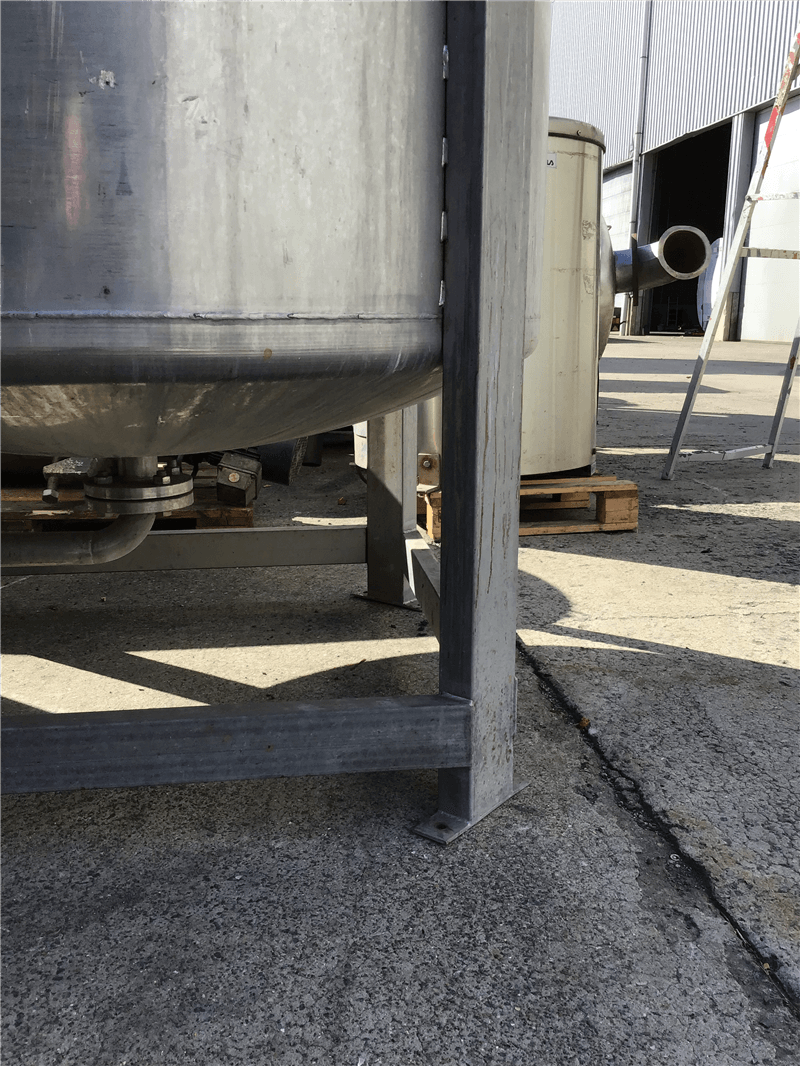

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

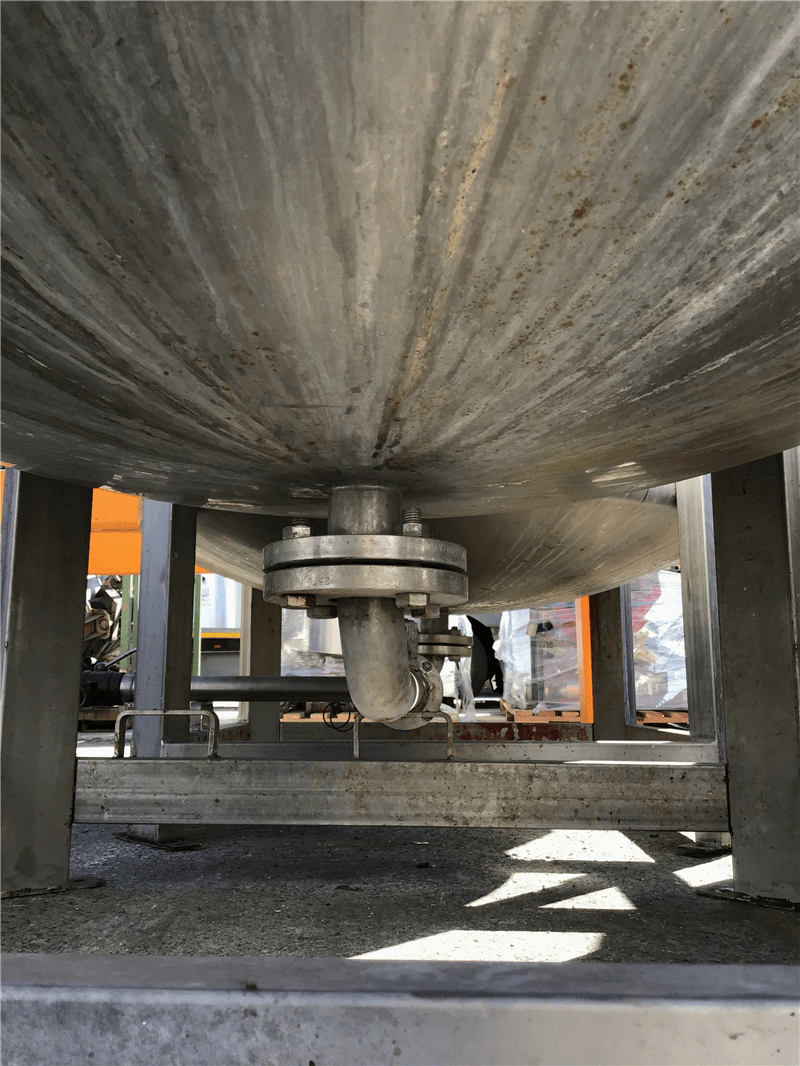

| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |

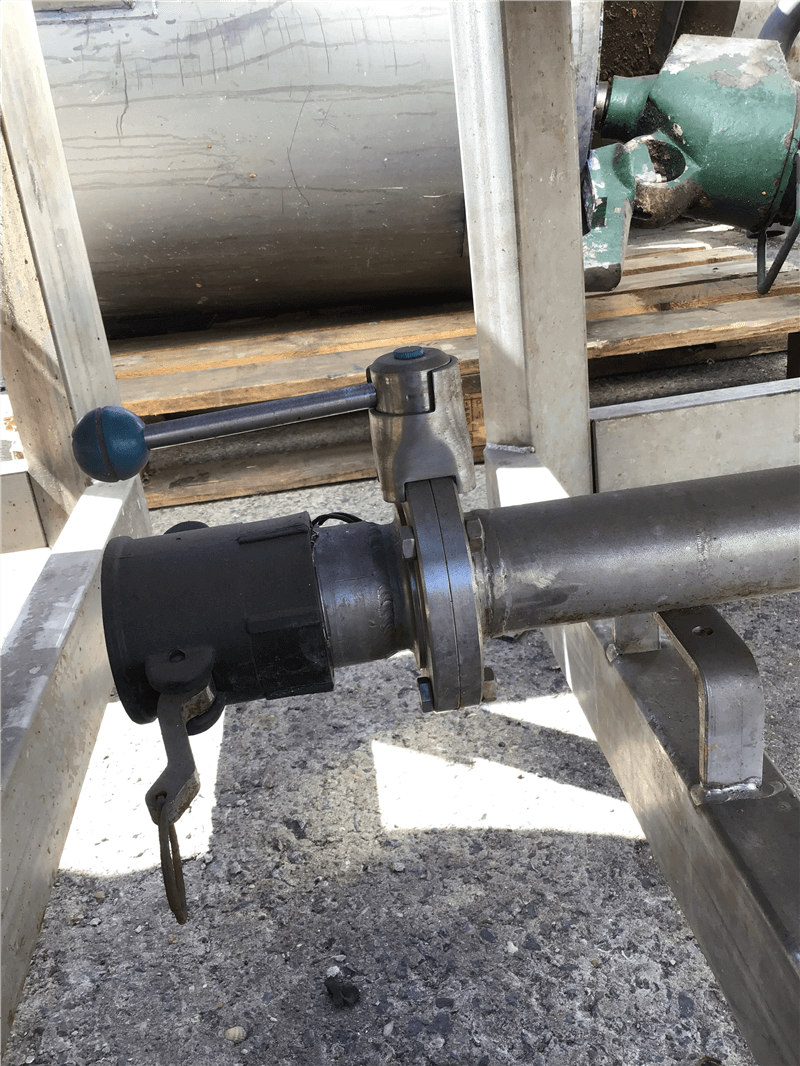

| Type of outlet (s) | Kogelkraan |
| Diameter of outlet (mm) | 55 |
| locality | B-7711 Belgium |
| Condition | Used |
| Top side | |
|---|---|

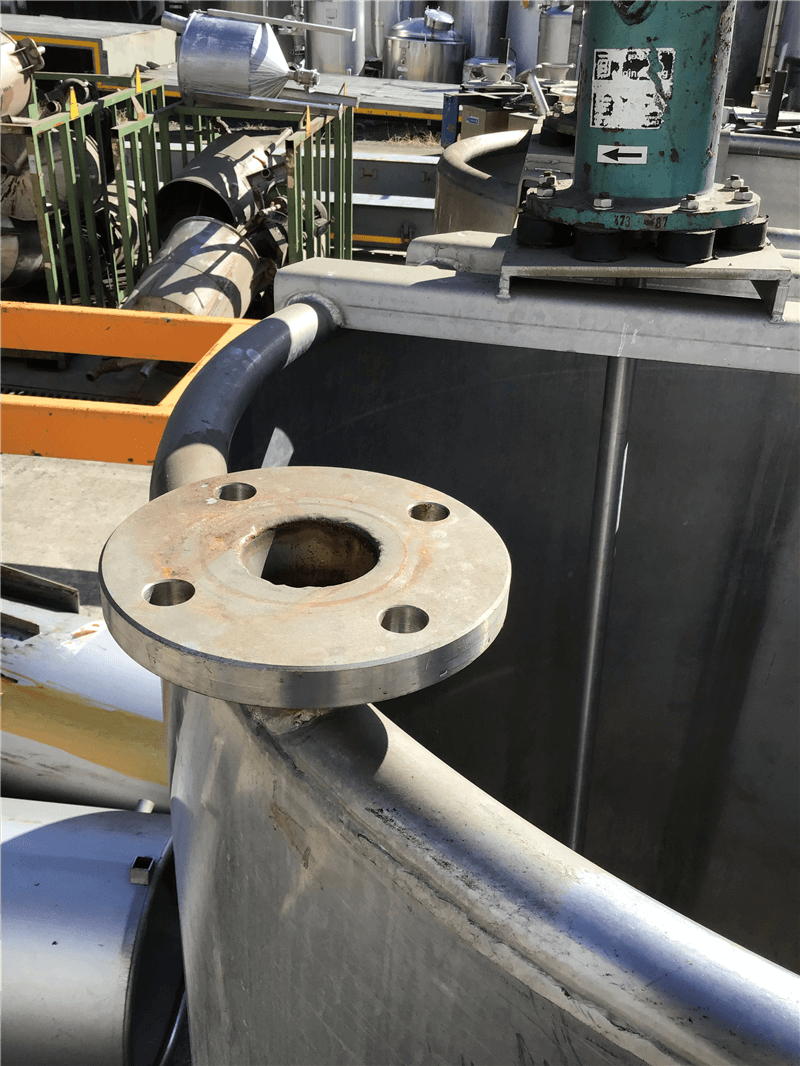

| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,6 |
| Bottom thickness (mm) | 3,9 |
| Cylindrical length (mm) | 1400 |
| Height bottom (mm) | 300 |
| Total height (mm) | 2730 |
| Diameter tank (mm) | 1200 |
| Width (mm) | 1360 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

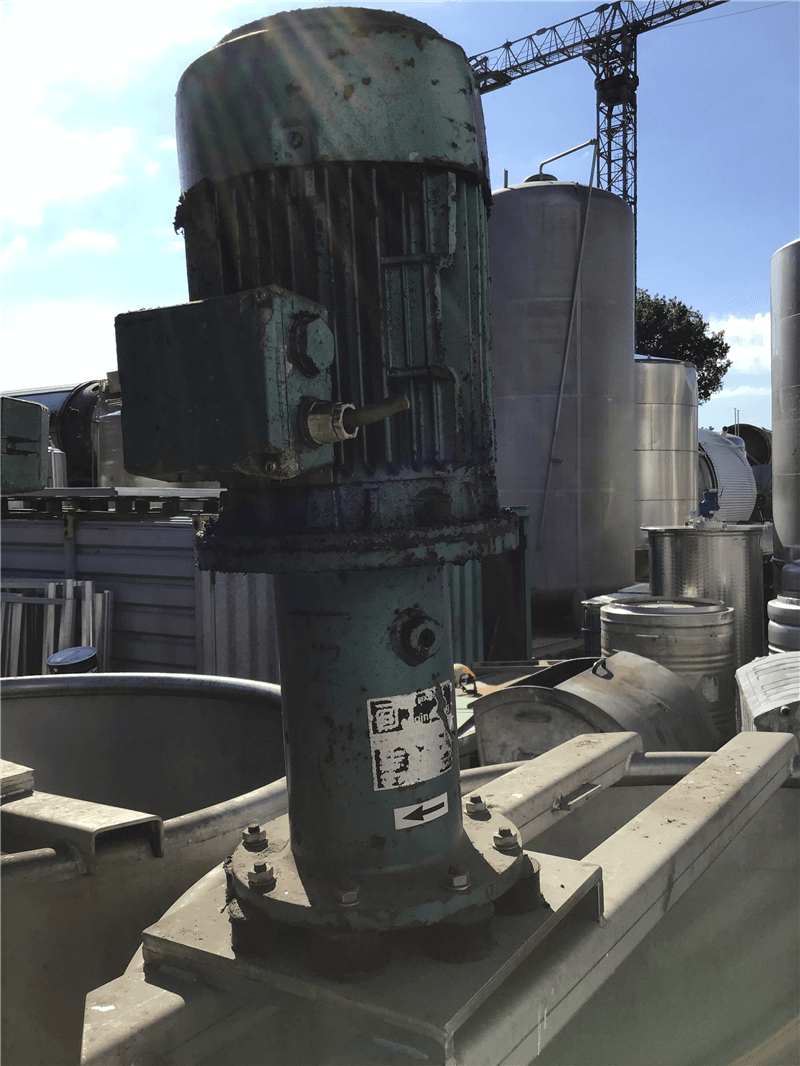

| Agitator 1: Type | Fast rotating mixer |

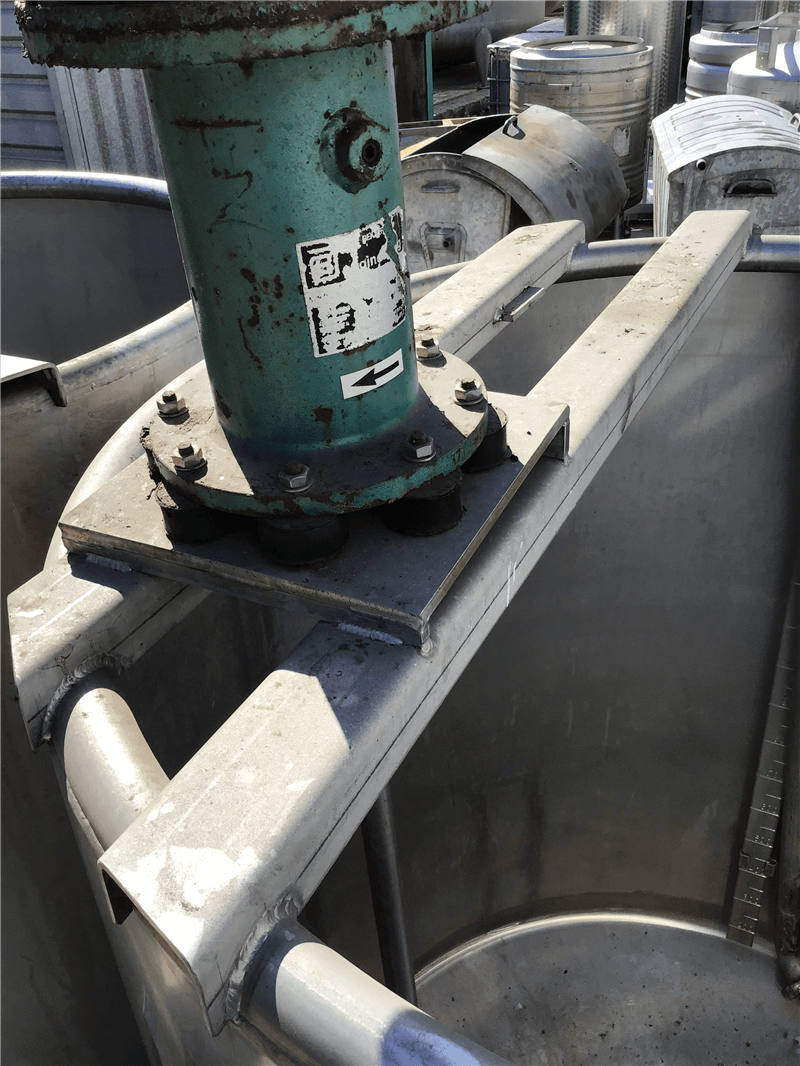

| Agitator 1: Position | decentrally on the top |

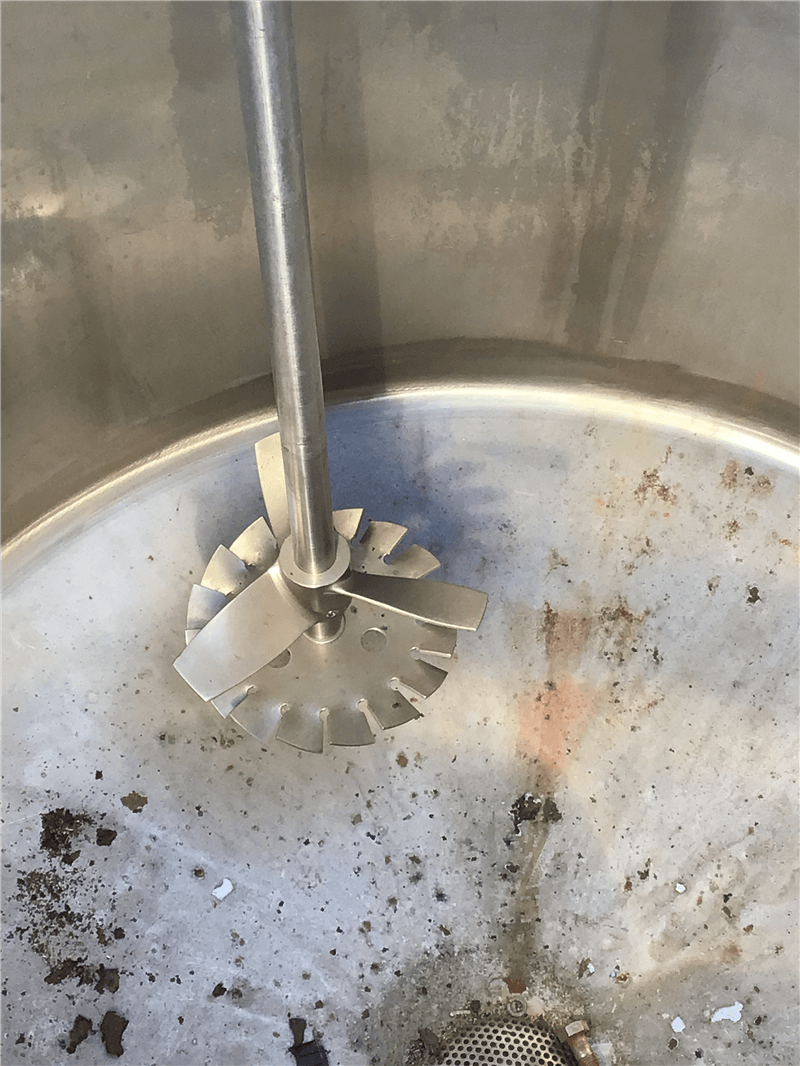

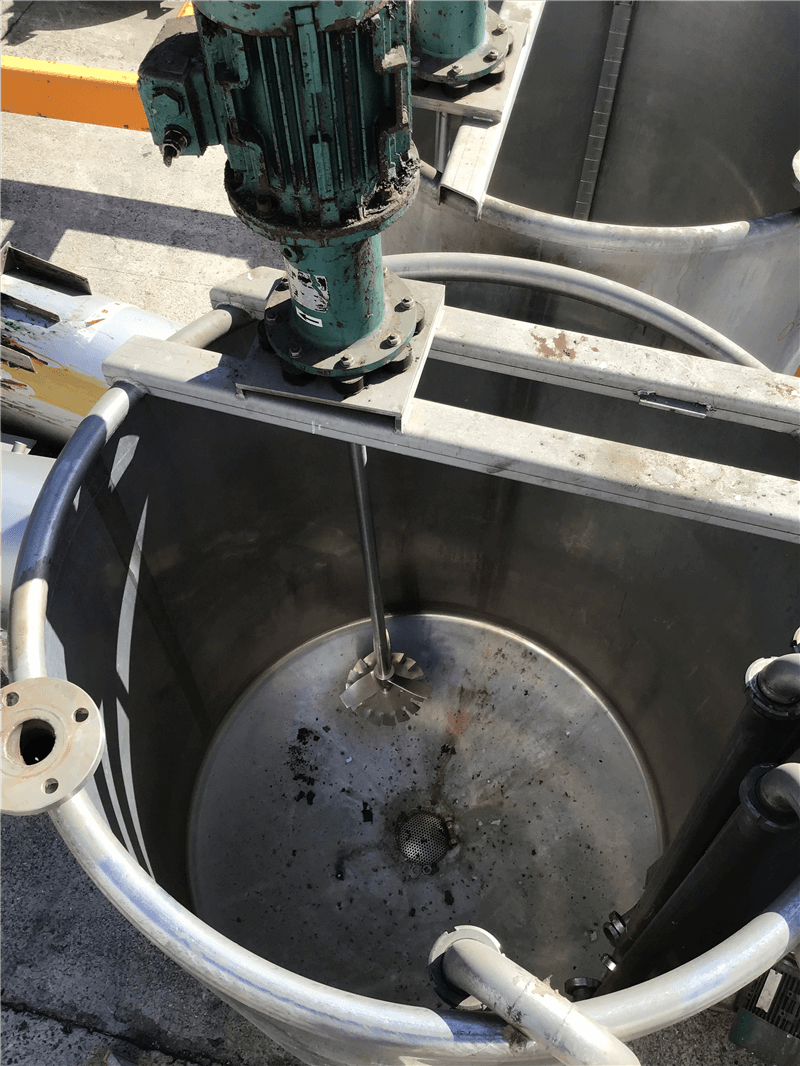

| Agitator 1: stirring element type | Dissolver/Disc stirrer |
| Agitator 1: Length (mm) | 1200 |

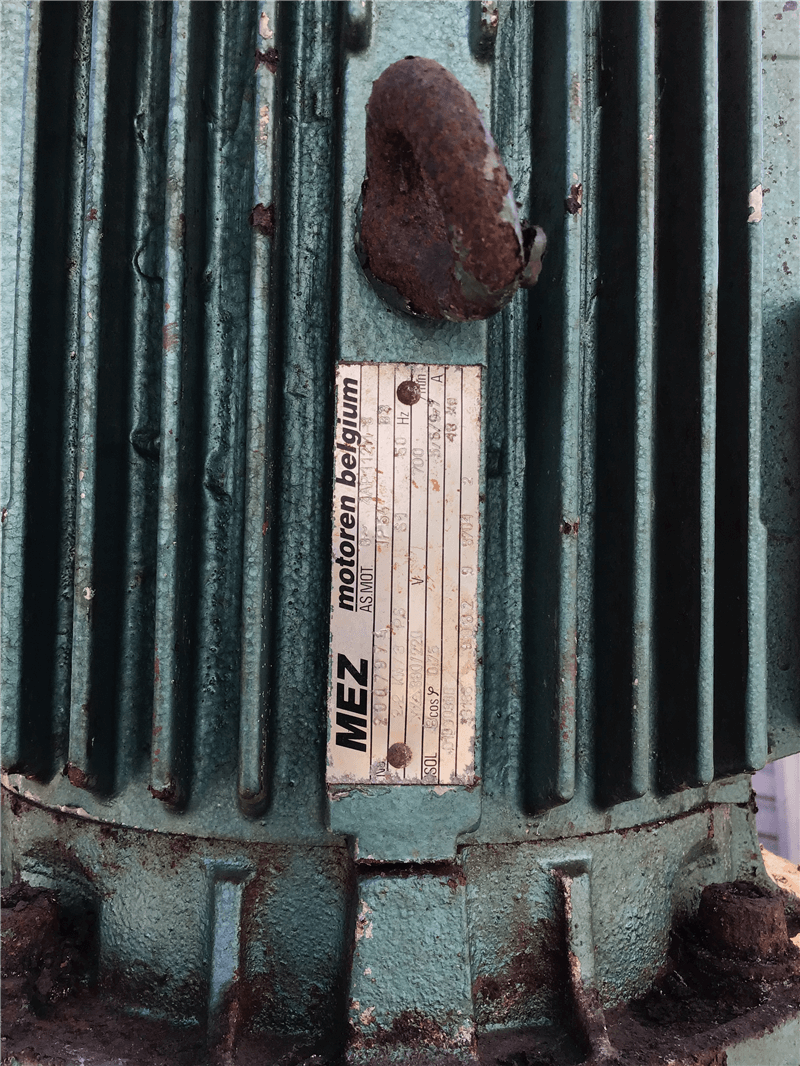

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 400 |
| Agitator 1: Power (kw) | 2,2 |

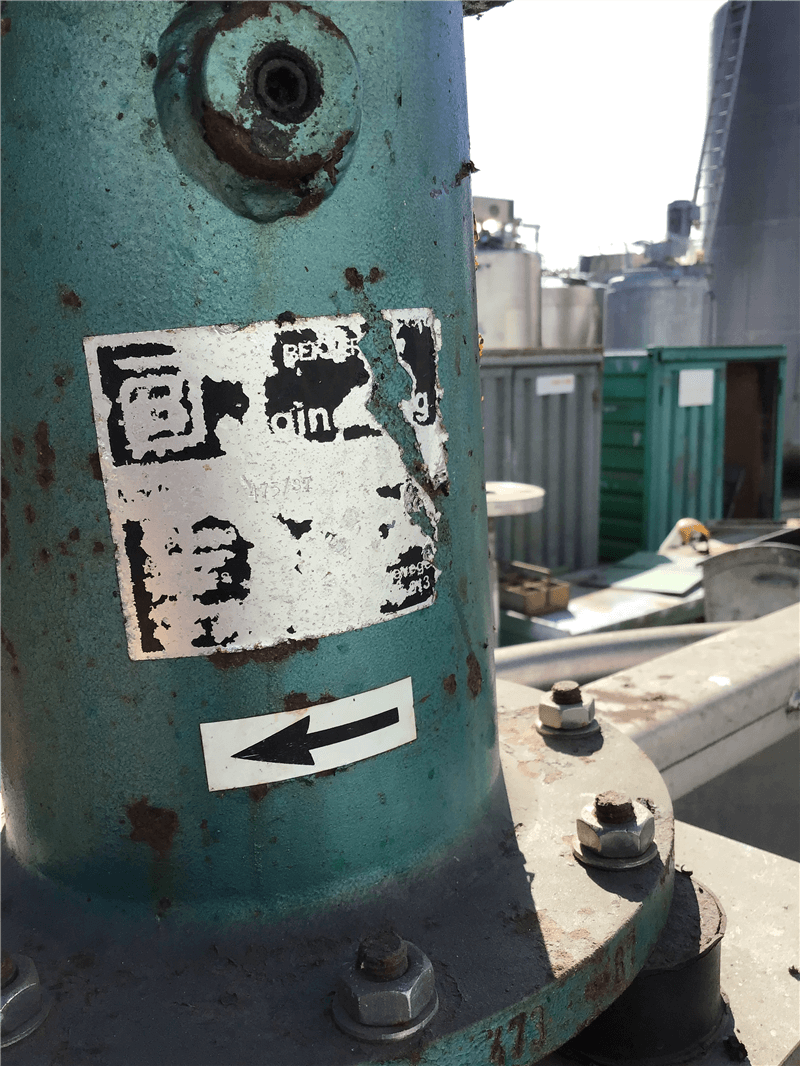

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 700 |
