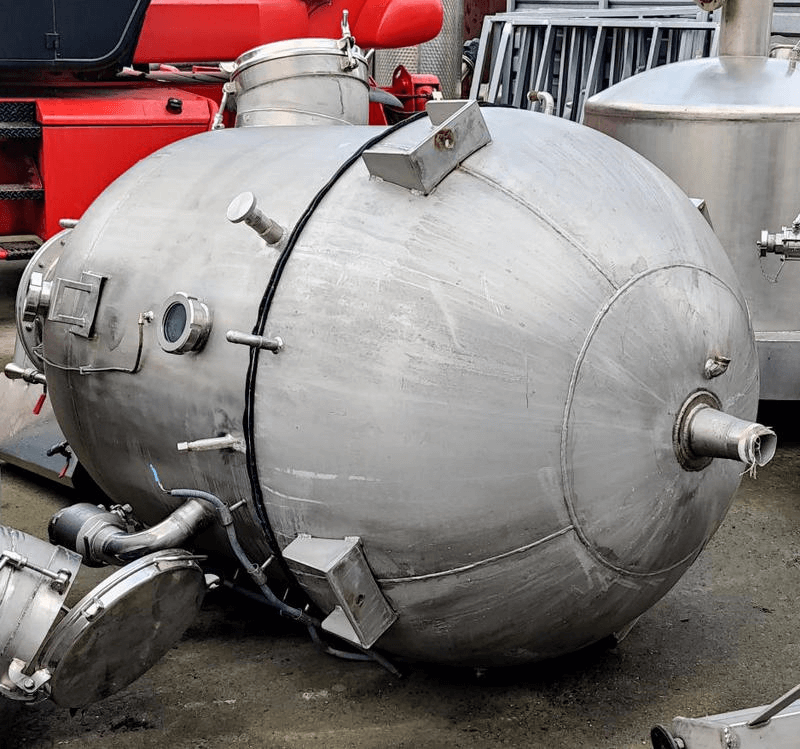

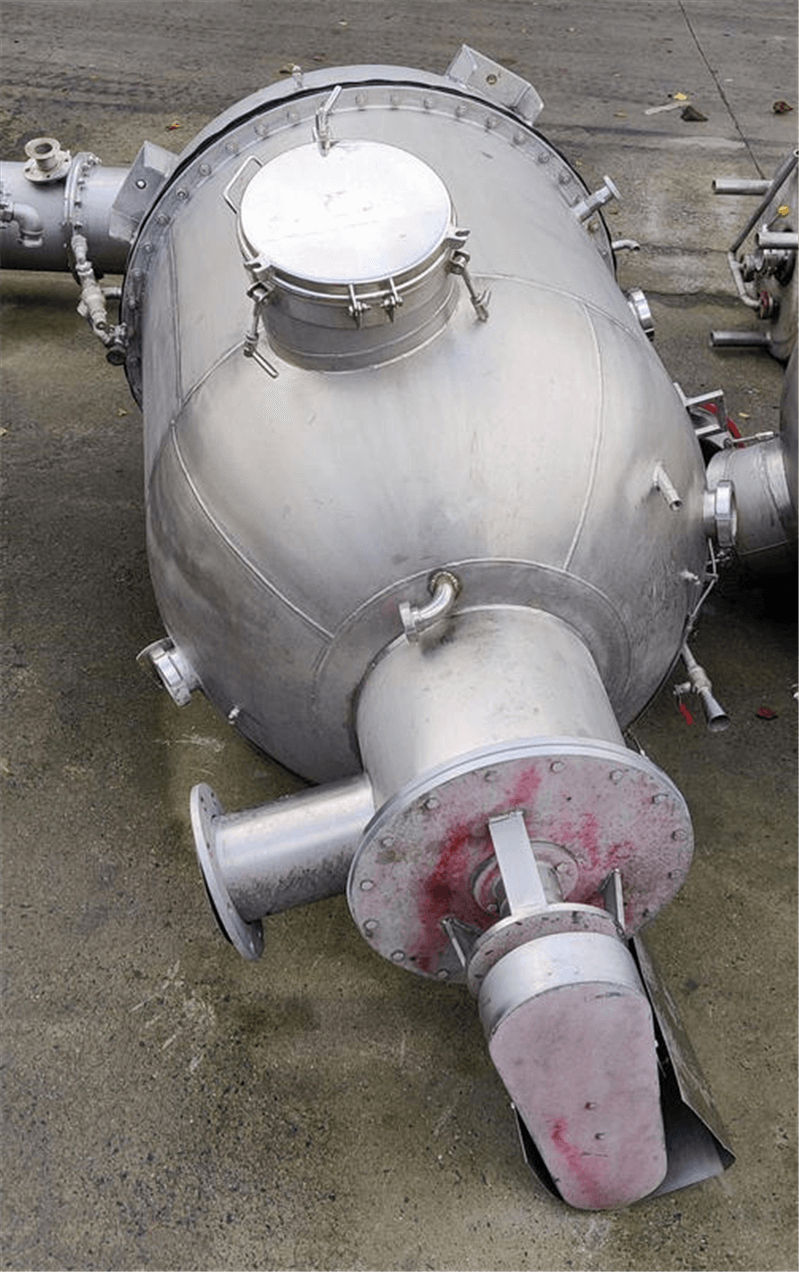

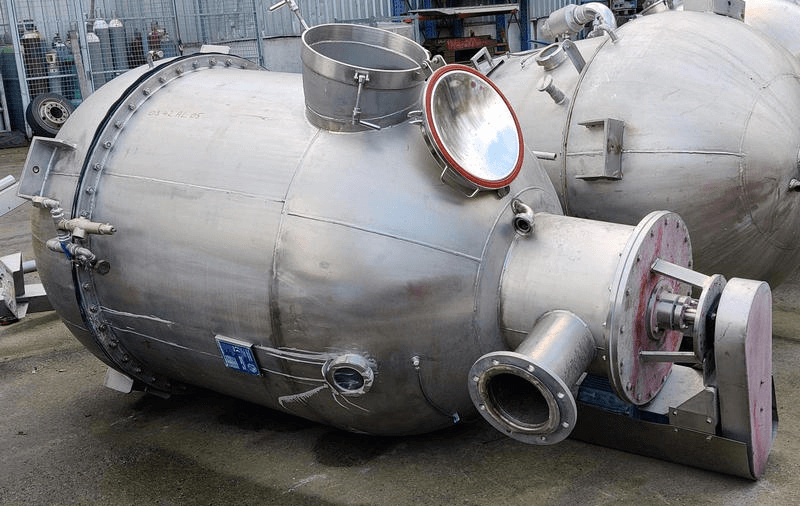

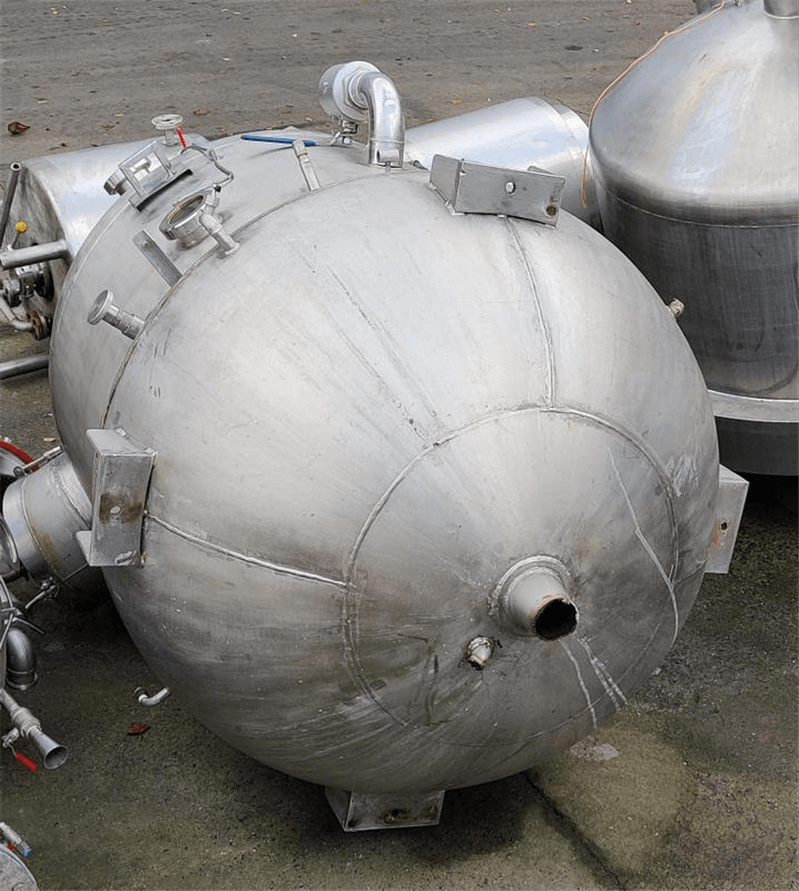

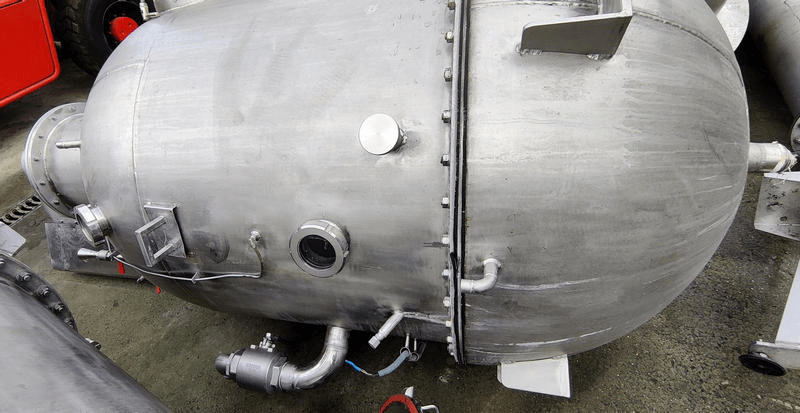

Used mixing vessel

  • Material: Stainless steel 304
  • Condition: Used
  • Volume (in litres): 2000 L
  • In stock: 1
General
Item number 03.42.AL.05
Material Stainless steel 304
Finishing weldings inside Grinded
Number 1
Capacity (Liters) 2000
Type tank Mixing vessel
Fixation 4 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Dished bottom
Tank model Jacketed (Heating/Cooling)
Number of manhole 1
Position of manhole (s) cylindrical part
Dimensions of manholes dia 400
Tank with total drain? Yes
Diameter of outlet (mm) 80
locality B-7711 Belgium
Last application Food
Weight (kg) 600
Condition Used

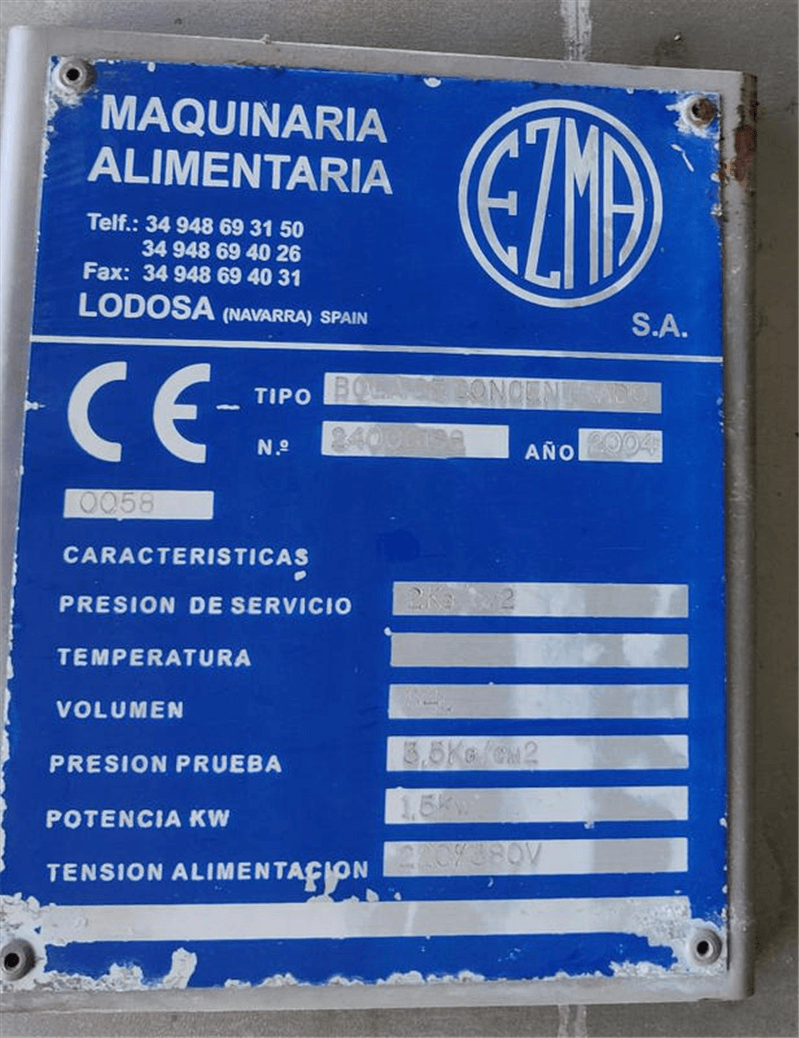

Type plate manufacturer Yes
Manufacturer Maquinaria Alimentaria
Year Built 2004
Construction data available No
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
03.42.AL.05 - Used mixing vessel
Top side
Configuration top-side Closed
Detail closed top side Dished bottom
Thickness closed dome (mm) 4,3
Dimensions
Cylinder Thickness (mm) 4,2
Periphery (mm) 4130
Cylindrical length (mm) 900
Height bottom (mm) 600
Outer wall thickness (mm) 50
Outside diameter tank (mm) 1400
Total height (mm) 3200
Diameter tank (mm) 1300
Width (mm) 1700
Insulation
Insulation No
Heating
Number of heating type 1
Heating 1: Type jacket au bain-marie

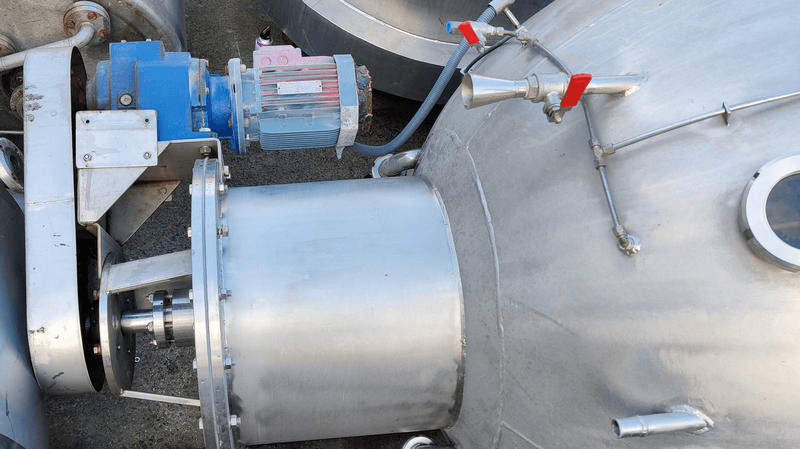

Agitators
Number of agitators 1
Agitator 1: Type Slowly rotating mixer
Agitator 1: Position Centrally on the top

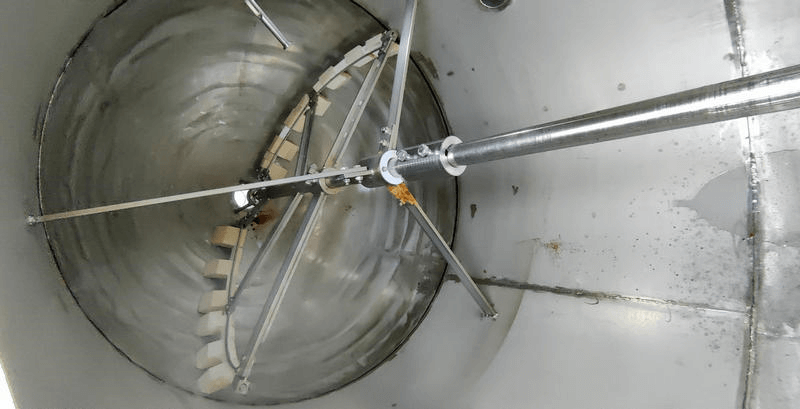

Agitator 1: stirring element type Anchor
Agitator 1: Length (mm) 2500

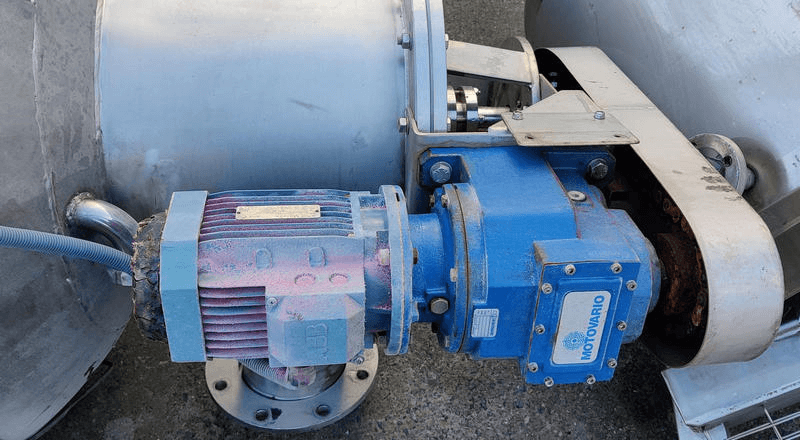

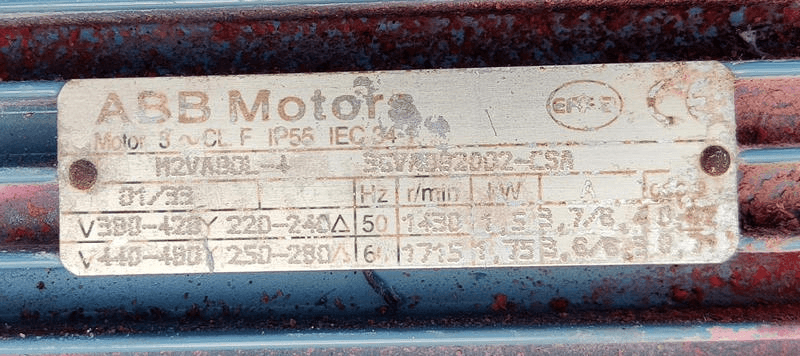

Agitator 1: Engine Type electric motor
Agitator 1: Voltage (V) 220/380
Agitator 1: Power (kw) 1,5

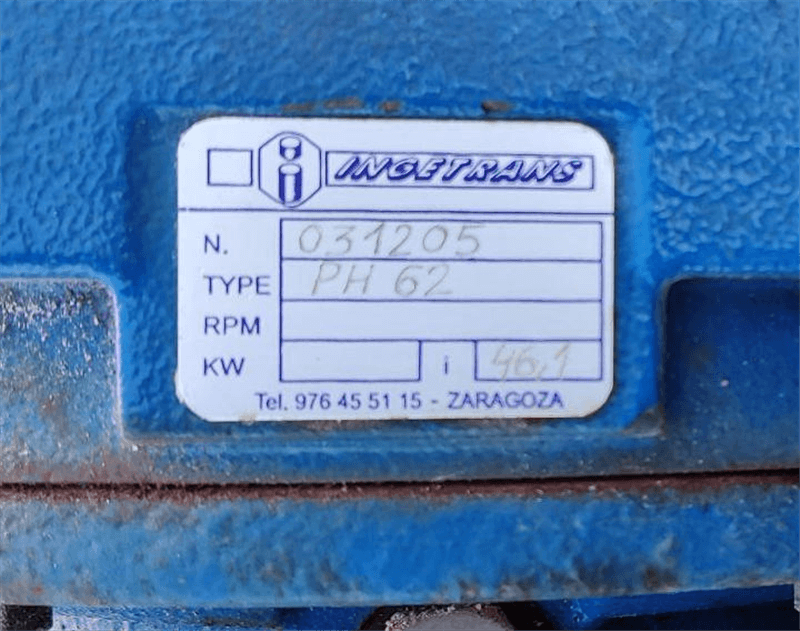

Agitator 1: Drive Type Reductor
Agitator 1: Speed (r / min) ratio 46.1/1
