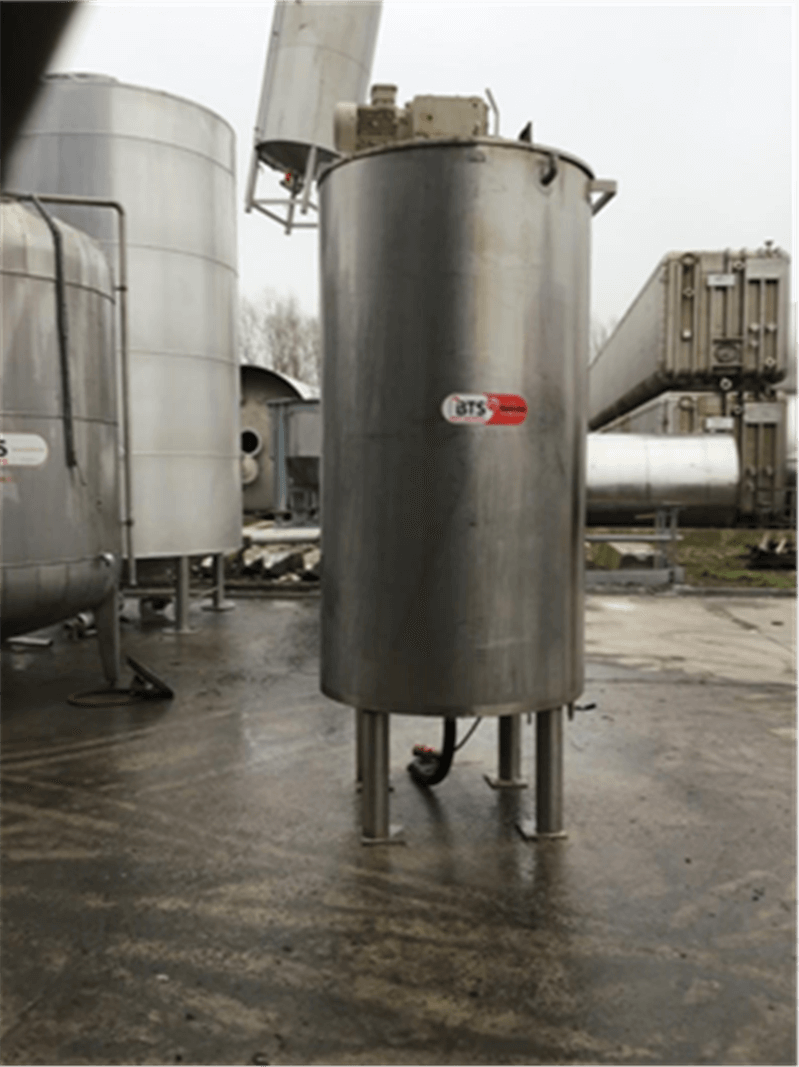

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 1800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.41.SI.10 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1800 |
| Type tank | Mixing vessel |

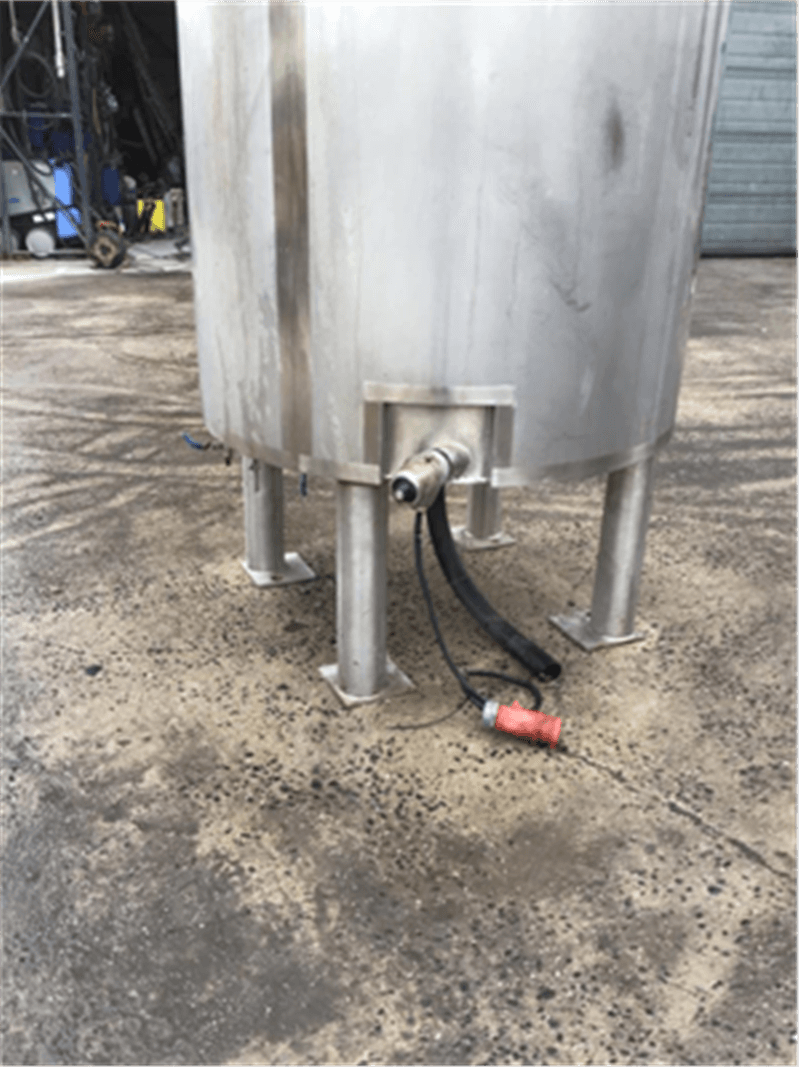

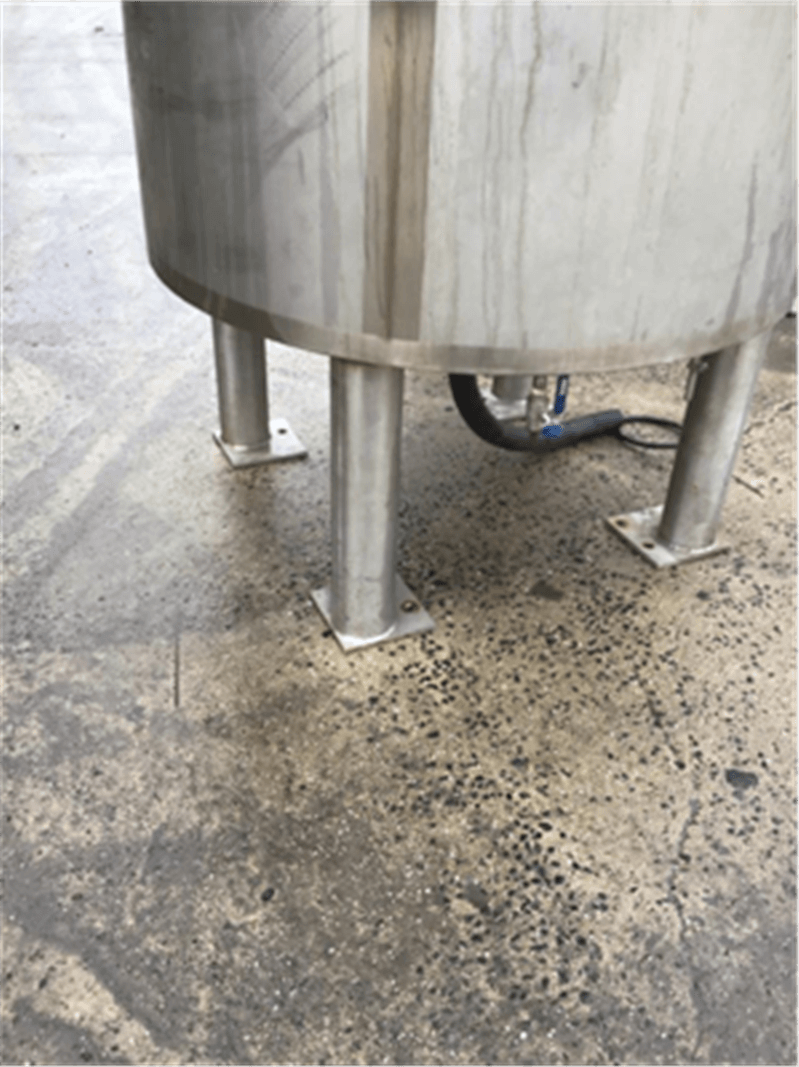

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Condition | Used |
| Manufacturer | De Gouwe |
| Year Built | 2009 |
| Design Code | 09-0290-001 |
| Construction data available | No |
| Drawing 1 | 0341SI10_tekening.pdf |
| Top side | |
|---|---|
| Configuration top-side | Partly open |

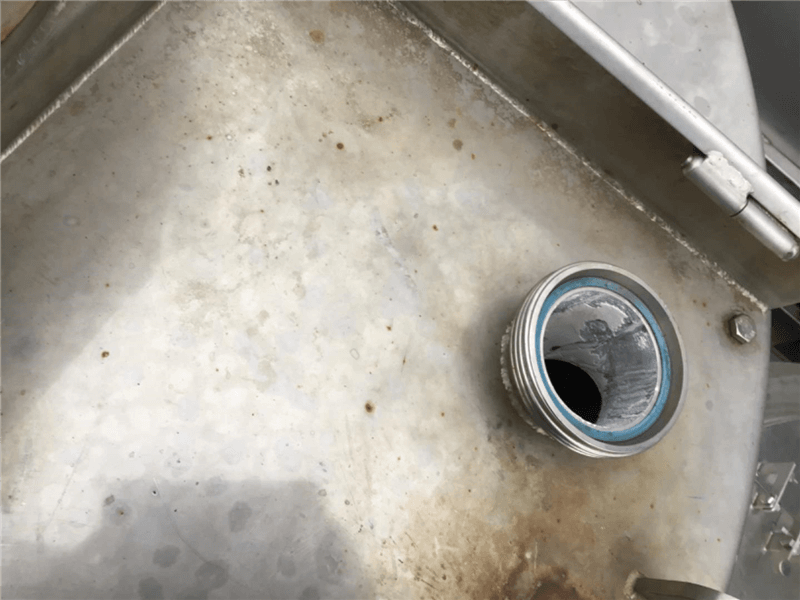

| Detail top side | Flat hinged cover |
| Thickness of top side (mm) | 10 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 3361 |
| Cylindrical length (mm) | 2000 |
| Slope bottom (°) | 20 |
| Height bottom (mm) | 195 |
| Outside diameter tank (mm) | 1190 |
| Total height (mm) | 3190 |
| Diameter tank (mm) | 1190 |
| Width (mm) | 1190 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 40 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

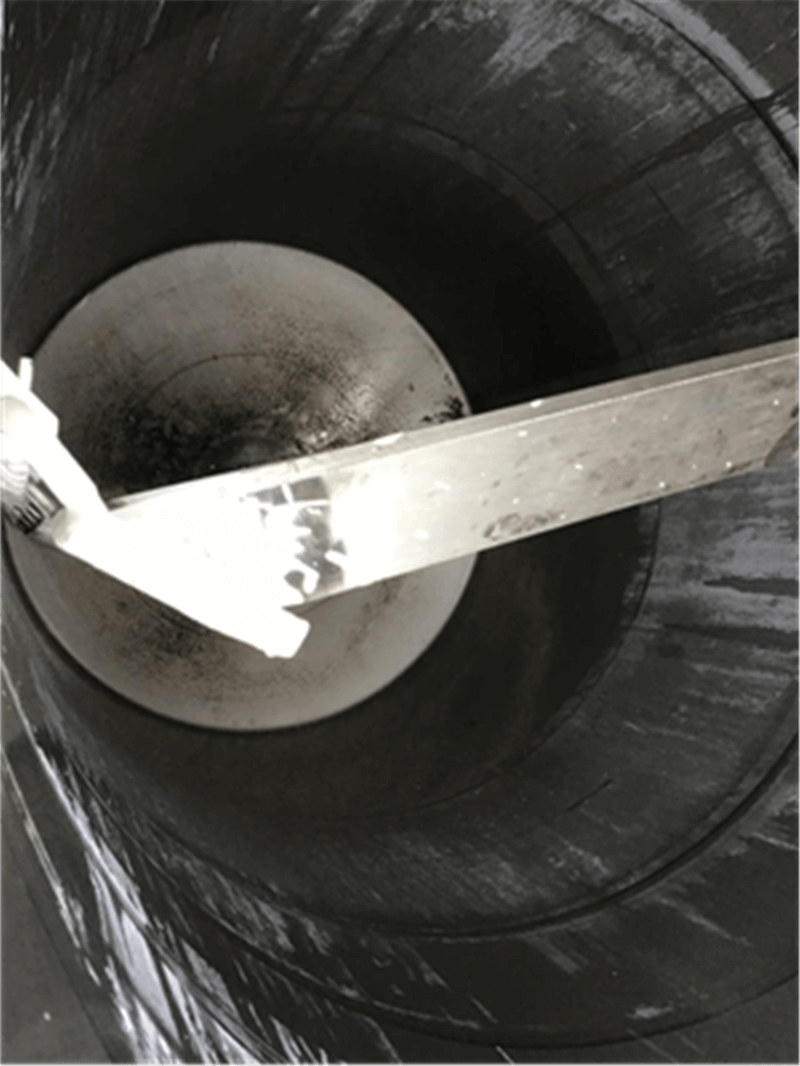

| Agitator 1: Type | anchor without scrapers |
| Agitator 1: Atex/Ex? | No |
| Remarks | |
|---|---|

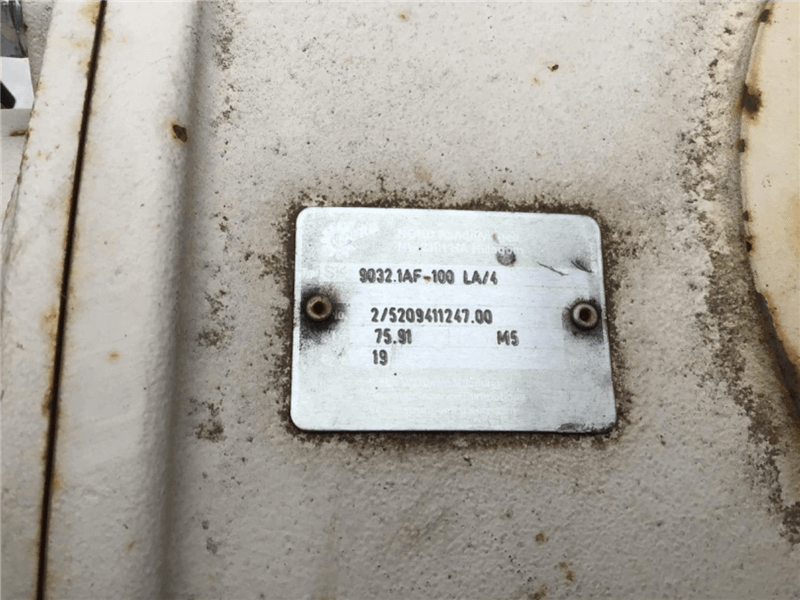

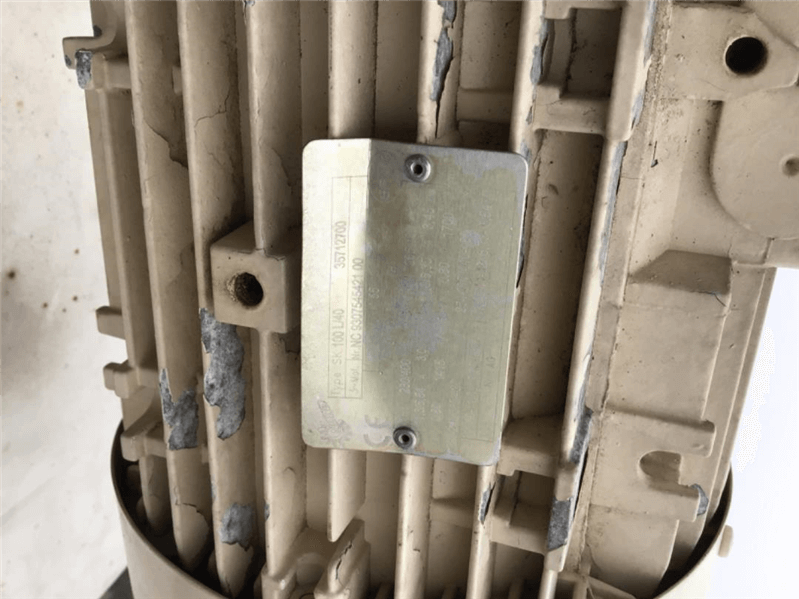

| Description (EN) | motor with agitator and reduction-motor Nord type ( SK 100L/10 - 230/400V-IP55-cos phi0.8-1475/1700rpm ) -outlet 3" - inlet 3" |
