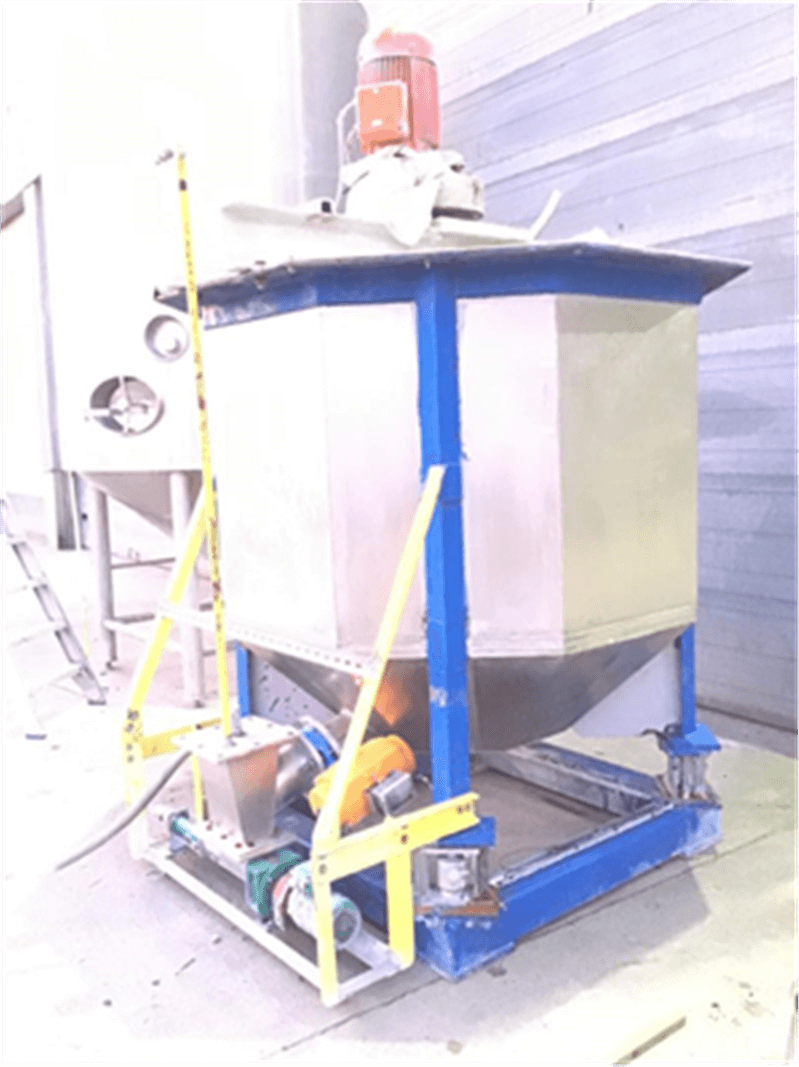

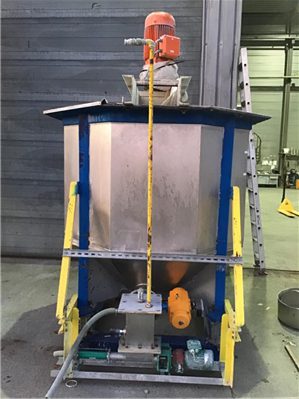

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1130 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.41.CO.09 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1130 |
| Type tank | Mixing vessel |
| Fixation | Profiles |
| Model of the tank | Vertical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Condition | Used |

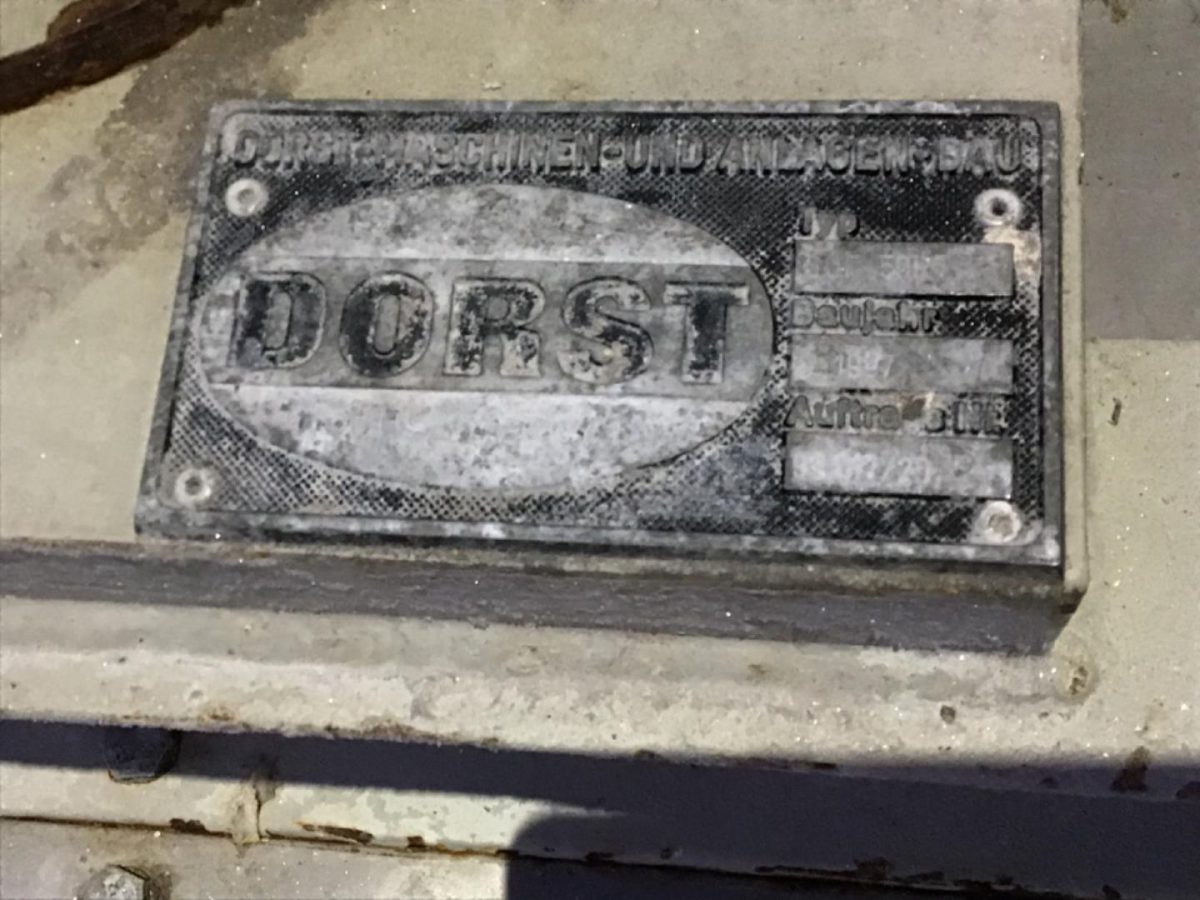

| Type plate manufacturer | Yes |
| Manufacturer | Dorst |
| Year Built | 1997 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Detail top side | 2x flap lid |
| Thickness of top side (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3 |
| Slope bottom (°) | 30 |
| Height bottom (mm) | 420 |
| Total height (mm) | 2870 |
| Length (mm) | 2100 |
| Width (mm) | 1880 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Cupmixer |
| Agitator 1: Position | Centrally on the top |

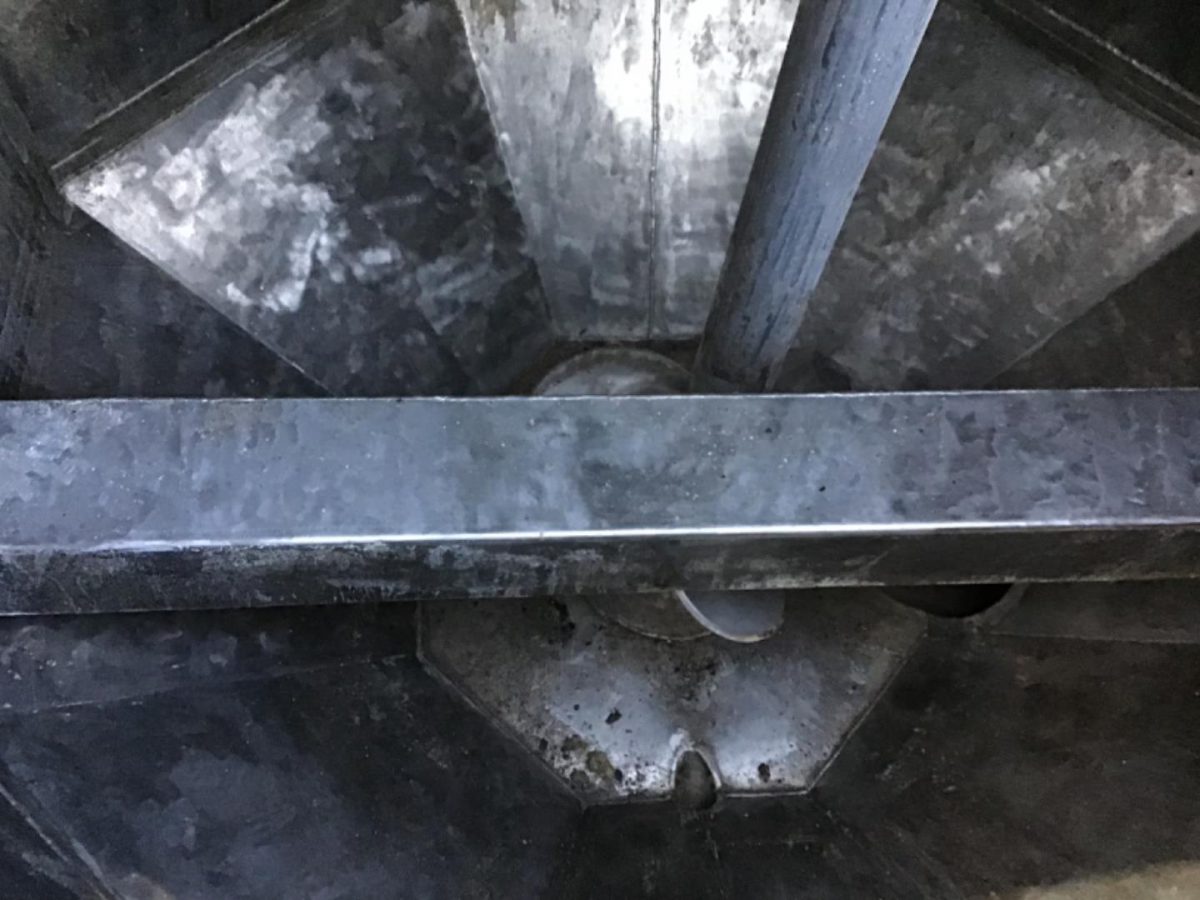

| Agitator 1: Number of baffles | 3 |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Drive Type | Direct |
| Remarks | |
|---|---|

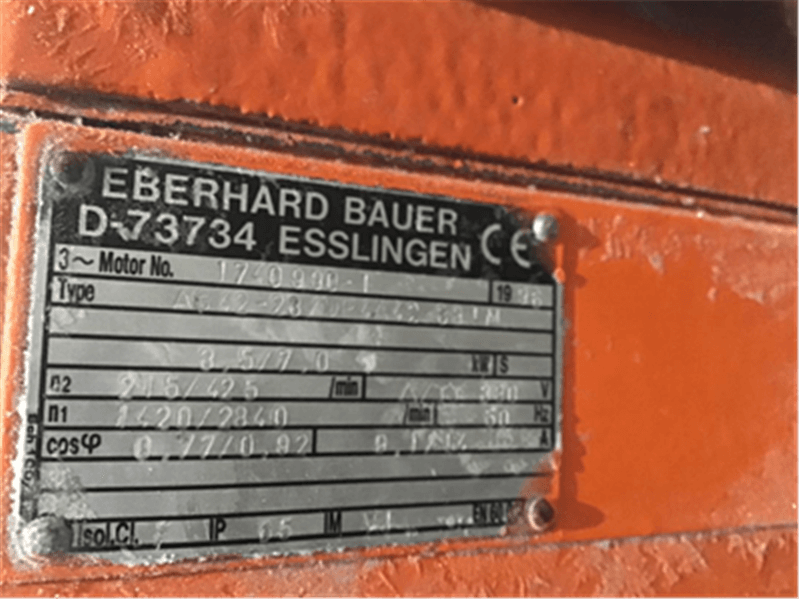

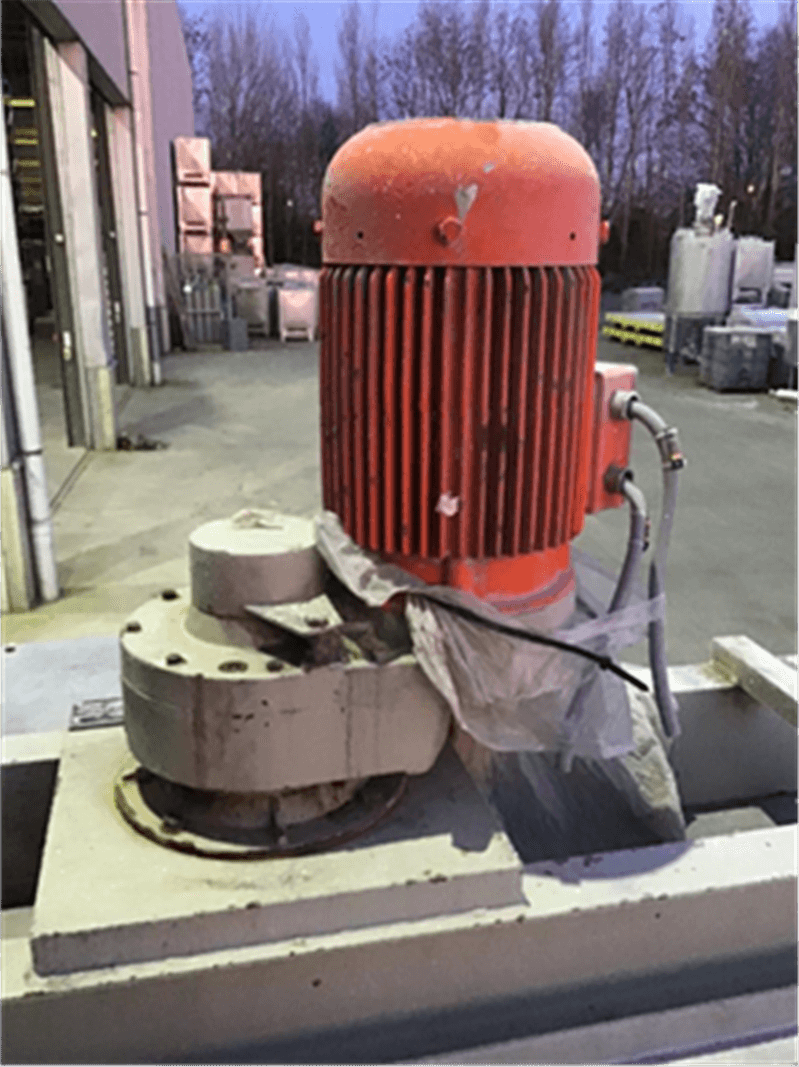

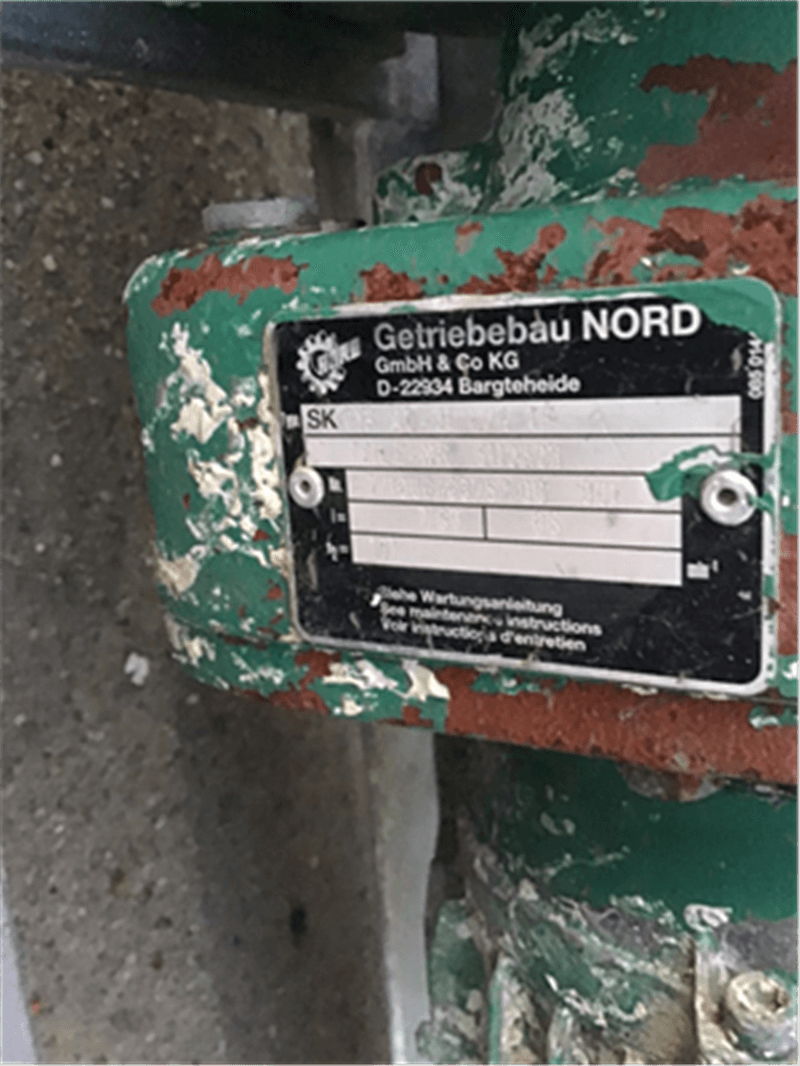

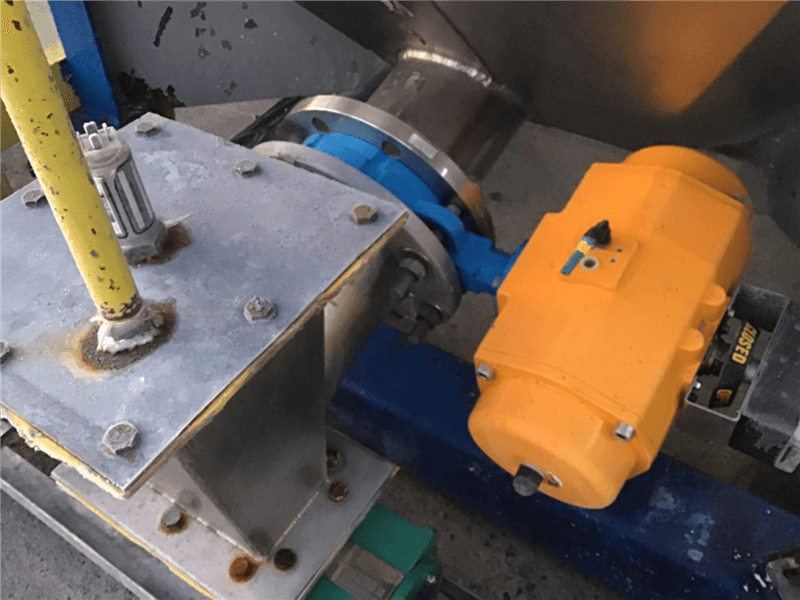

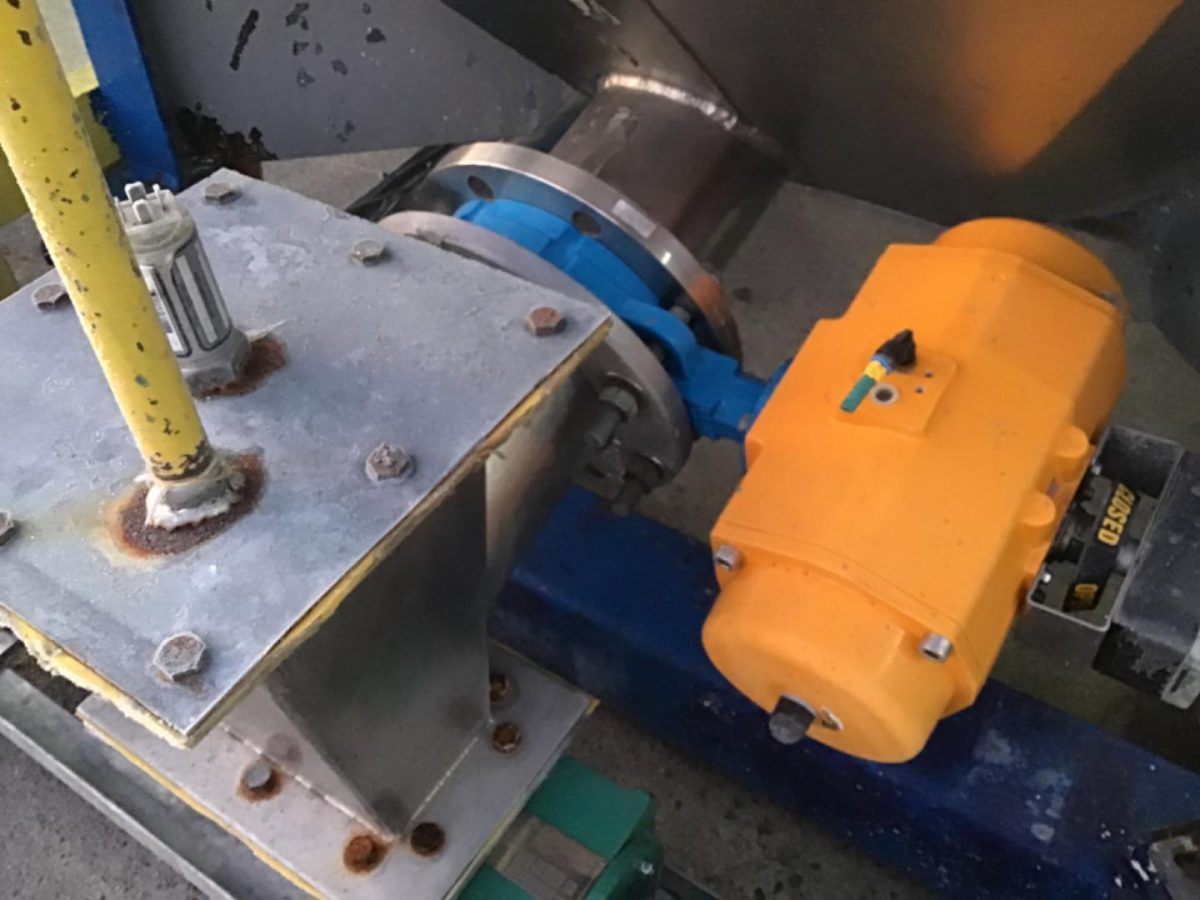

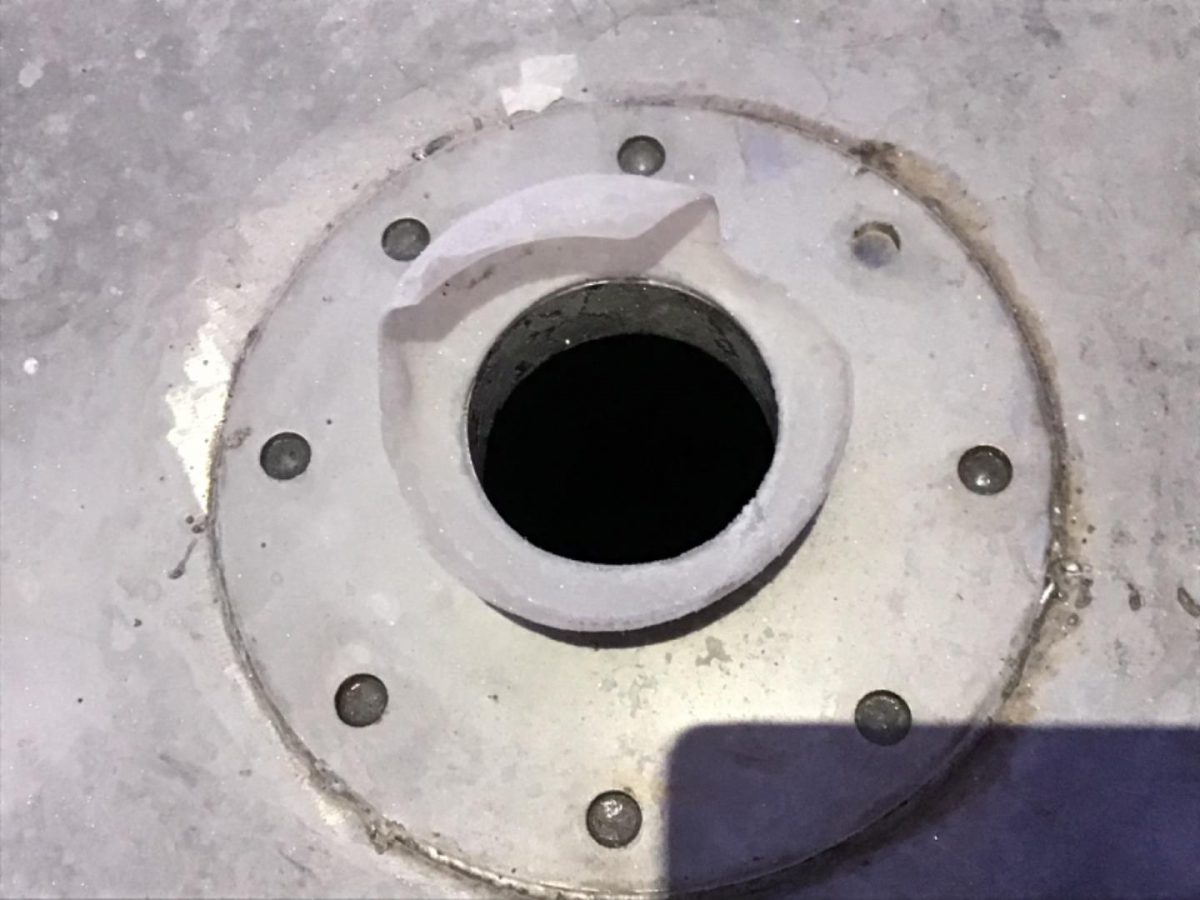

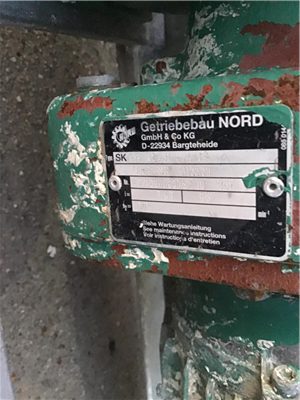

| Description (EN) | motor manifacturer Eberhard Bauer (type AG42-23DP4A42-33IM ) (n° 1740980-1) - 215V( 3.5kW) - 380V( 7kW) - 1420/2840 rpm - cos phi 0.77/.092 - reductor ( merk Getriebebau NORD type OIF AL-71L74TF i=7.80 - n2= 181 ) - out DN150 reduced to 1" |
