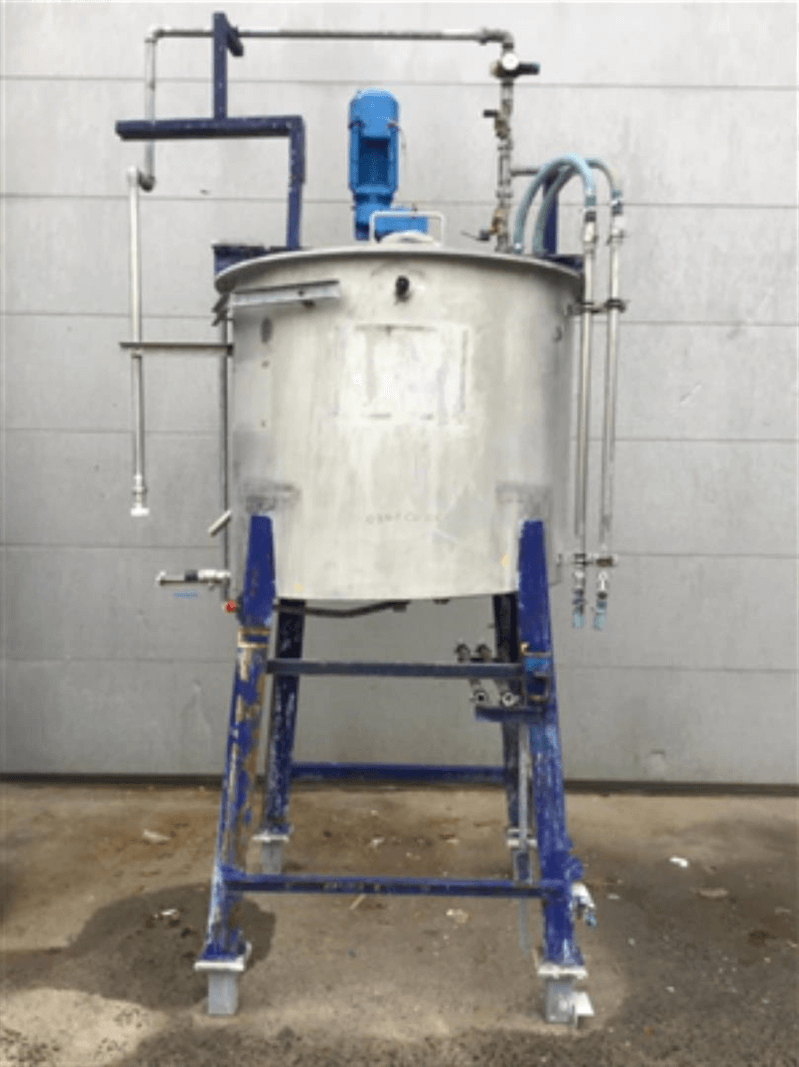

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1380 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.41.CO.06 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1380 |
| Type tank | Mixing vessel |

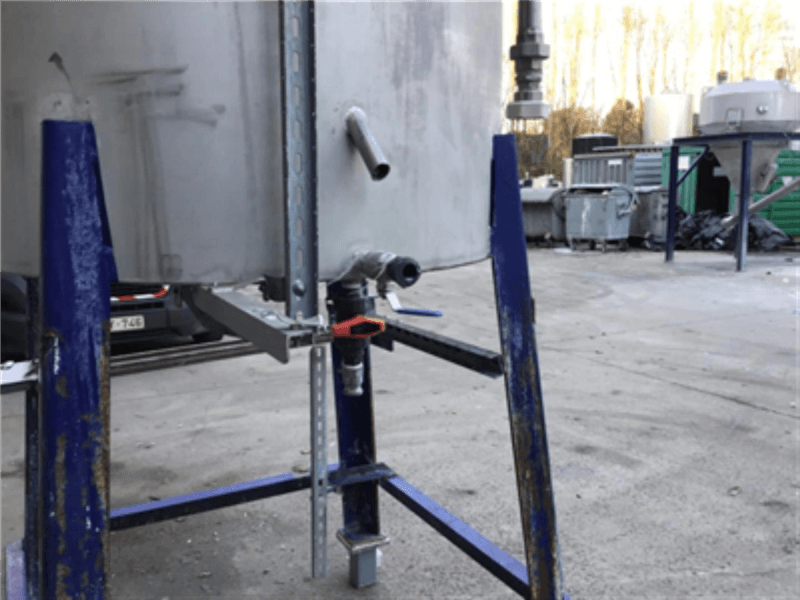

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |

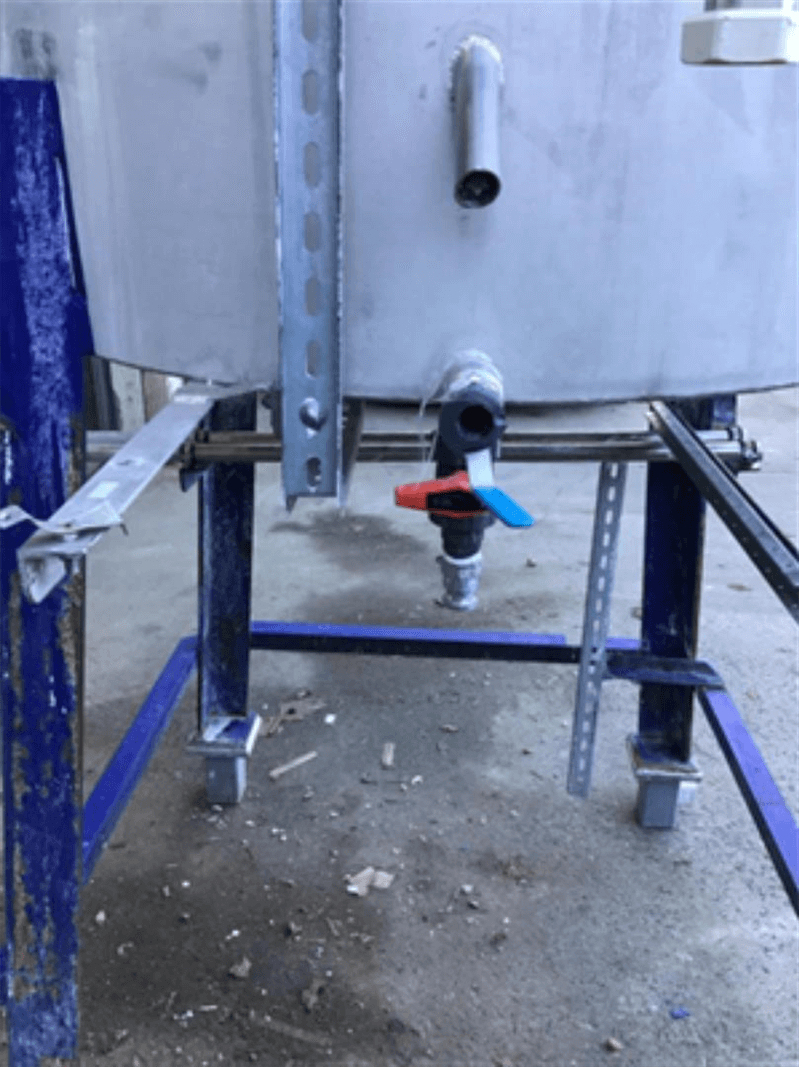

| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|

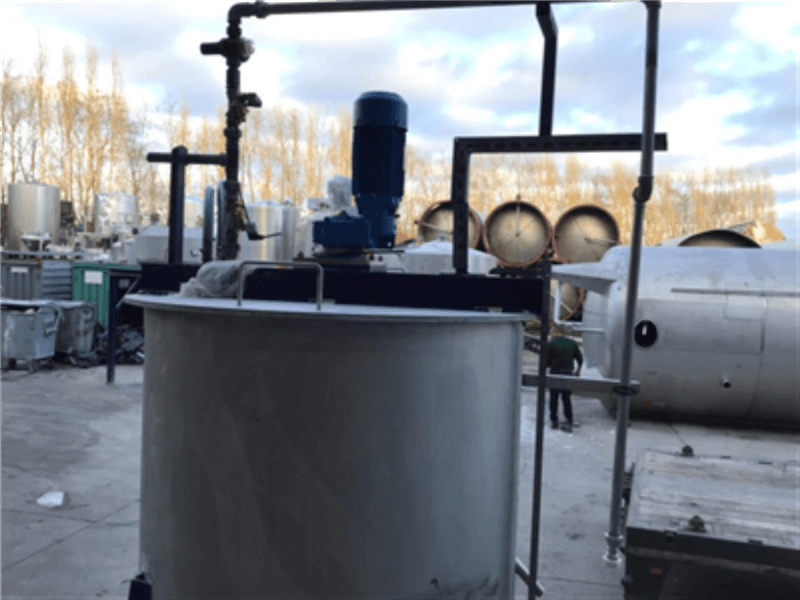

| Configuration top-side | Partly open |
| Detail top side | 2x flap lid |
| Thickness of top side (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 4084 |
| Cylindrical length (mm) | 1040 |
| Total height (mm) | 3640 |
| Diameter tank (mm) | 1300 |
| Width (mm) | 1670 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Cupmixer |
| Agitator 1: Position | Centrally on the top |

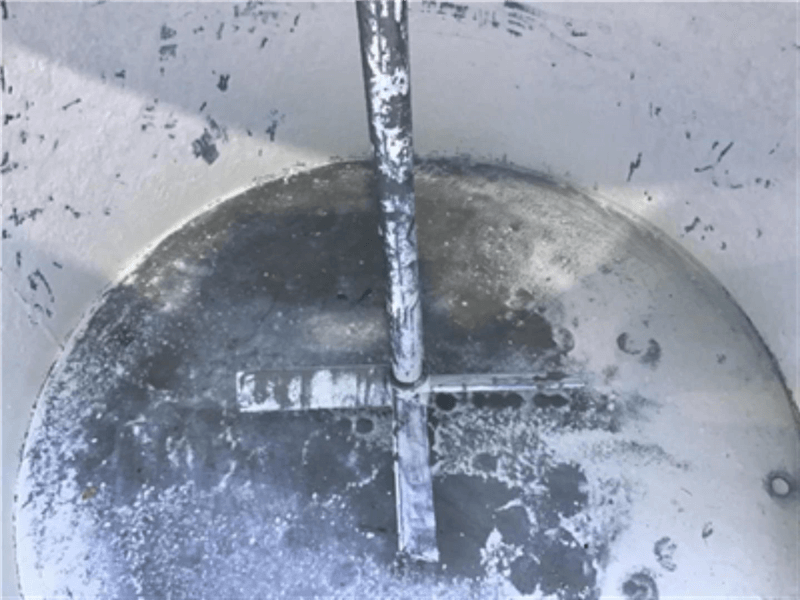

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 900 |

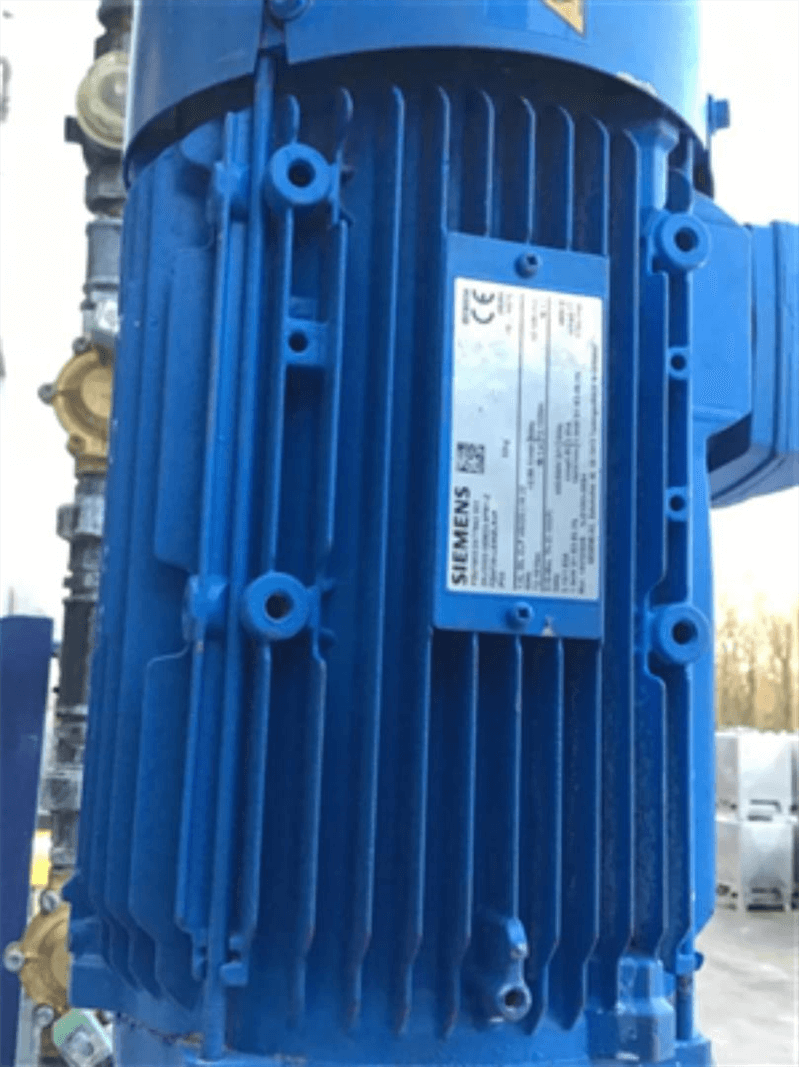

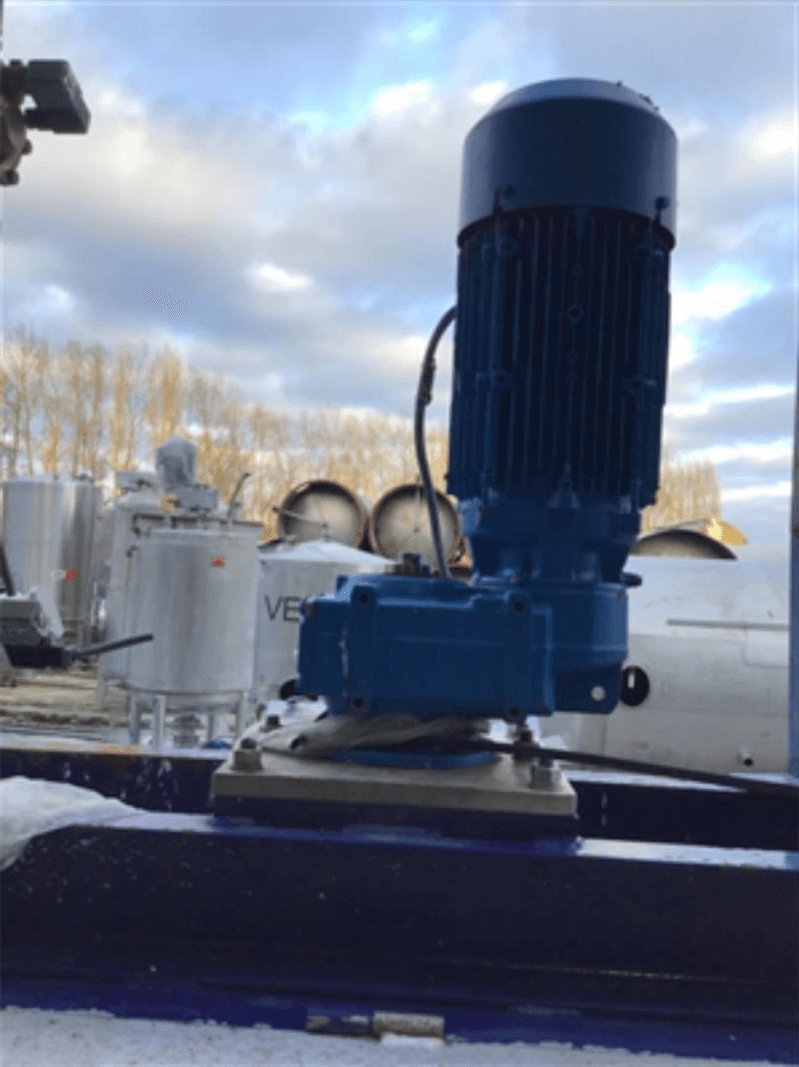

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 400/690 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 1445 |
| Remarks | |
|---|---|

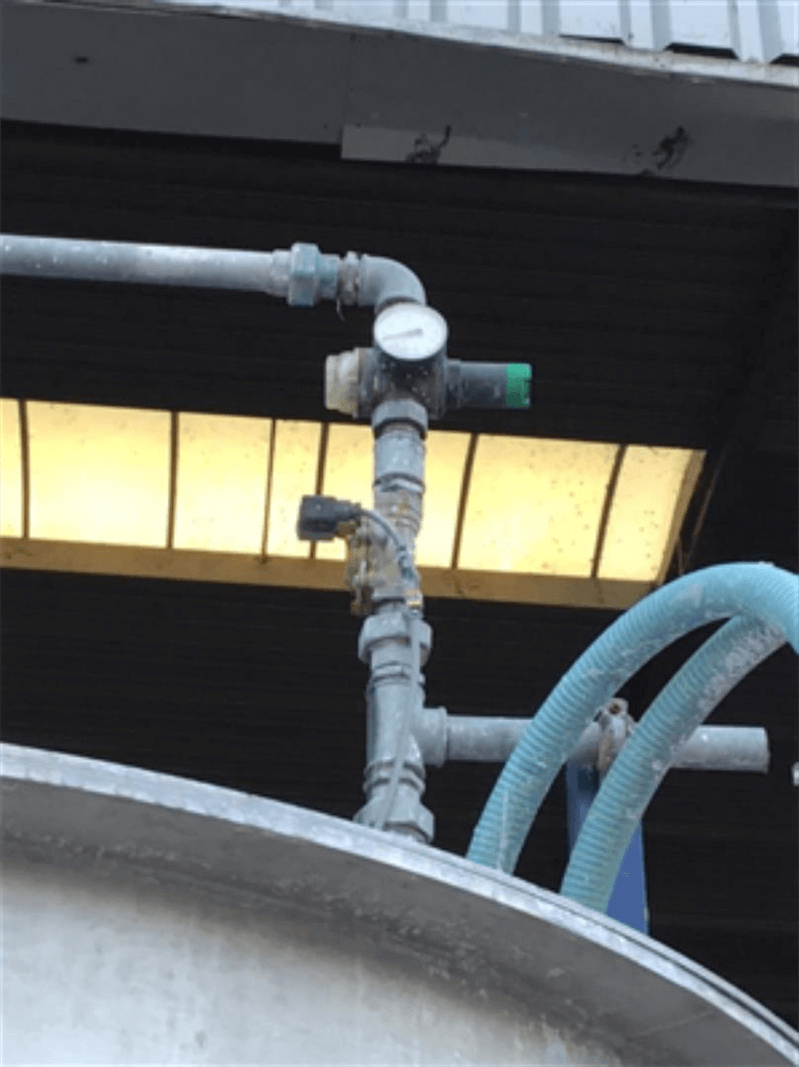

| Description (EN) | motor with propellor with reduction: motor: - entrance water 2 x 1" camlock - out 1 x 1" camlock and 1" ball valve |
