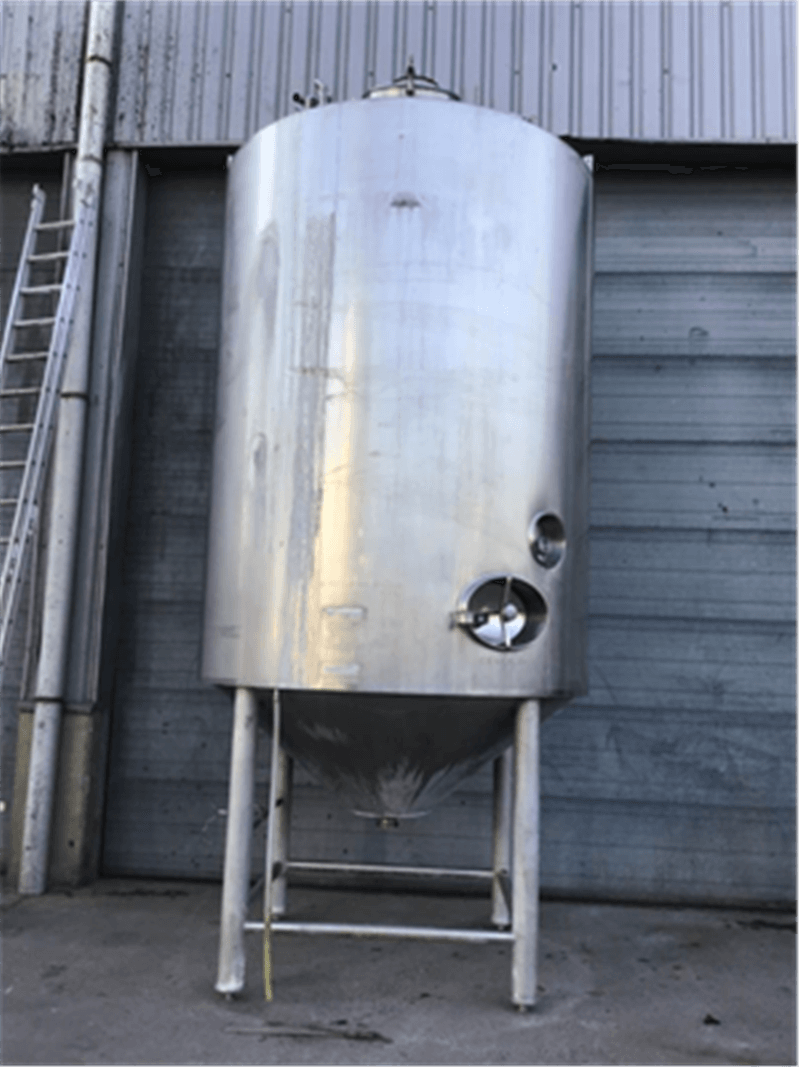

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.41.AP.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 8500 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | 400x300 |
| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Condition | Used |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,1 |
| Bottom thickness (mm) | 3,1 |
| Periphery (mm) | 6450 |
| Cylindrical length (mm) | 2700 |
| Slope bottom (°) | 45 |
| Height bottom (mm) | 660 |
| Outside diameter tank (mm) | 6450 |
| Total height (mm) | 5500 |
| Diameter tank (mm) | 2053 |
| Width (mm) | 2400 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 80 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

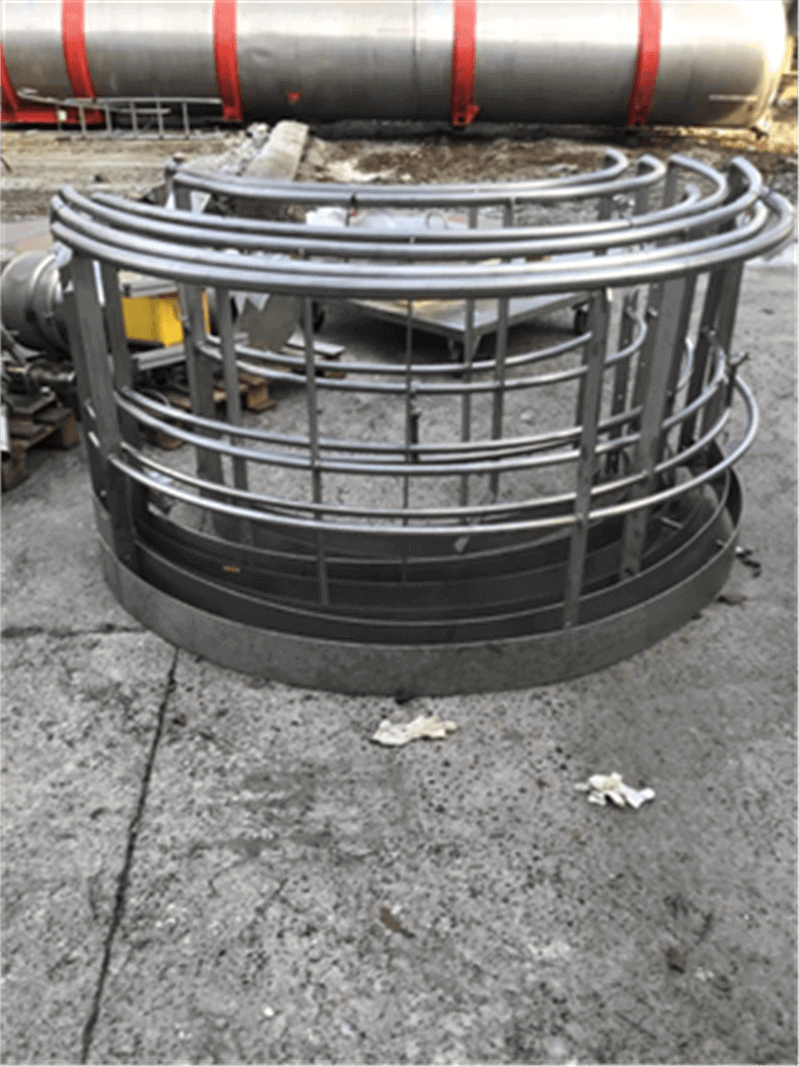

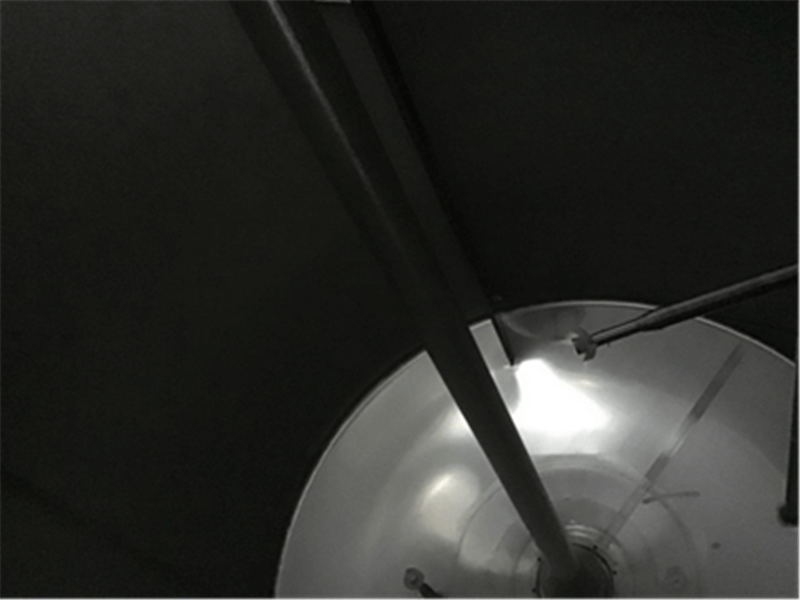

| Agitator 1: Type | Cupmixer |
| Agitator 1: Atex/Ex? | No |
| Remarks | |
|---|---|

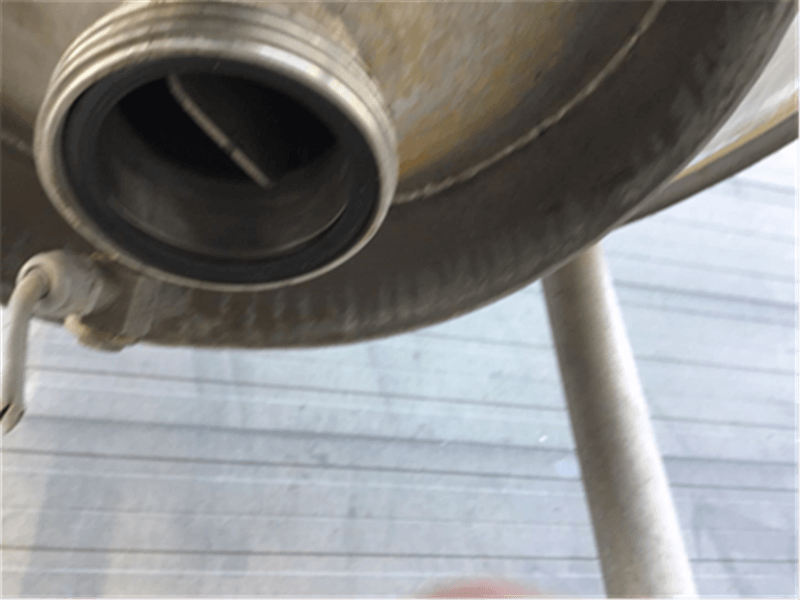

| Description (EN) | motor with reduction ( no data available ) - out 4"- single wall with isolation |
