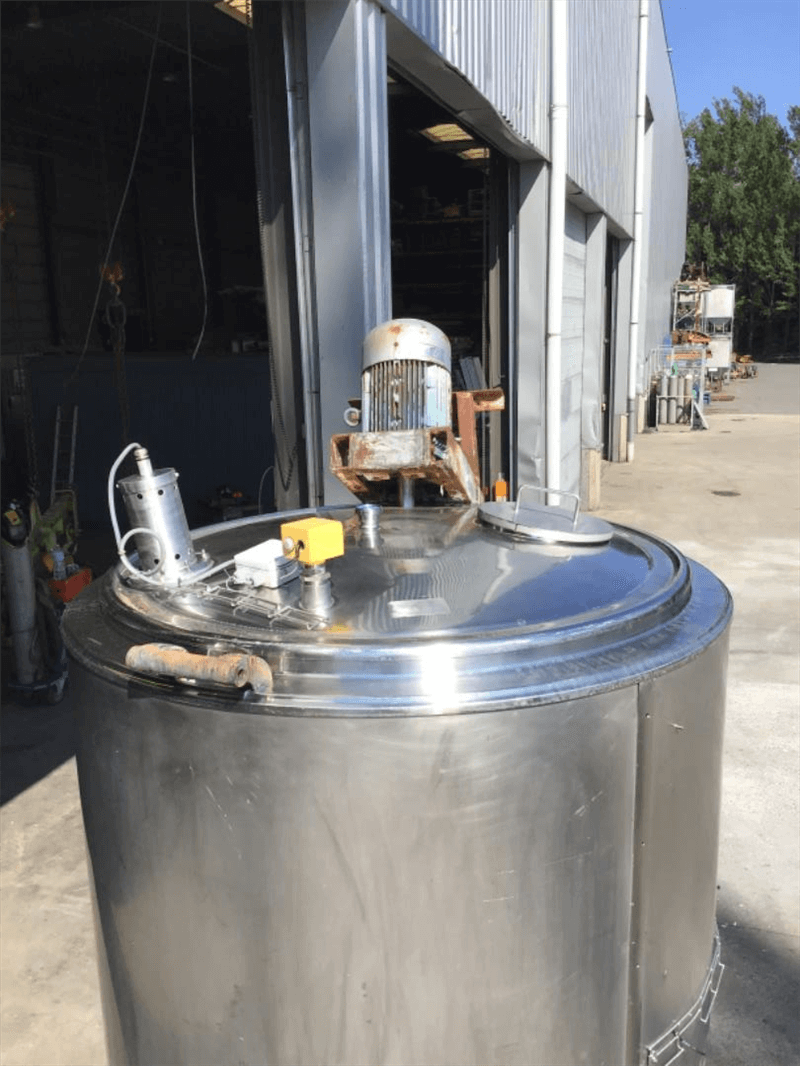

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.41.AL.16 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1200 |
| Type tank | Mixing vessel |

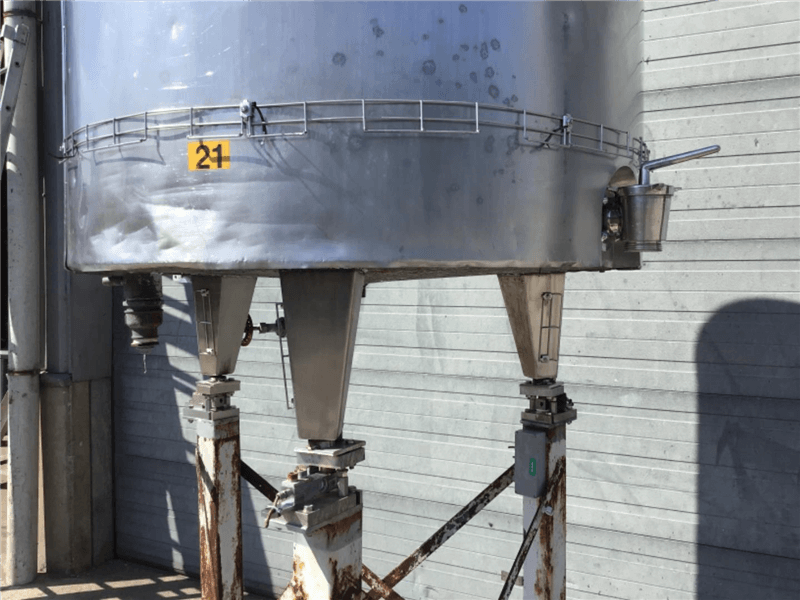

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø300 mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Shut-off valve |
| Diameter of outlet (mm) | 6/4" inner diameter |
| locality | B-7711 Belgium |

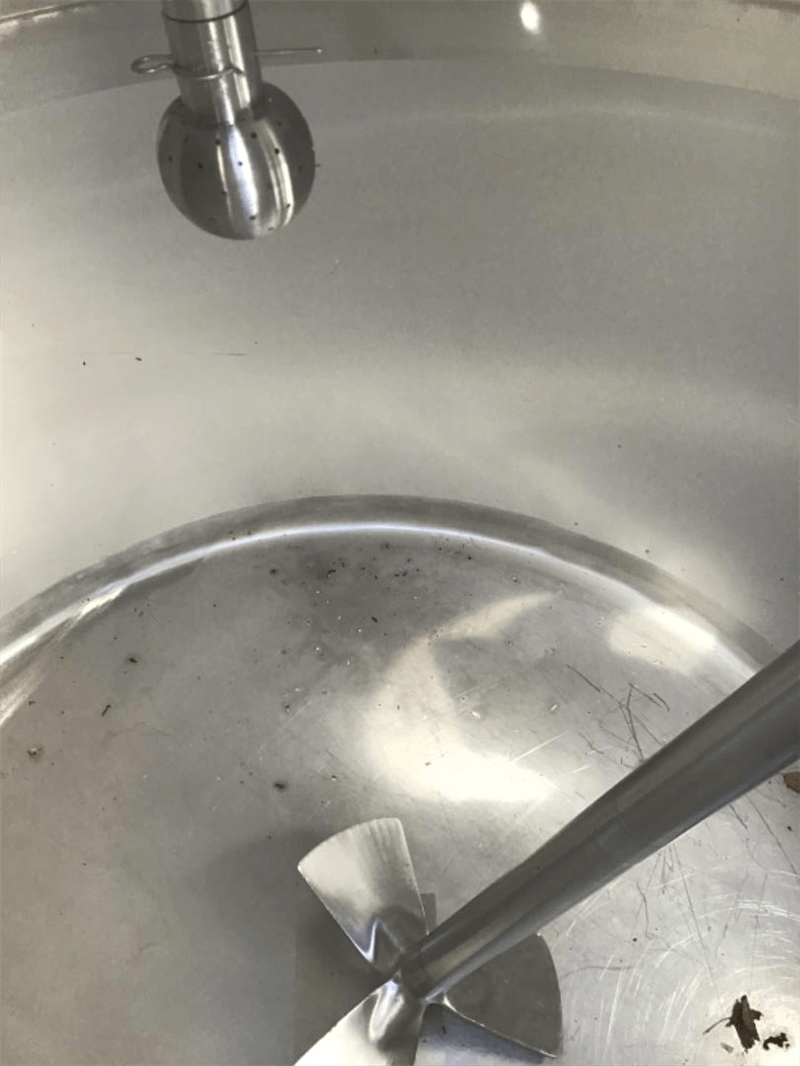

| Provision tank cleaning | CIP ball |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 2,4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,2 |
| Total height (mm) | 3350 |
| Diameter tank (mm) | 1450 |
| Width (mm) | 1550 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Finishing insulation | Profile Cladding |
| Insulation material | Stainless steel 304 |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Position | decentrally on the top |

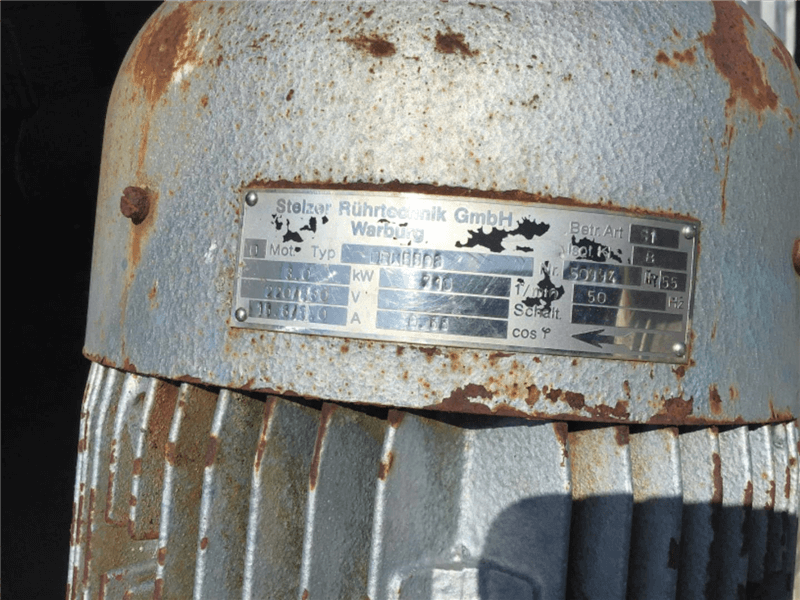

| Agitator 1: Constructor | STELZER |
| Agitator 1: stirring element type | Propeller |

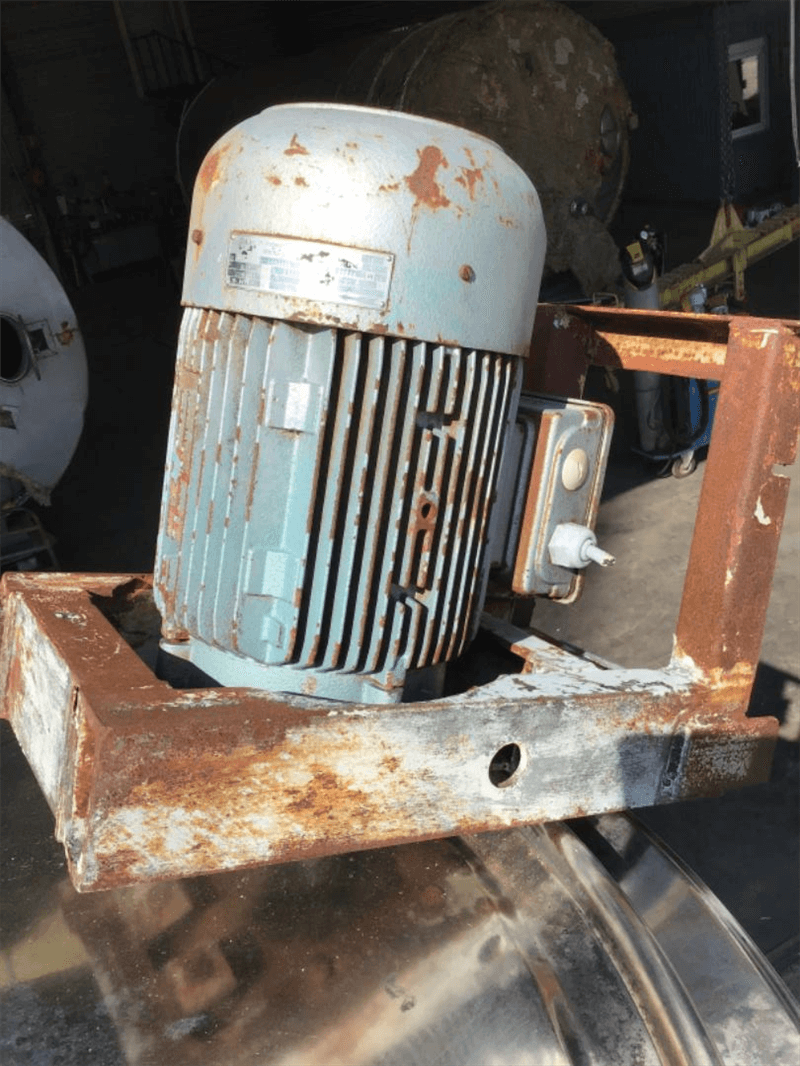

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 3 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 710 |
| Remarks | |
|---|---|
| Description (EN) | Used mixing tank - Stainless Steel 304 - 1200L - Top (1x DIN11851 DN40 for CIP cleaning ball, 1x G1" for level detection, 1x manhole Ø300 mm) - Cilinder (1x shut-off valve DIN11851 DN50 - Bottom (1x drain 6/4" female) |
