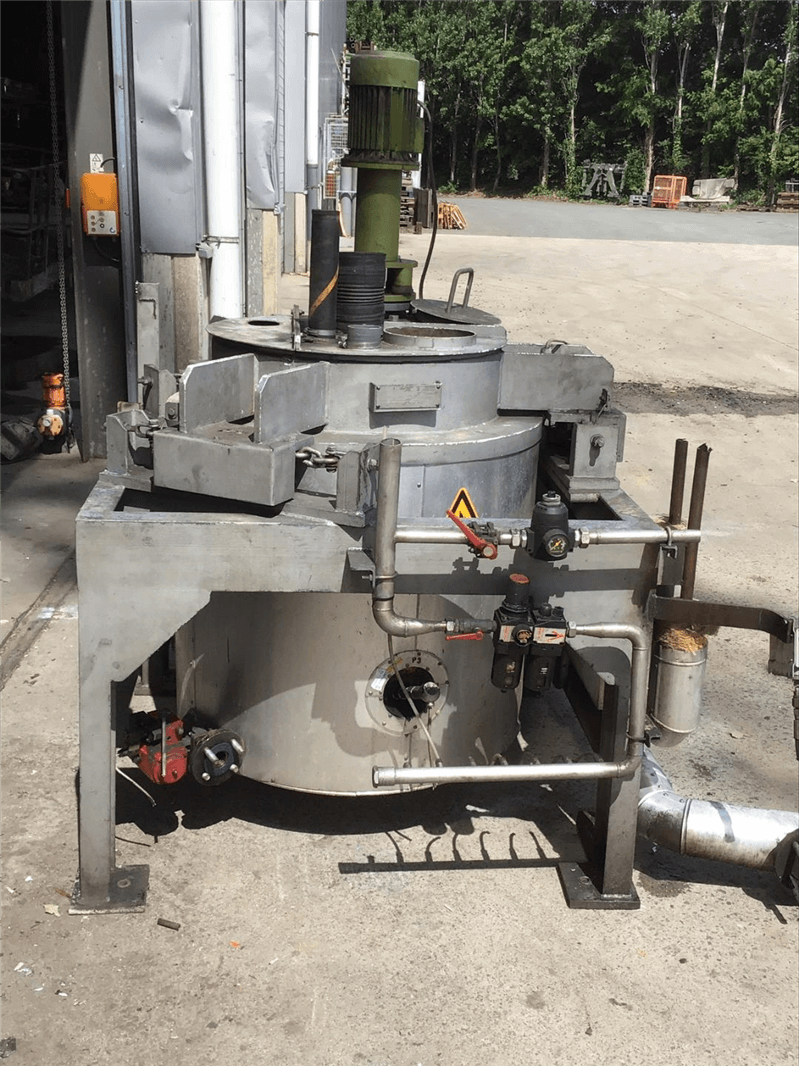

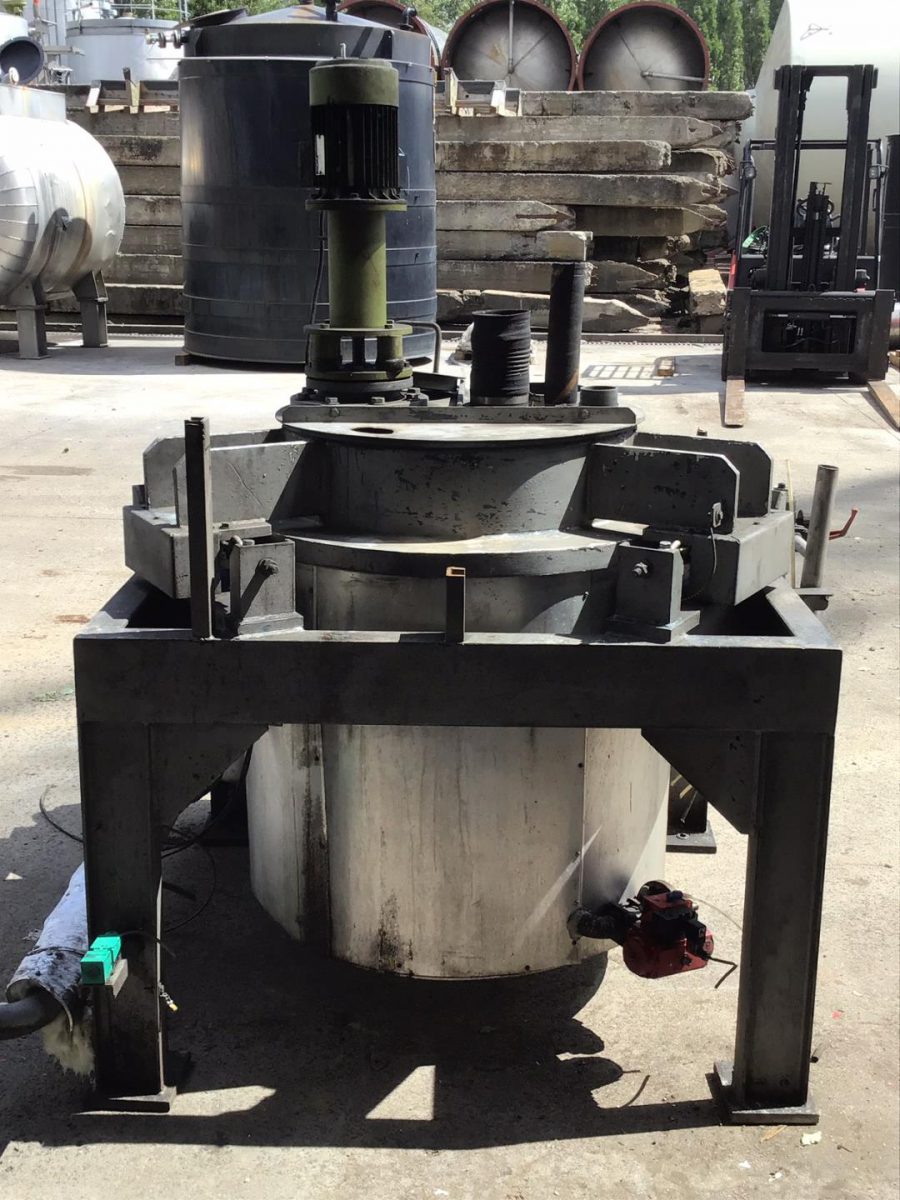

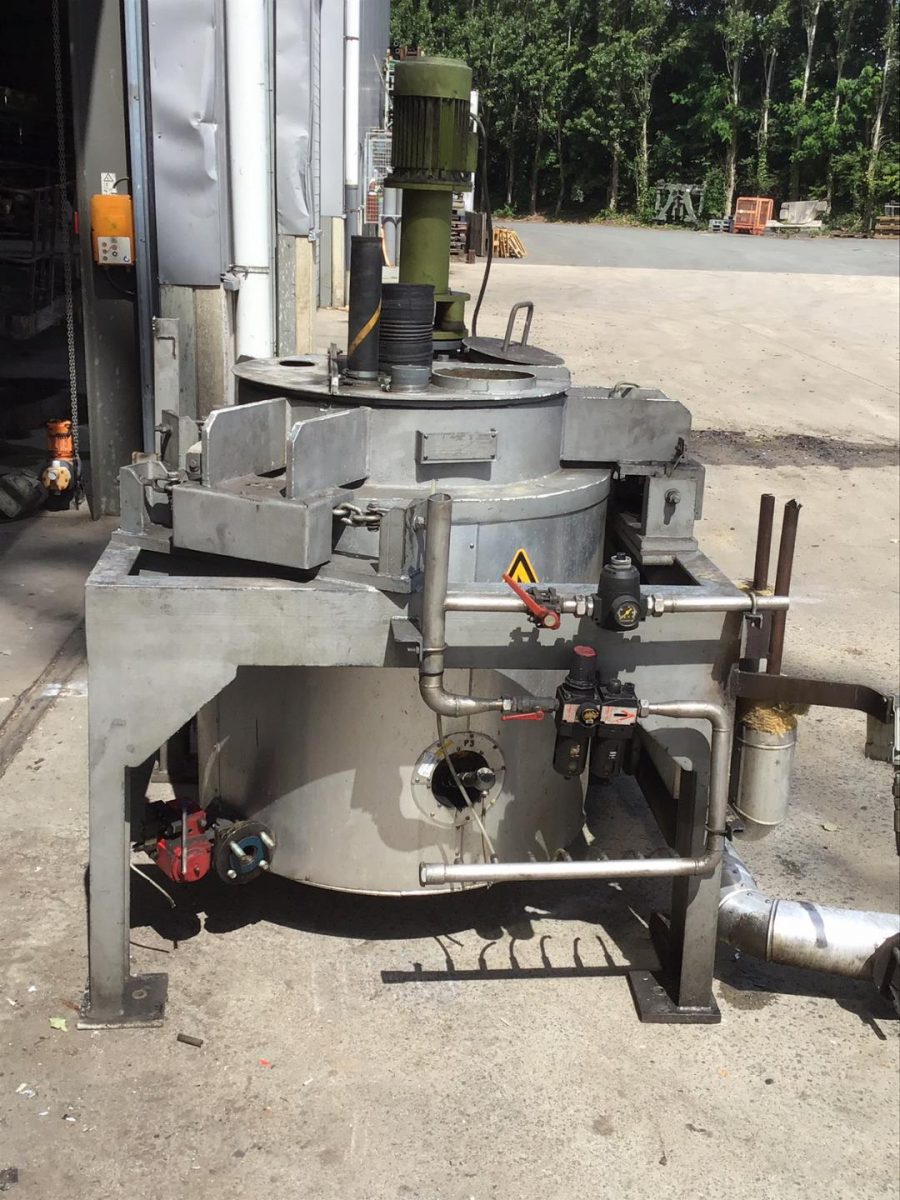

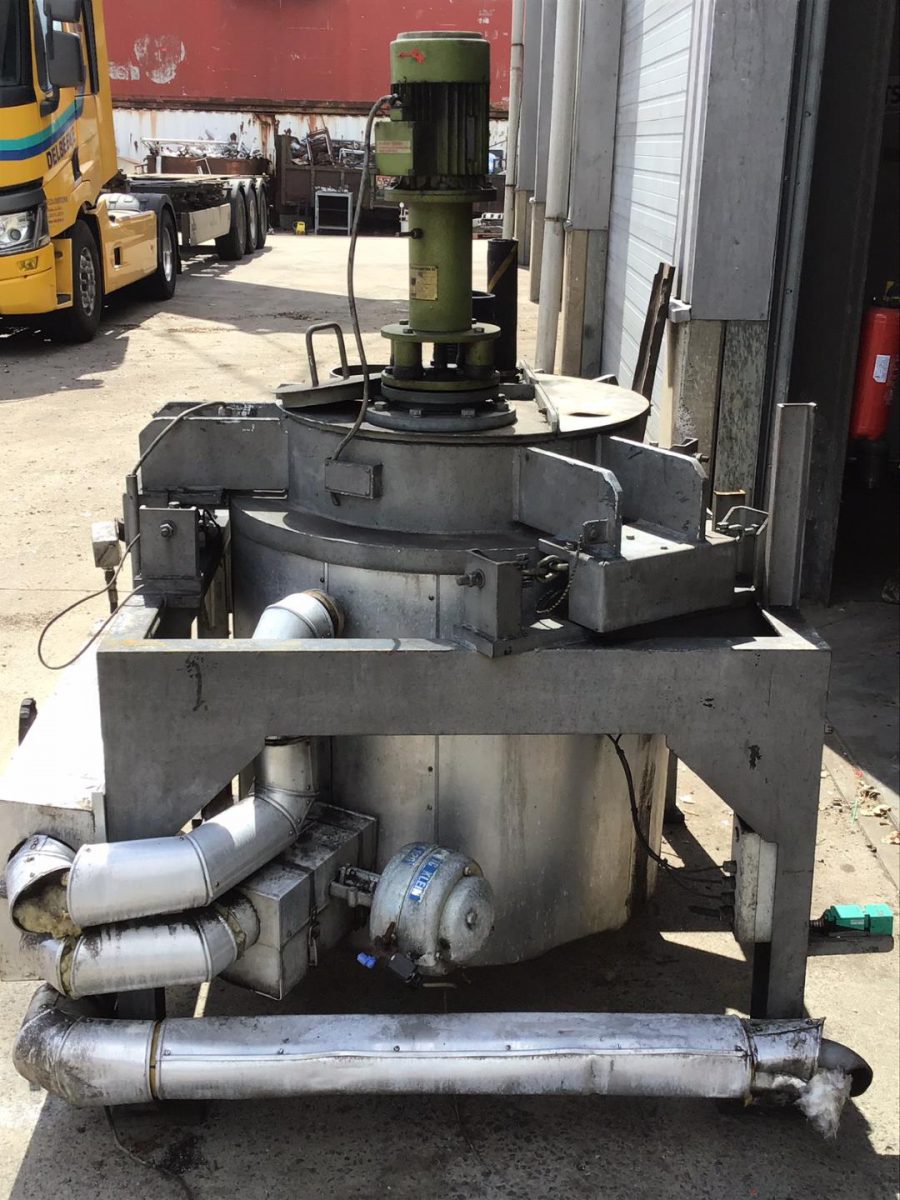

Used mixing vessel

  • Material: Steel
  • Condition: Used
  • Volume (in litres): 330 L
  • In stock: 1
General
Item number 03.40.VY.05
Material Steel
Number 1
Capacity (Liters) 330
Type tank Mixing vessel
Fixation framework
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Flat bottom
Tank model Jacketed (Heating/Cooling)
Tank with total drain? Yes

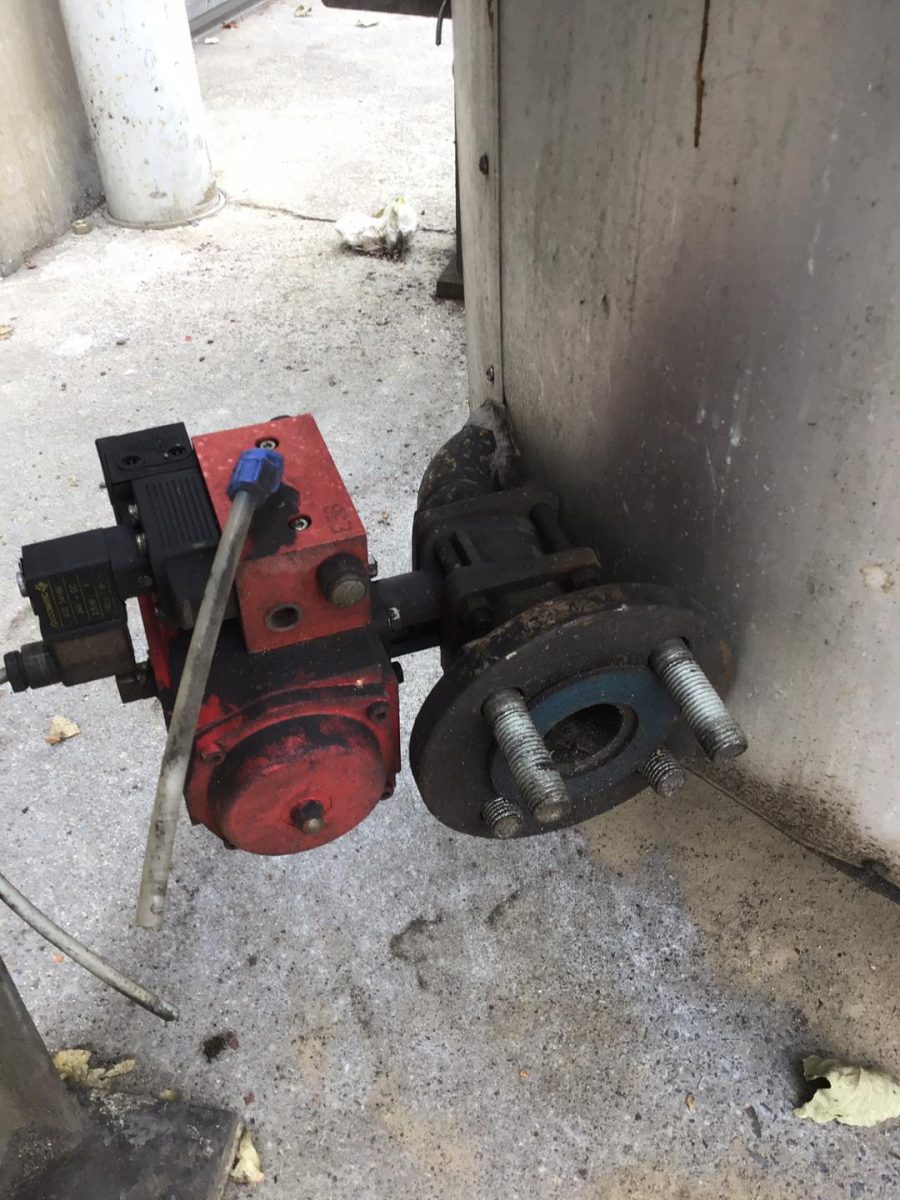

Type of outlet (s) flens
Diameter of outlet (mm) 25
locality B-7711 Belgium
Last application Oil / grease
Provision tank cleaning None
Condition Used

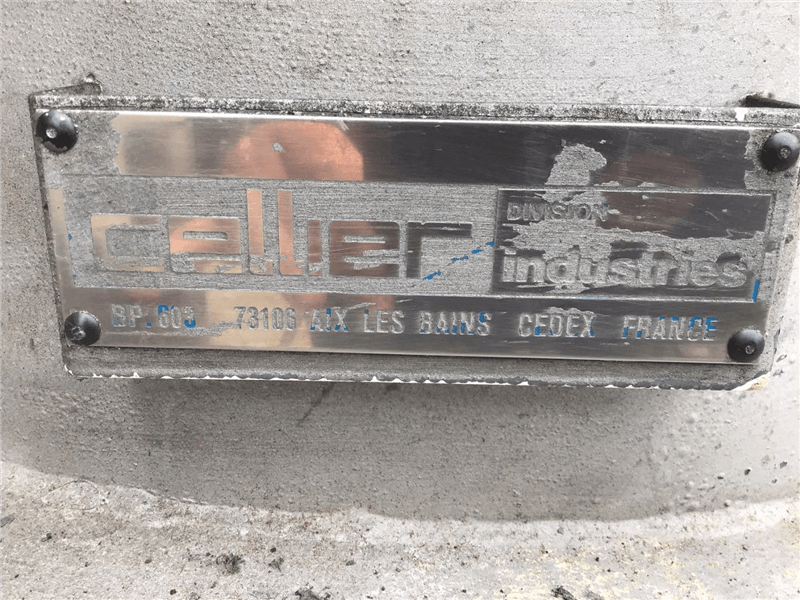

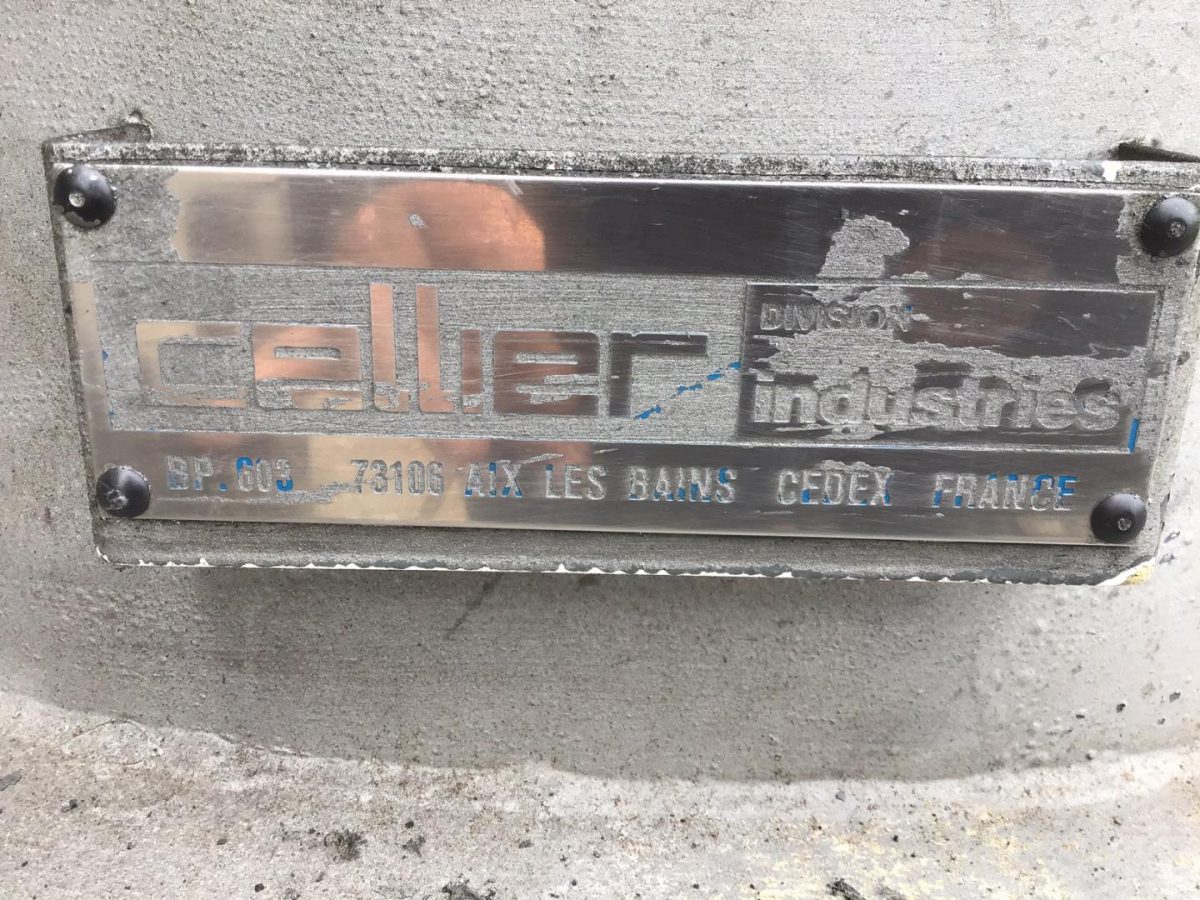

Type plate manufacturer No
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
03.40.VY.05 - Used mixing vessel
Top side
Configuration top-side Closed
Detail closed top side Flat bottom
Dimensions
Cylindrical length (mm) 800
Outside diameter tank (mm) 750
Insulation
Insulation No
Heating
Number of heating type 1
Heating 1: Type jacket au bain-marie

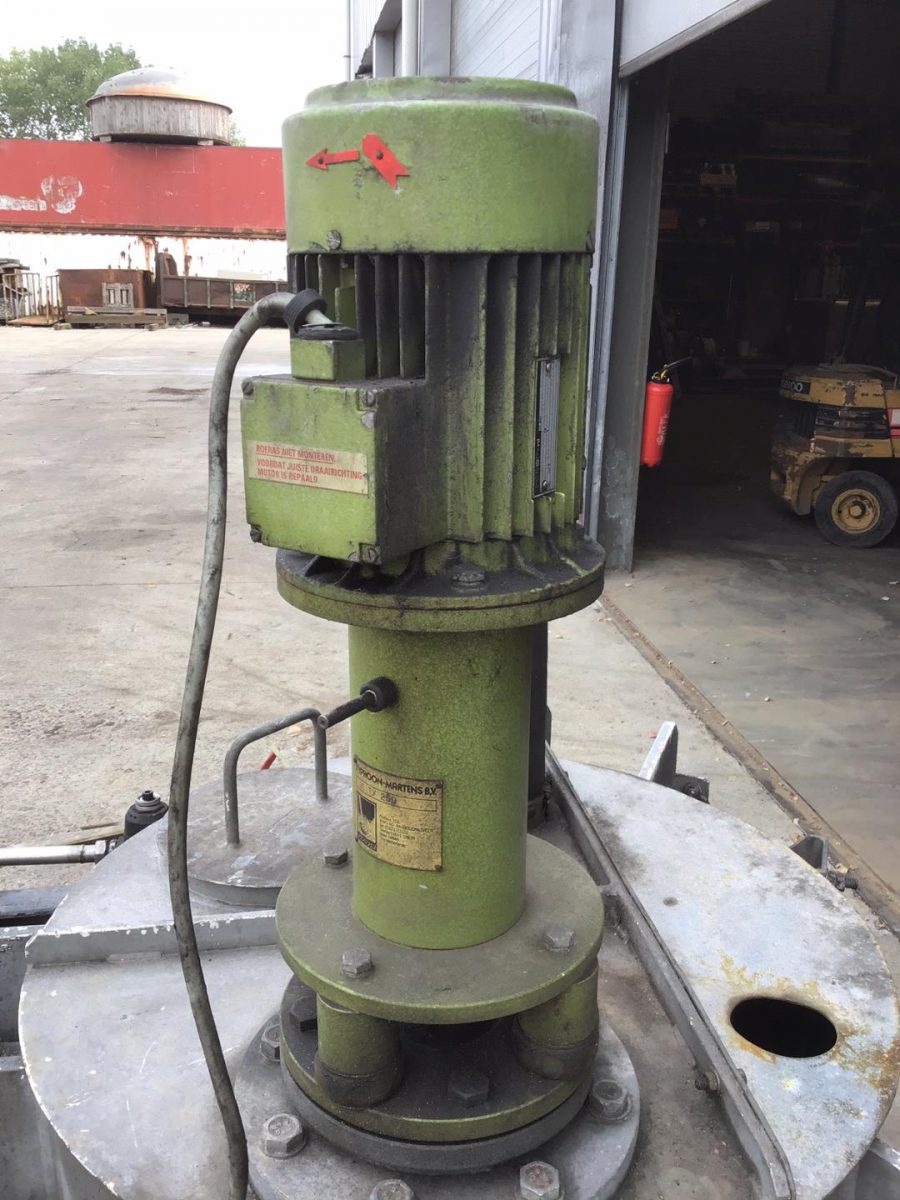

Agitators
Number of agitators 1

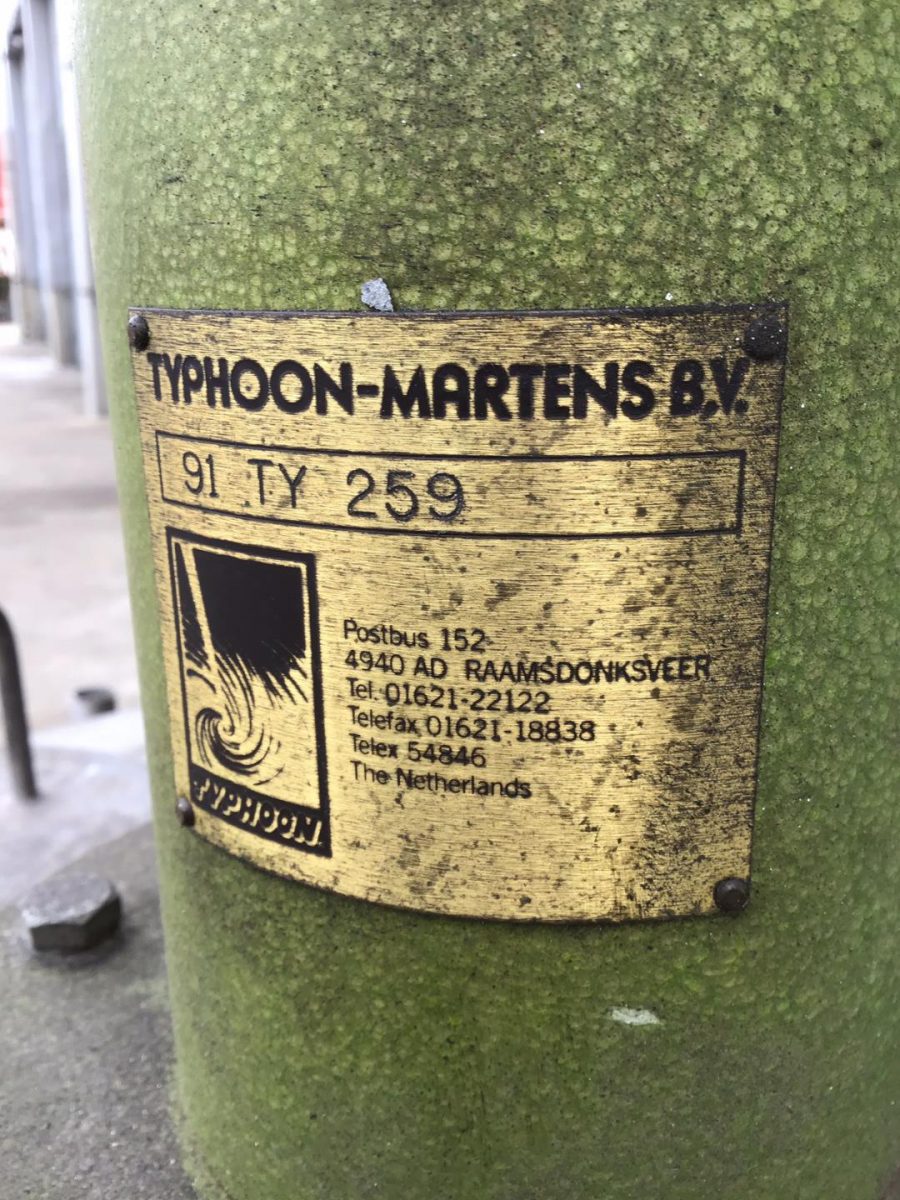

Agitator 1: Type Cupmixer
Agitator 1: Position decentrally on the top
Agitator 1: Material Stainless steel 304

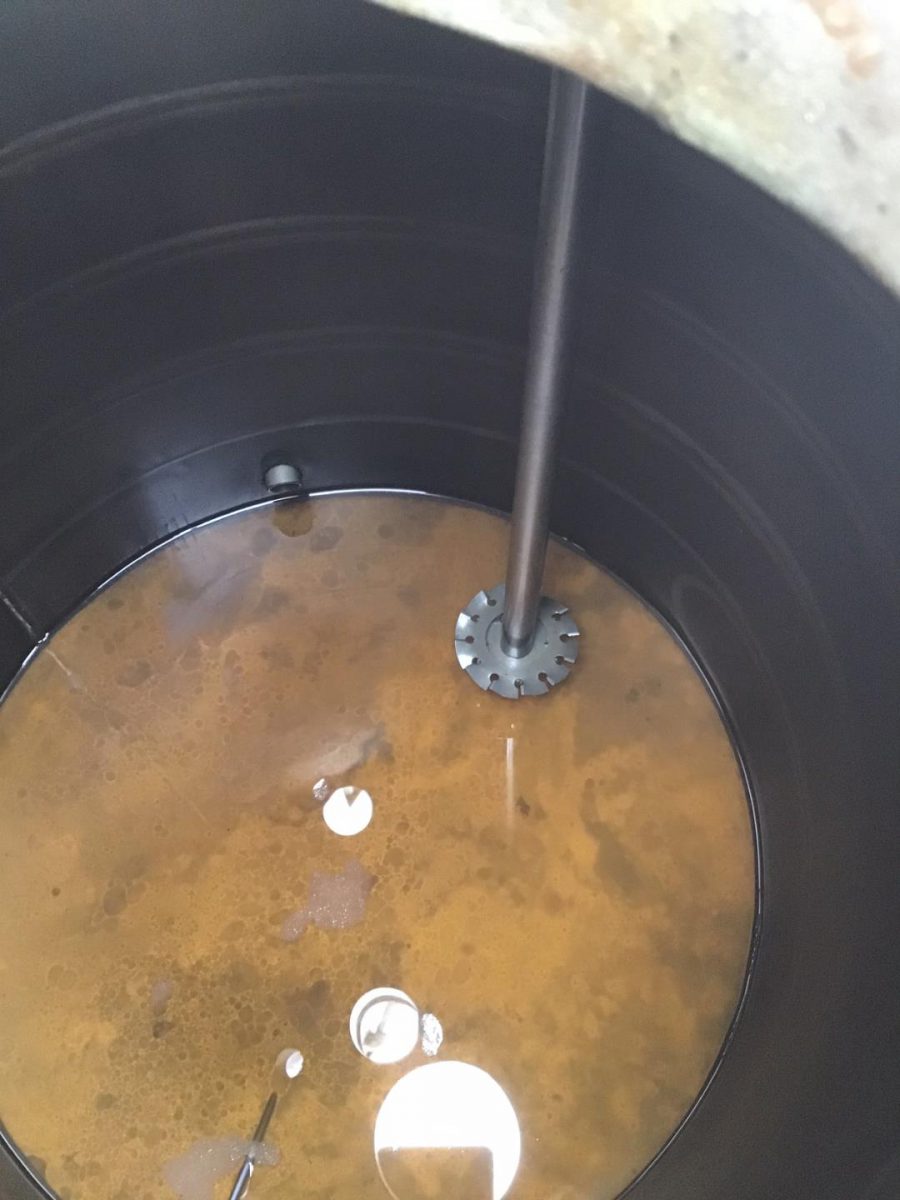

Agitator 1: stirring element type Dissolver/Disc stirrer
Agitator 1: Length (mm) 700

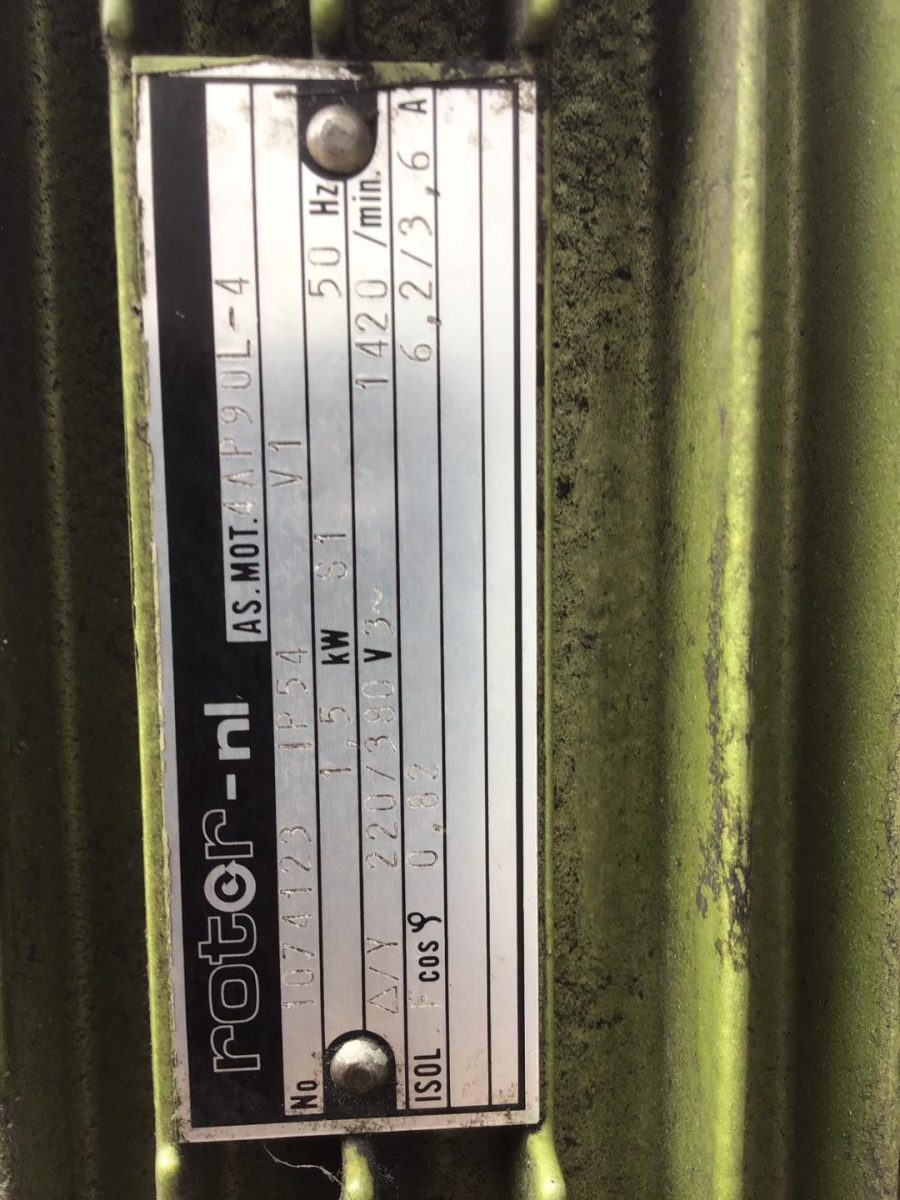

Agitator 1: Engine Type electric motor
Agitator 1: Atex/Ex? No
Agitator 1: Voltage (V) 220/380
Agitator 1: Power (kw) 1,5
Agitator 1: Drive Type Direct
Agitator 1: Speed (r / min) 1420
Remarks

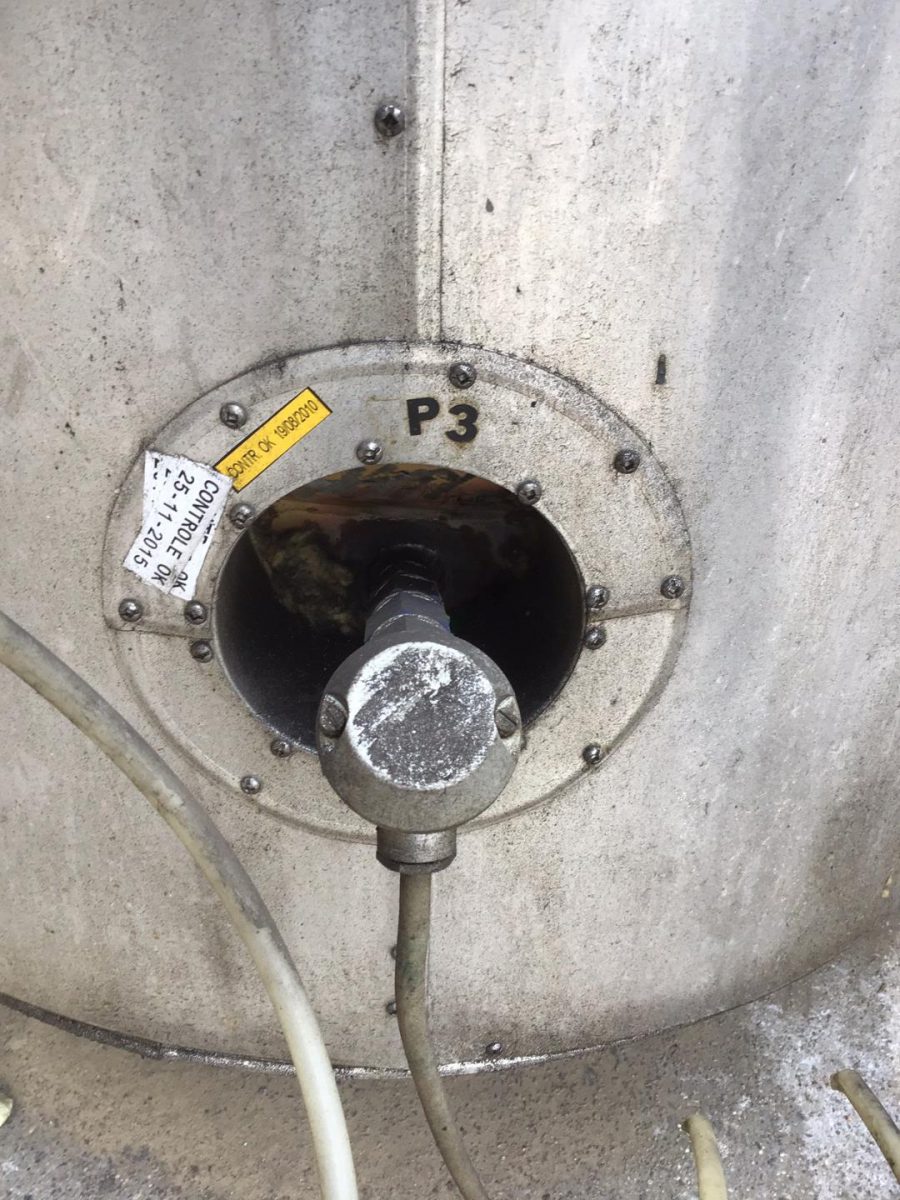

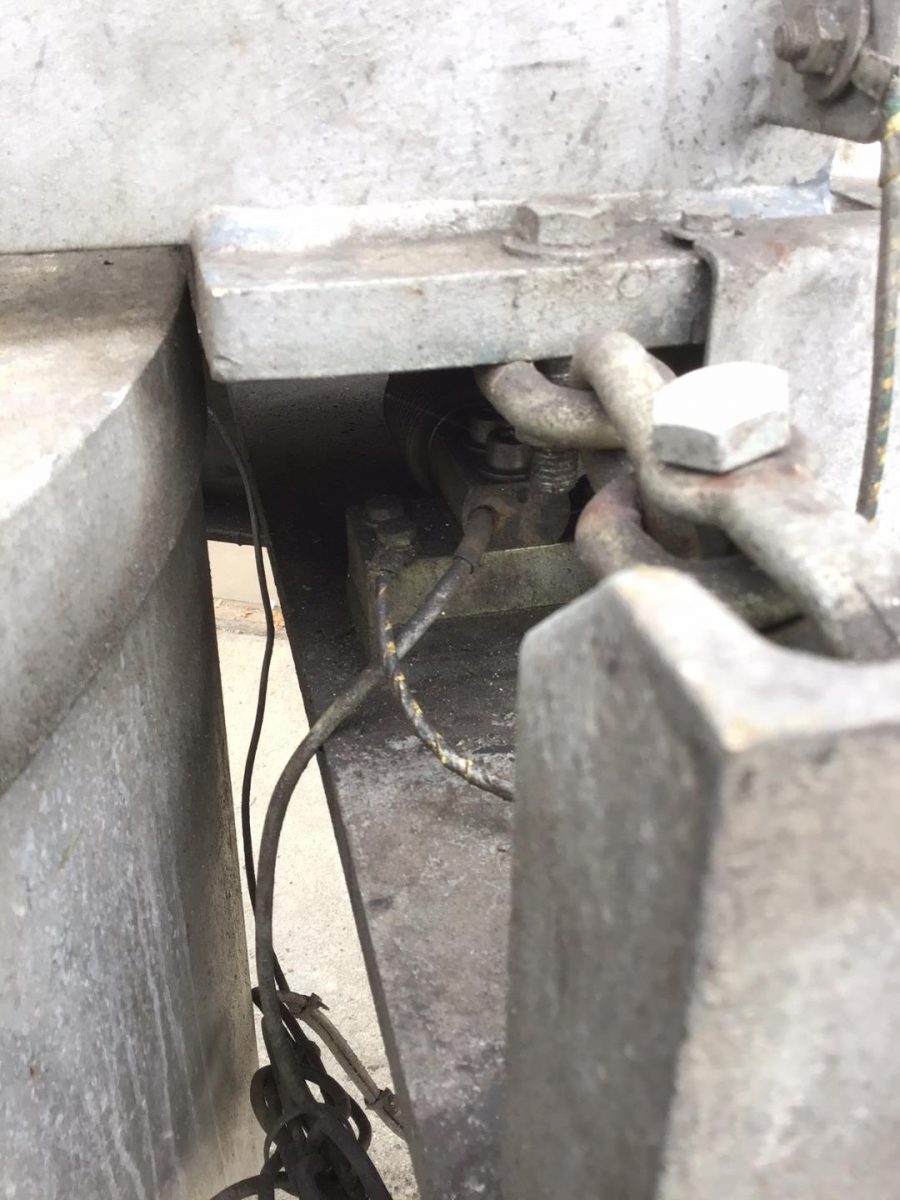

Description (EN) depends on 3 load cells • load cell inverter not present
