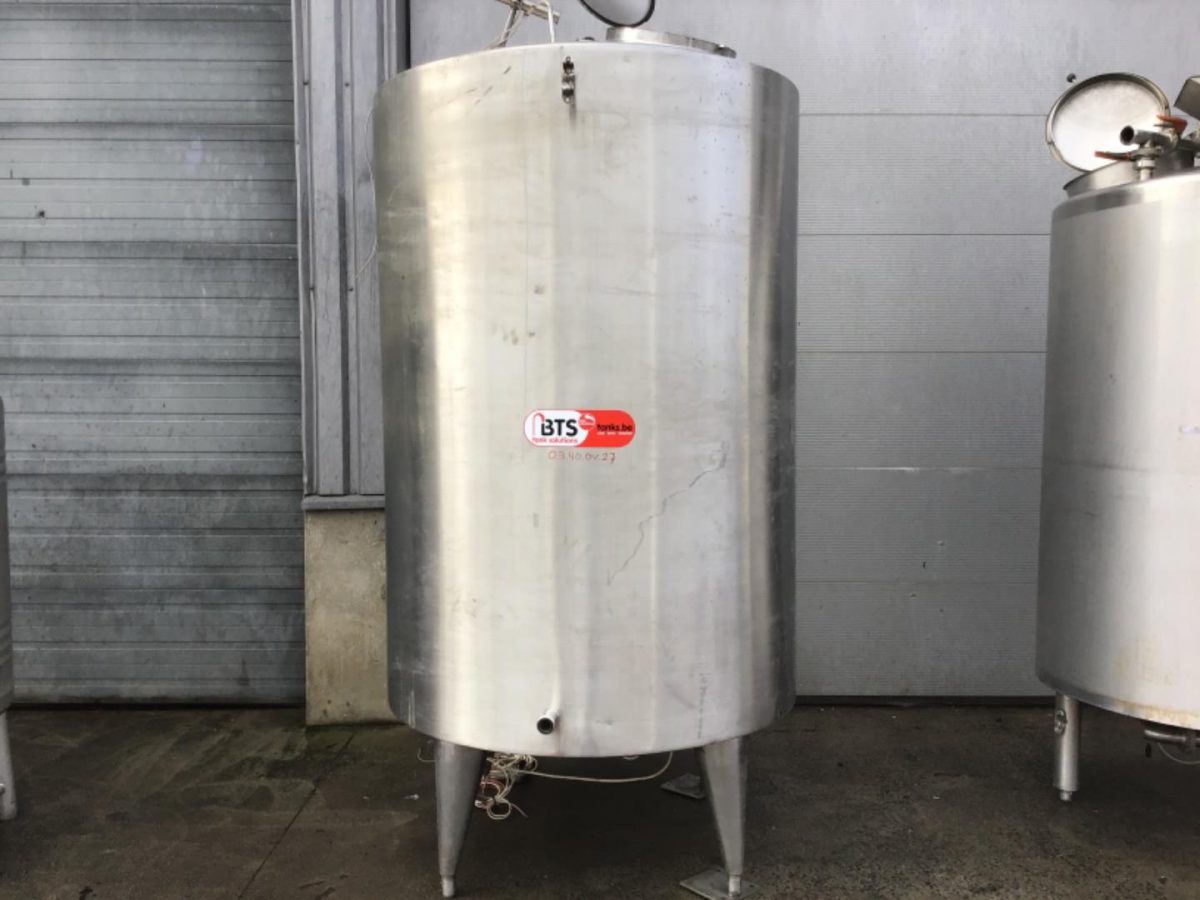

Used mixing vessel

  • Material: Stainless steel 304
  • Condition: Used
  • Volume (in litres): 4000 L
  • In stock: 1
General
Item number 03.40.OV.27
Material Stainless steel 304
Finishing weldings inside Grinded
Number 1
Capacity (Liters) 4000
Type tank Mixing vessel

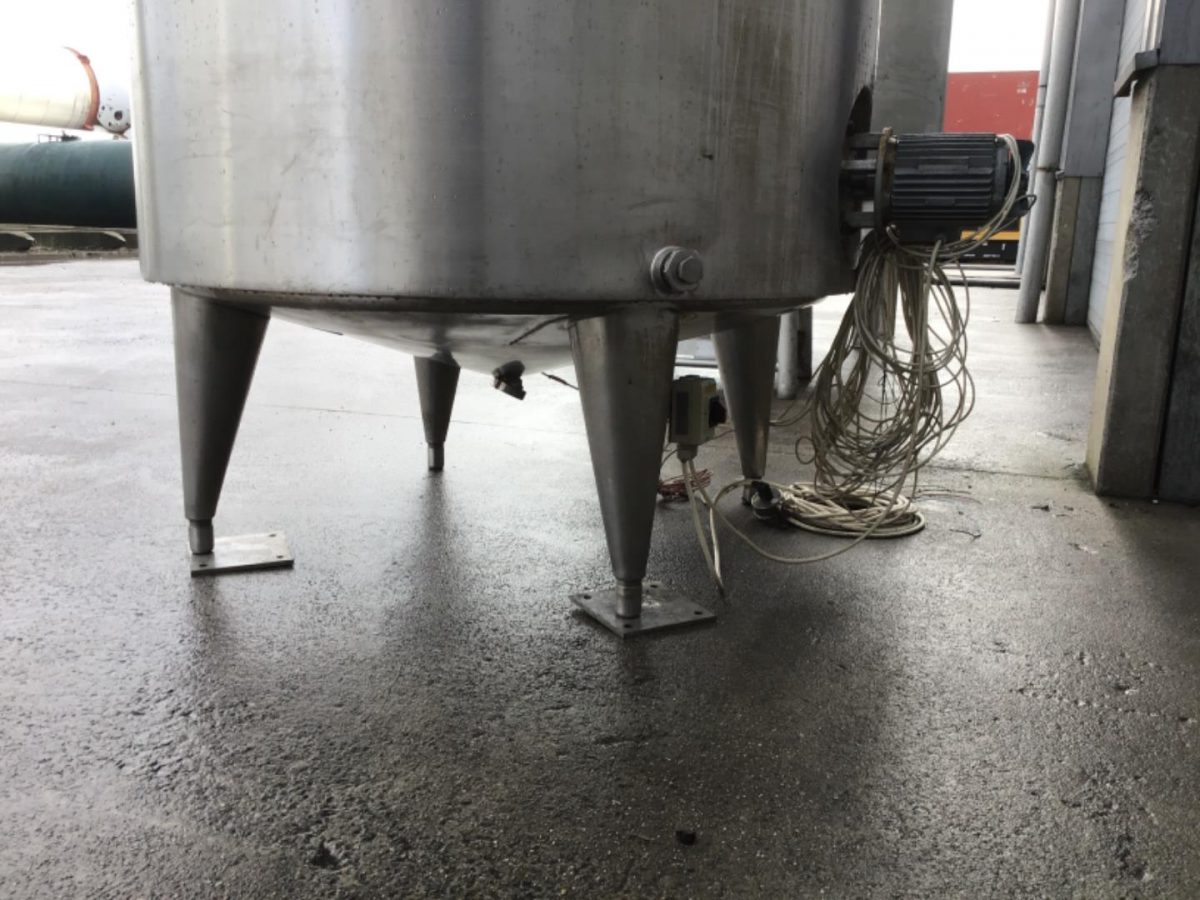

Fixation 4 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Conical bottom
Tank model Jacketed (Heating/Cooling)
Number of manhole 1
Position of manhole (s) Top
Dimensions of manholes 430
Tank with total drain? Yes
Type of outlet (s) Buitendraad
Diameter of outlet (mm) 2’’
locality B-7711 Belgium
Last application Food
Provision tank cleaning None
Weight (kg) 500
Condition Used
Type plate manufacturer No
Construction data available No
03.40.OV.27 - Used mixing vessel
03.40.OV.27 - Used mixing vessel
03.40.OV.27 - Used mixing vessel
03.40.OV.27 - Used mixing vessel
03.40.OV.27 - Used mixing vessel
03.40.OV.27 - Used mixing vessel
03.40.OV.27 - Used mixing vessel
03.40.OV.27 - Used mixing vessel

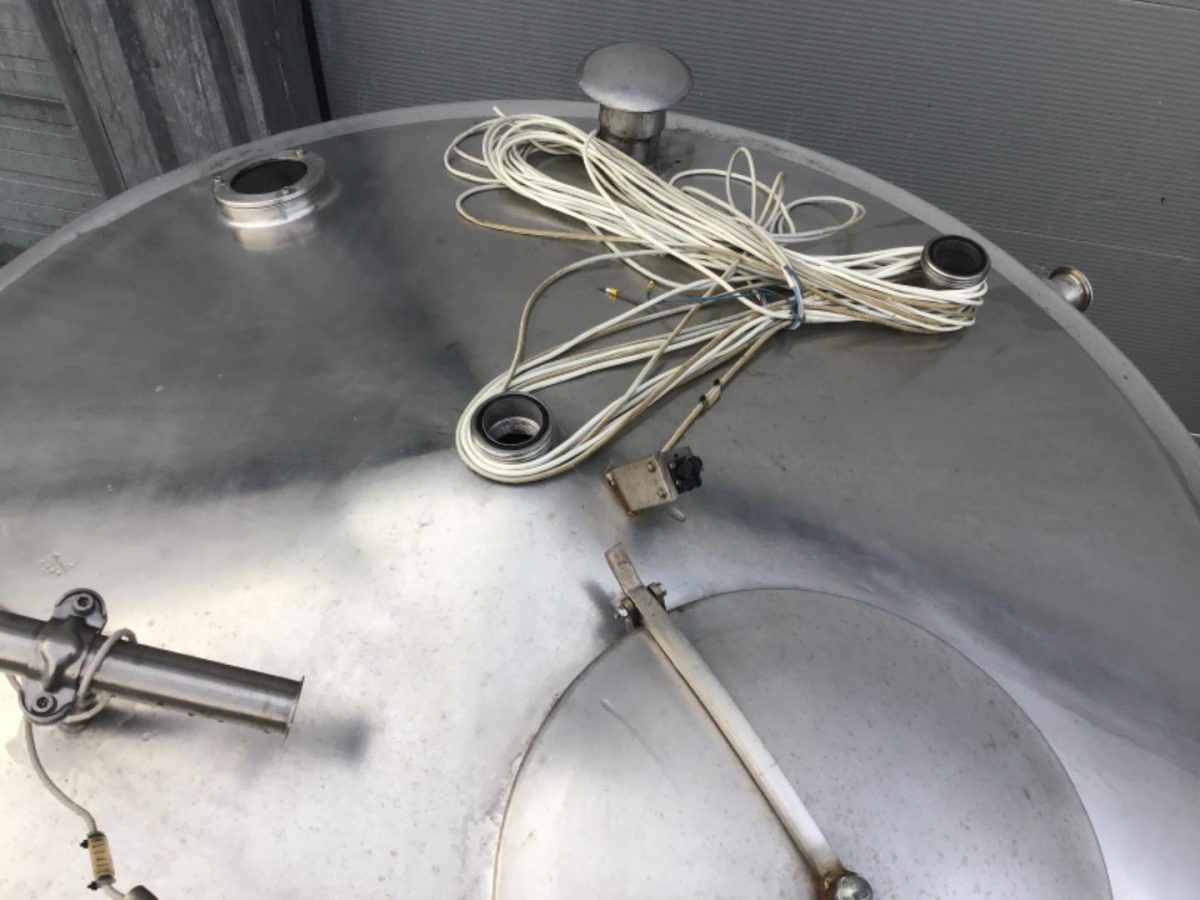

Top side
Configuration top-side Closed
Detail closed top side Conical bottom
Thickness closed dome (mm) 4
Dimensions
Cylinder Thickness (mm) 4
Bottom thickness (mm) 4
Periphery (mm) 4800
Cylindrical length (mm) 2150
Slope bottom (°) 30
Height bottom (mm) 270
Outer wall thickness (mm) 2
Outside diameter tank (mm) 1600
Total height (mm) 3100
Diameter tank (mm) 1600
Insulation
Insulation No
Heating
Number of heating type 1
Heating 1: Type jacket au bain-marie
Agitators
Number of agitators 1
Agitator 1: Type Cupmixer
Agitator 1: Position Side -entry
Agitator 1: Material Stainless steel 304
Agitator 1: stirring element type Blade stirrer/Cross paddles
Agitator 1: Length (mm) 250
Agitator 1: Engine Type electric motor
Agitator 1: Atex/Ex? No
Agitator 1: Voltage (V) 220/380
Agitator 1: Drive Type Direct
