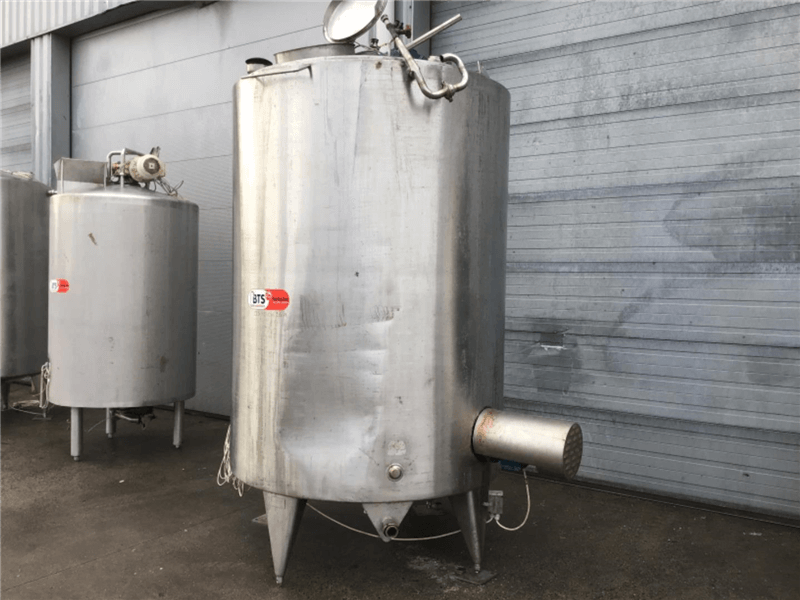

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 5000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.40.OV.26 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 5000 |
| Type tank | Mixing vessel |

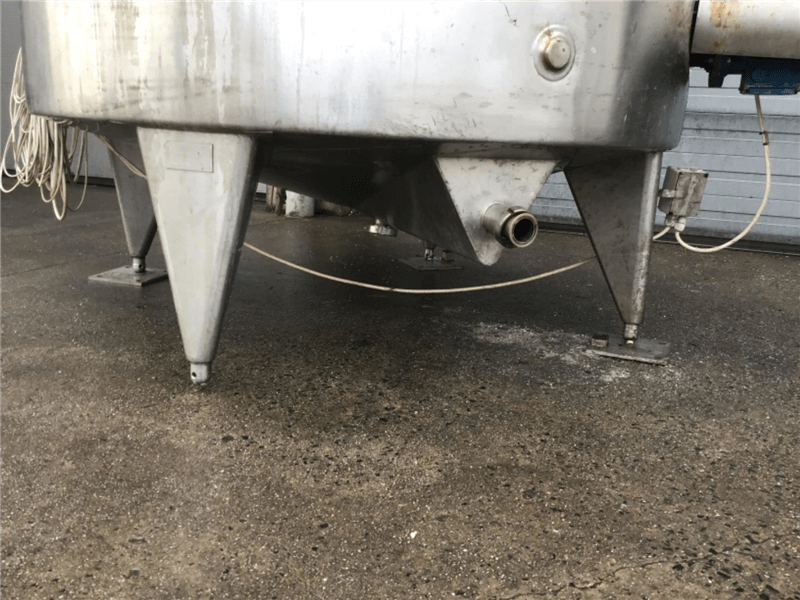

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 450 |
| Tank with total drain? | Yes |
| Type of outlet (s) | Binnendraad |
| Diameter of outlet (mm) | 2’’ |
| locality | B-7711 Belgium |
| Last application | Food |

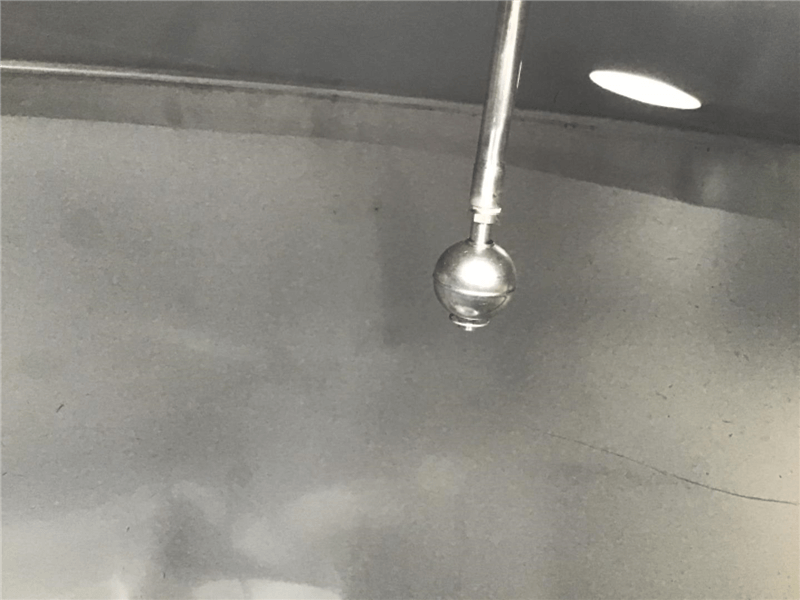

| Provision tank cleaning | Rotating spray head |
| Weight (kg) | 800 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 5000 |
| Cylindrical length (mm) | 2300 |
| Slope bottom (°) | 30 |
| Height bottom (mm) | 280 |
| Outer wall thickness (mm) | 2 |
| Outside diameter tank (mm) | 1800 |
| Total height (mm) | 3300 |
| Diameter tank (mm) | 1800 |
| Width (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |

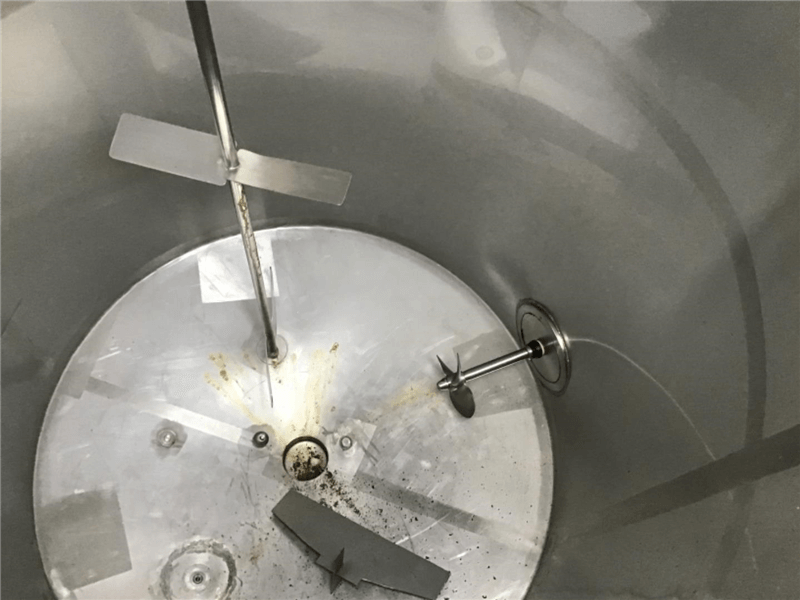

| Agitators | |
|---|---|
| Number of agitators | 2 |
| Agitator 1: Type | Cupmixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 2400 |

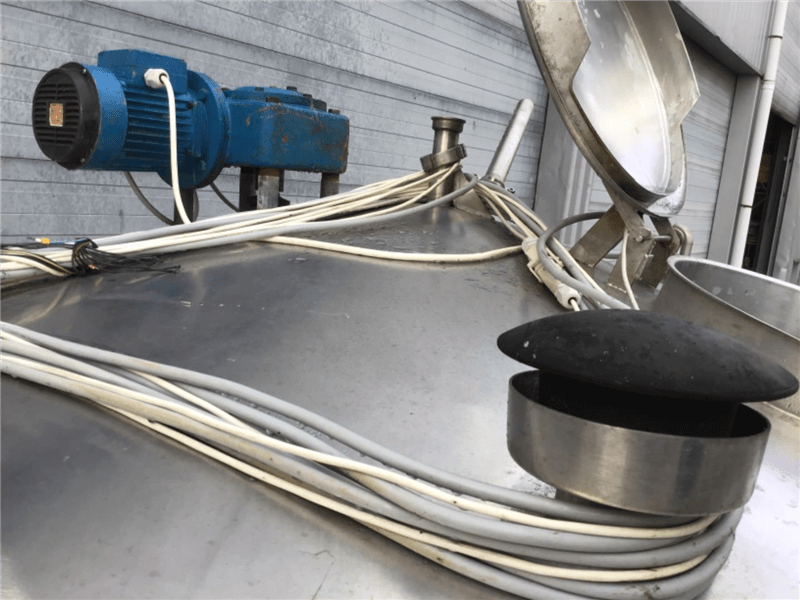

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 0,55 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 1410 |
| Agitator 2: Type | Cupmixer |
| Agitator 2: Position | Side -entry |
| Agitator 2: Material | Stainless steel 304 |
| Agitator 2: Length (mm) | 500 |
| Agitator 2: Engine Type | electric motor |
| Agitator 2: Atex/Ex? | No |
| Agitator 2: Voltage (V) | 220/380 |
| Agitator 2: Drive Type | Direct |
