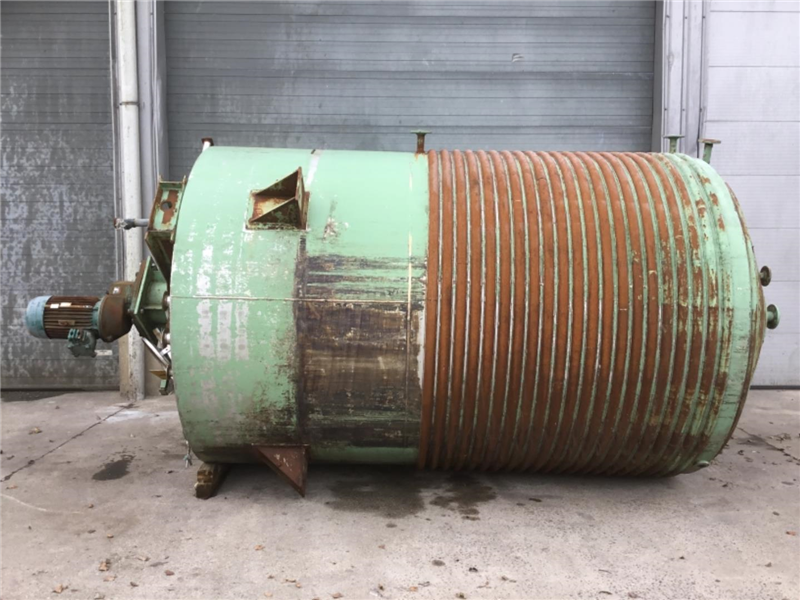

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 14000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.39.UM.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 14000 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 410 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 75 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Condition | Used |

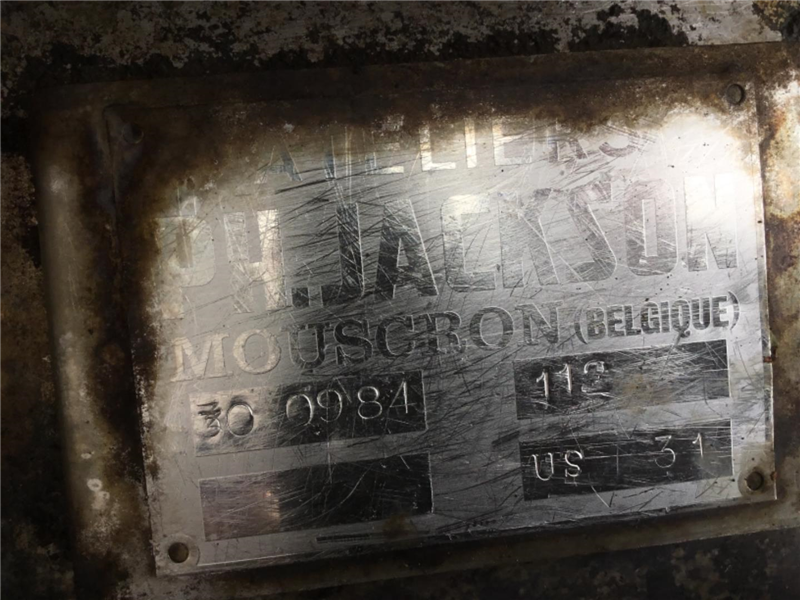

| Type plate manufacturer | Yes |
| Manufacturer | Jackson |
| Year Built | 1984 |
| Construction data available | No |
| Appendix 1 | 0339UM01_info.pdf |

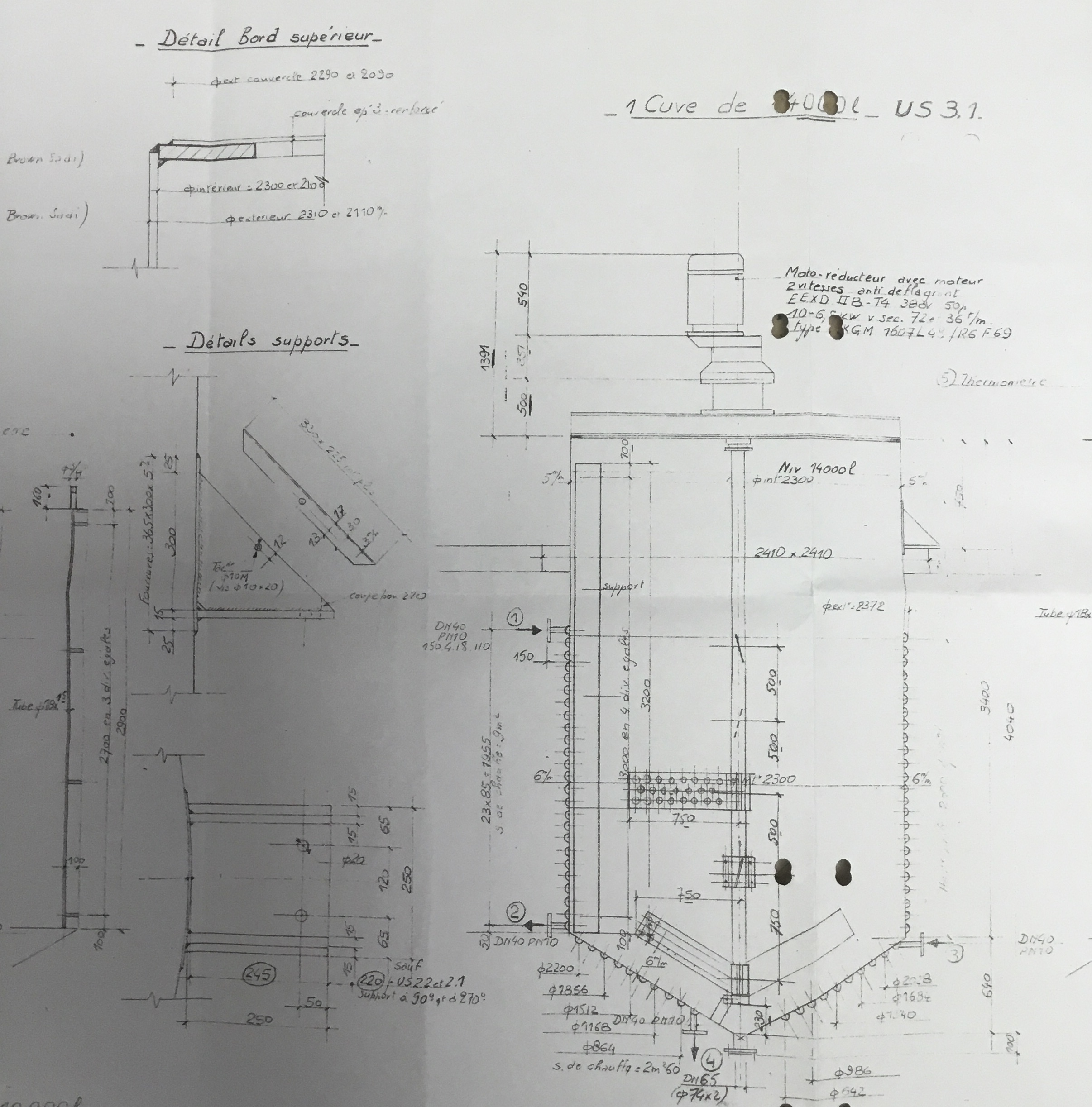

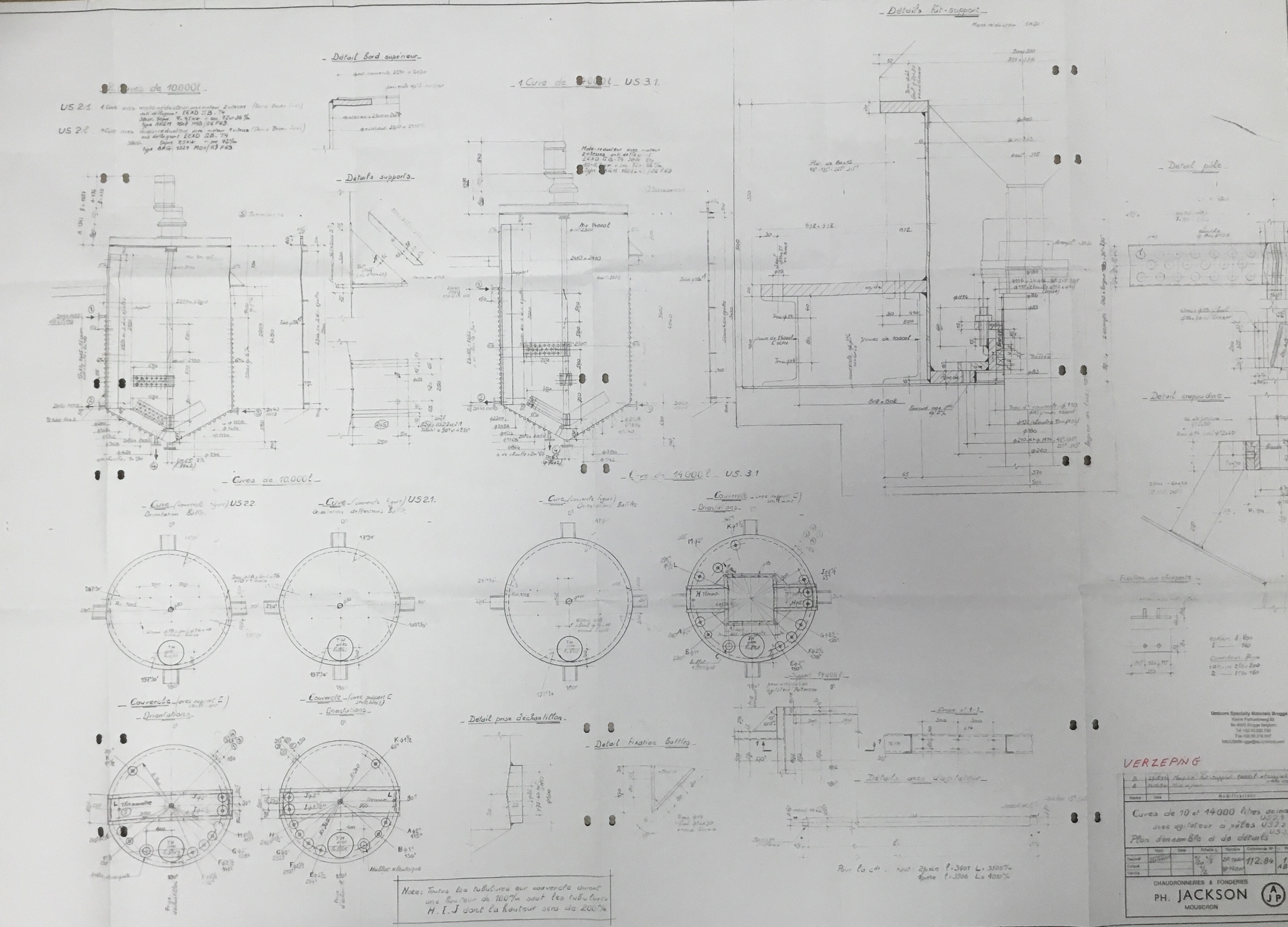

| Appendix 2 | 0339UM01_A0.jpg |
| Appendix 3 | 0339UM01_agitator.jpg |

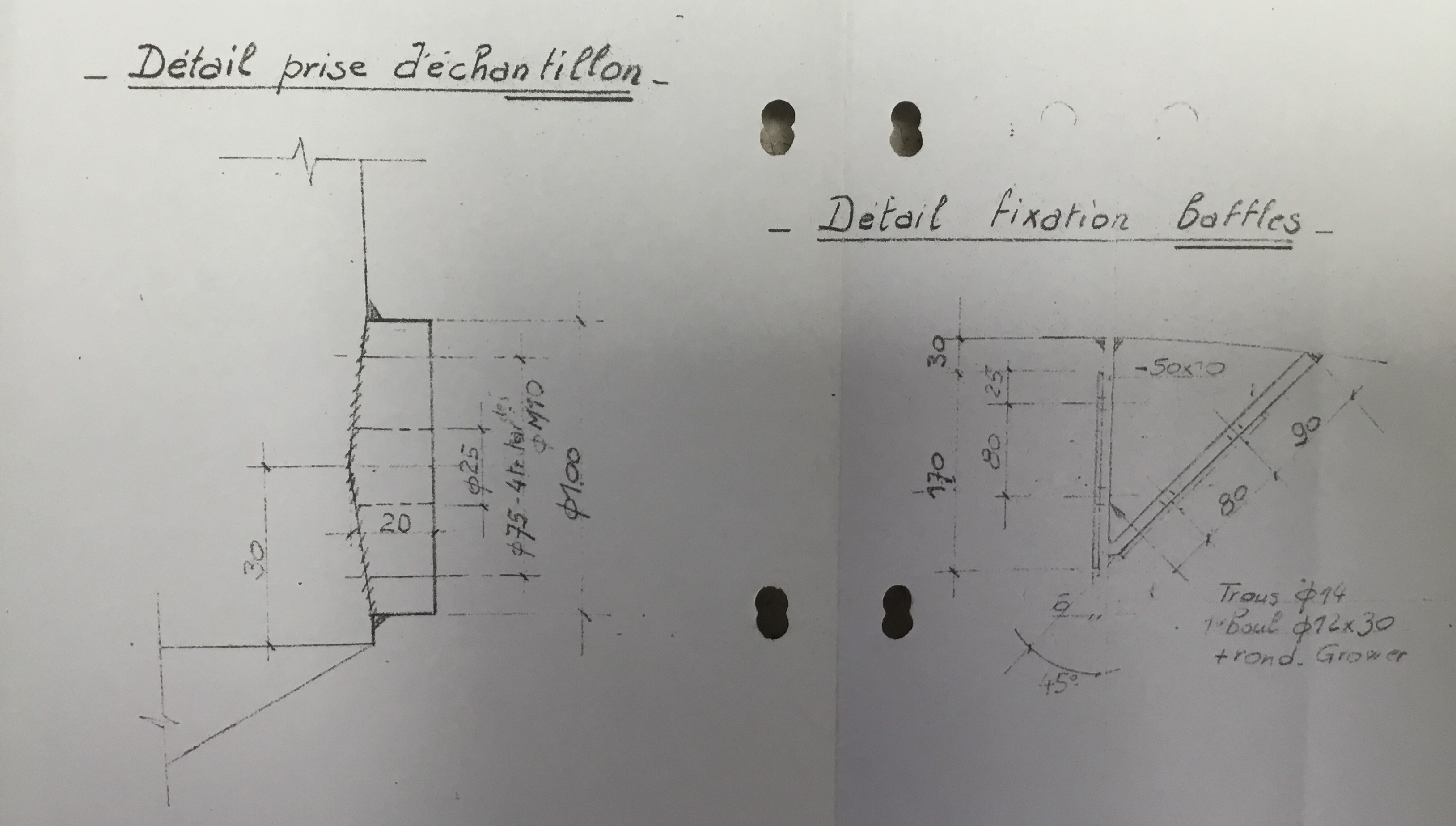

| Appendix 4 | 0339UM01_details.jpg |
| Appendix 5 | 0339UM01_Front.jpg |

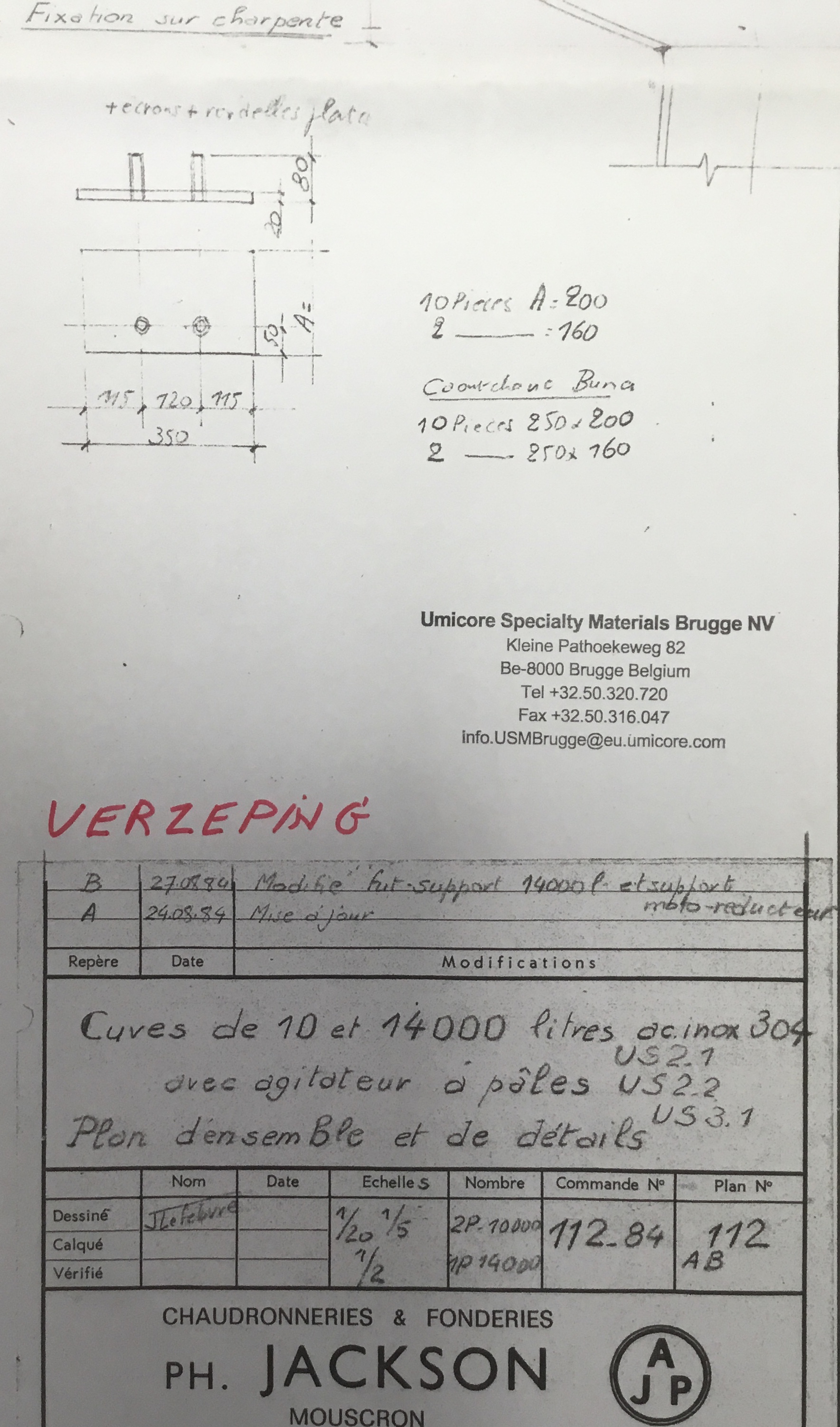

| Appendix 6 | 0339UM01_info(2).jpg |

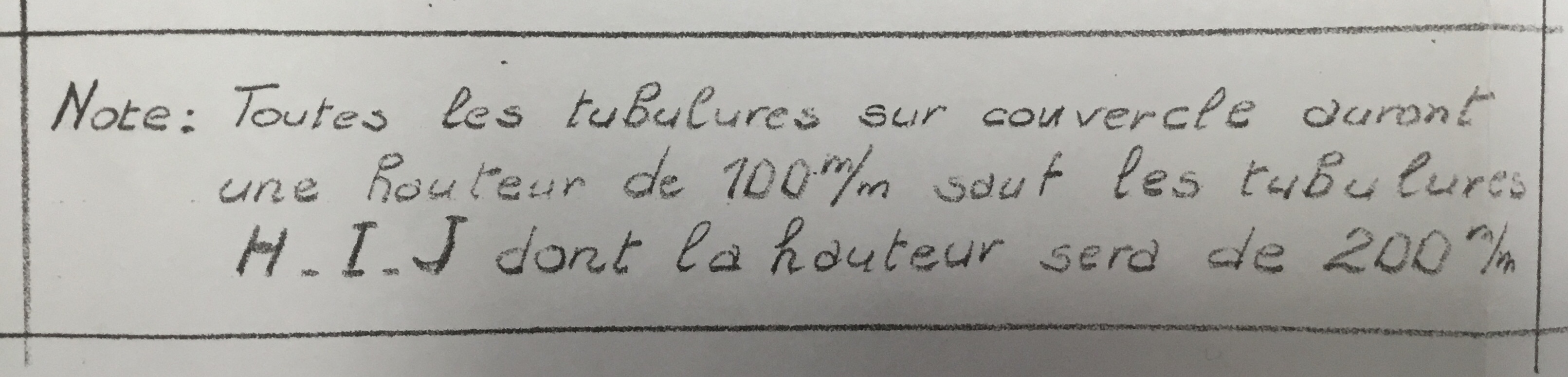

| Appendix 7 | 0339UM01_Note.jpg |

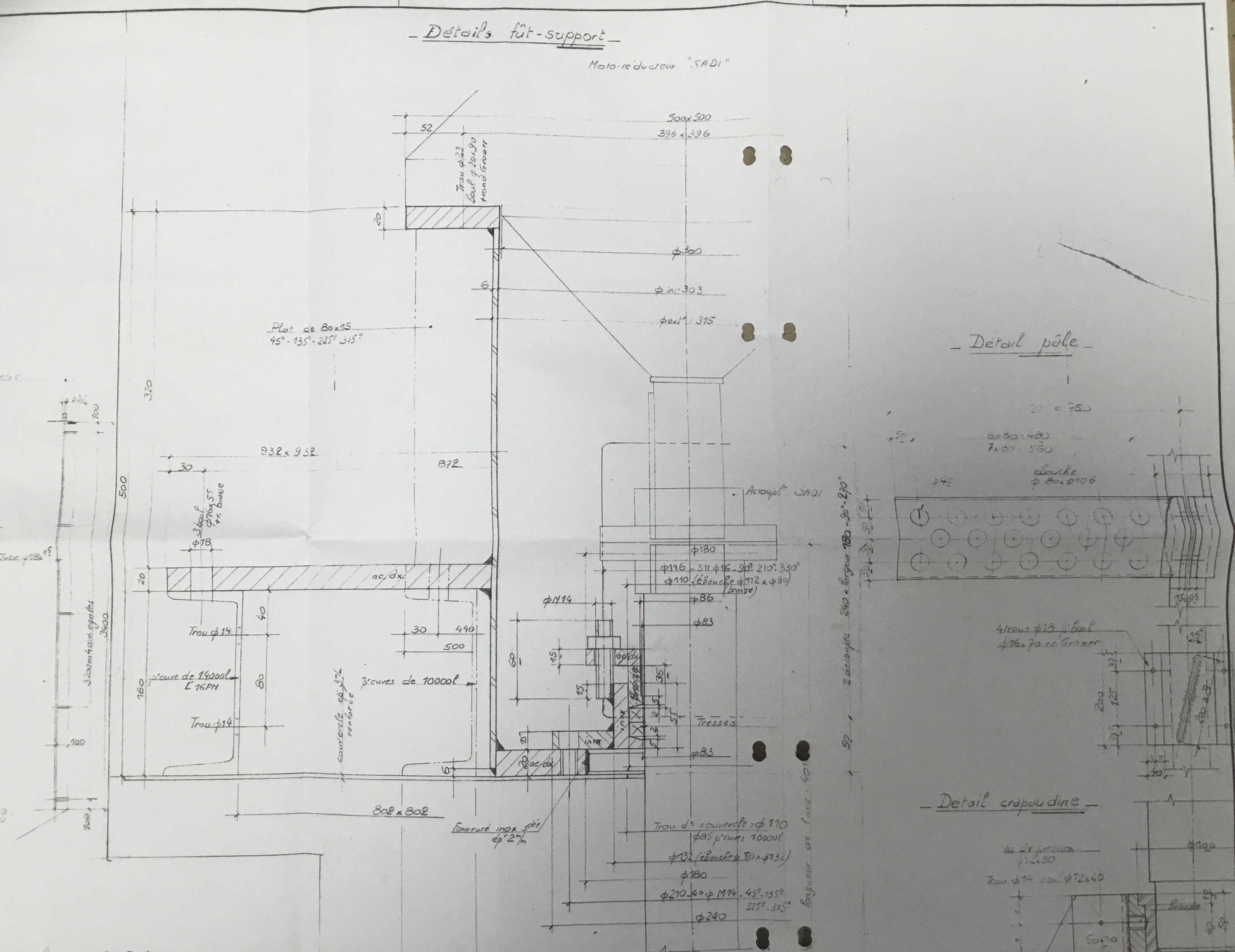

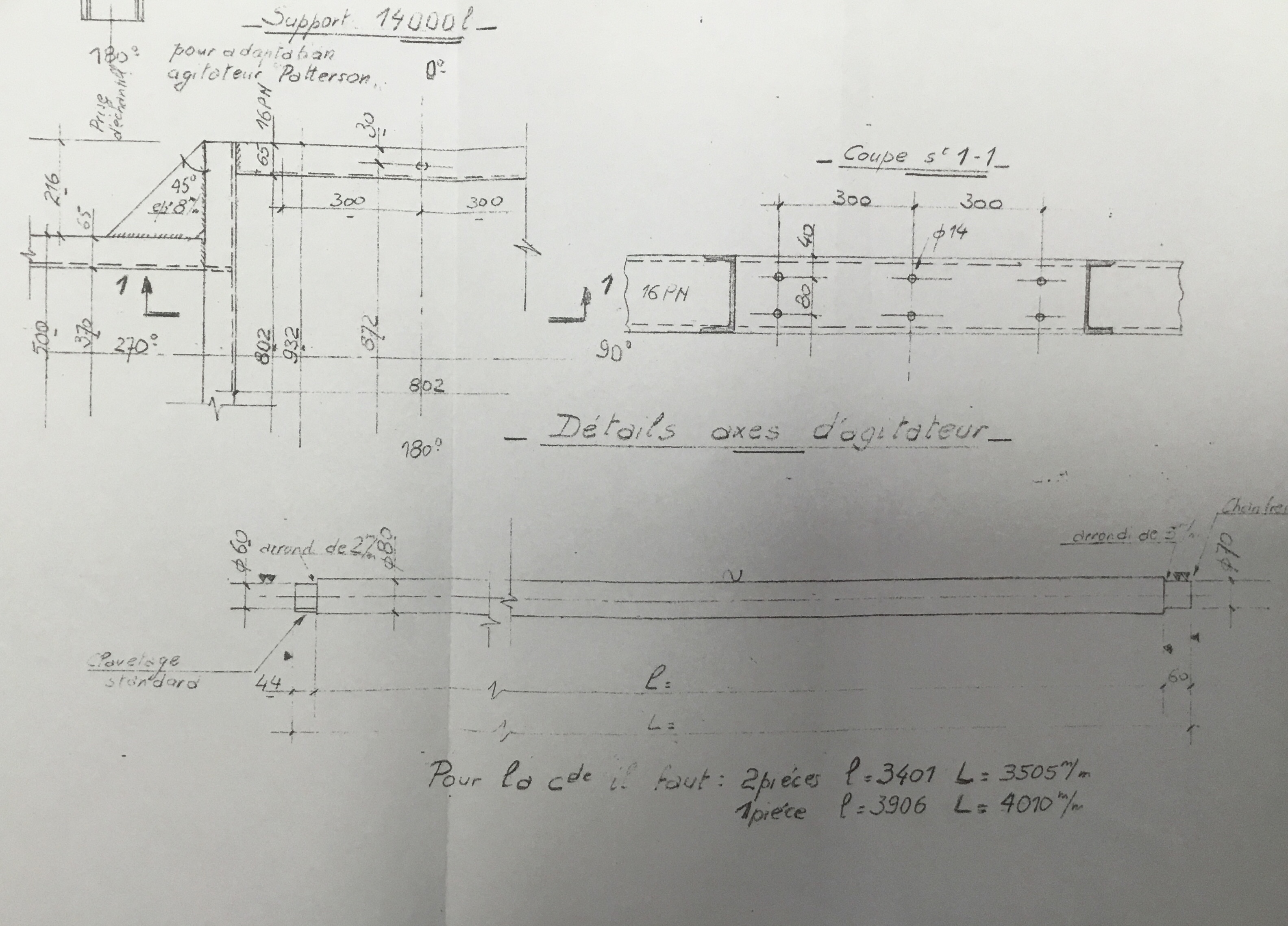

| Appendix 8 | 0339UM01_support.jpg |

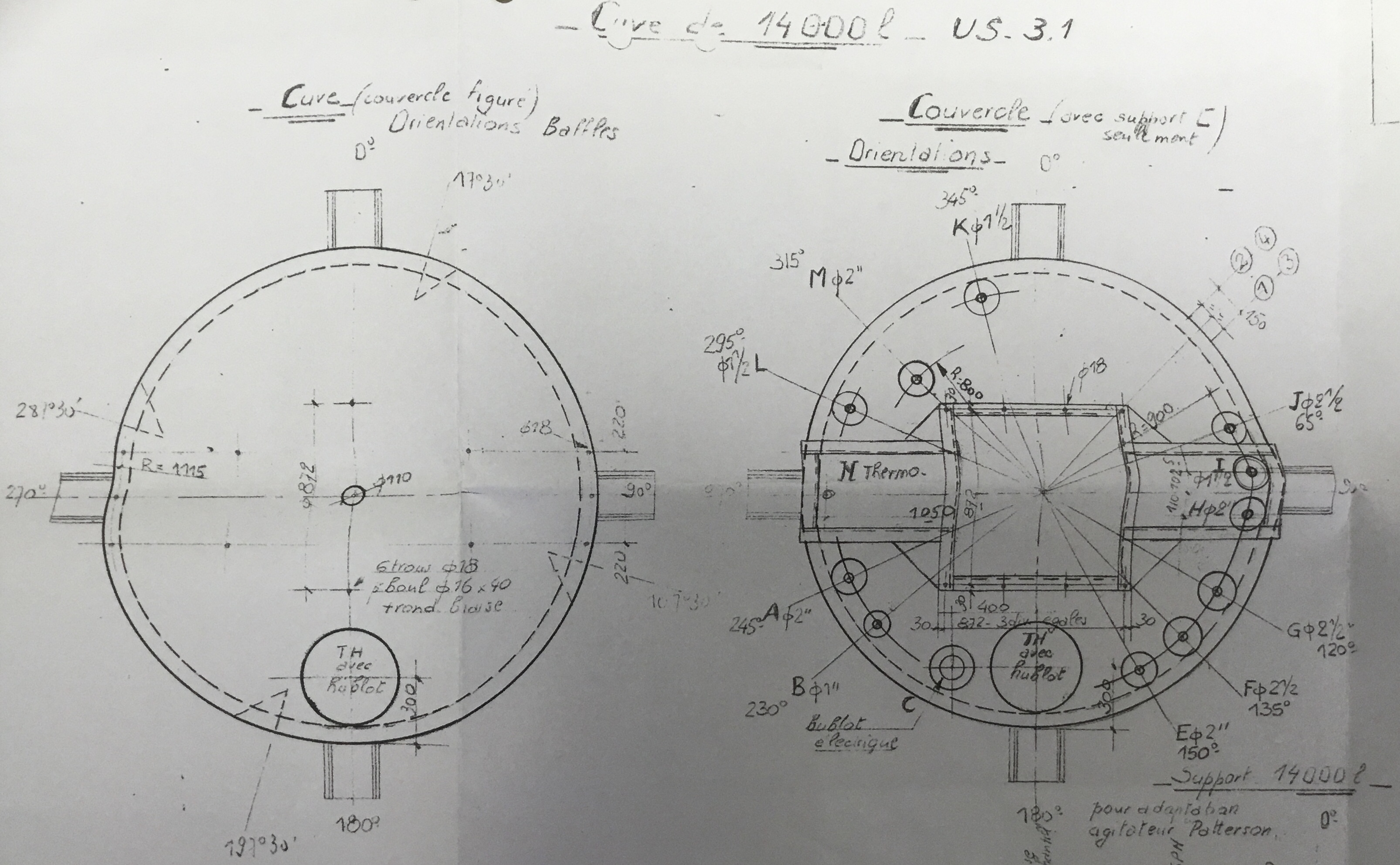

| Appendix 9 | 0339UM01_Top_Bottom.jpg |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 6 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6 |
| Bottom thickness (mm) | 6 |
| Cylindrical length (mm) | 3410410 |
| Height bottom (mm) | 640 |
| Total height (mm) | 4190 |
| Diameter tank (mm) | 2300 |
| Insulation | |
|---|---|
| Insulation | No |

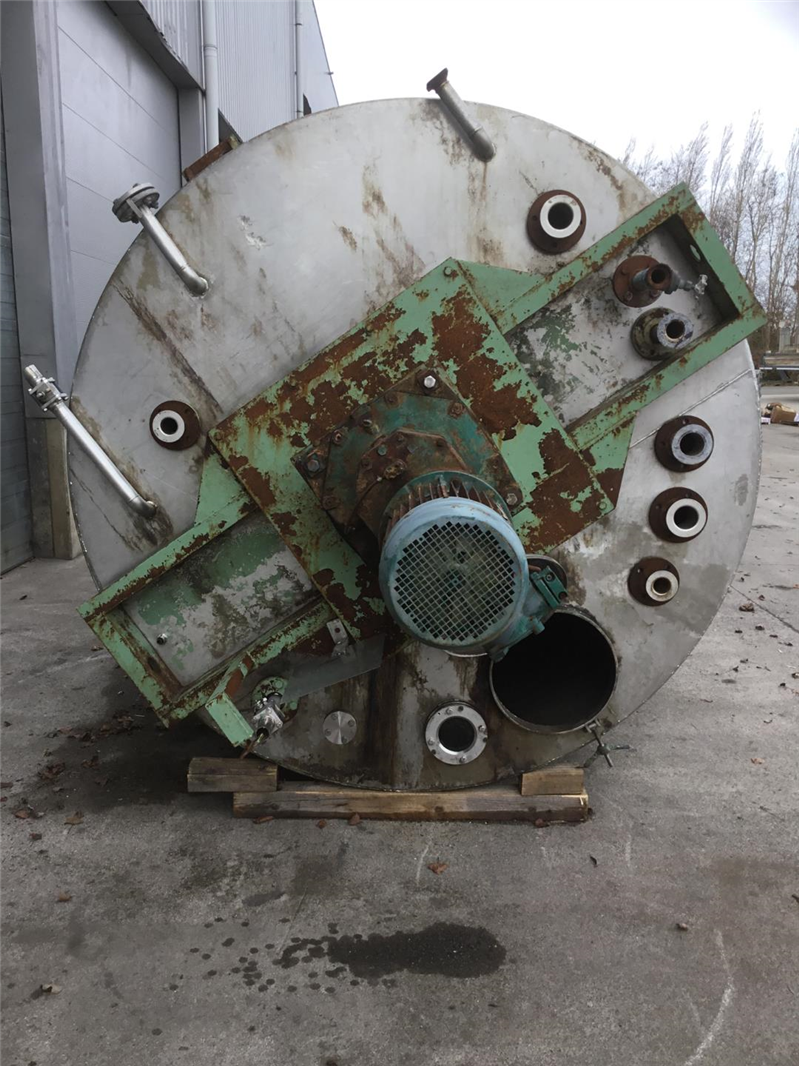

| Agitators | |
|---|---|
| Number of agitators | 1 |

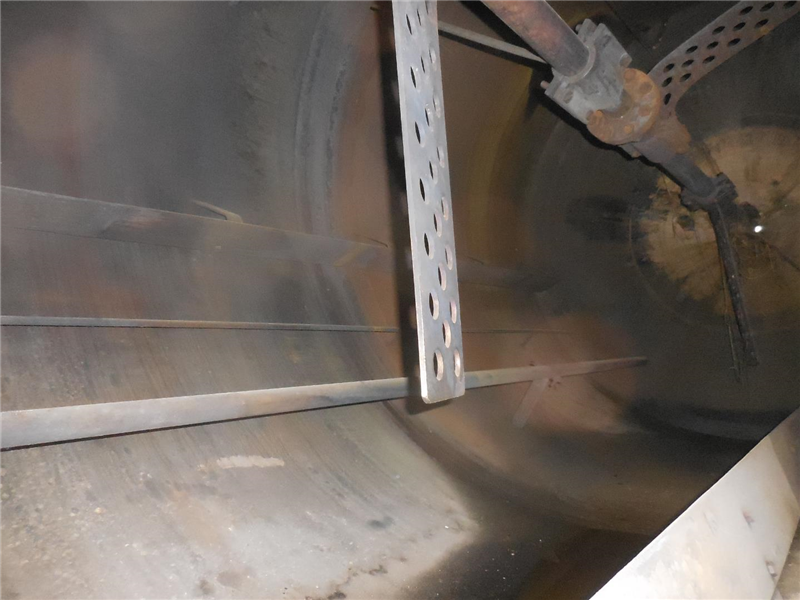

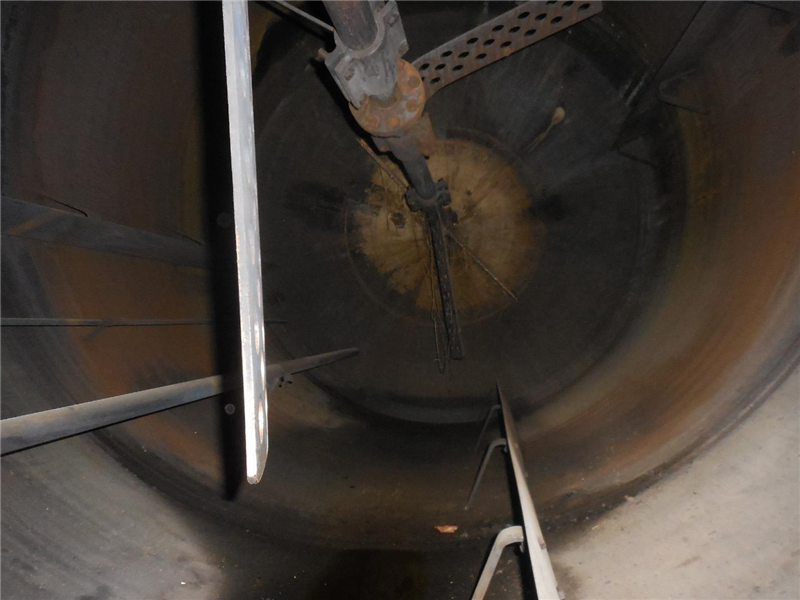

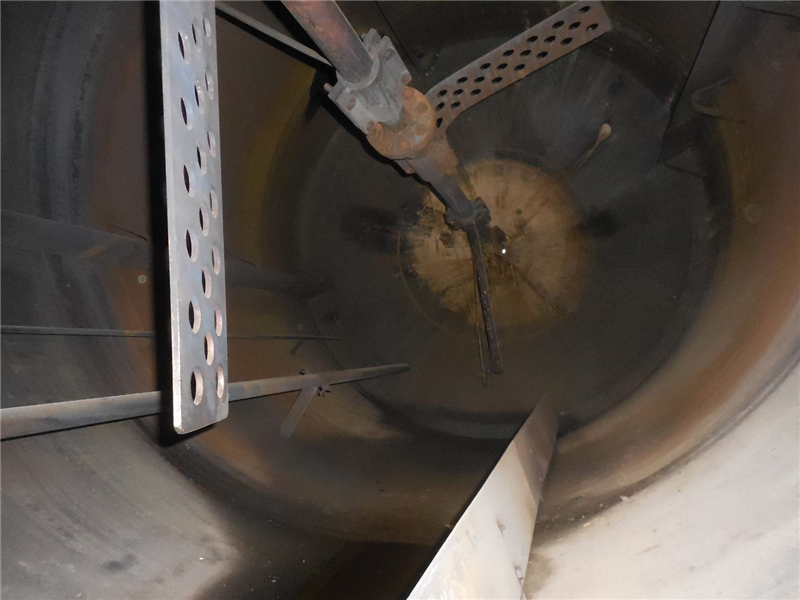

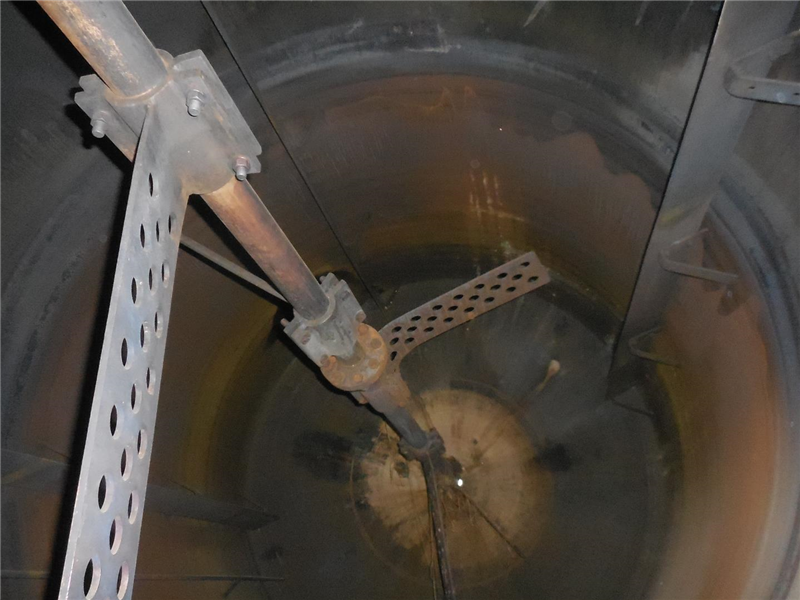

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 4 |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Blade stirrer/Cross paddles |

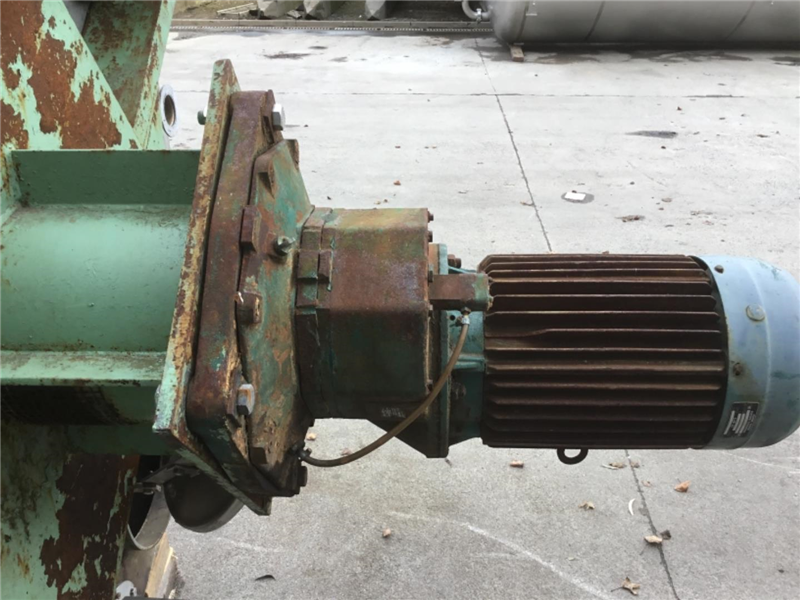

| Agitator 1: Engine Type | electric motor |

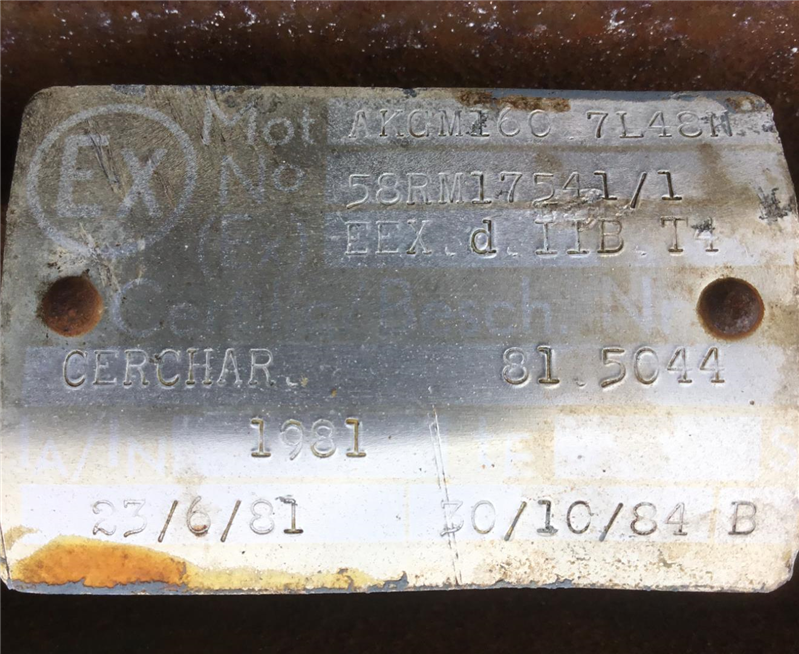

| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 6 |

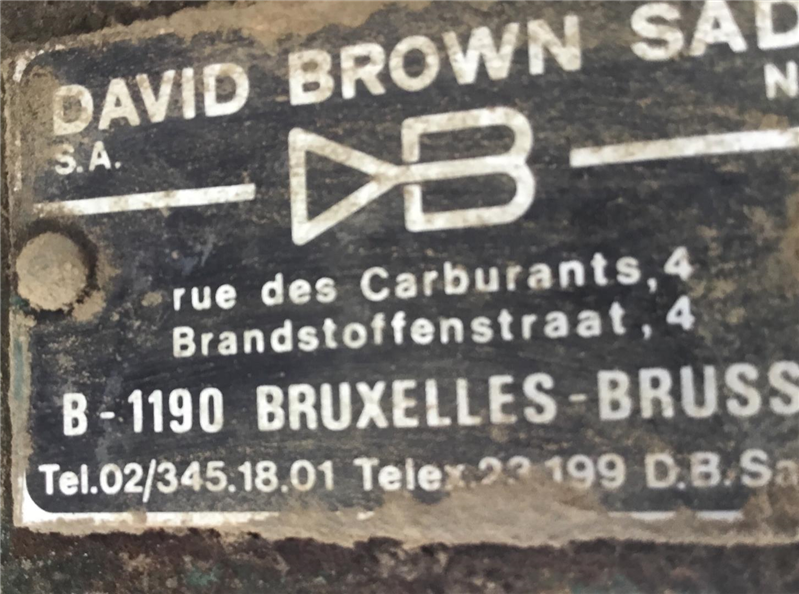

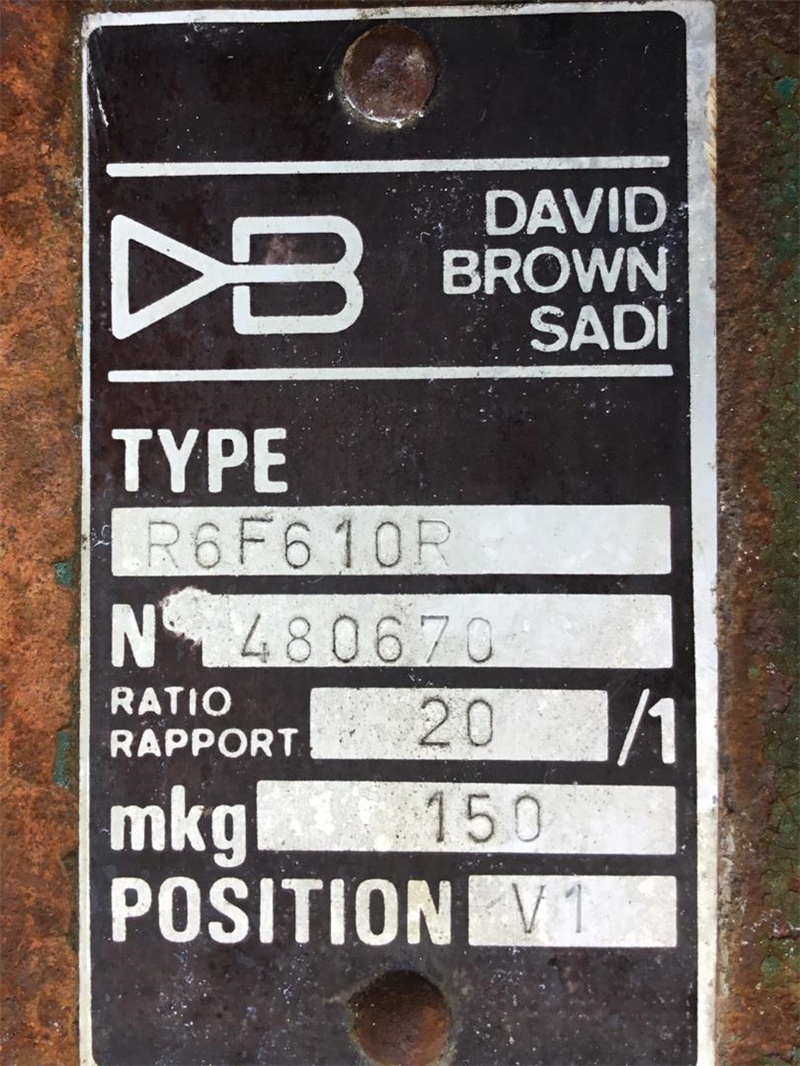

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 36 |
| Remarks | |
|---|---|

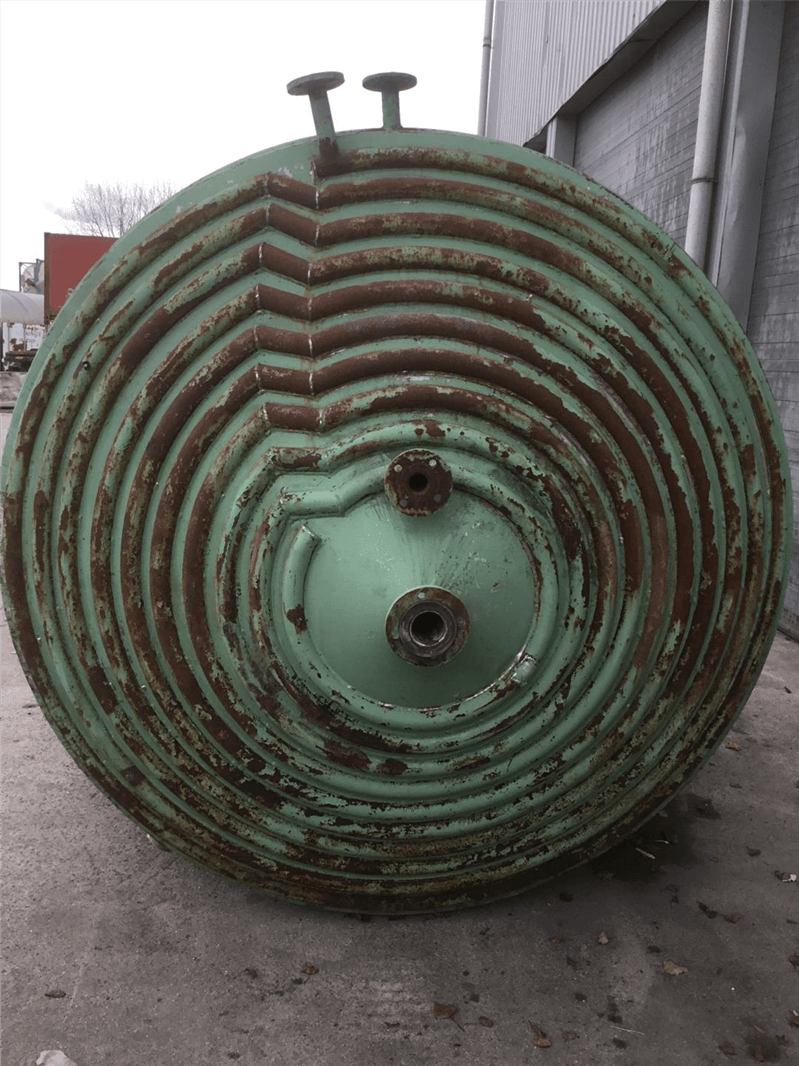

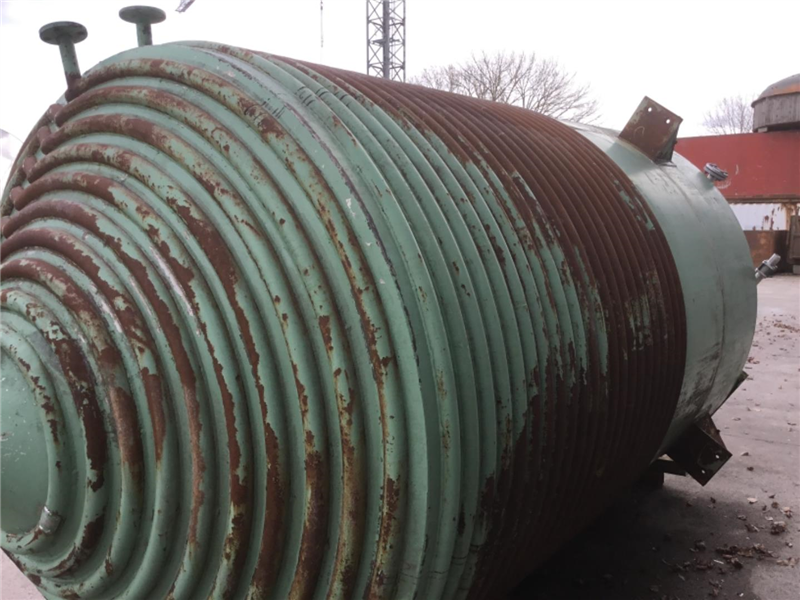

| Description (EN) | leaking steel half pipes for steam 10bar |
