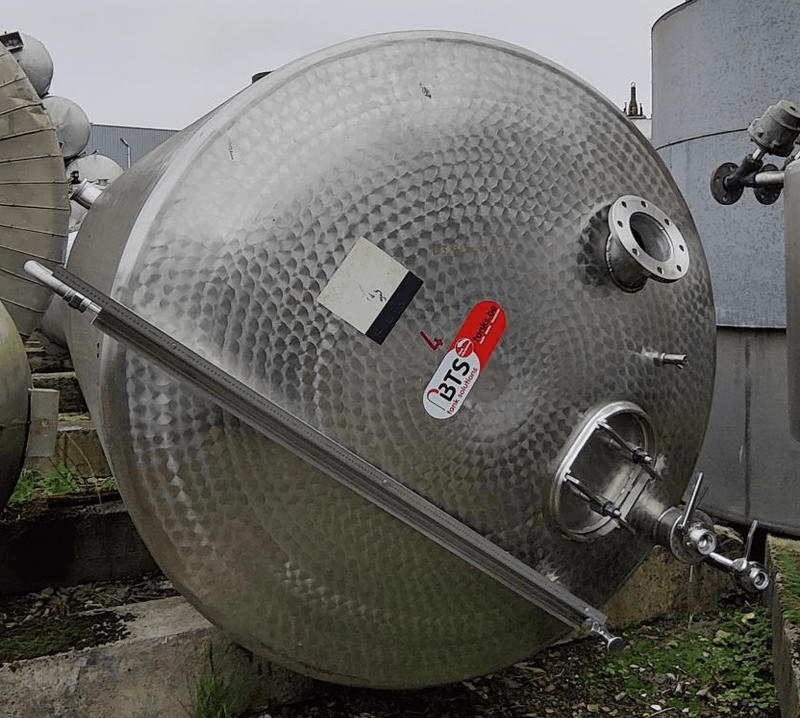

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.39.RU.05 |
| Material | Stainless steel 316 |
| Number | 1 |
| Capacity (Liters) | 10000 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

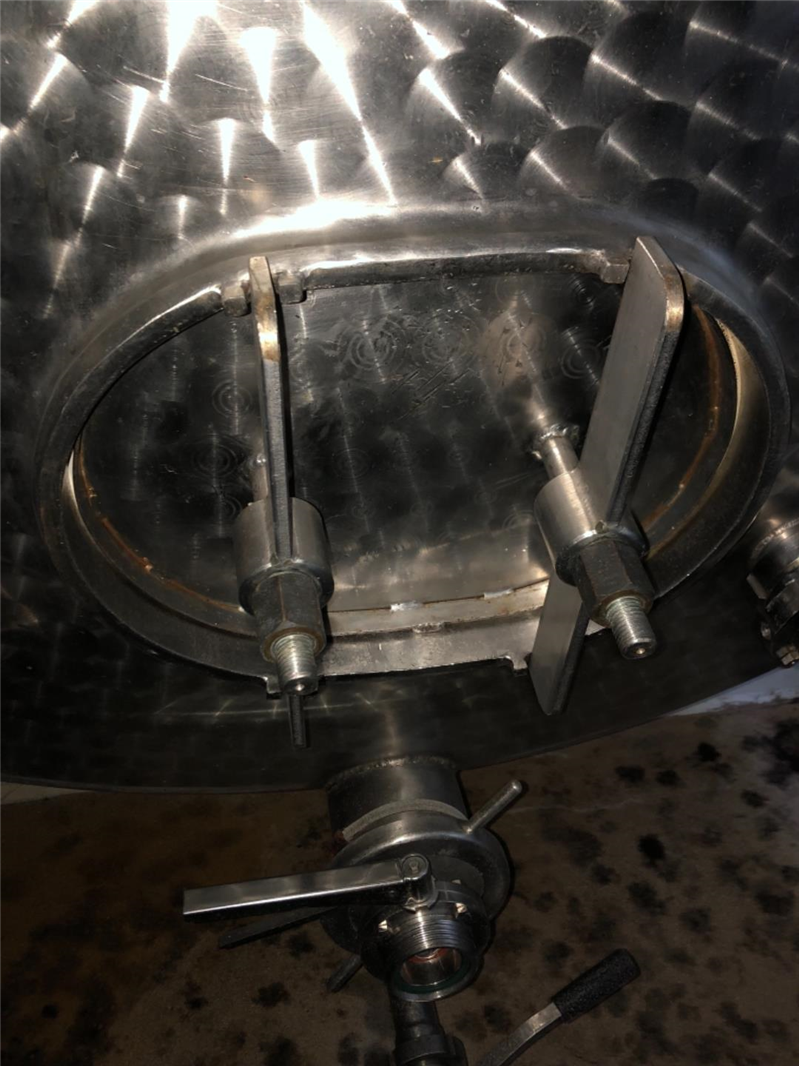

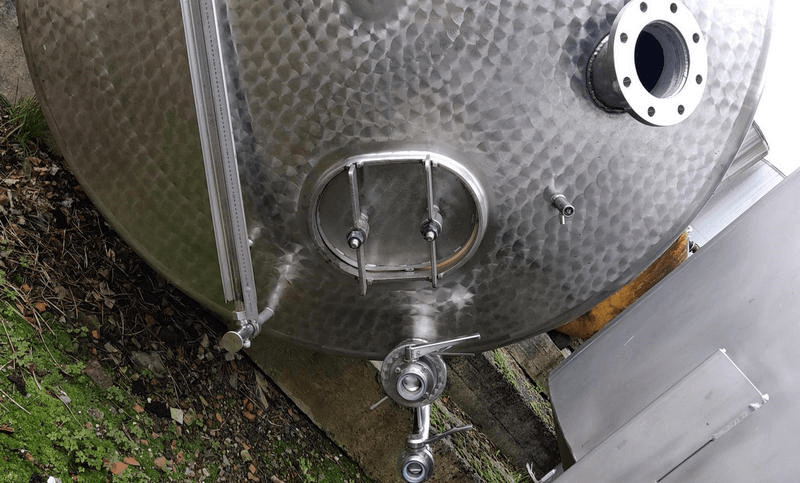

| Number of manhole | 1 |
| Position of manhole (s) | Bottom |
| Dimensions of manholes | 400*300 |
| Tank with total drain? | Yes |

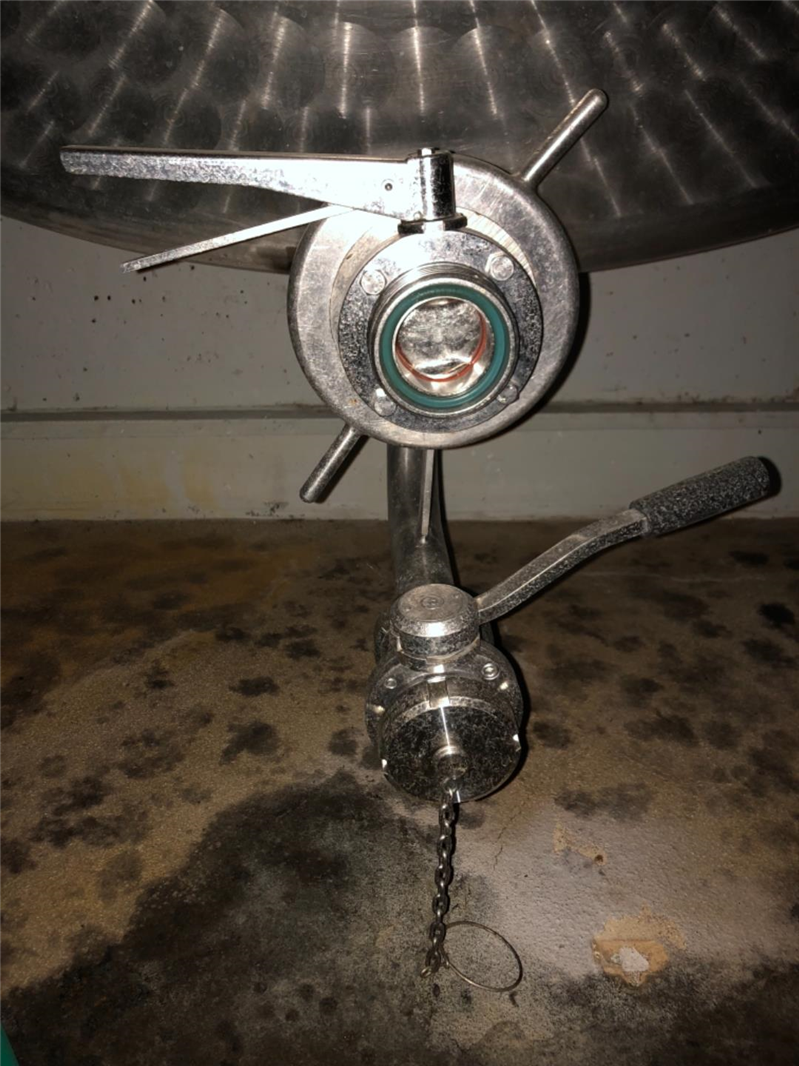

| Type of outlet (s) | SMS |
| Diameter of outlet (mm) | 150 |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |

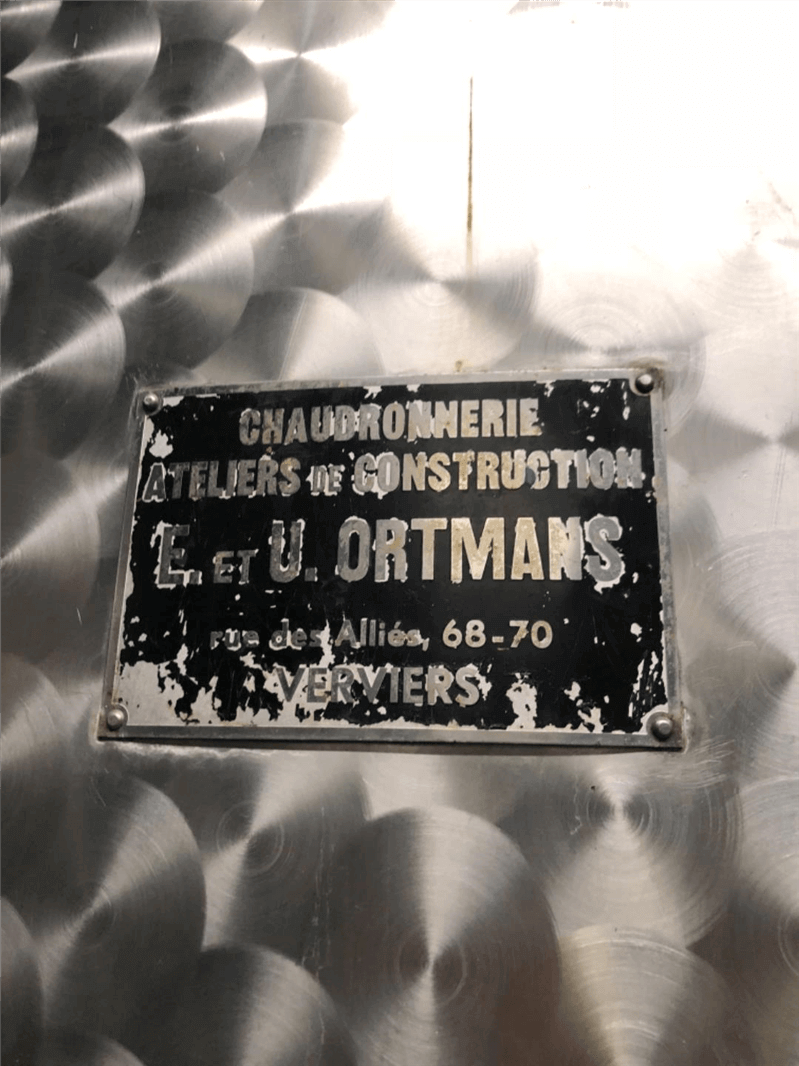

| Manufacturer | Chaudronnerie E. et U. Ortmans Verviers |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3 |
| Cylindrical length (mm) | 3250 |
| Length (mm) | 3750 |
| Diameter tank (mm) | 1900 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

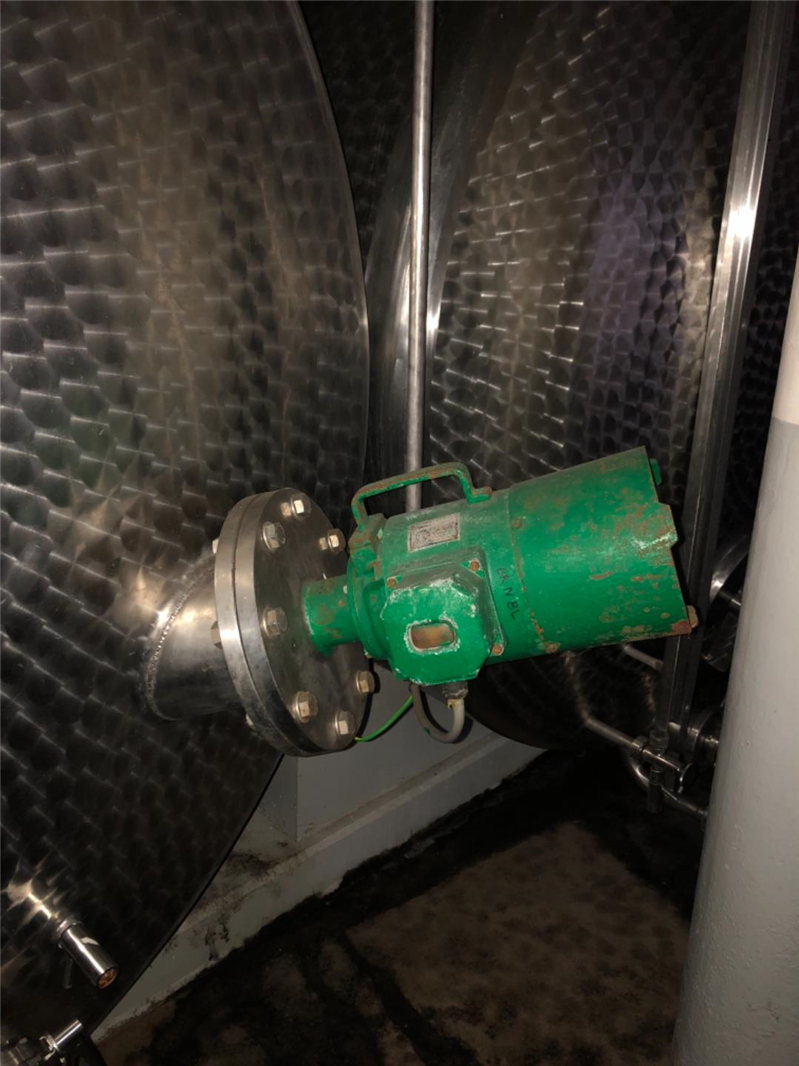

| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |

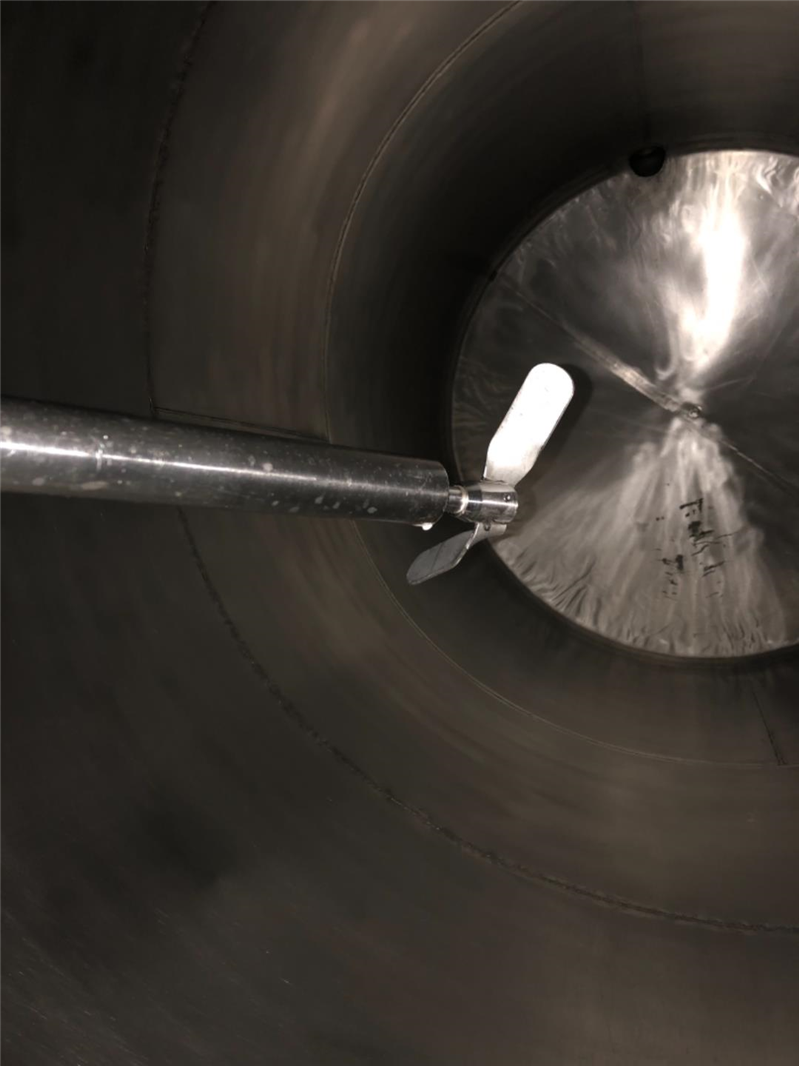

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 800 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 1,1 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 1410 |
| Remarks | |
|---|---|
| Description (EN) | No cradles available - offer separately |
