Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.38.WA.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 1500 |
| Type tank | Storage tank |

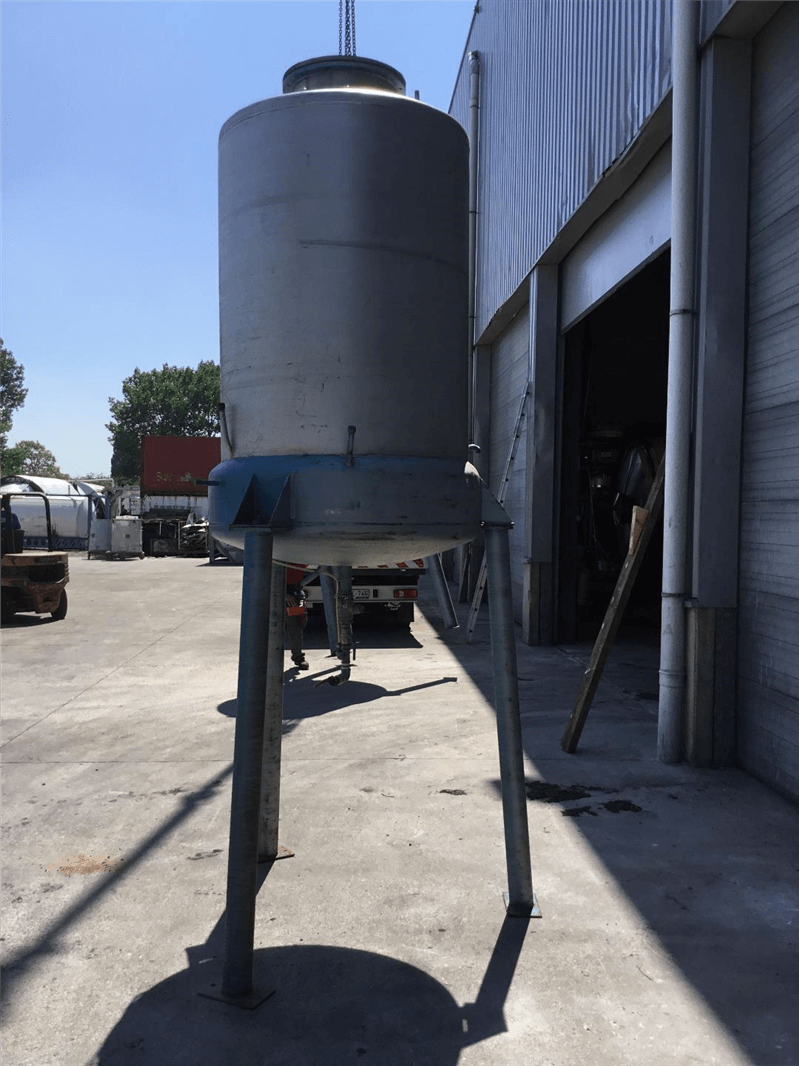

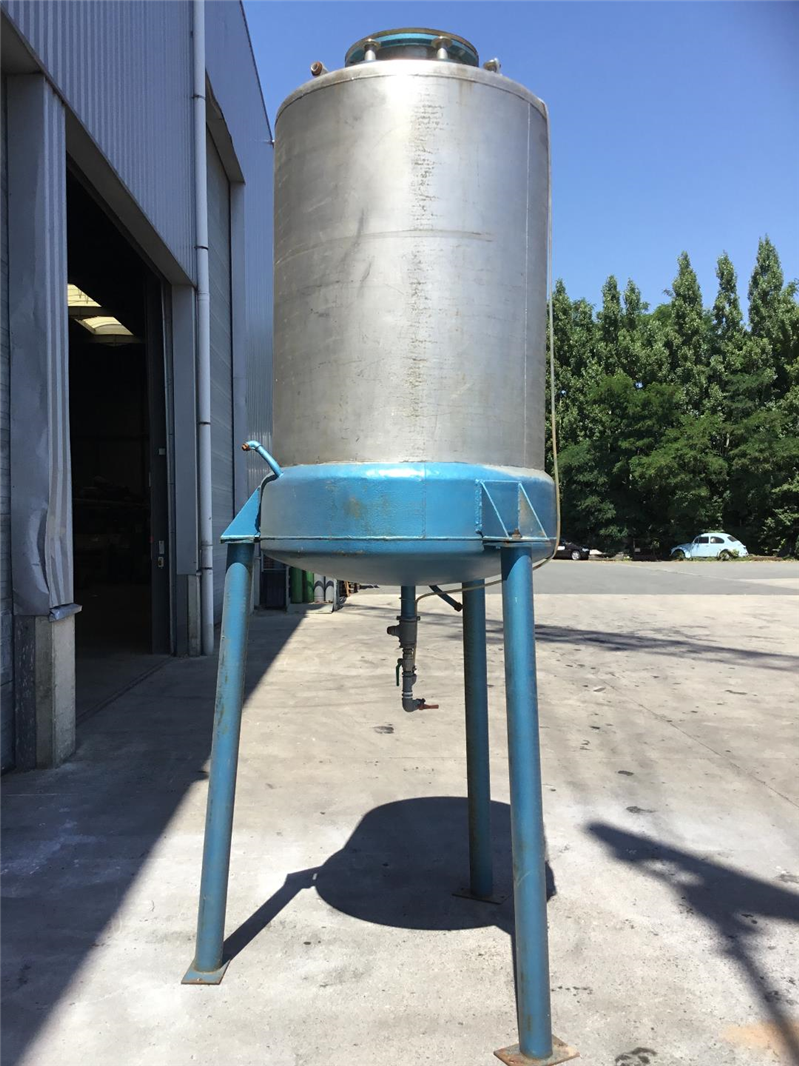

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø450 |

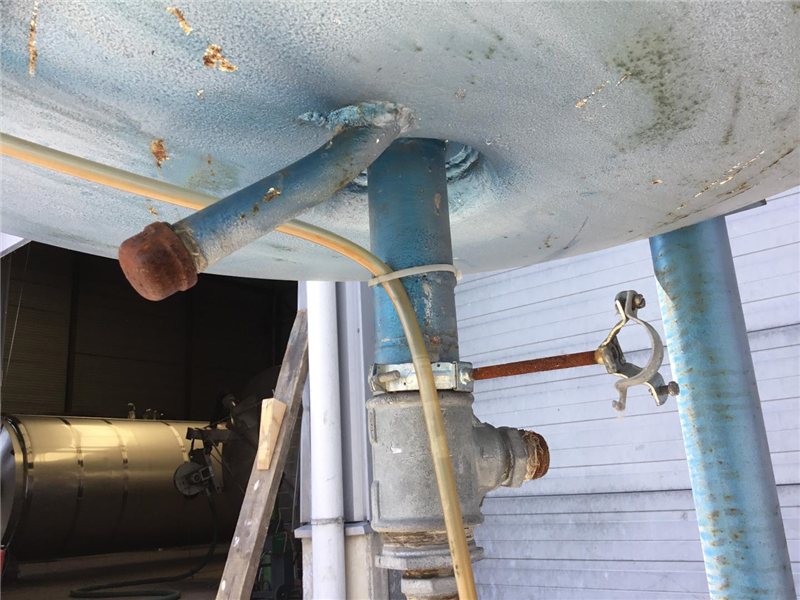

| Tank with total drain? | Yes |

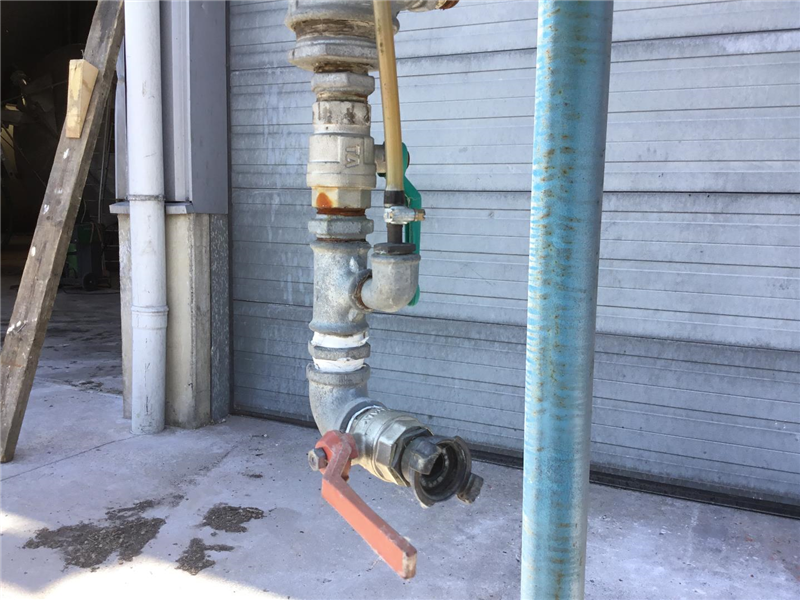

| Type of outlet (s) | 2" |
| Diameter of outlet (mm) | 60 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 3450 |
| Cylindrical length (mm) | 1600 |
| Height bottom (mm) | 150 |
| Total height (mm) | 3660 |
| Diameter tank (mm) | 1100 |
| Width (mm) | 1500 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Remarks | |
|---|---|

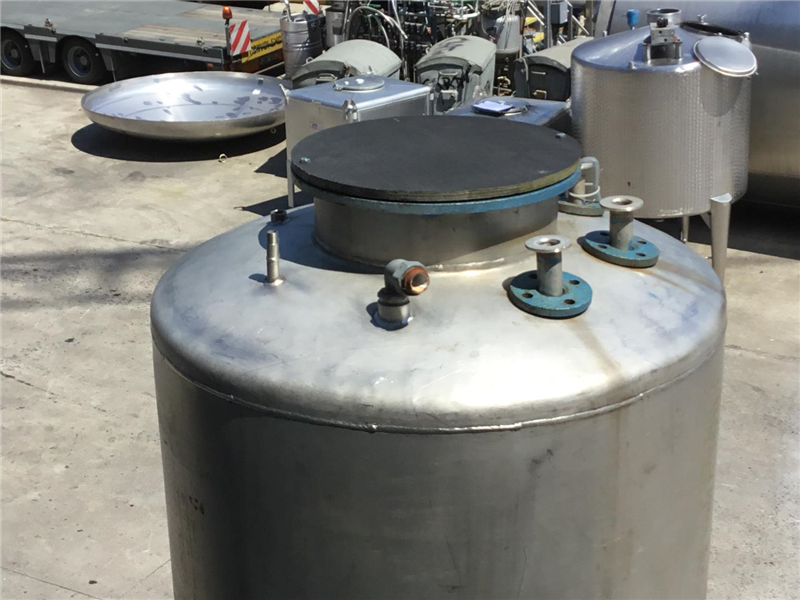

| Description (EN) | Connections at the top: Weld socket 1 1/2 "(2x) - weld socket 1" - Nipple 1/2 "- Flange NW32 (2x) - Flange NW25 • Heating mantle bottom and bottom cilindric part (300 mm high) |
