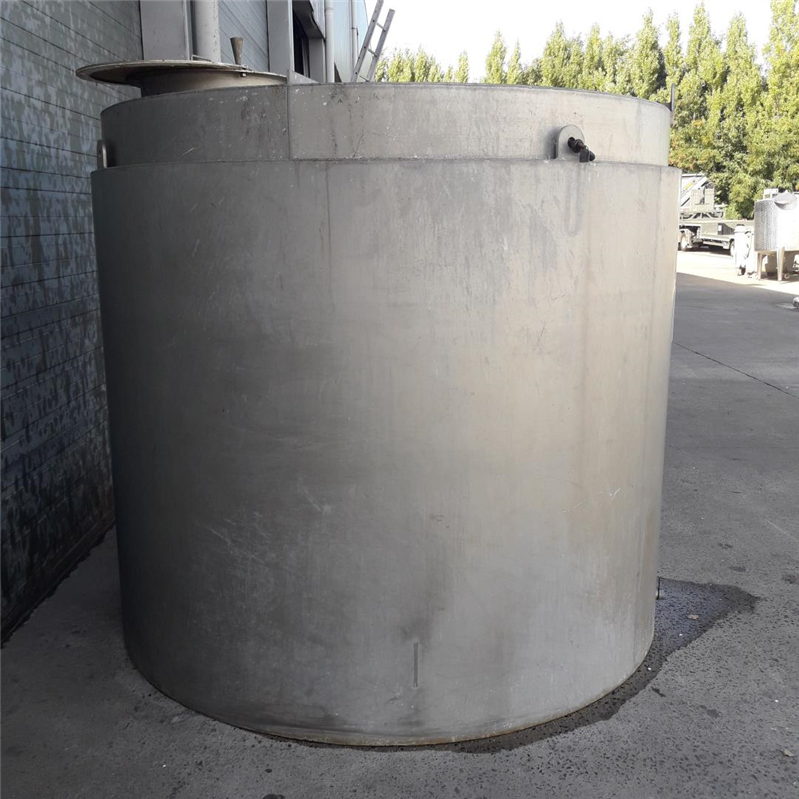

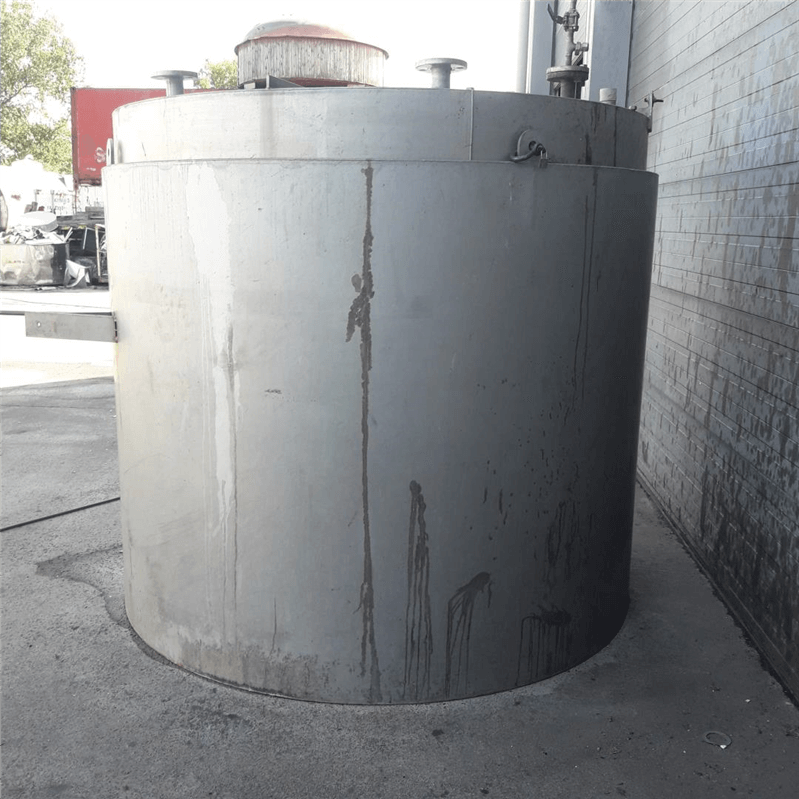

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 7200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.38.IG.01 |

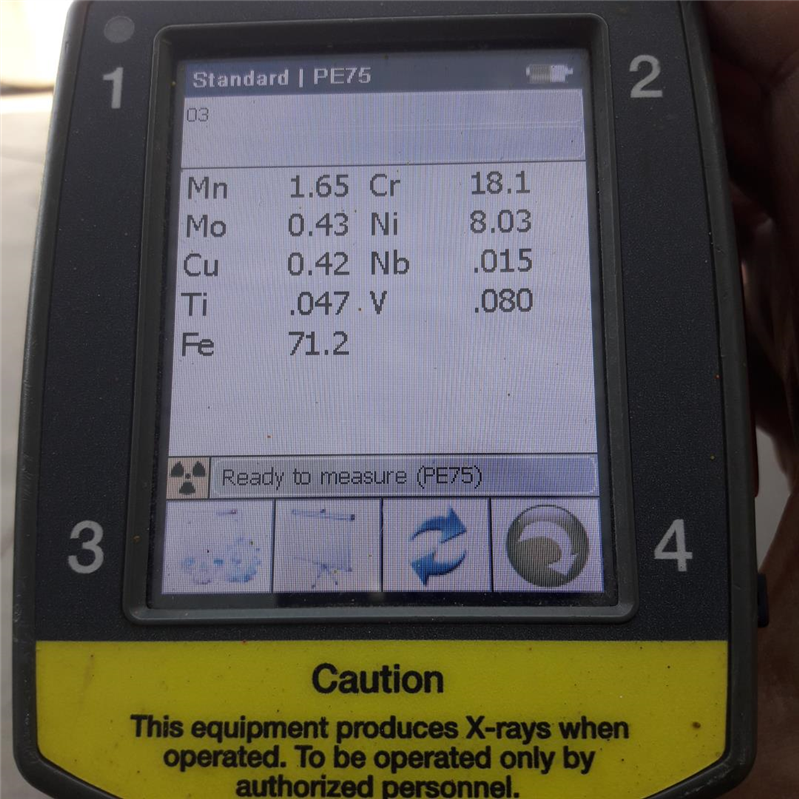

| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 7200 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

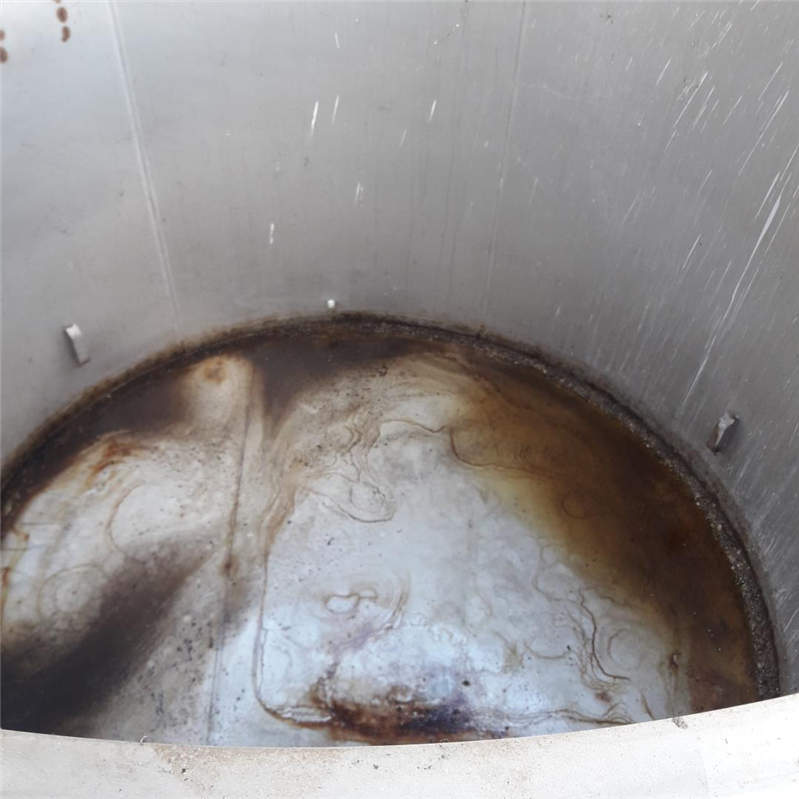

| Bottom | Flat bottom |

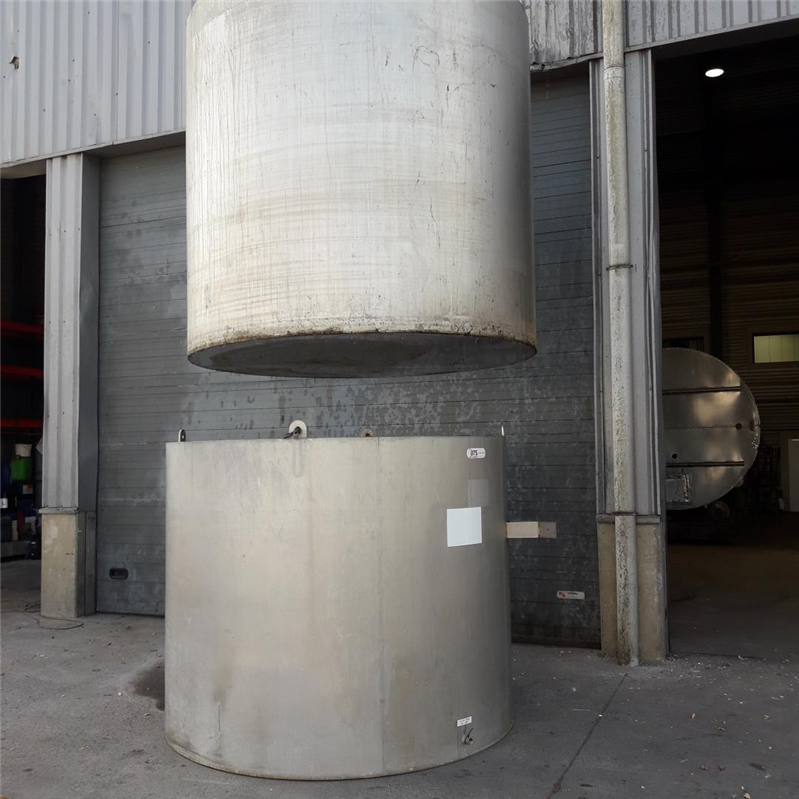

| Tank model | Jacketed (leak detection) |

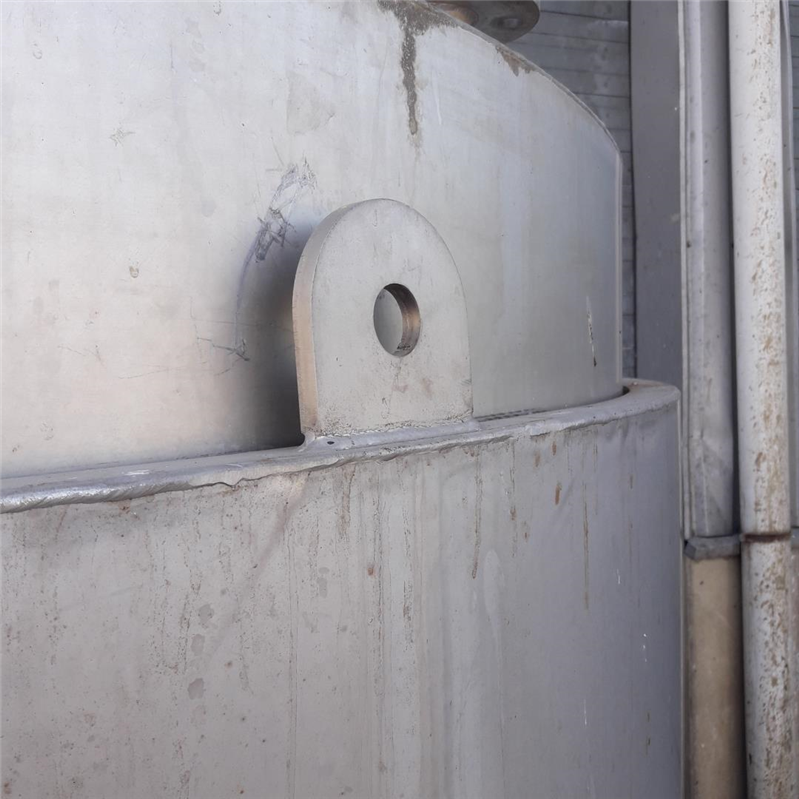

| Number lifting lugs | 4 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |

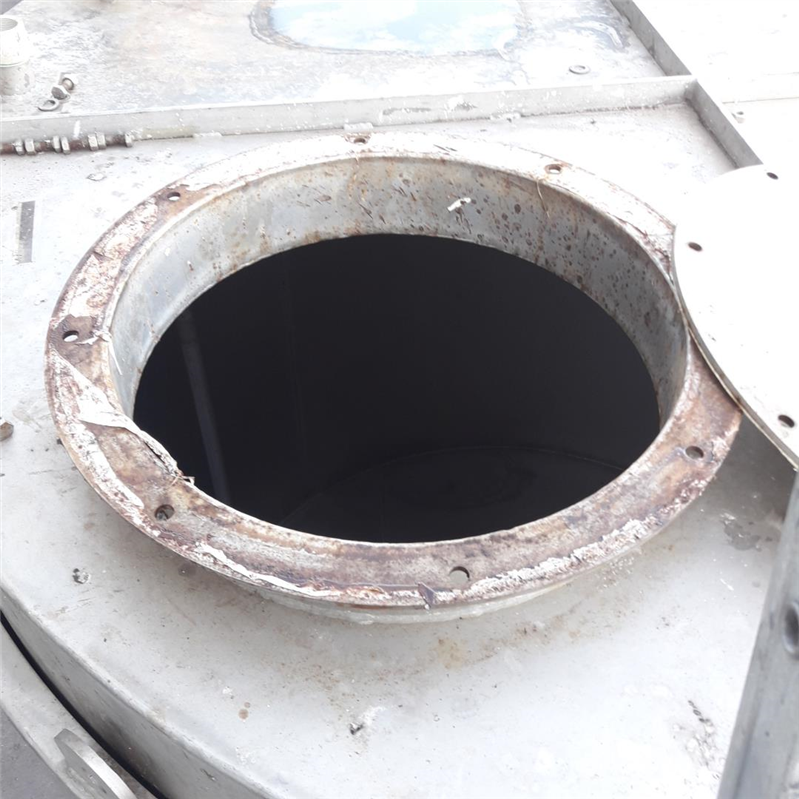

| Dimensions of manholes | Ø500 mm |
| Tank with total drain? | No |
| Type of outlet (s) | Lasflens 2'' |
| Diameter of outlet (mm) | 60mm |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 420 |
| Condition | Used |
| Type plate manufacturer | No |
| Manufacturer | SE-INDUSTRIES |
| Year Built | 2000 |
| Construction data available | No |
| Appendix 1 | 0338IG01-Reinigingscertificaat_Zwavelzuurtank.pdf |
| Appendix 2 | 0338IG01-technisch_doc_zwavelzuurtank.pdf |
| Appendix 3 | 0338IG01-testrapport_zwavelzuurtank.pdf |
| Appendix 4 | 0338IG01-verslag_controle_Vincotte_zwavelzuurtank.pdf |
| Drawing 1 | 0338IG01-technische_tekening_zwavelzuurtank.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |

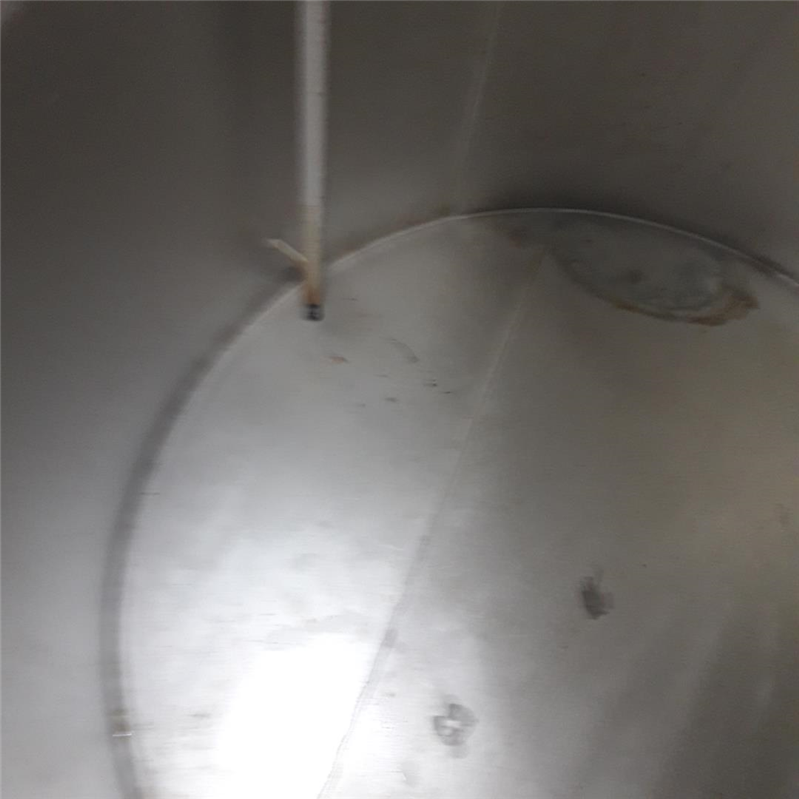

| Bottom thickness (mm) | 3 |
| Periphery (mm) | 6760 |
| Cylindrical length (mm) | 2000 |
| Outer wall thickness (mm) | 2 |
| Outside diameter tank (mm) | 2250 |
| Total height (mm) | 2165 |
| Diameter tank (mm) | 2150 |
| Width (mm) | 2260 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

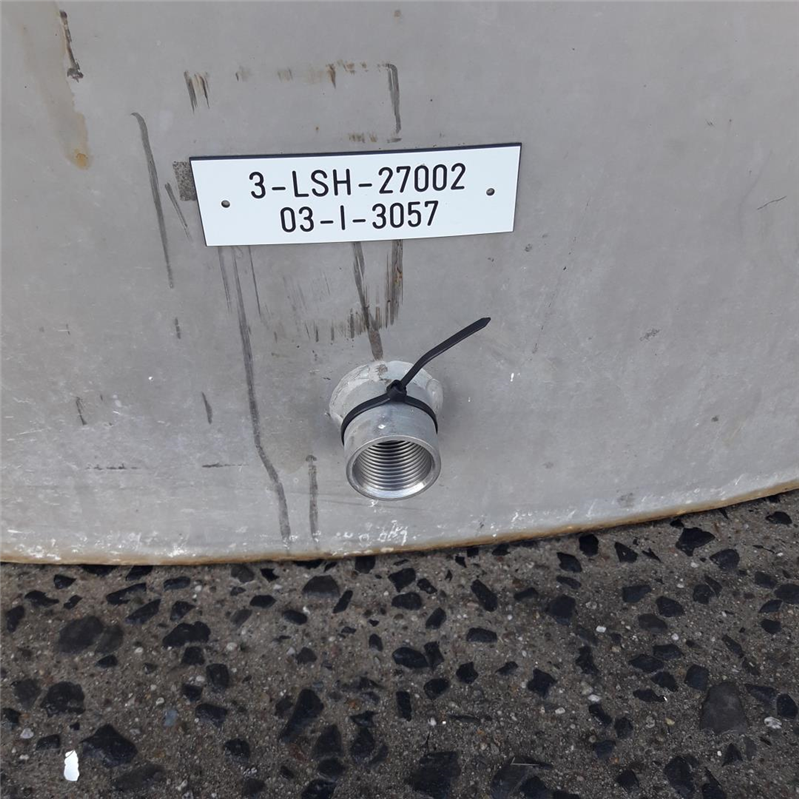

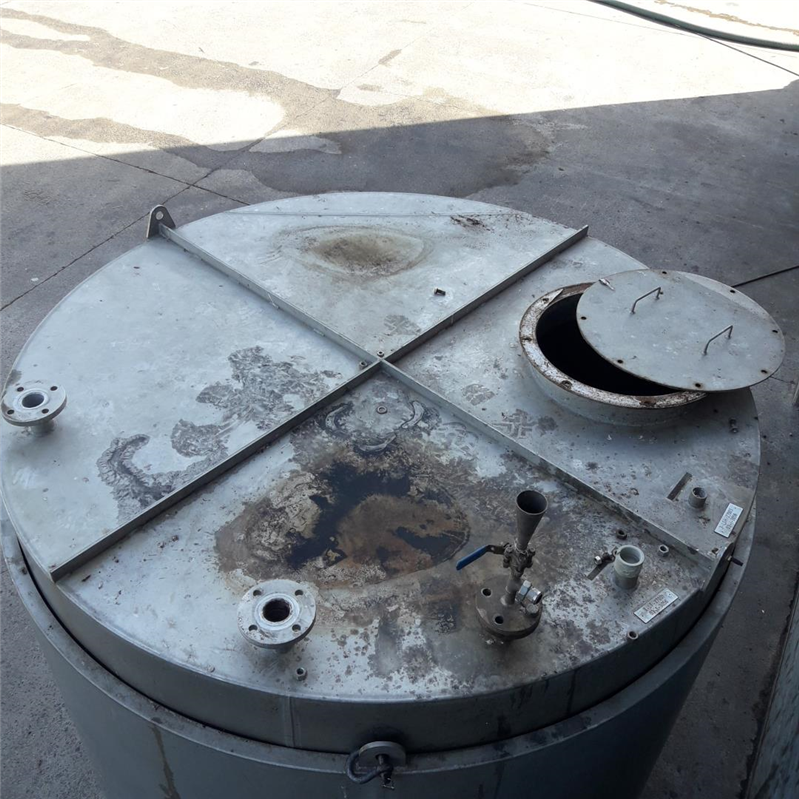

| Description (EN) | Connections at the top: 2x welding flange NW50 + 1x welding flange NW32 + 1x welding socket NW40 (6/4 ") • Connection of double shell on cylinder at bottom: 1x welding socket NW25 • Last product: sulfuric acid • Thickness bottom plate inner tank: 3mm - outside tank: 3mm |
