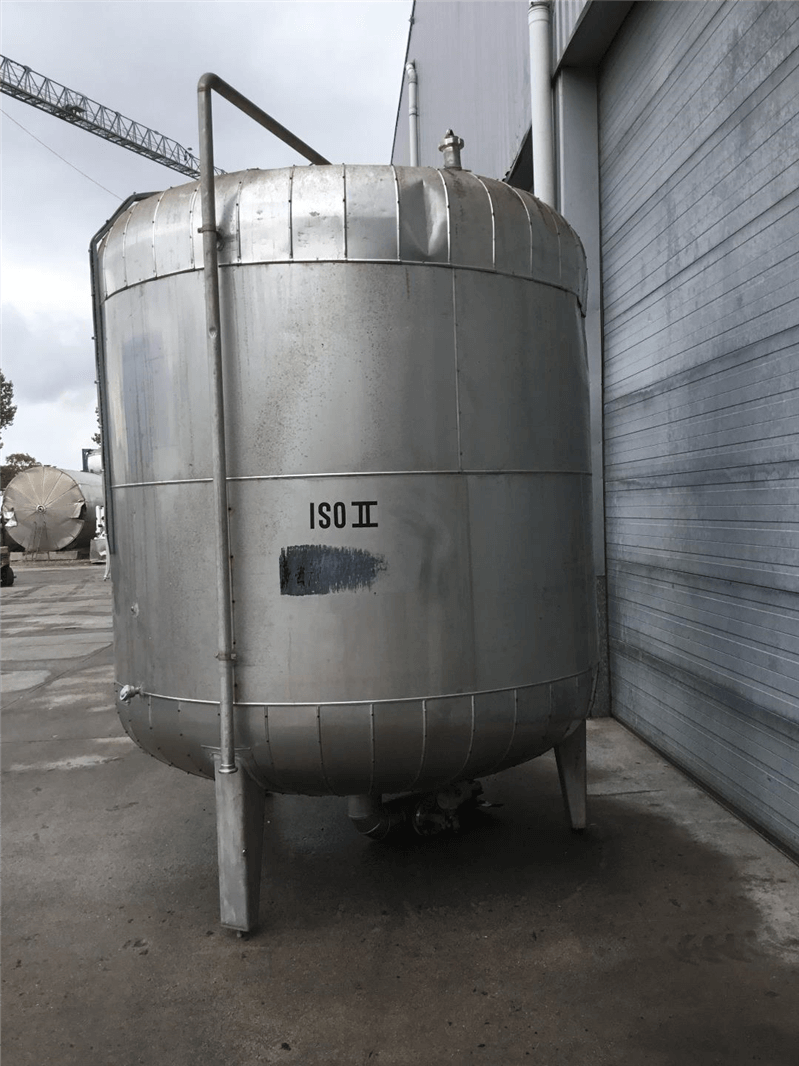

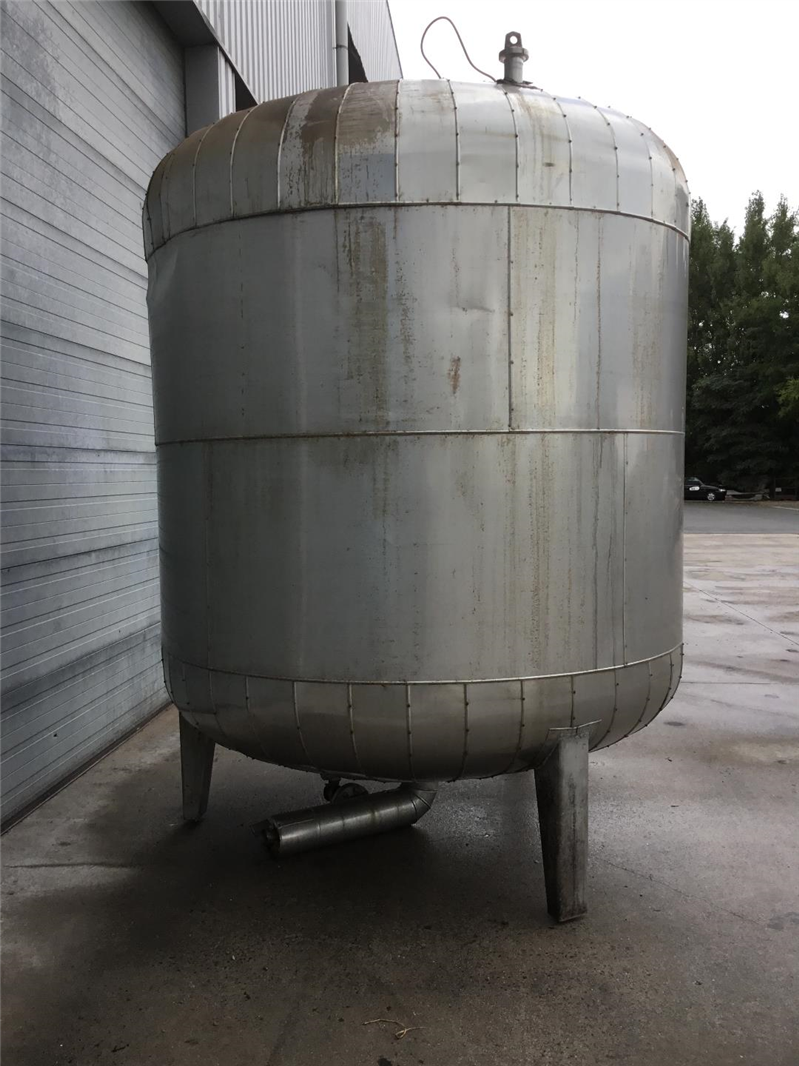

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.38.HA.13 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 8500 |
| Type tank | Storage tank |

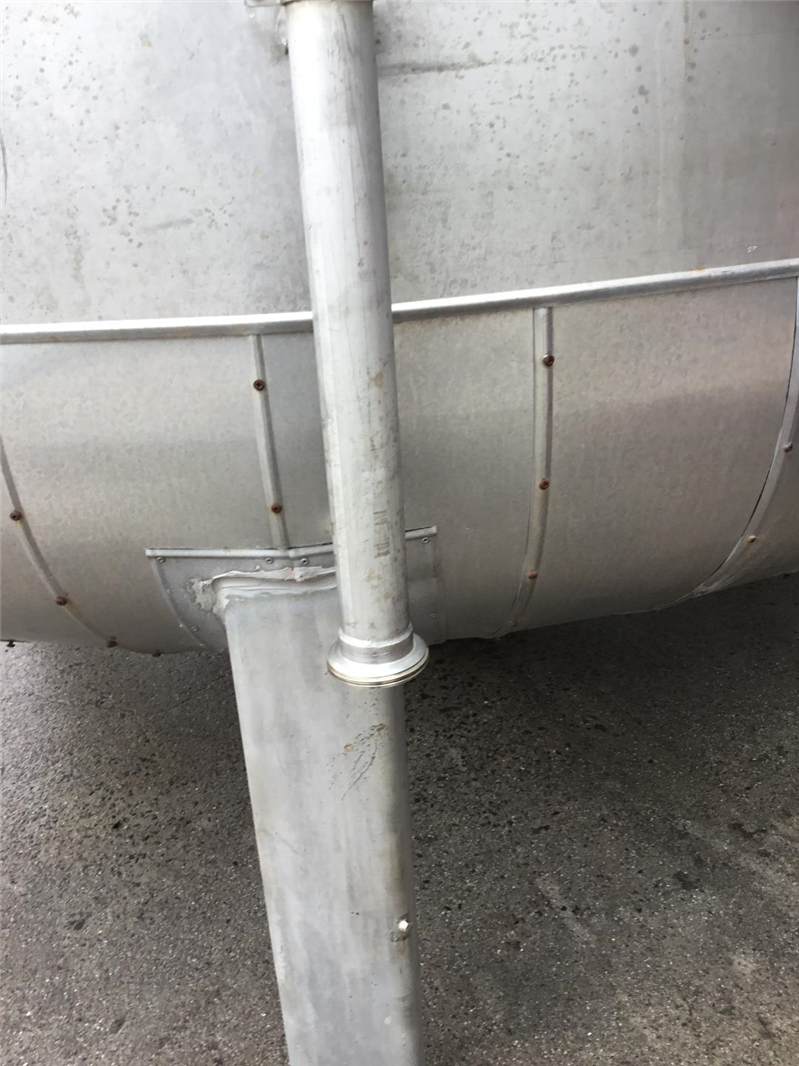

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

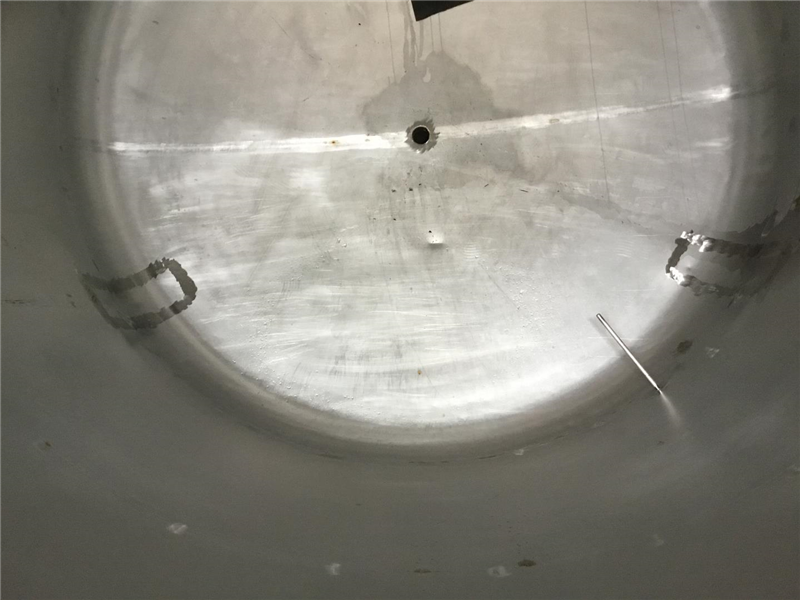

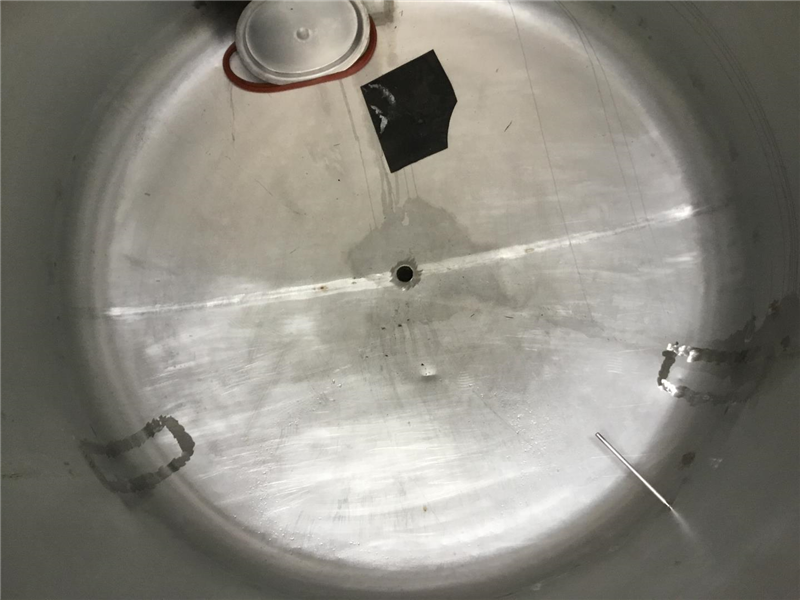

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 350x450 mm |

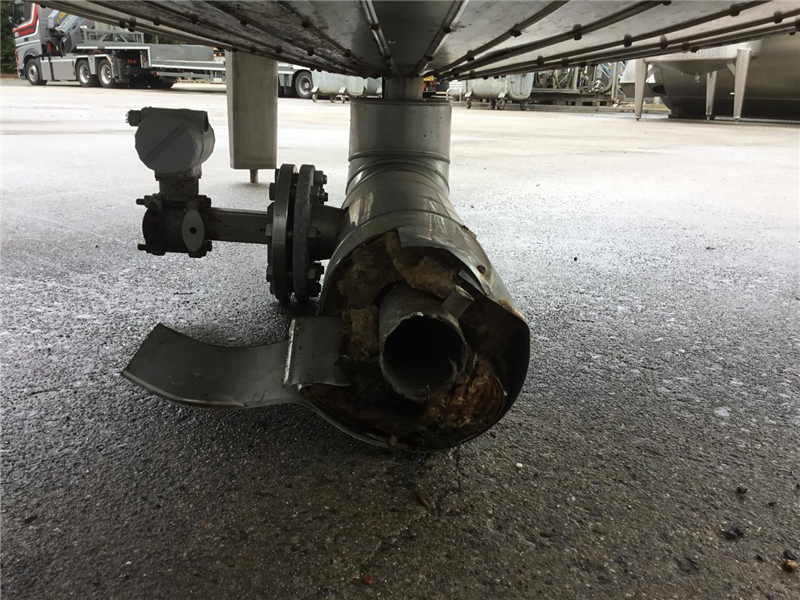

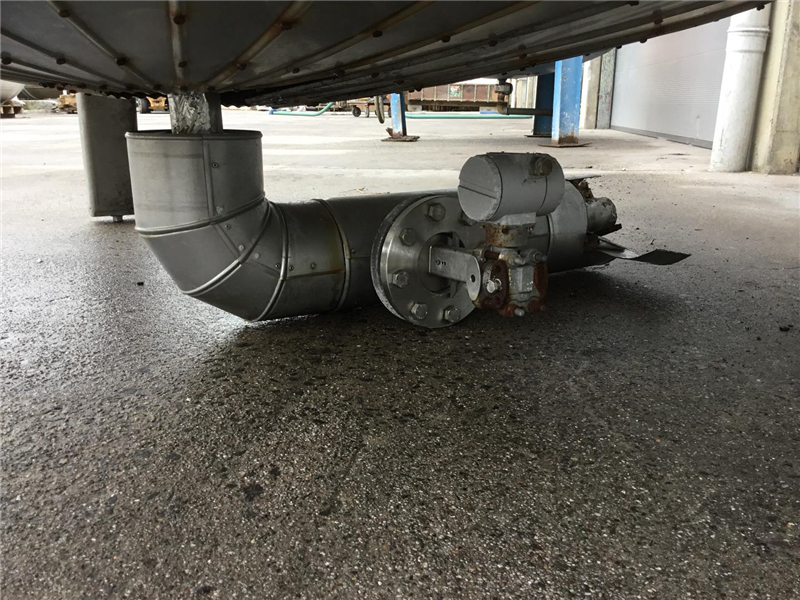

| Tank with total drain? | Yes |
| Type of outlet (s) | Buis |
| Diameter of outlet (mm) | Ø70 |
| locality | B-7711 Belgium |
| Last application | Food |

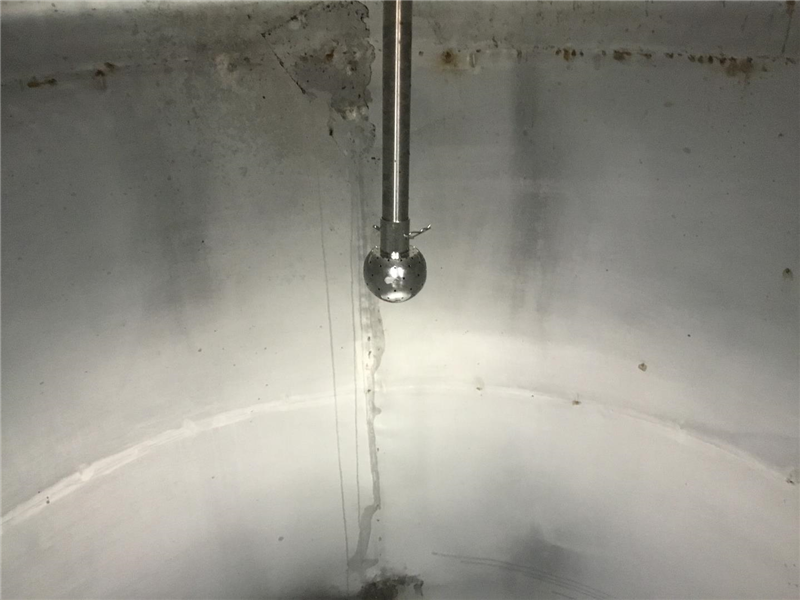

| Provision tank cleaning | CIP ball |
| Weight (kg) | 500 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,3 |
| Periphery (mm) | 7670 |
| Cylindrical length (mm) | 1900 |
| Height bottom (mm) | 400 |
| Outside diameter tank (mm) | 2440 |
| Total height (mm) | 3460 |
| Diameter tank (mm) | 2240 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 100 |

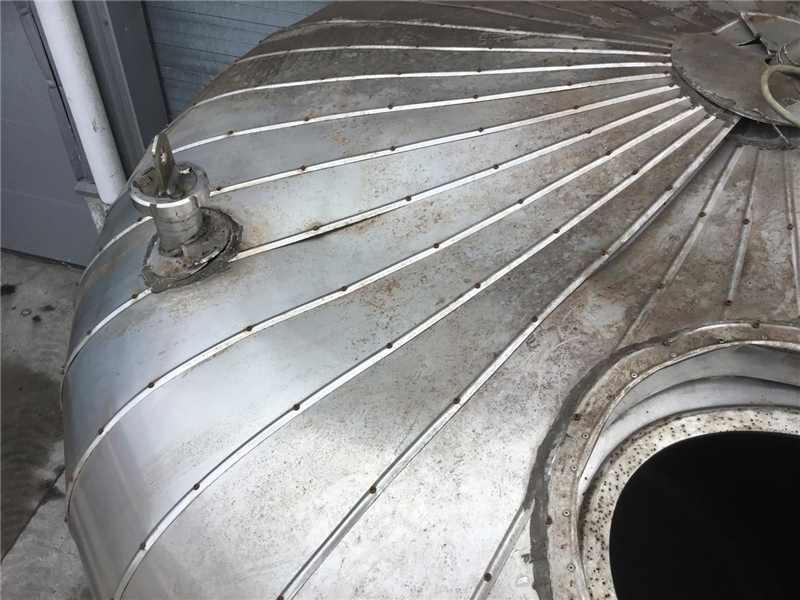

| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Remarks | |
|---|---|

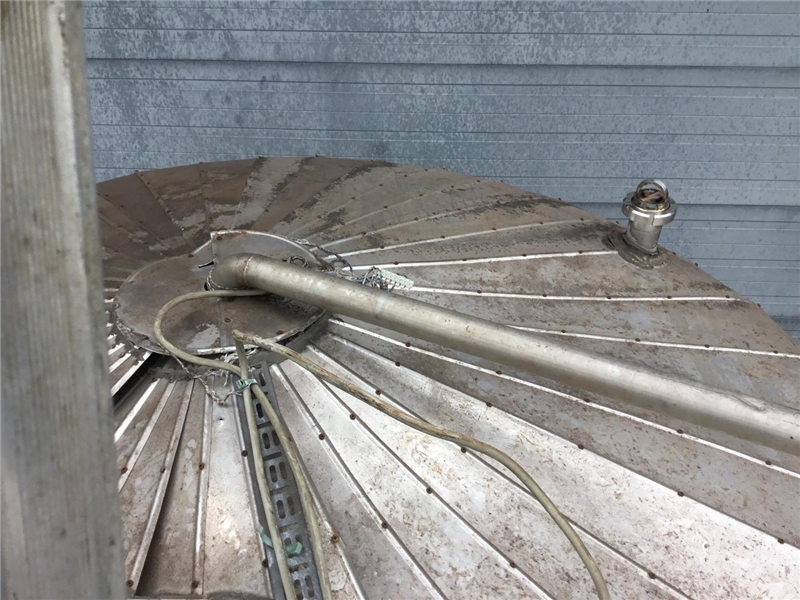

| Description (EN) | 2x connection at the top Milk coupling NW65 • Outlet Ø70 mm - center at 110mm from the ground • Supply CIP pipe Ø60 mm |
