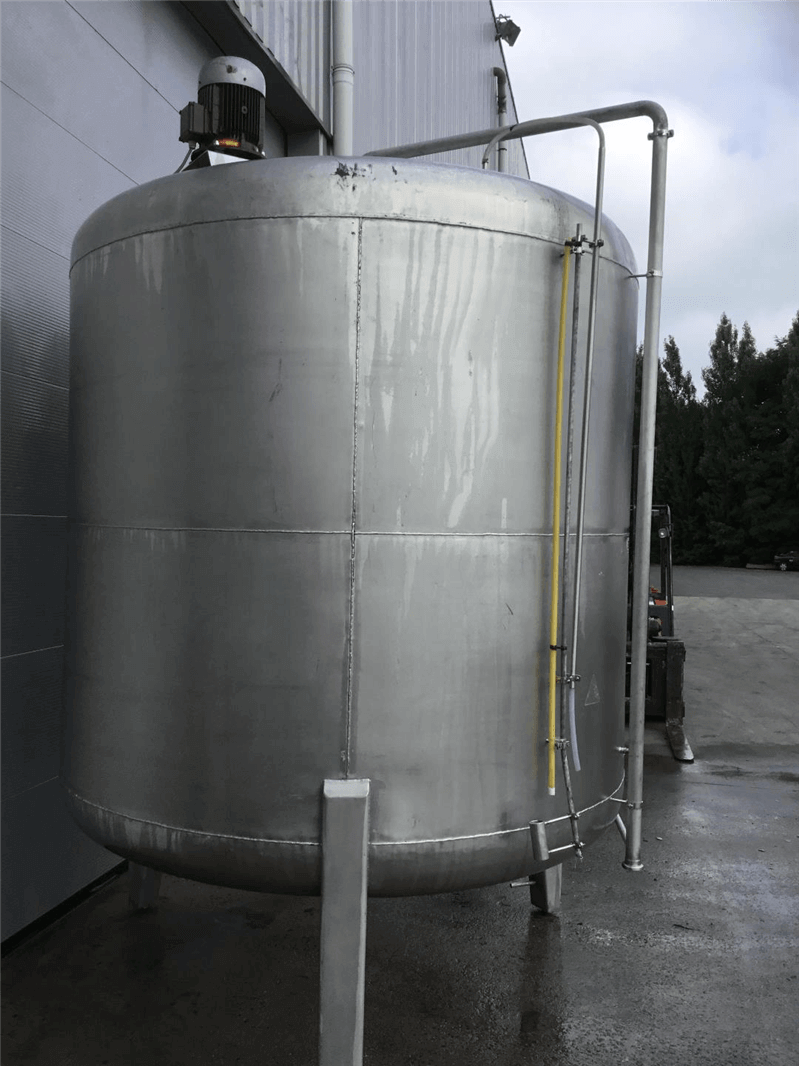

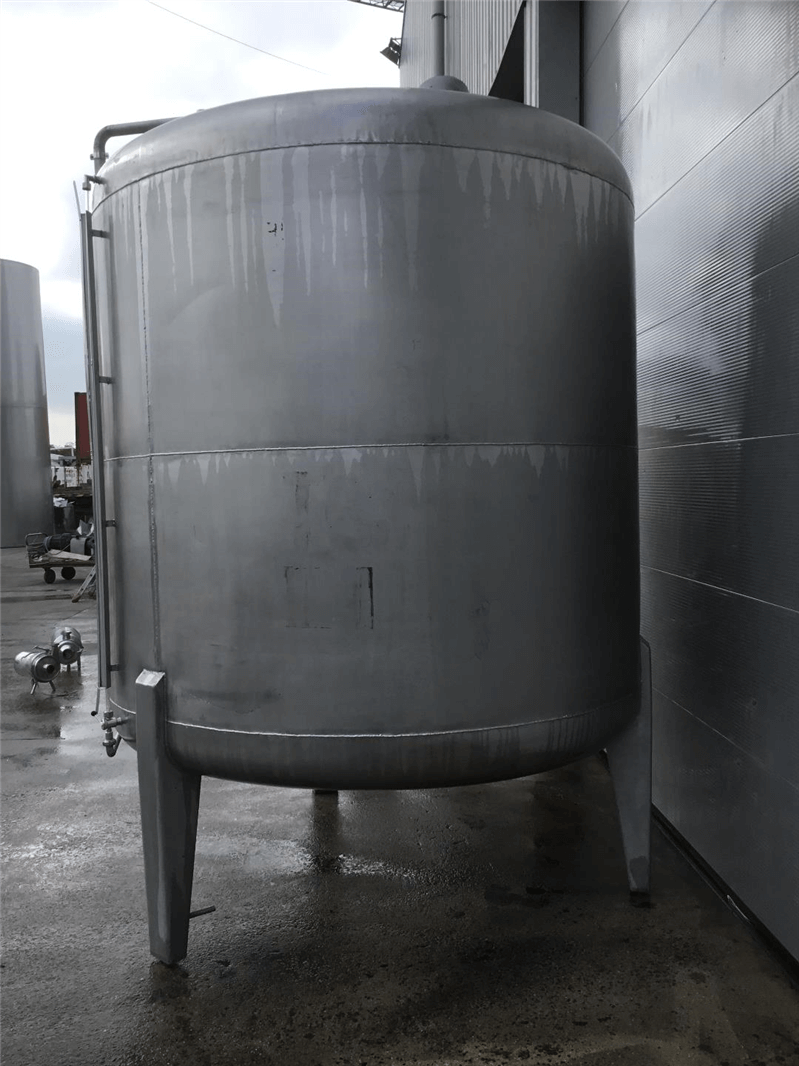

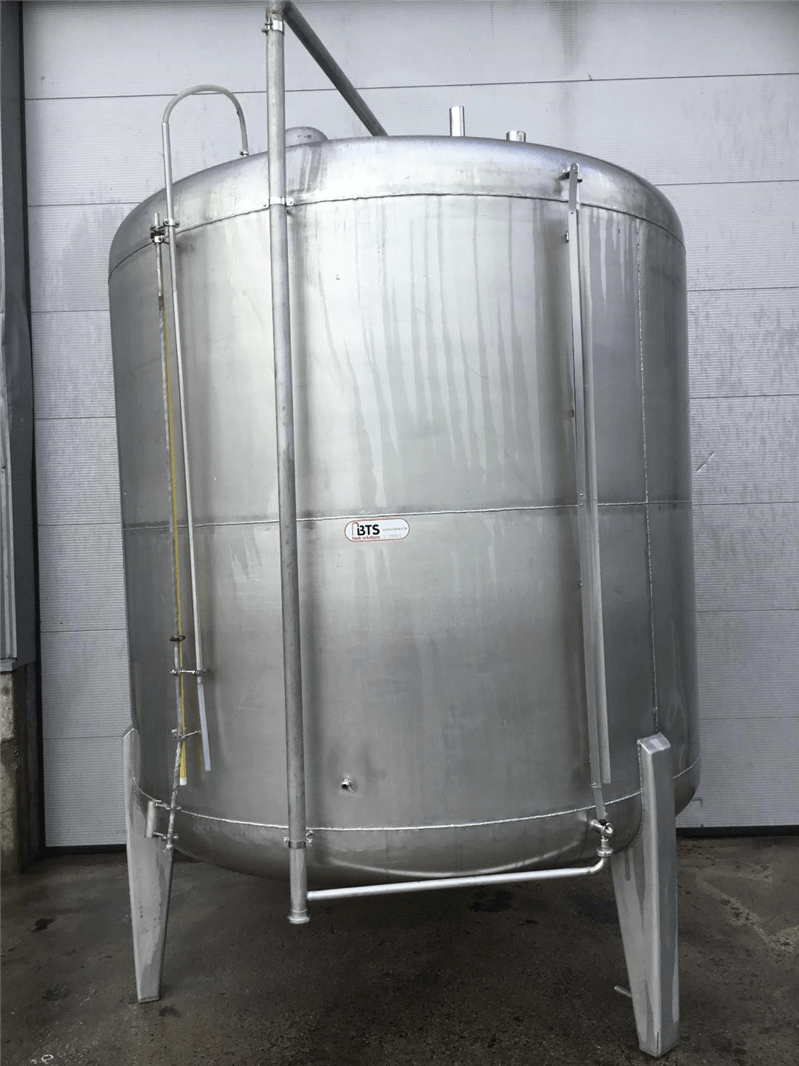

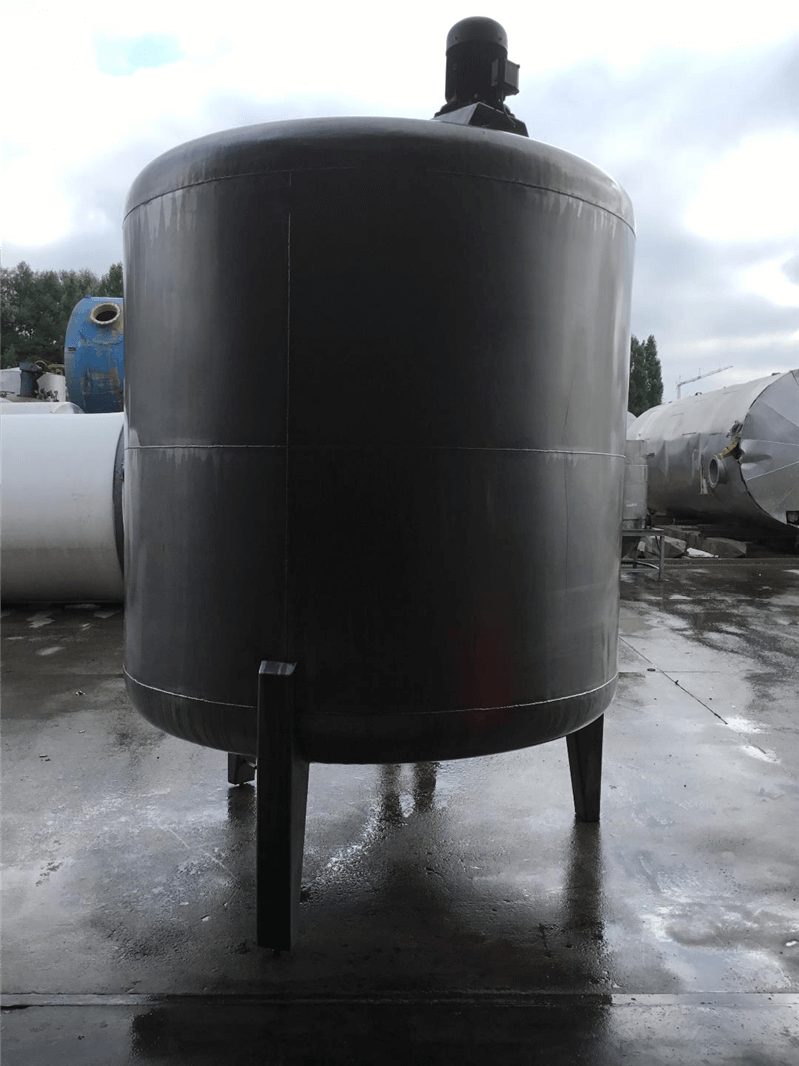

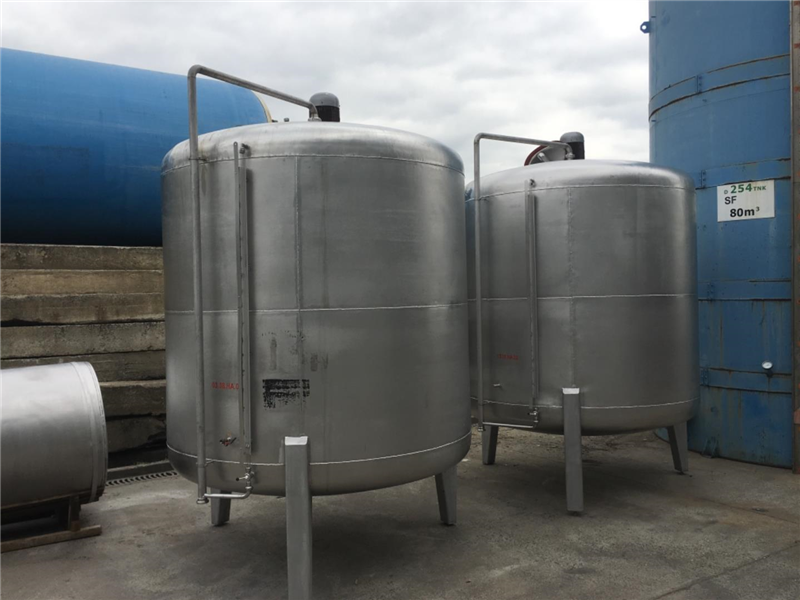

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.38.HA.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 8800 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 450x350 mm |
| Tank with total drain? | Yes |

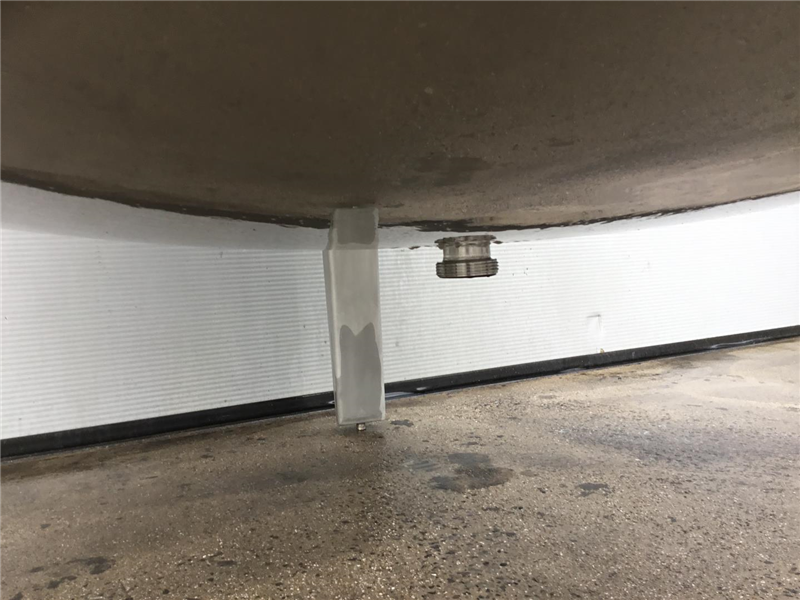

| Type of outlet (s) | Melkkoppeling Male NW63,5 |
| Diameter of outlet (mm) | 63,5 |
| locality | B-7711 Belgium |
| Last application | Food |

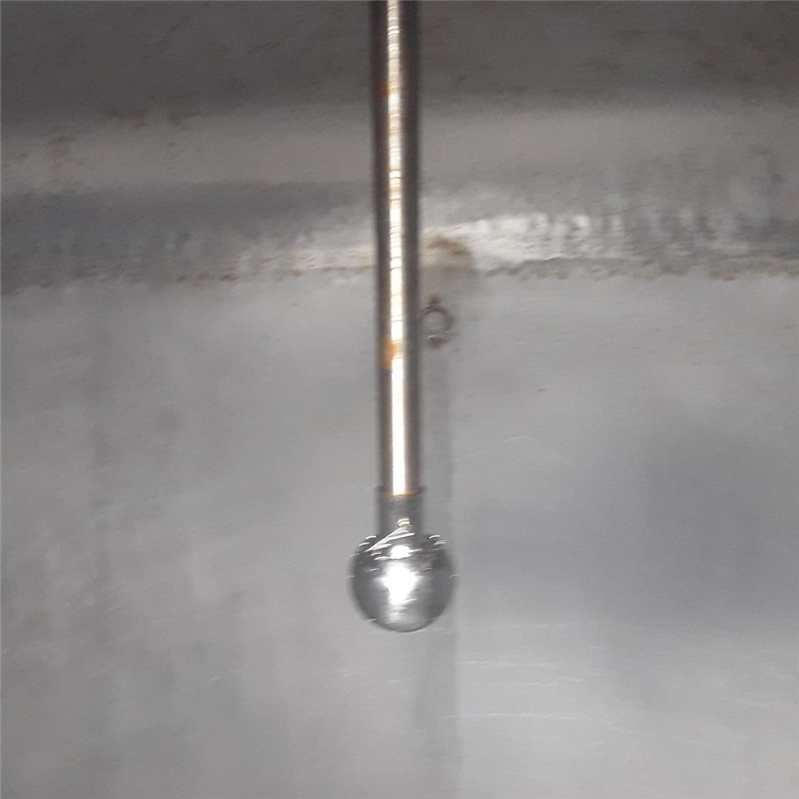

| Provision tank cleaning | CIP ball |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 7240 |
| Cylindrical length (mm) | 1925 |
| Height bottom (mm) | 400 |
| Total height (mm) | 3685 |
| Diameter tank (mm) | 2305 |
| Insulation | |
|---|---|
| Insulation | No |

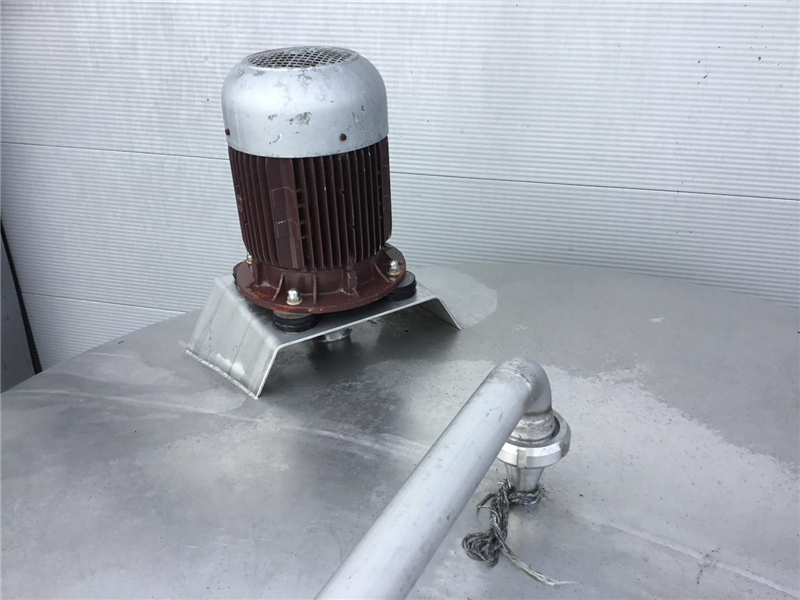

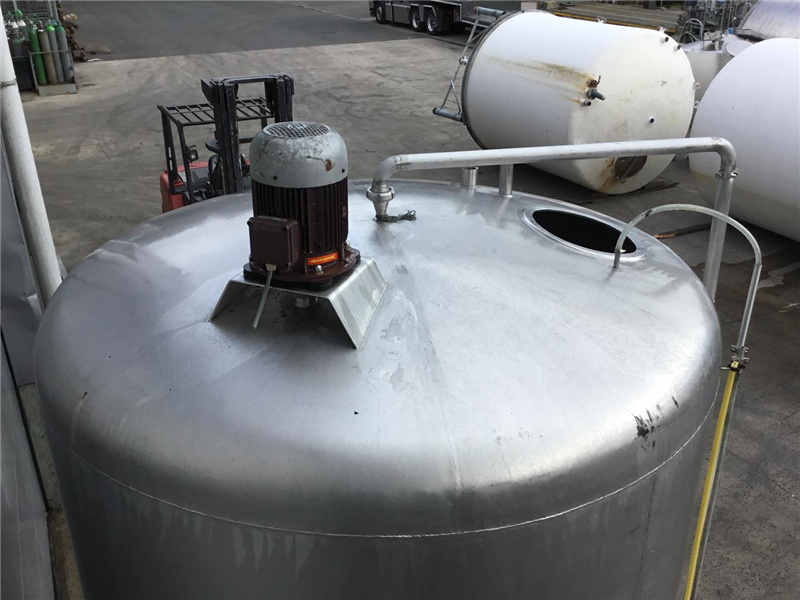

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |

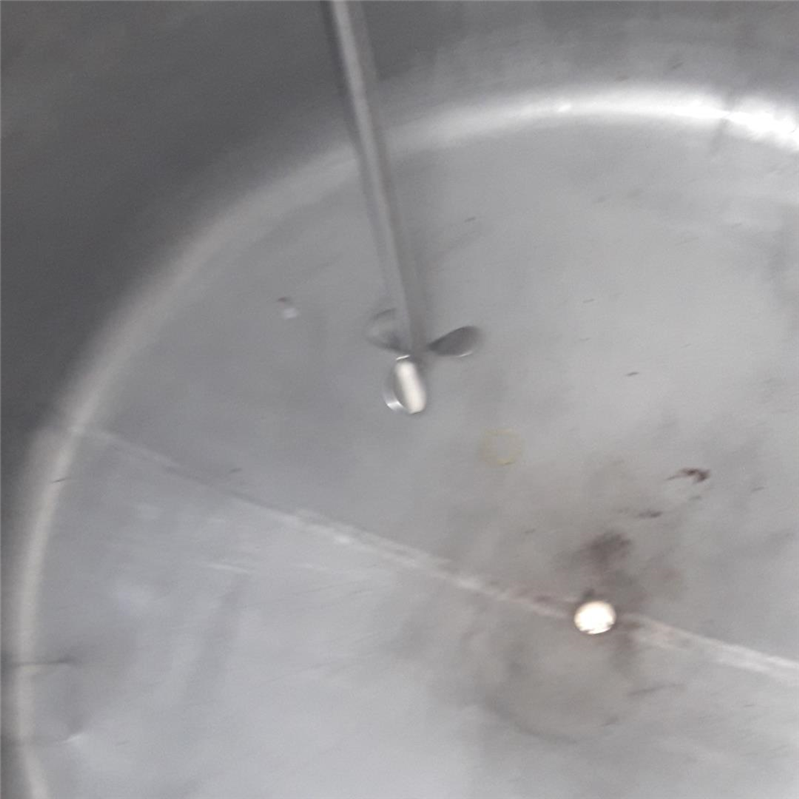

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 2000 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 1,1 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 460 |
| Remarks | |
|---|---|

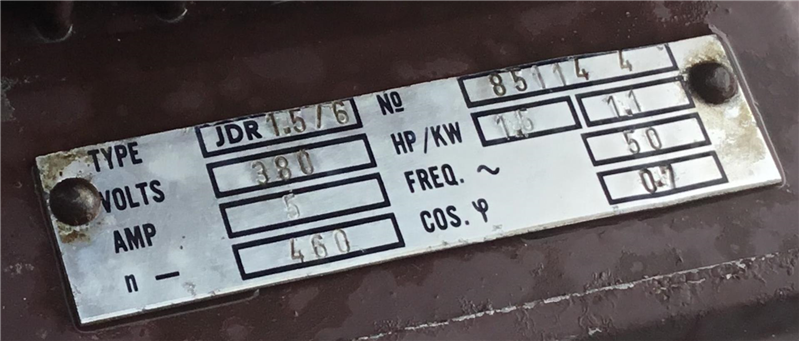

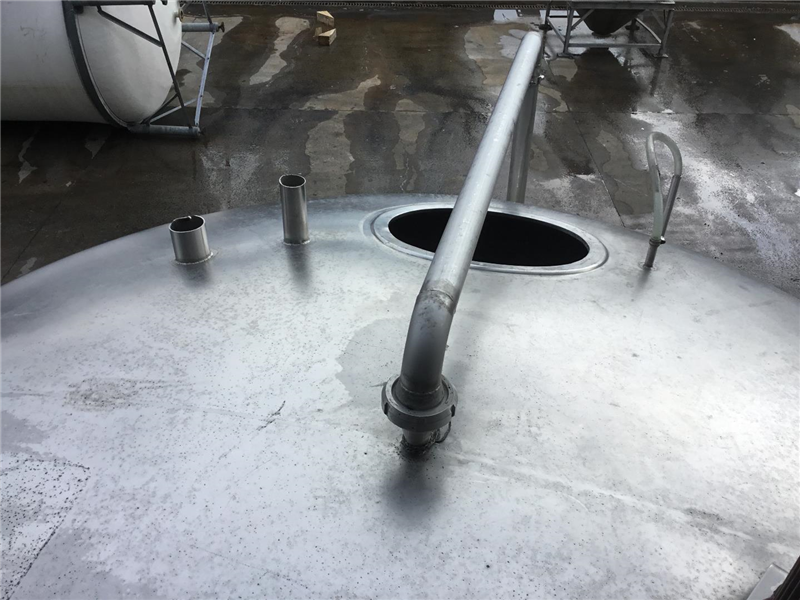

| Description (EN) | Connections at the top: 1x tube Ø70mm - 1x tube Ø52mm - 1x tube Ø16mm - 1x manhole 450x350mm - 1x supply spray ball Ø35mm • Agitator: Electromotor without gearbox - type TDR 1,5 / 6 - 380V - 5A - 1,1 kW - 50 Hz - 460 rpm - cos phi 0.7 |
