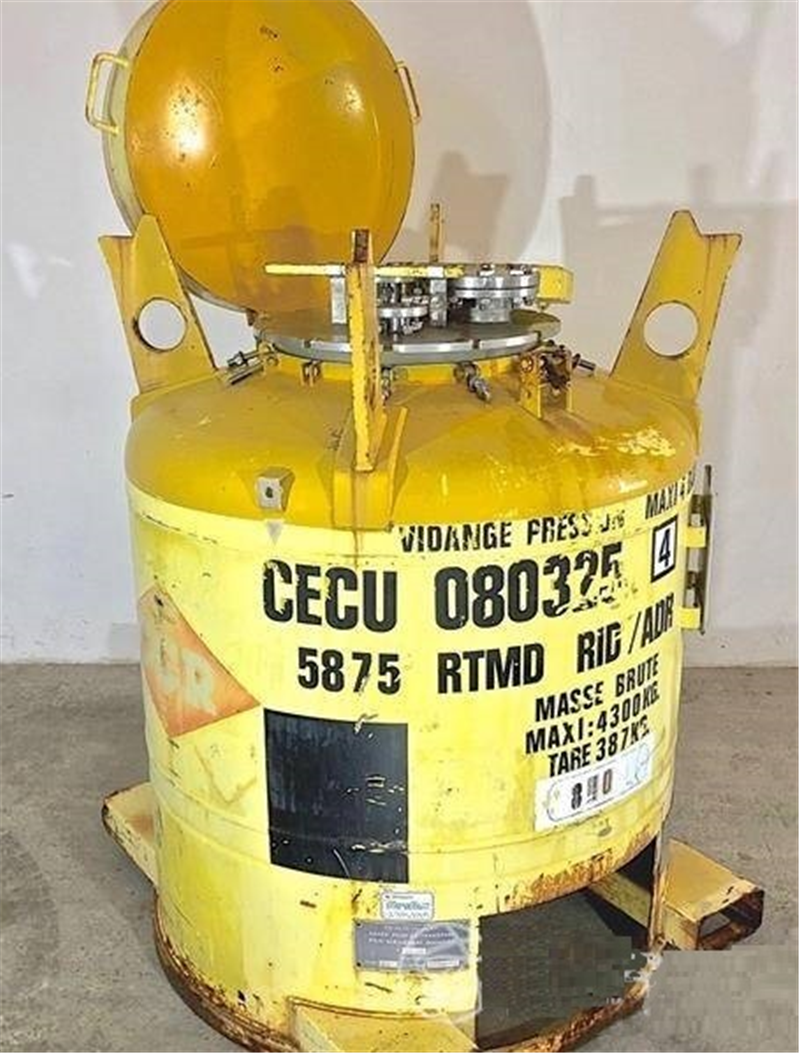

Used pressure tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 813 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.38.AR.01 |
| Material | Stainless steel 316 |
| Number | 1 |
| Capacity (Liters) | 813 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 4 |
| Test pressure tank (Barg) | 6 |
| Fixation | Skid |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 465 |
| Tank with total drain? | No |
| Type of outlet (s) | Dupe tube 1015mm |
| Diameter of outlet (mm) | DN40 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 387 |
| Condition | Used |

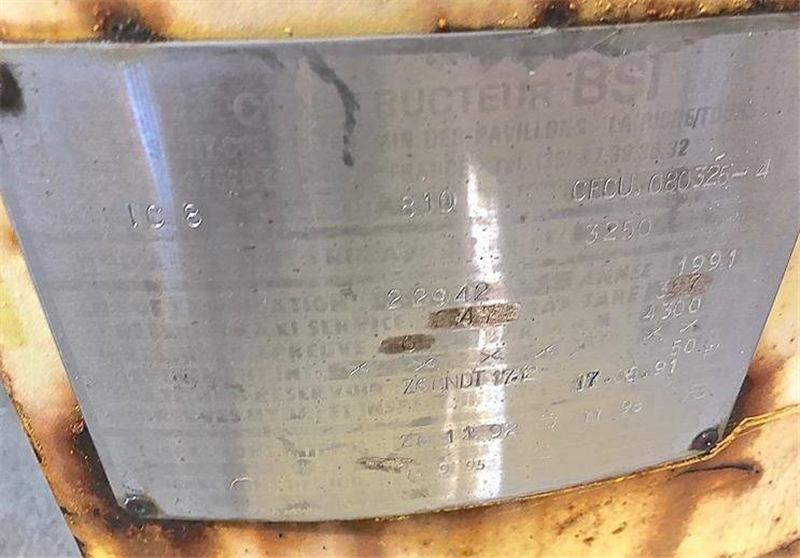

| Type plate manufacturer | Yes |
| Manufacturer | BSI |
| Year Built | 1991 |
| Design Code | type IC 8 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Periphery (mm) | 3470 |
| Cylindrical length (mm) | 500 |
| Height bottom (mm) | 200 |
| Total height (mm) | 1500 |
| Length (mm) | 1150 |
| Diameter tank (mm) | 1130 |
| Width (mm) | 1200 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

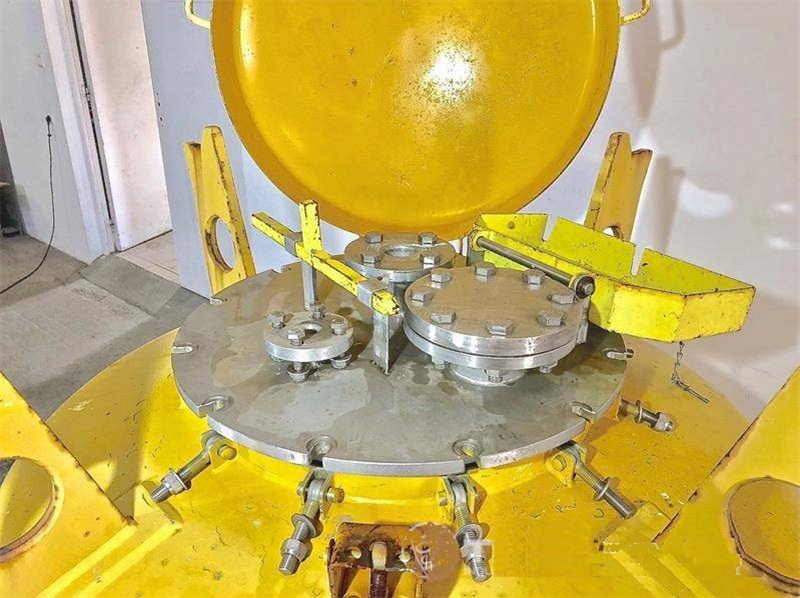

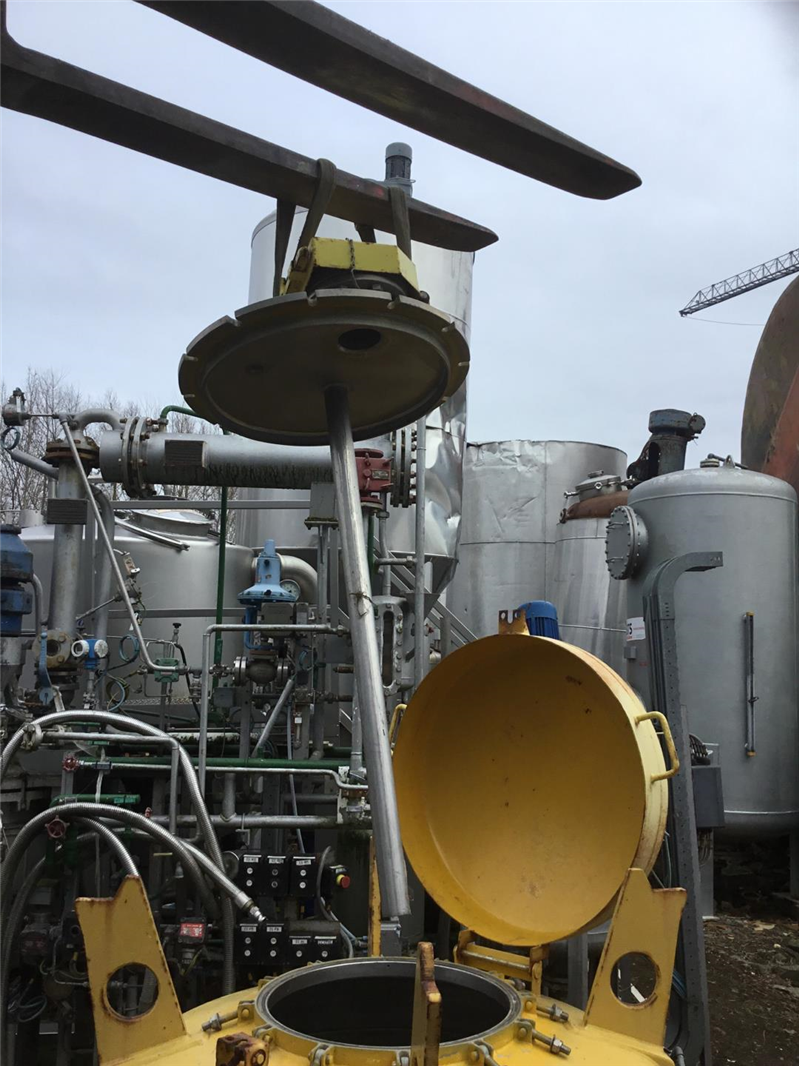

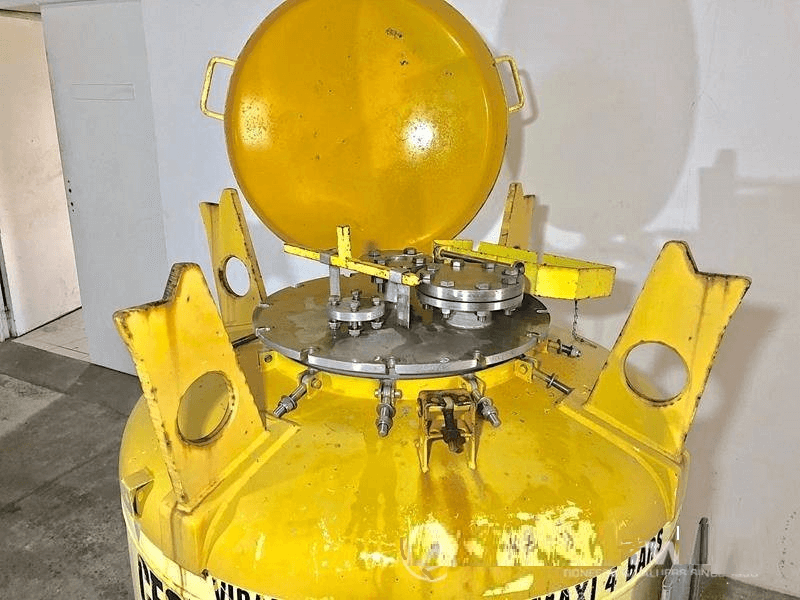

| Description (EN) | No test report available • PTC: 4.300 kgs. • container n° CECU 115 239 / 4 • type IC 8 • Operating pressure 4 bar. • Test pressure 6 bar. • Bolted manhole • emptying from the top • 1 dip tube • 1 DN 40 flange • 1 DN 80 flange • 1 flange DN 25 |
