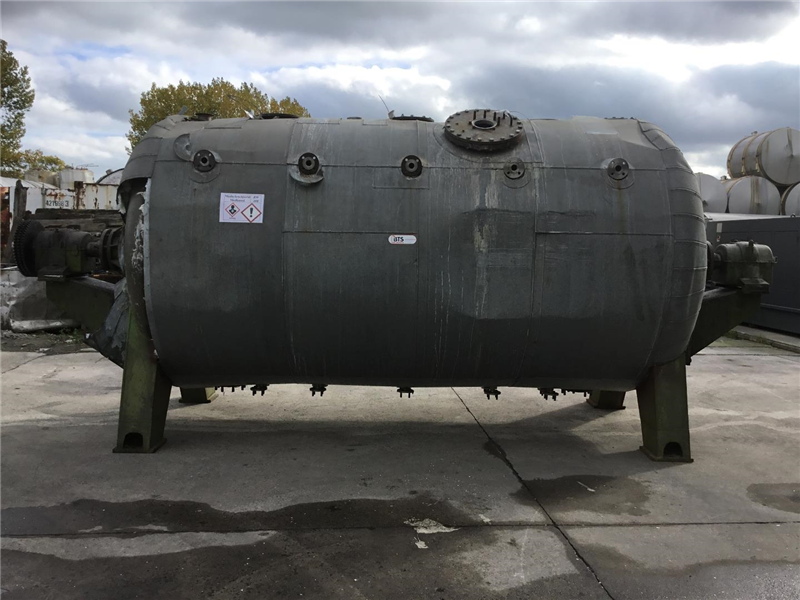

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 12000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.37.LO.06 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 12000 |

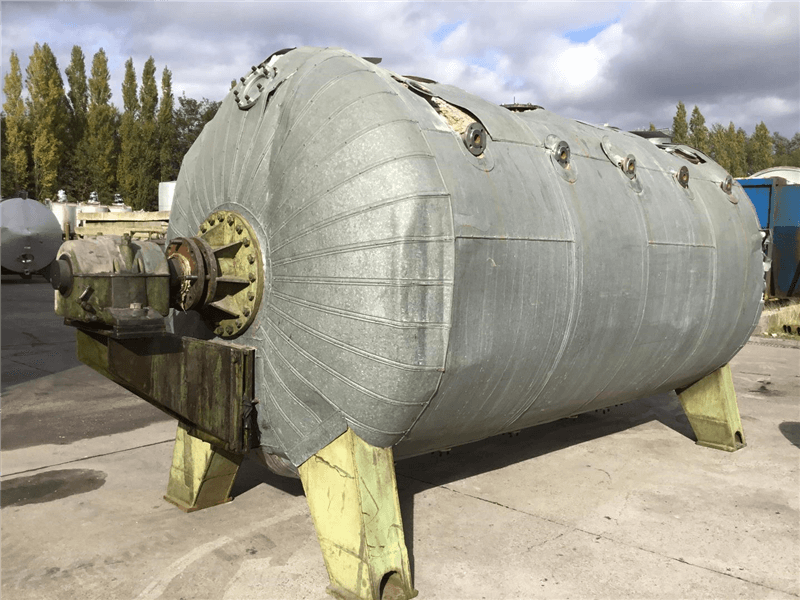

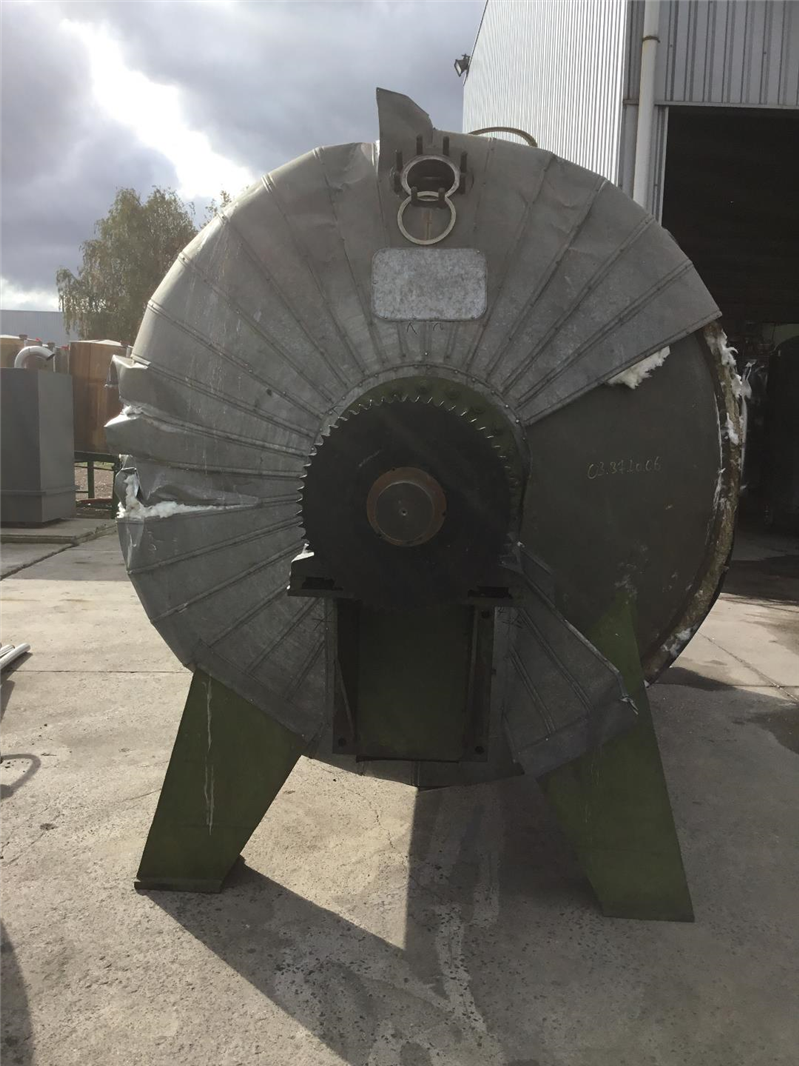

| Type tank | Mixing vessel |

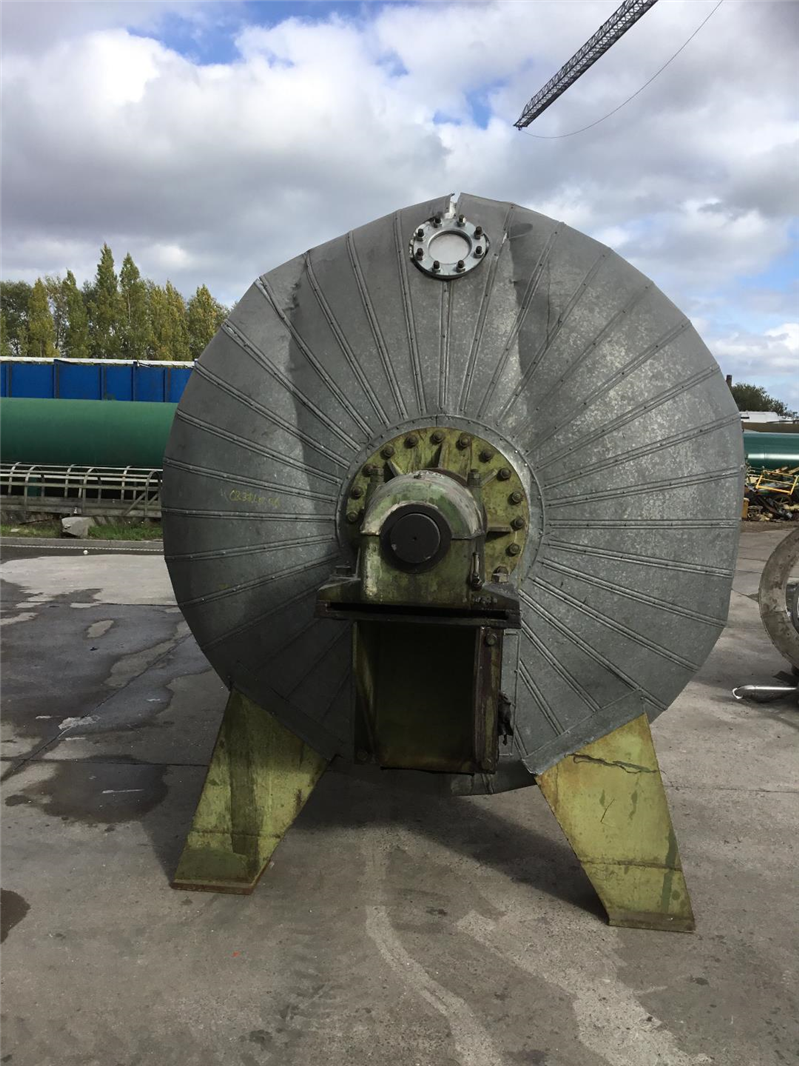

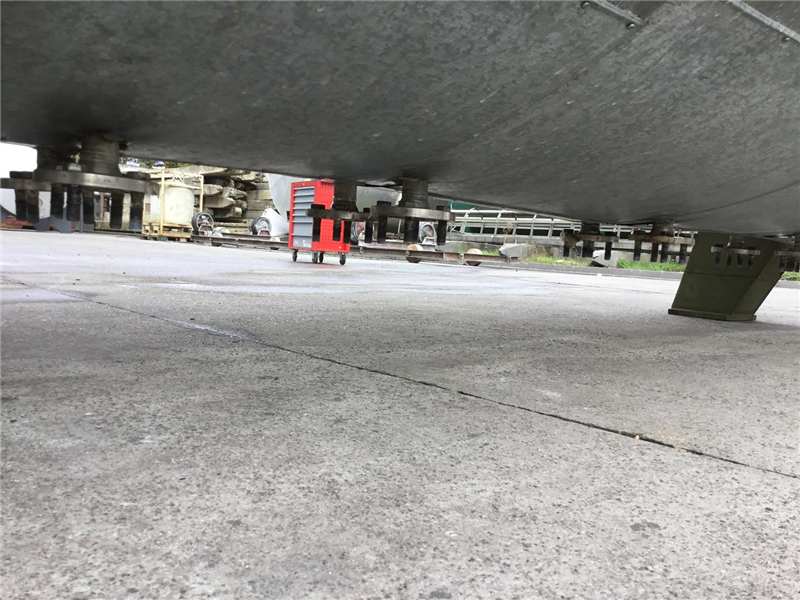

| Fixation | 4 legs |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

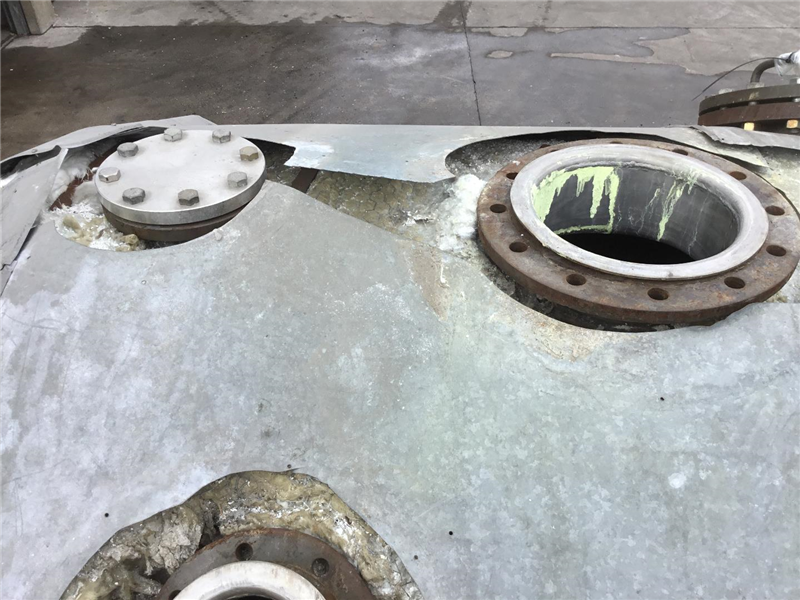

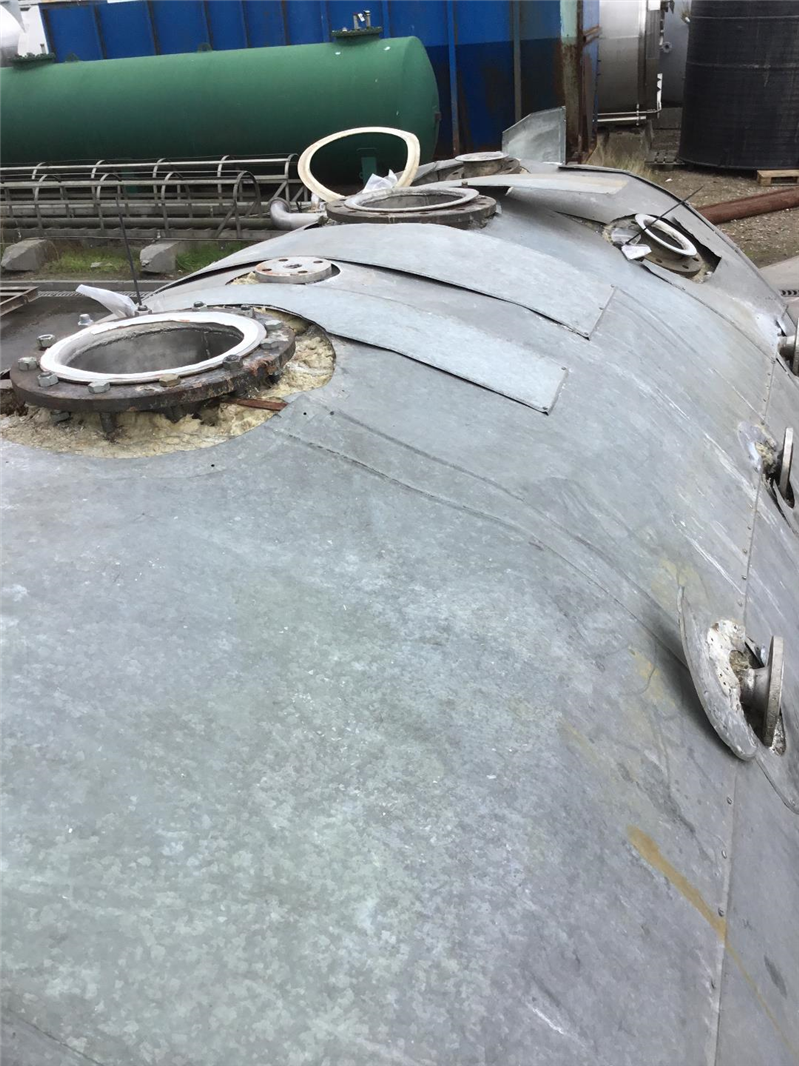

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | Ø470mm |

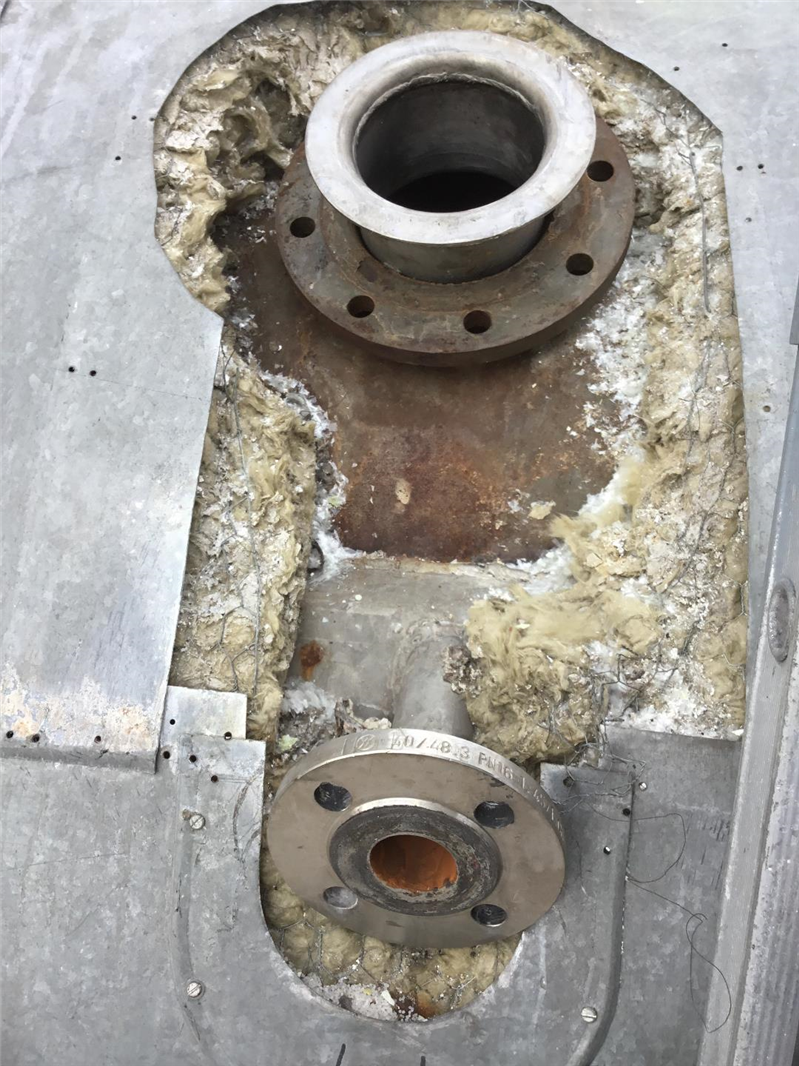

| Tank with total drain? | Yes |
| Type of outlet (s) | Losse Flens staal DN150 |
| Diameter of outlet (mm) | 160 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 6300 |
| Condition | Used |
| Type plate manufacturer | No |
| Design Code | A4 |
| Construction data available | No |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 8 |
| Bottom thickness (mm) | 10 |
| Cylindrical length (mm) | 3700 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 2200 |
| Total height (mm) | 2700 |
| Length (mm) | 6200 |
| Diameter tank (mm) | 2000 |

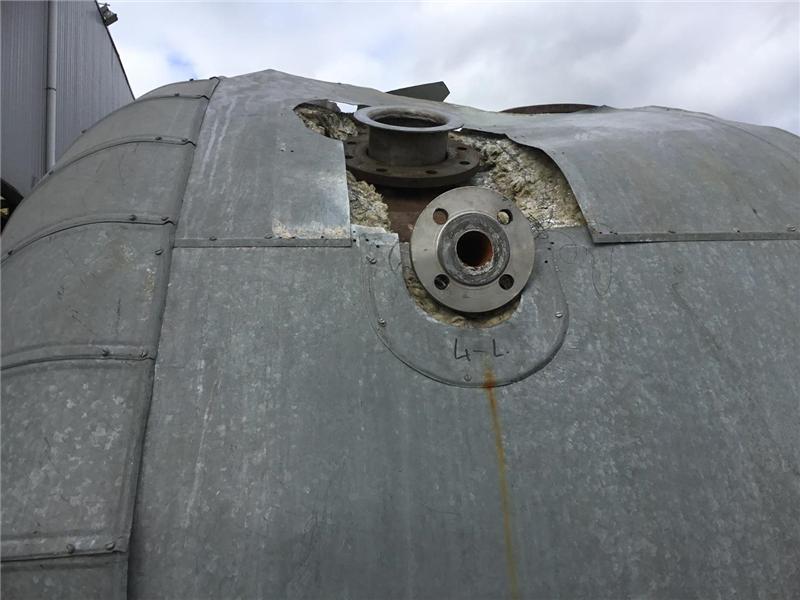

| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 100 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | galvanised |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Dimple plate |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | on the top |
| Agitator 1: Material | Stainless steel 304 |

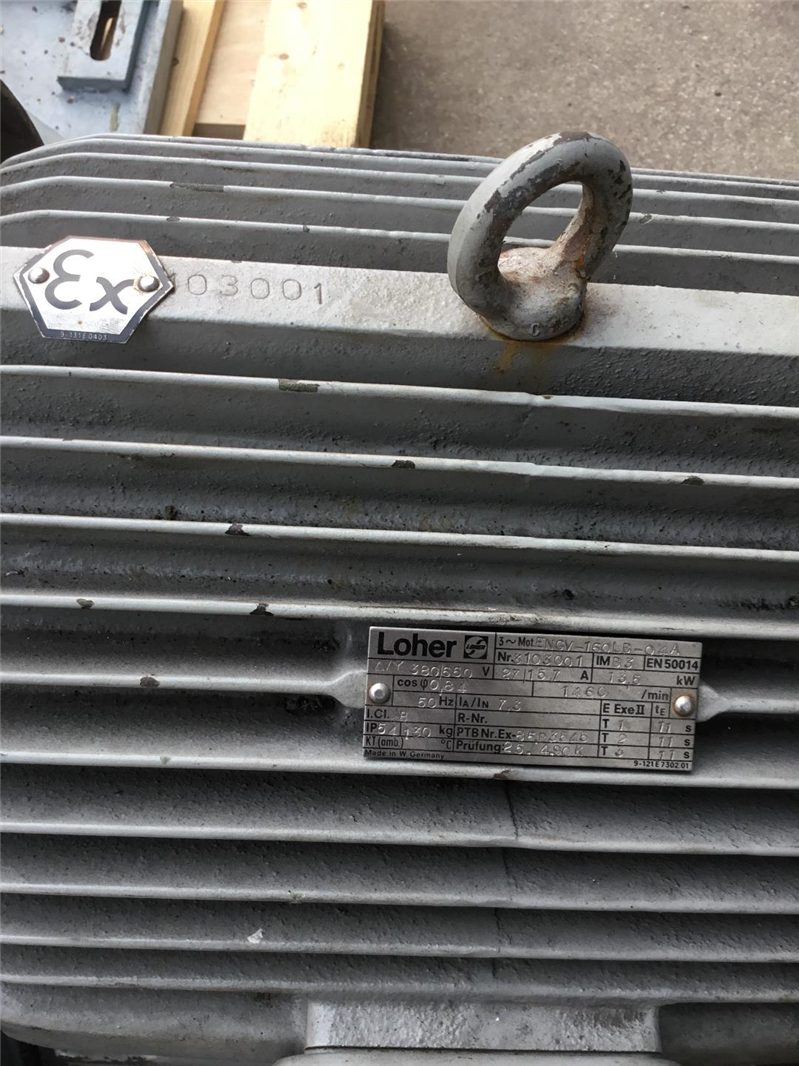

| Agitator 1: Constructor | Loher |

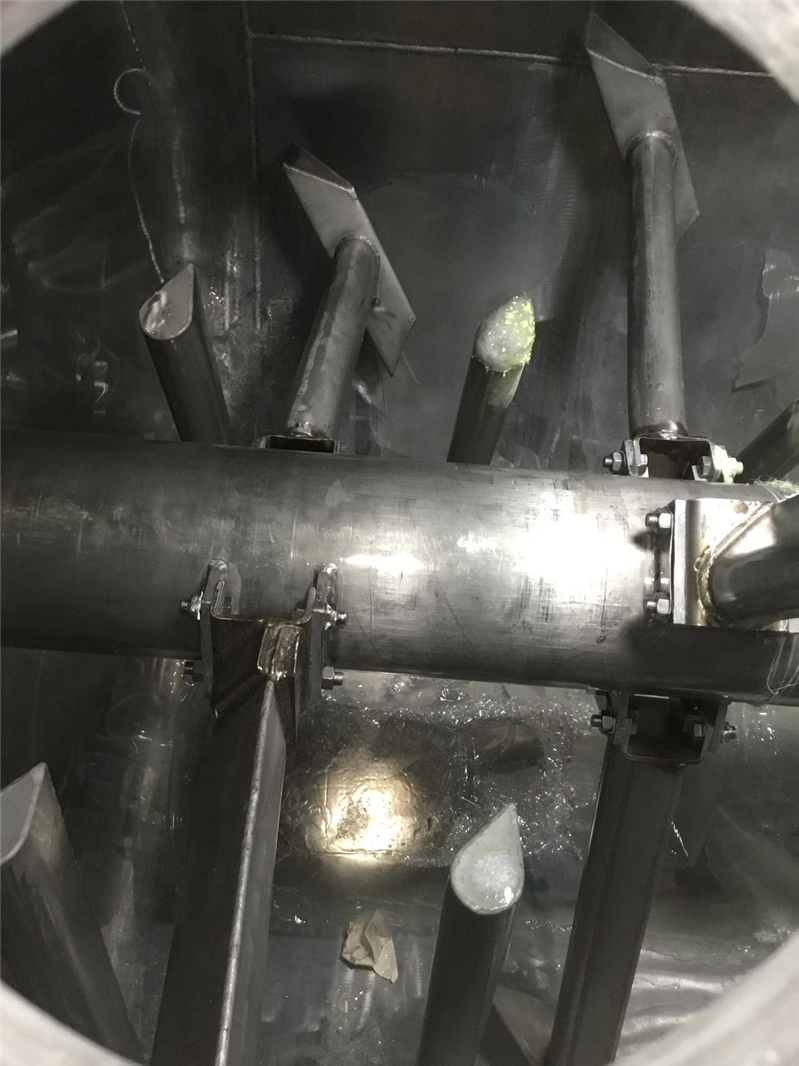

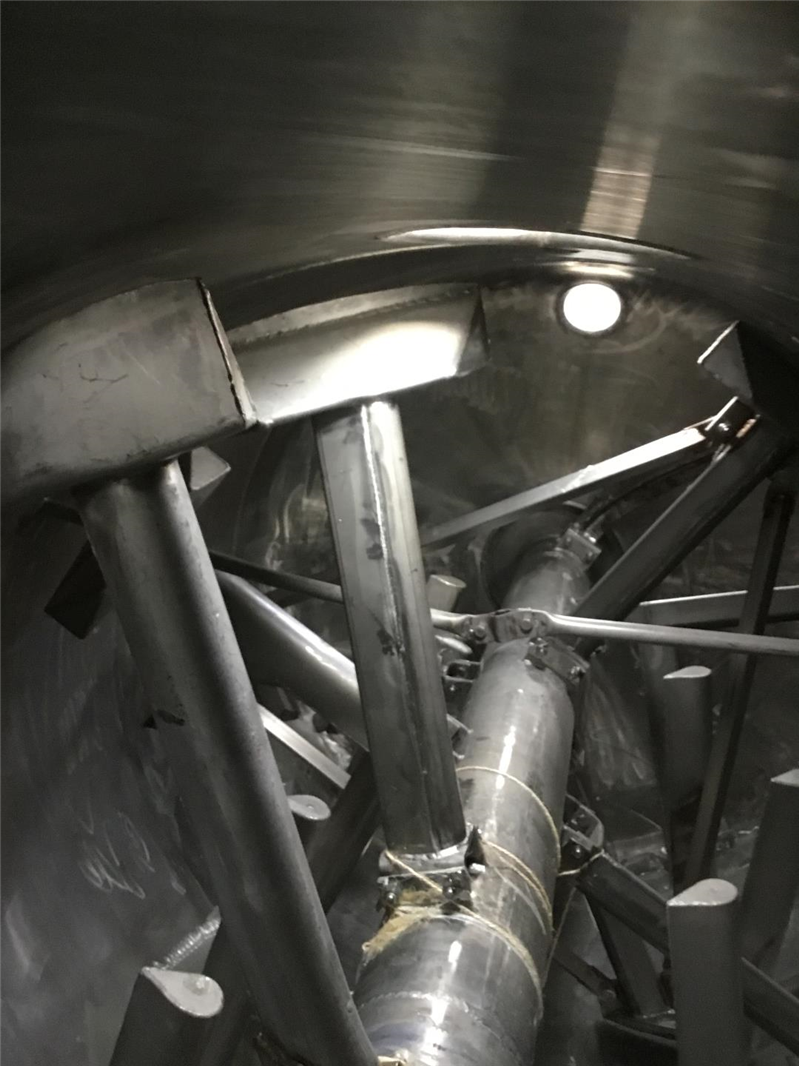

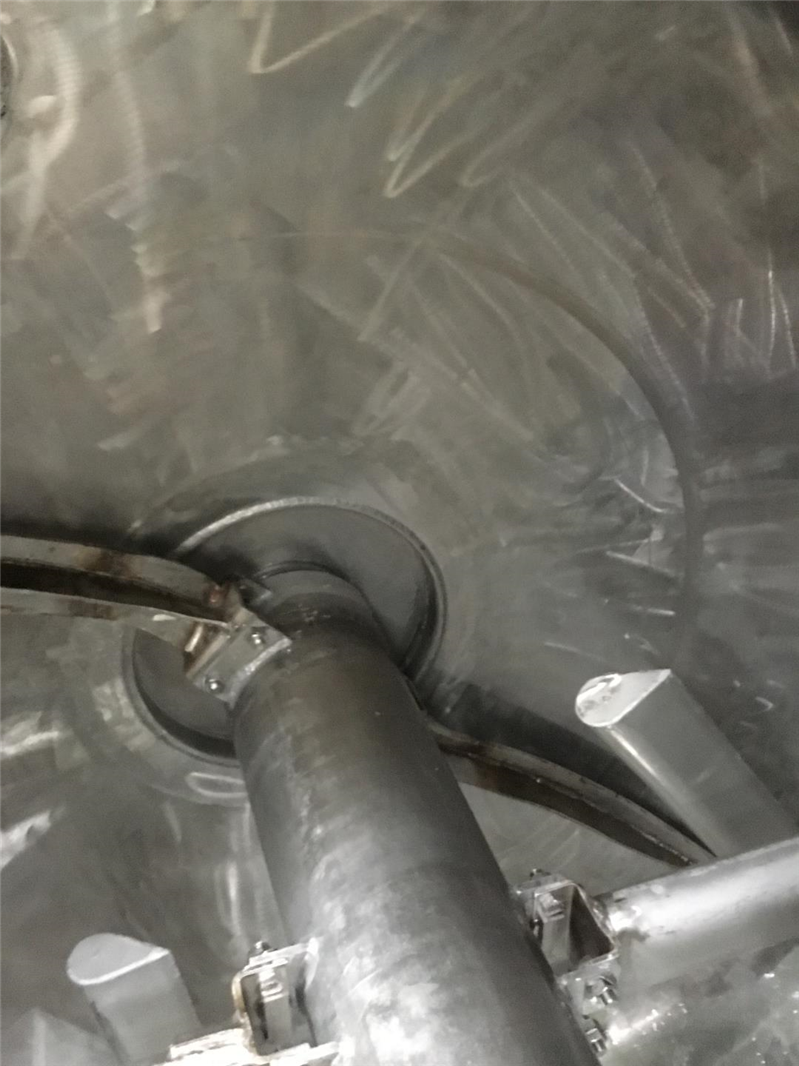

| Agitator 1: stirring element type | Ribbon mixer |
| Agitator 1: Length (mm) | 4300 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Voltage (V) | 380/650 |
| Agitator 1: Power (kw) | 13,5 |

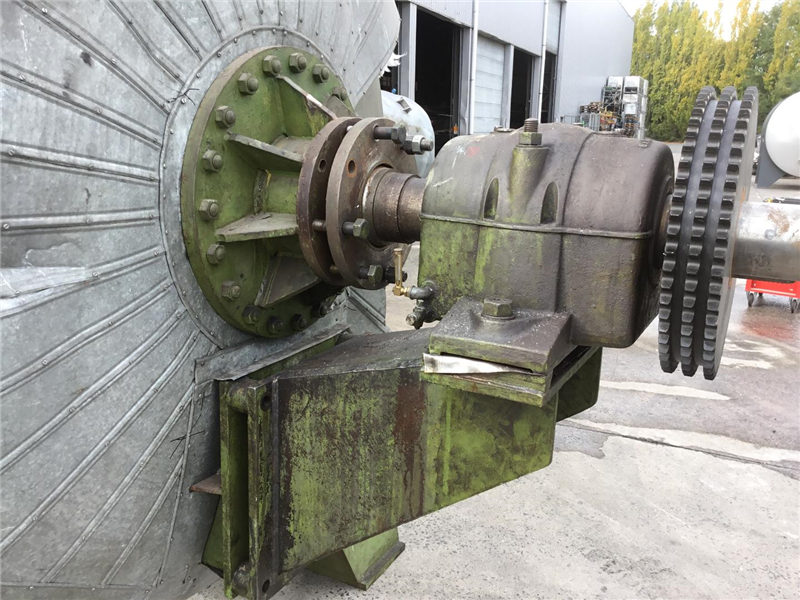

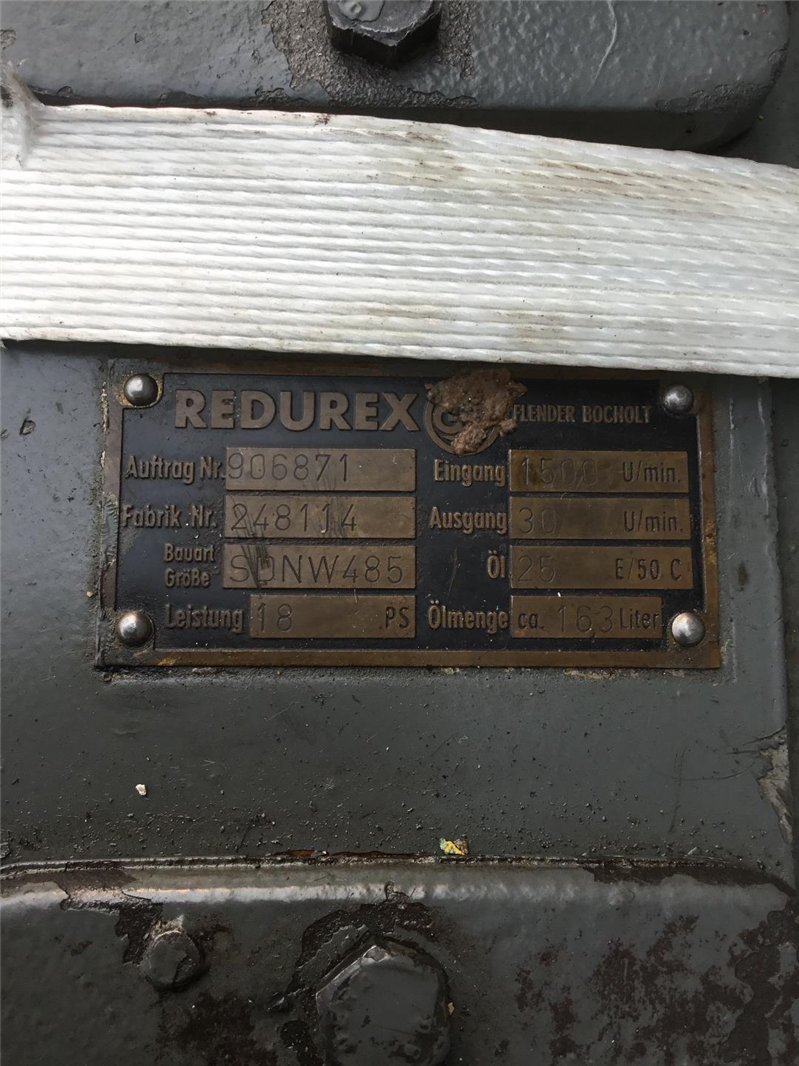

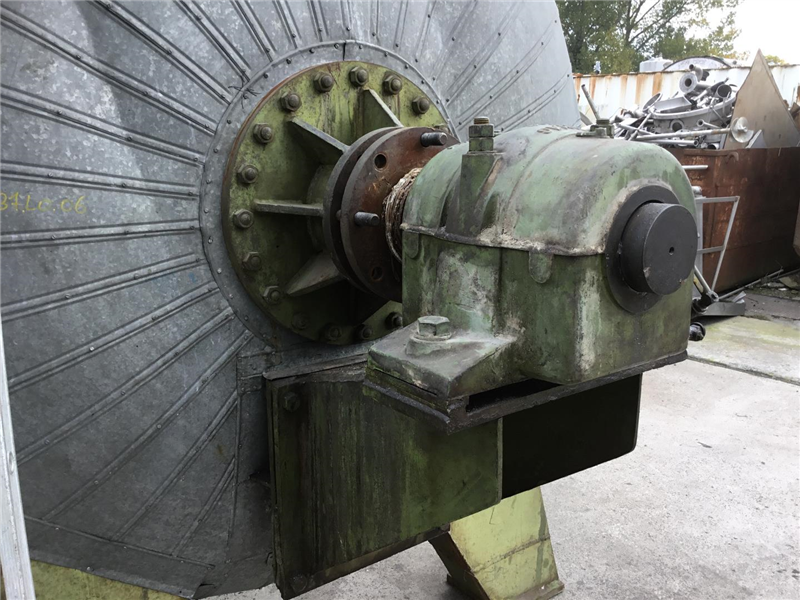

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 30 |
| Remarks | |
|---|---|

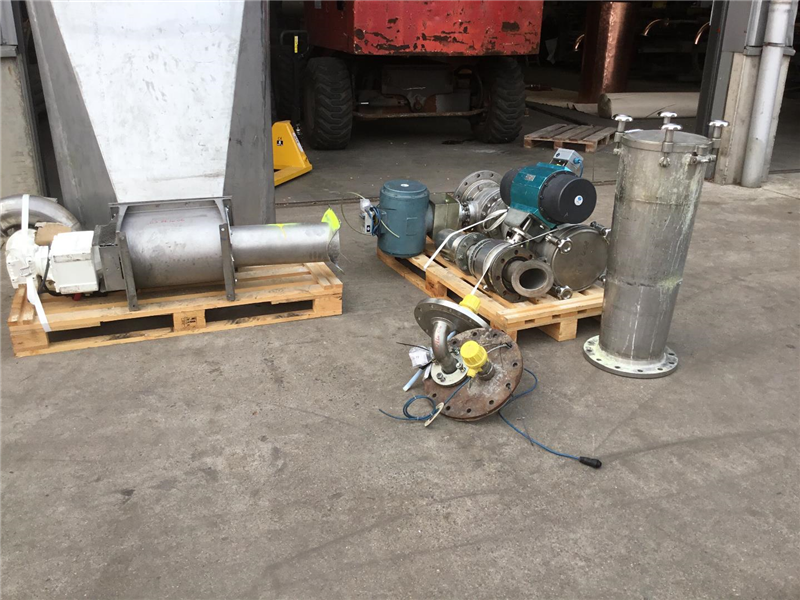

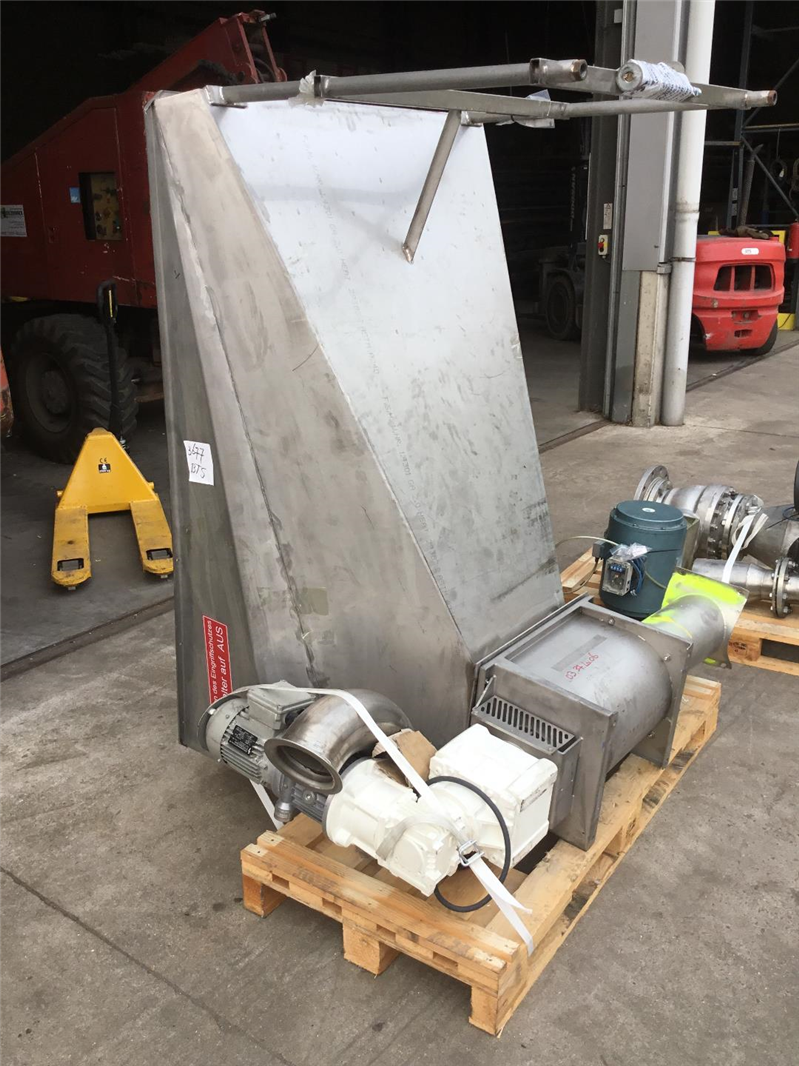

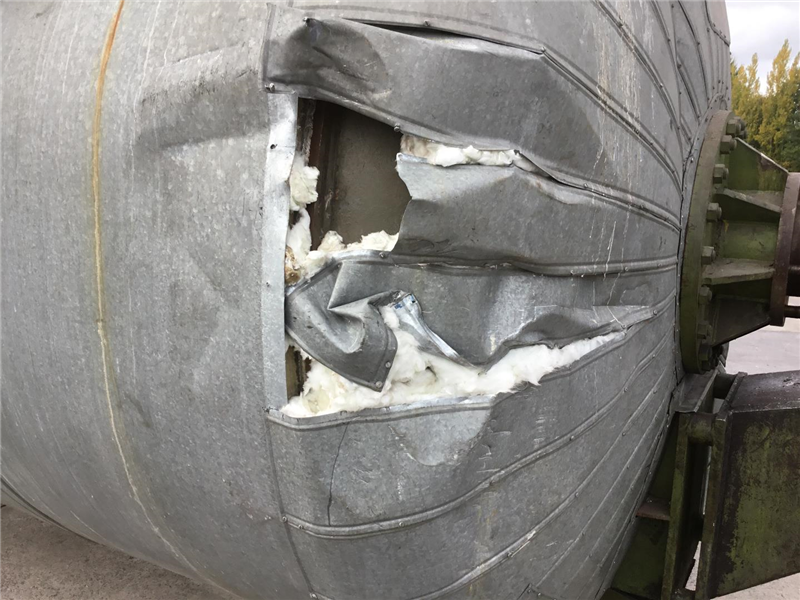

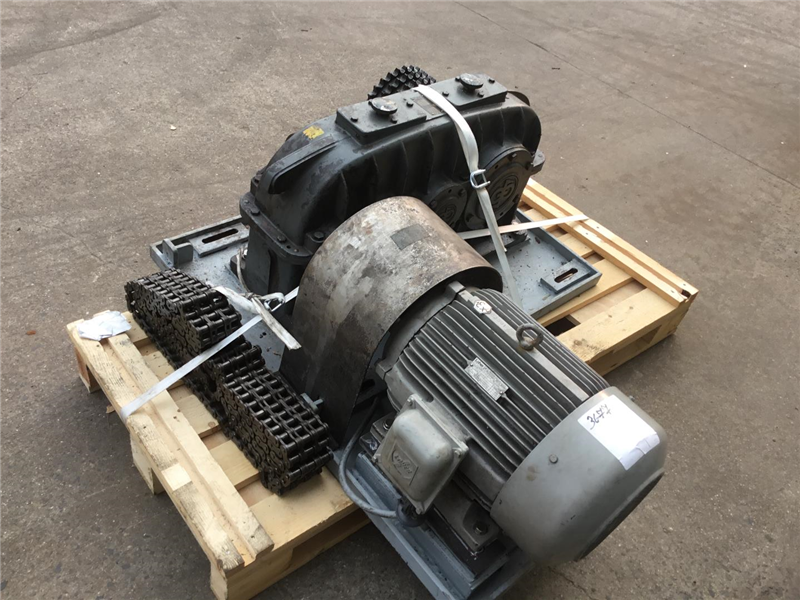

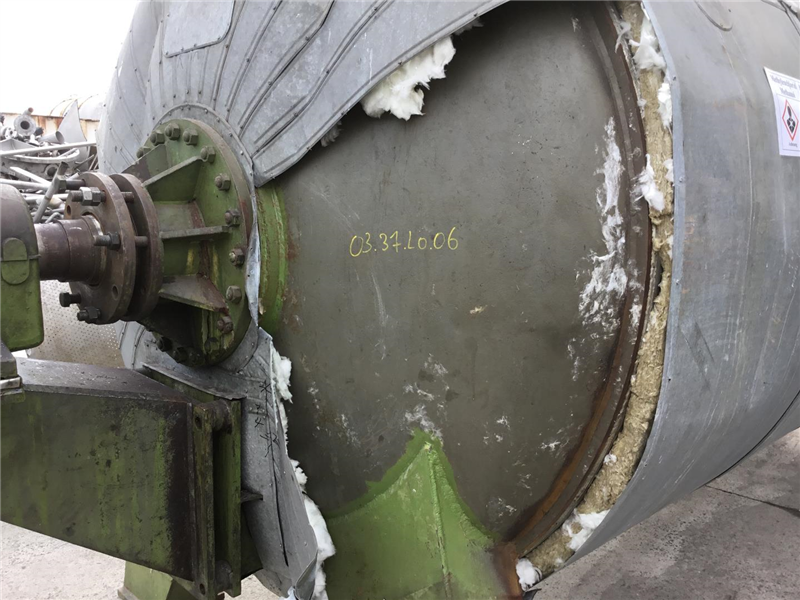

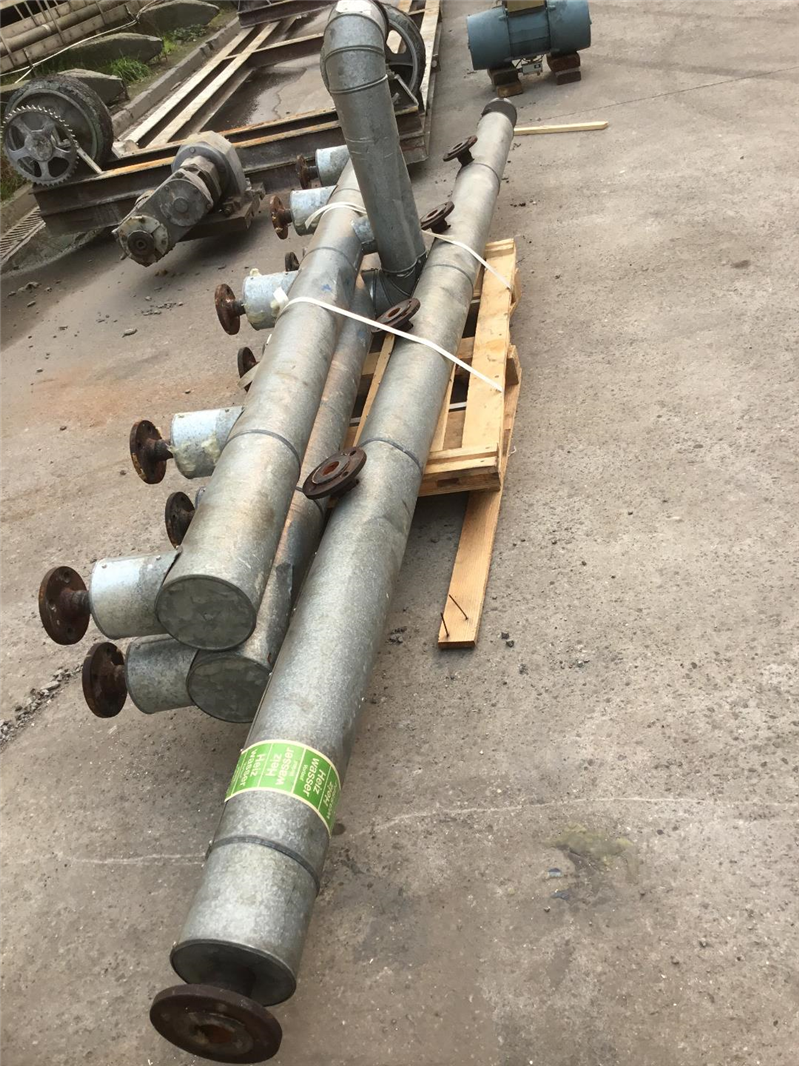

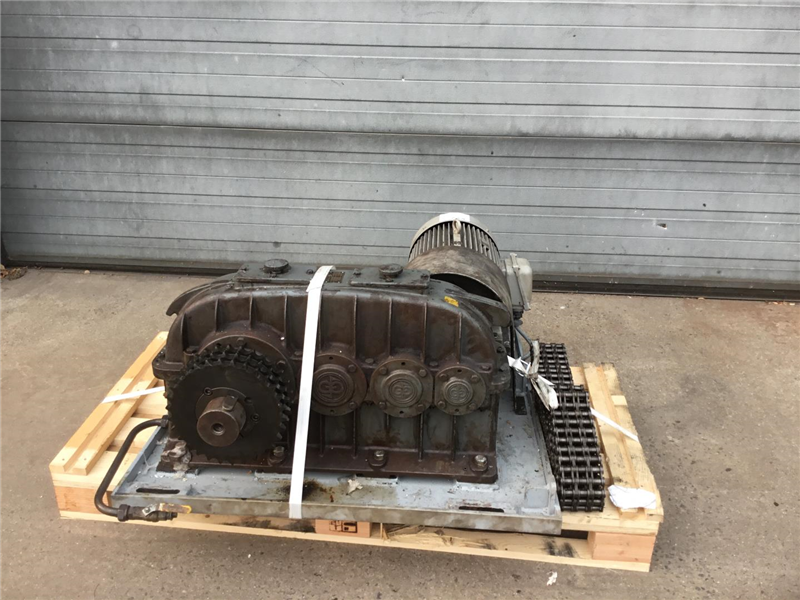

| Description (EN) | Insulation Damaged • agitator driven by motor with chain transmission • Piping for heating circuit on pallet |
