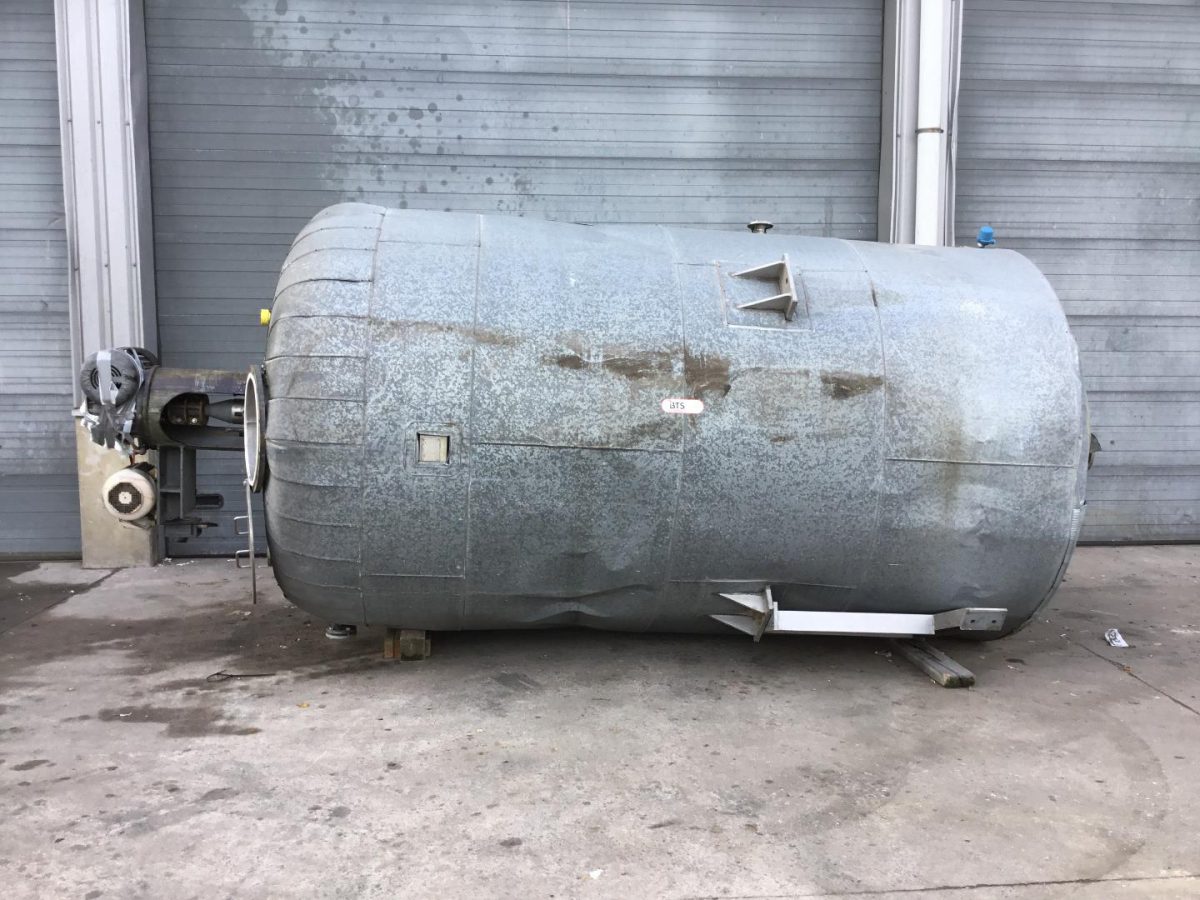

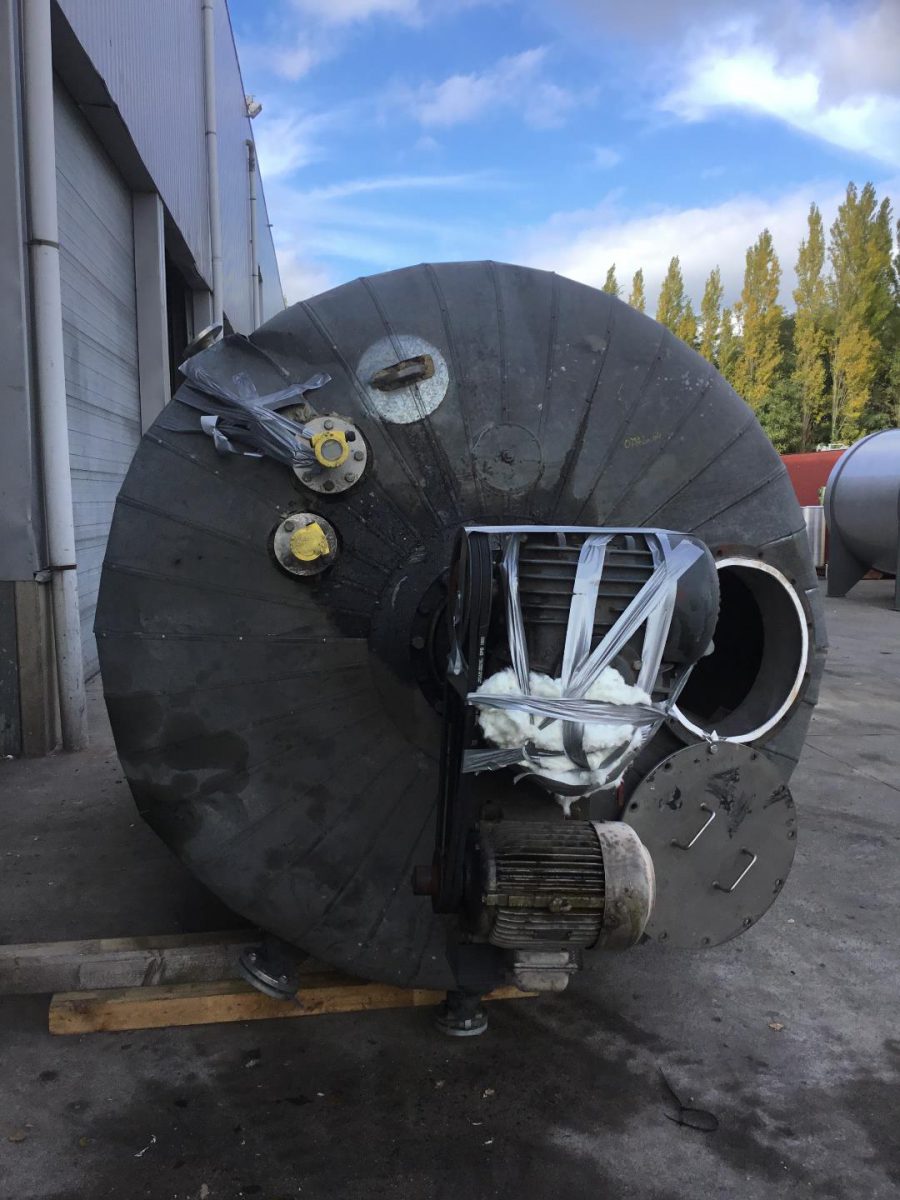

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 12450 L
- In stock: 4
| General | |
|---|---|
| Item number | 03.37.LO.04 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 4 |
| Capacity (Liters) | 12450 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

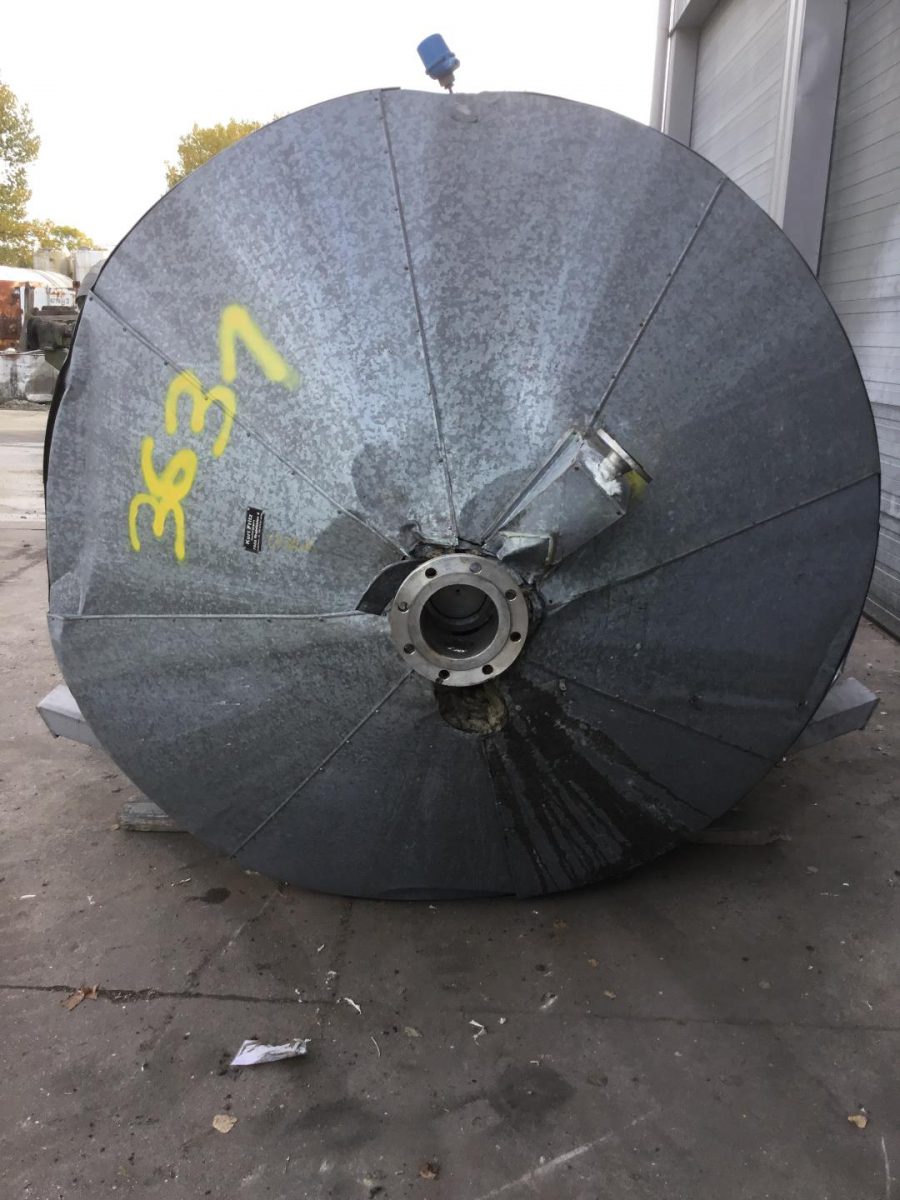

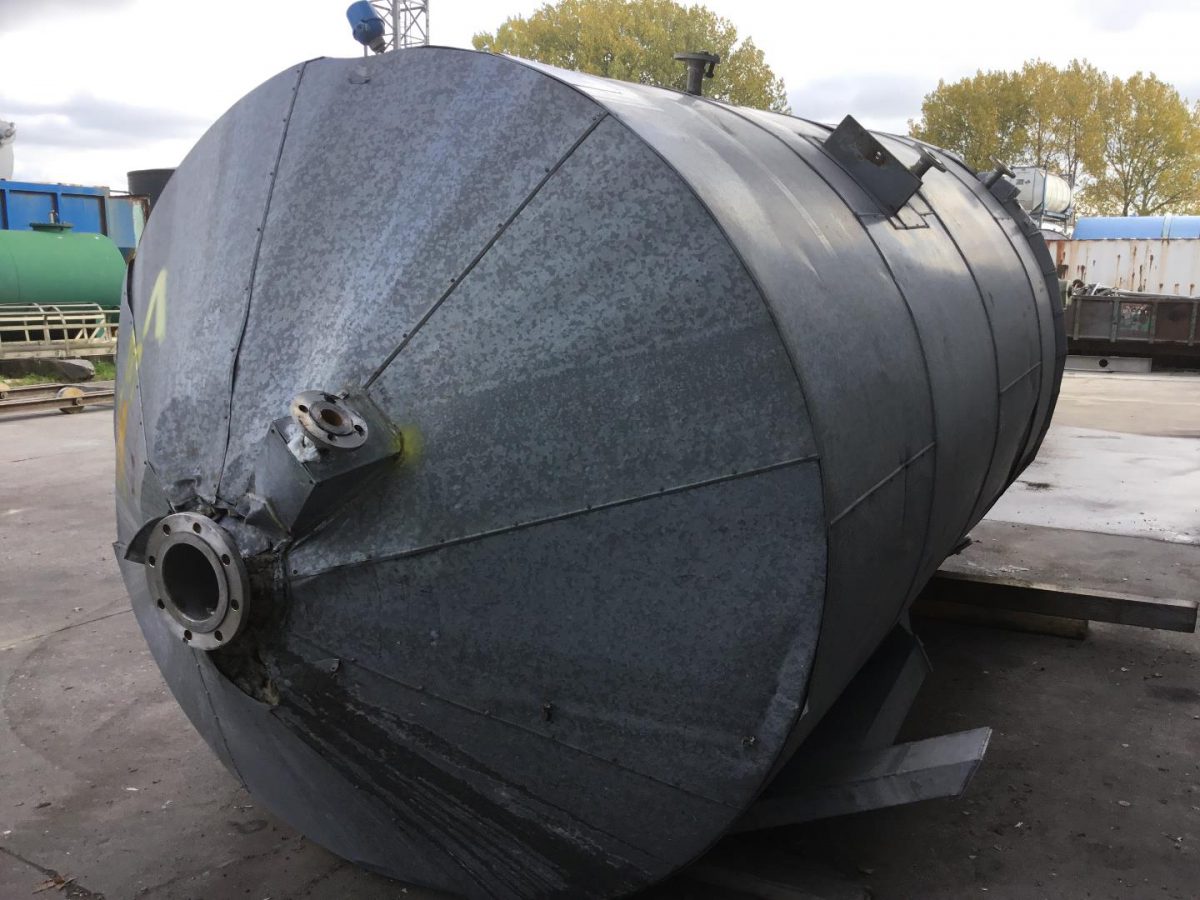

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |

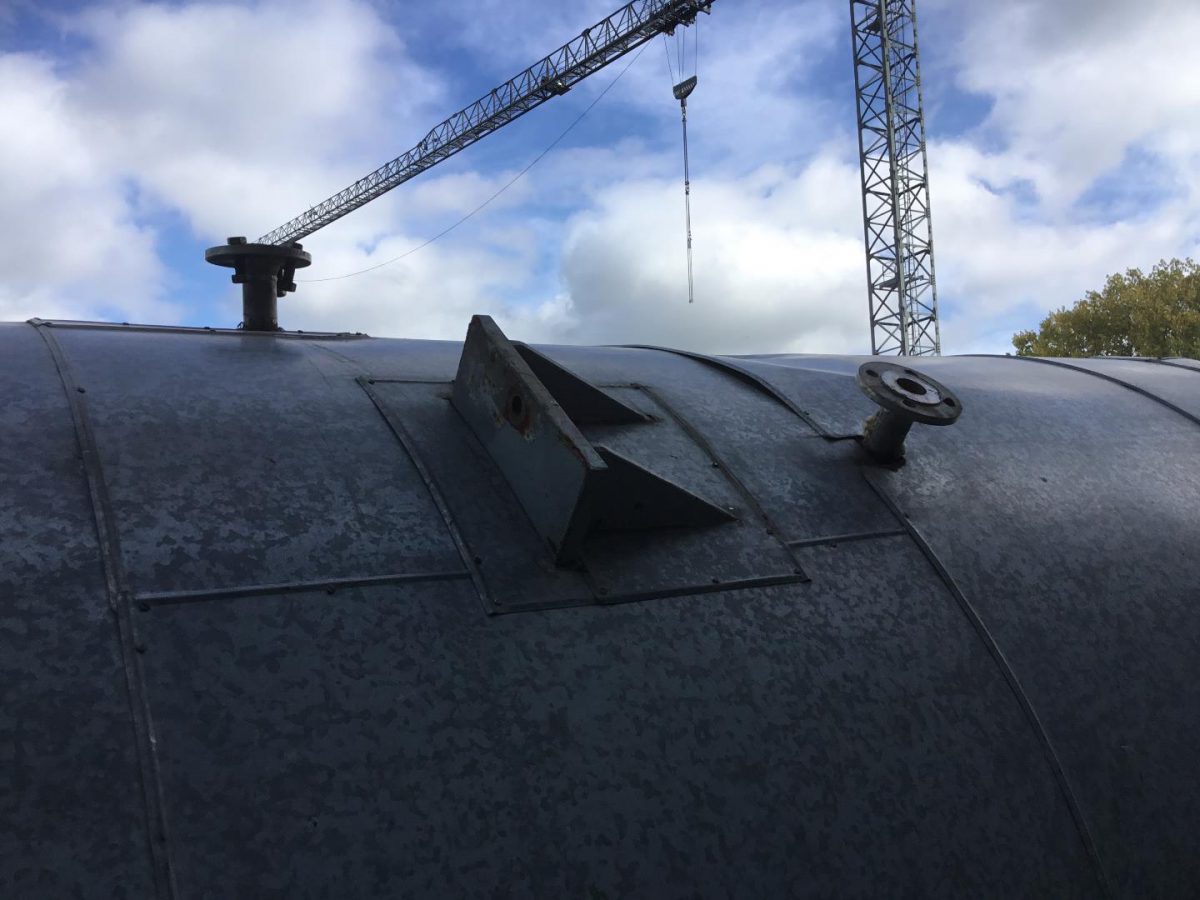

| Number lifting lugs | 2 |

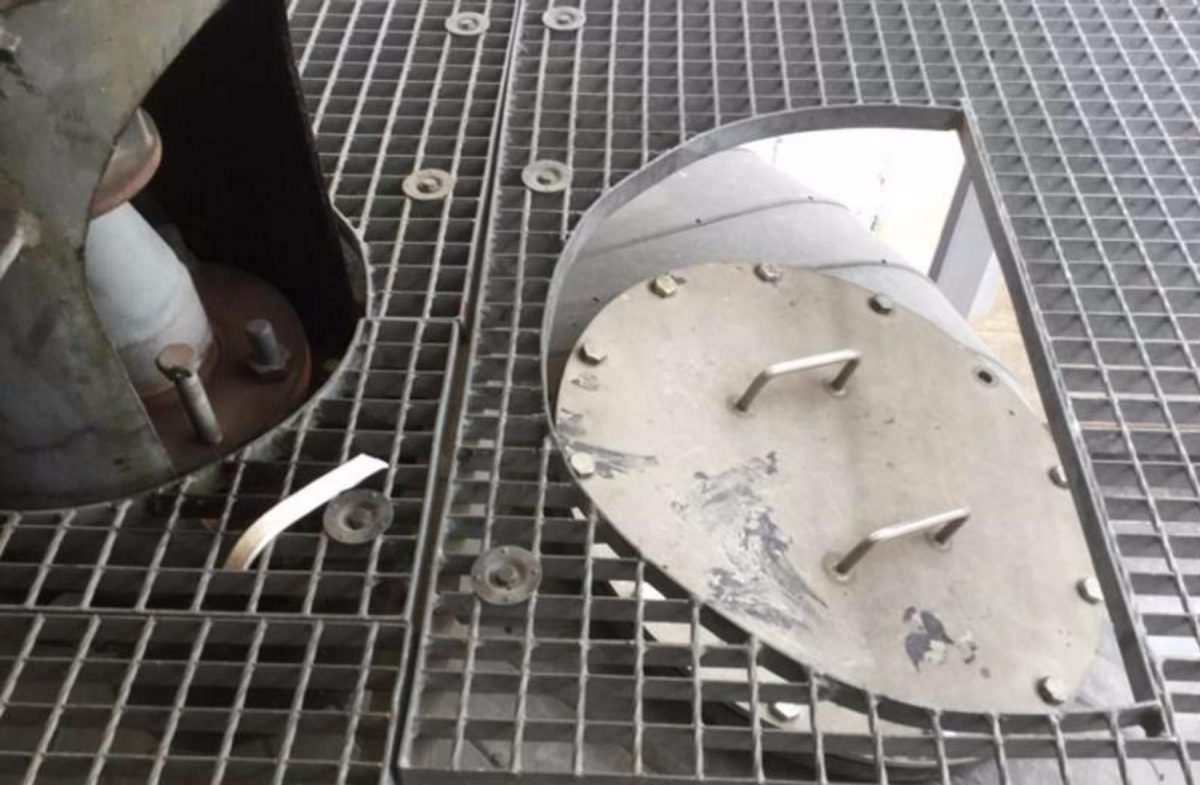

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø490mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Losse Flens inox DN150 |
| Diameter of outlet (mm) | 160 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 4300 |
| Condition | Used |

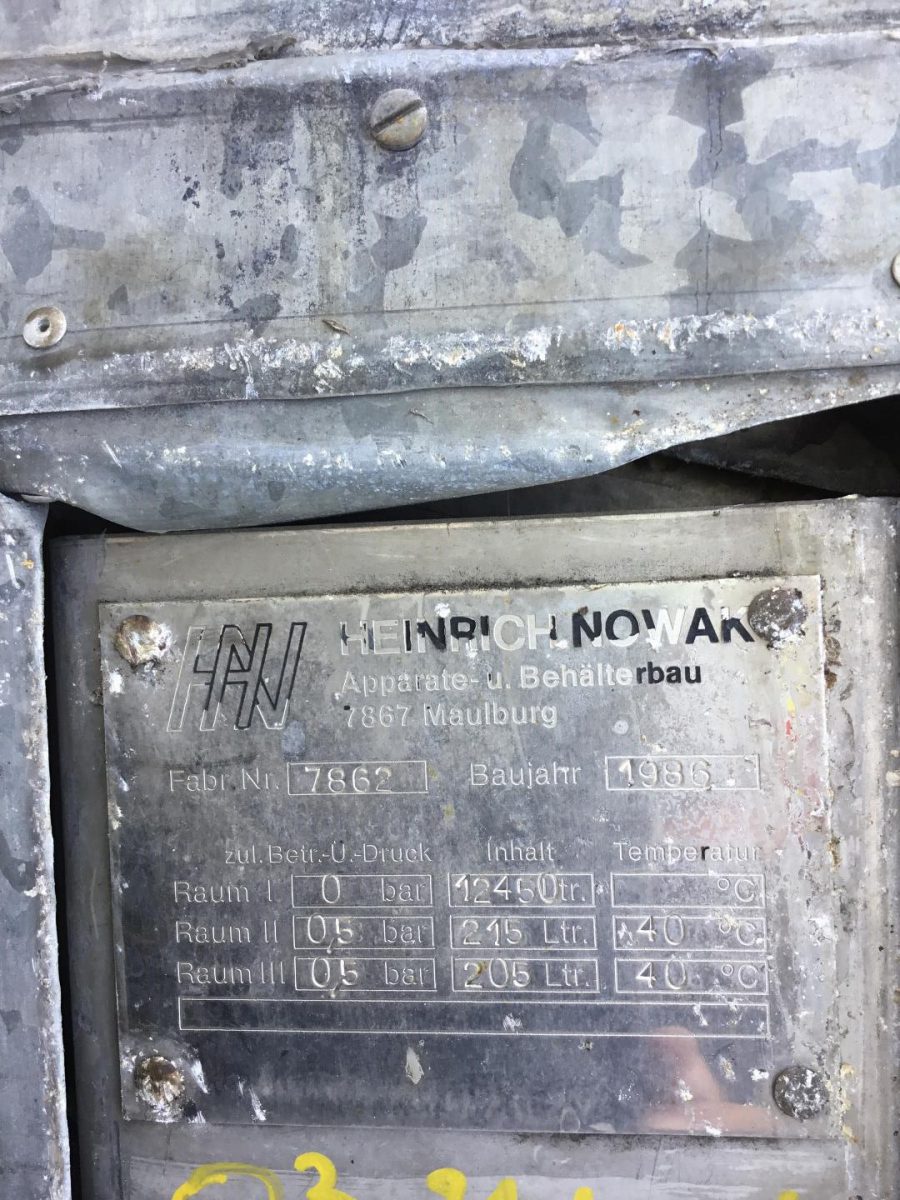

| Type plate manufacturer | Yes |
| Manufacturer | Heinrich Nowak |
| Year Built | 1986 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6 |
| Bottom thickness (mm) | 4 |
| Cylindrical length (mm) | 3500 |
| Height bottom (mm) | 500 |
| Outside diameter tank (mm) | 2120 |
| Total height (mm) | 5500 |
| Diameter tank (mm) | 2000 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 60 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Heating 1: Max. service pressure | 0,5 |
| Heating 1: Max. design pressure °C | 40 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

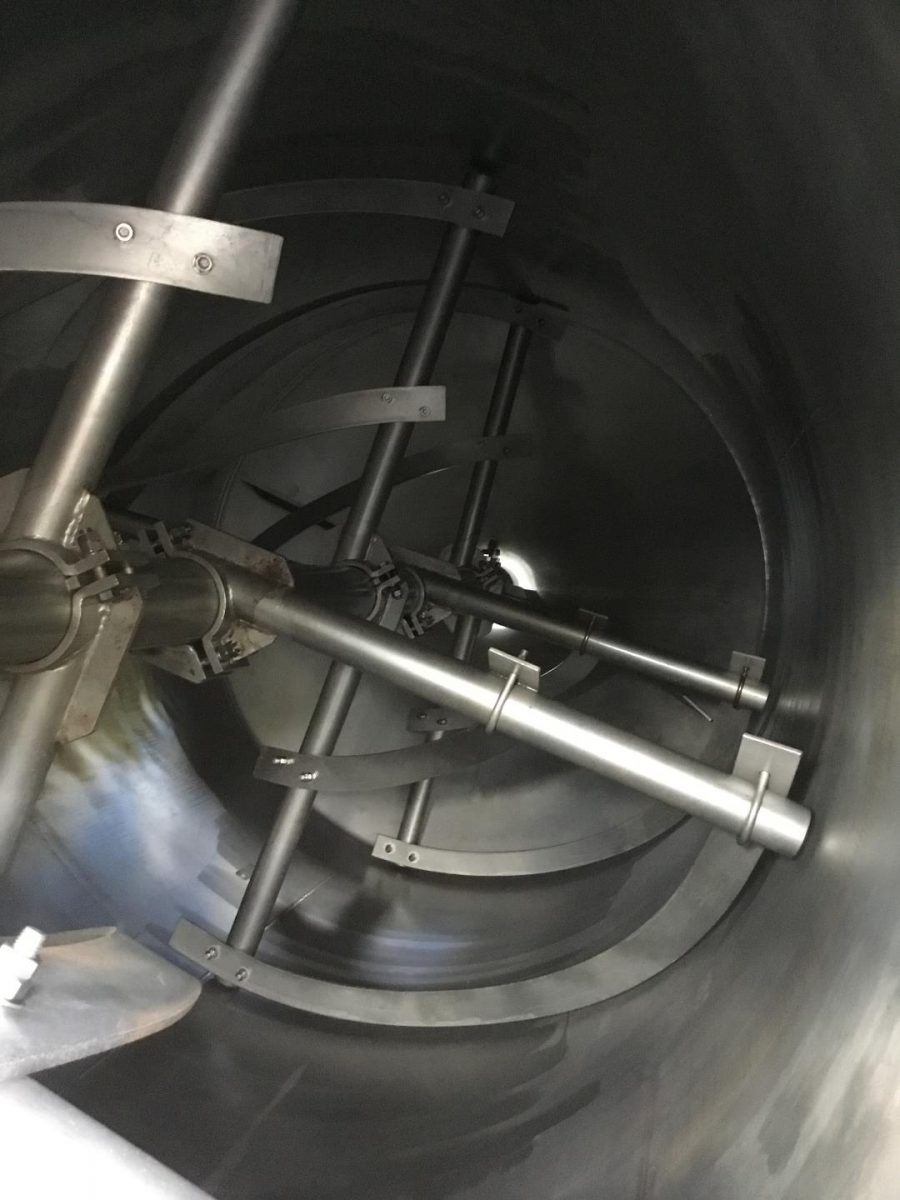

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 316 |

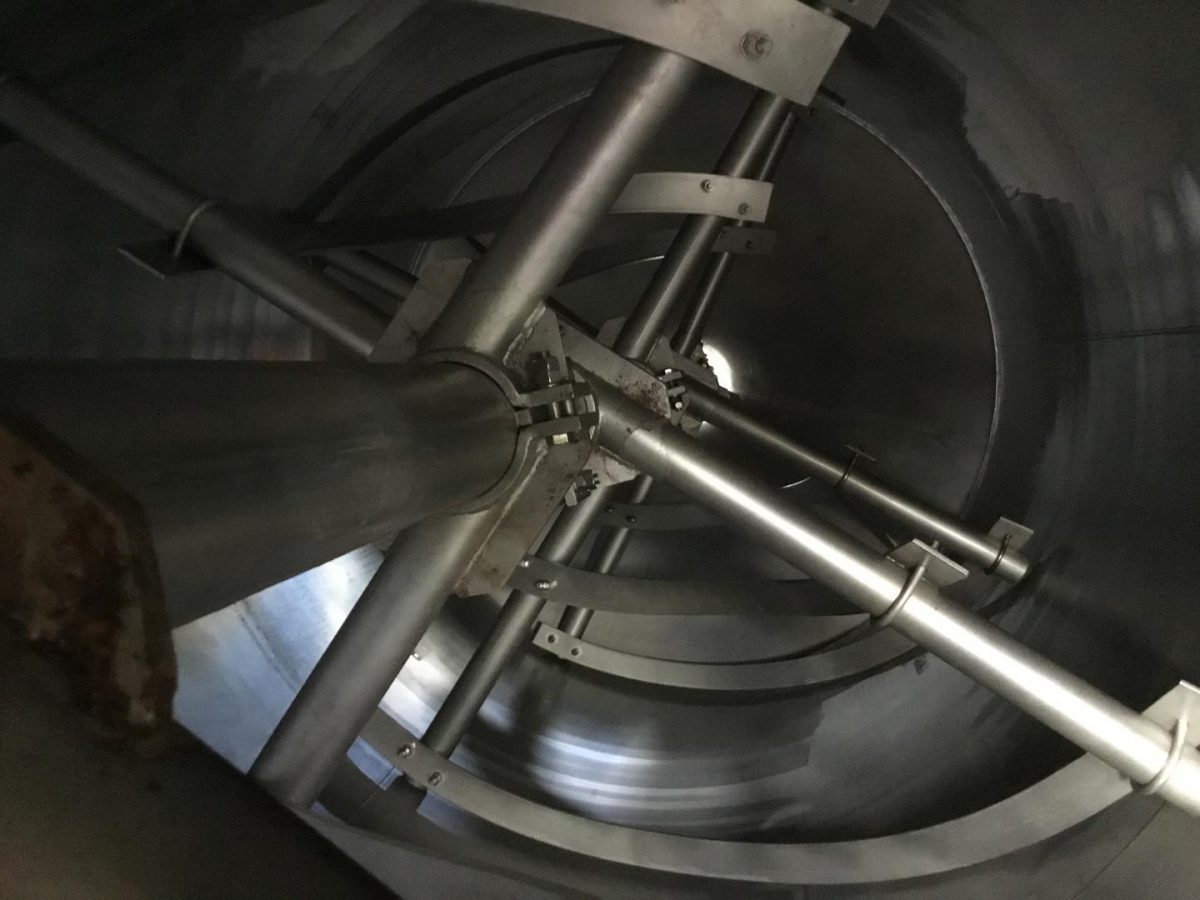

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 4400 |

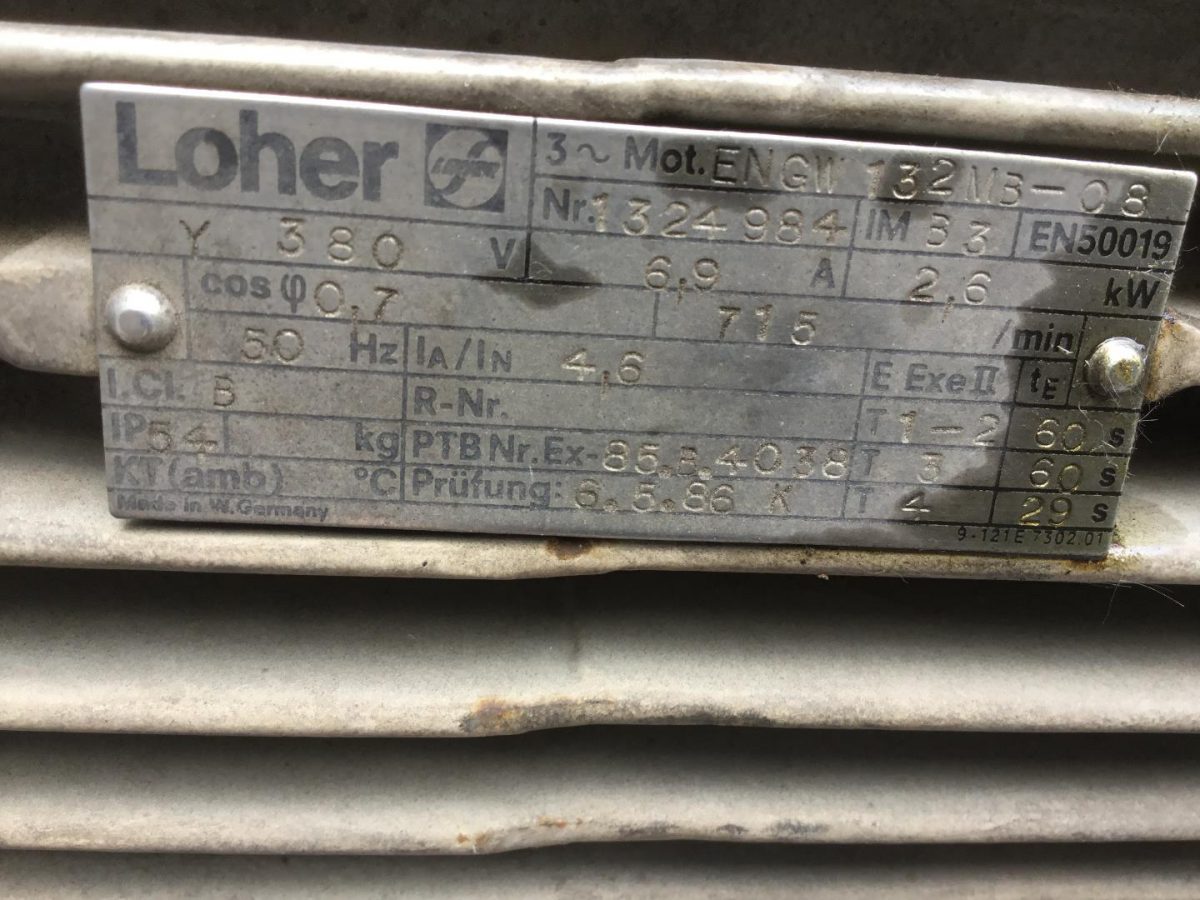

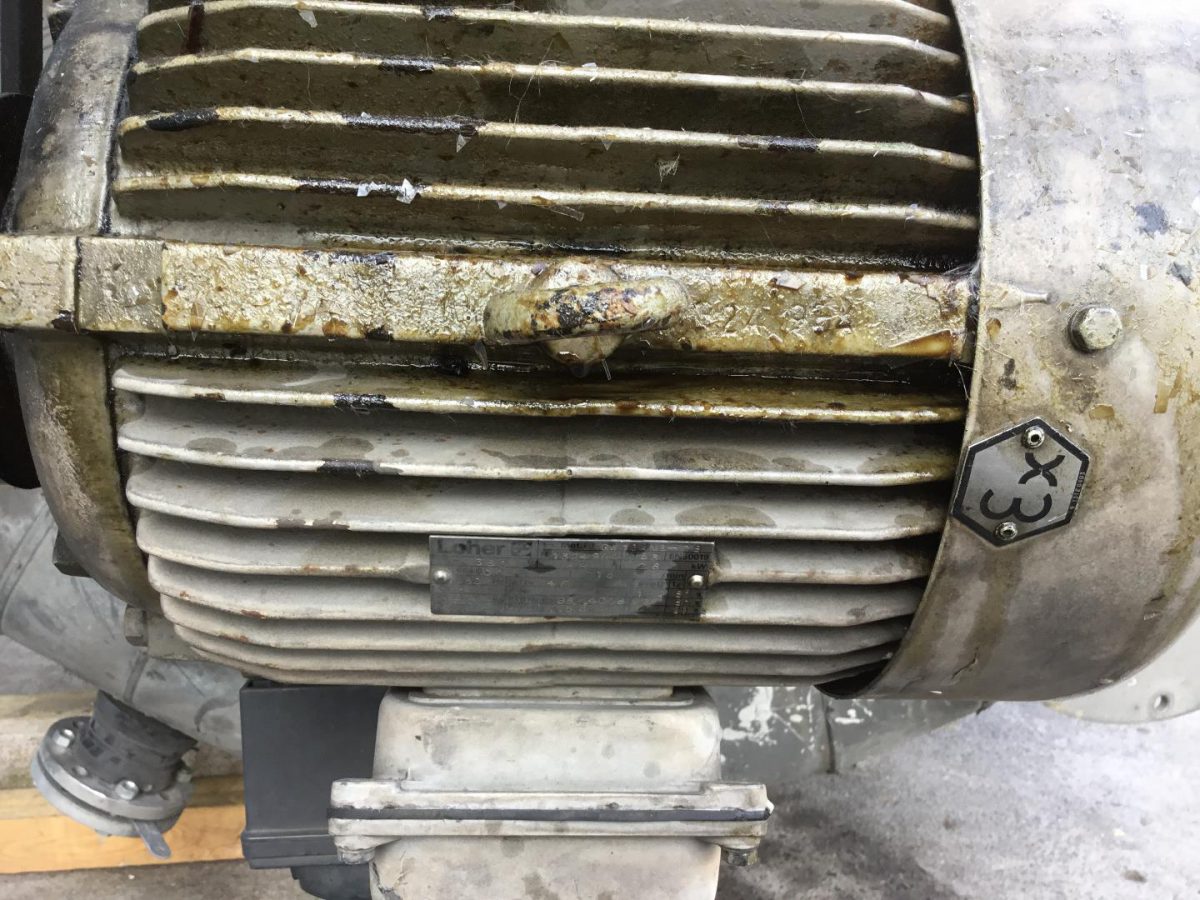

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 2,6 |

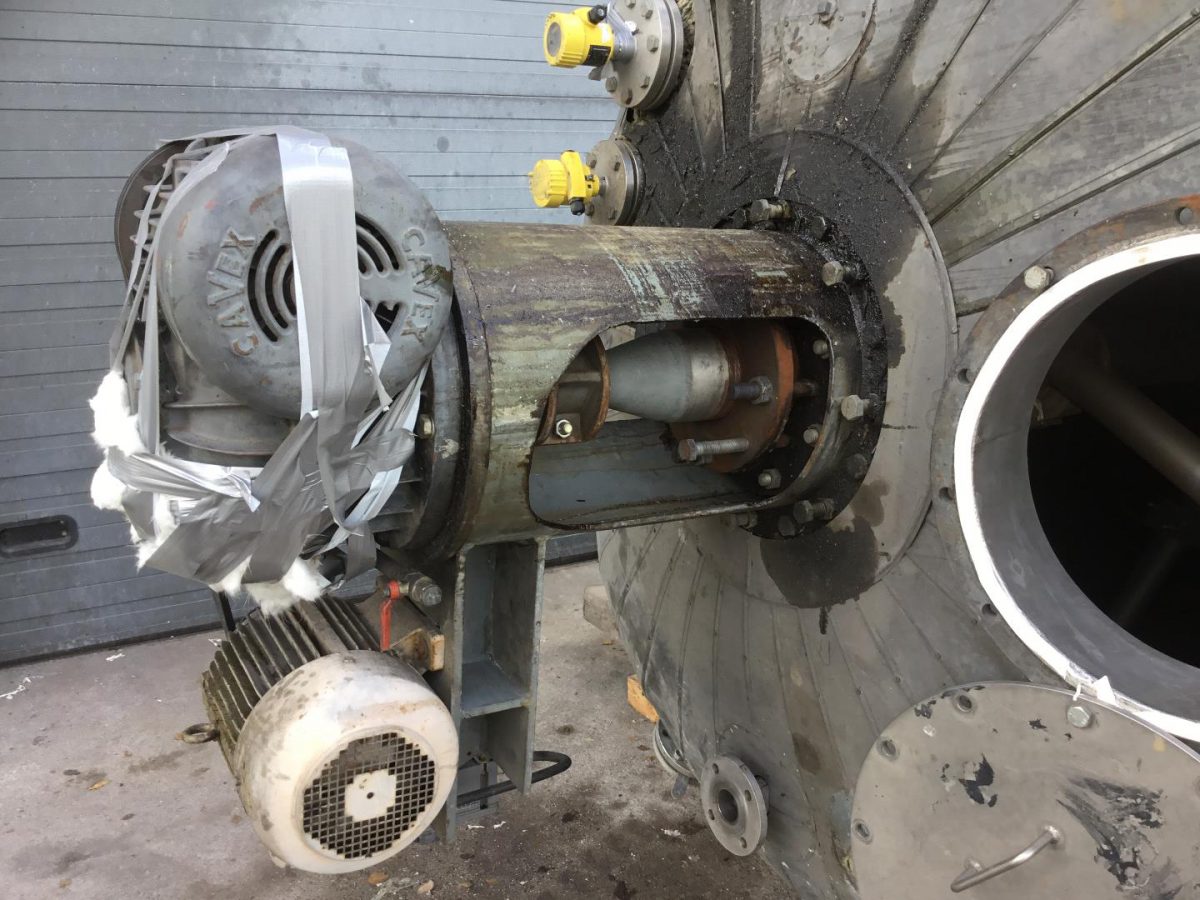

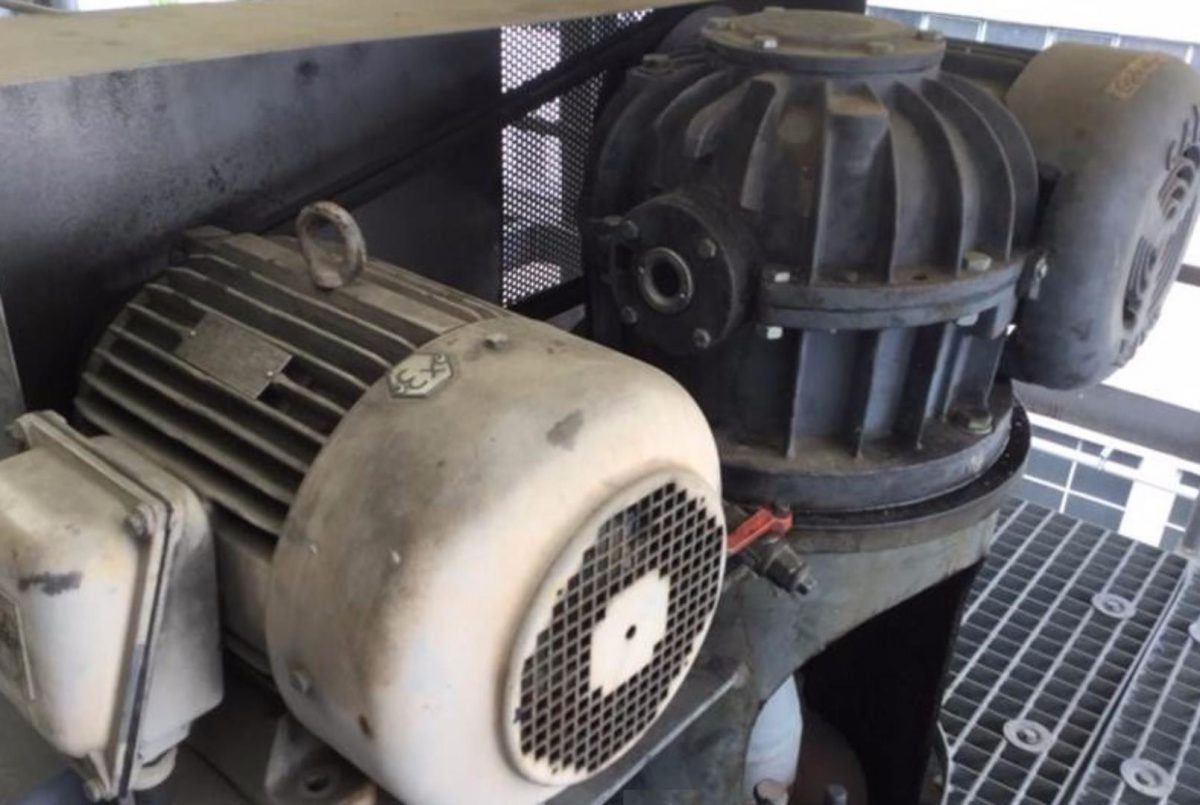

| Agitator 1: Drive Type | Reductor |
| Remarks | |
|---|---|
| Description (EN) | Insulation is damaged from the 4 tanks • Insulation strongly polluted at the top by oil agitator |
