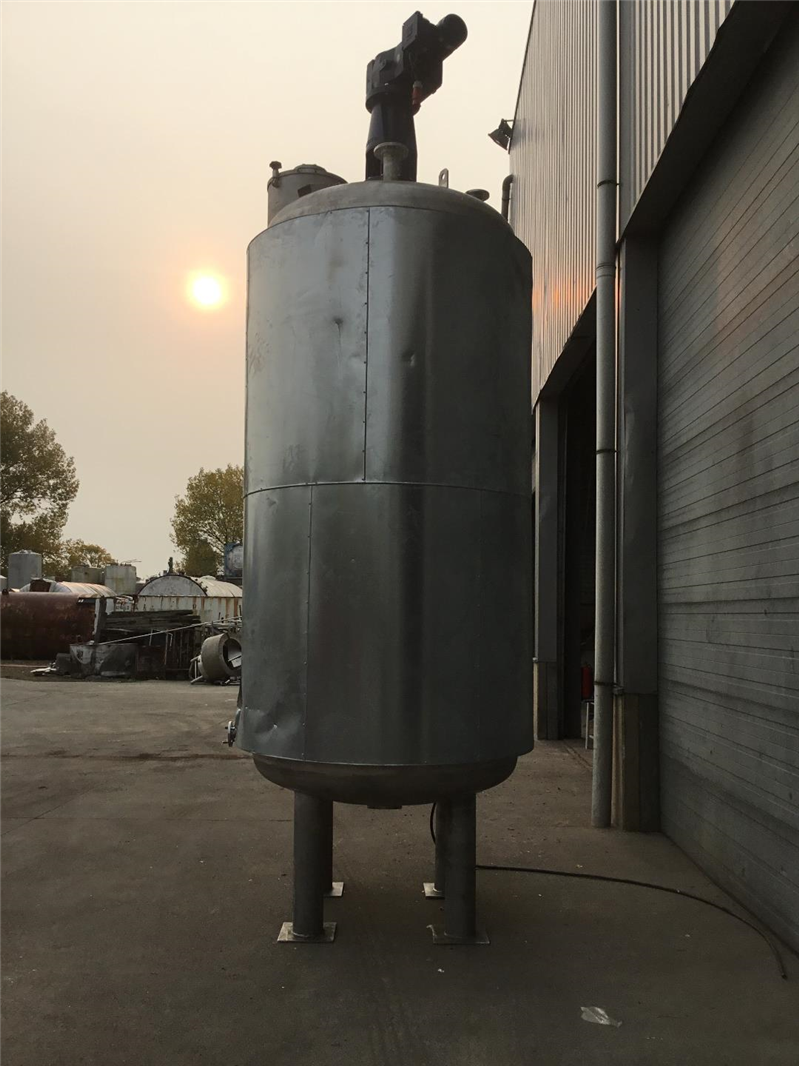

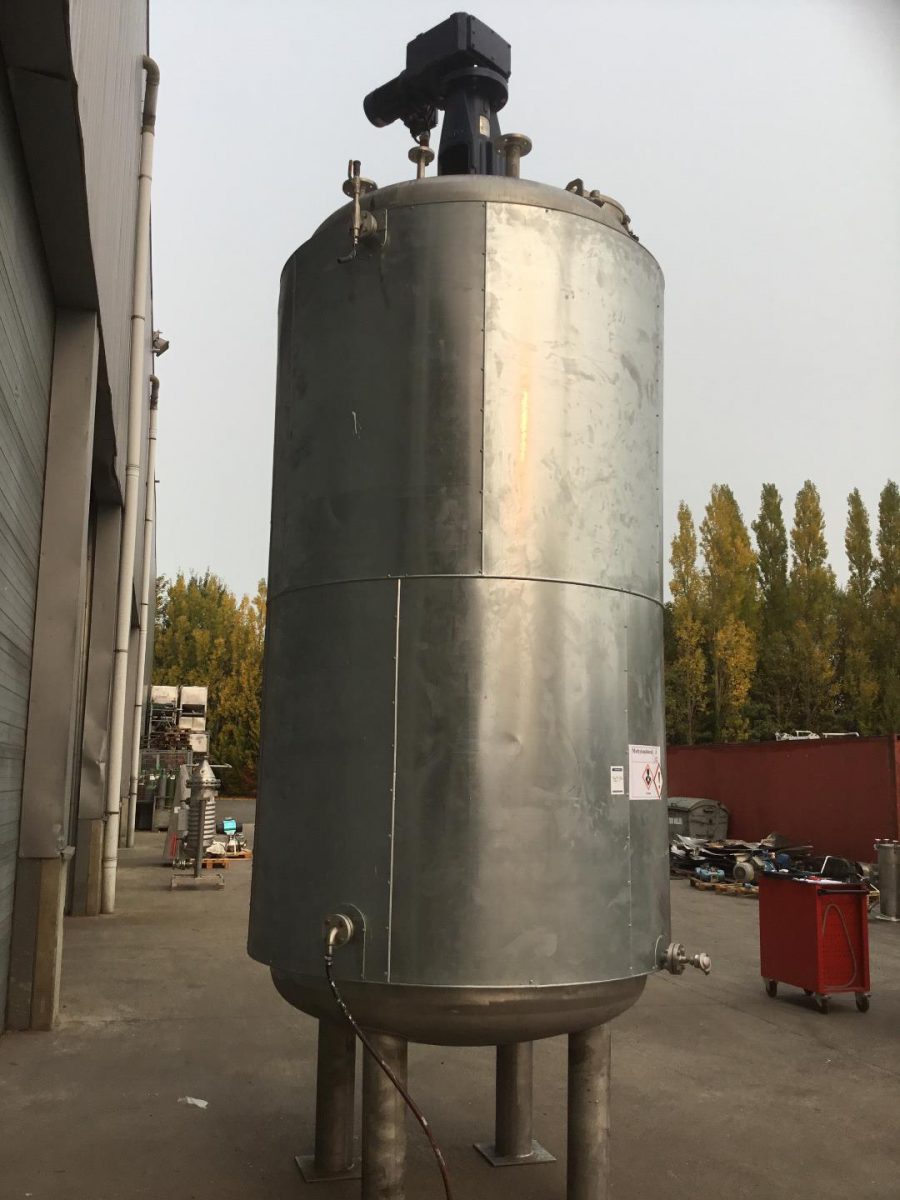

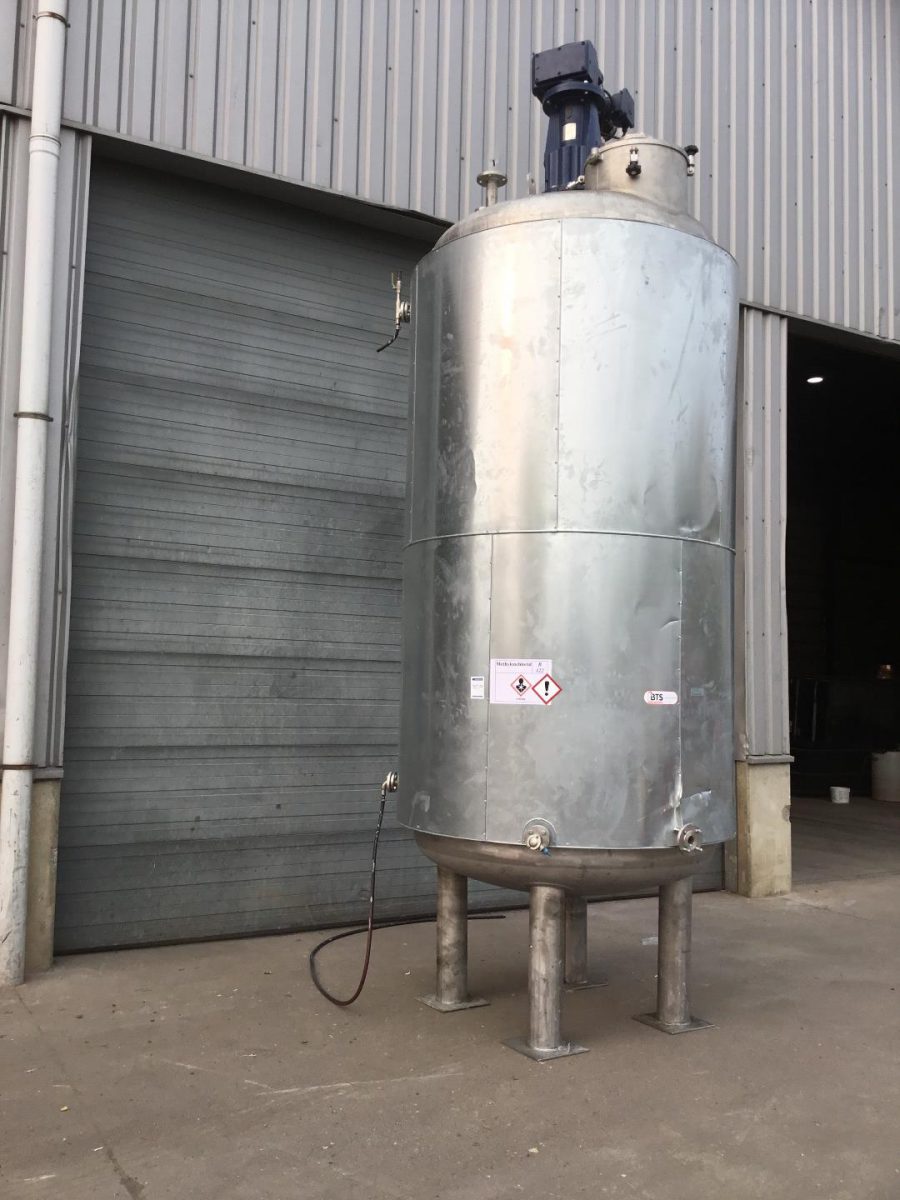

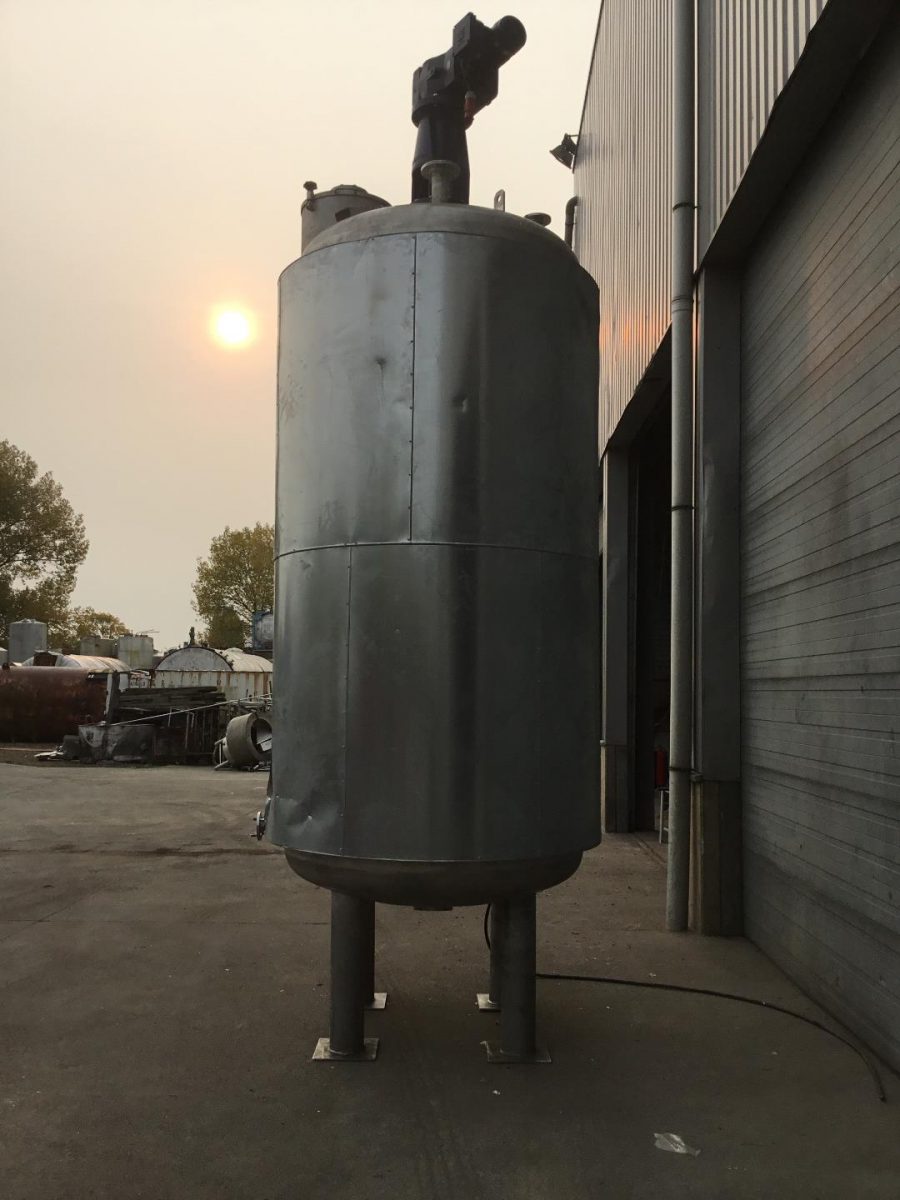

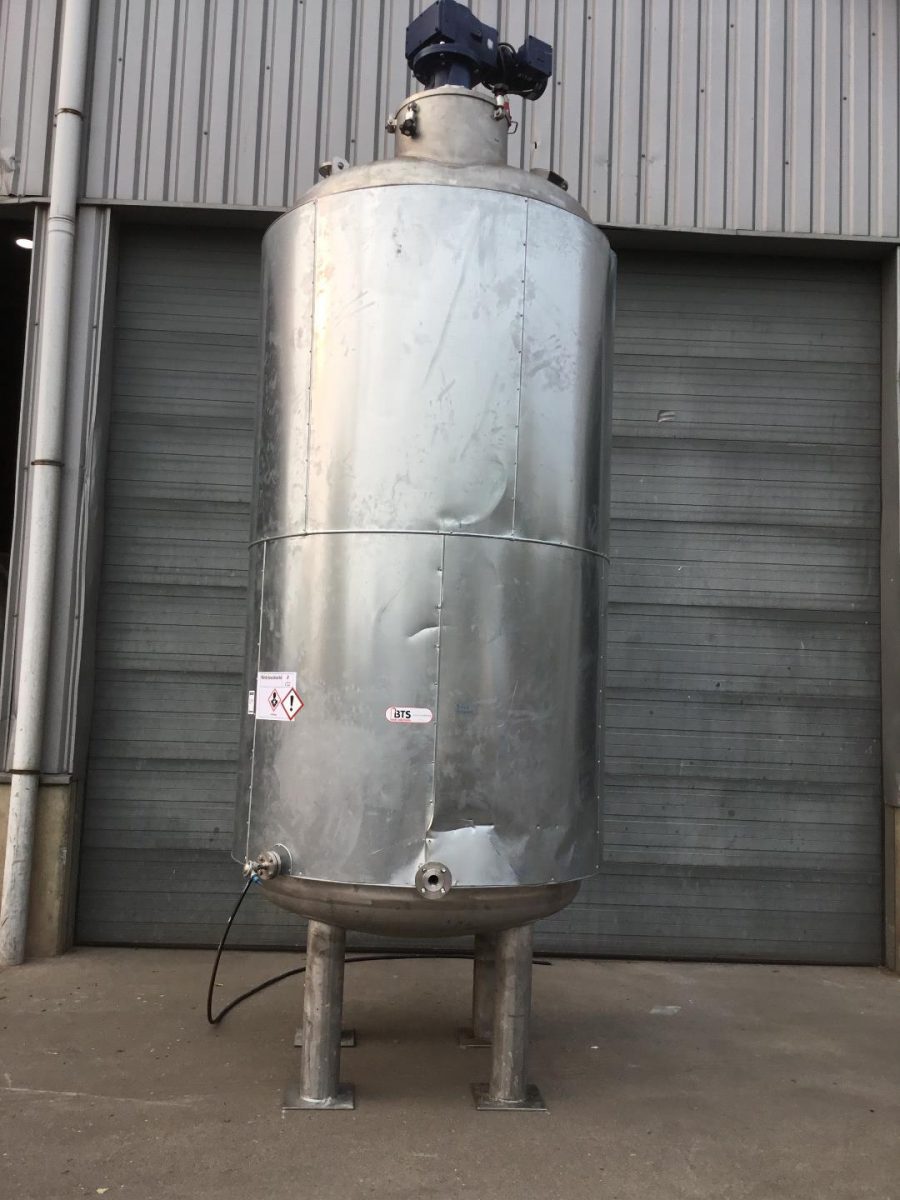

Used pressure tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 6830 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.37.LO.03 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 6830 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 1 |
| Test pressure tank (Barg) | 1,5 |

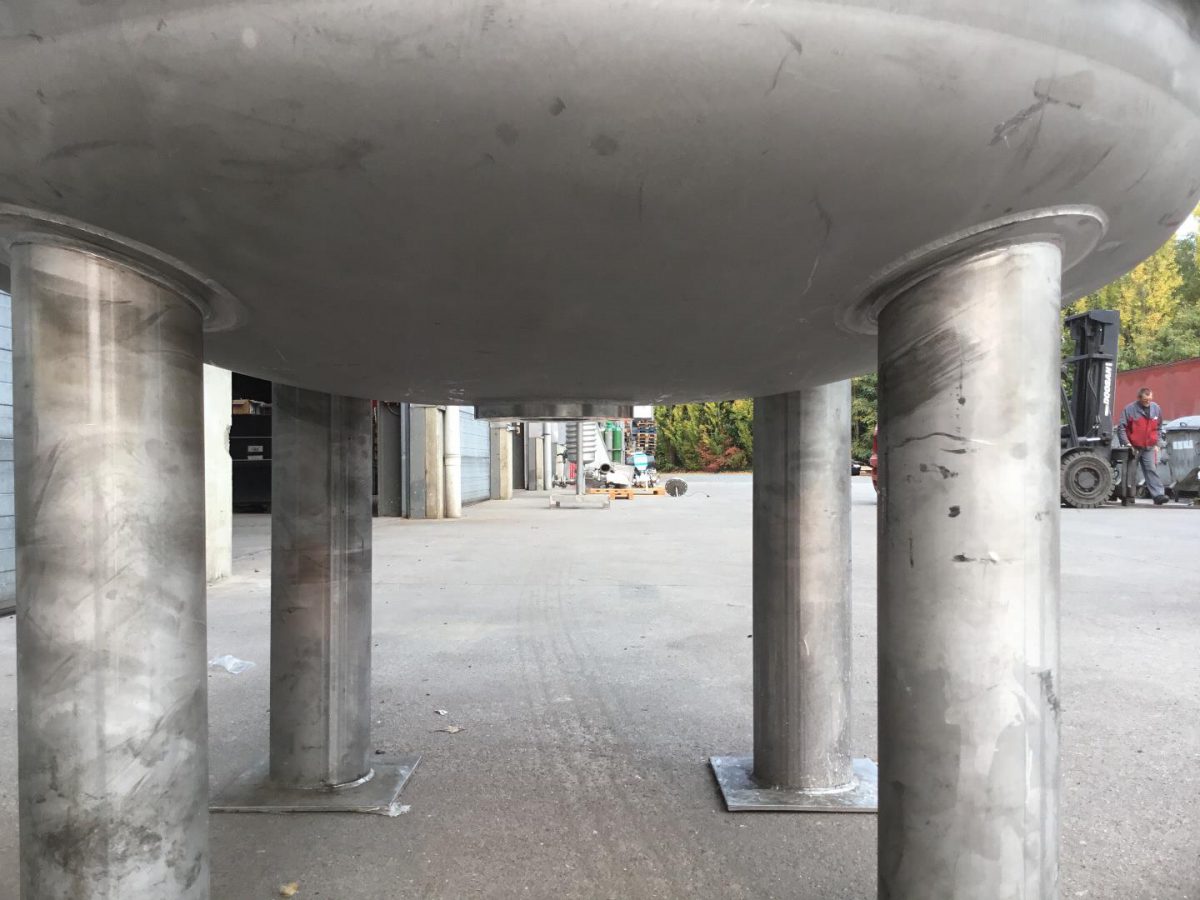

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø510mm |
| Tank with total drain? | Yes |

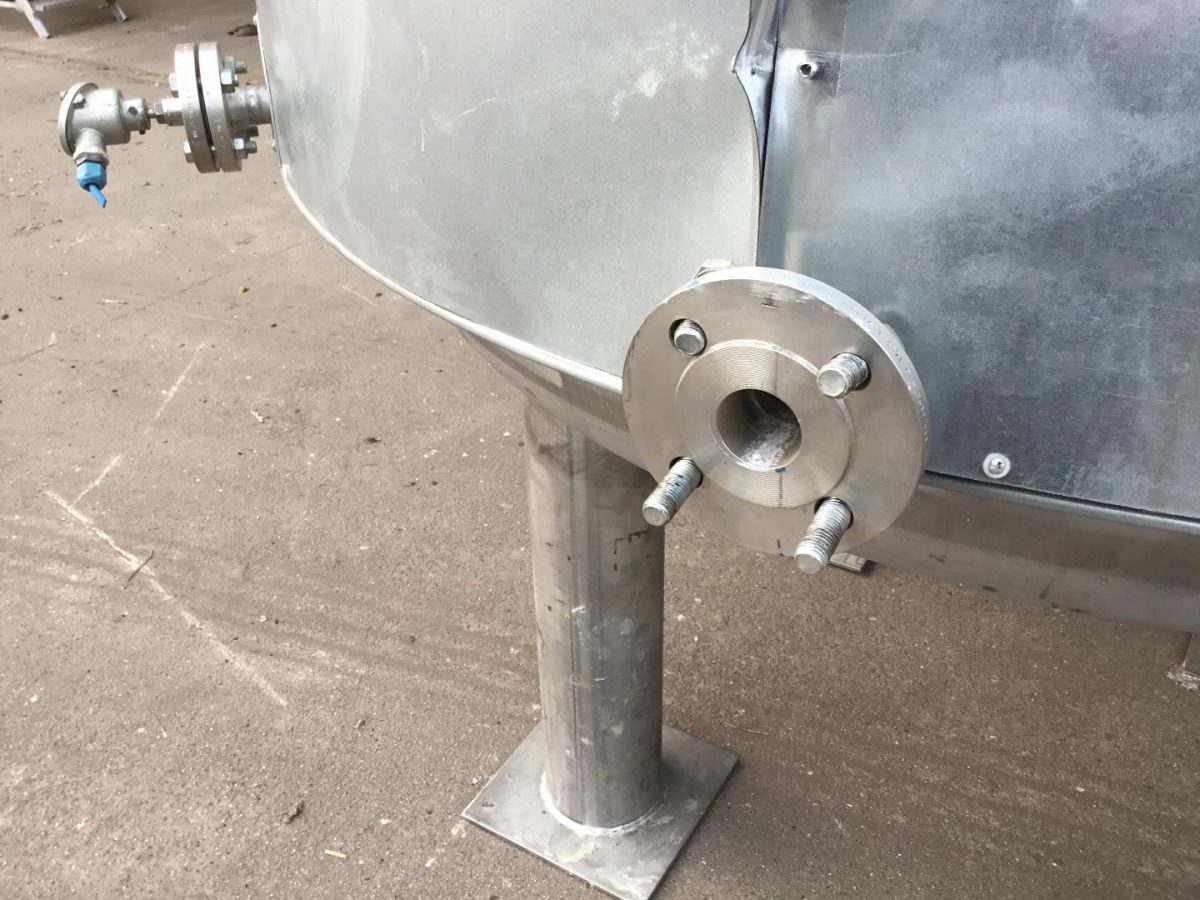

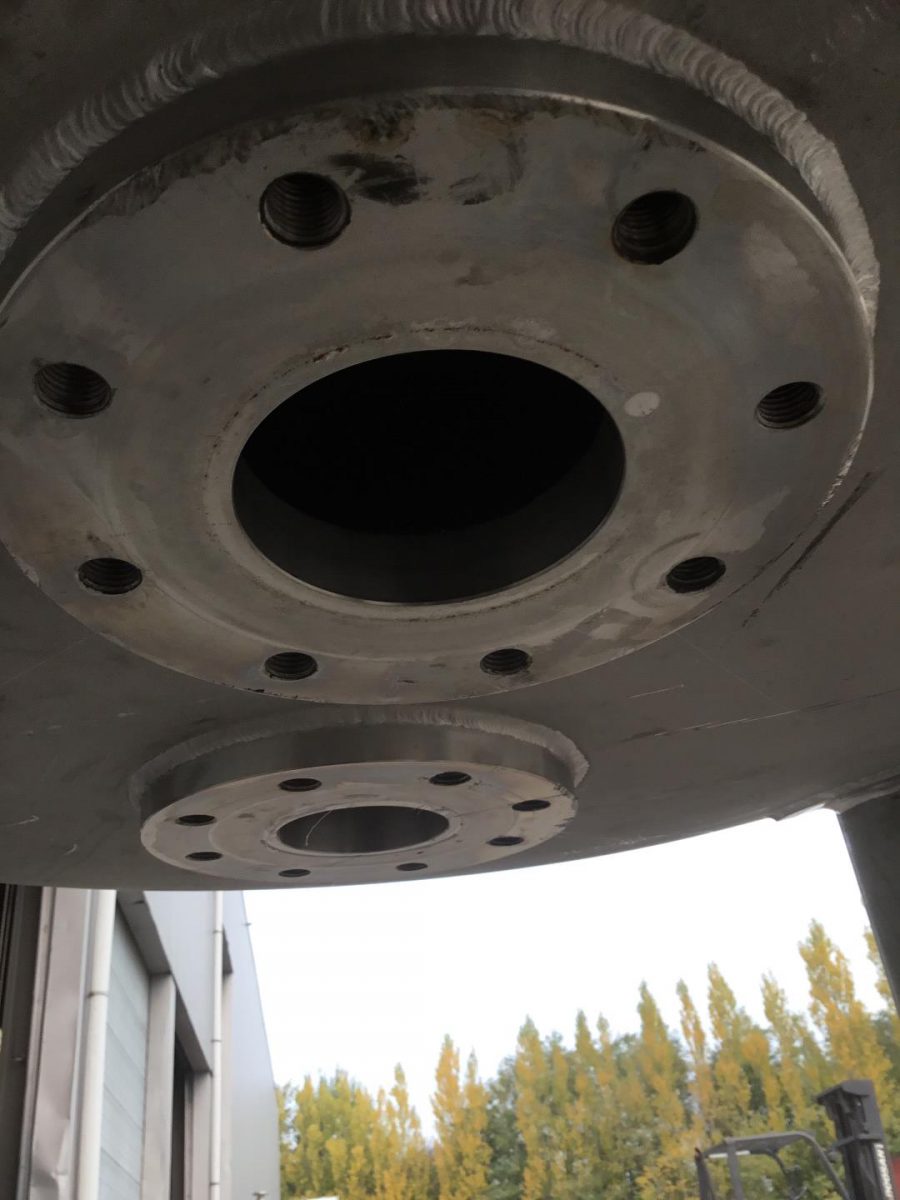

| Type of outlet (s) | Flens DN100 |
| Diameter of outlet (mm) | 104 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 2000 |
| Condition | Used |

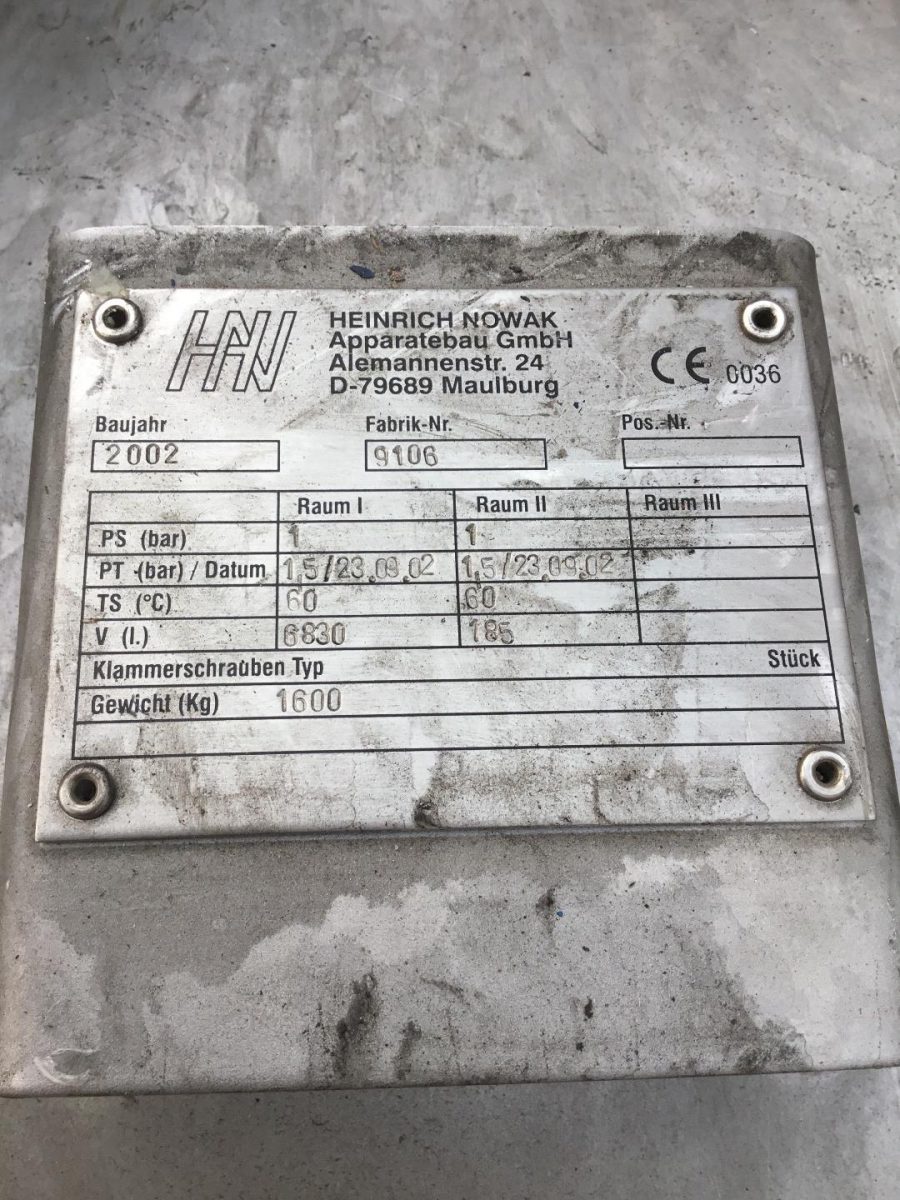

| Type plate manufacturer | Yes |
| Manufacturer | Nowak |
| Year Built | 2002 |
| Construction data available | No |
| Working temperature (° C) | 60 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 6 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 6 |
| Cylindrical length (mm) | 3000 |
| Height bottom (mm) | 350 |
| Outside diameter tank (mm) | 1760 |
| Total height (mm) | 5500 |
| Diameter tank (mm) | 1560 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 100 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Halfpipe |
| Heating 1: Max. service pressure | 1 |
| Heating 1: Max. test pressure | 1,5 |
| Heating 1: Max. design pressure °C | 60 |

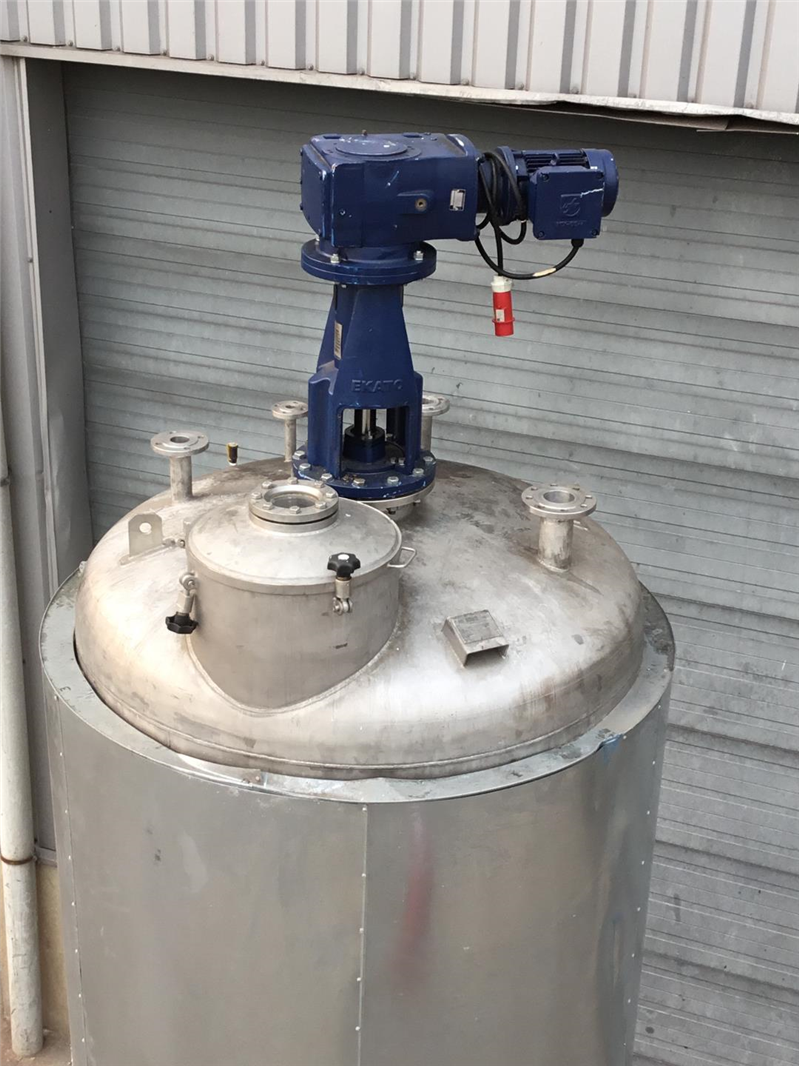

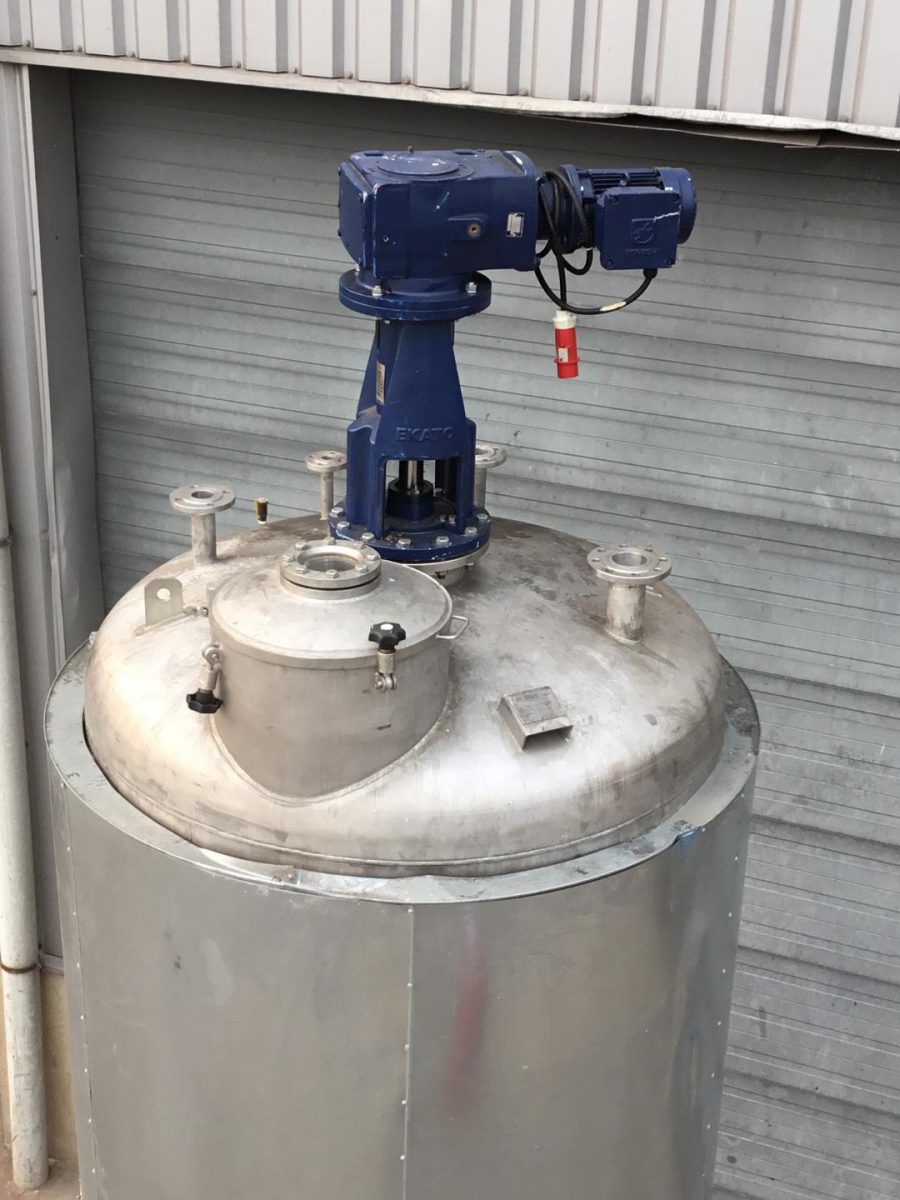

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |

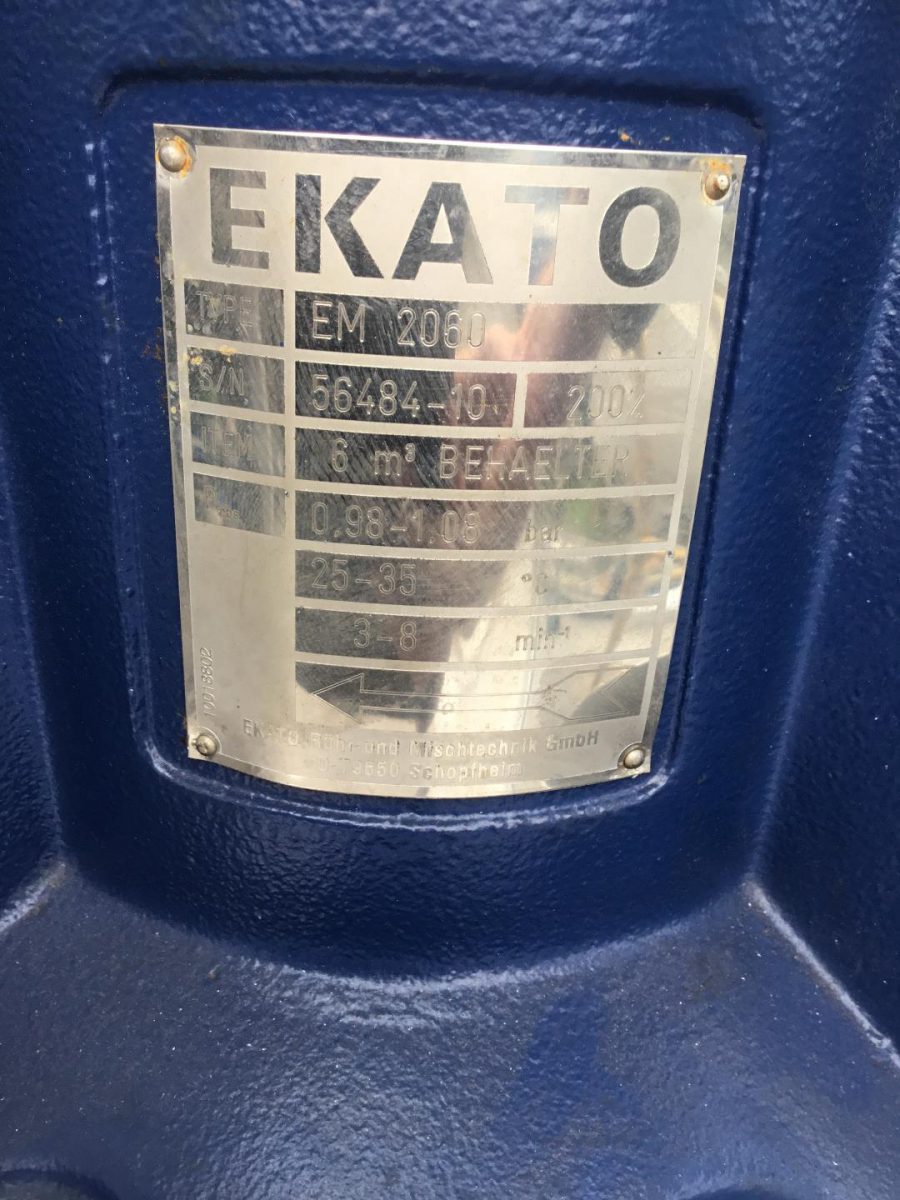

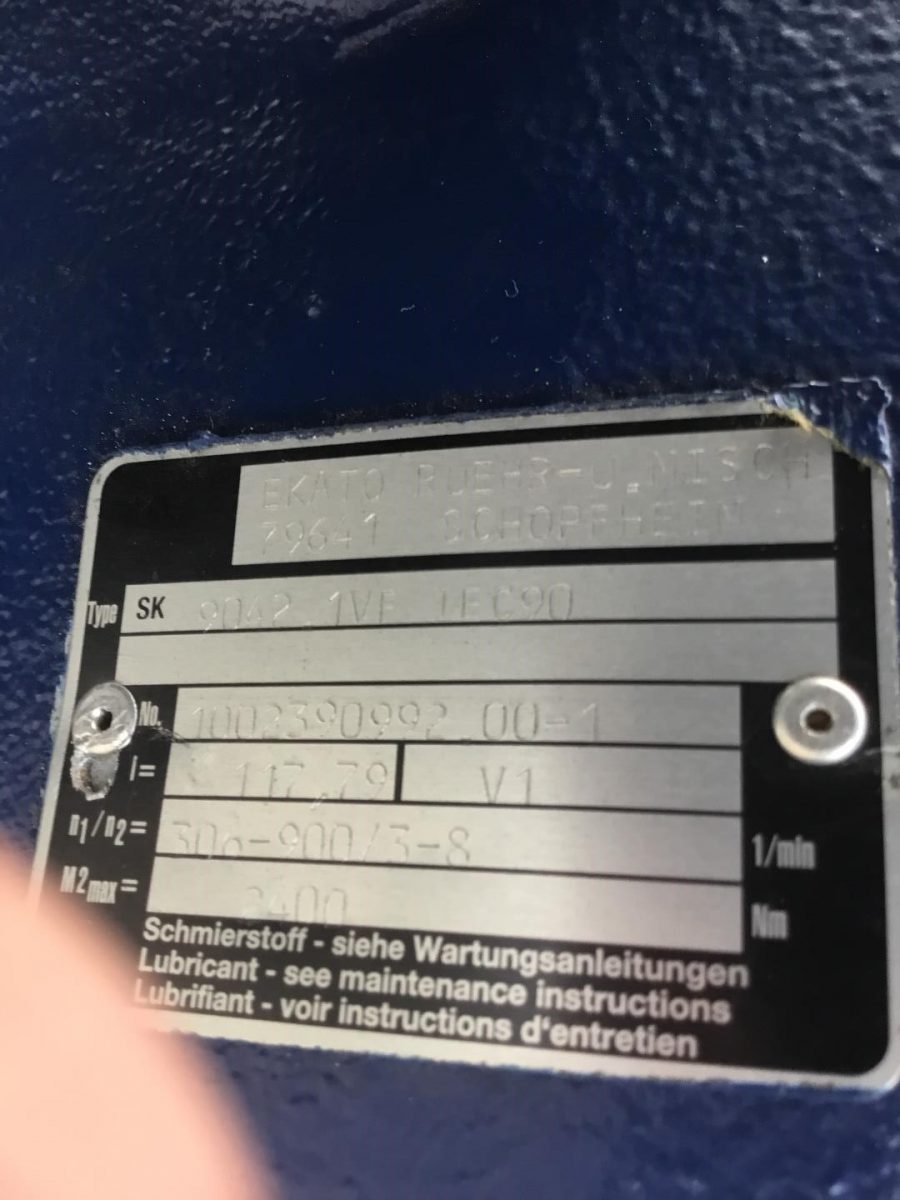

| Agitator 1: Constructor | EKATO |

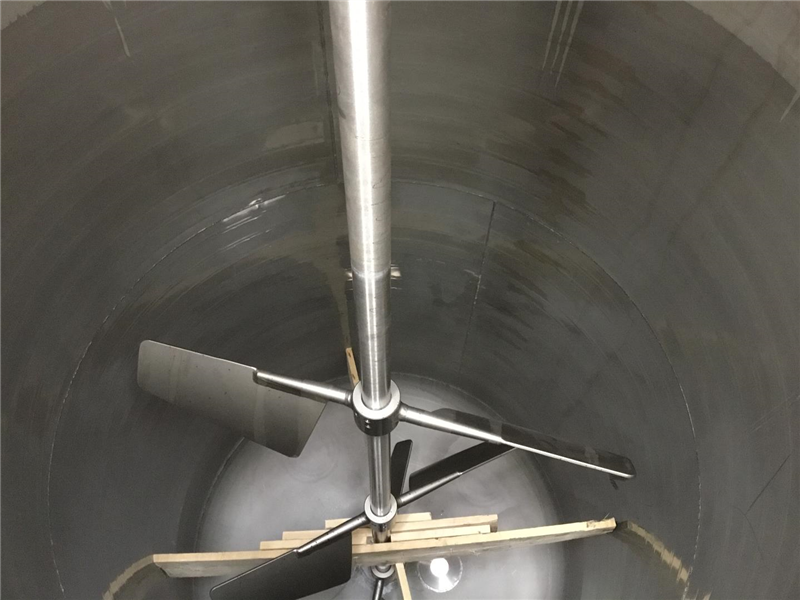

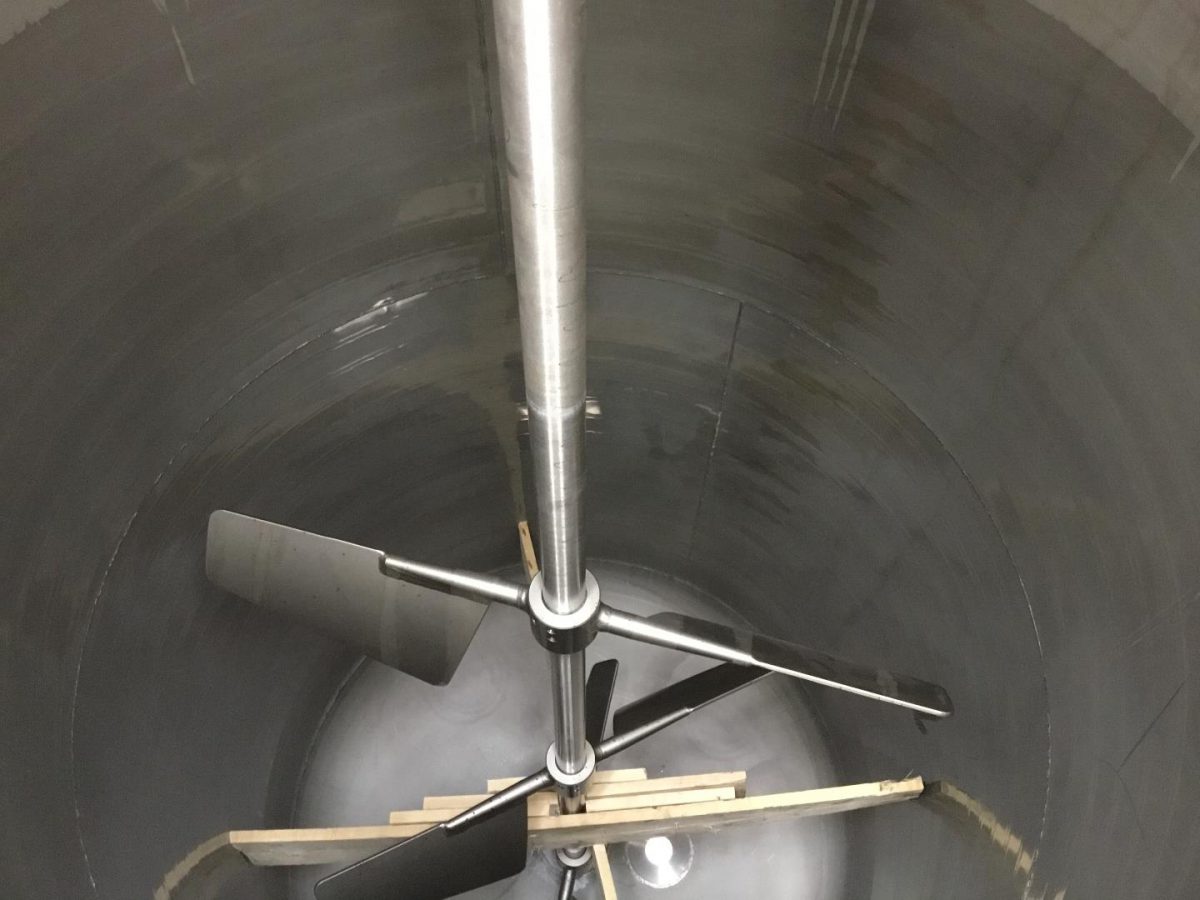

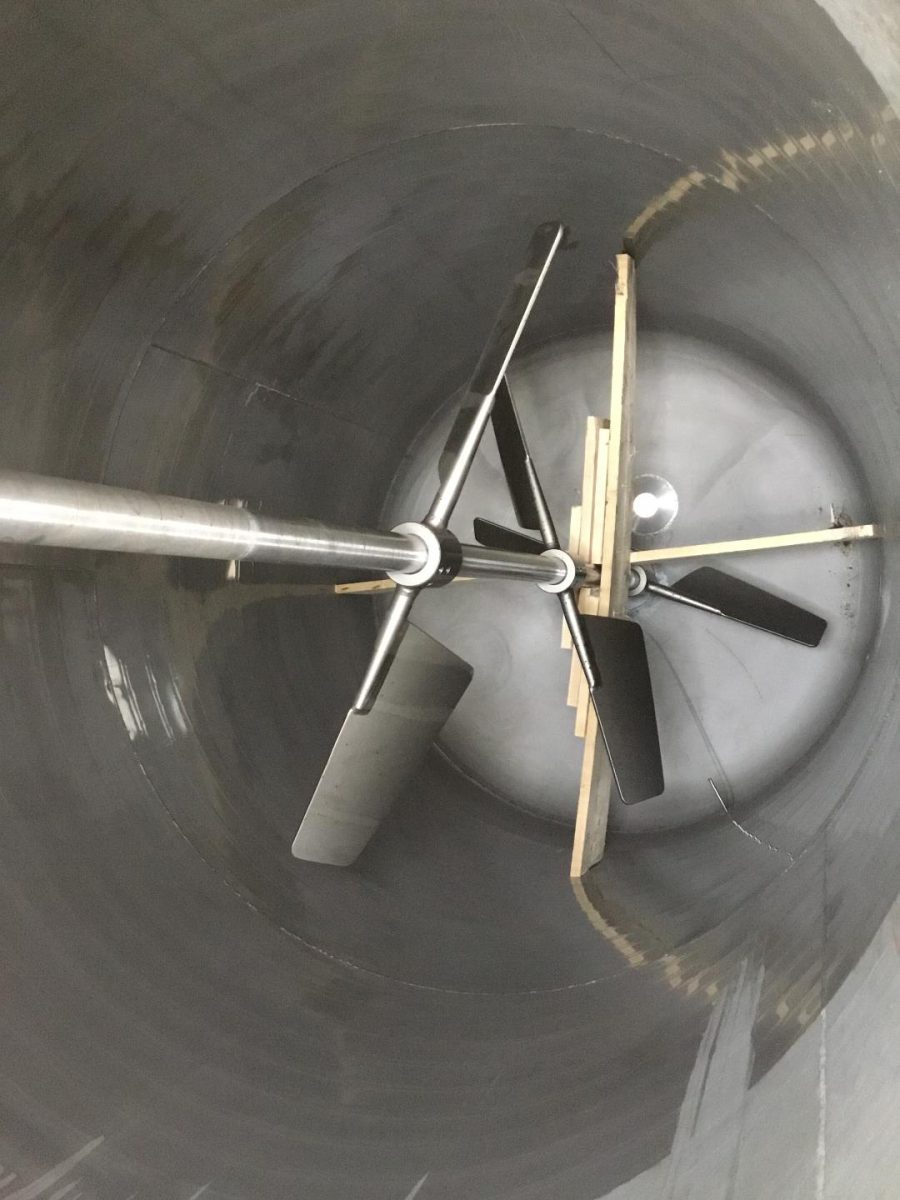

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 3000 |

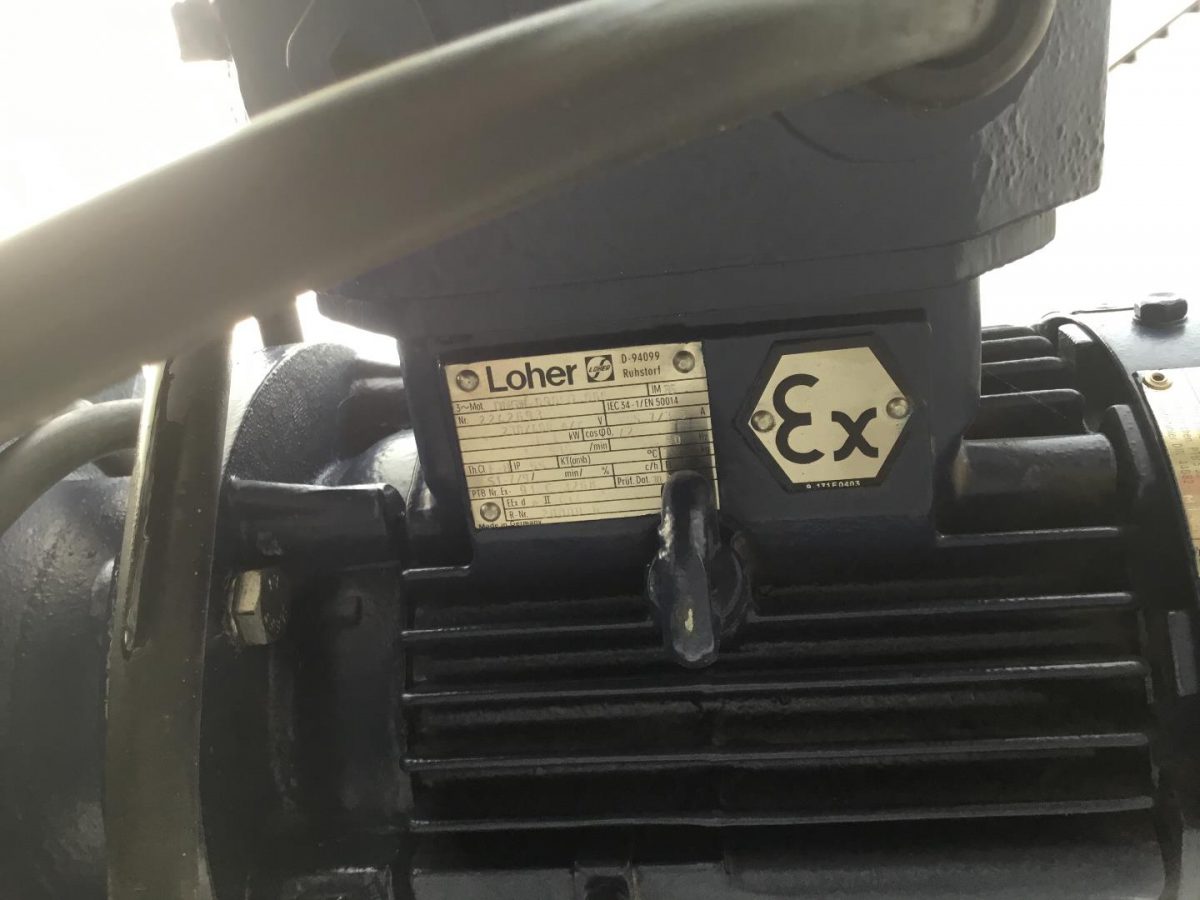

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Voltage (V) | 230 |
| Agitator 1: Power (kw) | 1,1 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 5-8 |
