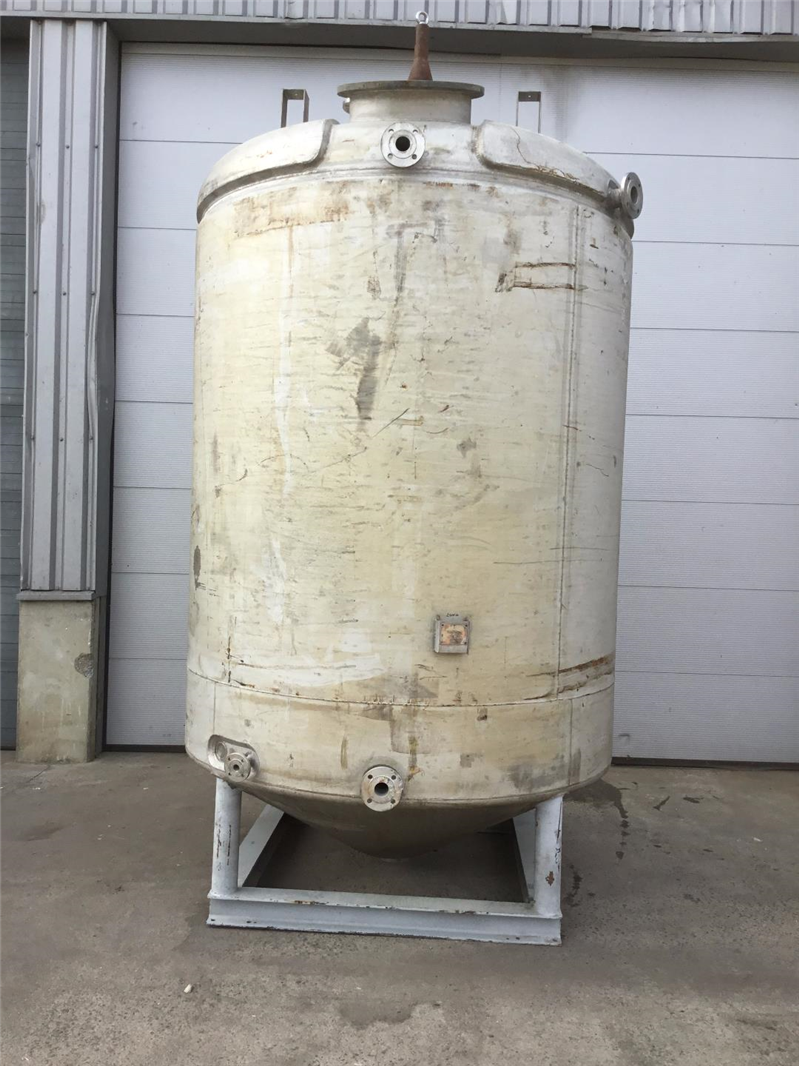

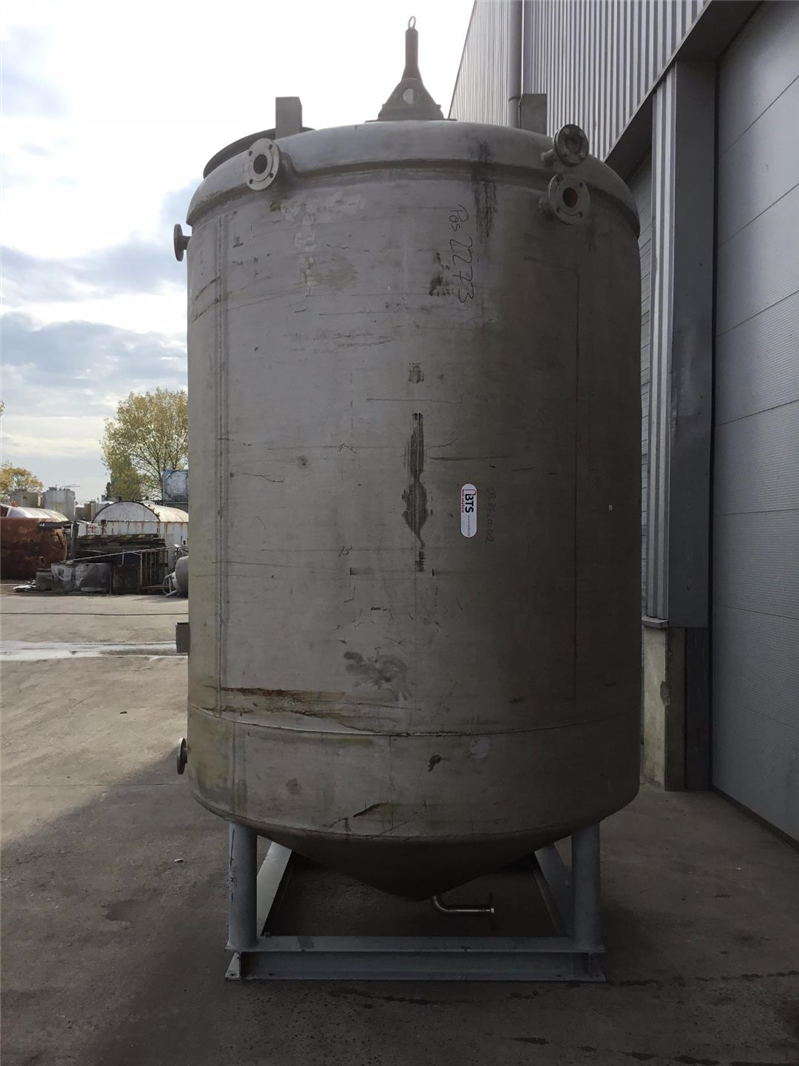

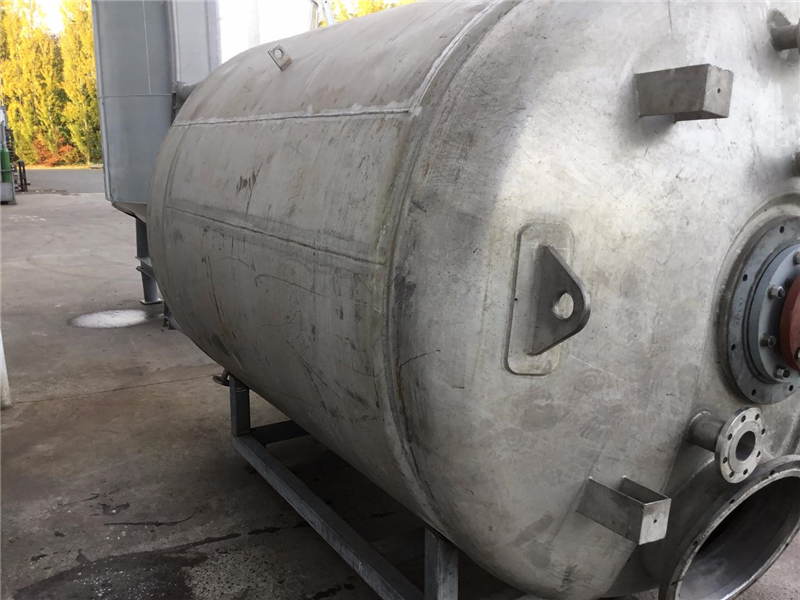

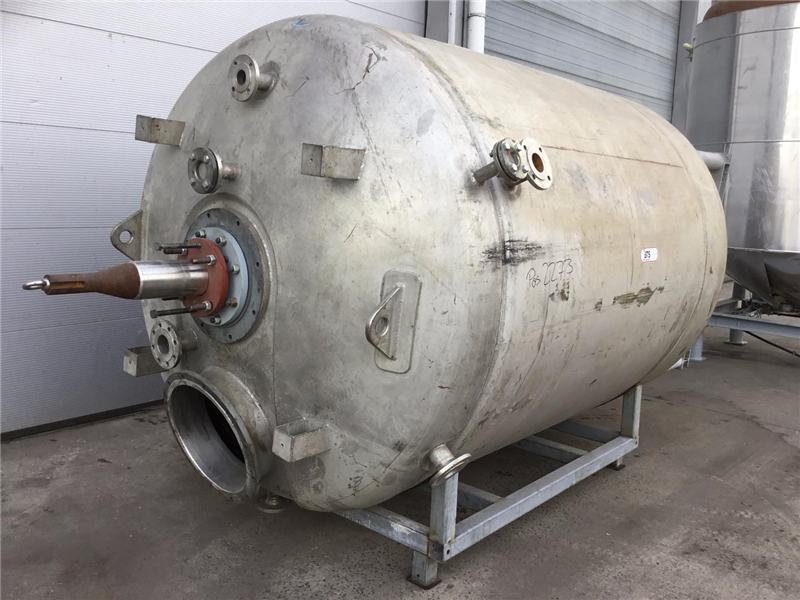

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 8800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.37.LO.02 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 8800 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

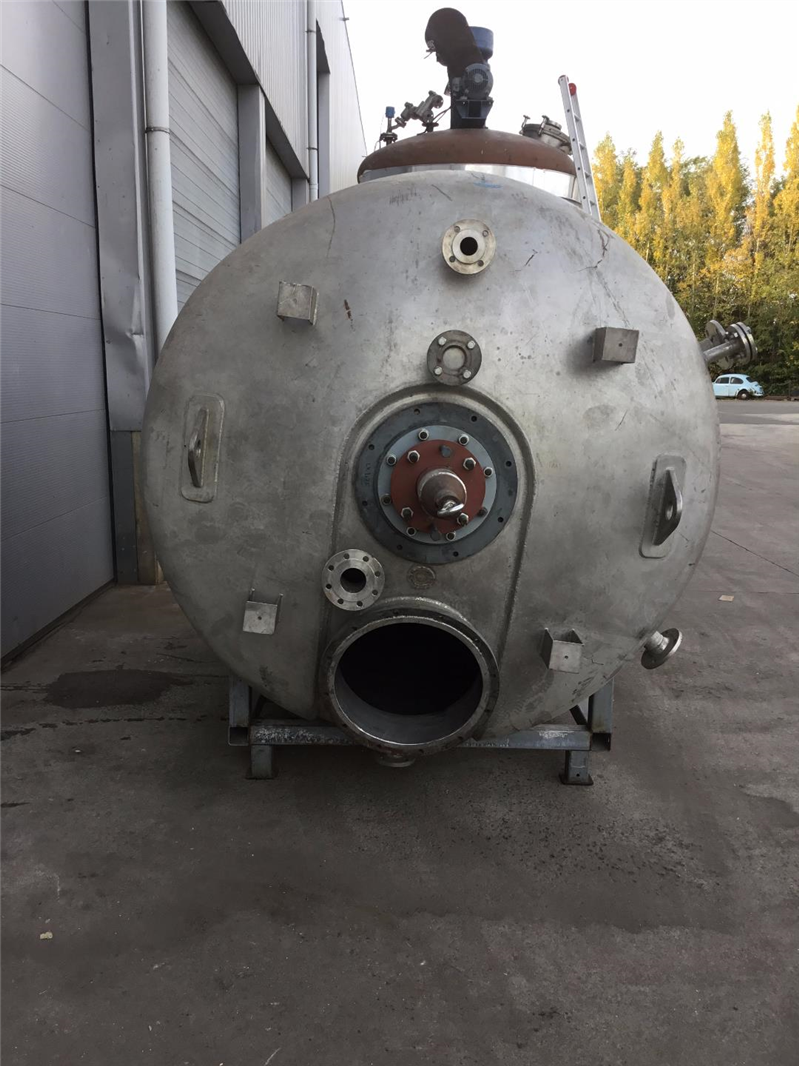

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø450mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Gat |
| Diameter of outlet (mm) | 160 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 2500 |
| Condition | Used |

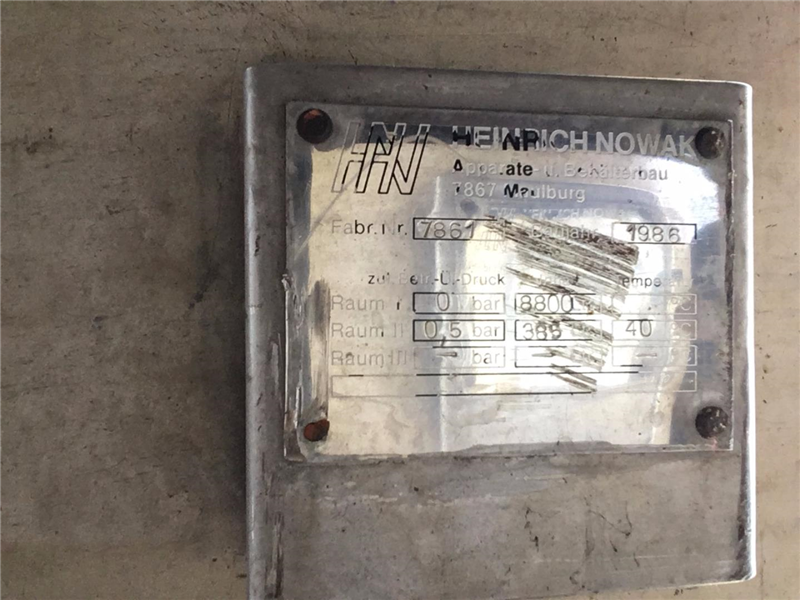

| Type plate manufacturer | Yes |
| Manufacturer | Heinrich Nowak |
| Year Built | 1986 |
| Construction data available | No |
| Working temperature (° C) | 40 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 6,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5,4 |
| Bottom thickness (mm) | 6,5 |
| Cylindrical length (mm) | 2400 |
| Slope bottom (°) | 30 |
| Height bottom (mm) | 600 |
| Total height (mm) | 3950 |
| Diameter tank (mm) | 2000 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Heating 1: Max. service pressure | 0,5 |
| Heating 1: Max. design pressure °C | 40 |
| Remarks | |
|---|---|

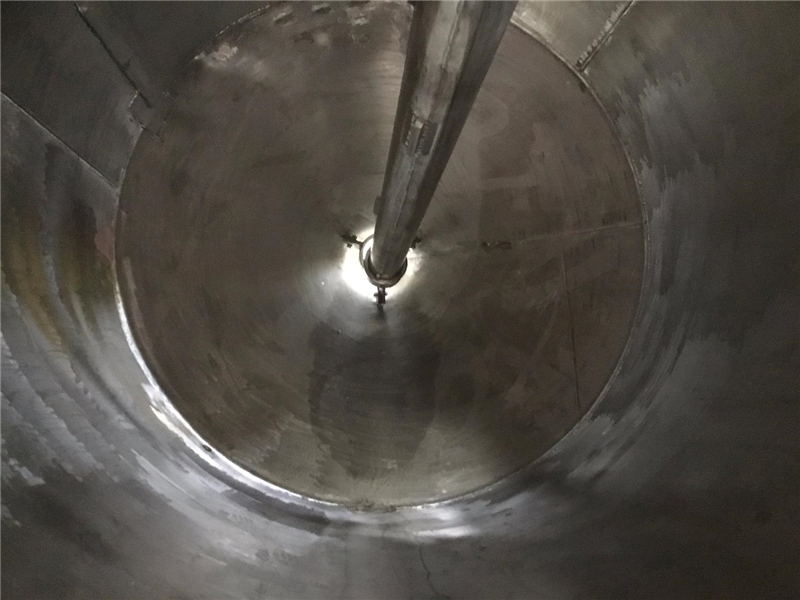

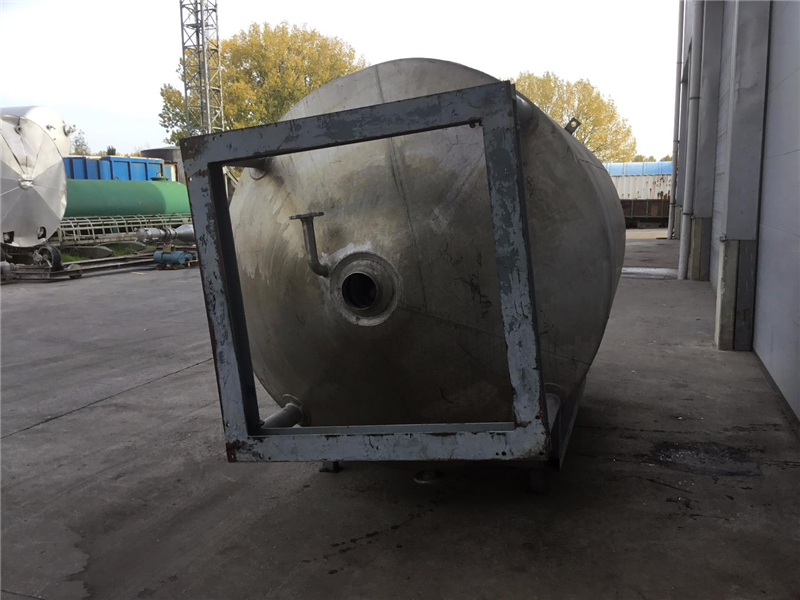

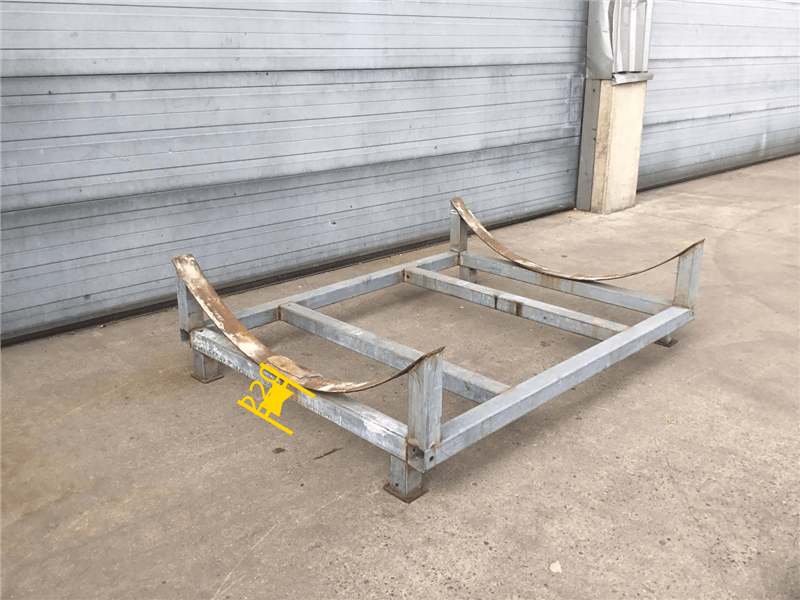

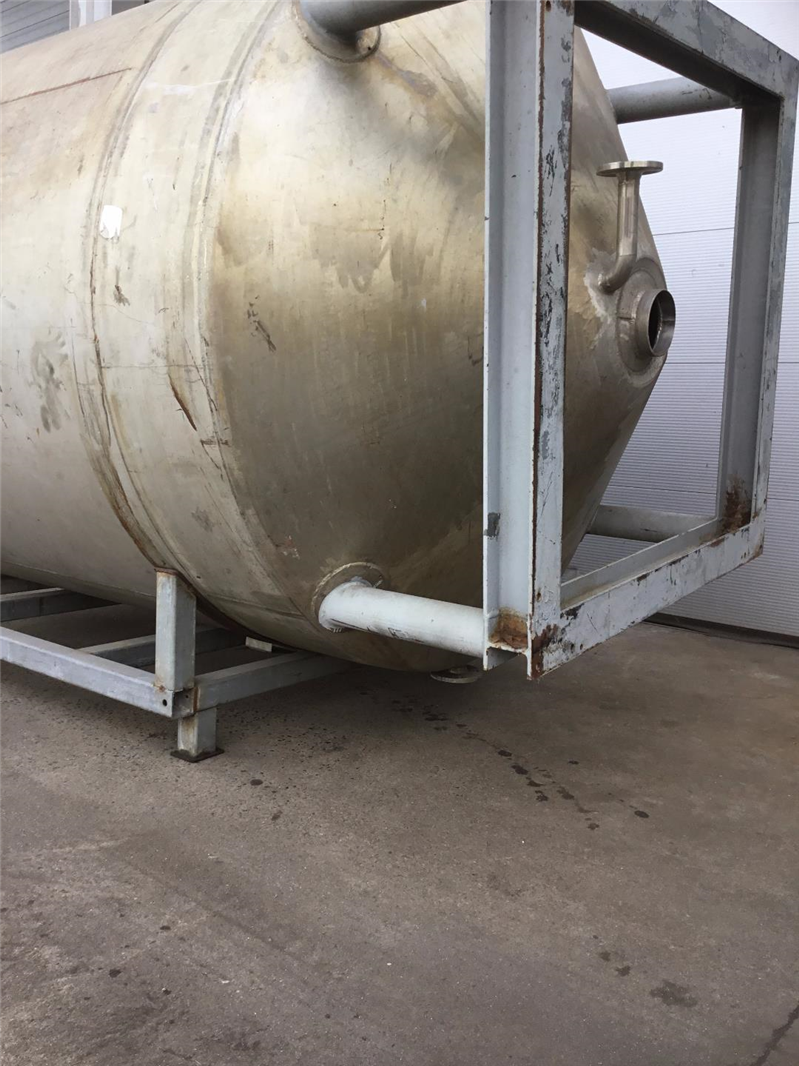

| Description (EN) | Can be placed vertically or horizontally by additional chassis • Agitator consists only of shaft, no motor and no propeller • mantle is stainless steel |
