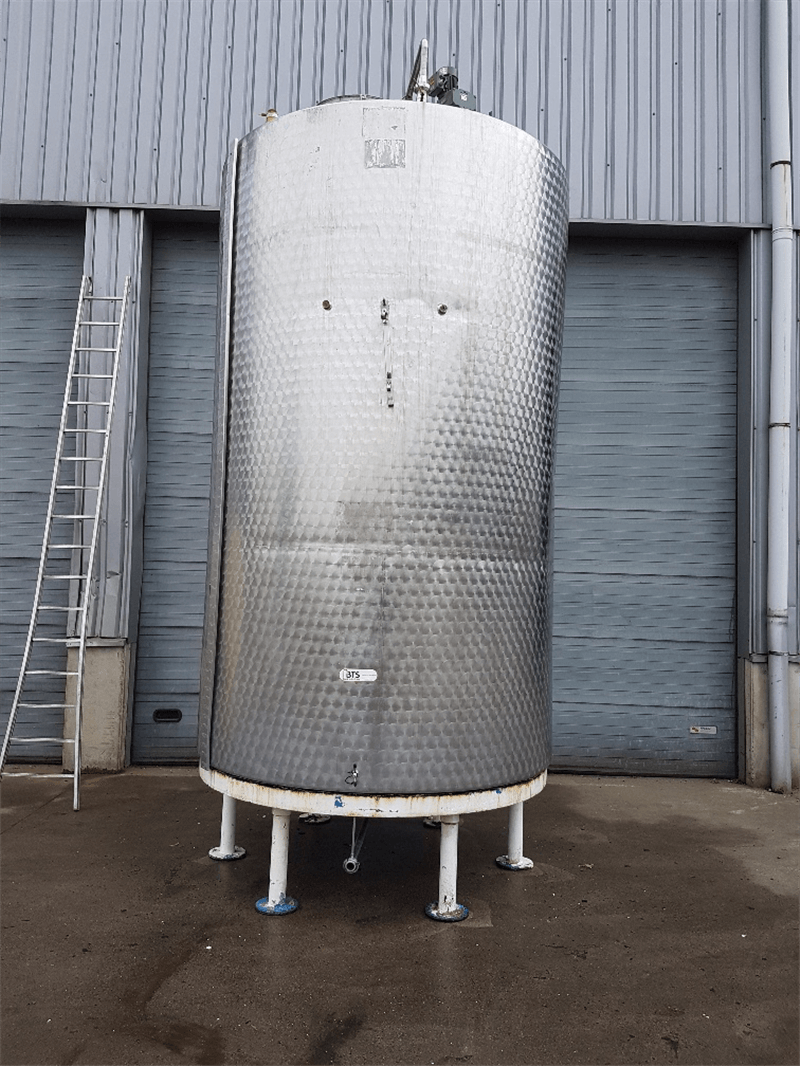

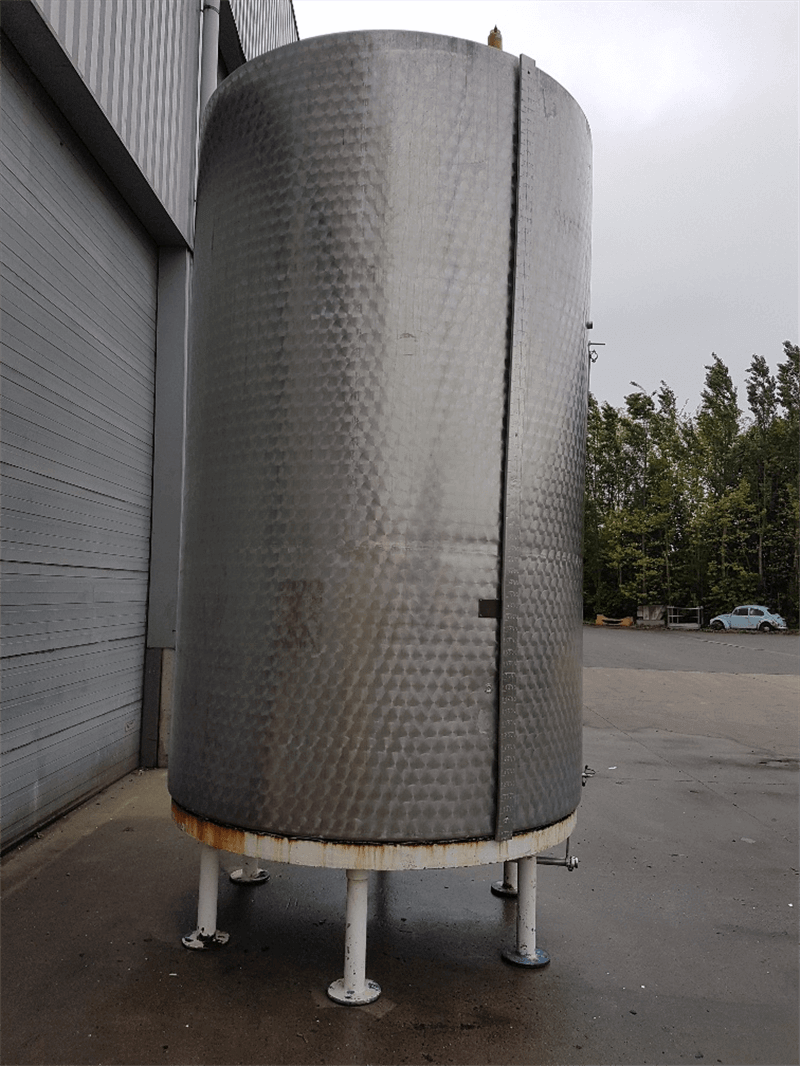

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 13500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.37.LL.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 13500 |
| Type tank | Mixing vessel |
| Fixation | 6 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |

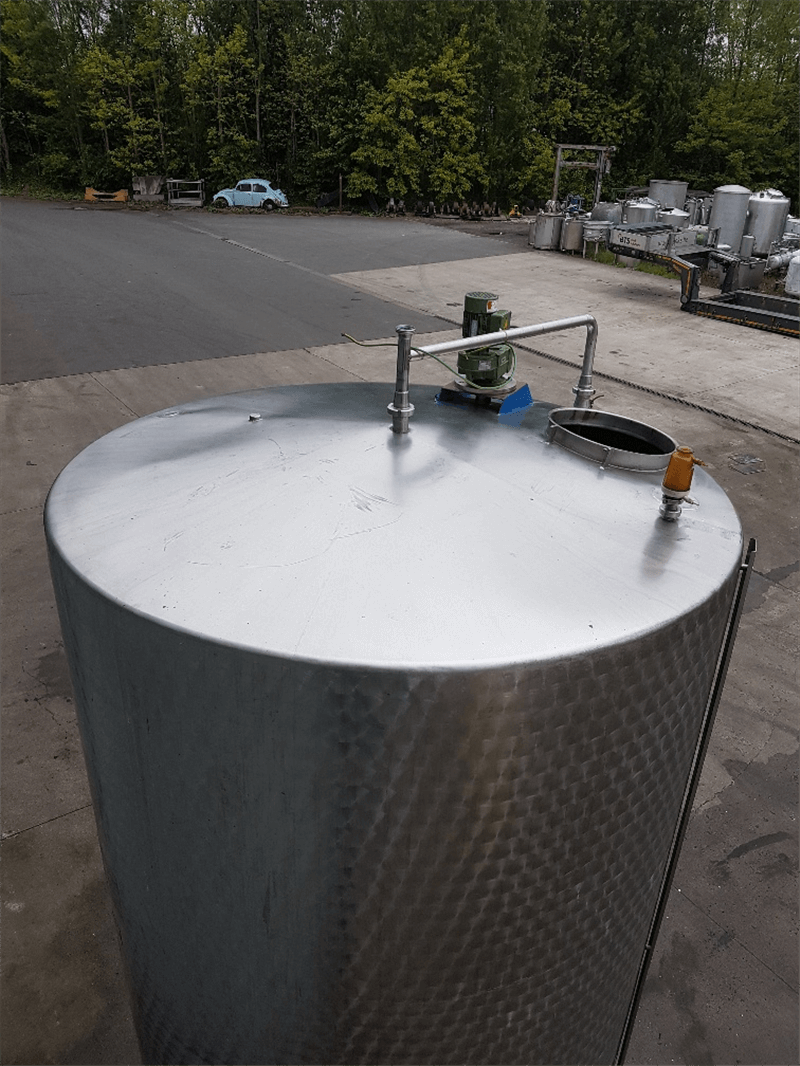

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 450 |
| Tank with total drain? | Yes |

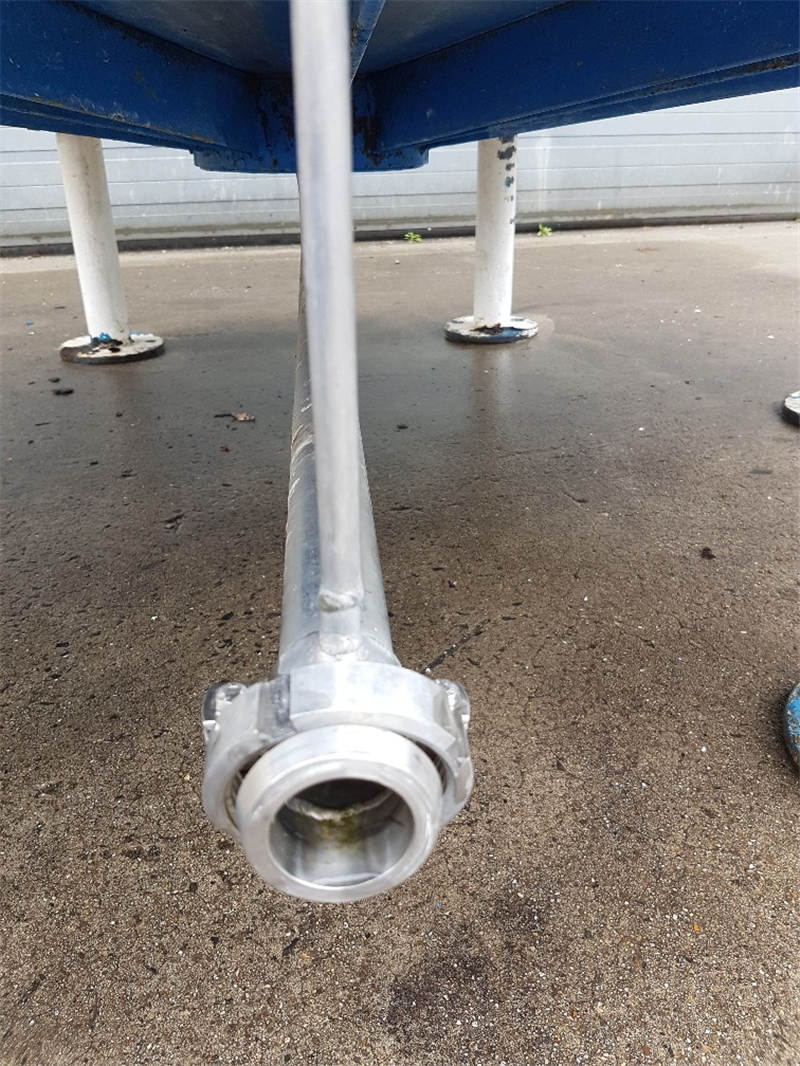

| Type of outlet (s) | Melkkoppeling NW 40 |
| Diameter of outlet (mm) | 38 |
| locality | B-7711 Belgium |
| Last application | Food |

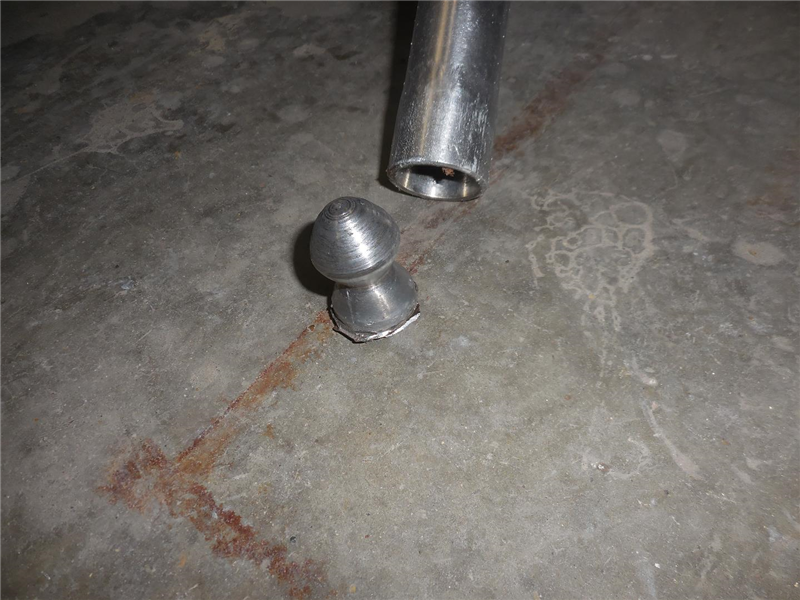

| Provision tank cleaning | CIP ball |
| Weight (kg) | 750 |
| Condition | Used |

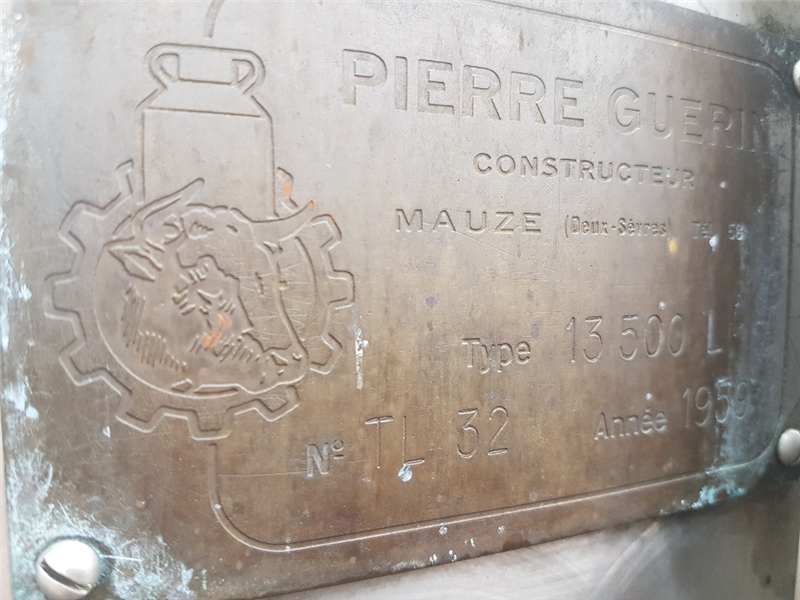

| Type plate manufacturer | Yes |
| Manufacturer | Pierre Guerin |
| Year Built | 1959 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 2 |
| Cylindrical length (mm) | 3500 |
| Slope bottom (°) | 10 |
| Height bottom (mm) | 150 |
| Total height (mm) | 4800 |
| Length (mm) | 2250 |
| Diameter tank (mm) | 2200 |
| Width (mm) | 2250 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

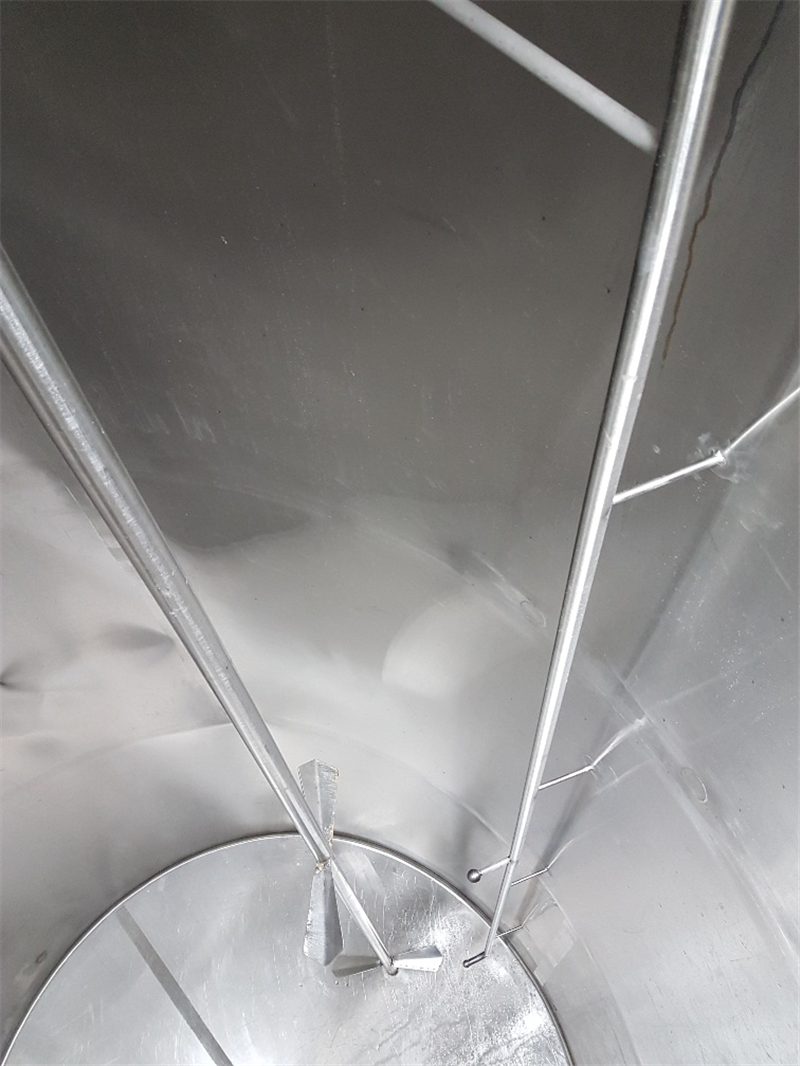

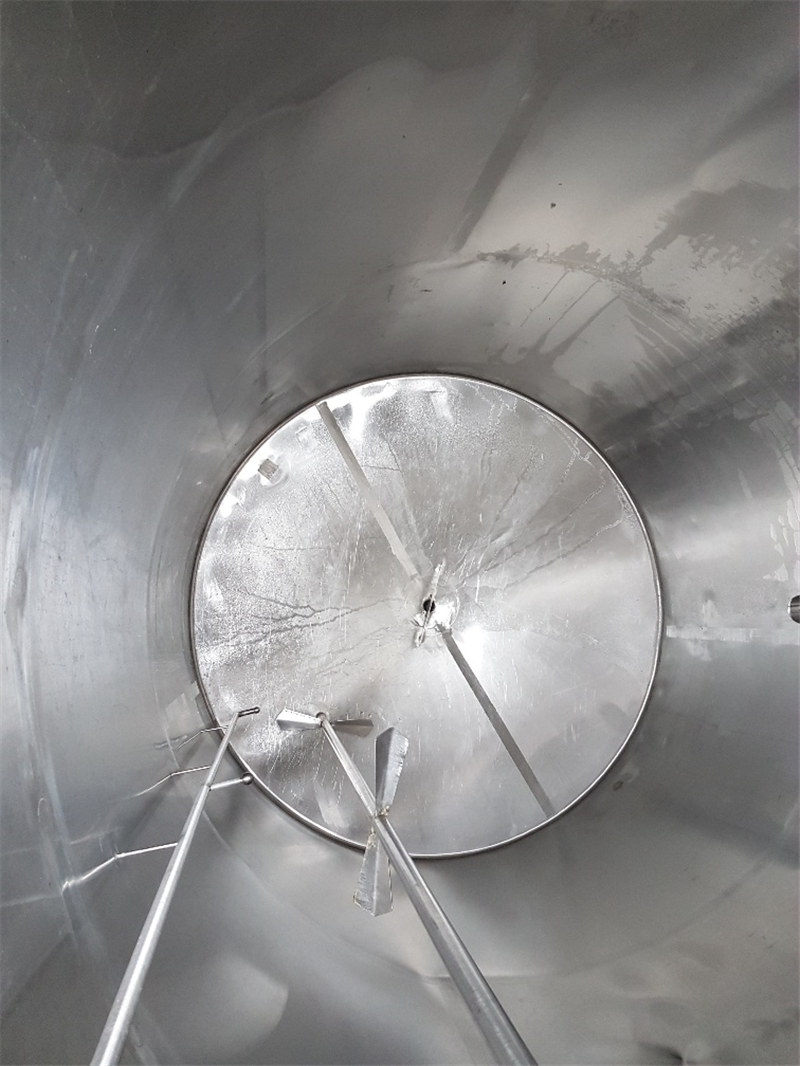

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 0,18 |

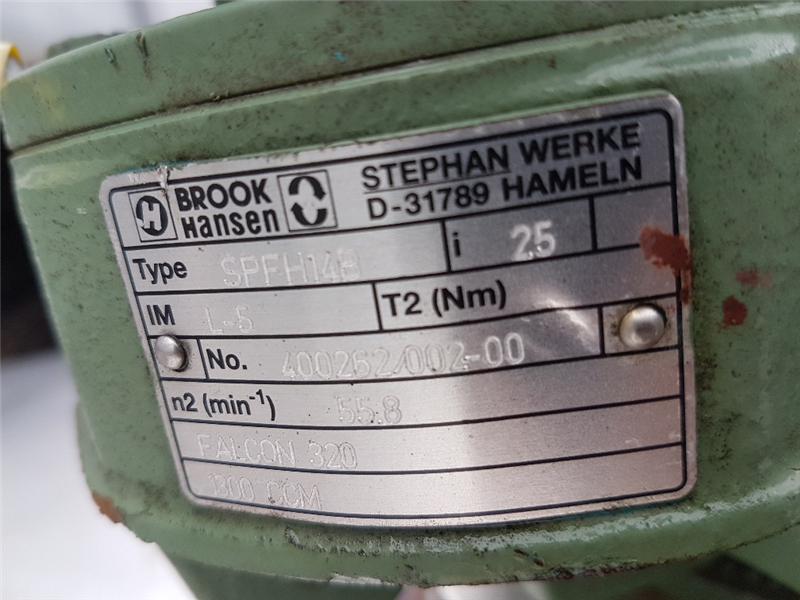

| Agitator 1: Drive Type | Reductor |
| Remarks | |
|---|---|

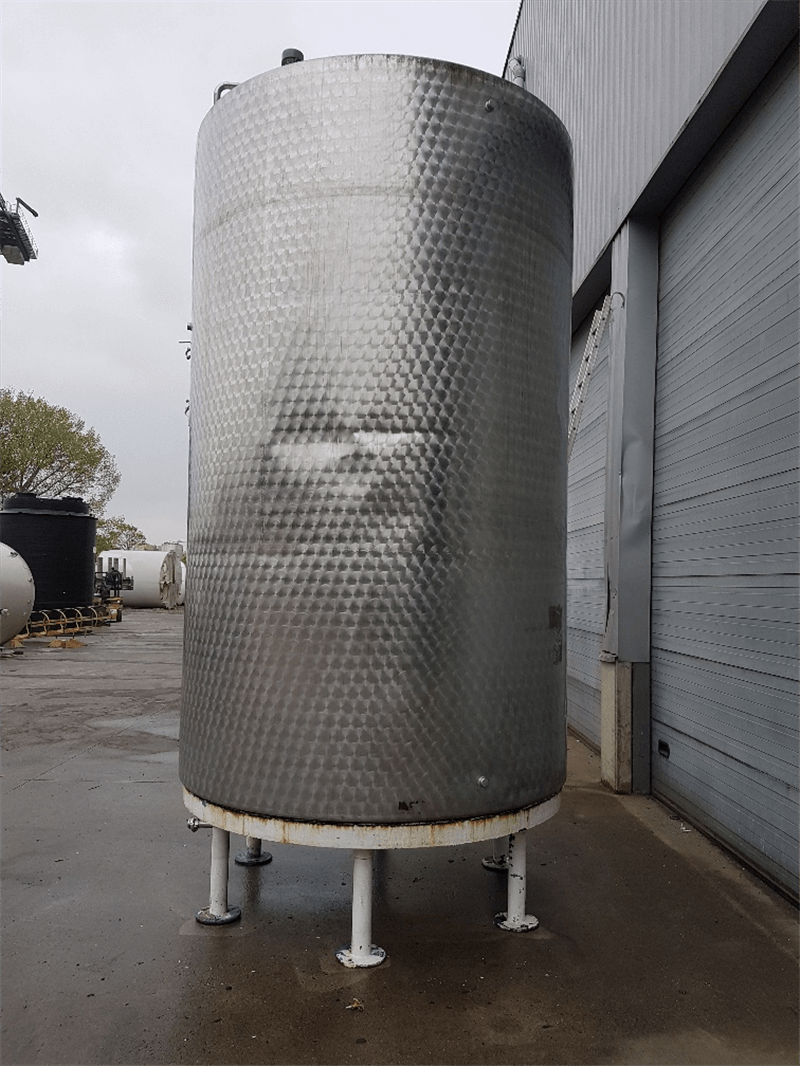

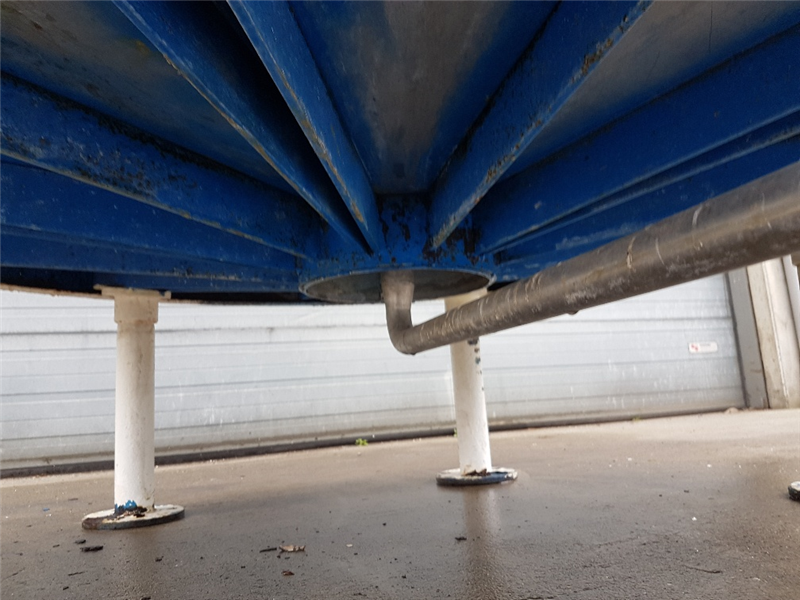

| Description (EN) | Tank rests on steel frame with 6 legs - length of legs 550 mm • Distance center outlet to ground 330 mm |
