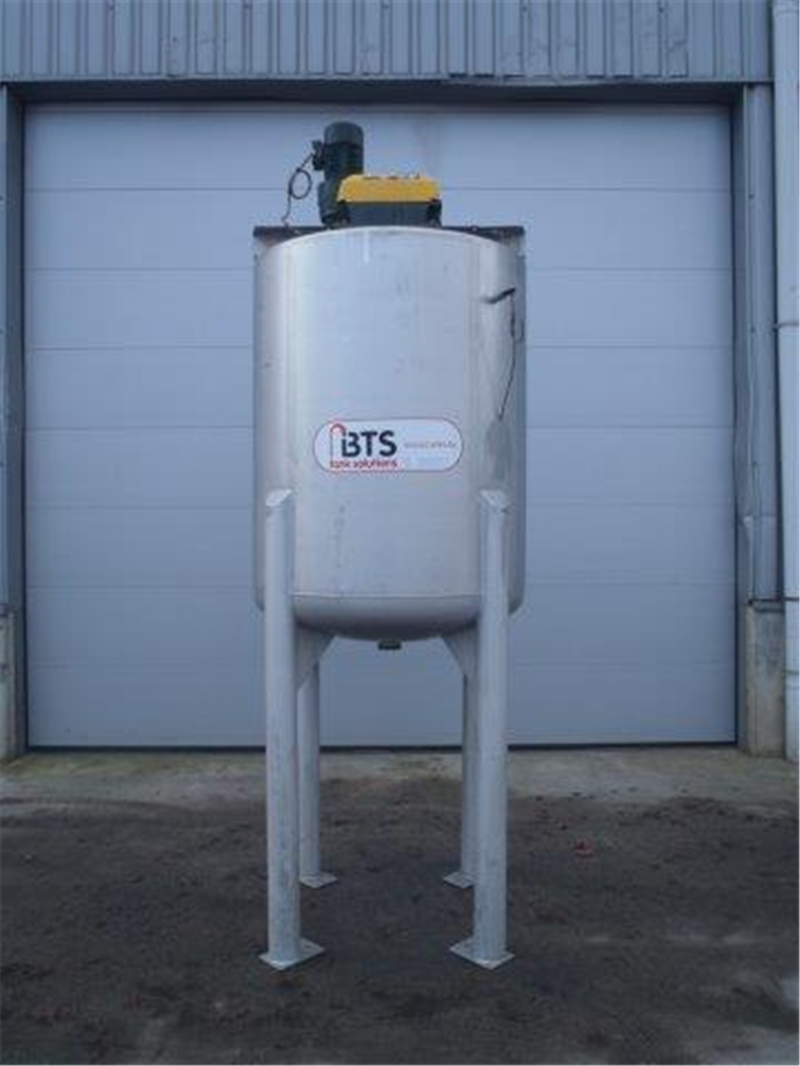

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1700 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.37.BL.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1700 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |

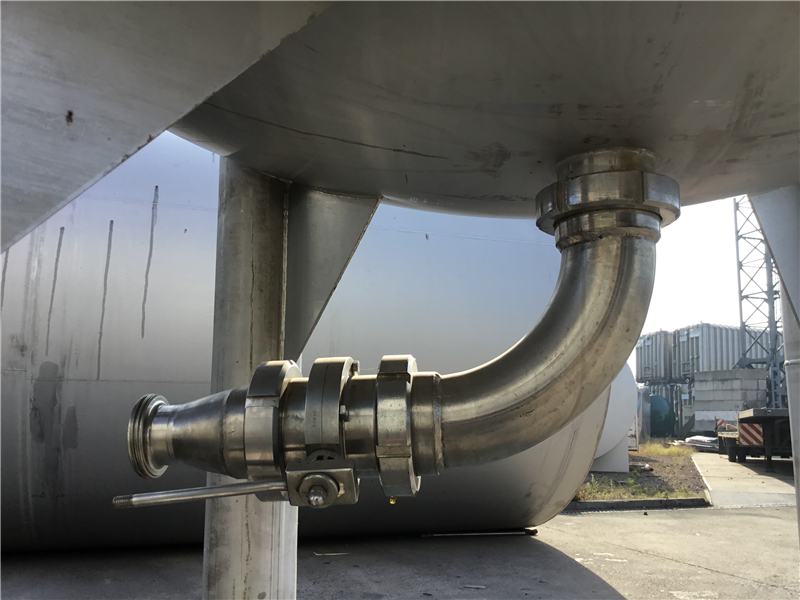

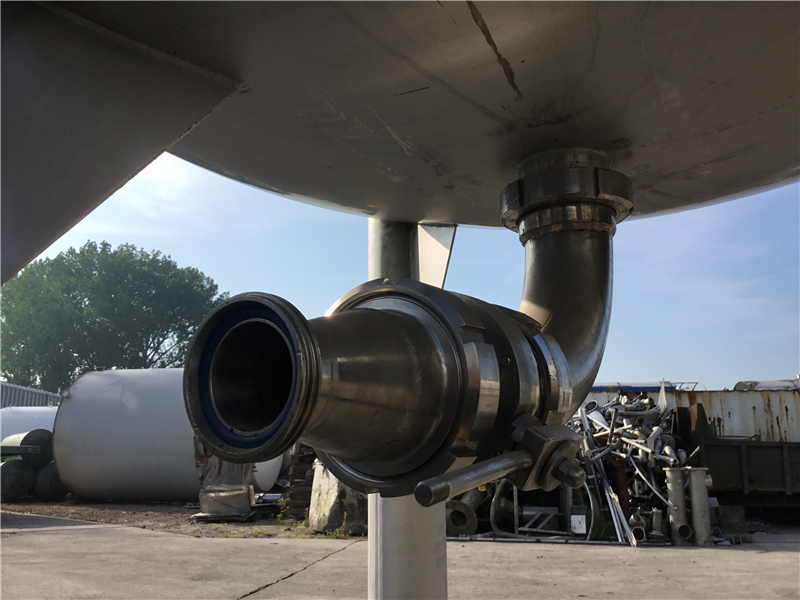

| Type of outlet (s) | Melkkoppeling NW50 |
| Diameter of outlet (mm) | 50mm |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 300 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0333BL07a.pdf |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Bottom thickness (mm) | 2,5 |
| Cylindrical length (mm) | 1390 |
| Height bottom (mm) | 250 |
| Total height (mm) | 3510 |
| Diameter tank (mm) | 1200 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

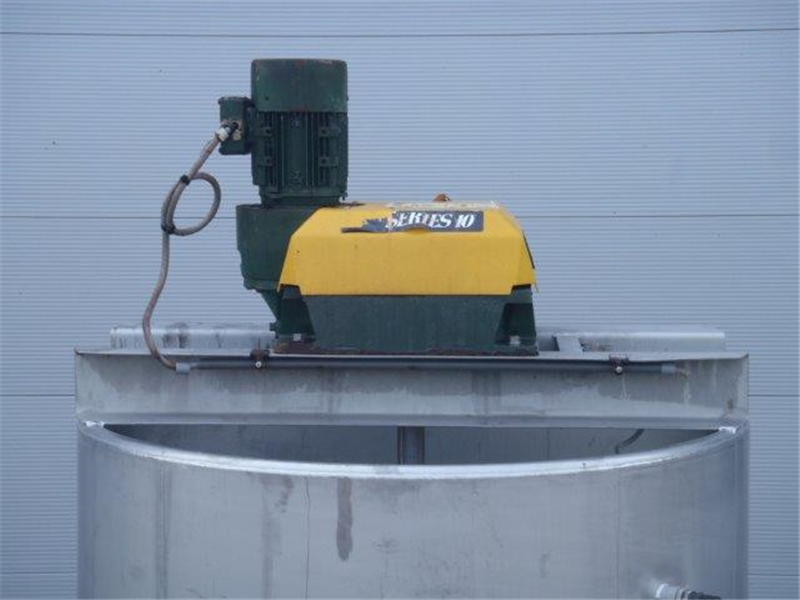

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |

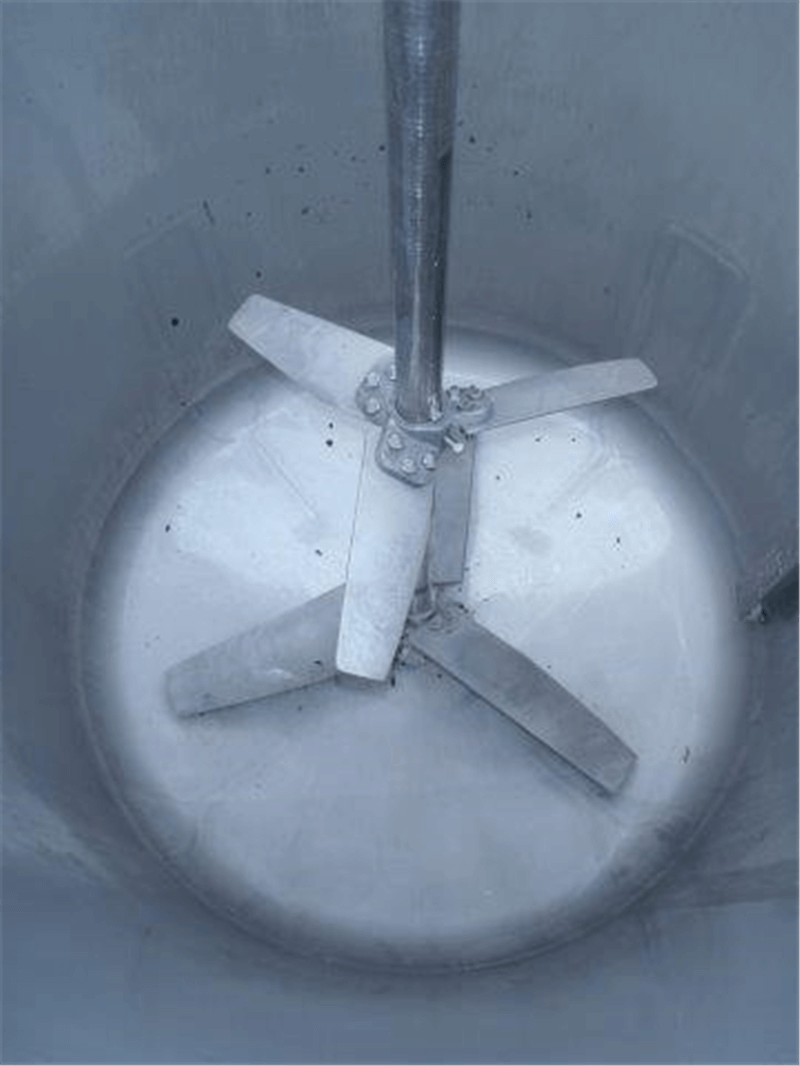

| Agitator 1: stirring element type | Propeller |

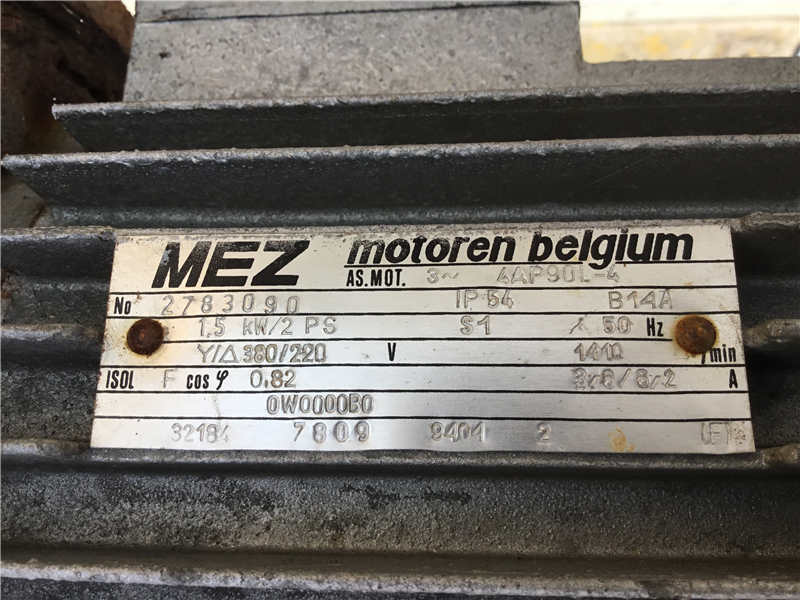

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 1,2 |

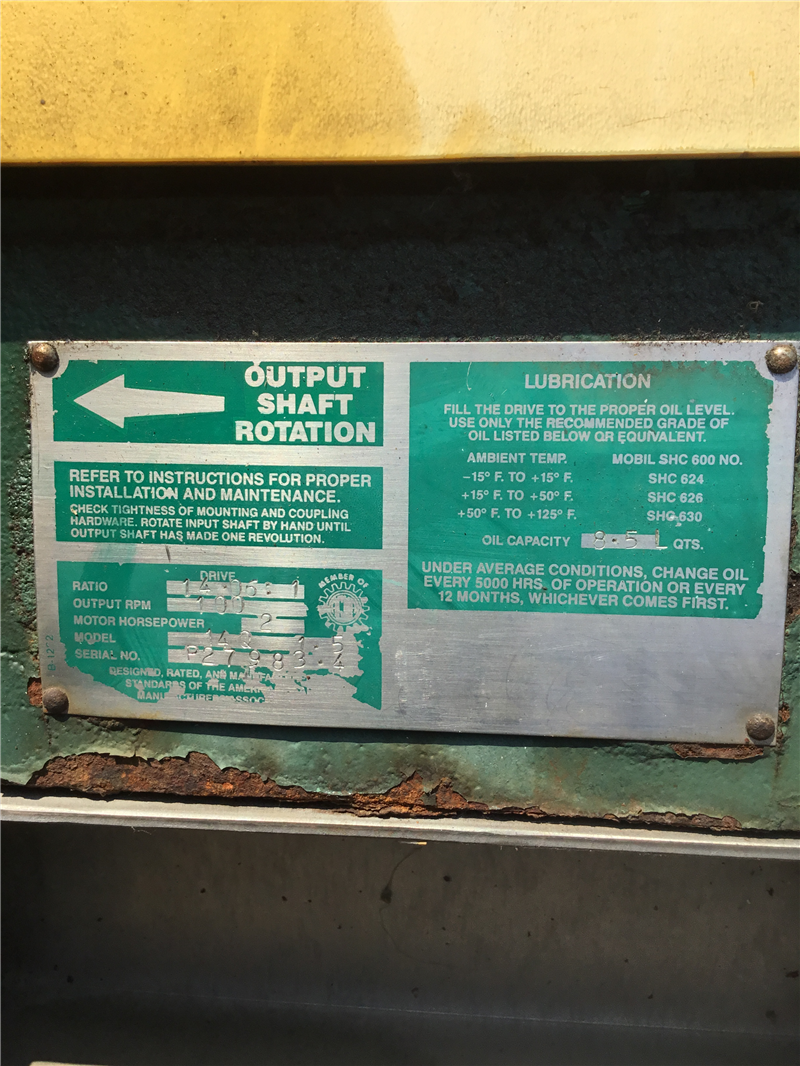

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 100 |
