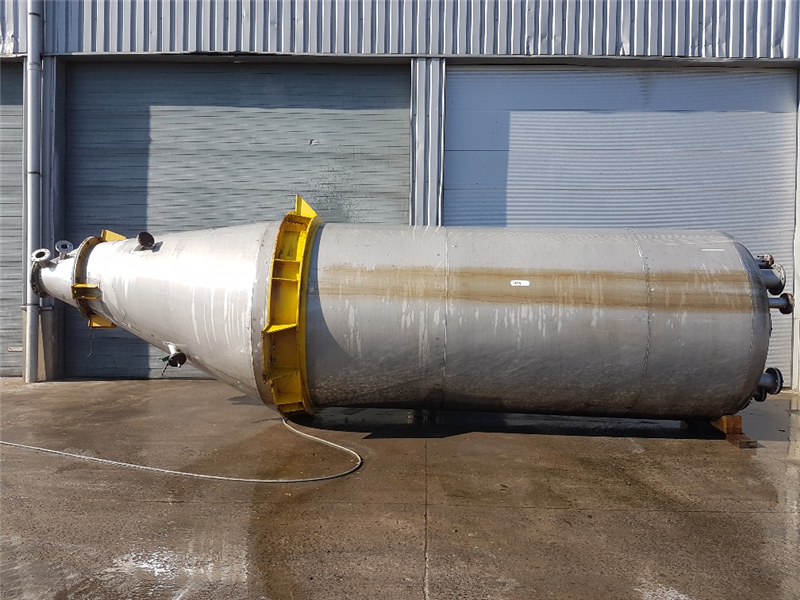

Used silo
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 23000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.37.BH.03 |
| Material | Stainless steel 304 |

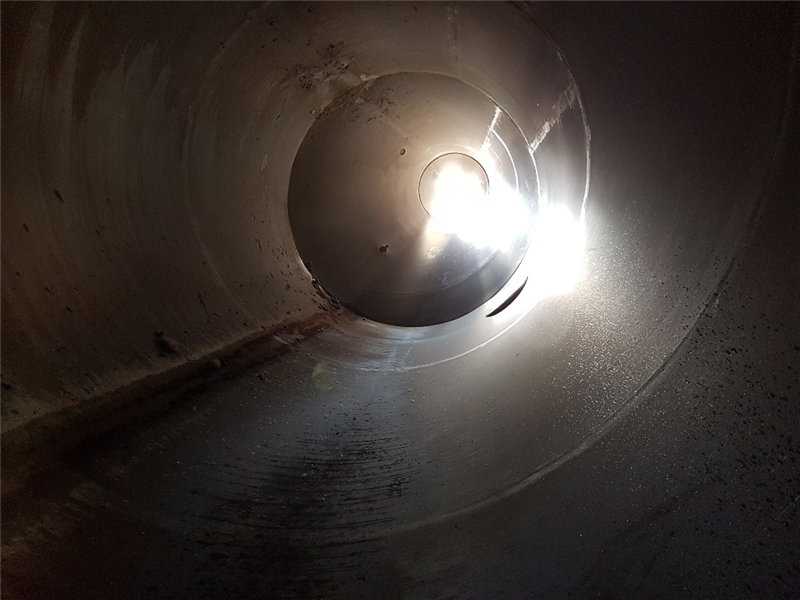

| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 23000 |
| Type tank | Silo |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

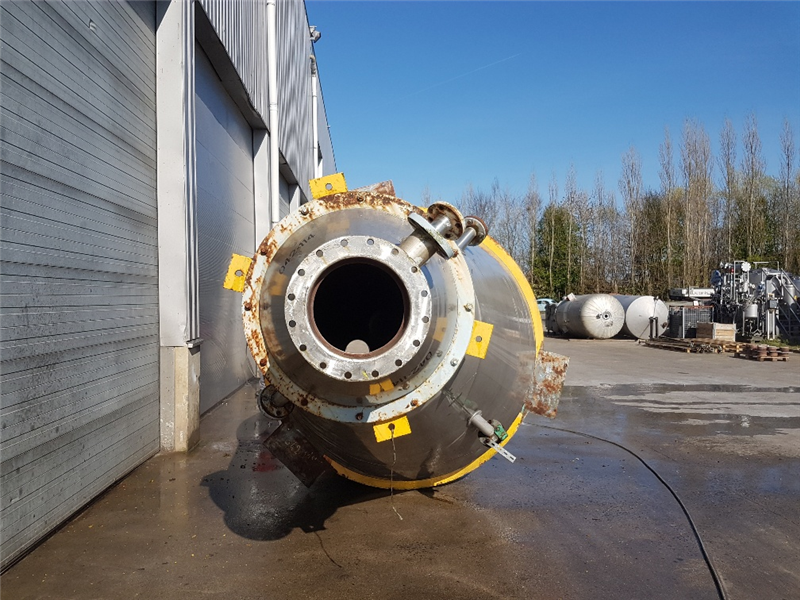

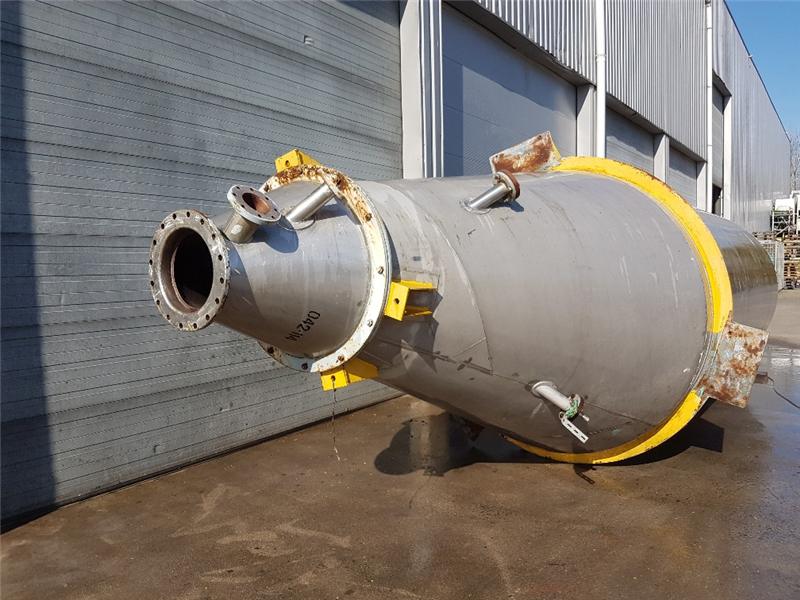

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | Ø500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens |
| Diameter of outlet (mm) | 410 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 3700 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | Honore |
| Year Built | 1989 |
| Construction data available | No |
| Drawing 1 | t0337BH03.pdf |

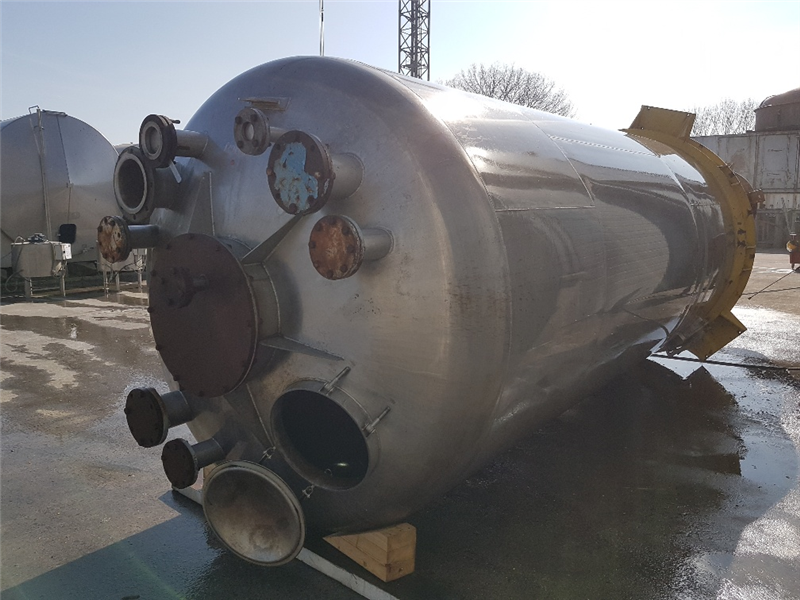

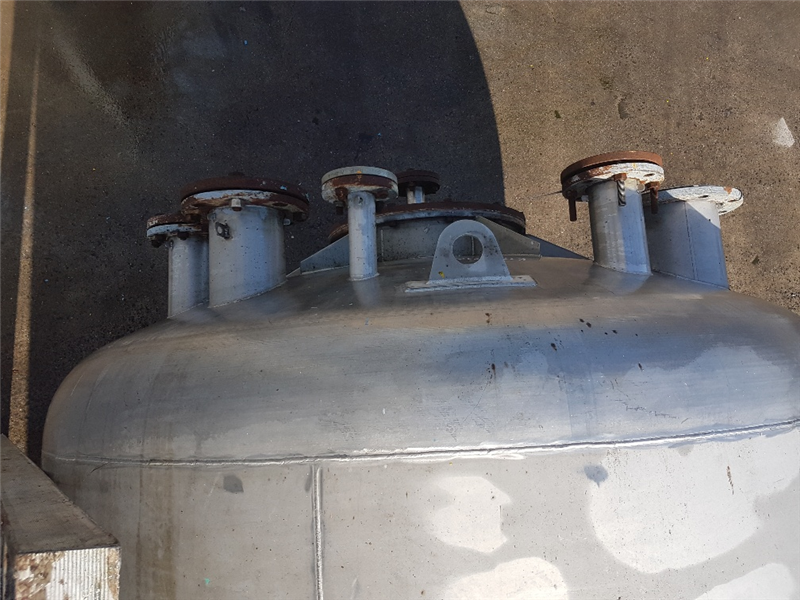

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 7130 |
| Cylindrical length (mm) | 4900 |
| Slope bottom (°) | 20 |
| Height bottom (mm) | 2870 |
| Total height (mm) | 8295 |
| Length (mm) | 3000 |
| Diameter tank (mm) | 2185 |
| Width (mm) | 3000 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

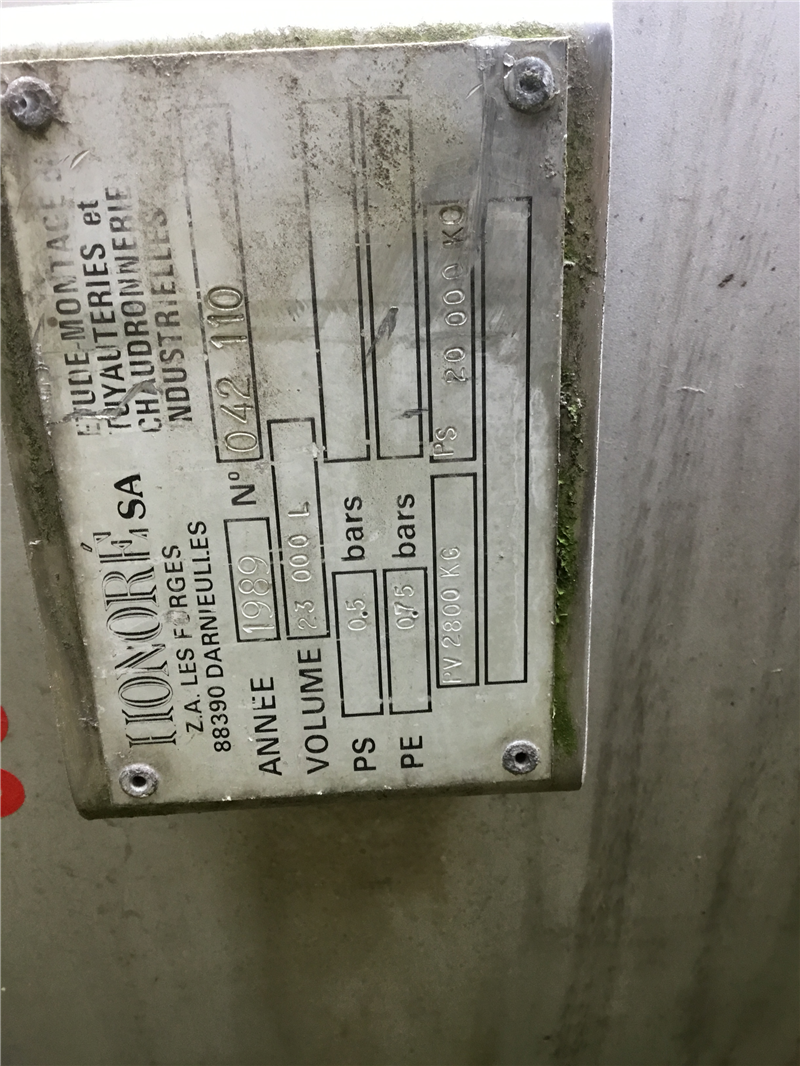

| Description (EN) | At the top of the roof a reinforced flange for mounting on agitator • Type plate: Nj 1989 - N ° 042110 - Ps 0,5bar - Pe 0,75bar |
