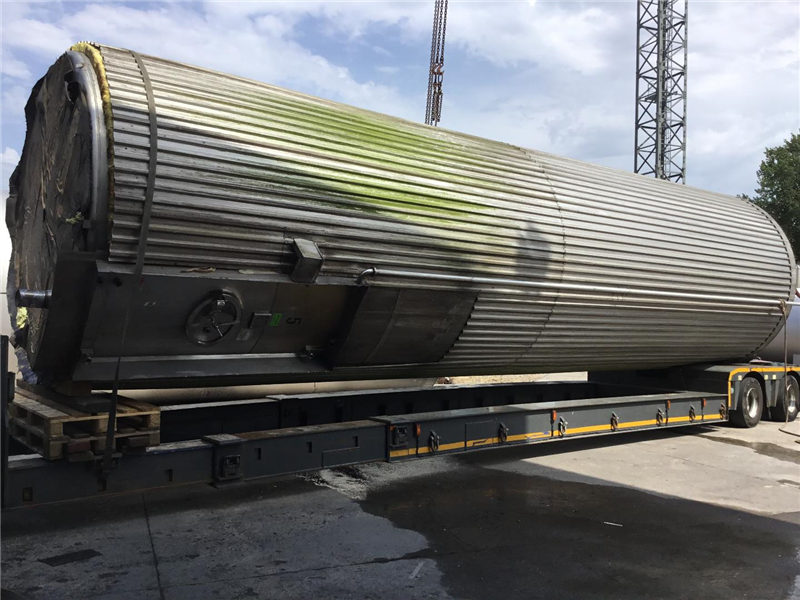

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 60000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.37.AP.01 |
| Material | Stainless steel 304 |

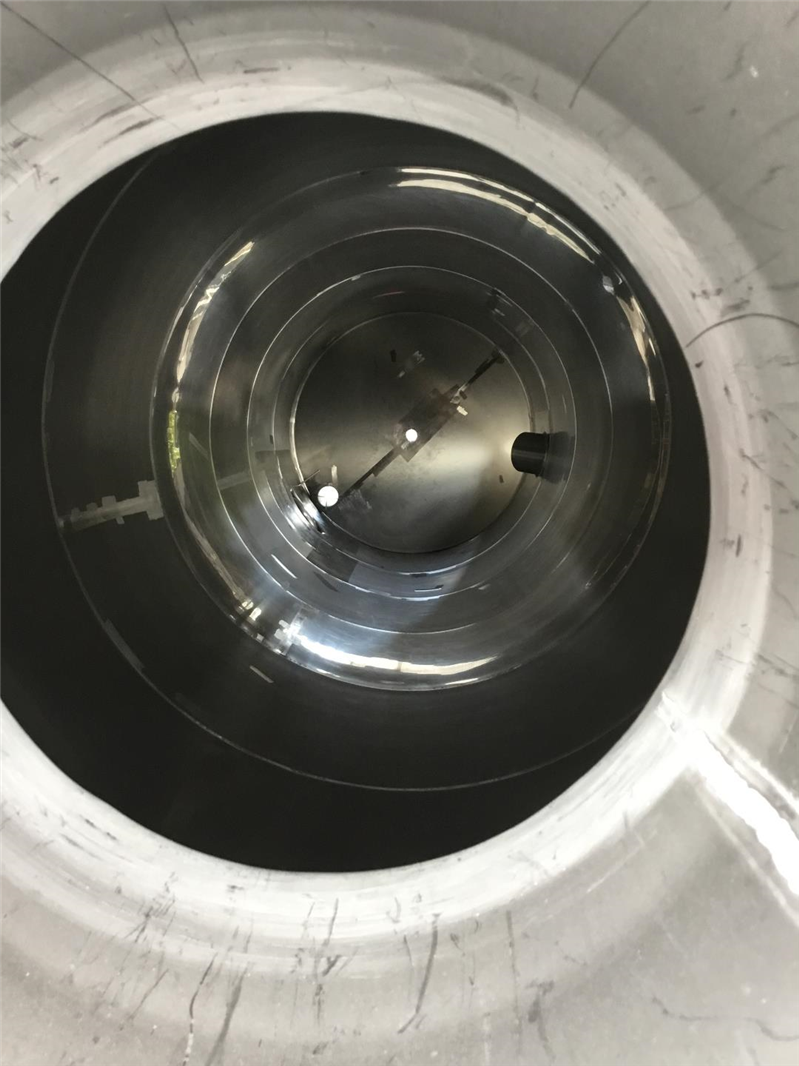

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 60000 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

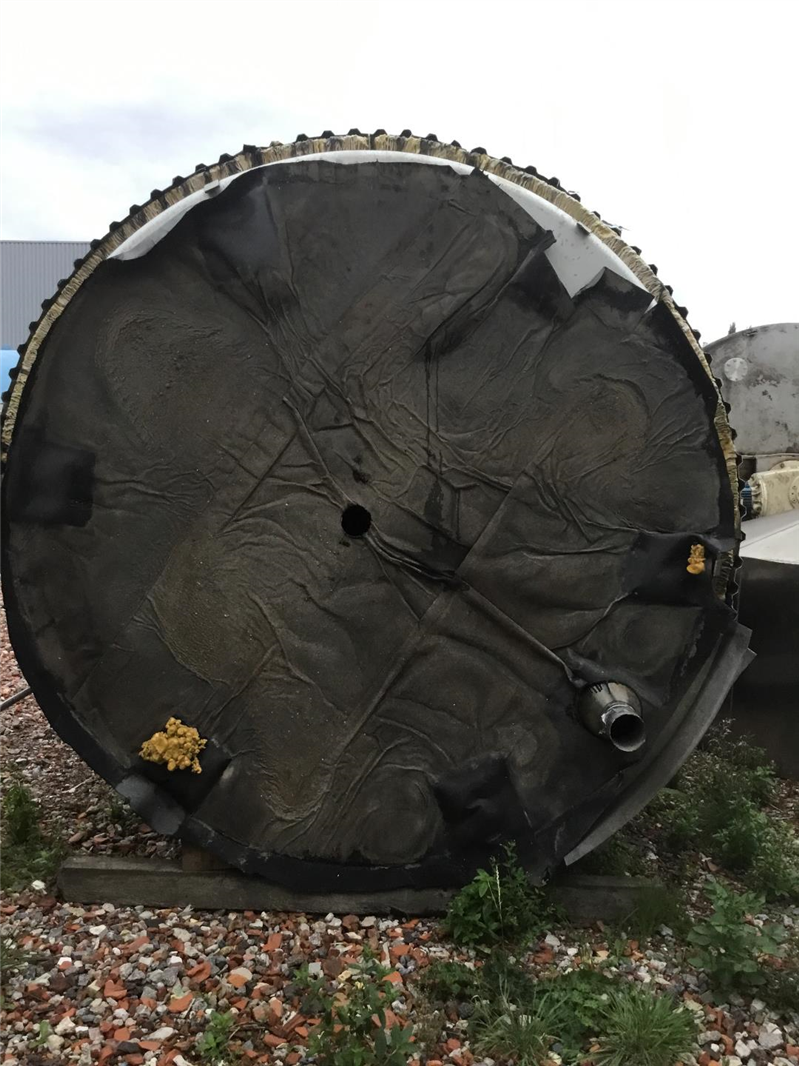

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |
| Density (kg/dm³) | 1,2 |

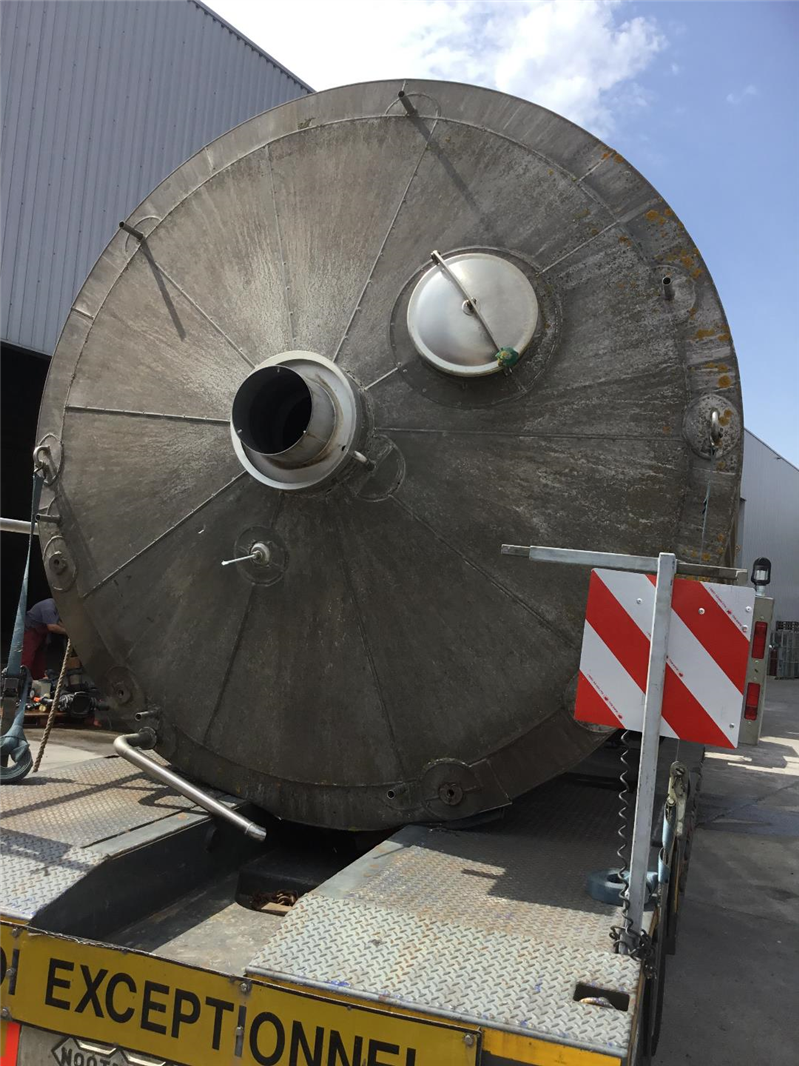

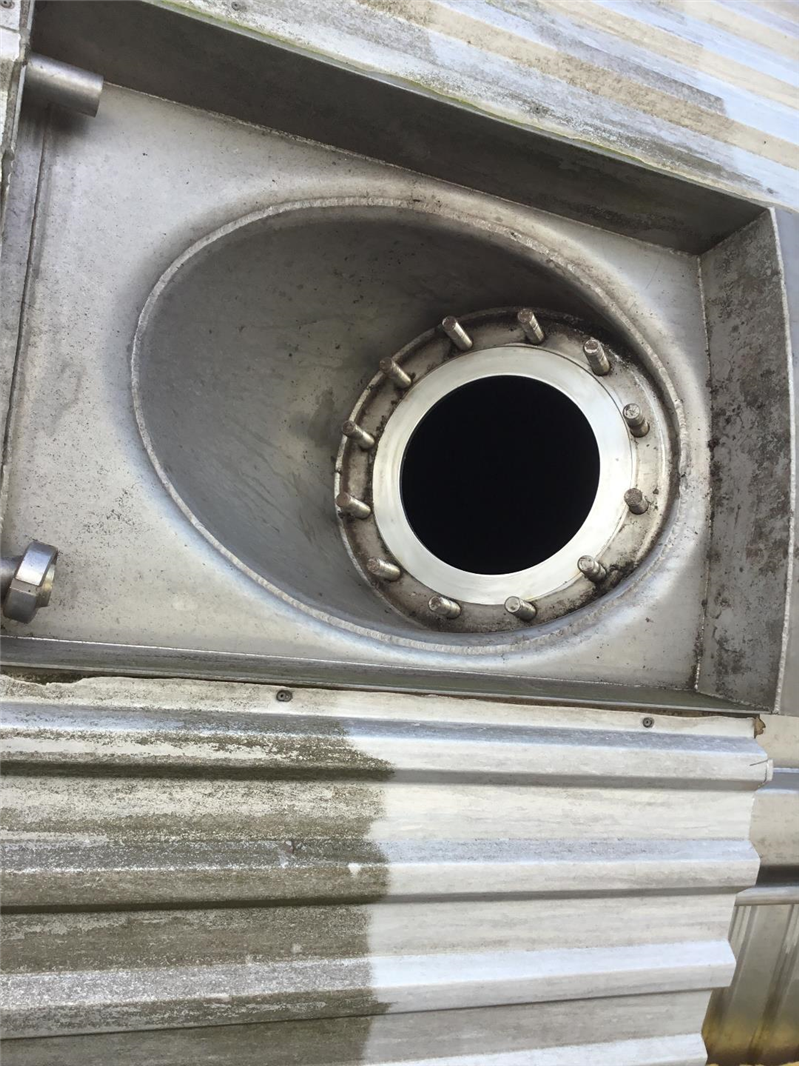

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | Ø436mm |
| Tank with total drain? | Yes |

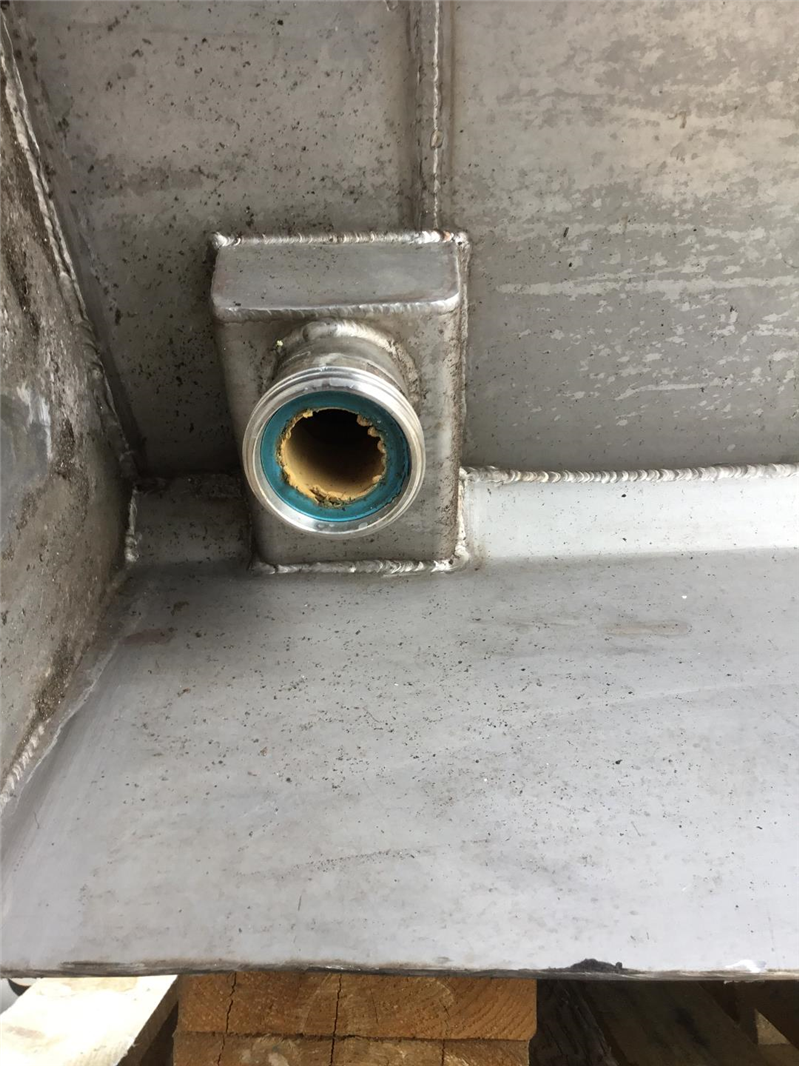

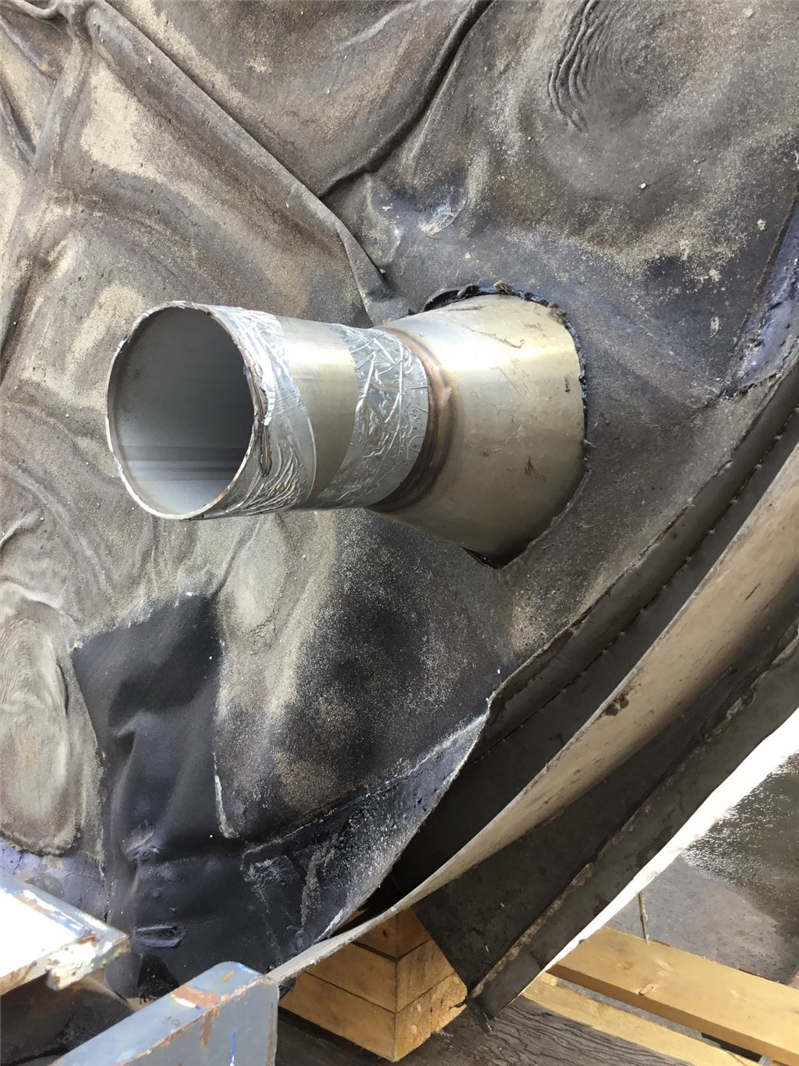

| Type of outlet (s) | Gat |
| Diameter of outlet (mm) | 254 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 3200 |
| Condition | Used |

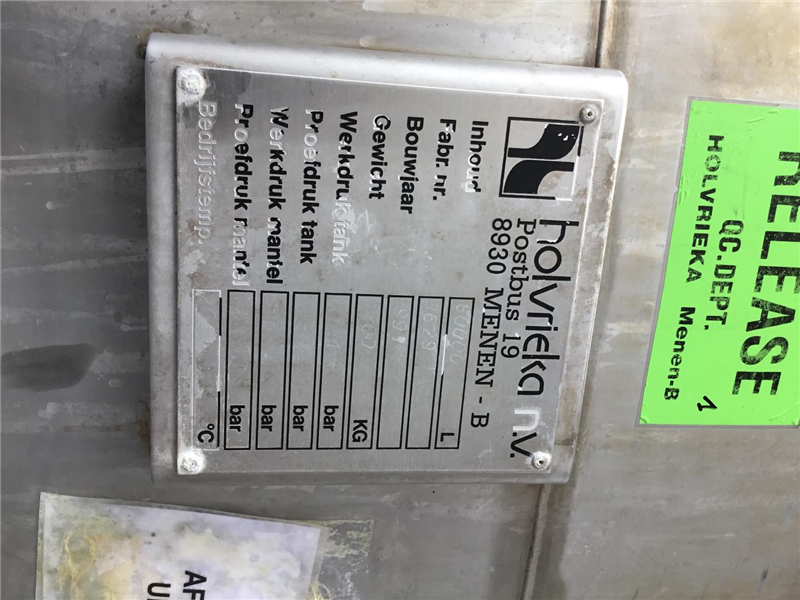

| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka |
| Year Built | 1993 |
| Construction data available | No |
| Working temperature (° C) | 20 |

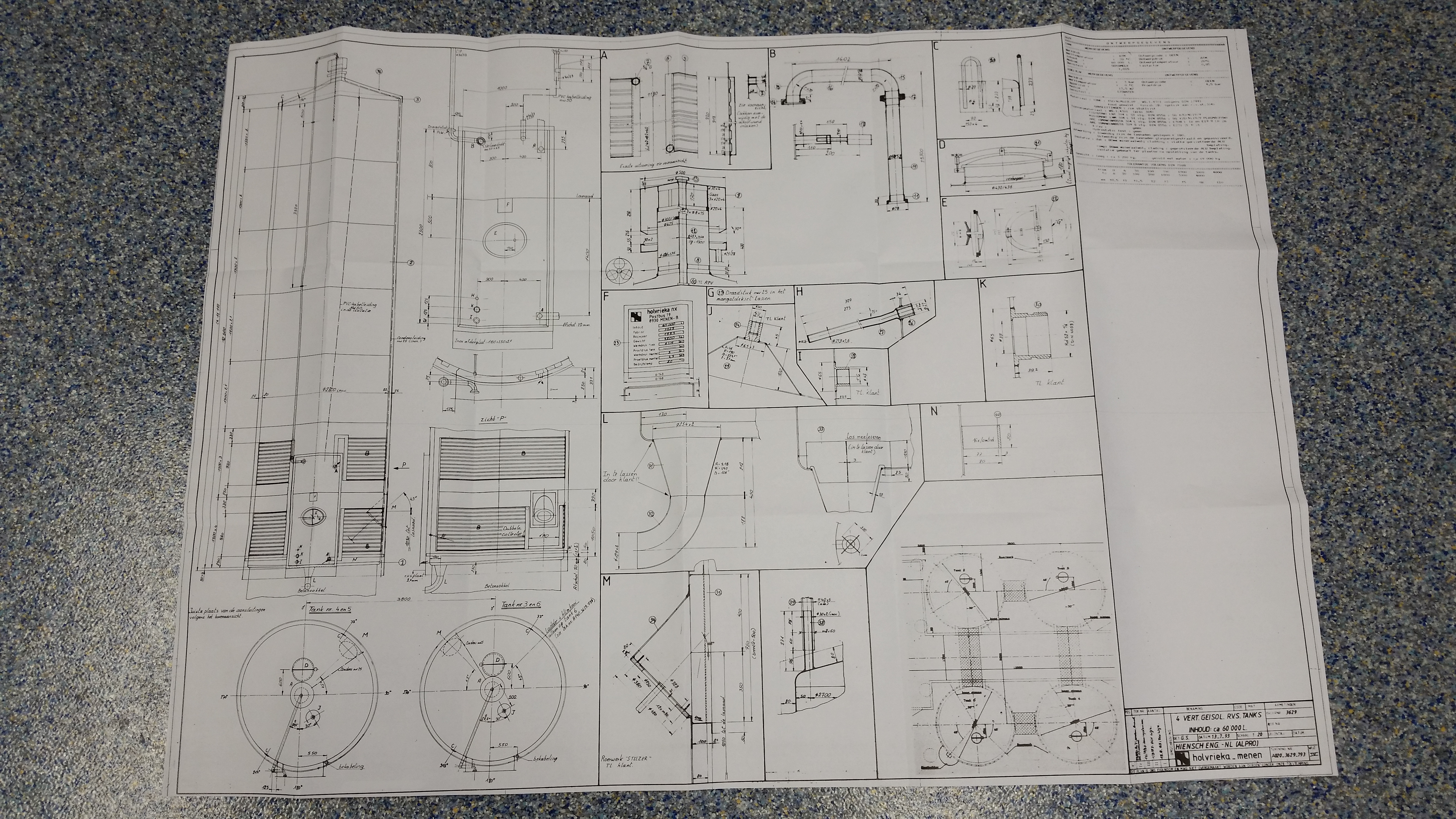

| Appendix 1 | t0337AP01_Tekening.jpg |
| Top side | |
|---|---|
| Configuration top-side | Closed |

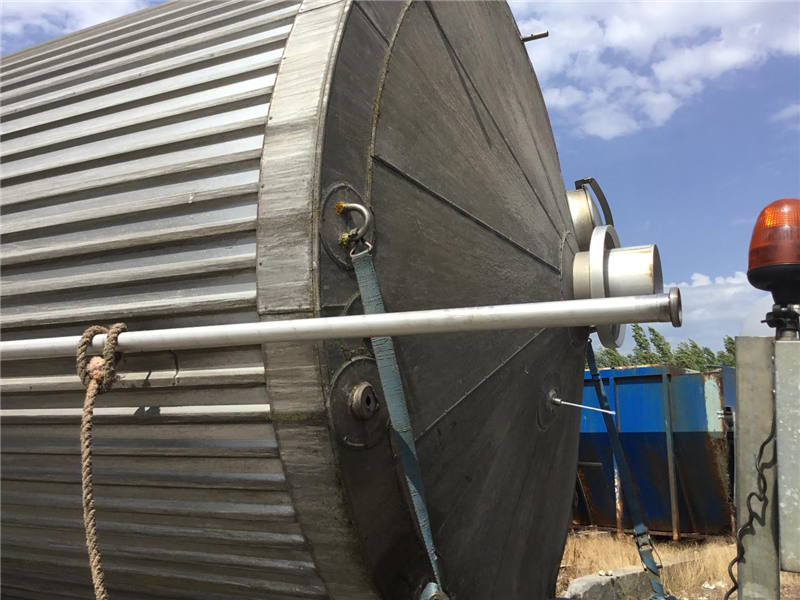

| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 4 |
| Cylindrical length (mm) | 10500 |
| Outside diameter tank (mm) | 3010 |
| Total height (mm) | 11110 |
| Diameter tank (mm) | 2800 |

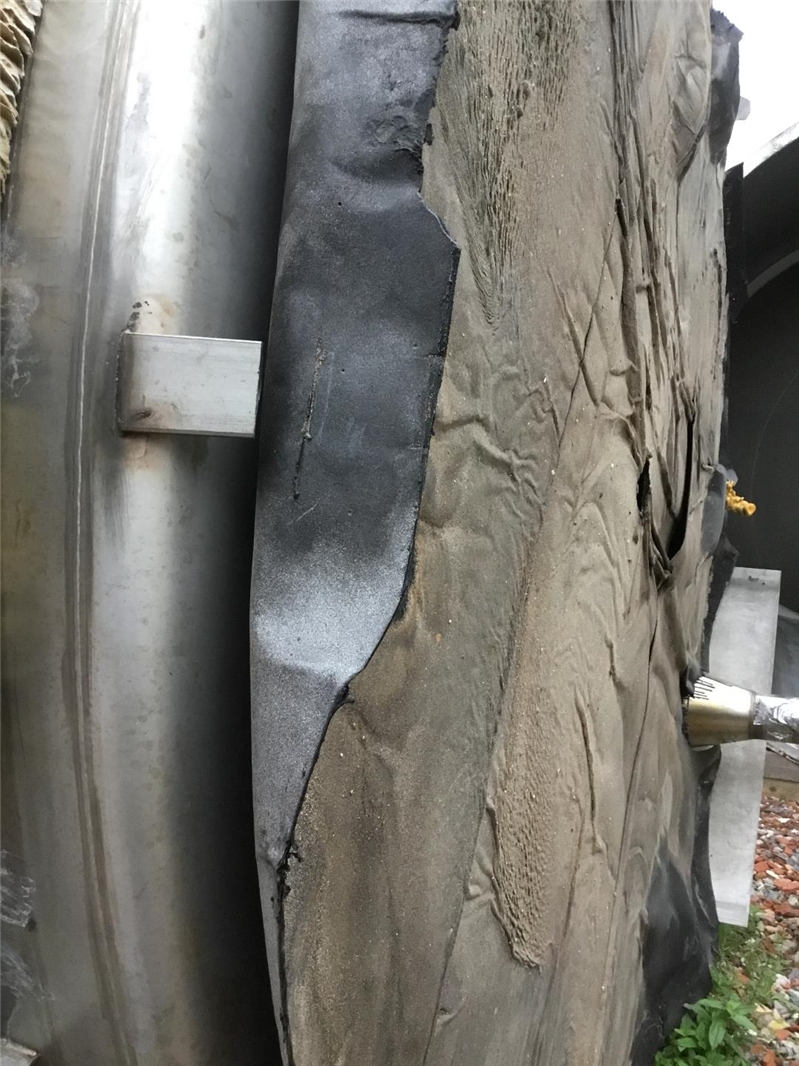

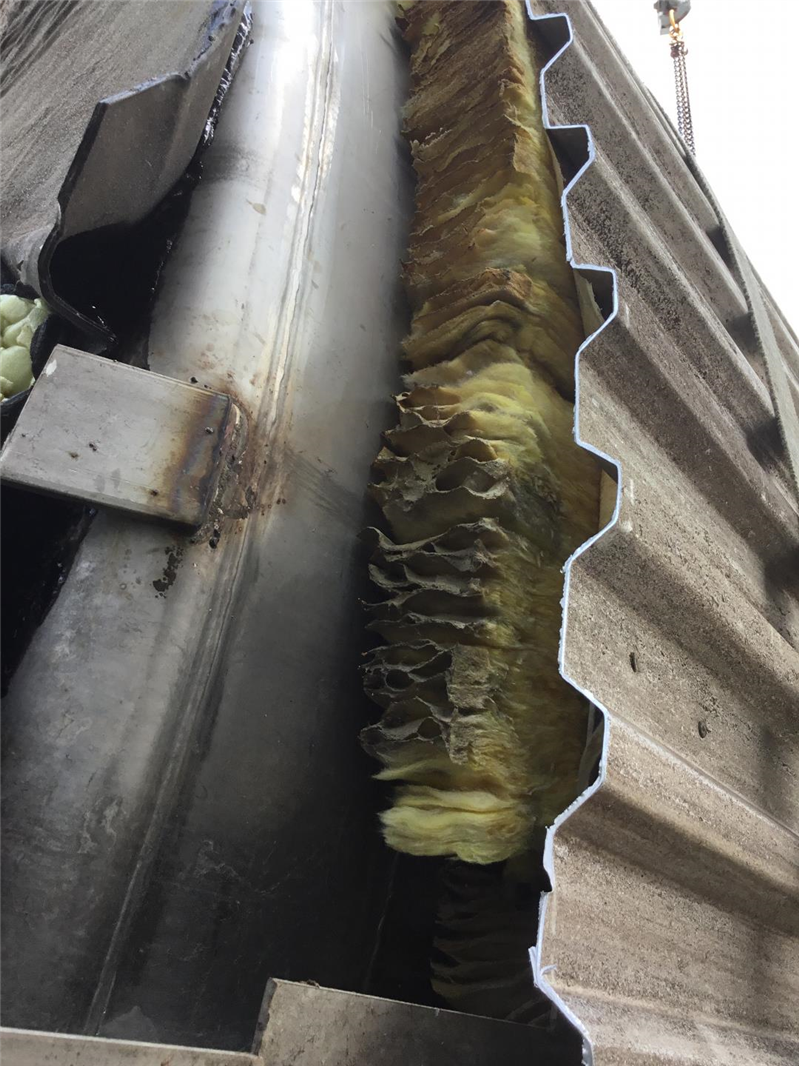

| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 80 |
| Finishing insulation | Profile Cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Halfpipe |
| Heating 1: Max. service pressure | 3 |
| Heating 1: Max. test pressure | 4,5 |
