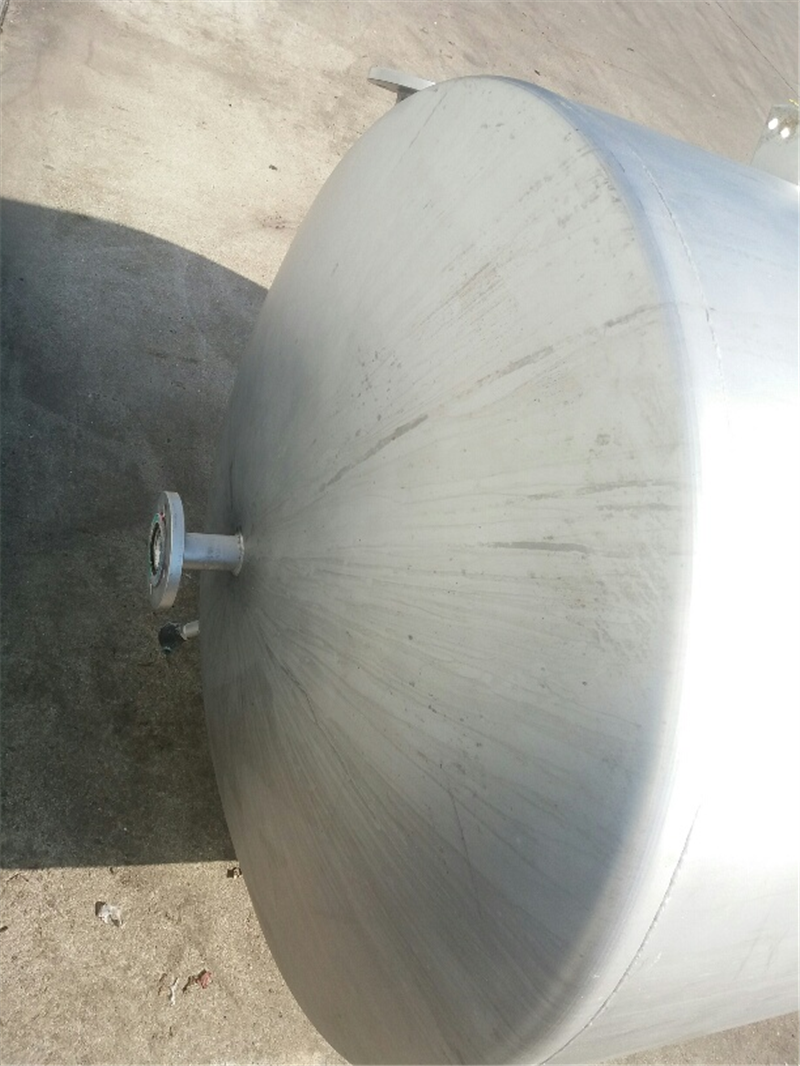

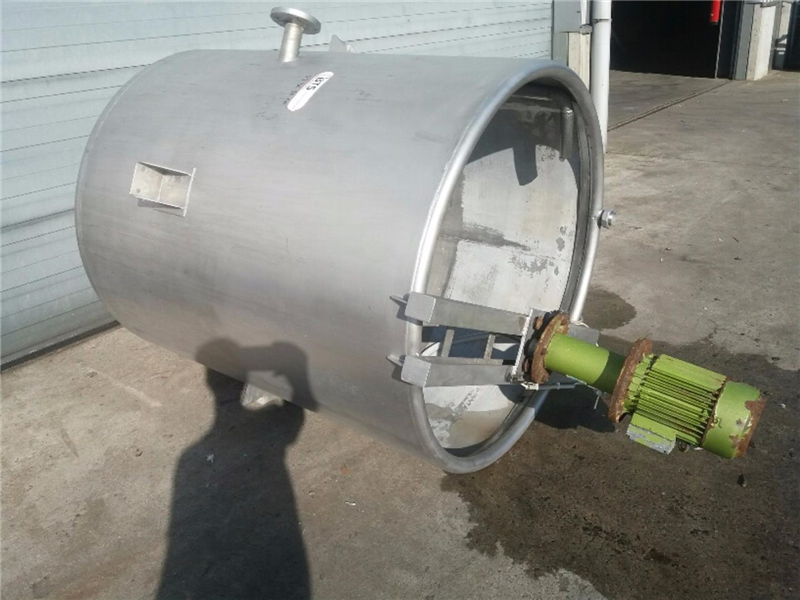

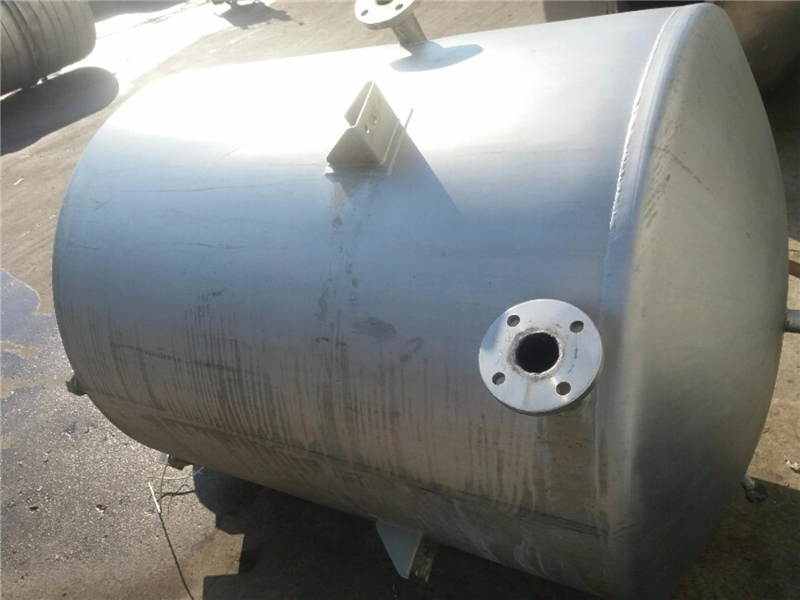

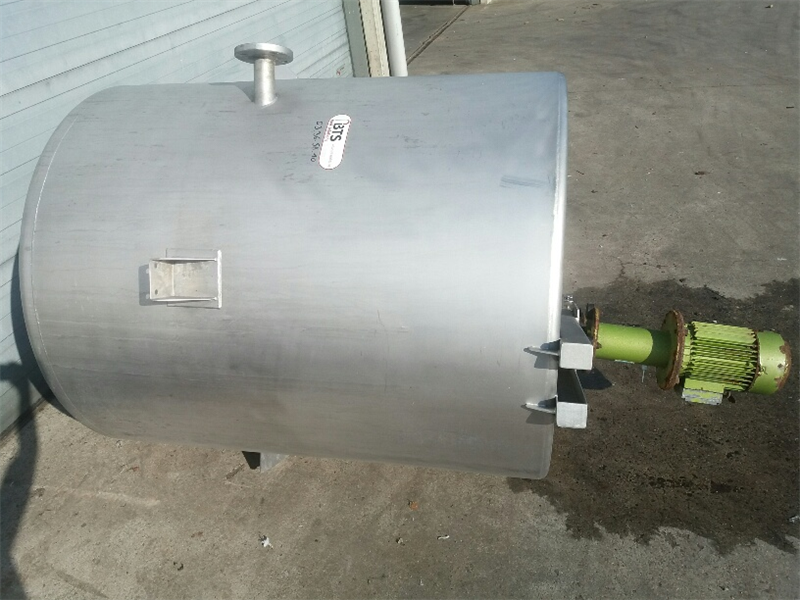

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 1800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.SA.10 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1800 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flensaansluiting DN40 |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Provision tank cleaning | Spray tube (top) |
| Weight (kg) | 150 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0336SA10.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,3 |
| Cylindrical length (mm) | 1400 |
| Height bottom (mm) | 220 |
| Total height (mm) | 2500 |
| Diameter tank (mm) | 1280 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

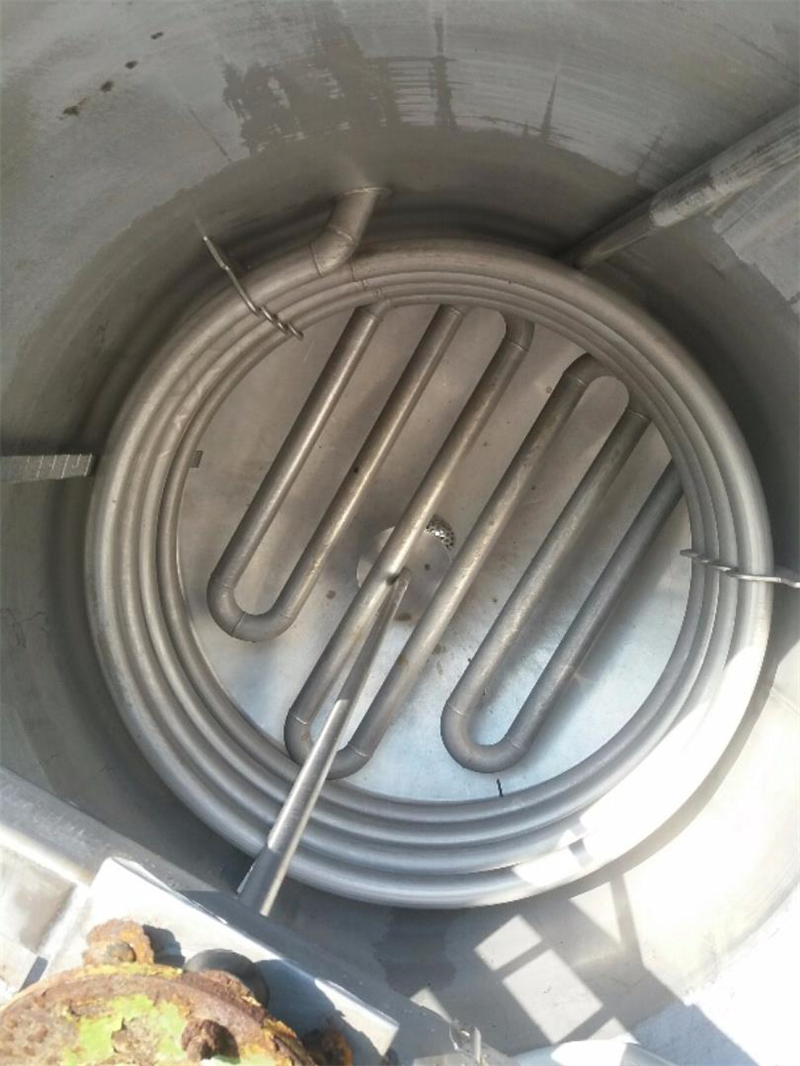

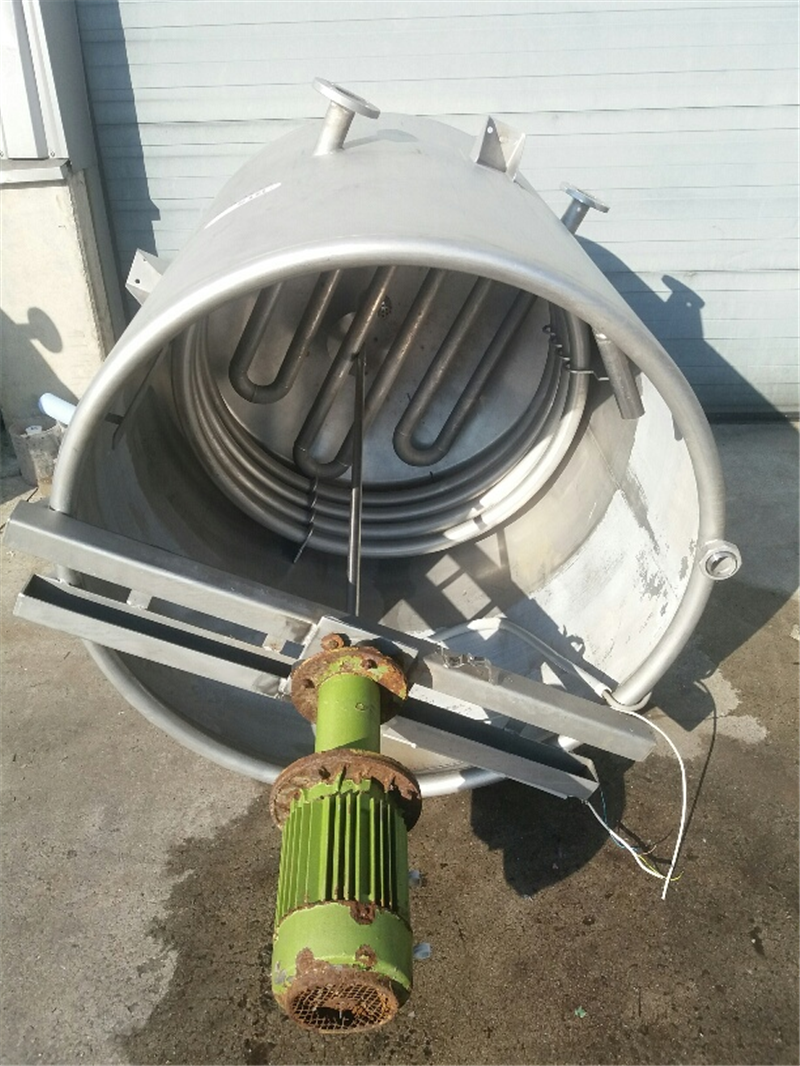

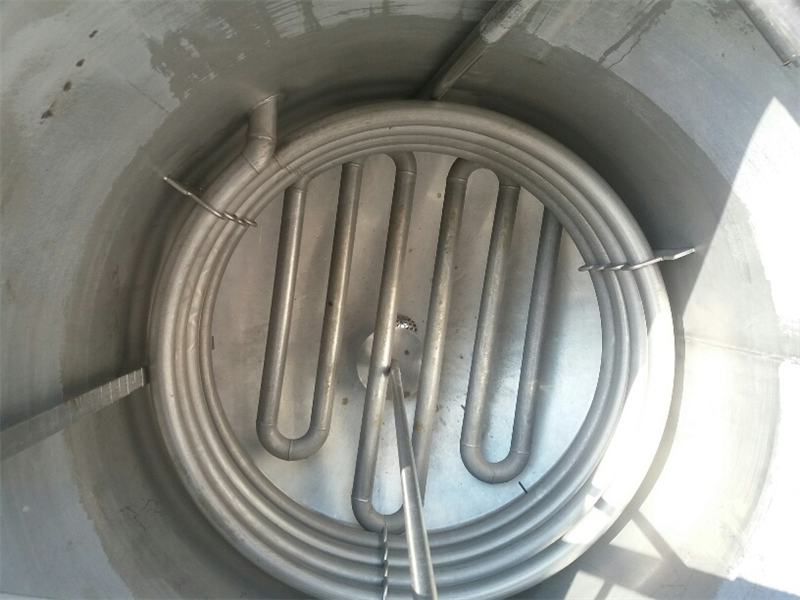

| Heating 1: Type | Heating coil only on the bottom |
| Agitators | |
|---|---|
| Number of agitators | 1 |

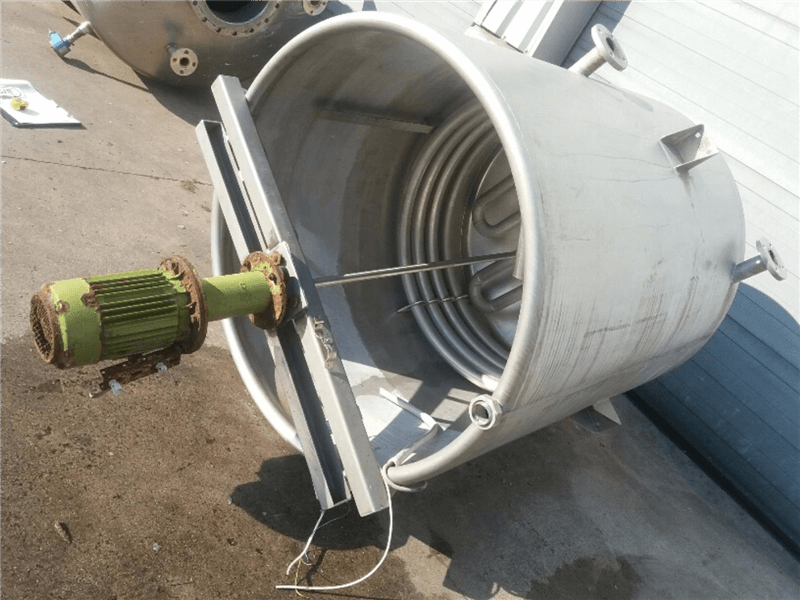

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 316 |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Drive Type | Direct |
