Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 3000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.RB.13 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 3000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

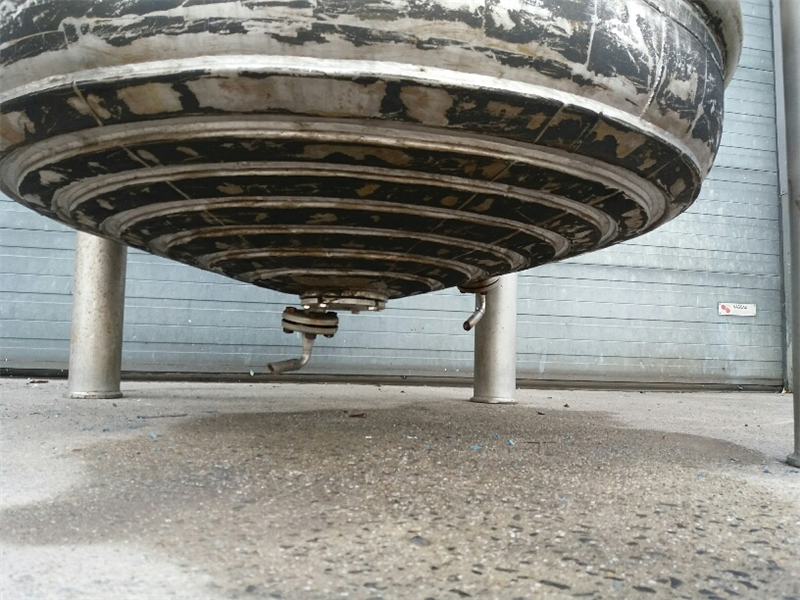

| Bottom | Dished bottom |
| Tank model | Single wall |

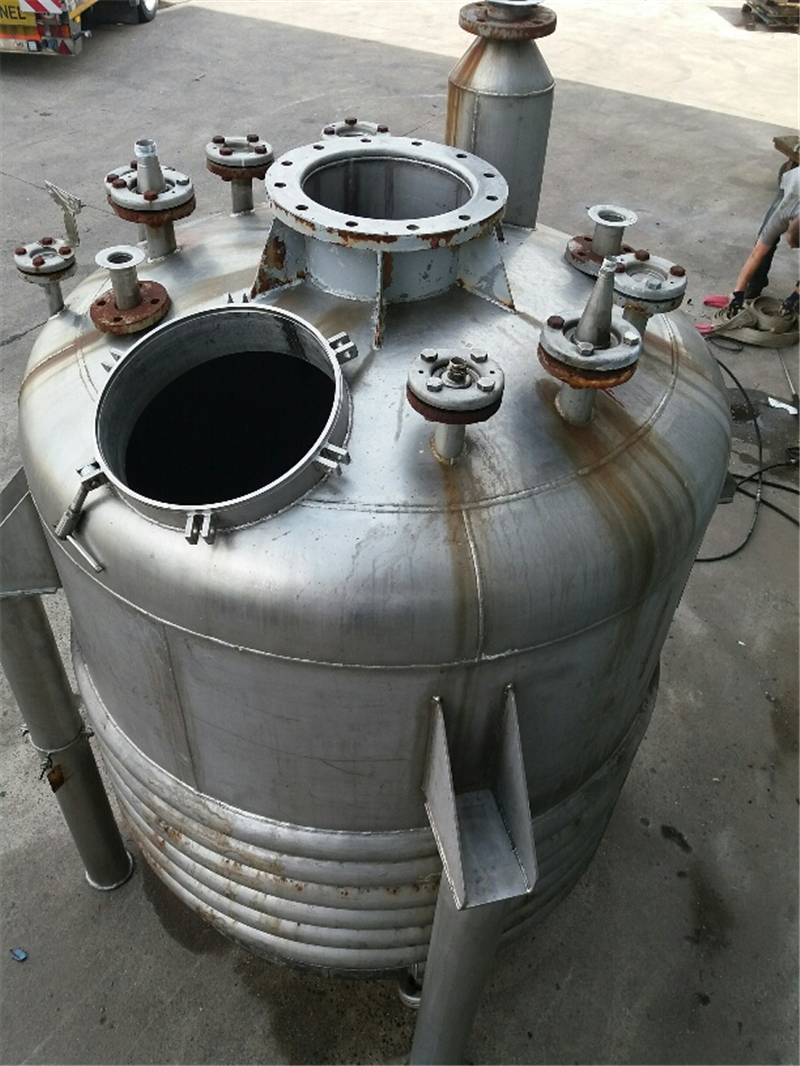

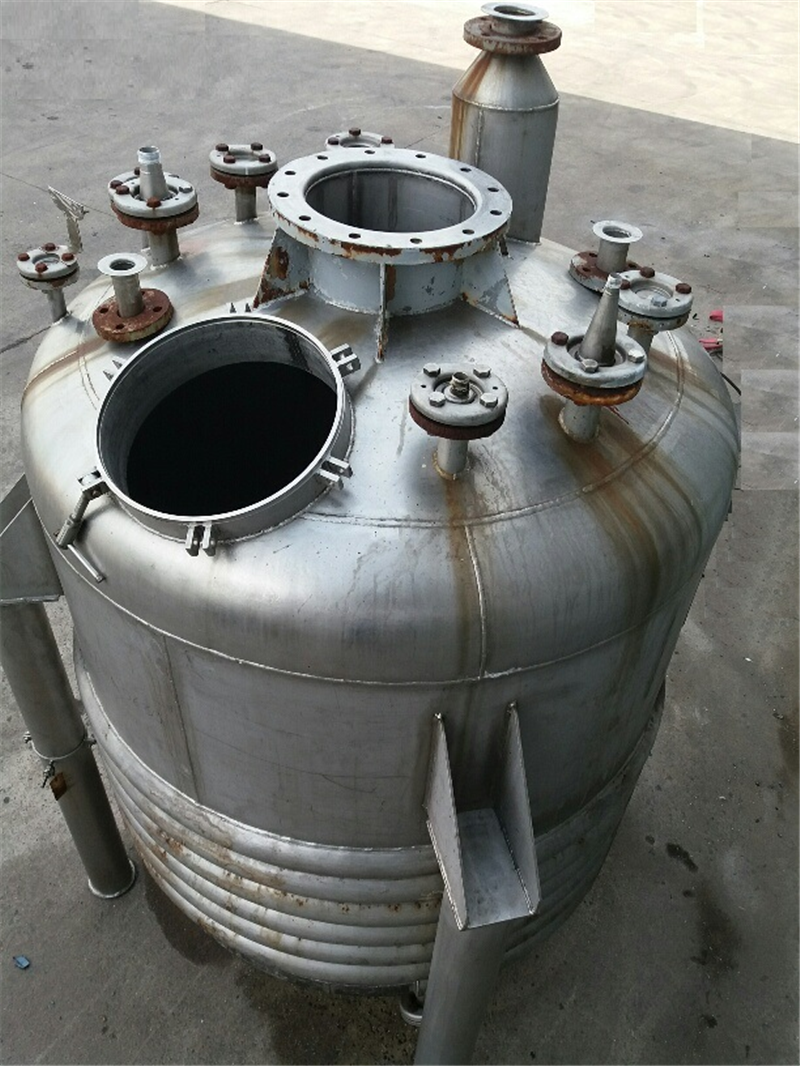

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø400mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens DN25 |
| Diameter of outlet (mm) | 33 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Total height (mm) | 2700 |
| Length (mm) | 1650 |
| Diameter tank (mm) | 1500 |
| Width (mm) | 1650 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

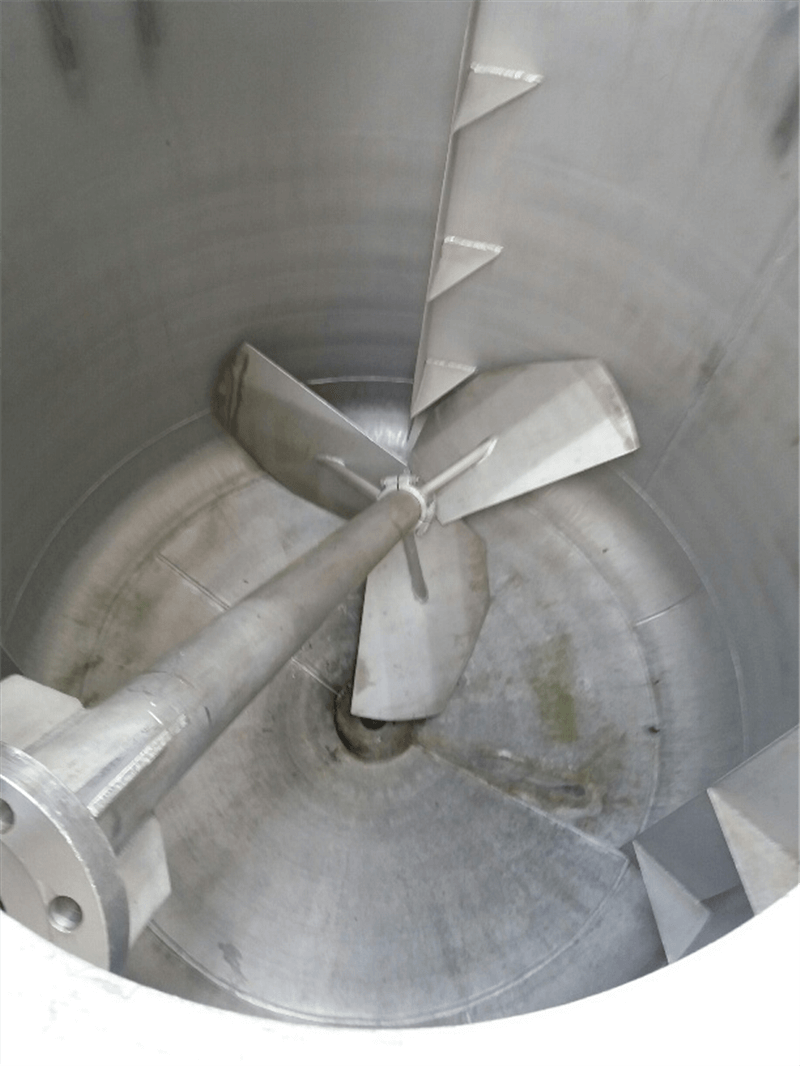

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 3 |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Propeller |
