Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 12000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.MM.01 |
| Material | Stainless steel 316 |
| Number | 1 |
| Capacity (Liters) | 12000 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

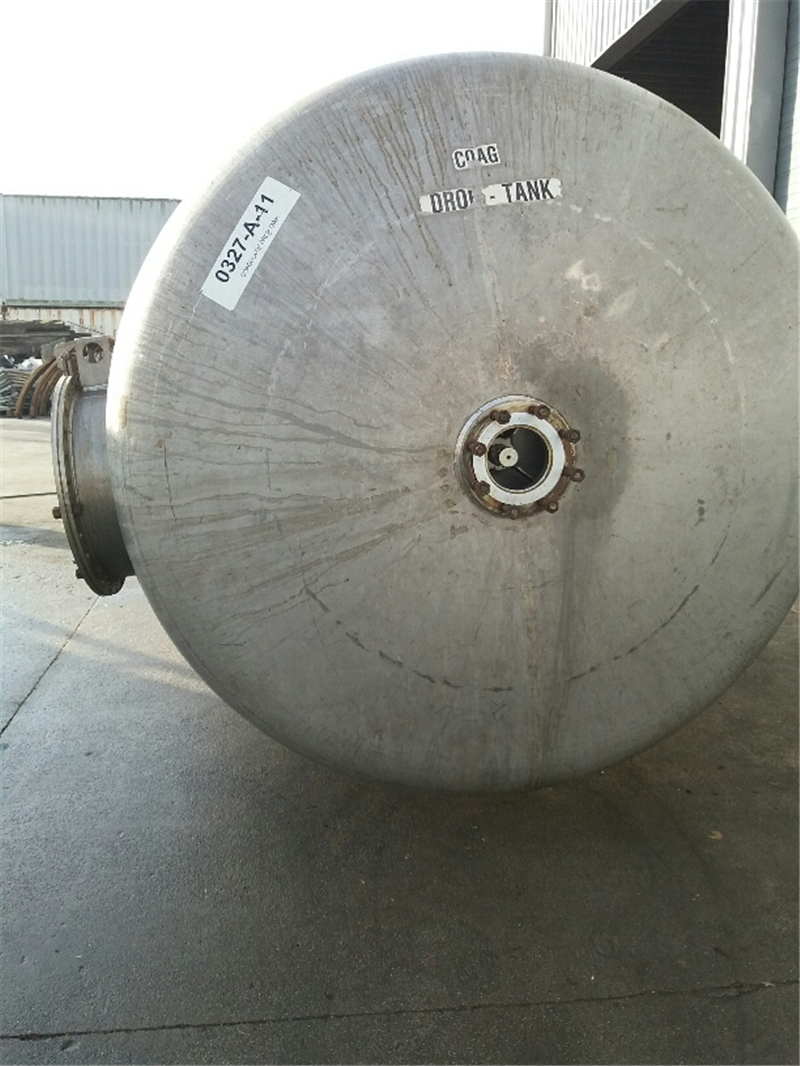

| Bottom | Dished bottom |
| Tank model | Single wall |

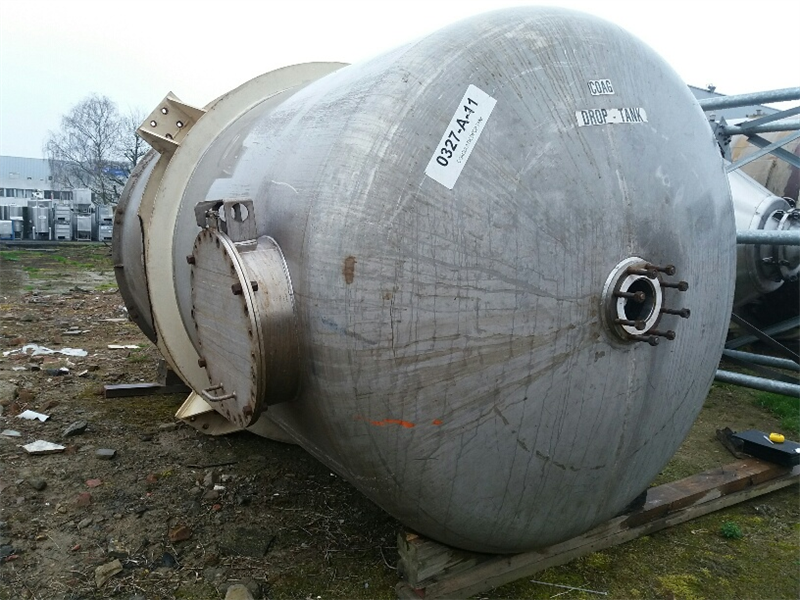

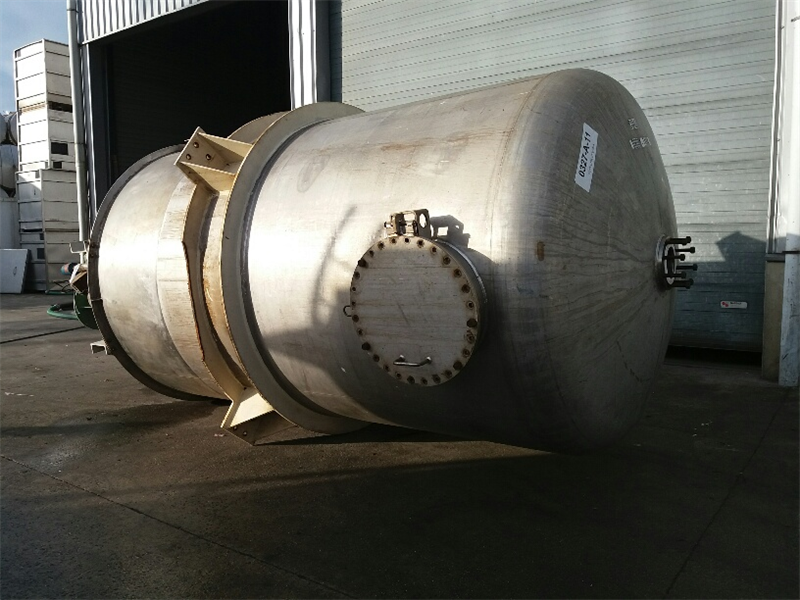

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | Ø600 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 150 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 4100 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Appendix 1 | 0336MM02 Datasheet.pdf |
| Drawing 1 | t0336MM01.pdf |
| Drawing 2 | t0336MM02.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Detail top side | 1/2 hinged cover |
| Thickness of top side (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 6 |
| Cylindrical length (mm) | 3350 |
| Height bottom (mm) | 420 |
| Total height (mm) | 5850 |
| Length (mm) | 2510 |
| Diameter tank (mm) | 2100 |
| Width (mm) | 2510 |
| Insulation | |
|---|---|
| Insulation | No |

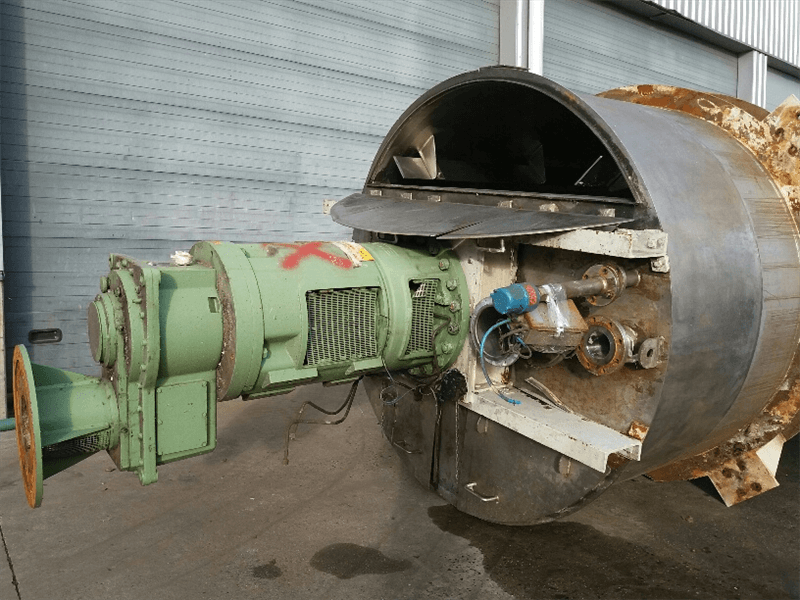

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |

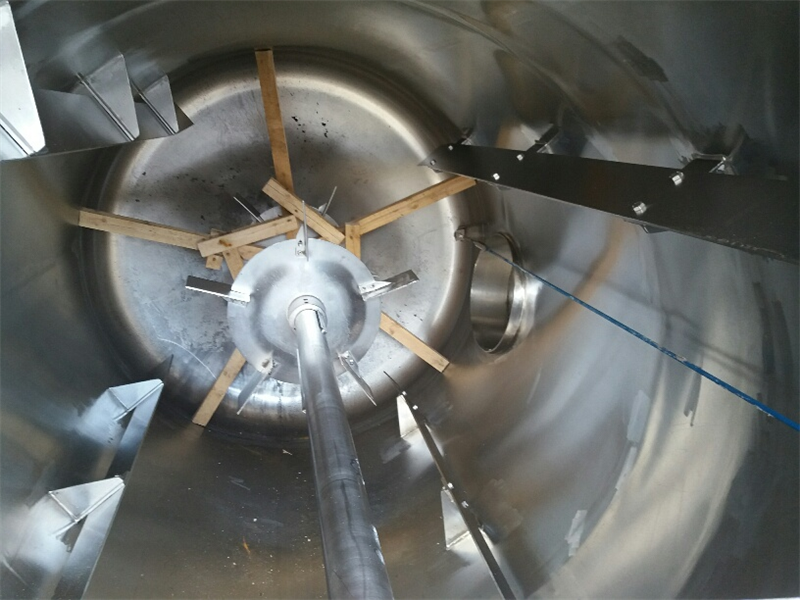

| Agitator 1: Number of baffles | 4 |
| Agitator 1: Material | Stainless steel 304 |

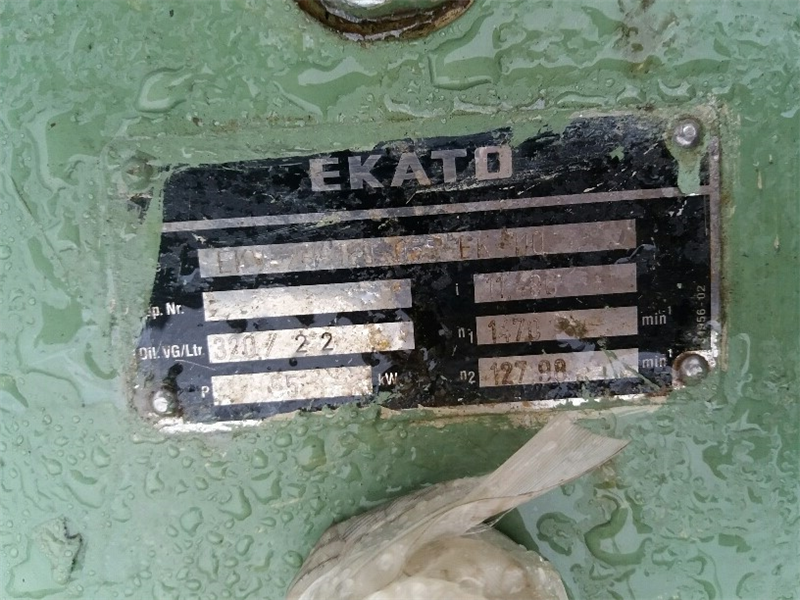

| Agitator 1: Constructor | EKATO |
| Agitator 1: stirring element type | Dissolver/Disc stirrer |
| Agitator 1: Length (mm) | 3300 |
| Agitator 1: Engine Type | electric motor |
