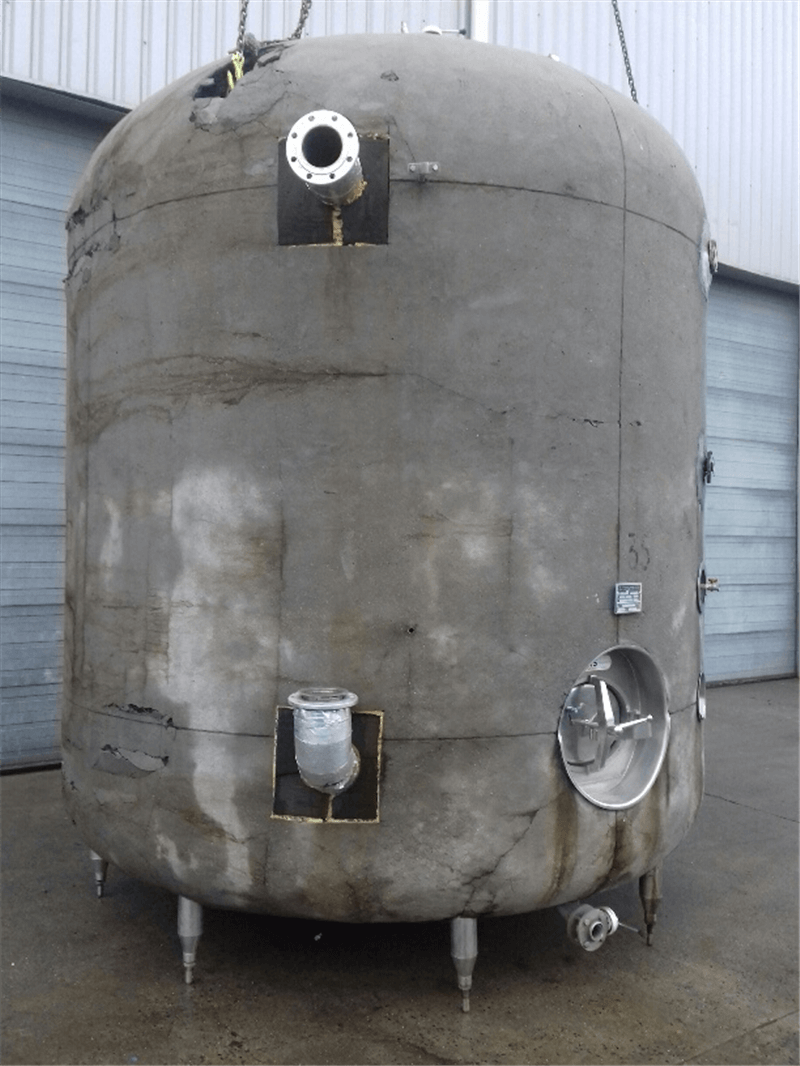

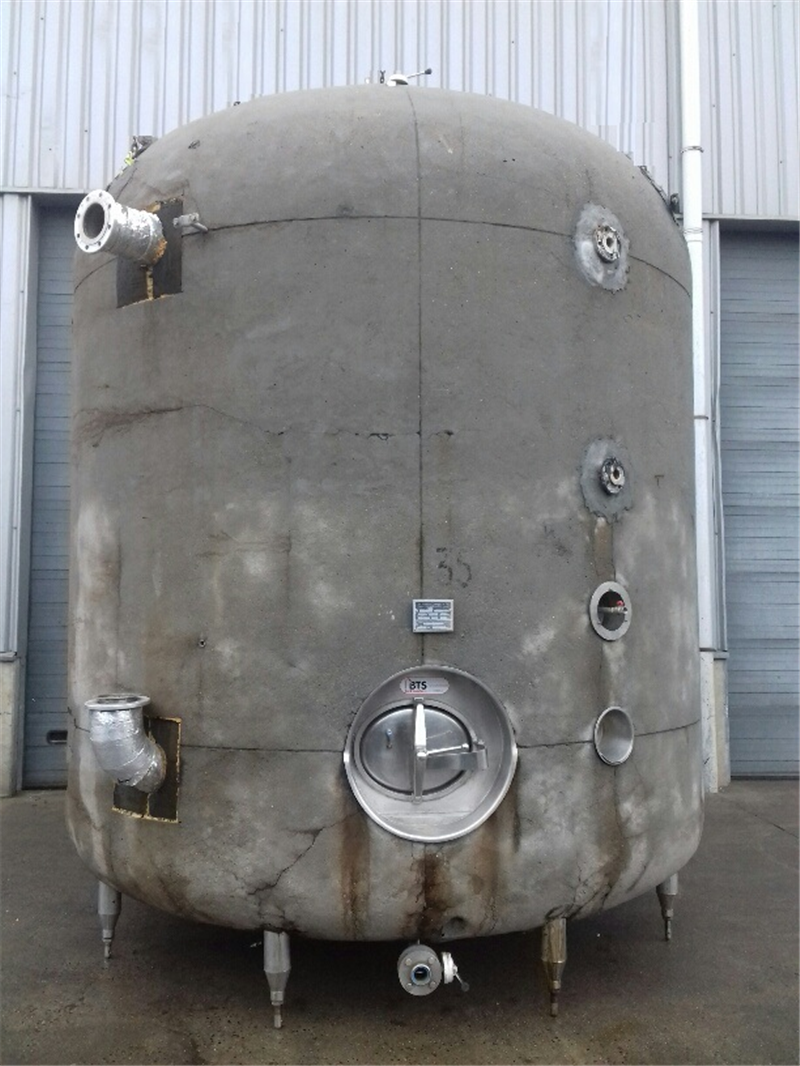

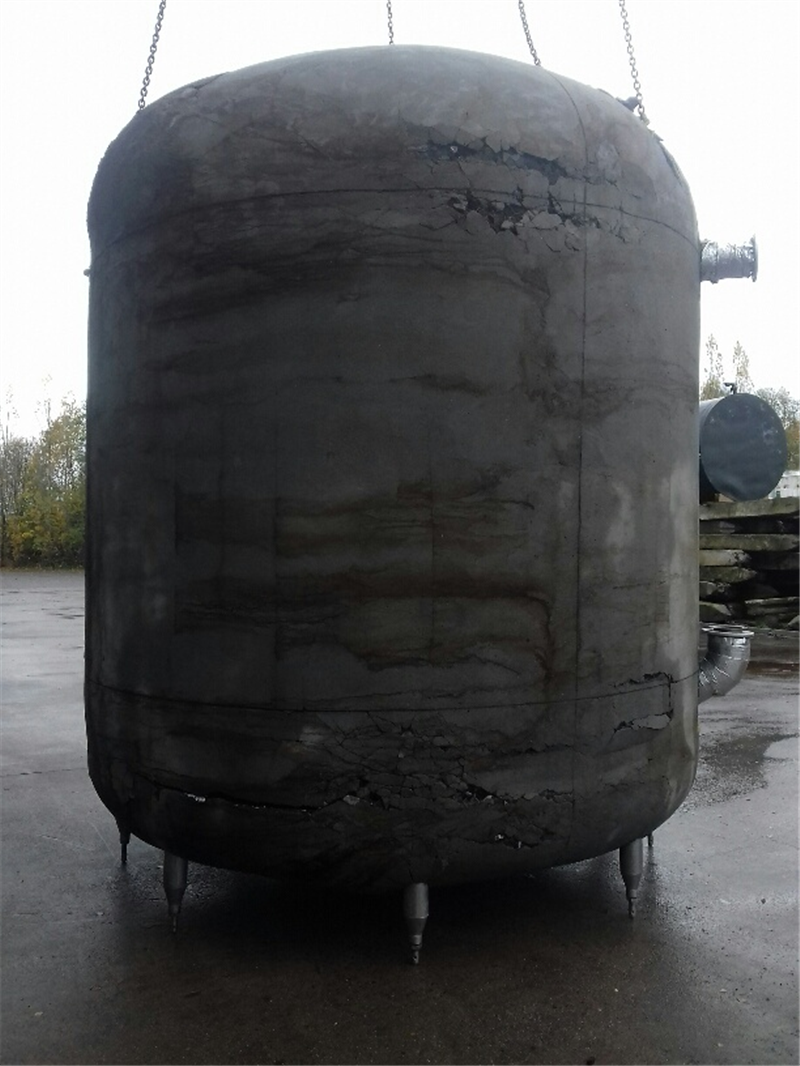

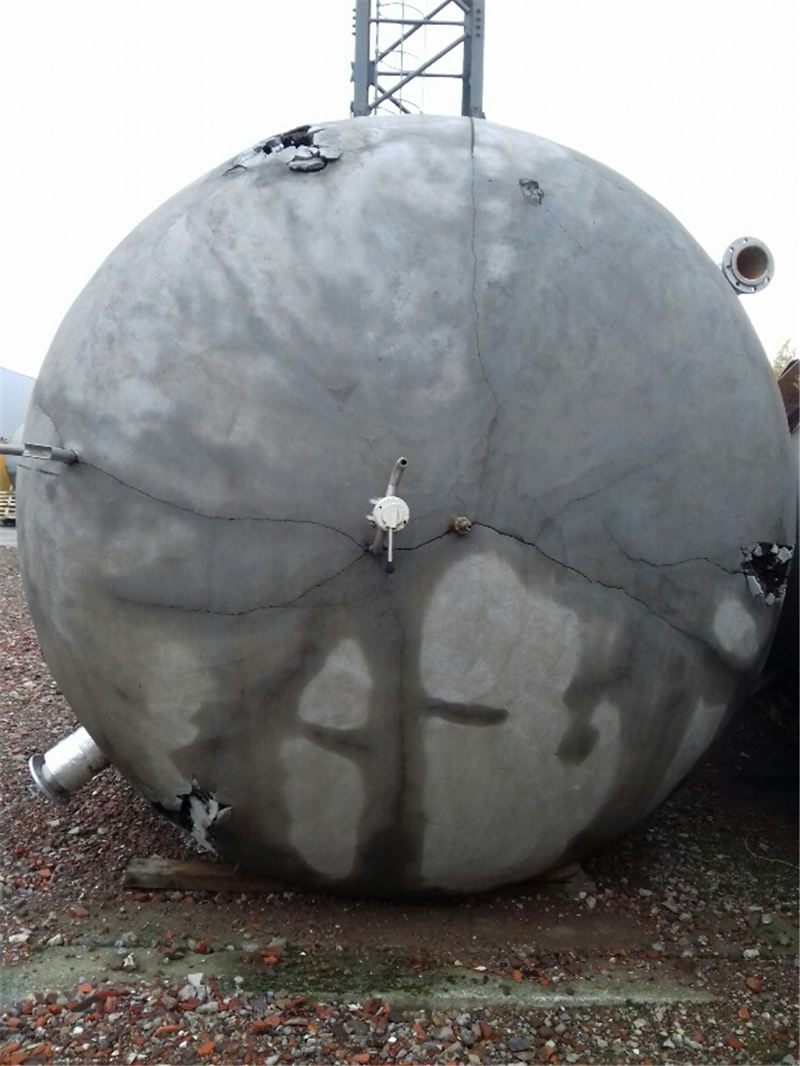

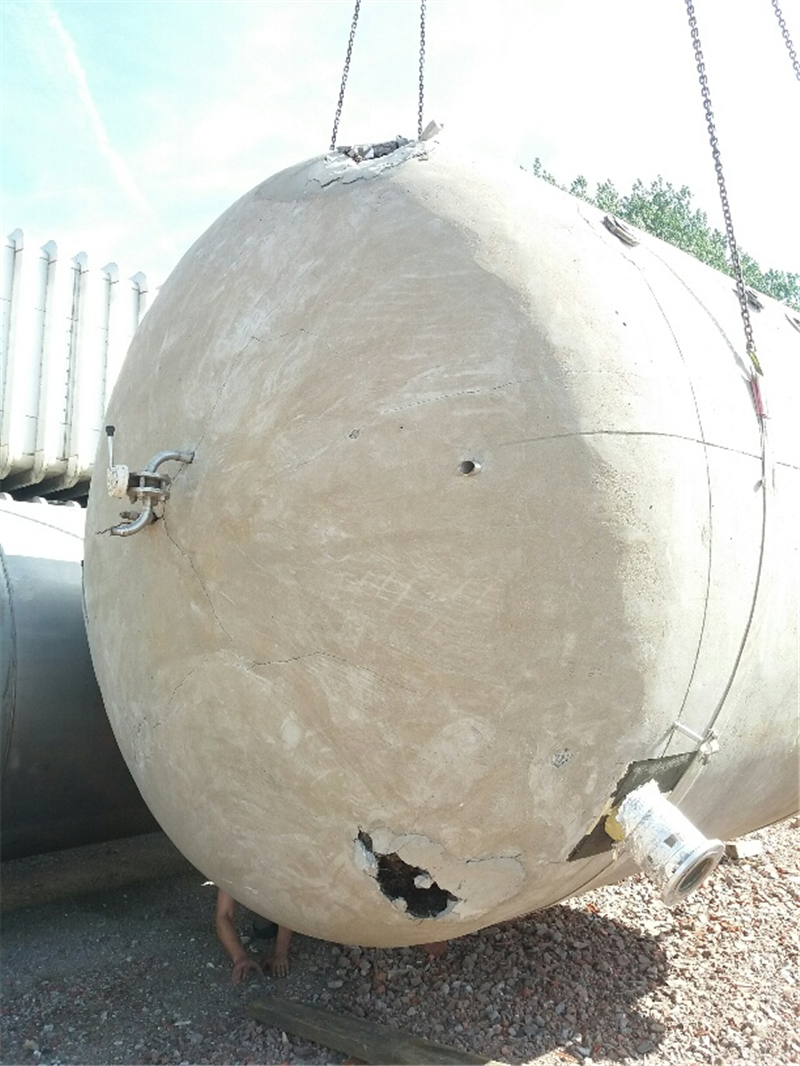

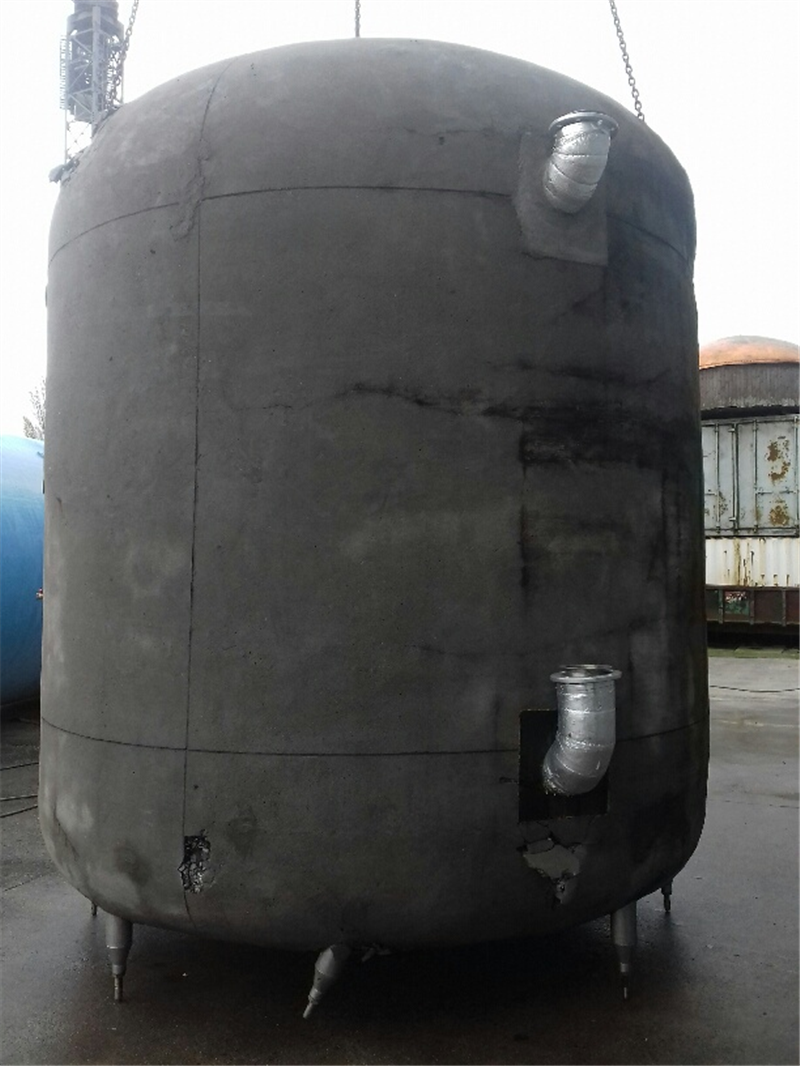

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 22000 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Supplier | DEVOS-THEUNIS |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

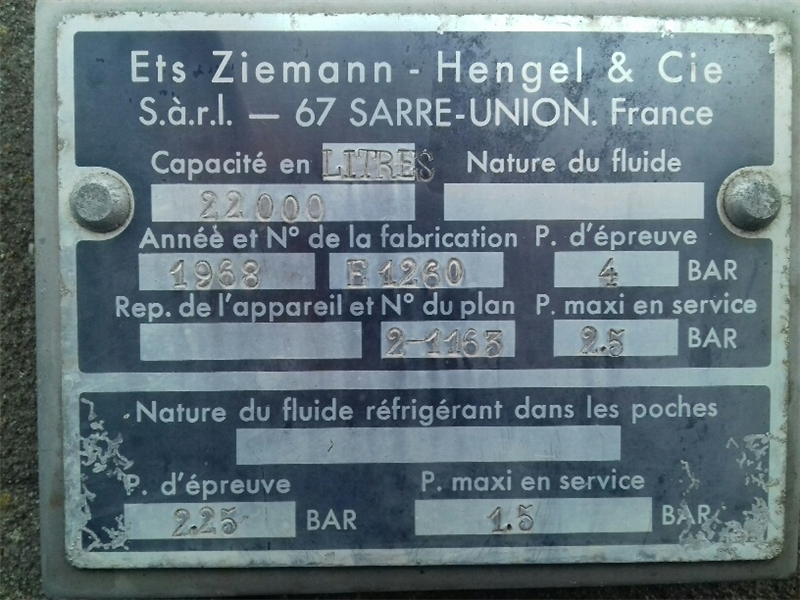

| Type plate manufacturer | Yes |
| Manufacturer | Ets Ziemann-Hengel & cie |
| Year Built | 1968 |
| Design Code | E1260 / 2-1163 |
| Show Online? | Yes |
| Sticker | Yes |
| Drawing 1 | t0329DT02.pdf |
| Drawing 2 | t0329DT02_P.pdf |
| Tank | |
|---|---|

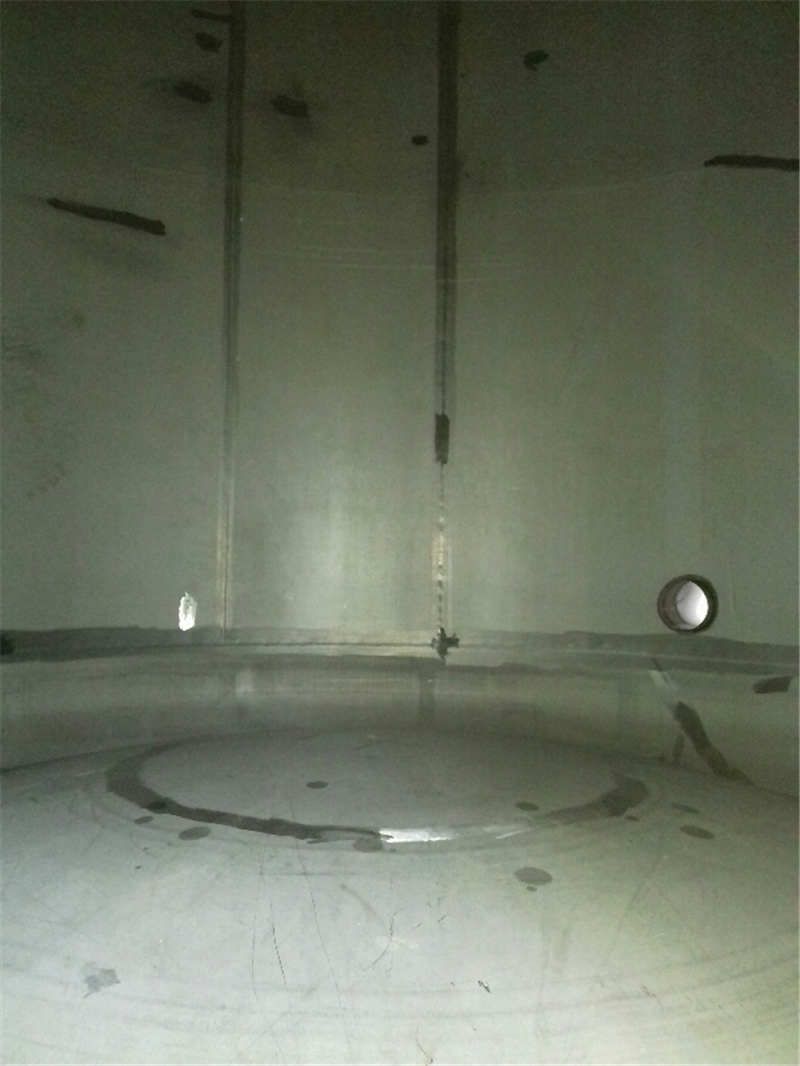

| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Capacity (Liters) | 22000 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 2.5 |
| Test pressure tank (Barg) | 4 |
| Max. Vacuum pressure (example: -1.5 Barg) | 2.6 |
| Max. Overpressure (example: 1.5 Barg) | 4 |
| Max. Vacuum pressure (example: -1.5 Barg) | 2.6 |
| Max. Overpressure (example: 1.5 Barg) | 4 |
| Max. Vacuum pressure (example: -1.5 Barg) | 2.6 |
| Max. Overpressure (example: 1.5 Barg) | 4 |
| Max. Vacuum pressure (example: -1.5 Barg) | 2.6 |
| Max. Overpressure (example: 1.5 Barg) | 4 |
| Max. Vacuum pressure (example: -1.5 Barg) | 2.6 |
| Max. Overpressure (example: 1.5 Barg) | 4 |

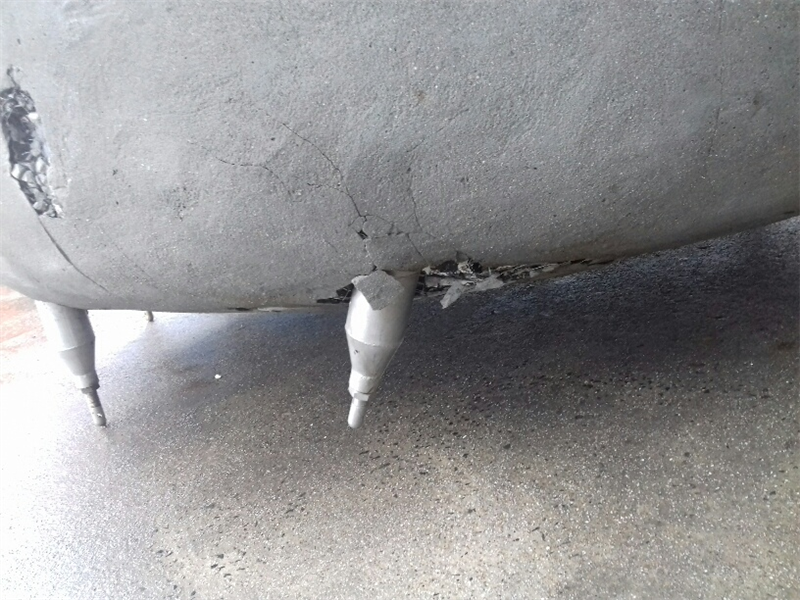

| Fixation | 8 legs |

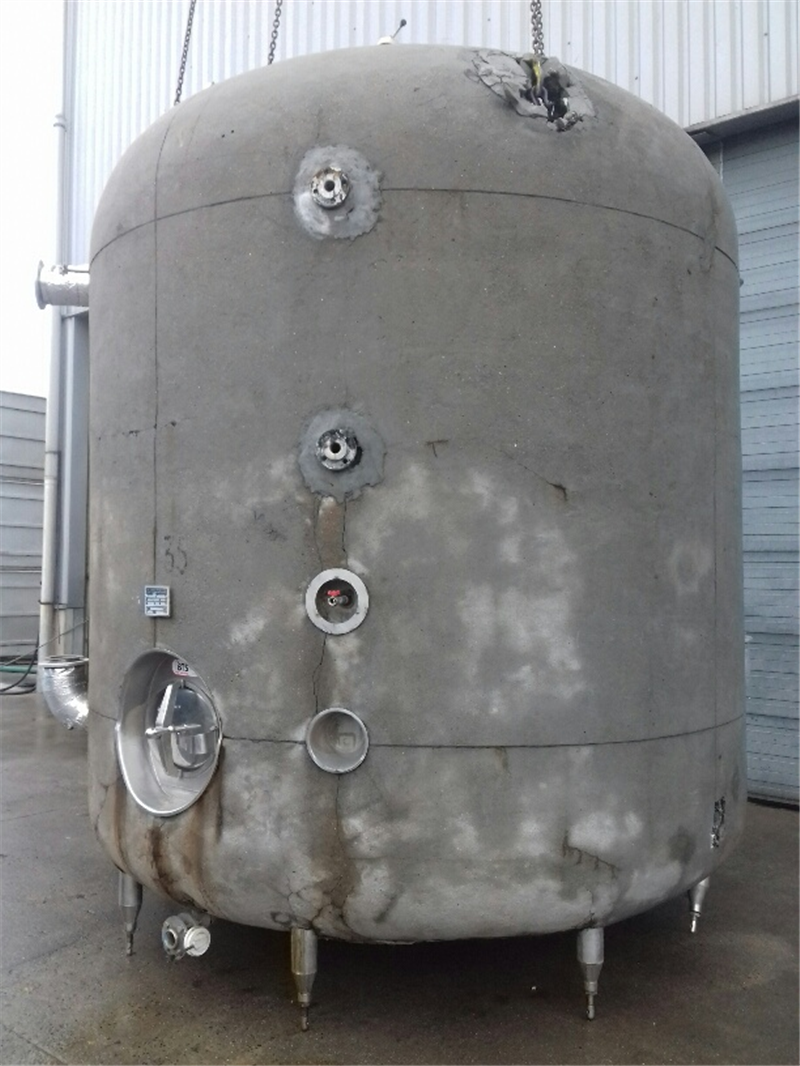

| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

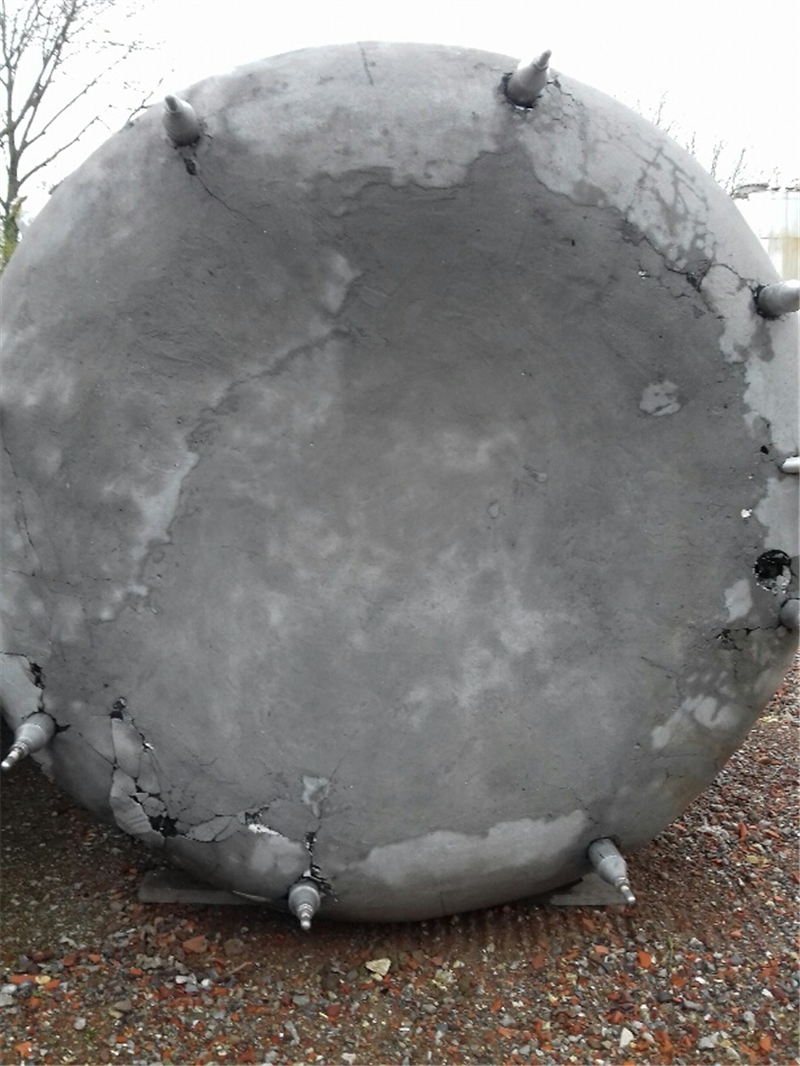

| Bottom | Inverted dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 3 |

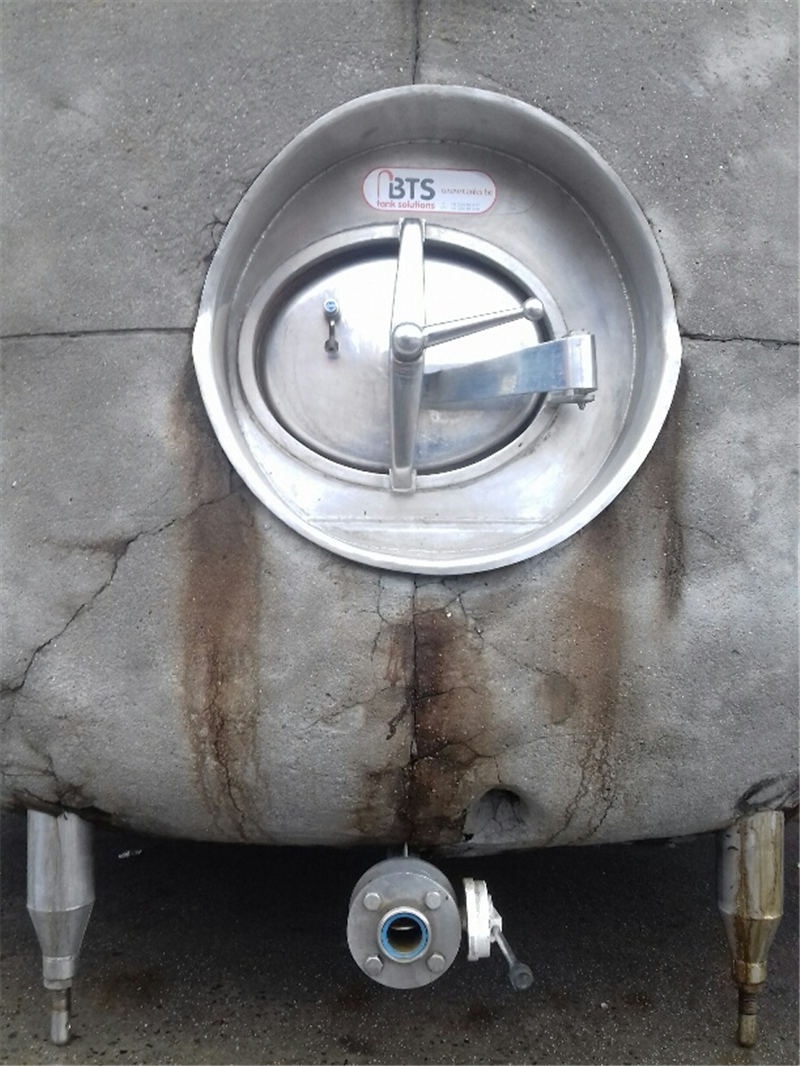

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Tank with total drain? | Yes |

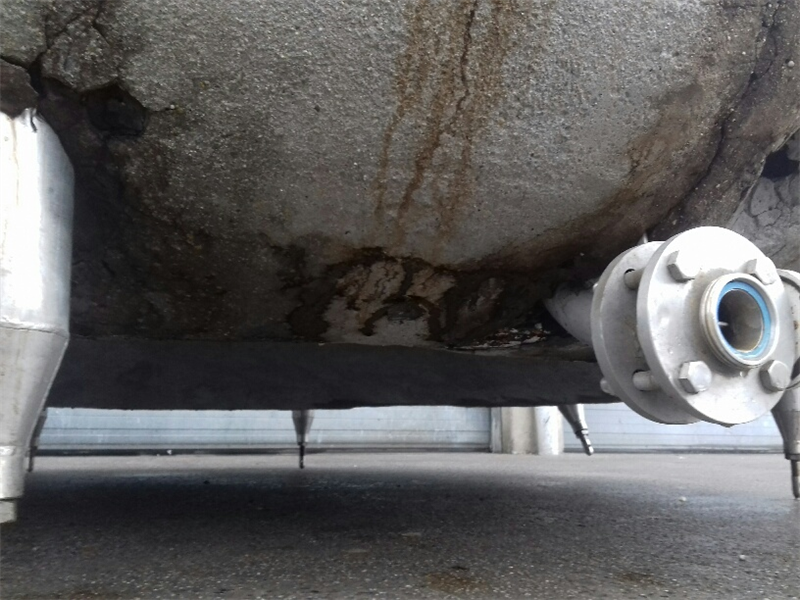

| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Sector | 1-4 |
| Provision tank cleaning | CIP ball |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Cylindrical length (mm) | 2400 |
| Thickness (mm) | 140 |
| Outside diameter tank (mm) | 3250 |
| Total height (mm) | 4350 |
| Diameter tank (mm) | 3000 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Cork |
| Insulation material | Concrete |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Heating 1: Max. service pressure | 1.5 |
| Heating 1: Max. test pressure | 2.25 |
