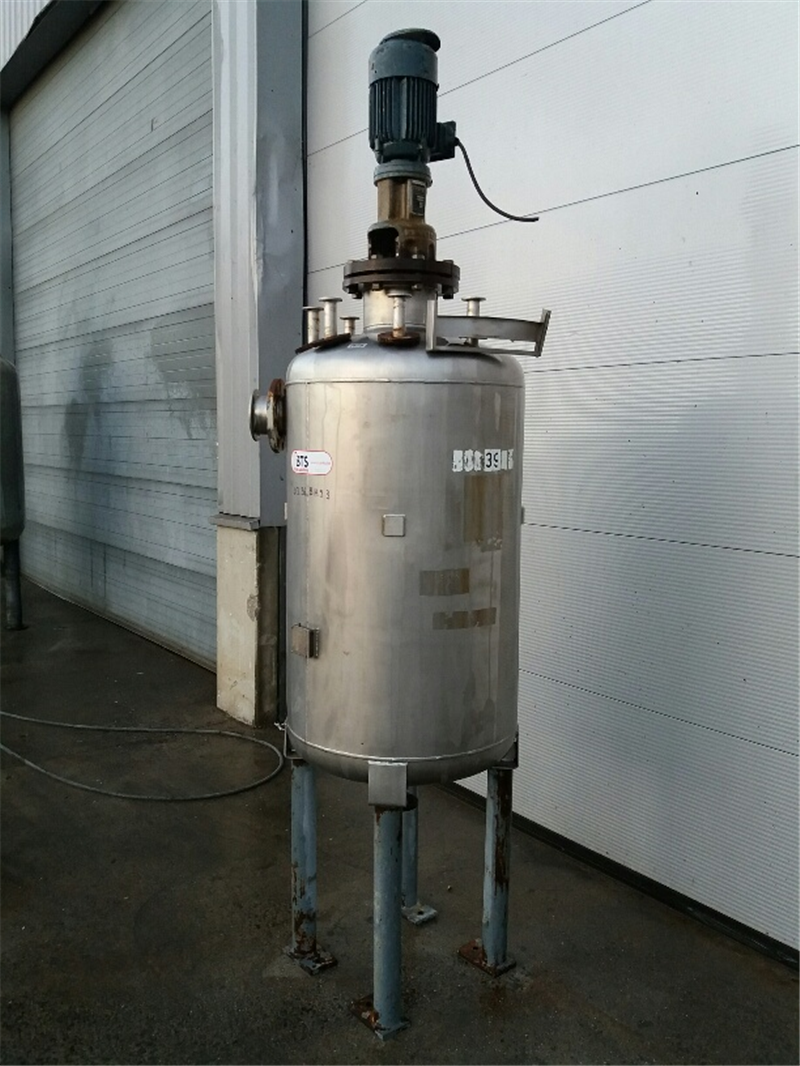

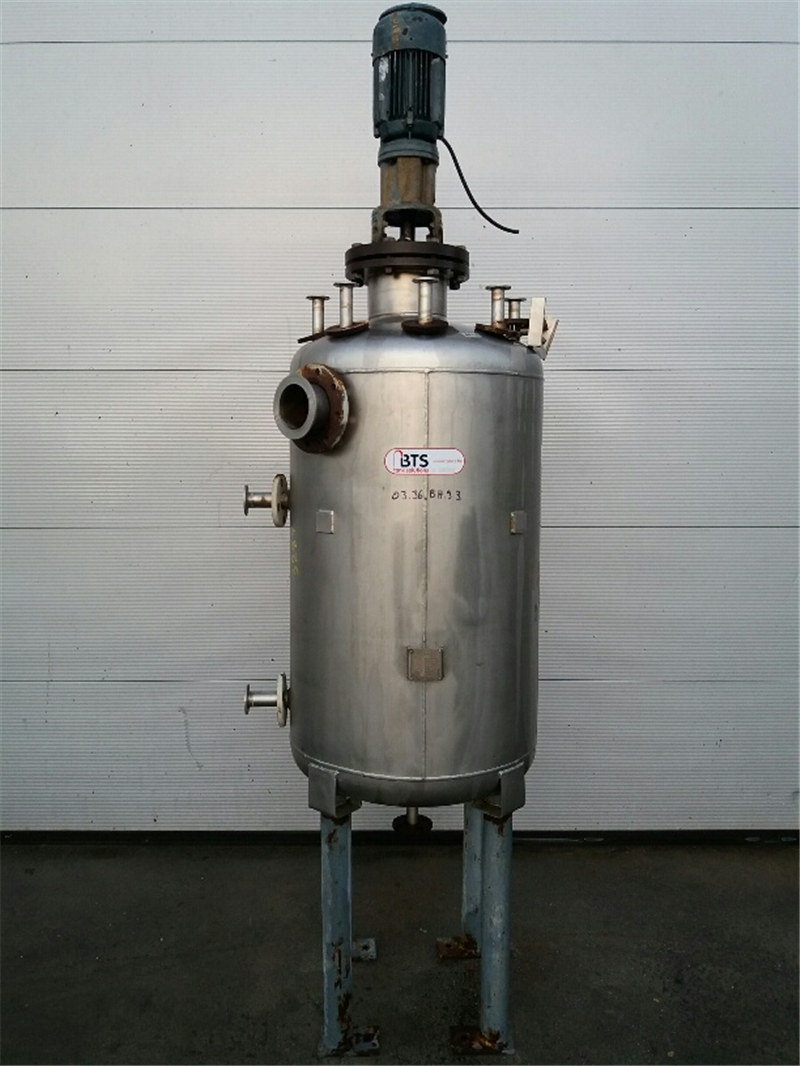

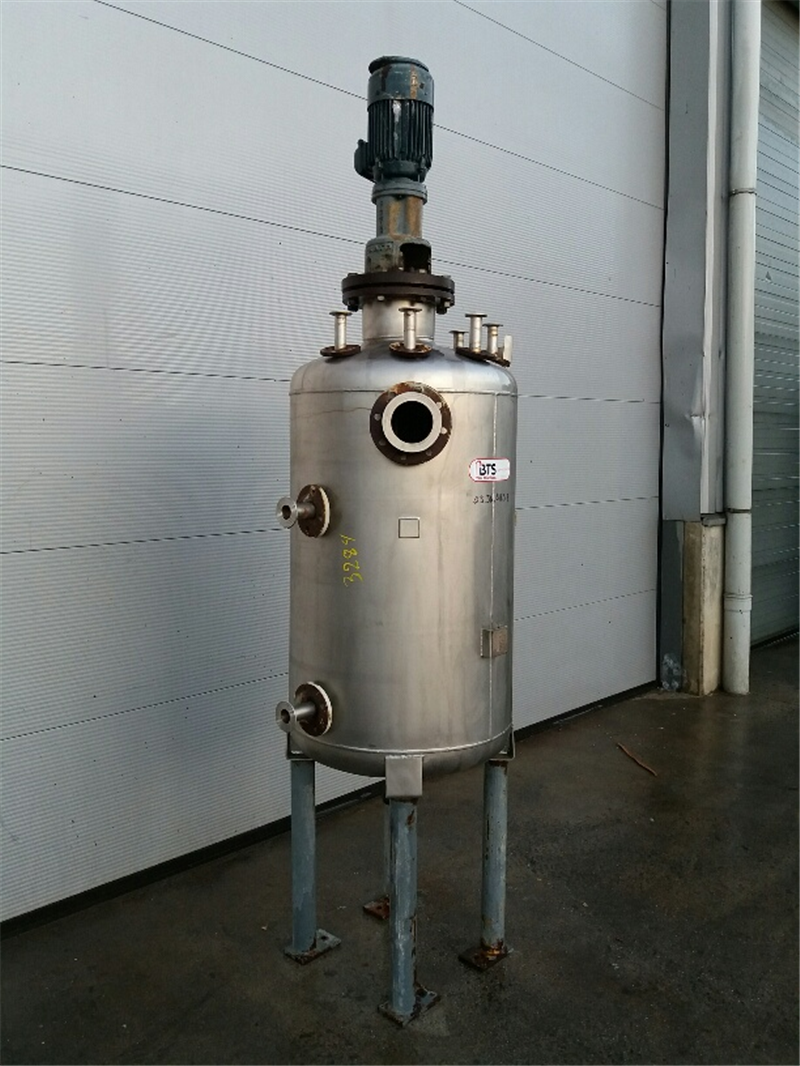

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 400 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.93 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 400 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

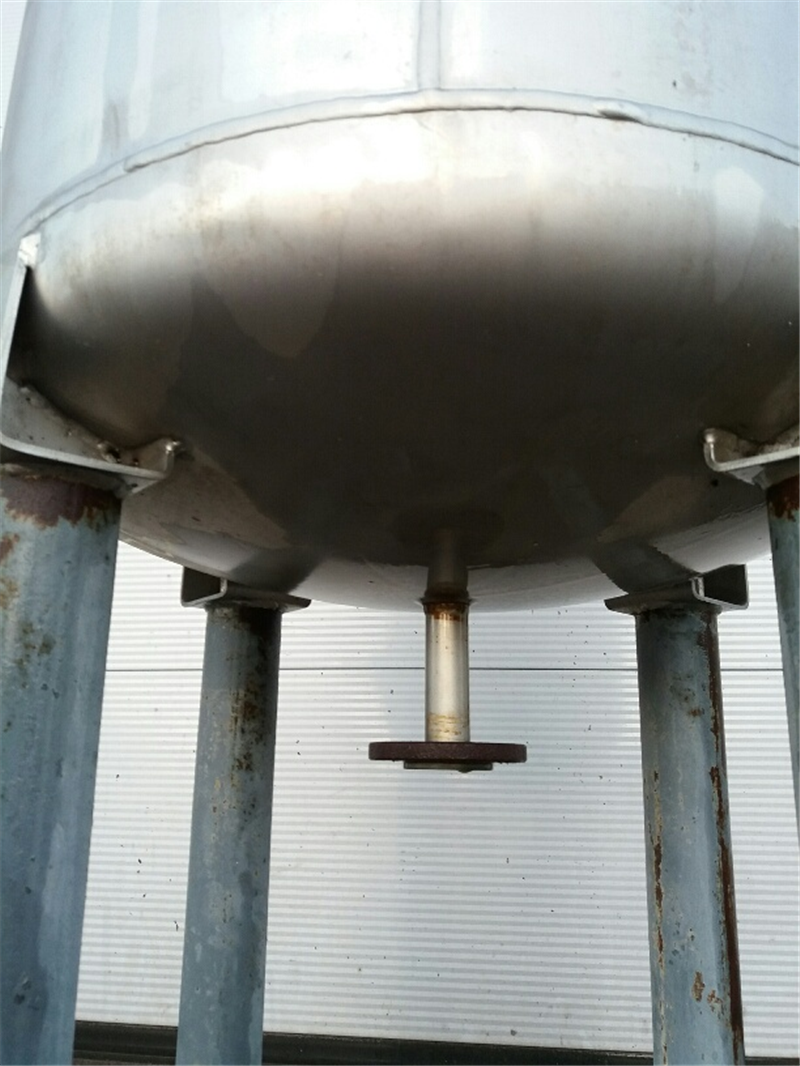

| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | losse flens |
| Diameter of outlet (mm) | 25 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Condition | Used |

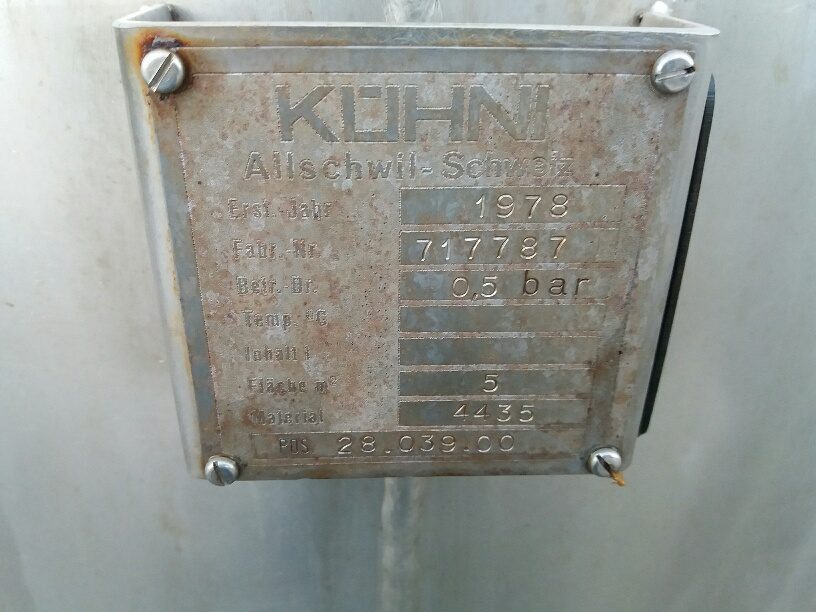

| Type plate manufacturer | Yes |
| Manufacturer | KUHNI |
| Year Built | 1978 |
| Design Code | 717787 |
| Construction data available | Yes |
| Working temperature (° C) | 30 |

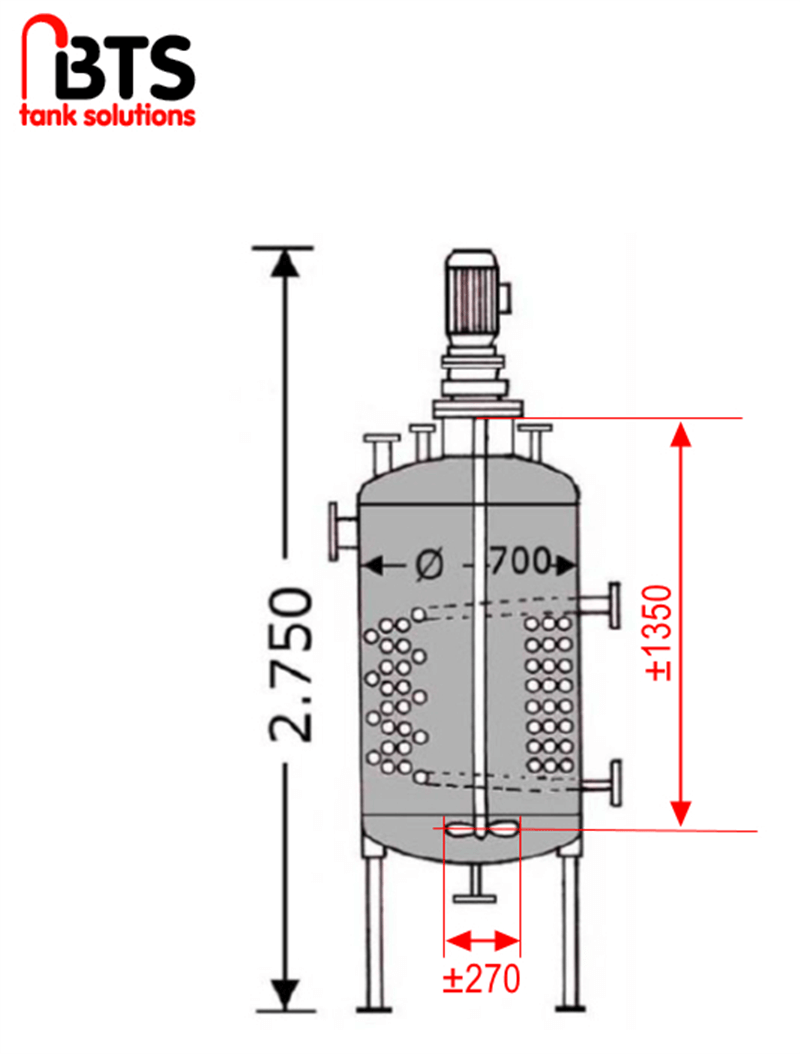

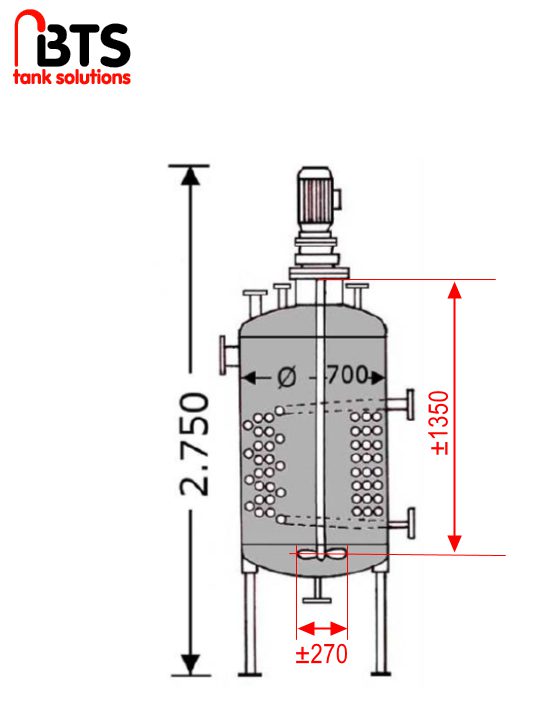

| Drawing 1 | 0336BH93.pdf |
| Drawing 2 | 0336BH93_plan.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,5 |
| Cylindrical length (mm) | 1000 |
| Total height (mm) | 2750 |
| Diameter tank (mm) | 700 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

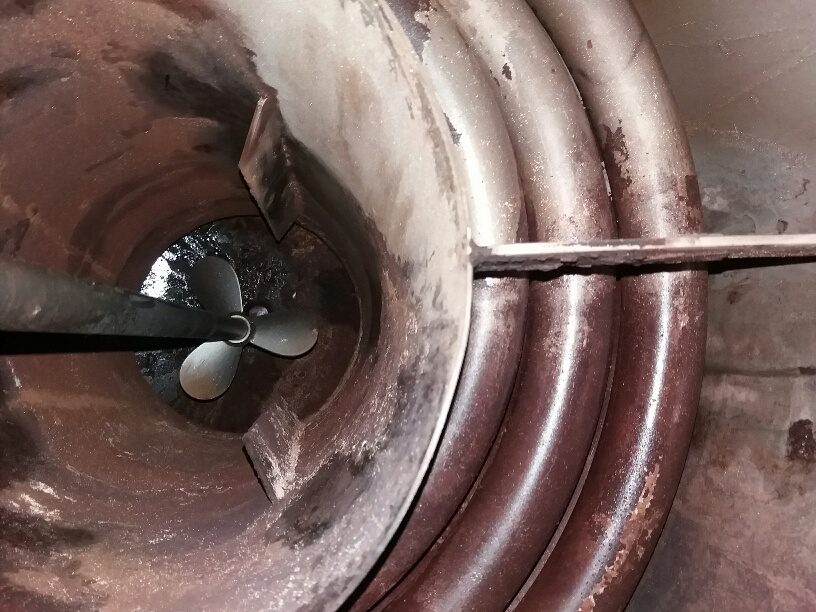

| Heating 1: Type | Heating coil on bottom and cylinder |
| Agitators | |
|---|---|
| Number of agitators | 1 |

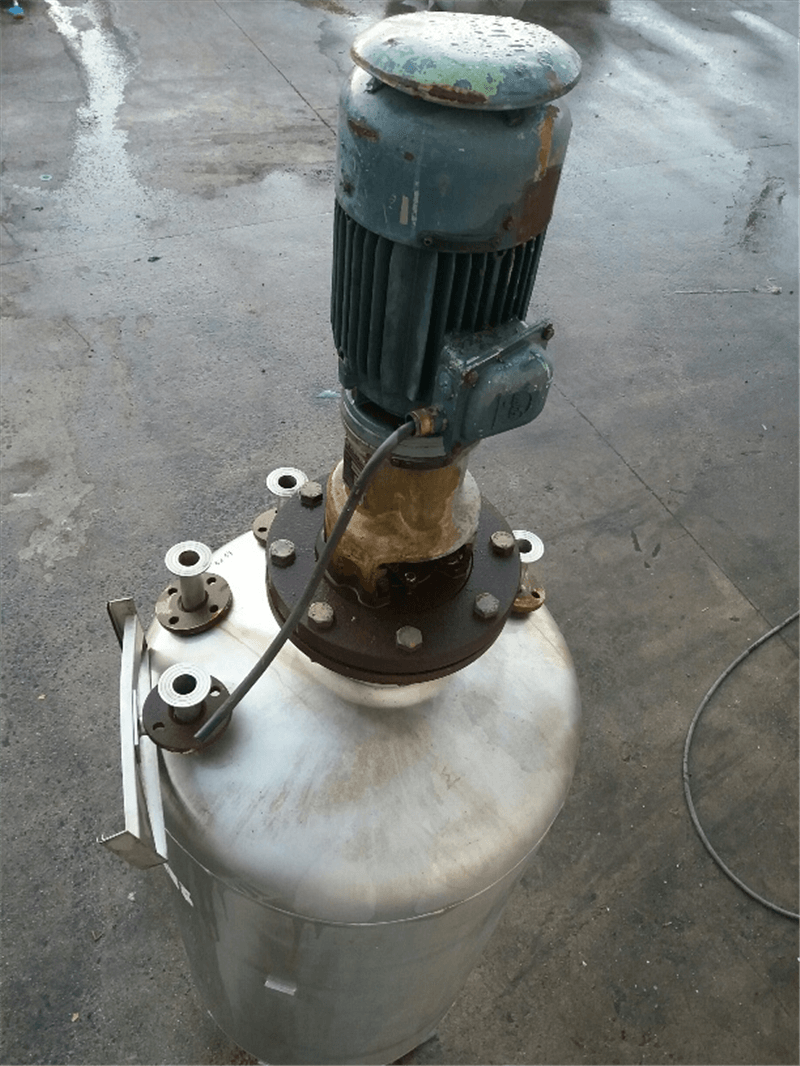

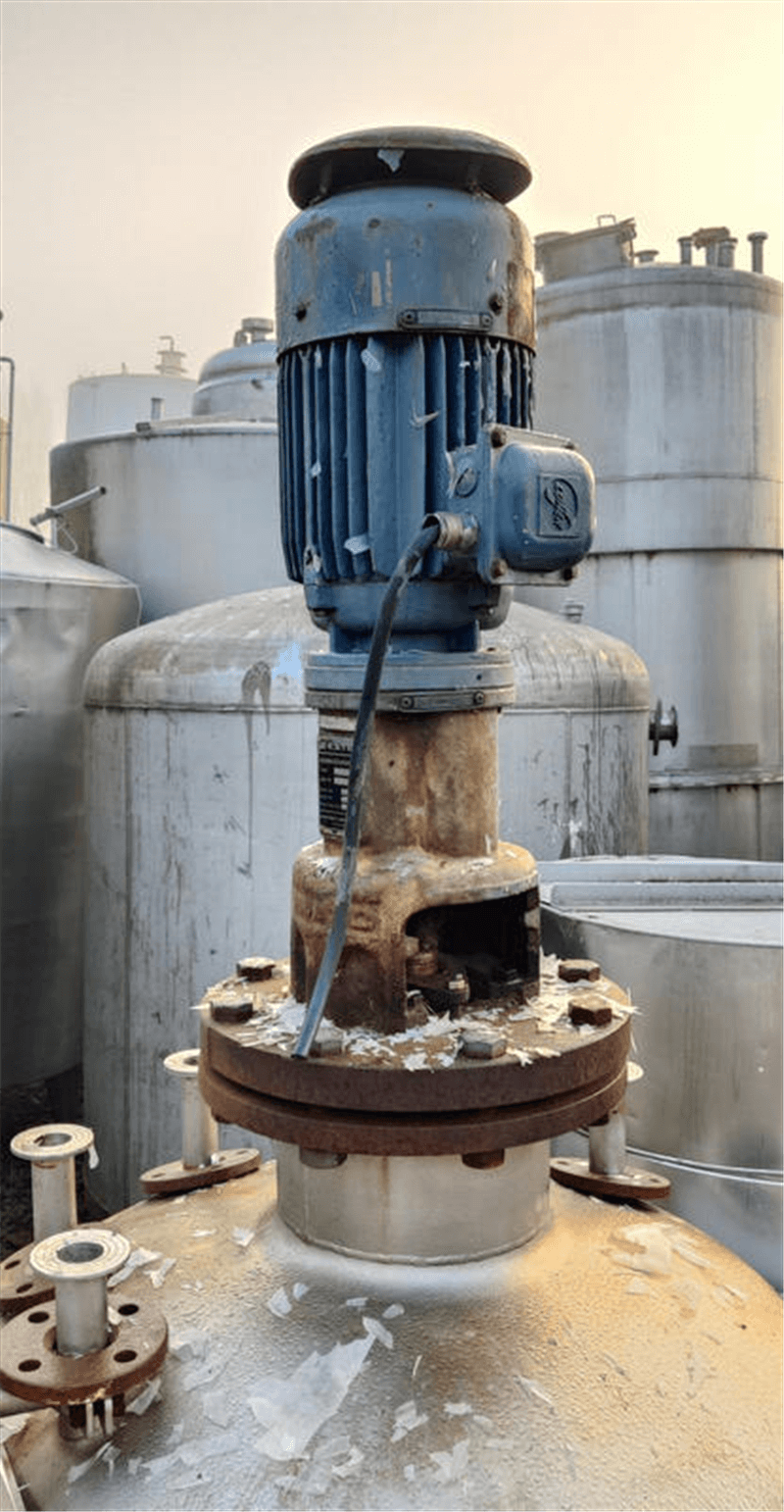

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 3 |
| Agitator 1: Material | Stainless steel 316 |

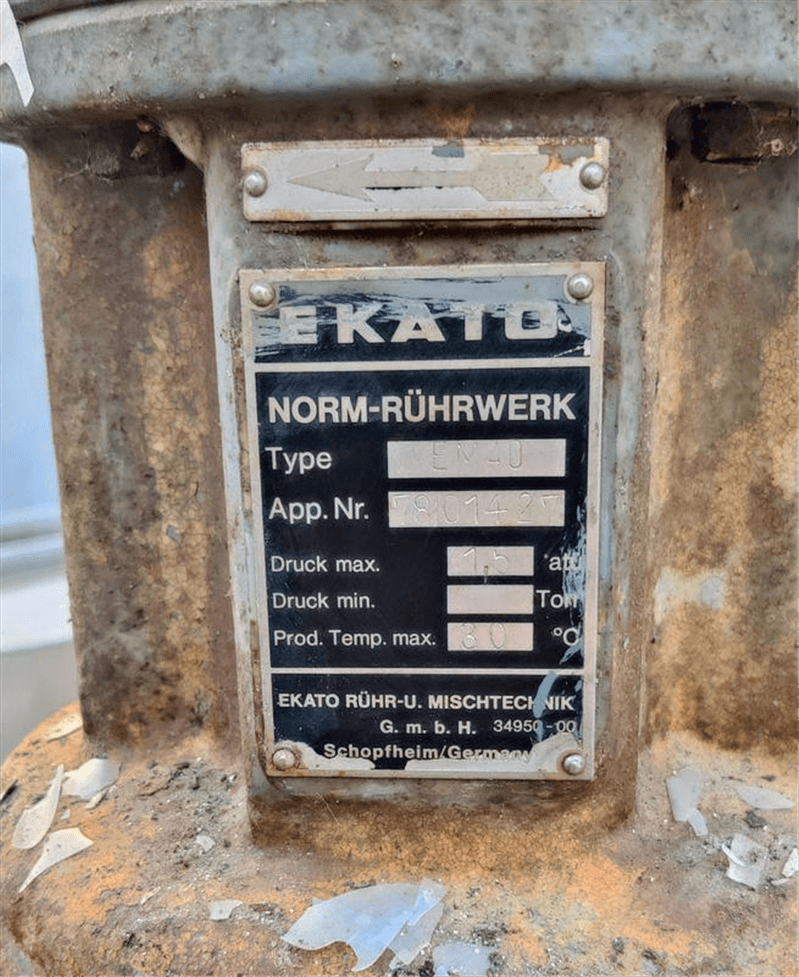

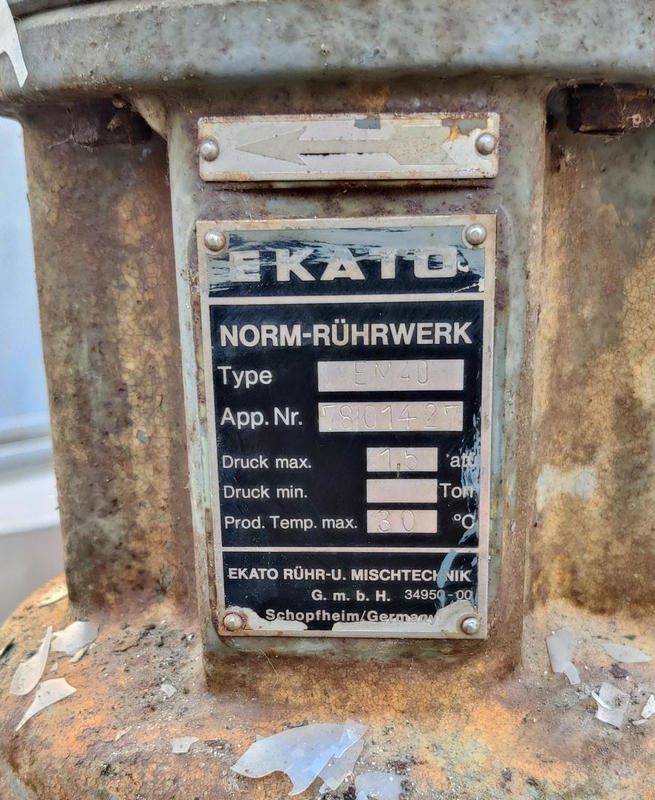

| Agitator 1: Constructor | EKATO |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Drive Type | Reductor |
