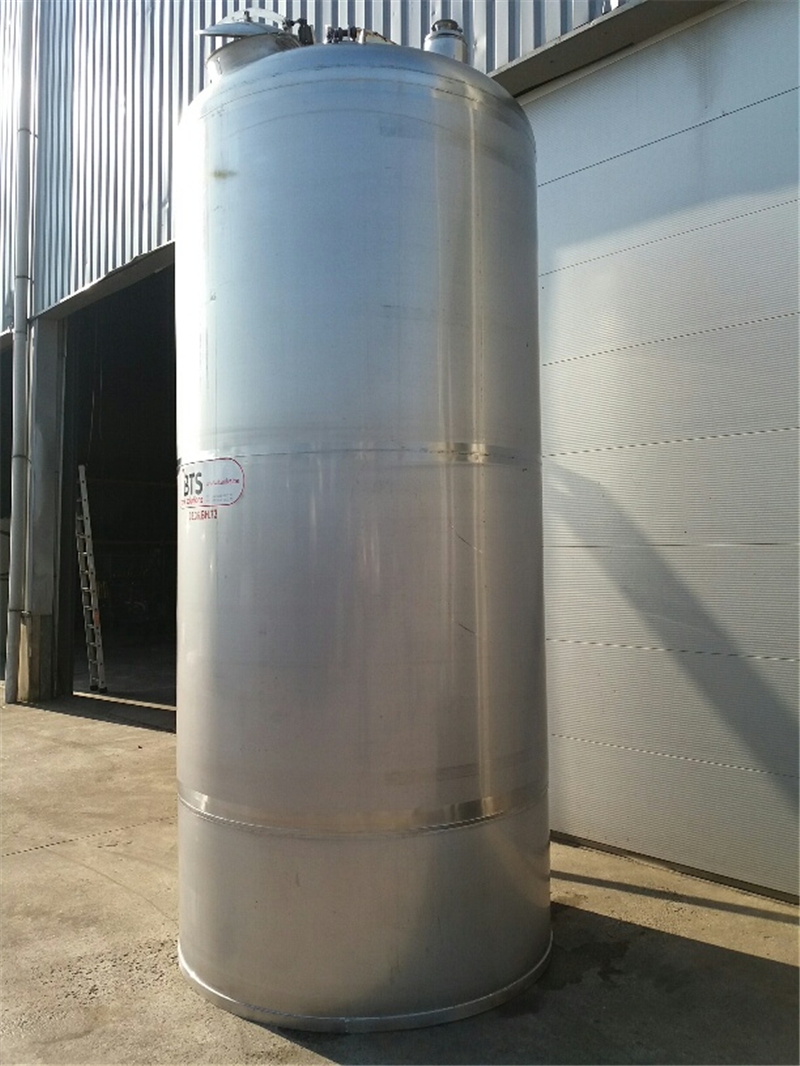

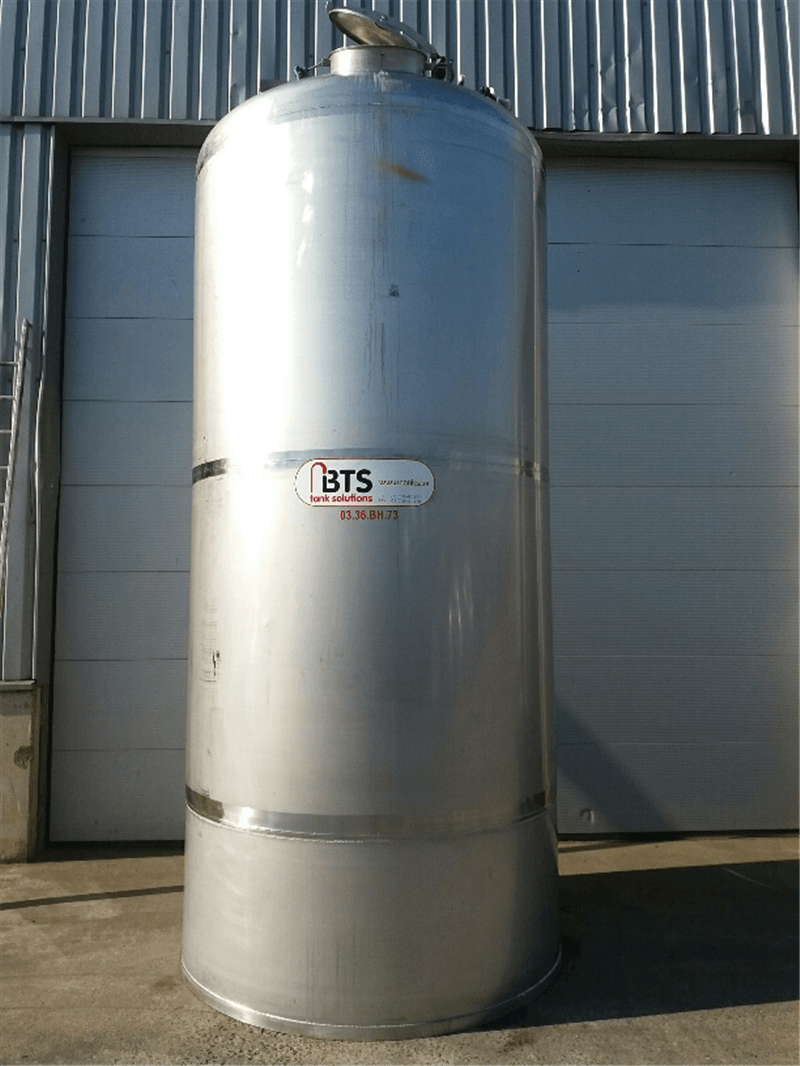

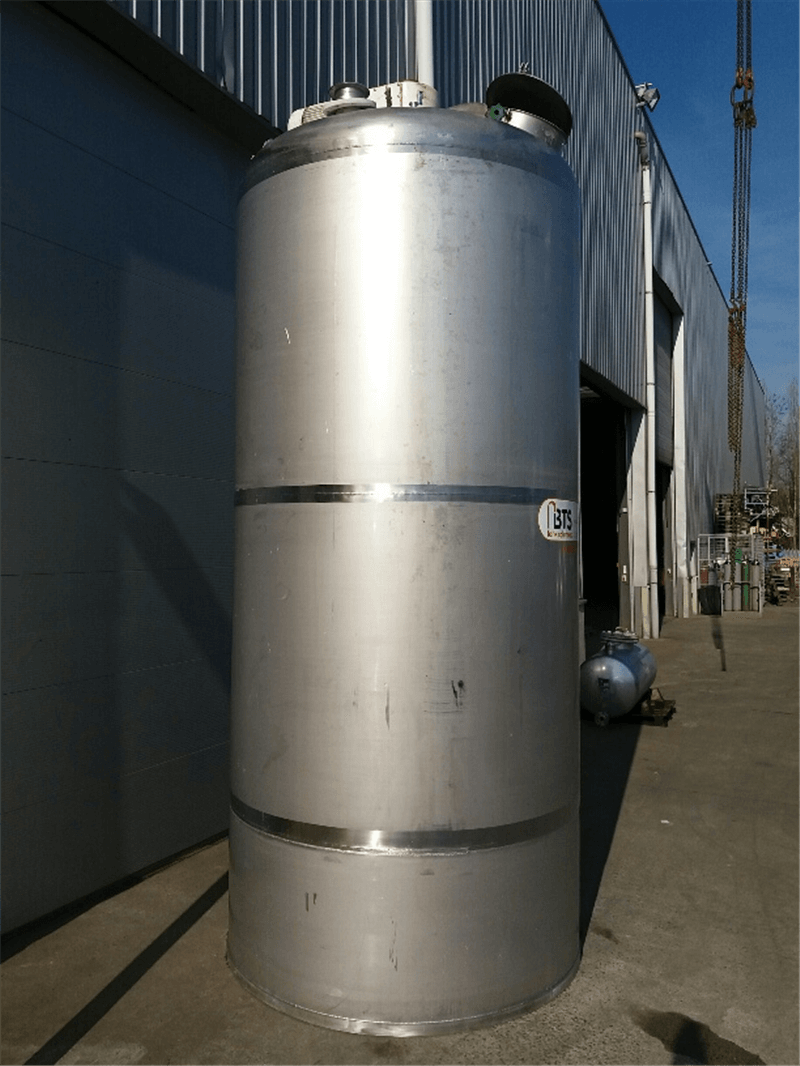

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 7500 L
- In stock: 2
| General | |
|---|---|
| Item number | 03.36.BH.73 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 2 |
| Capacity (Liters) | 7500 |
| Type tank | Mixing vessel |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø450mm |

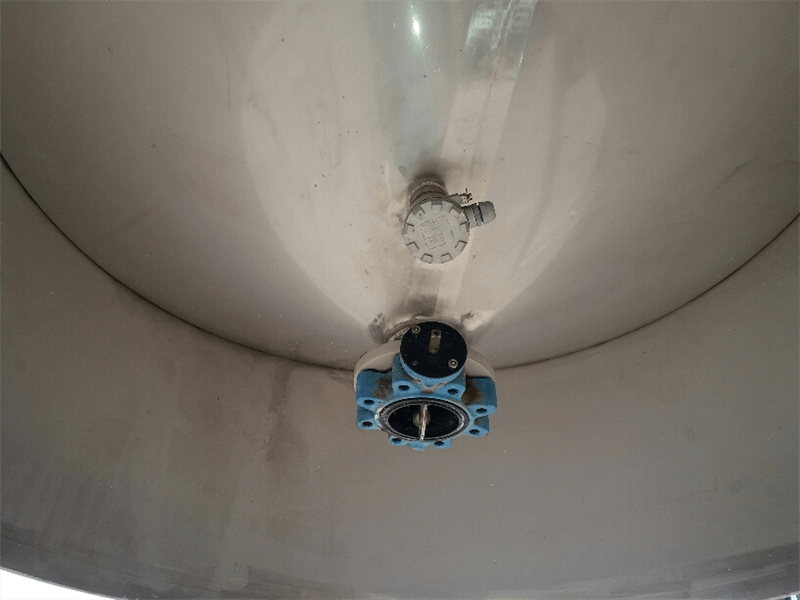

| Tank with total drain? | Yes |

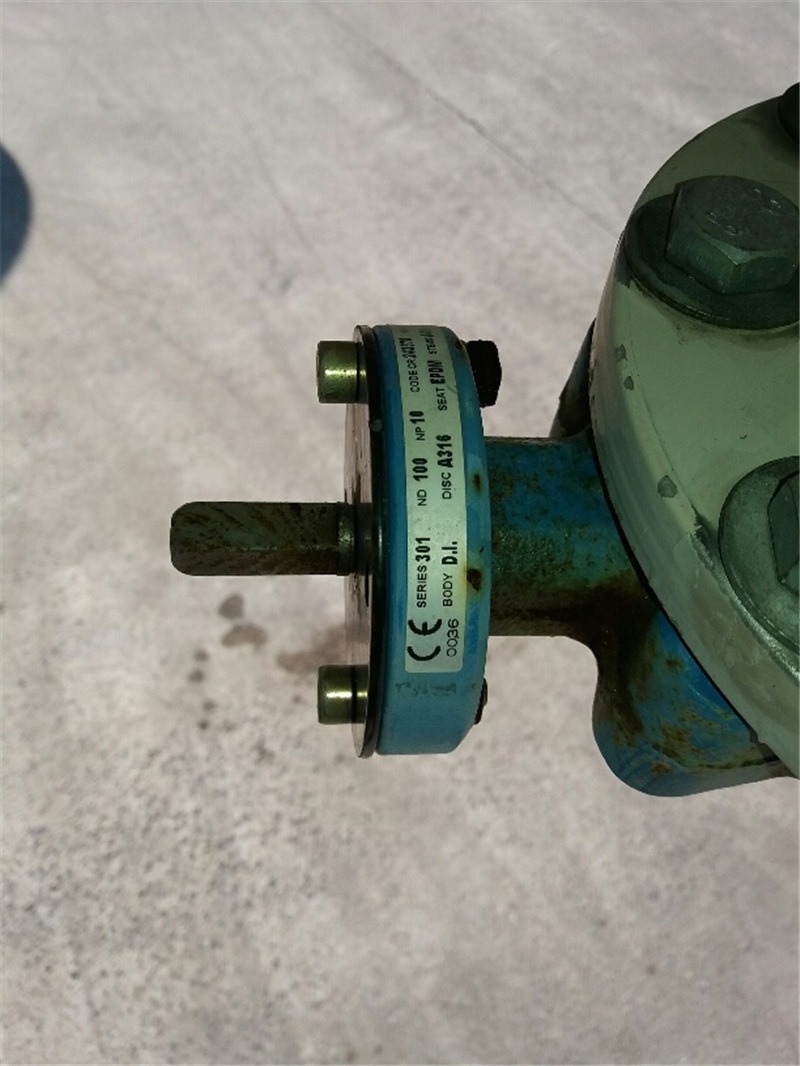

| Type of outlet (s) | Flens DN100 met vlinderklep |
| Diameter of outlet (mm) | 110 |
| locality | B-7711 Belgium |
| Weight (kg) | 860 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0336BH73.pdf |
.jpg)
.jpg)
.jpg)
.jpg)

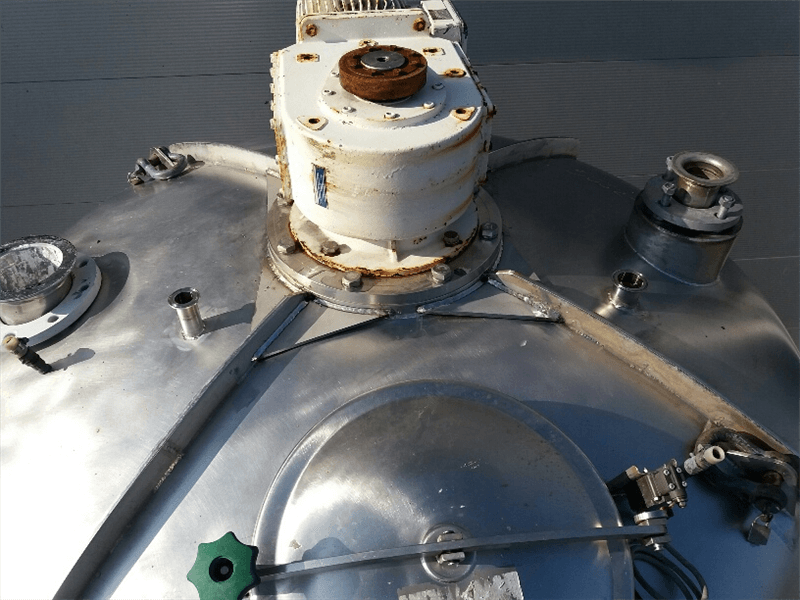

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Total height (mm) | 4600 |
| Diameter tank (mm) | 1760 |
| Insulation | |
|---|---|
| Insulation | No |

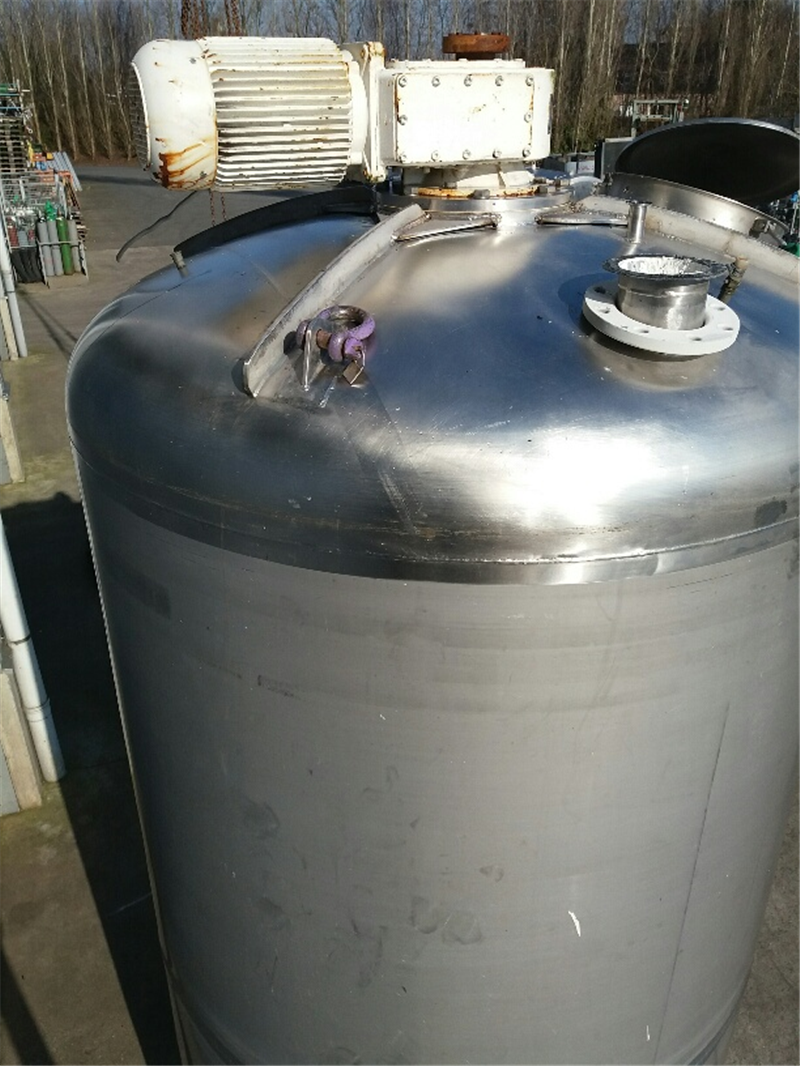

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |

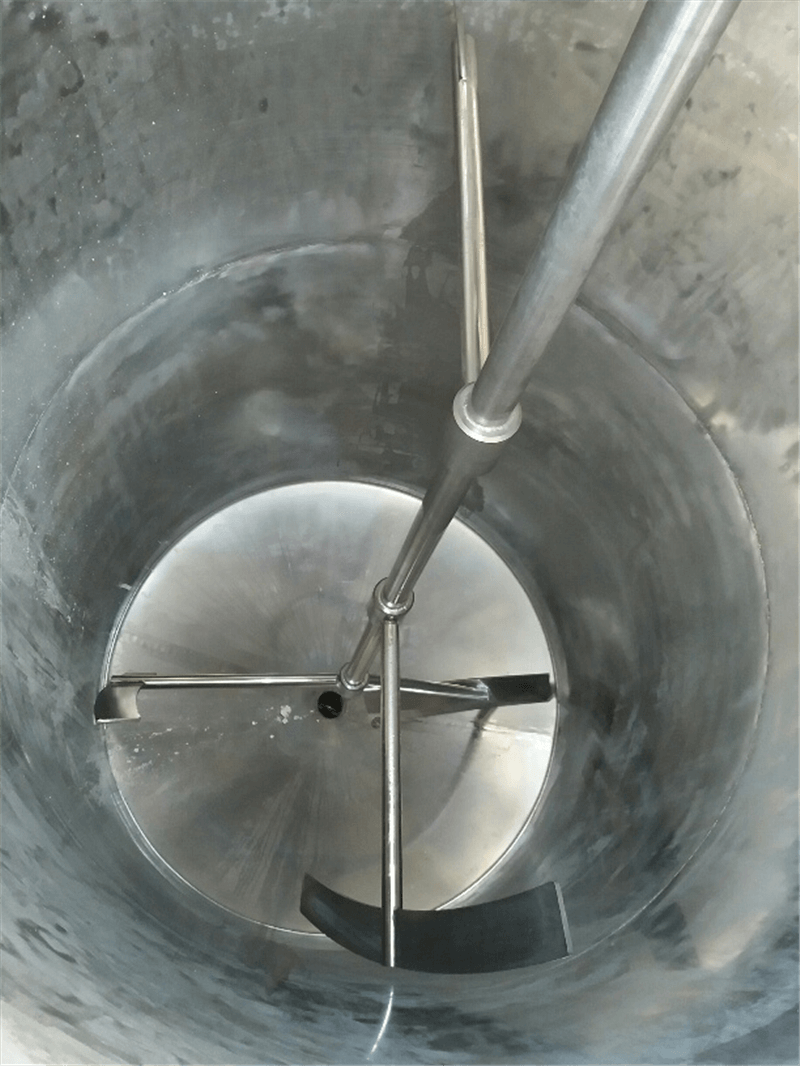

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |

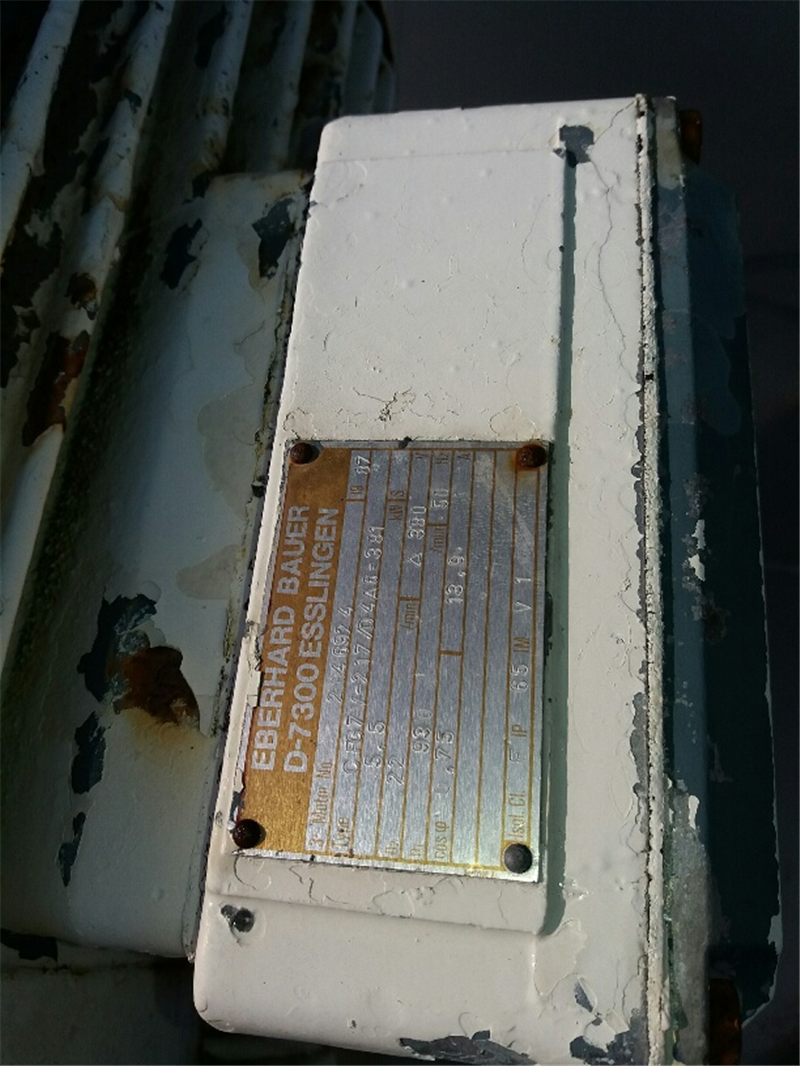

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 5,5 |

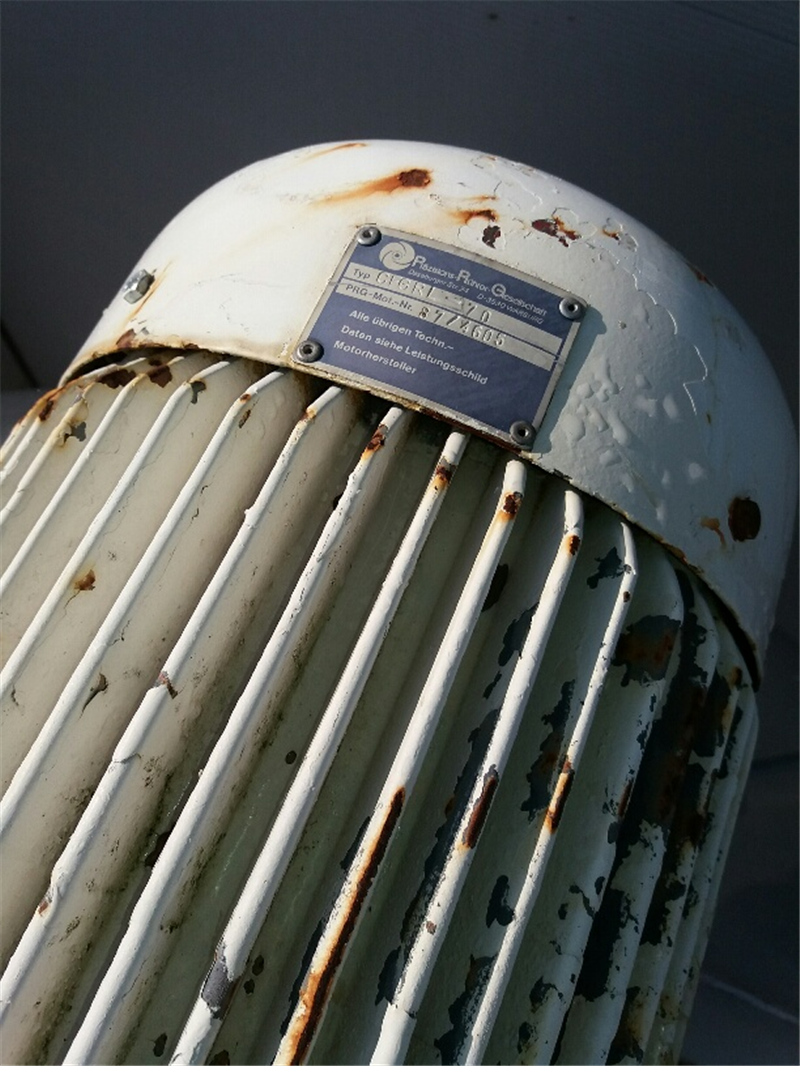

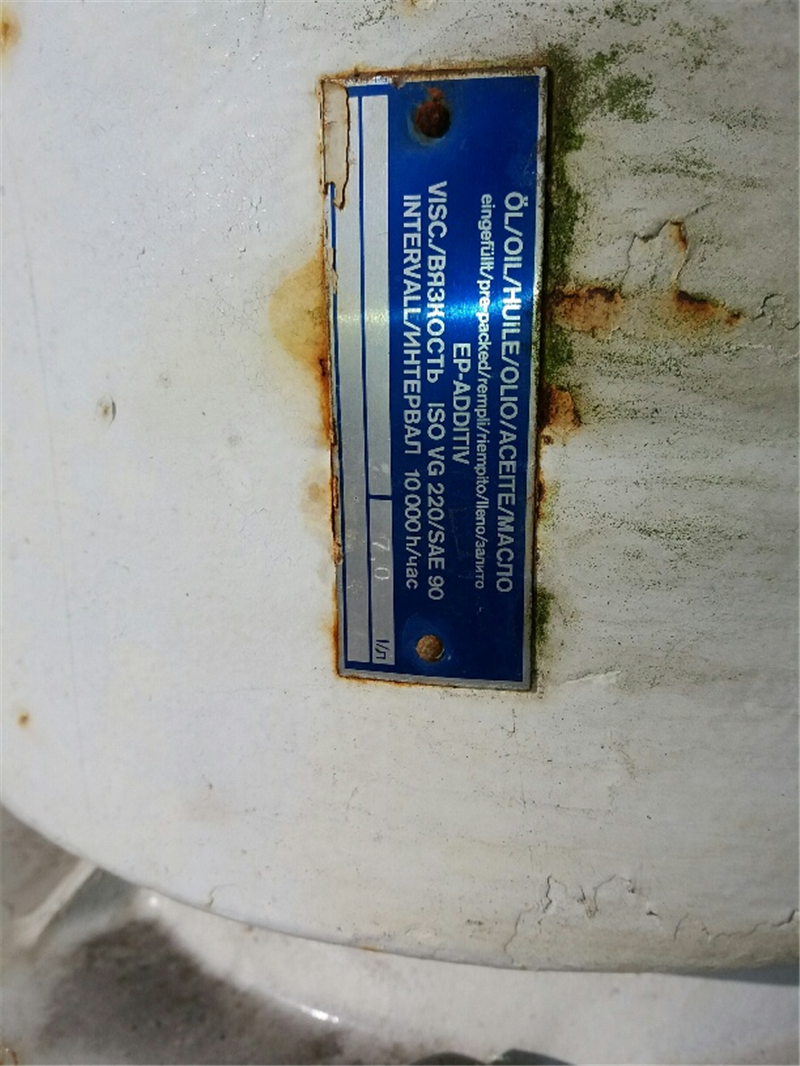

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 22/930 |
