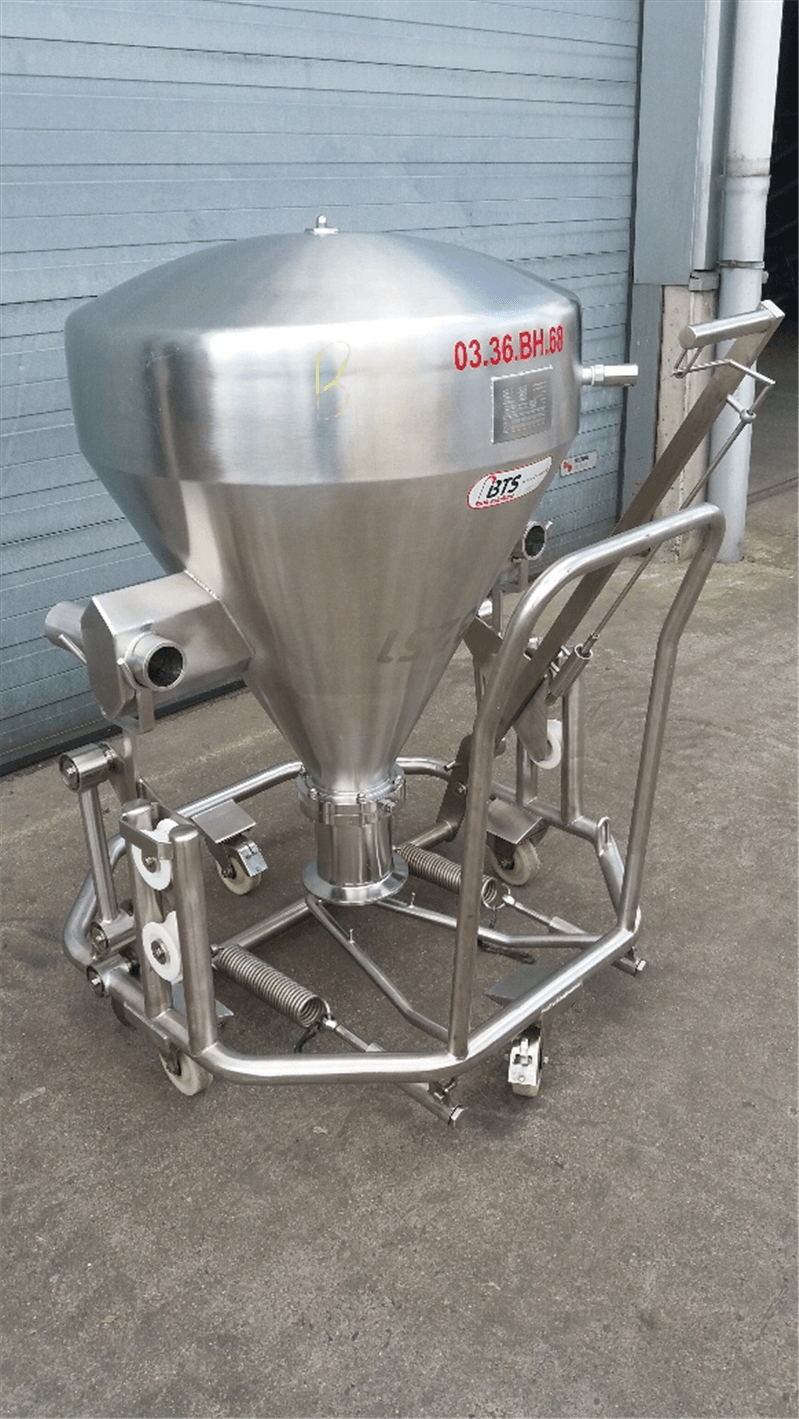

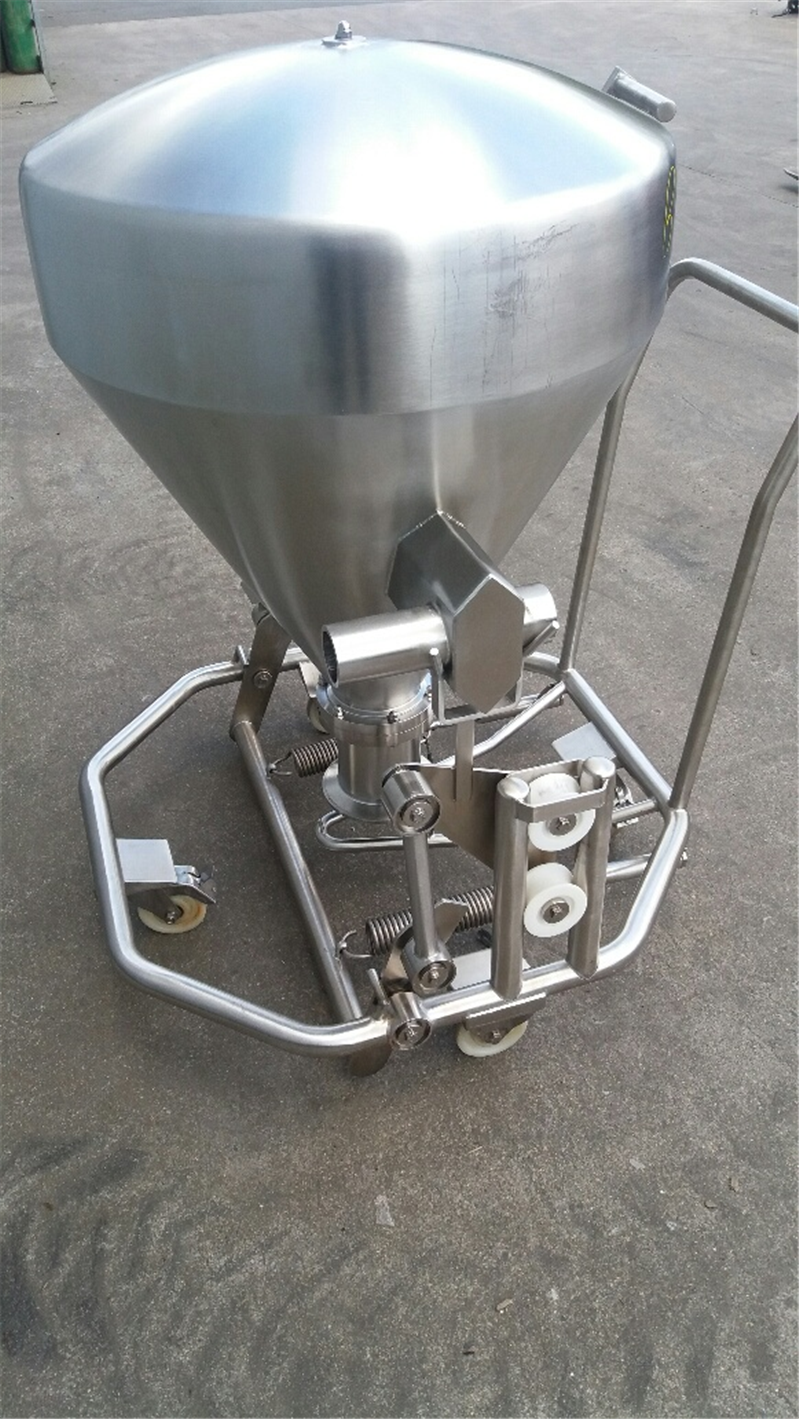

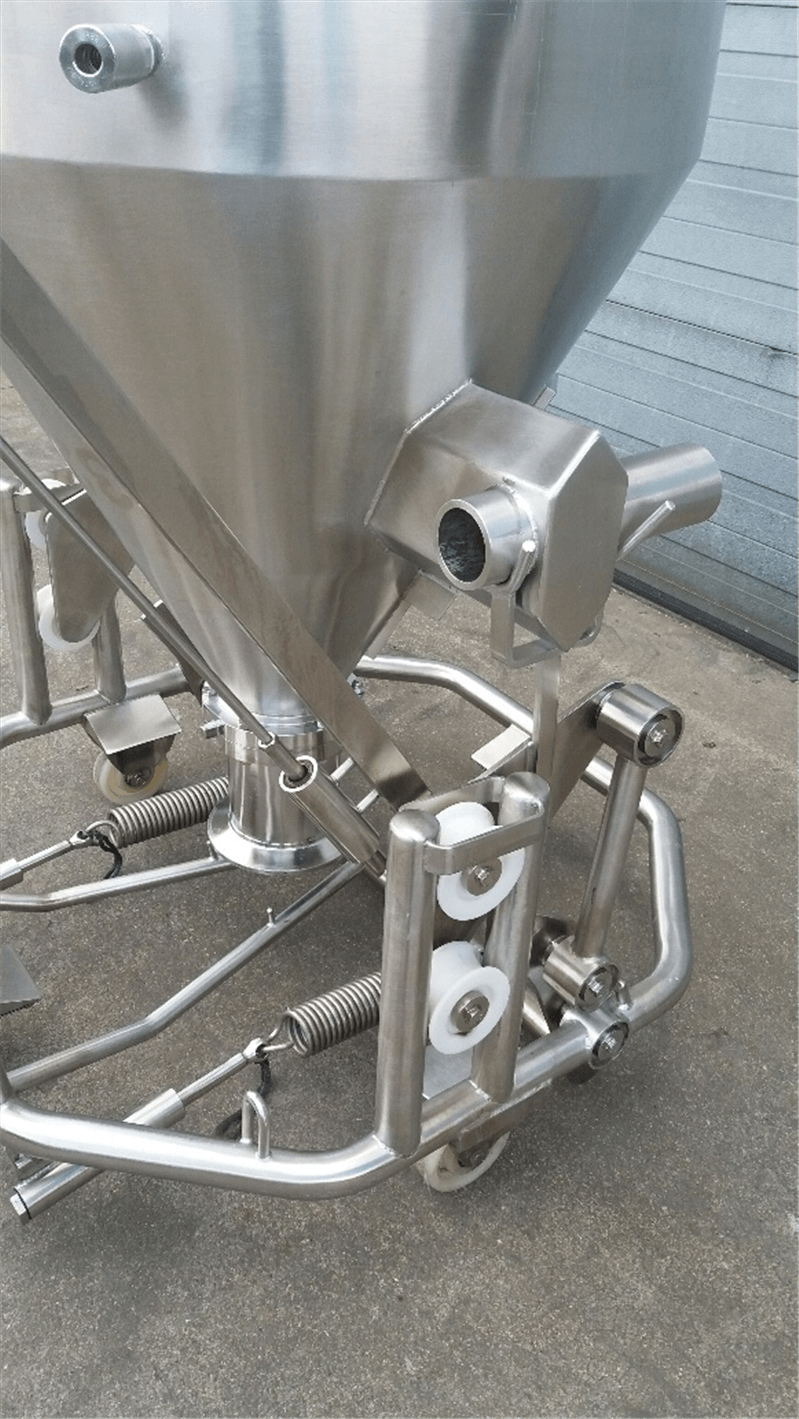

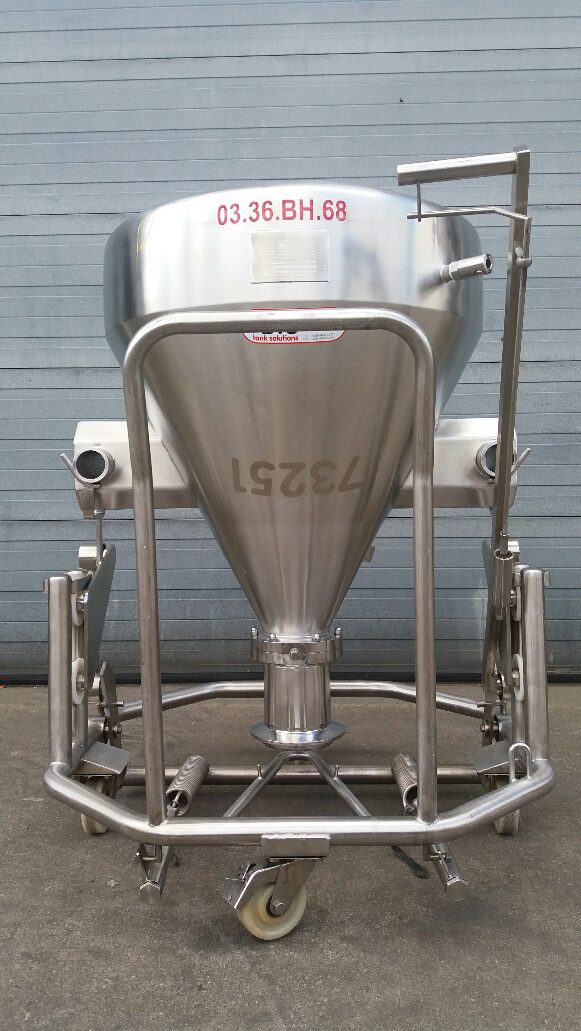

Used pressure and vacuum tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 300 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.68 |
| Material | Stainless steel 316 |

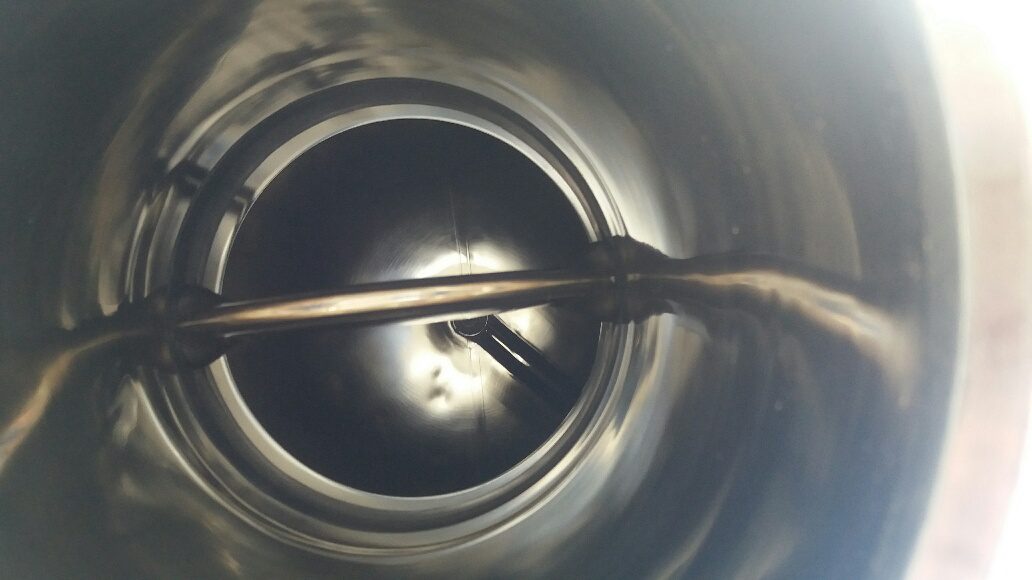

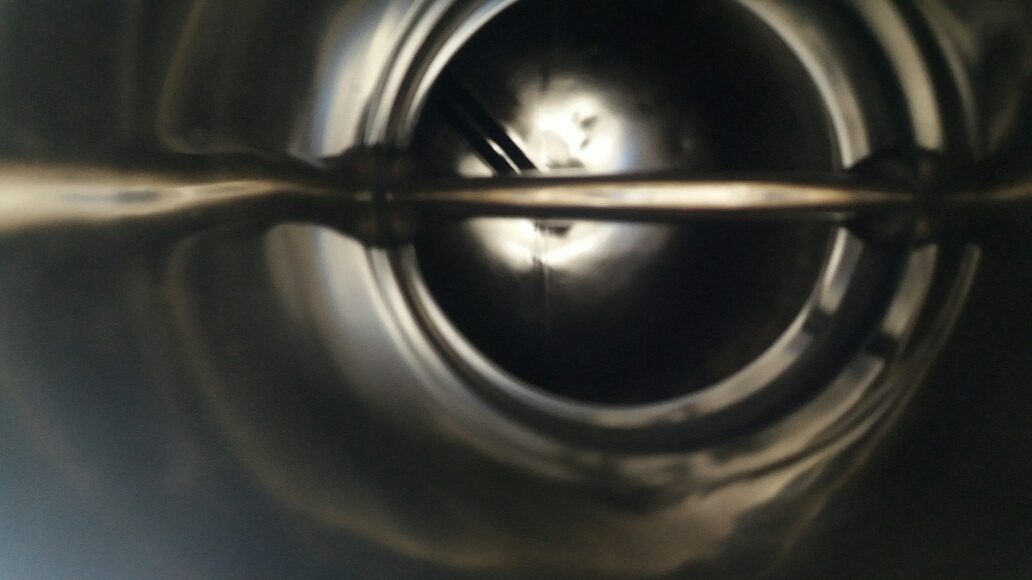

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 300 |
| Type tank | Pressure and vacuum tank |
| Max. Vacuum pressure (example: -1.5 Barg) | -0,95 |
| Max. Overpressure (example: 1.5 Barg) | 3 |
| Fixation | chassis |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |

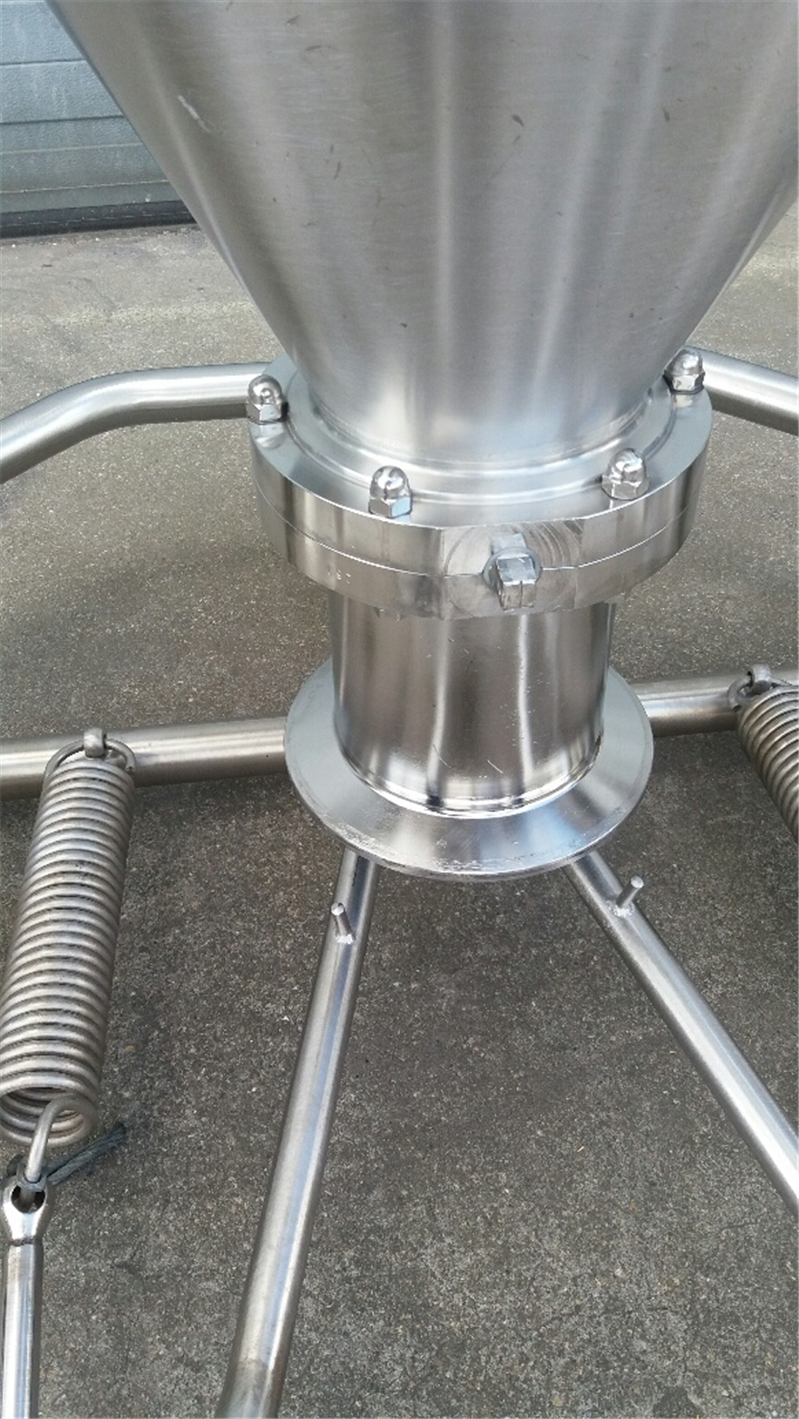

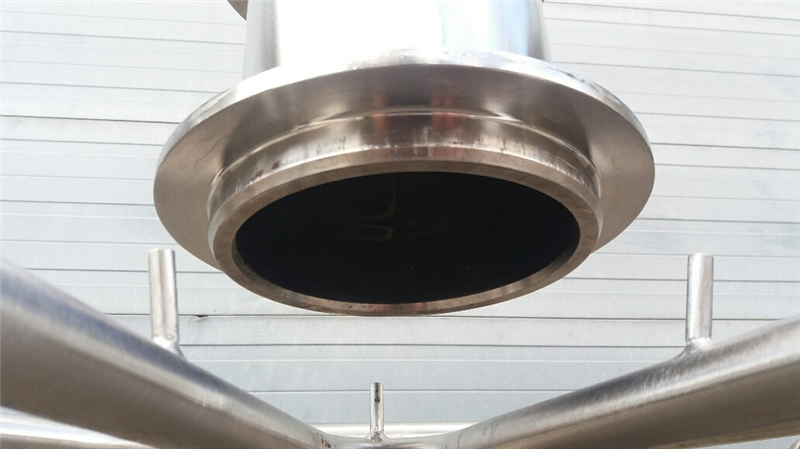

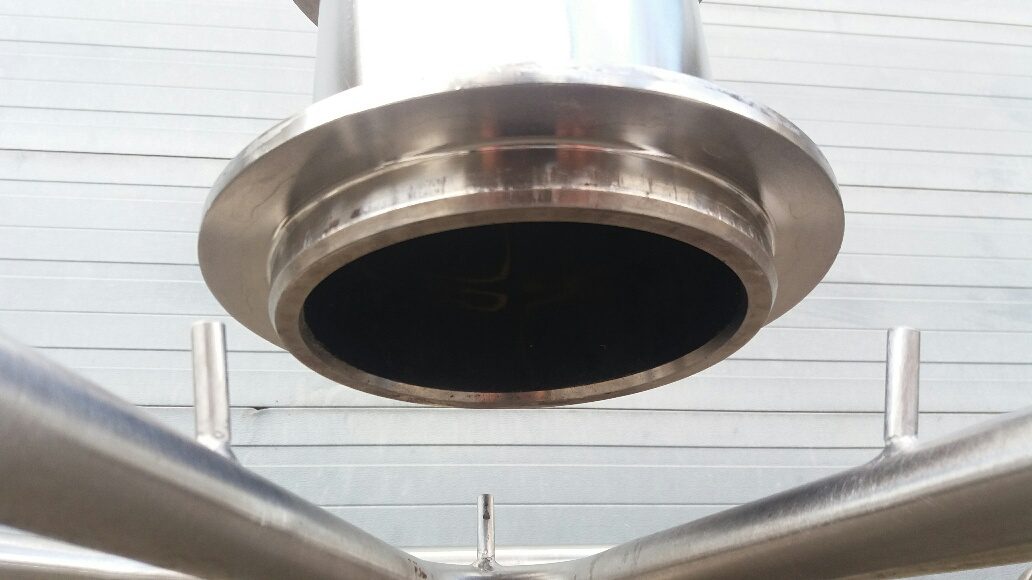

| Type of outlet (s) | Vlinderklep DN150 |
| Diameter of outlet (mm) | 150 |
| locality | B-7711 Belgium |
| Last application | Pharmacy |
| Provision tank cleaning | None |
| Condition | Used |

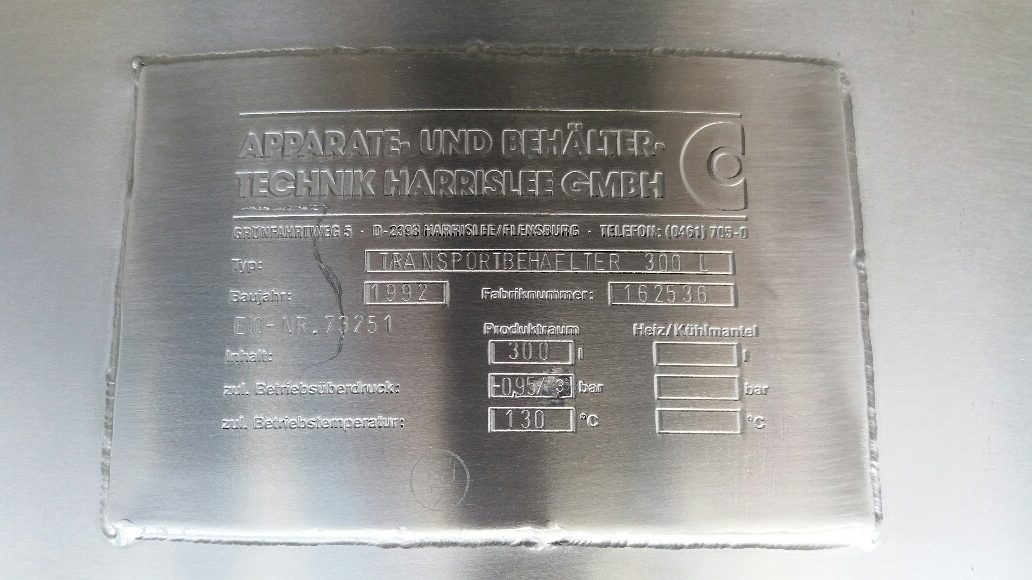

| Type plate manufacturer | Yes |
| Manufacturer | Harrislee |
| Construction data available | Yes |
| Working temperature (° C) | 130 |
| Appendix 1 | 0336BH68_73251.pdf |
| Appendix 2 | 0336BH68_73249.pdf |
| Appendix 3 | 0336BH68_73250.pdf |
| Appendix 4 | 0336BH68_73268.pdf |
| Appendix 5 | 0336BH68_73266.pdf |
| Appendix 6 | 0336BH68_certificaten.pdf |
| Drawing 1 | t0336BH68.pdf |
| Drawing 2 | 0336BH68_tekeningen.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 4 |
| Cylindrical length (mm) | 150 |
| Slope bottom (°) | 62 |
| Total height (mm) | 1475 |
| Length (mm) | 1100 |
| Diameter tank (mm) | 850 |
| Width (mm) | 1050 |
| Insulation | |
|---|---|
| Insulation | No |
