Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 5500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.63 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 5500 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

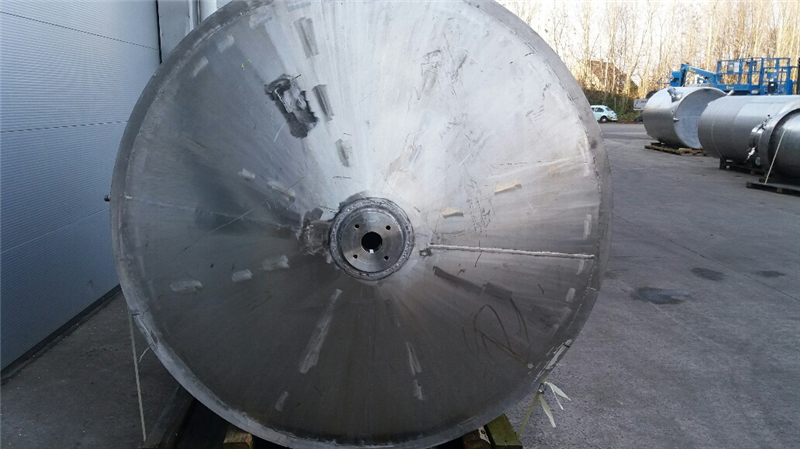

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø500mm, zonder deksel |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens DN65 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 1400 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0336BH63.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Cylindrical length (mm) | 2200 |
| Slope bottom (°) | 10 |
| Outside diameter tank (mm) | 1800 |
| Total height (mm) | 4100 |
| Length (mm) | 2440 |
| Diameter tank (mm) | 1690 |
| Width (mm) | 2000 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |

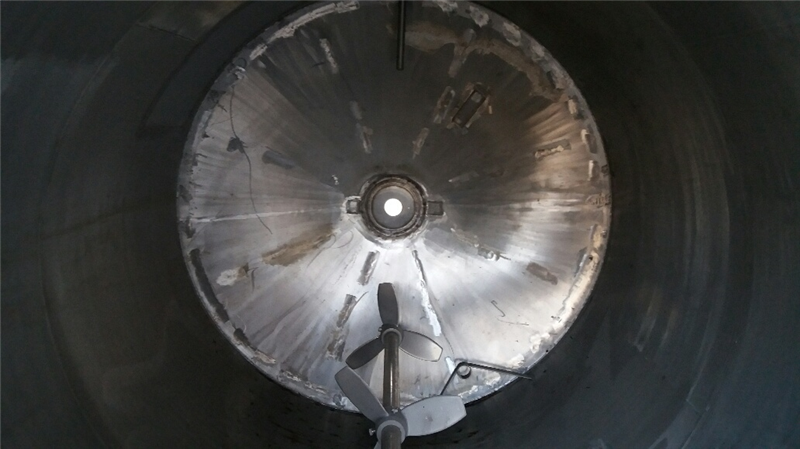

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Drive Type | Reductor |
| Remarks | |
|---|---|
| Description (EN) | Internal Ø : 1680mm |
