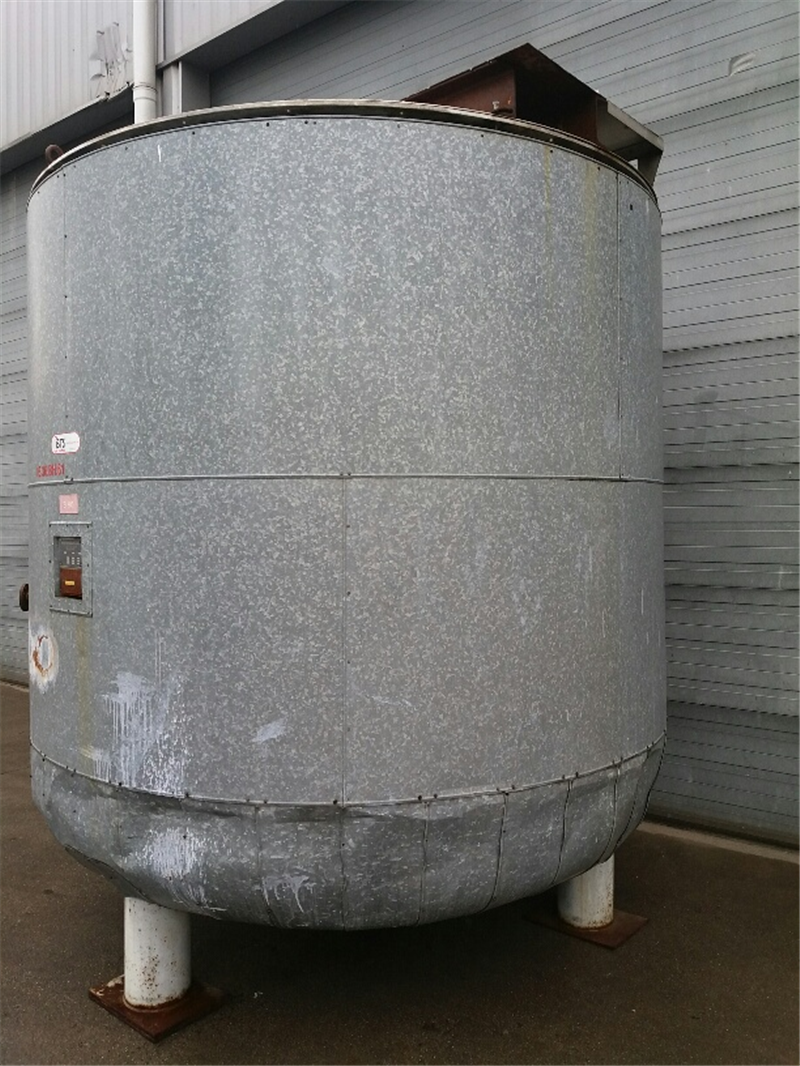

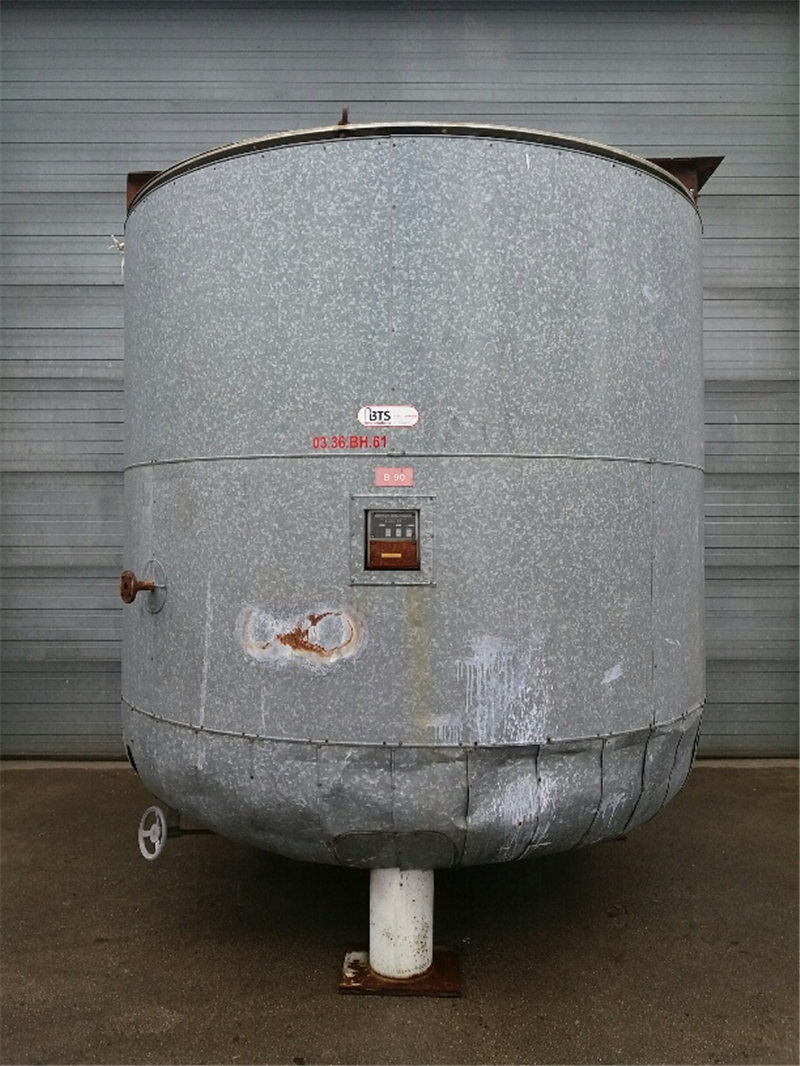

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.61 |
| Material | Stainless steel 304 |

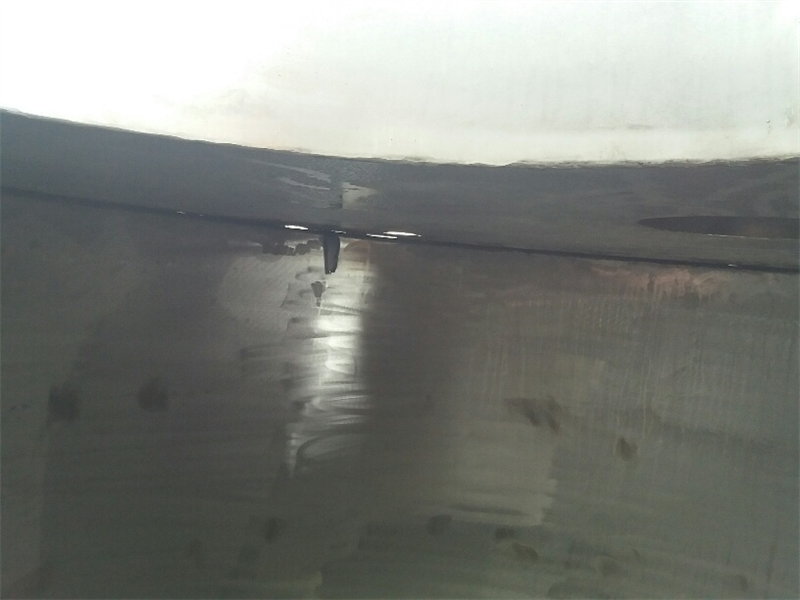

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 10000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

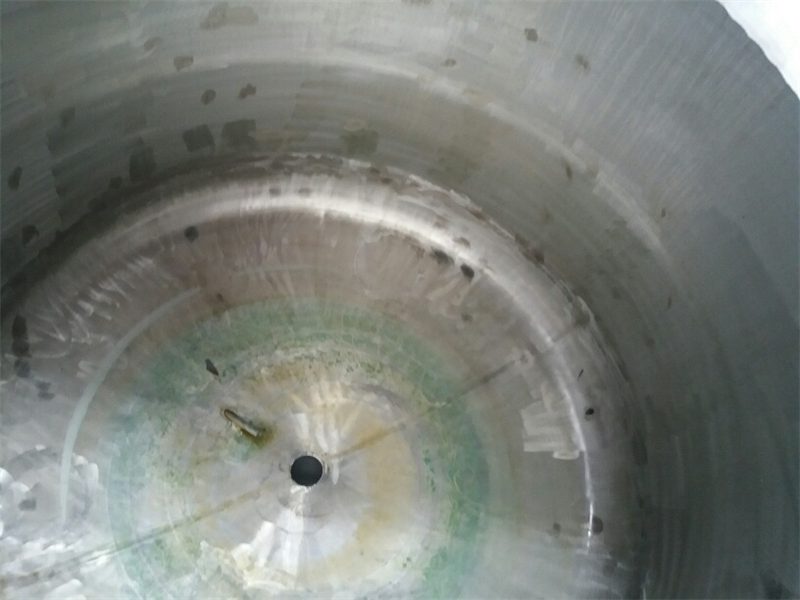

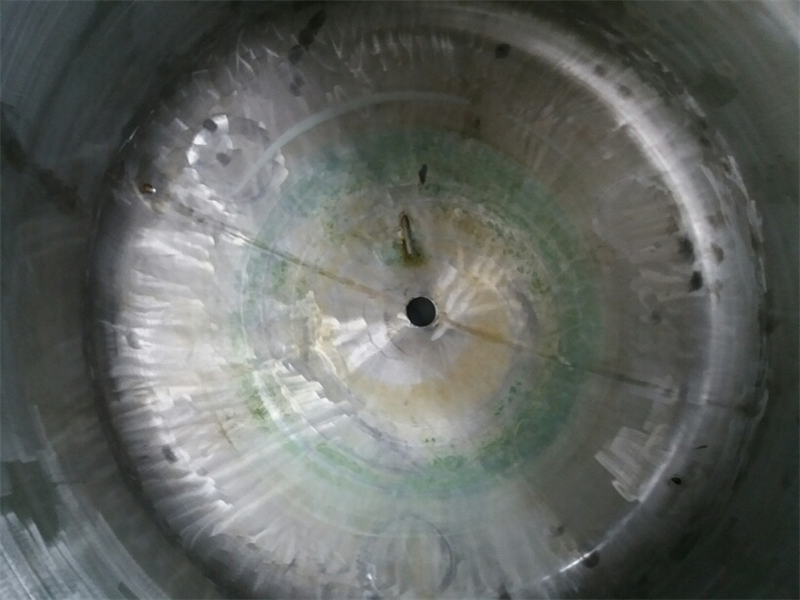

| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø800mm |
| Tank with total drain? | Yes |

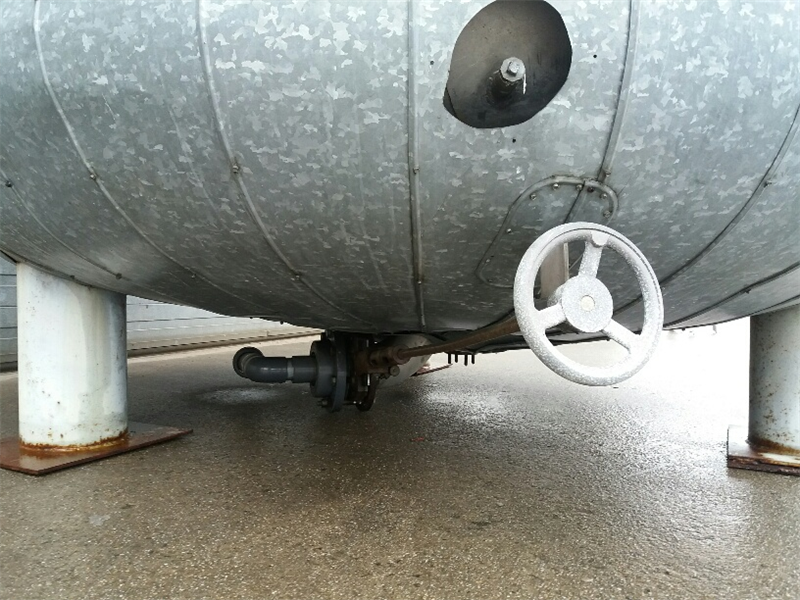

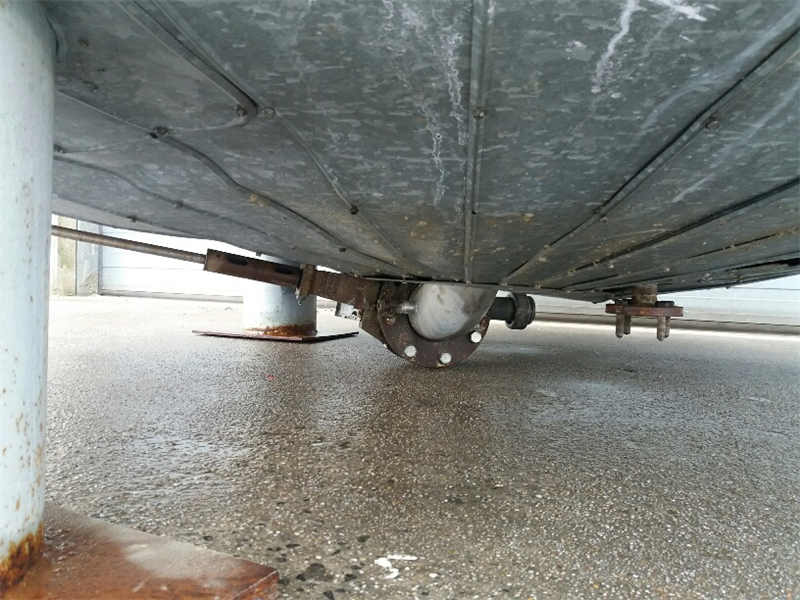

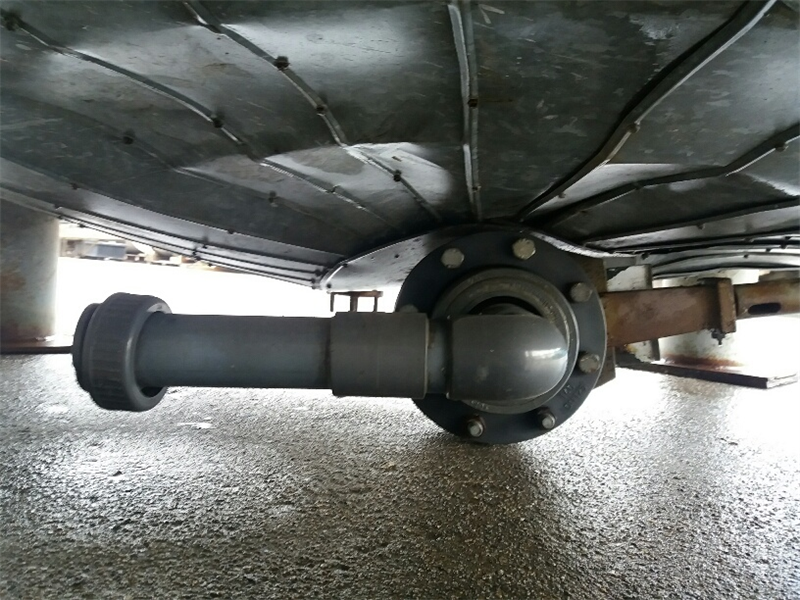

| Type of outlet (s) | flens DN150 |
| locality | B-7711 Belgium |
| Last application | cosmetics |
| Provision tank cleaning | None |
| Weight (kg) | 2000 |
| Condition | Used |

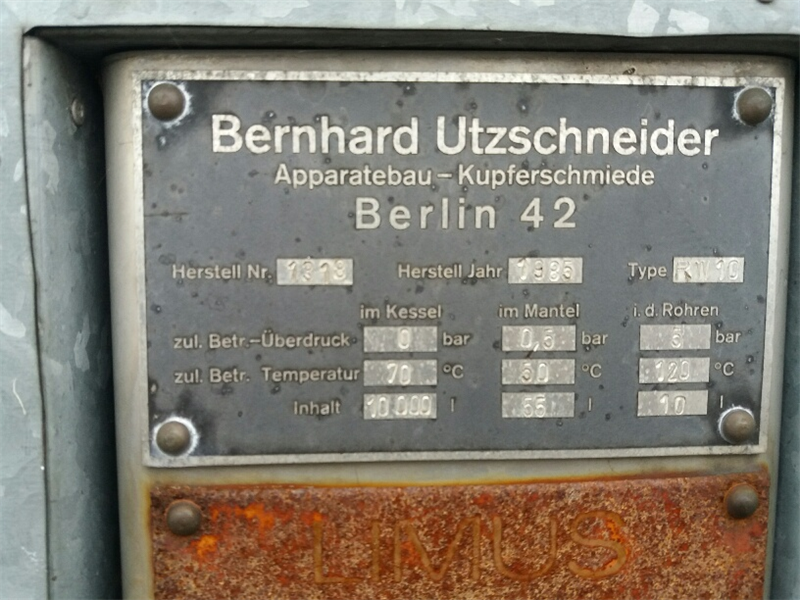

| Manufacturer | Bernhard Utzschneider |
| Year Built | 1985 |
| Design Code | 70 |
| Construction data available | No |
| Drawing 1 | t0336BH61.pdf |
.jpg)
.jpg)
.jpg)
.jpg)

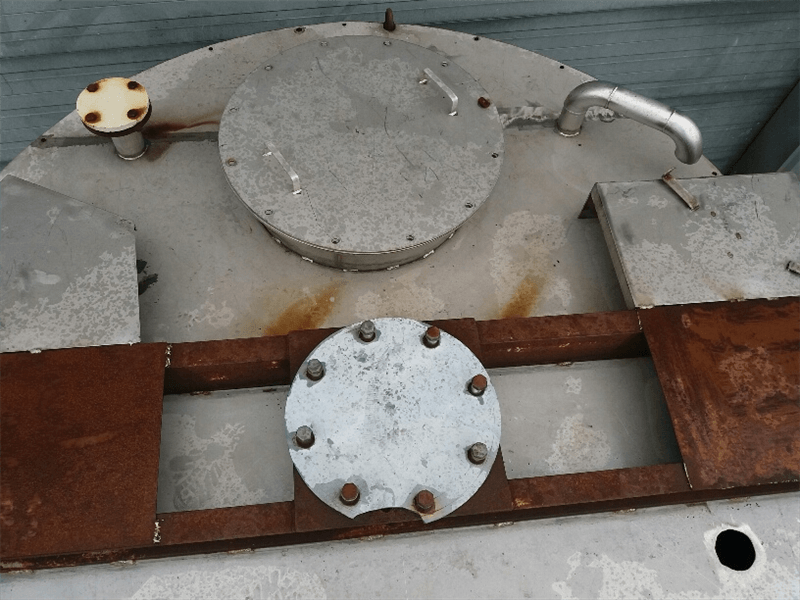

| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Detail top side | Bolted cover |
| Thickness of top side (mm) | 4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6 |
| Bottom thickness (mm) | 5,6 |
| Cylindrical length (mm) | 2000 |
| Outside diameter tank (mm) | 2530 |
| Total height (mm) | 3100 |
| Length (mm) | 2500 |
| Diameter tank (mm) | 2400 |
| Width (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | galvanised |
| Heating | |
|---|---|
| Number of heating type | 2 |
| Heating 1: Type | jacket au bain-marie |
| Heating 1: Max. service pressure | 0,5 |
| Heating 1: Max. design pressure °C | 50 |
| Heating 2: Type | Heating coil only on the bottom |
| Heating 2: Max. service pressure | 5 |
| Heating 2: Max. design pressure °C | 120 |
