Used pressure and vacuum tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 27 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.120 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 27 |
| Type tank | Pressure and vacuum tank |
| Max. Vacuum pressure (example: -1.5 Barg) | -1 |

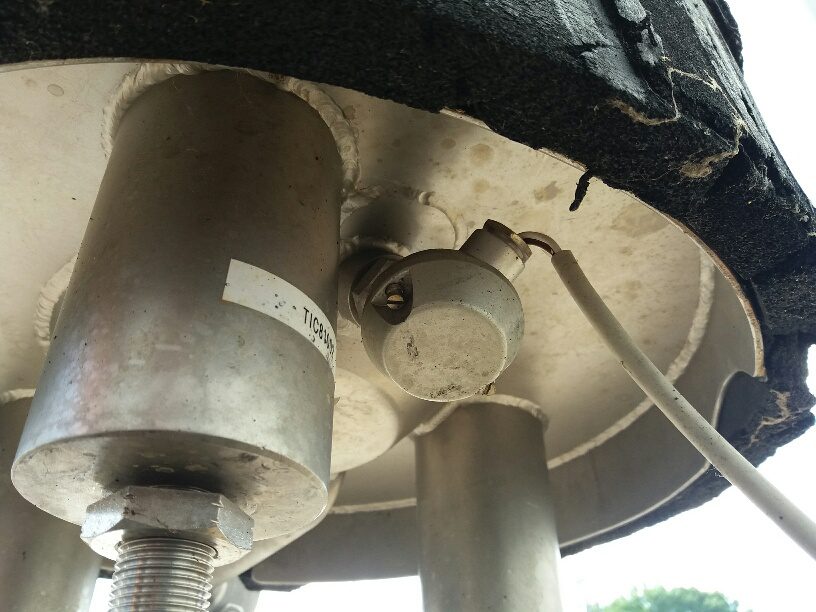

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Tank with total drain? | Yes |
| Type of outlet (s) | Triclamp |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | cosmetics |
| Provision tank cleaning | None |
| Weight (kg) | 70 |
| Condition | Used |

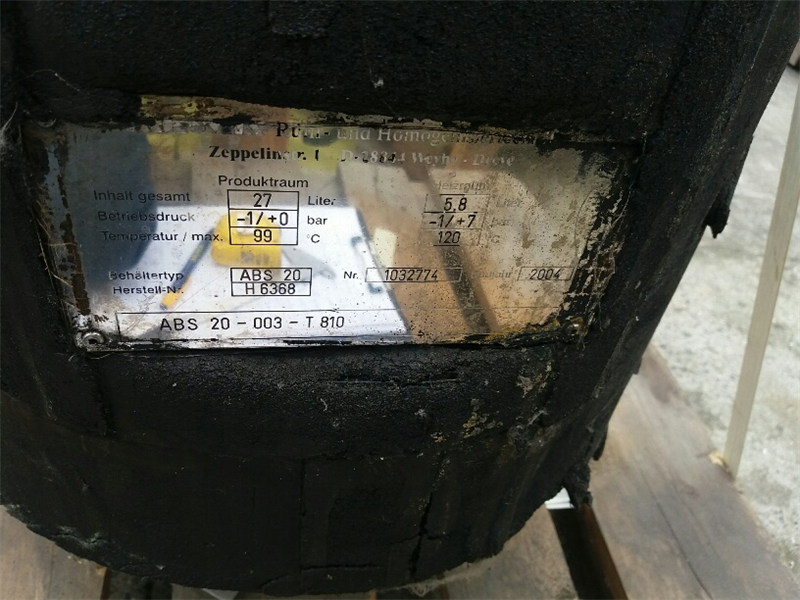

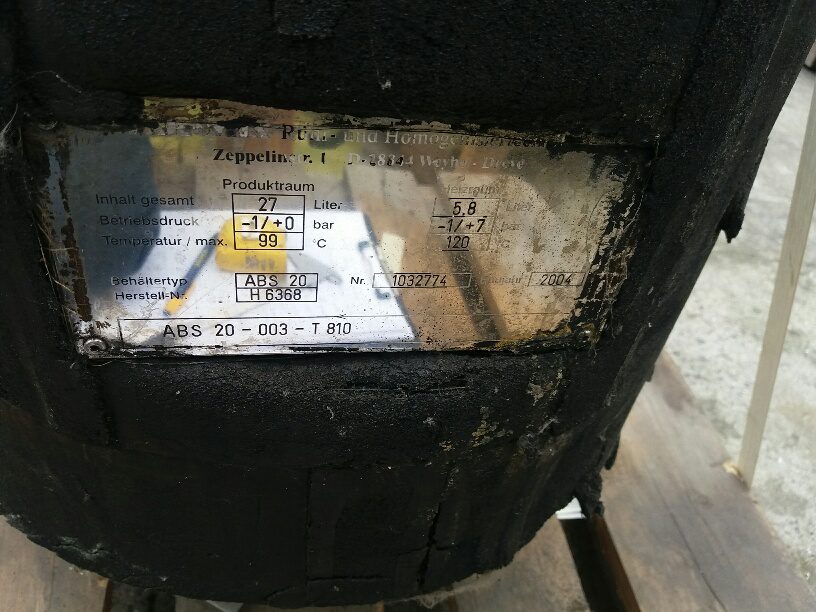

| Type plate manufacturer | Yes |
| Manufacturer | zeppelin |
| Year Built | 2004 |
| Design Code | ABS 20-003-T810 |
| Construction data available | No |
| Working temperature (° C) | 99 |
| Drawing 1 | 0336BH120.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 12 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 8 |
| Bottom thickness (mm) | 8 |
| Cylindrical length (mm) | 260 |
| Height bottom (mm) | 200 |
| Outside diameter tank (mm) | 320 |
| Total height (mm) | 750 |
| Length (mm) | 600 |
| Diameter tank (mm) | 320 |
| Width (mm) | 450 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Armaflex |
| Thickness (mm) | 20 |
| Finishing insulation | None |
| Insulation material | Stainless steel 316 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Dimple plate |
| Heating 1: Max. service pressure | 7 |
| Heating 1: Max. design pressure °C | 120 |
| Remarks | |
|---|---|

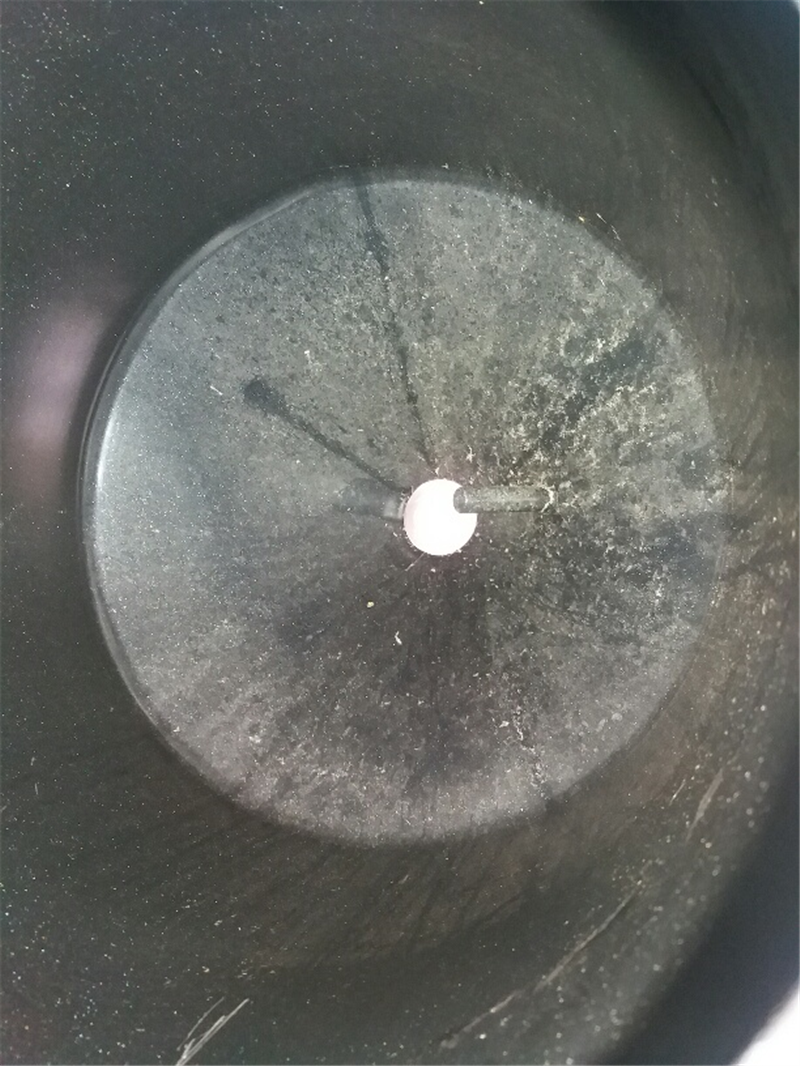

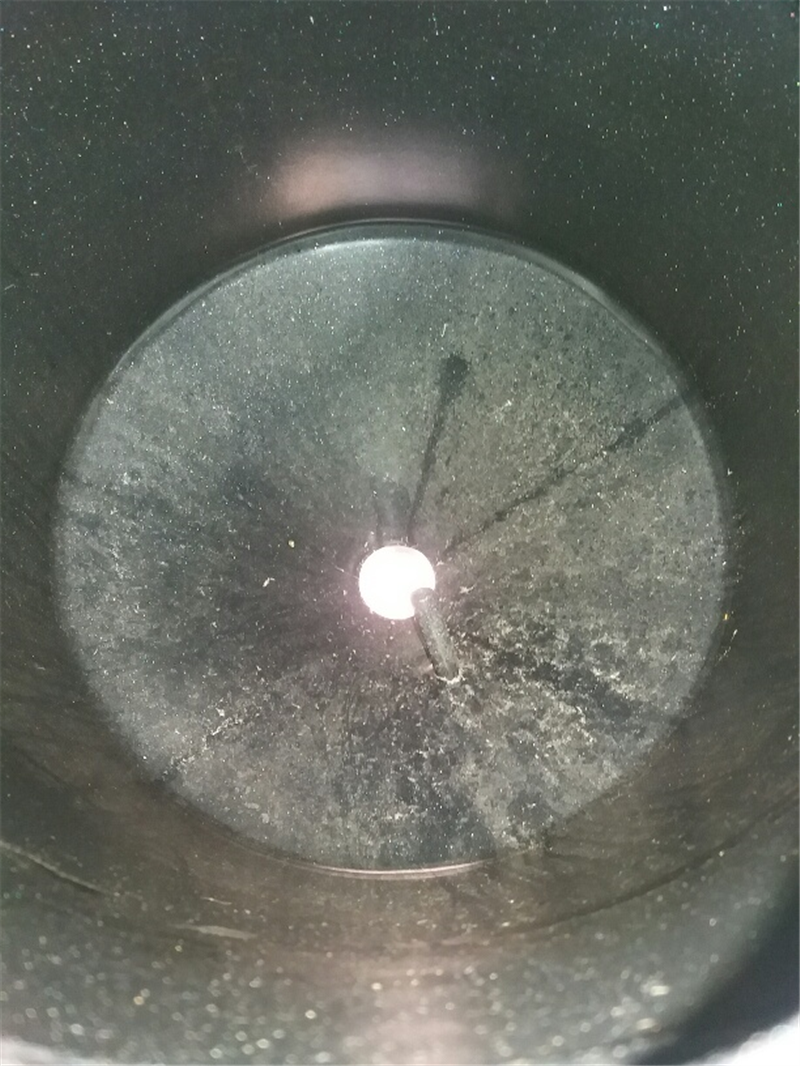

| Description (EN) | Black coating inside tank Volume jacket 5.8 L ; SS304 ; -1 / + 7 bars Tabnk pressure : -1/0 Barg |
