Used pressure tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 3480 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.12 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 3480 |
| Type tank | Pressure Tank |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

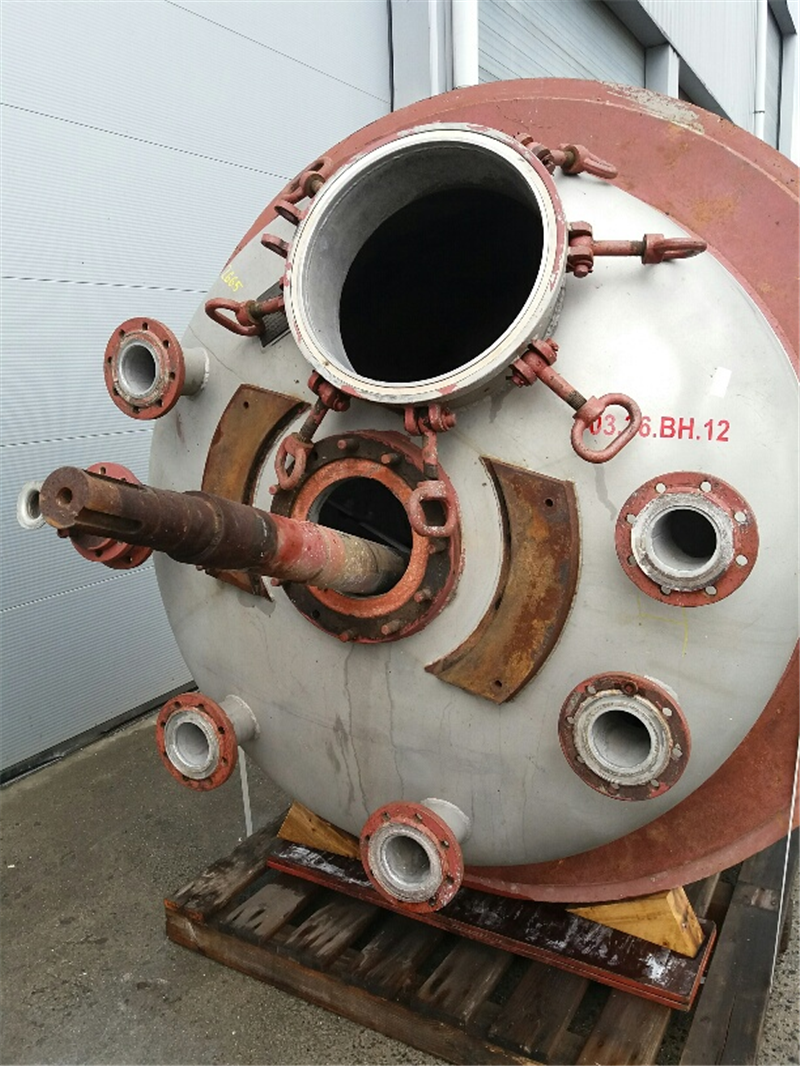

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 450mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens DN100 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 2480 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Working temperature (° C) | 250 |
| Drawing 1 | t0336BH12.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 11 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 7,5 |
| Bottom thickness (mm) | 10 |
| Total height (mm) | 2400 |
| Length (mm) | 2250 |
| Diameter tank (mm) | 1600 |
| Width (mm) | 2250 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

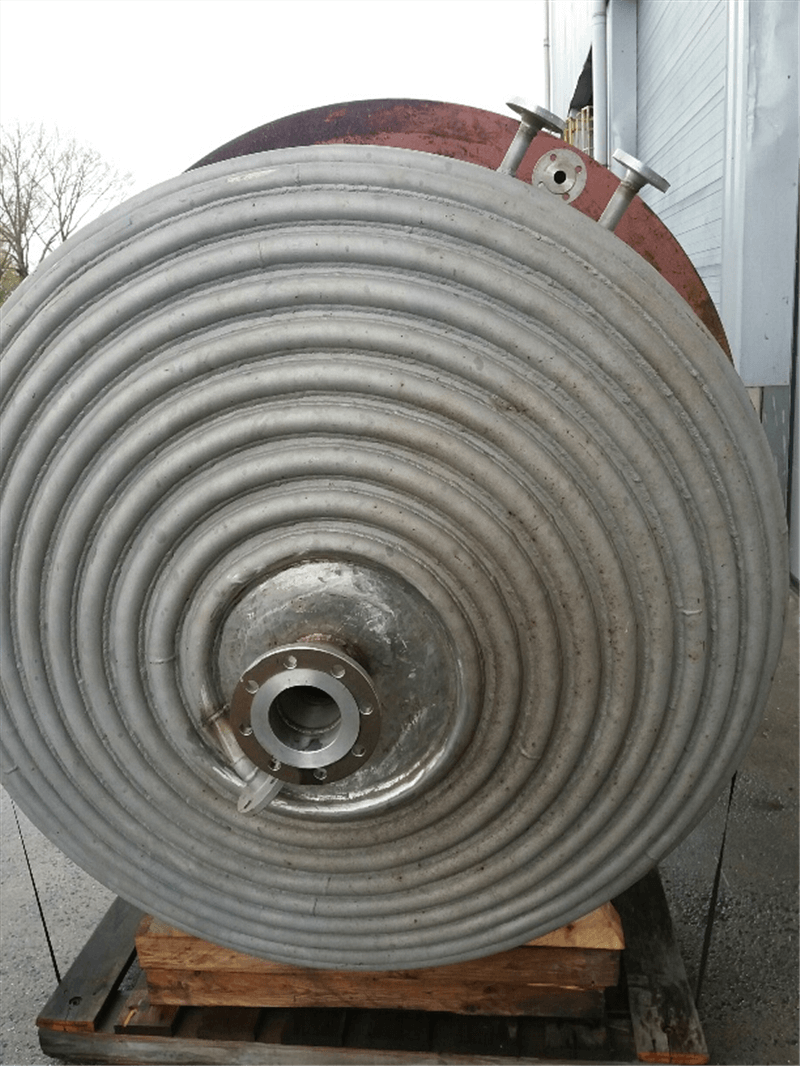

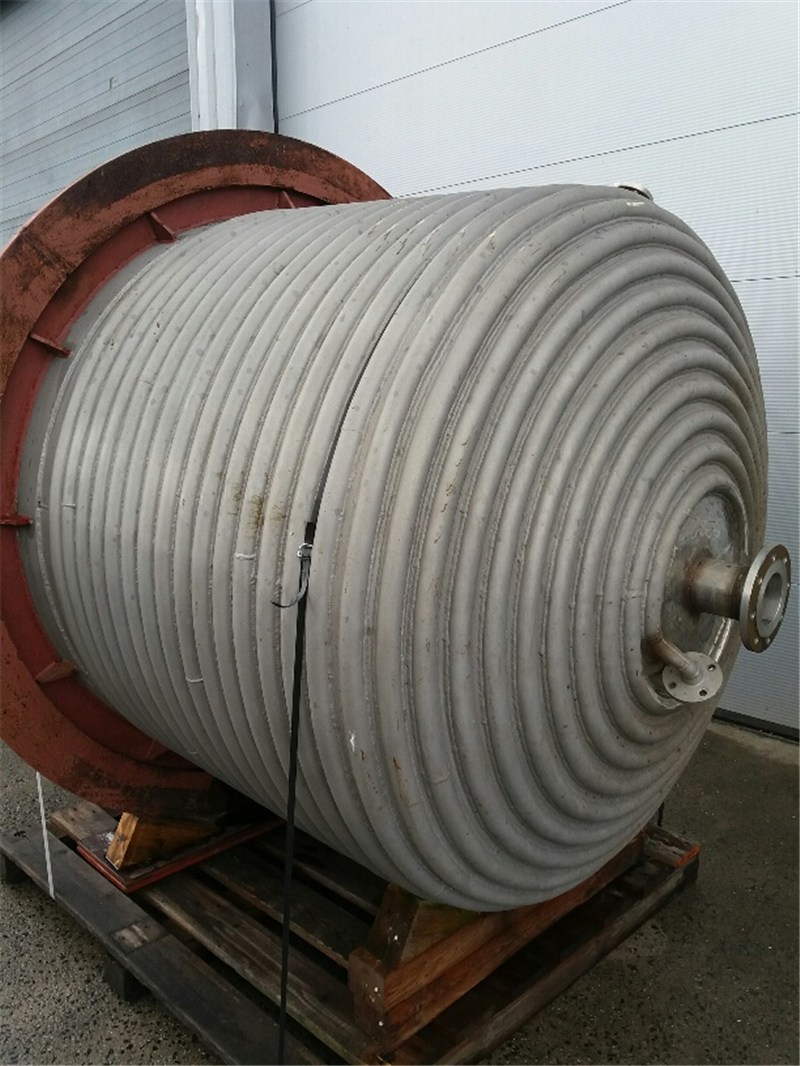

| Heating 1: Type | Halfpipe |
| Heating 1: Max. service pressure | 32 |
| Remarks | |
|---|---|
| Description (EN) | manhole cover and motor are not available |
