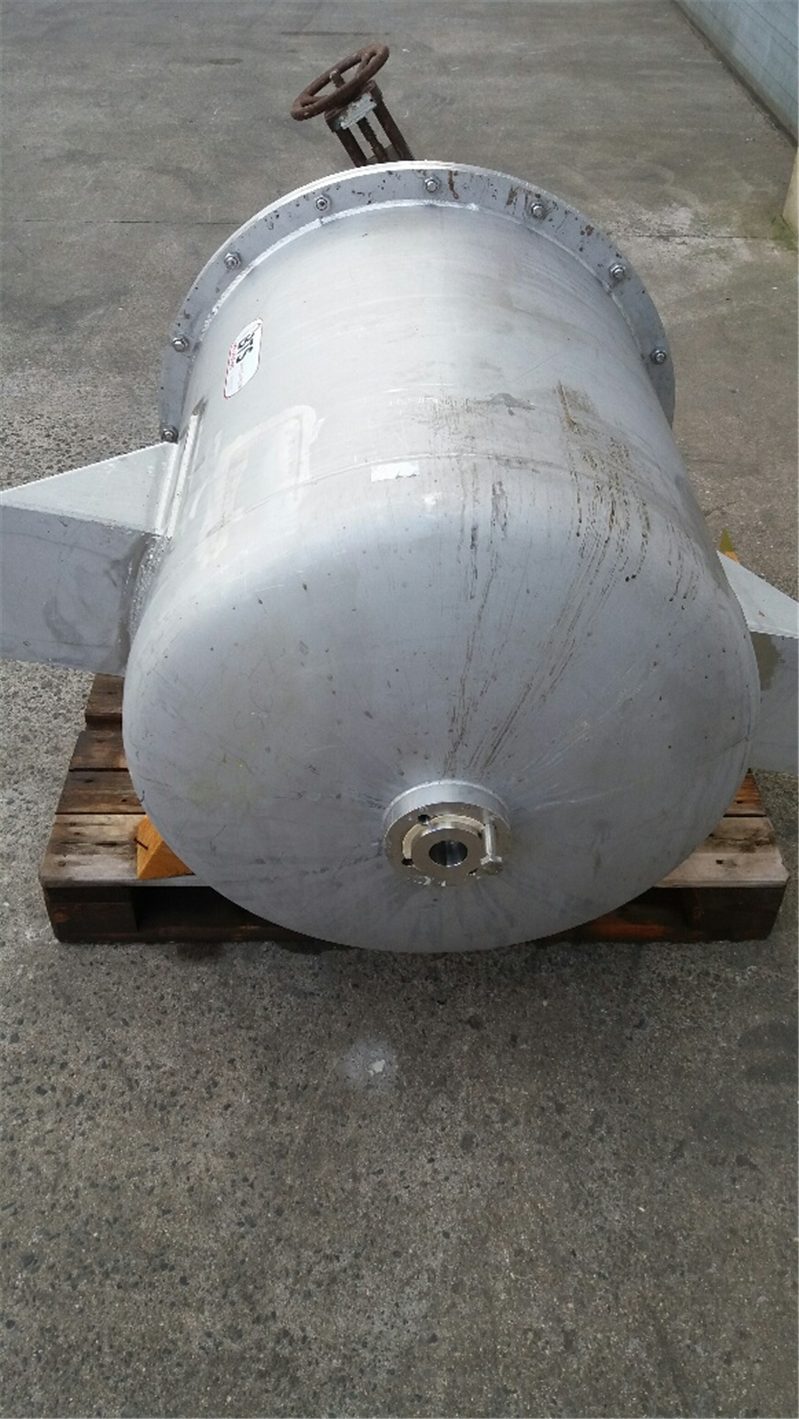

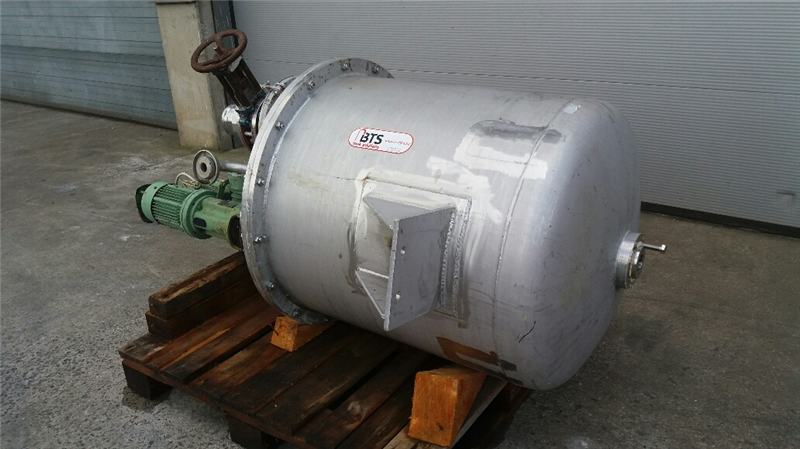

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 400 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.08 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 400 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 350 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | DN40 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0336BH08.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Detail top side | Bolted cover |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Total height (mm) | 2050 |
| Length (mm) | 1350 |
| Diameter tank (mm) | 800 |
| Width (mm) | 950 |
| Insulation | |
|---|---|
| Insulation | No |

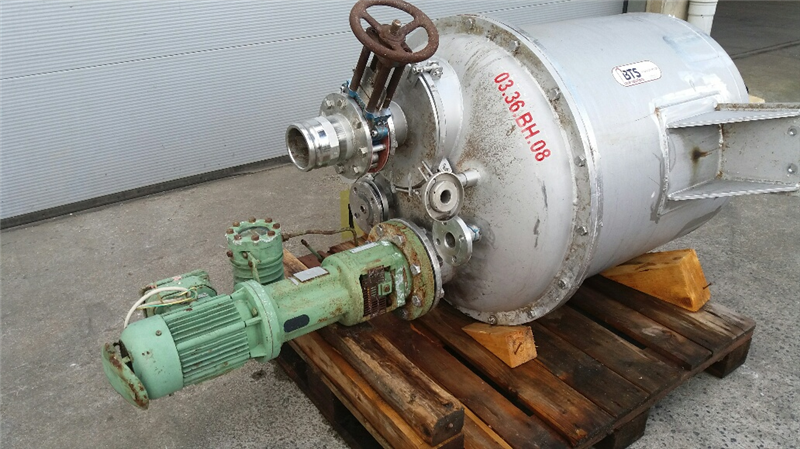

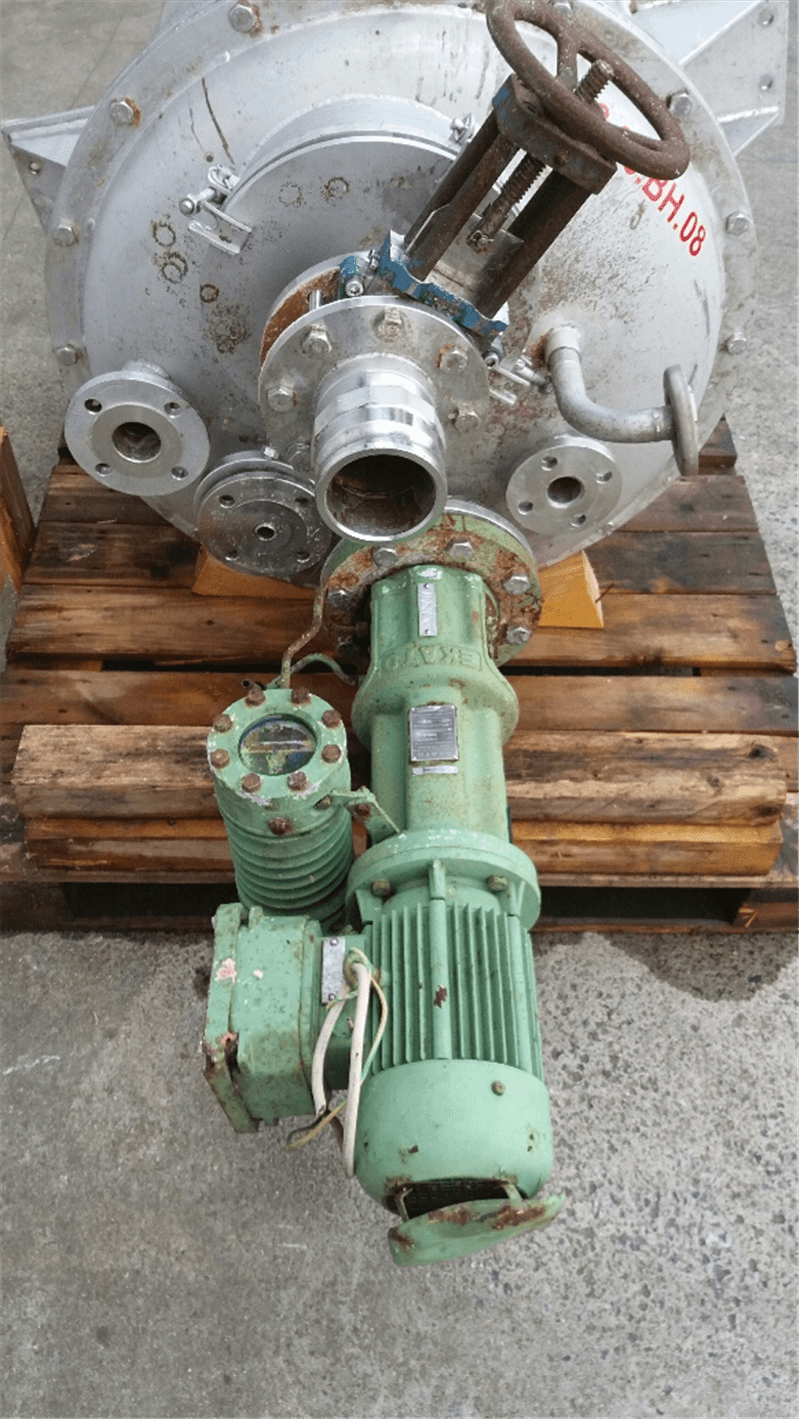

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 316 |
| Agitator 1: Constructor | EKATO |

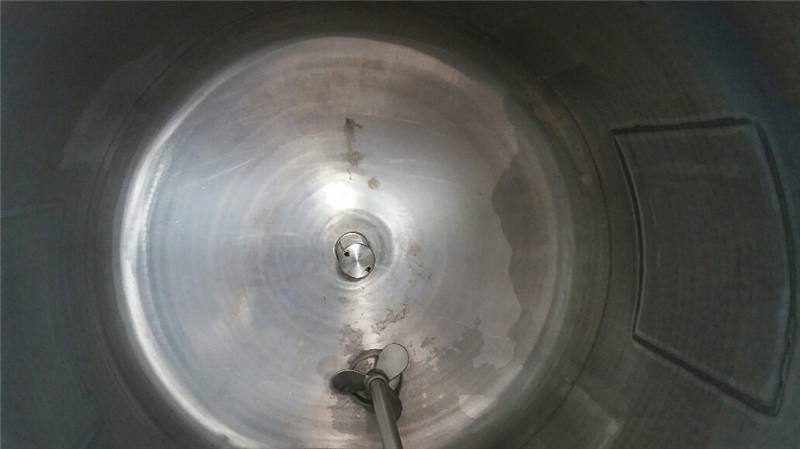

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 1415 |
| Remarks | |
|---|---|
| Description (EN) | Motor agitator broken • |
