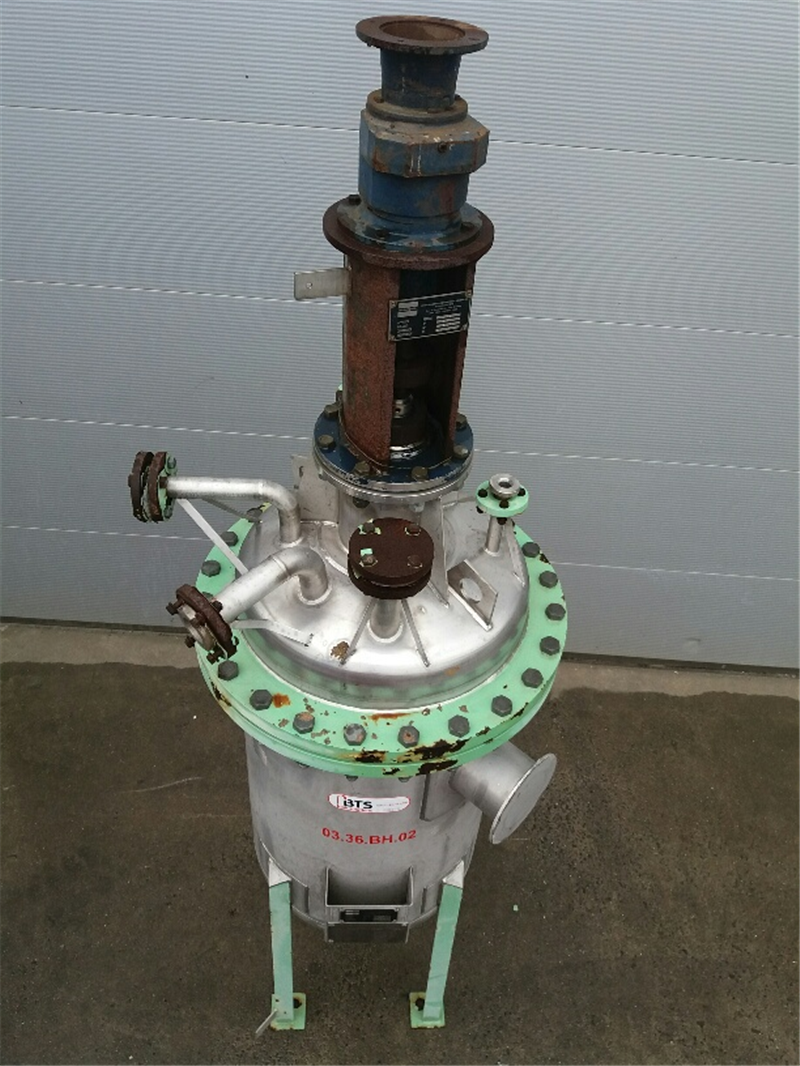

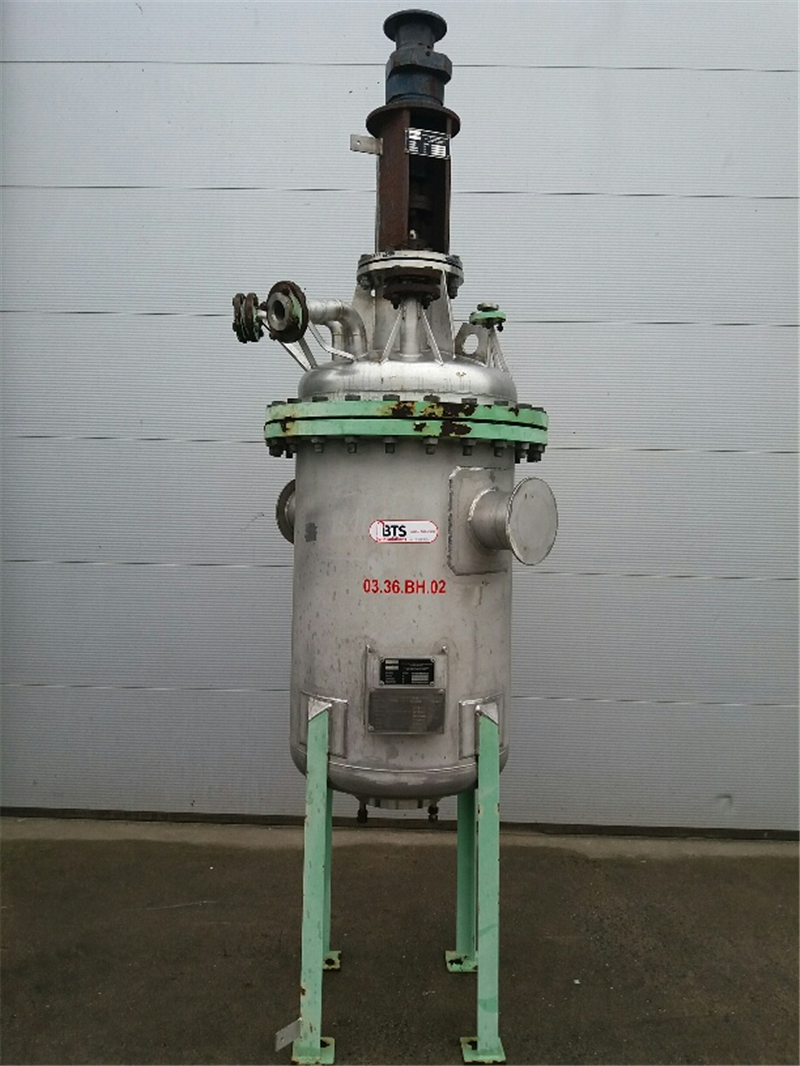

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 400 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 400 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

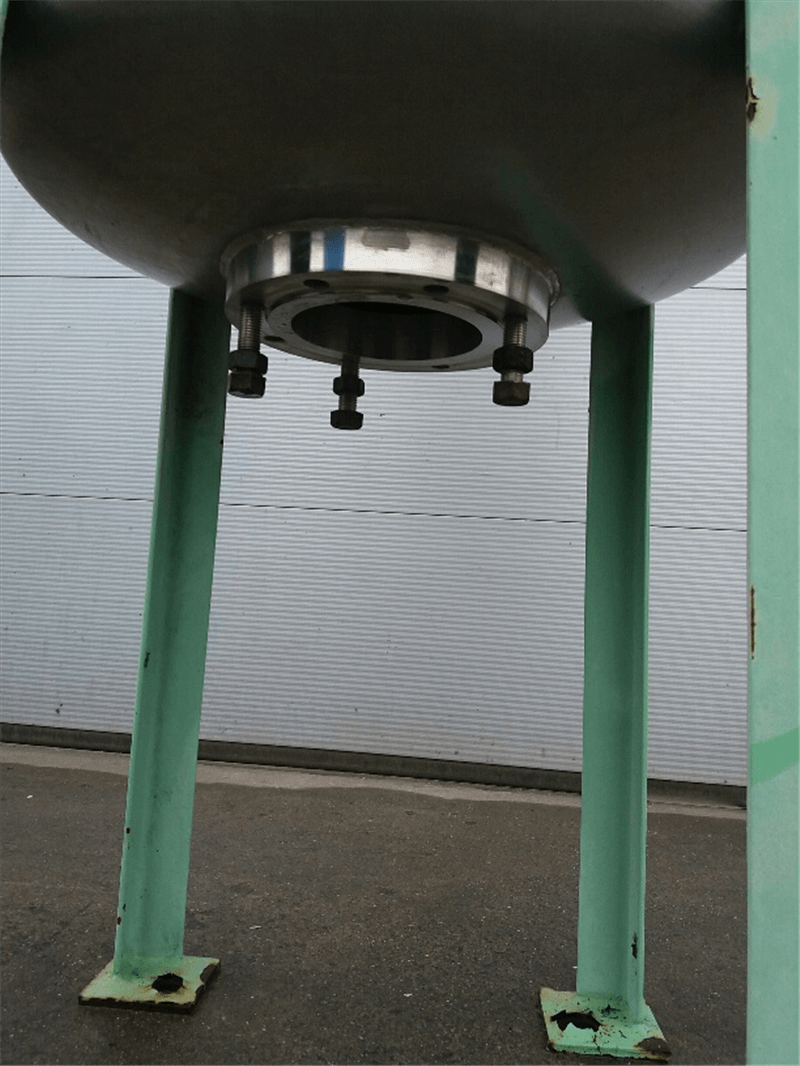

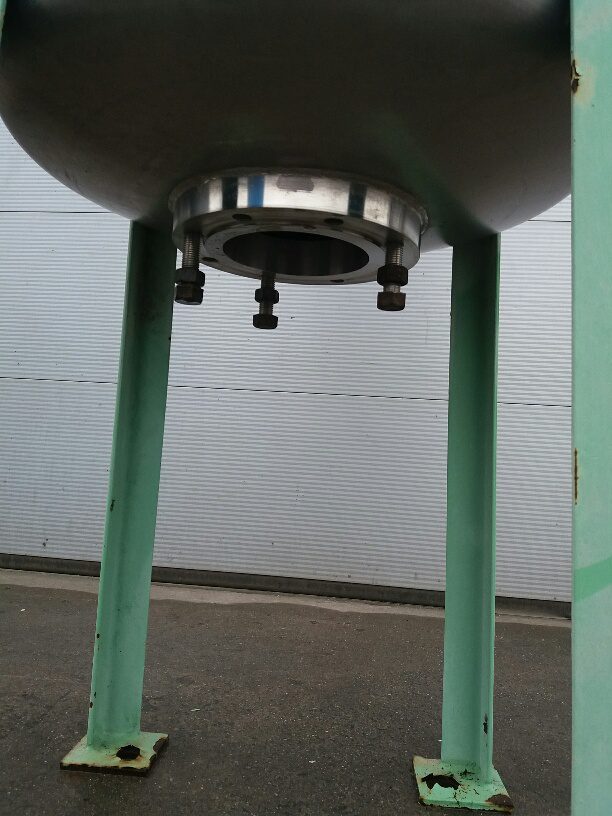

| Tank with total drain? | Yes |

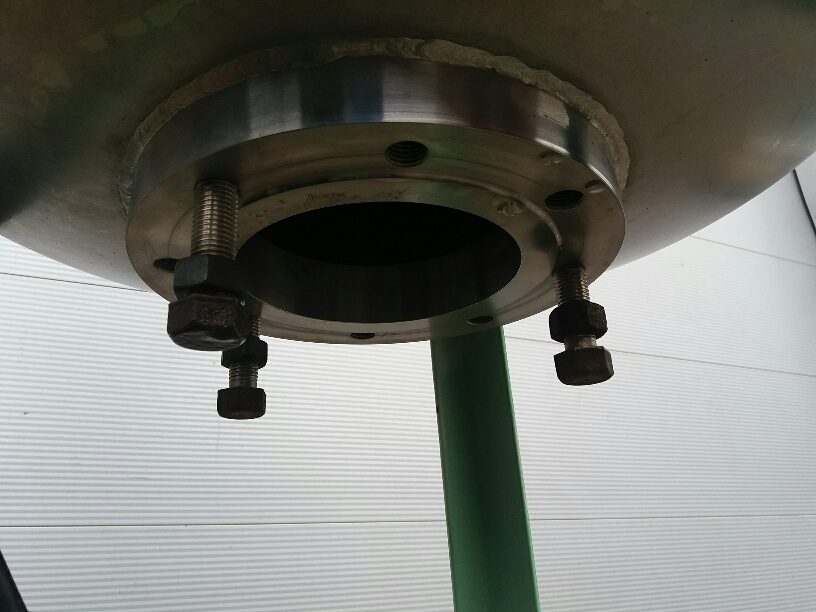

| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 150 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 400 |
| Condition | Used |

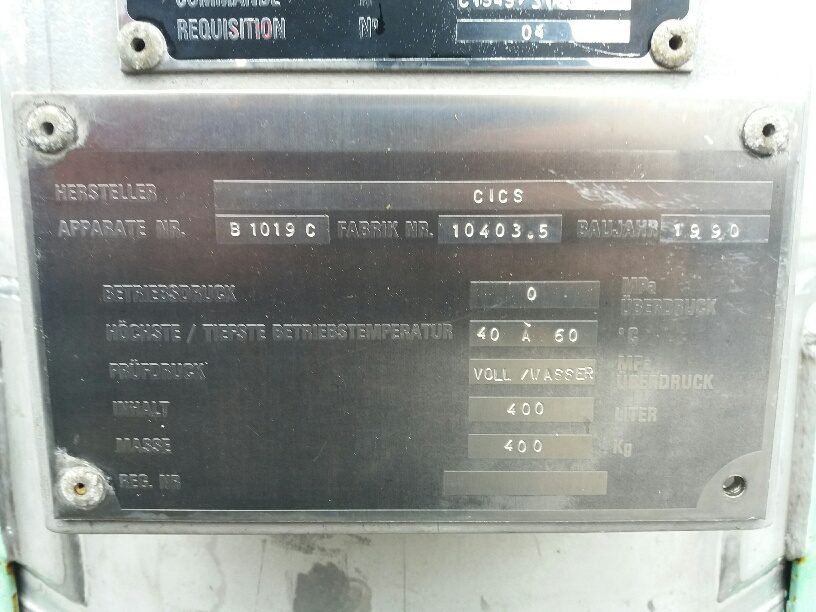

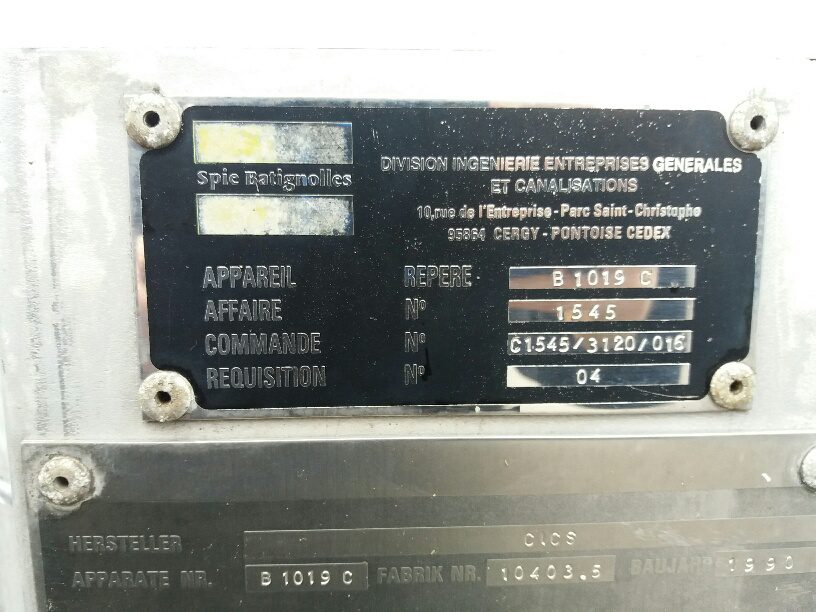

| Type plate manufacturer | Yes |
| Manufacturer | CICS |
| Year Built | 1990 |
| Design Code | B1019C - 10403.5 |
| Construction data available | No |
| Working temperature (° C) | 40 |
| Drawing 1 | t0336BH021.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Detail top side | Bolted cover |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,6 |
| Periphery (mm) | 2200 |
| Cylindrical length (mm) | 1060 |
| Total height (mm) | 3150 |
| Length (mm) | 1050 |
| Diameter tank (mm) | 700 |
| Width (mm) | 1010 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |

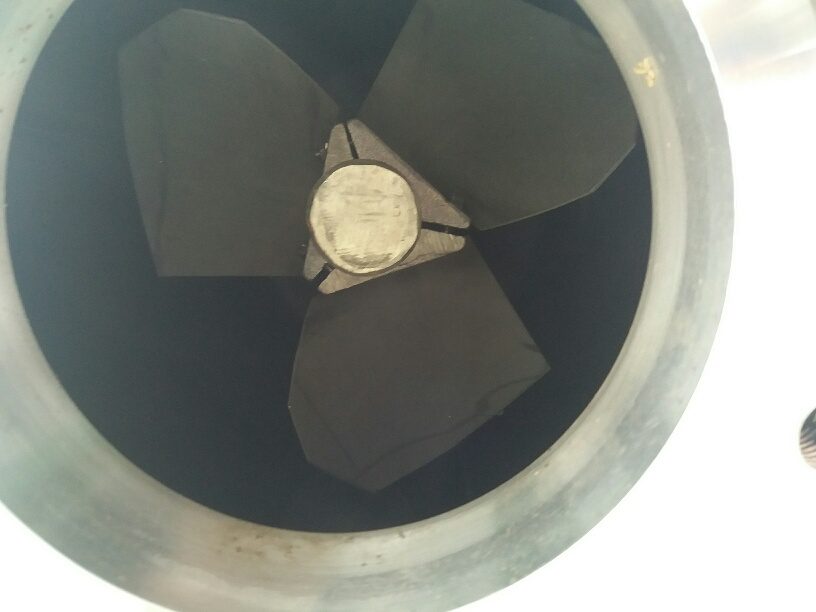

| Agitator 1: stirring element type | Propeller |

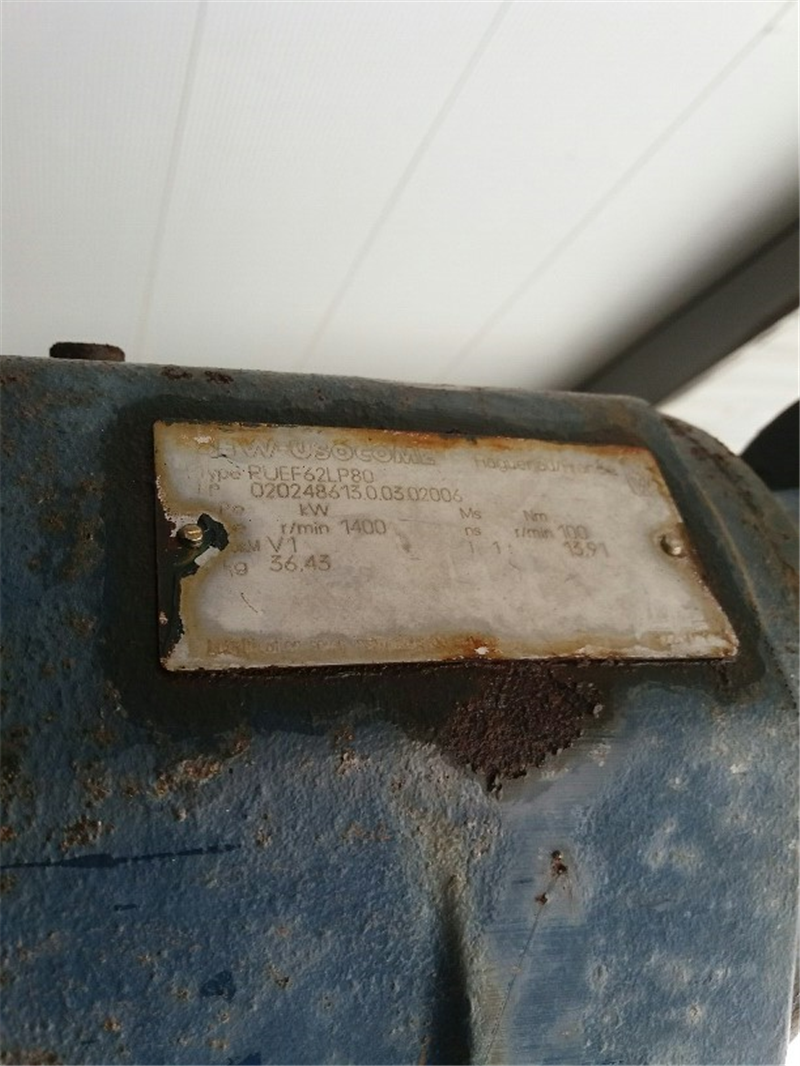

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 1400 |
