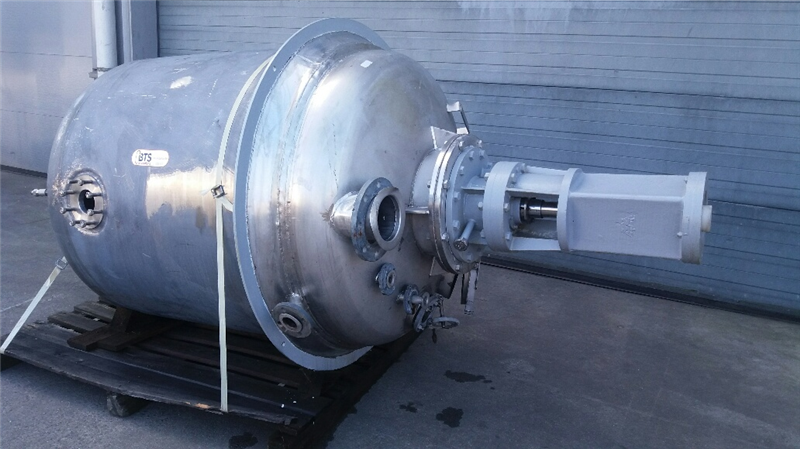

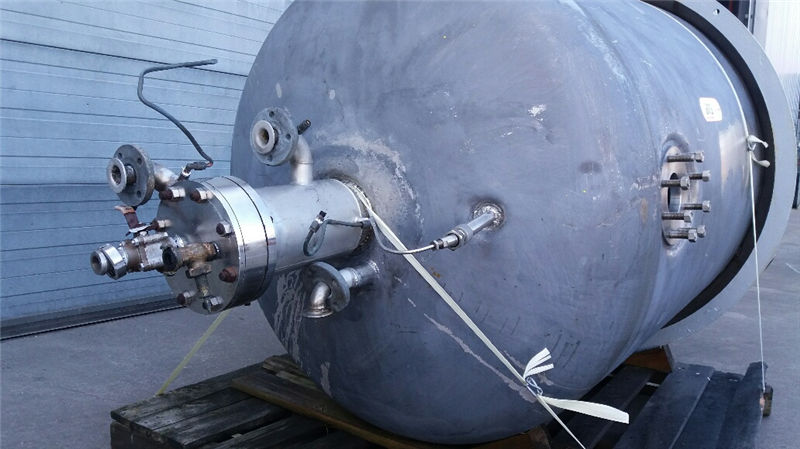

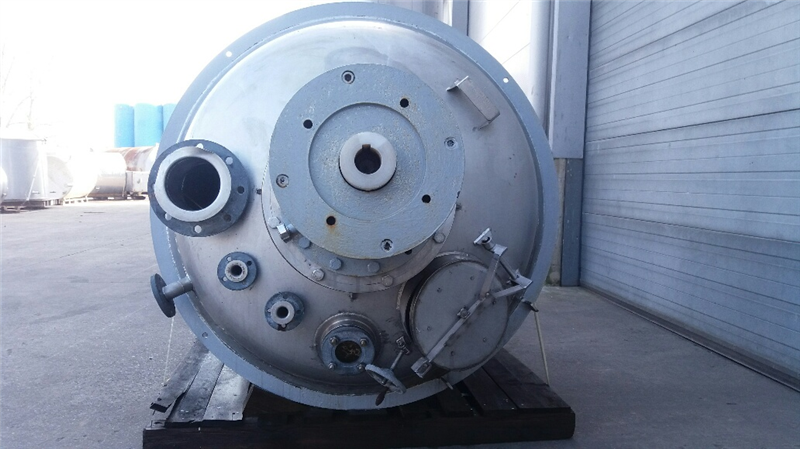

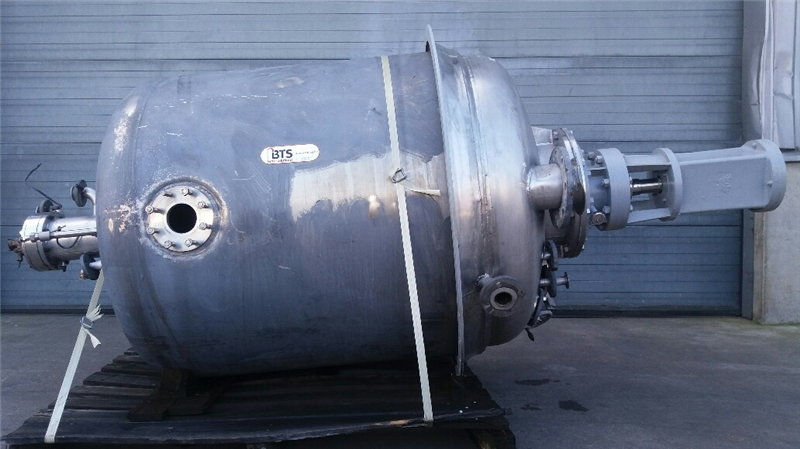

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 1500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 1500 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø320mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 800 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Appendix 1 | 0336BH01_materiaal_certificaat.pdf |
| Drawing 1 | t0336BH01.pdf |
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 10 |
| Total height (mm) | 3100 |
| Length (mm) | 1400 |
| Diameter tank (mm) | 1200 |
| Width (mm) | 1400 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |

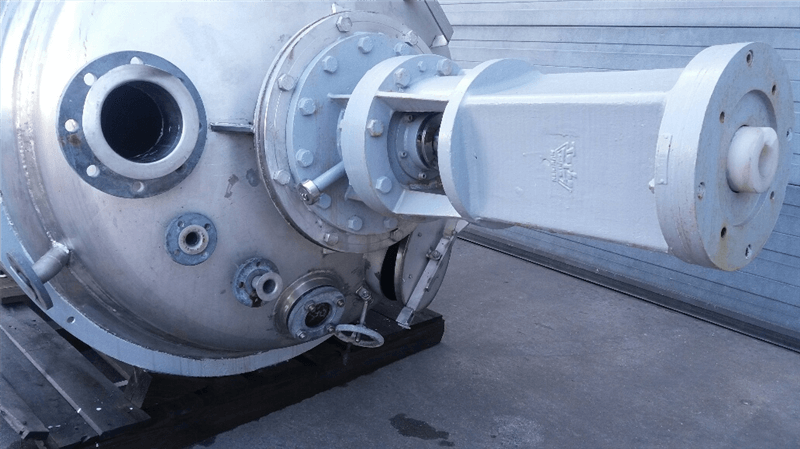

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 4 |
| Agitator 1: Material | Stainless steel 316 |

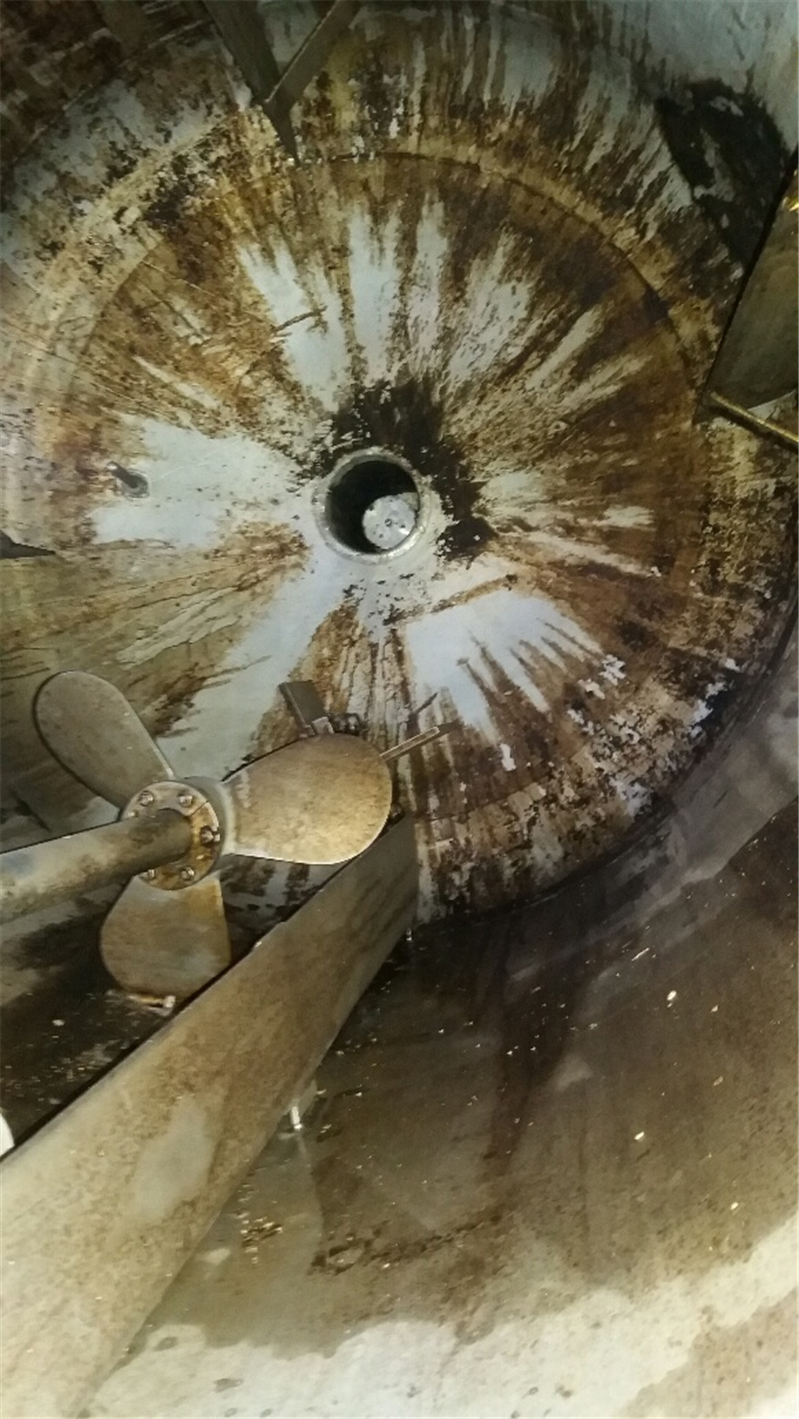

| Agitator 1: stirring element type | Propeller |
| Remarks | |
|---|---|
| Description (EN) | Motor no available |
