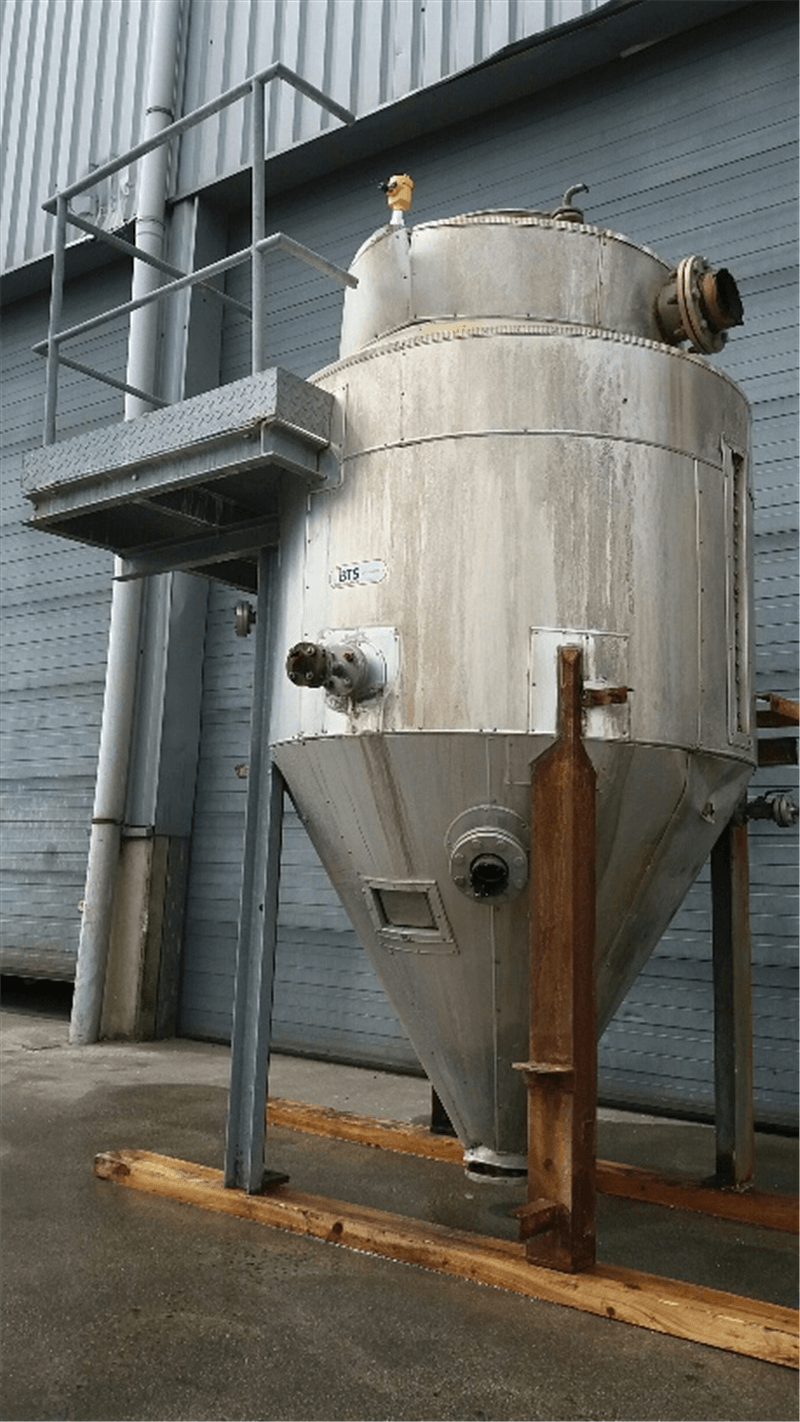

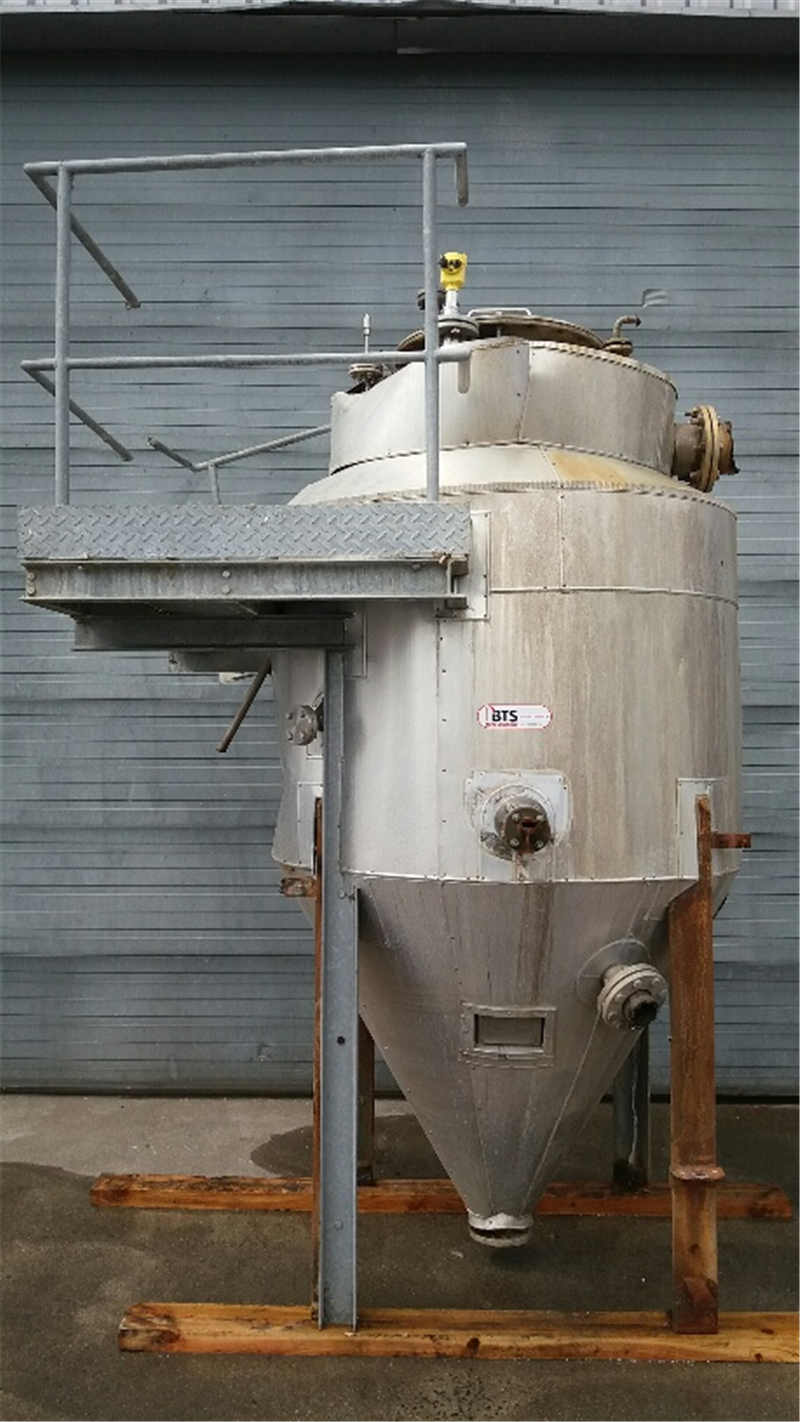

Used silo
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 2300 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.AG.08 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 2300 |
| Type tank | Silo |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø600 |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 1100 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka NV - Menen |
| Year Built | 1983 |
| Design Code | 303-S-2 - 332047 |
| Construction data available | No |
| Working temperature (° C) | 45 |
| Drawing 1 | 0336AG08.pdf |
.jpg)
.jpg)
.jpg)
.jpg)

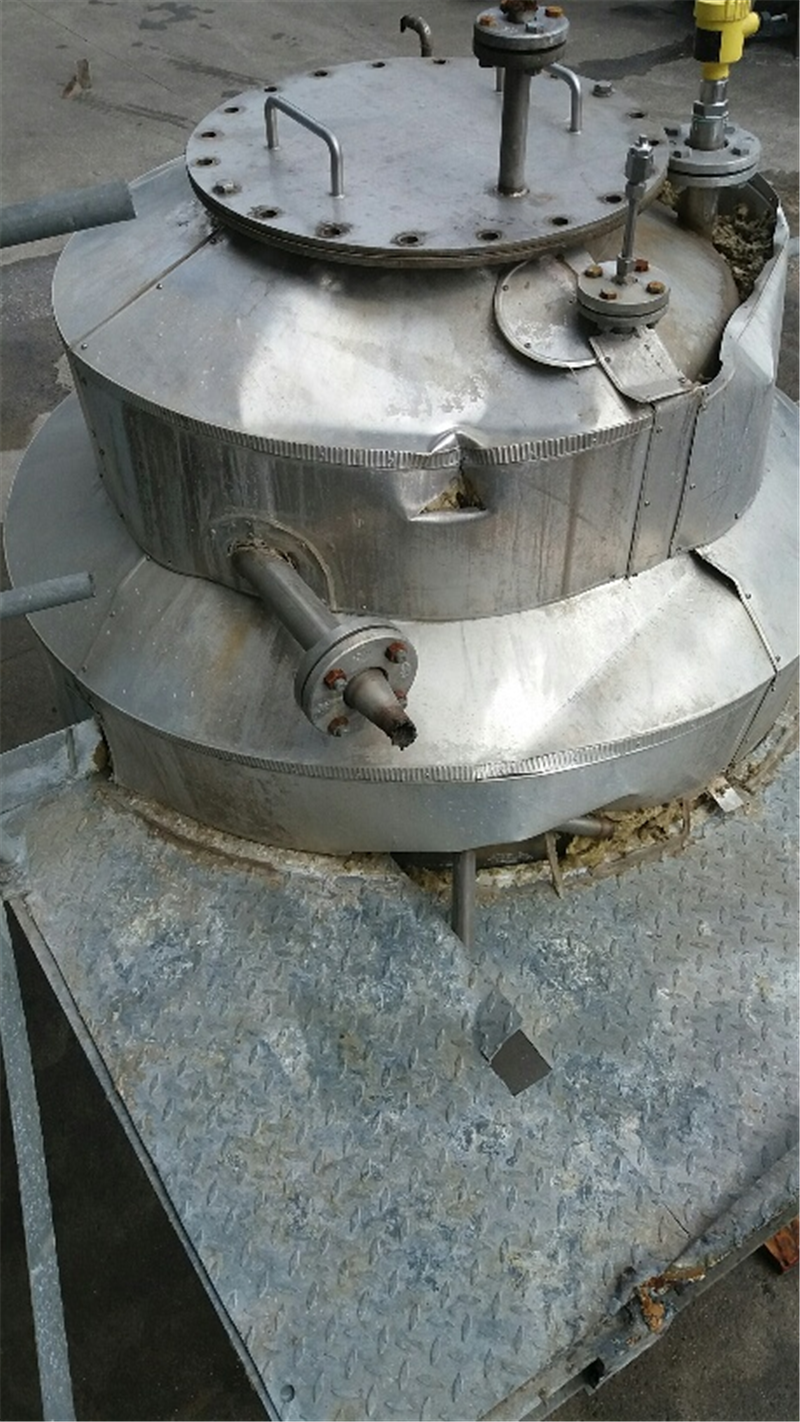

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Cylindrical length (mm) | 1000 |
| Height bottom (mm) | 1200 |
| Outside diameter tank (mm) | 1520 |
| Total height (mm) | 3200 |
| Length (mm) | 2100 |
| Diameter tank (mm) | 1400 |
| Width (mm) | 1950 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 60 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
