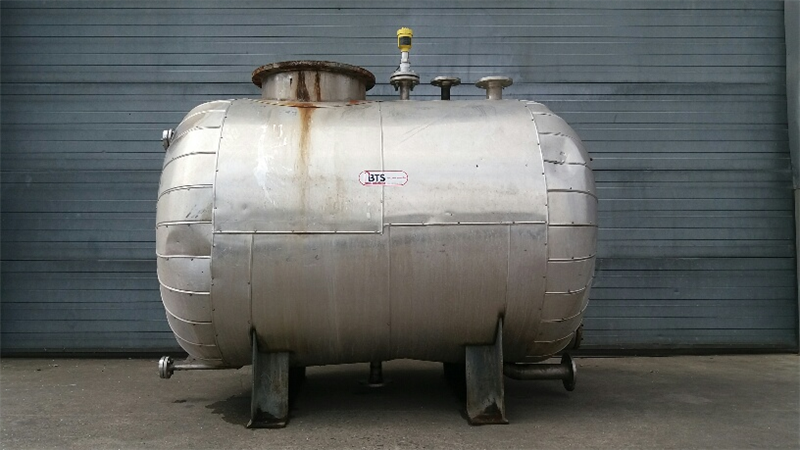

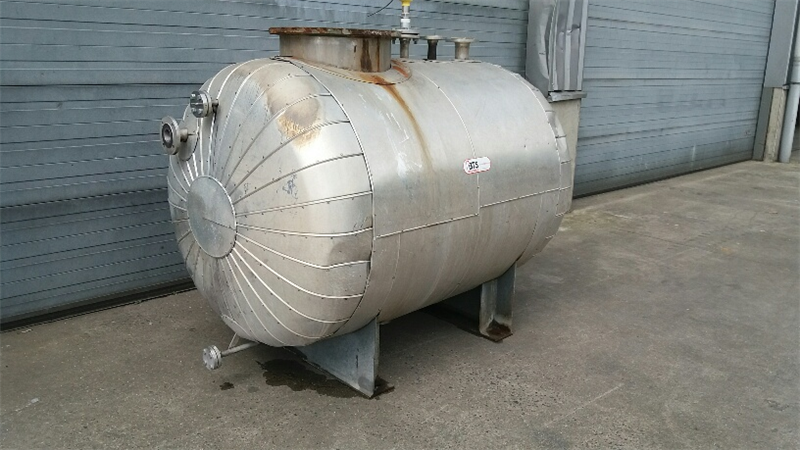

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1600 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.AG.06 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 1600 |
| Type tank | Storage tank |
| Fixation | cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

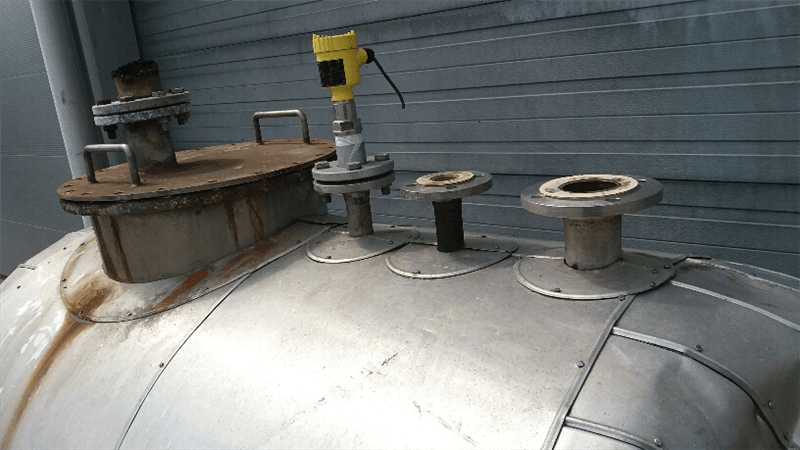

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø500 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 65 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka NV - Menen |
| Year Built | 1983 |
| Design Code | 332028-304-D-1 |
| Construction data available | No |
| Working temperature (° C) | 95 |
| Drawing 1 | 0336AG06.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Periphery (mm) | 3770 |
| Cylindrical length (mm) | 1400 |
| Outside diameter tank (mm) | 1290 |
| Total height (mm) | 1780 |
| Length (mm) | 2050 |
| Diameter tank (mm) | 1200 |
| Width (mm) | 1300 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 45 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
