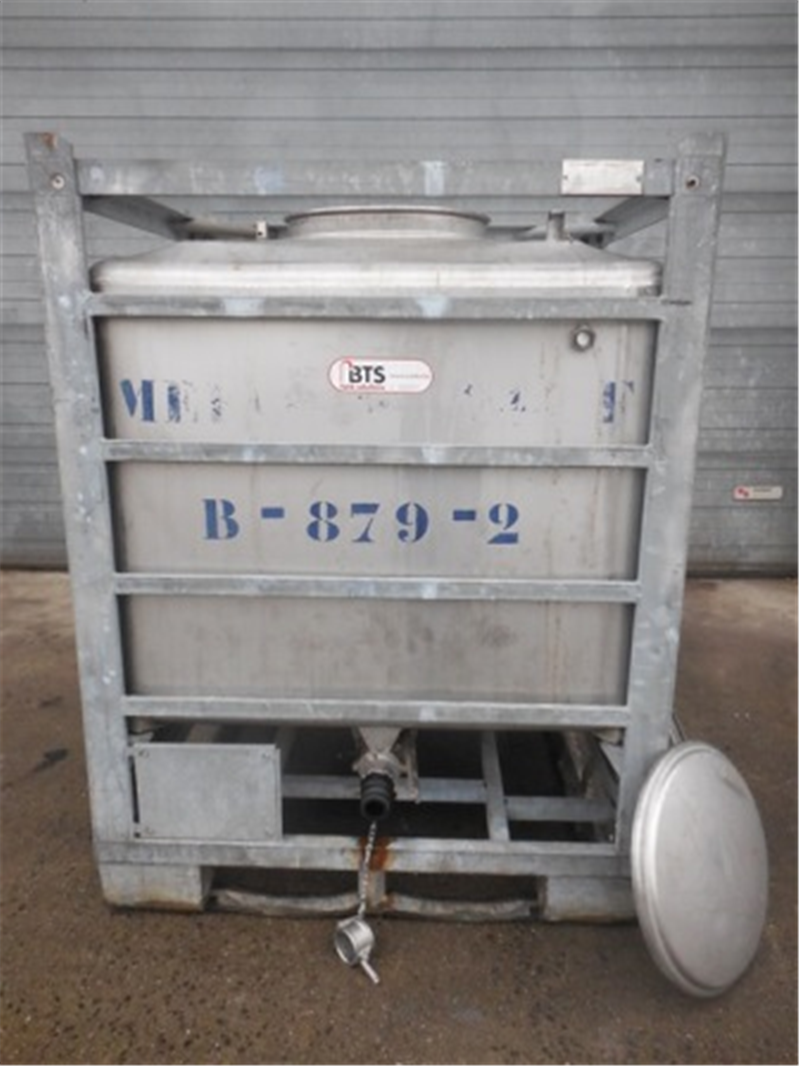

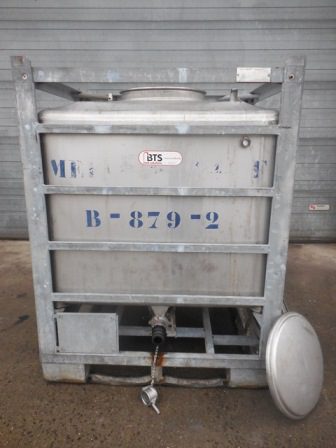

Used mobile tank/container
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1000 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | tank |
| Supplier | DMS - Venlo |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

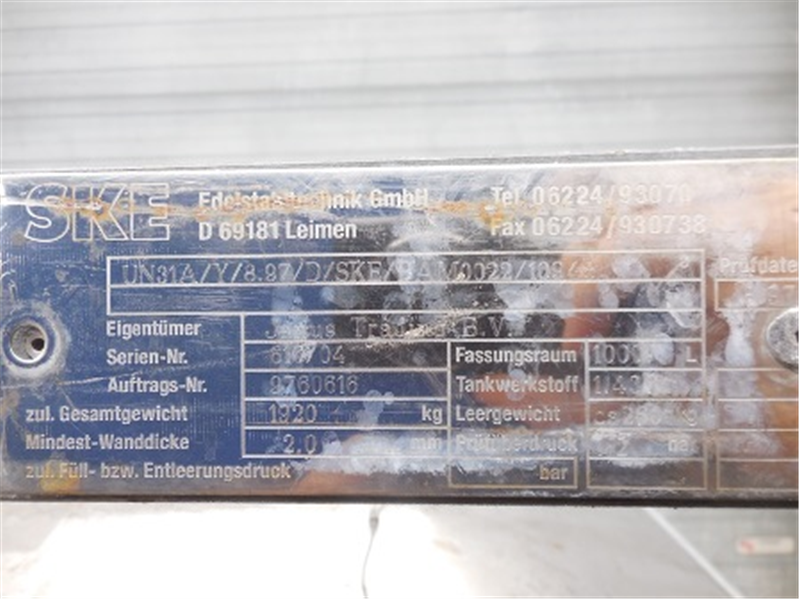

| Type plate manufacturer | Yes |
| Manufacturer | SKE |
| Year Built | 1997 |
| Design Code | UN31A/Y/8.97/D/SKE/BAM0022/1094 |
| Show Online? | Yes |
| Sticker | Yes |
| Tank | |
|---|---|
| Capacity (Liters) | 1000 |
| Type tank | Mobile tank/container |
| Max. Overpressure (example: 1.5 Barg) | 0.2 |
| Max. Overpressure (example: 1.5 Barg) | 0.2 |
| Max. Overpressure (example: 1.5 Barg) | 0.2 |
| Max. Overpressure (example: 1.5 Barg) | 0.2 |
| Max. Overpressure (example: 1.5 Barg) | 0.2 |
| Size | IBC container |
| Fixation | chassis |
| Model of the tank | Vertical |
| Shape of the tank | Rectangular/Square |

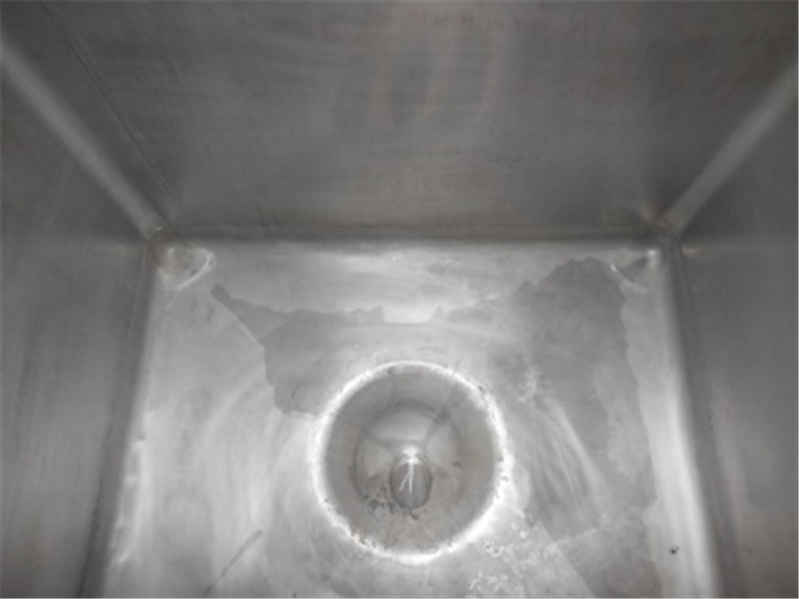

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |

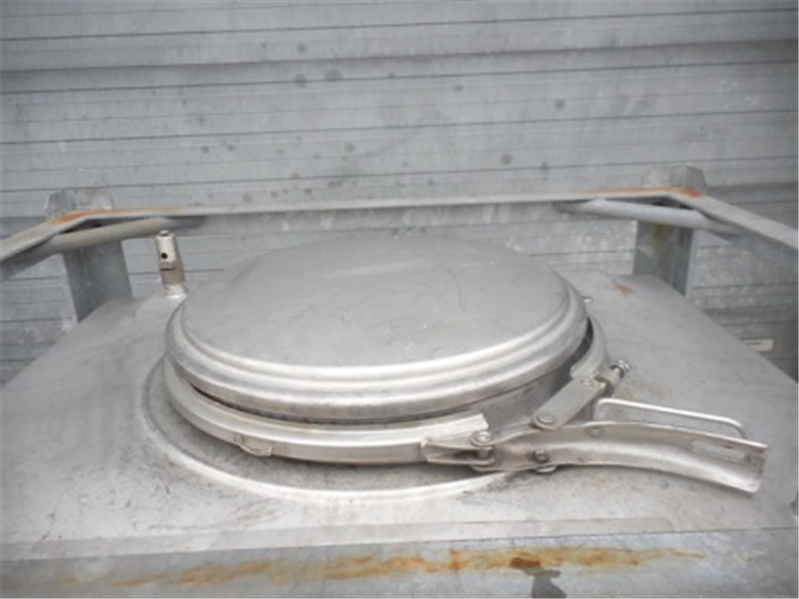

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø400 |
| Tank with total drain? | Yes |
| Type of outlet (s) | vlinderklep + kamelock |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Sector | 3-4 |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 2 |
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 2 |
| height bottom (mm) | 100 |
| height bottom (mm) | 100 |
| height bottom (mm) | 100 |
| Total height (mm) | 1700 |
| Length (mm) | 1230 |
| Width (mm) | 1030 |
| Top side | |
|---|---|

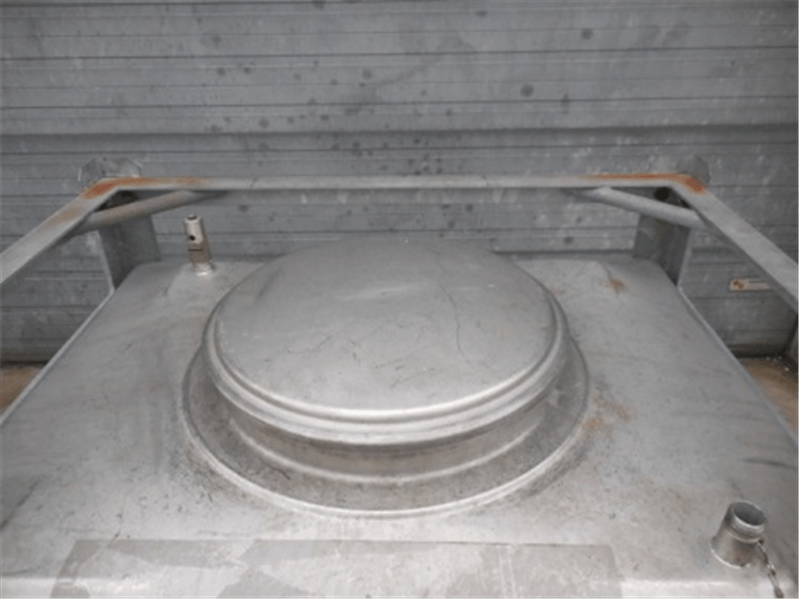

| Configuration top-side | Closed |
| Detail closed top side | Flat head |
